背景

在微服务背景下，docker的出现，给环境部署及运维减轻了不少的工作量，至于概念相关的东西这里不再讲解，该例子以Centos7系统作为讲解：

一.docker环境

1.卸载docker容器

$ sudo yum remove docker \\
                  docker-client \\
                  docker-client-latest \\
                  docker-common \\
                  docker-latest \\
                  docker-latest-logrotate \\
                  docker-logrotate \\
                  docker-engine

2.下载docker

1.安装工具包

sudo yum install -y yum-utils \\
  device-mapper-persistent-data \\
  lvm2

2.使用阿里云镜像

$ sudo yum-config-manager \\
    --add-repo \\
    http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

3.查看可安装的docker版本

yum list docker-ce --showduplicates | sort -r

4.安装docker

我这里以18.09.1为例

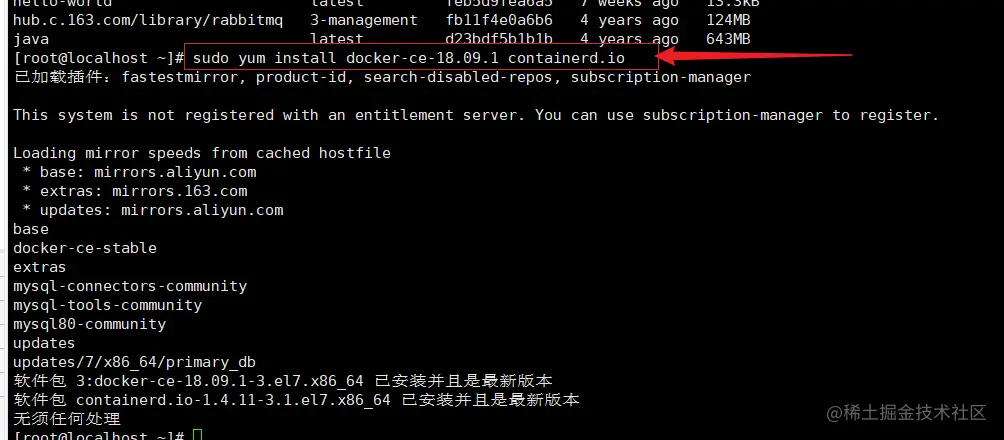

sudo yum install docker-ce-18.09.1 containerd.io


5.启动docker

$ sudo systemctl start docker

6.验证是否启动成功

$ sudo docker run hello-world

7. 卸载 docker

8.删除安装包：

yum remove docker-ce

9. 删除镜像、容器、配置文件等内容：

rm -rf /var/lib/docker

二.docker操作

1.docker开启远程访问

vim /lib/systemd/system/docker.service


[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
BindsTo=containerd.service
After=network-online.target firewalld.service
Wants=network-online.target
Requires=docker.socket

[Service]
Type=notify
# the default is not to use systemd for cgroups because the delegate issues still
# exists and systemd currently does not support the cgroup feature set required
# for containers run by docker
ExecStart=/usr/bin/dockerd -H tcp://0.0.0.0:2375 -H unix://var/run/docker.sock
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always

# Note that StartLimit* options were moved from "Service" to "Unit" in systemd 229.
# Both the old, and new location are accepted by systemd 229 and up, so using the old location
# to make them work for either version of systemd.
StartLimitBurst=3

# Note that StartLimitInterval was renamed to StartLimitIntervalSec in systemd 230.
# Both the old, and new name are accepted by systemd 230 and up, so using the old name to make
# this option work for either version of systemd.
StartLimitInterval=60s

# Having non-zero Limit*s causes performance problems due to accounting overhead
# in the kernel. We recommend using cgroups to do container-local accounting.
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity

# Comment TasksMax if your systemd version does not supports it.
# Only systemd 226 and above support this option.
TasksMax=infinity

# set delegate yes so that systemd does not reset the cgroups of docker containers
Delegate=yes

# kill only the docker process, not all processes in the cgroup
KillMode=process

[Install]
WantedBy=multi-user.target

2、重新加载配置文件

systemctl daemon-reload

3、重启Docker服务

systemctl restart docker

4、查看端口是否开启

netstat -nlpt

5、关闭防火墙

systemctl stop firewalld.service

6、禁止防火墙开机启动

systemctl disable firewalld.service

7、直接curl看看是否生效

curl http://127.0.0.1:2375/info

三、IDE配置及项目pom.xml 依赖

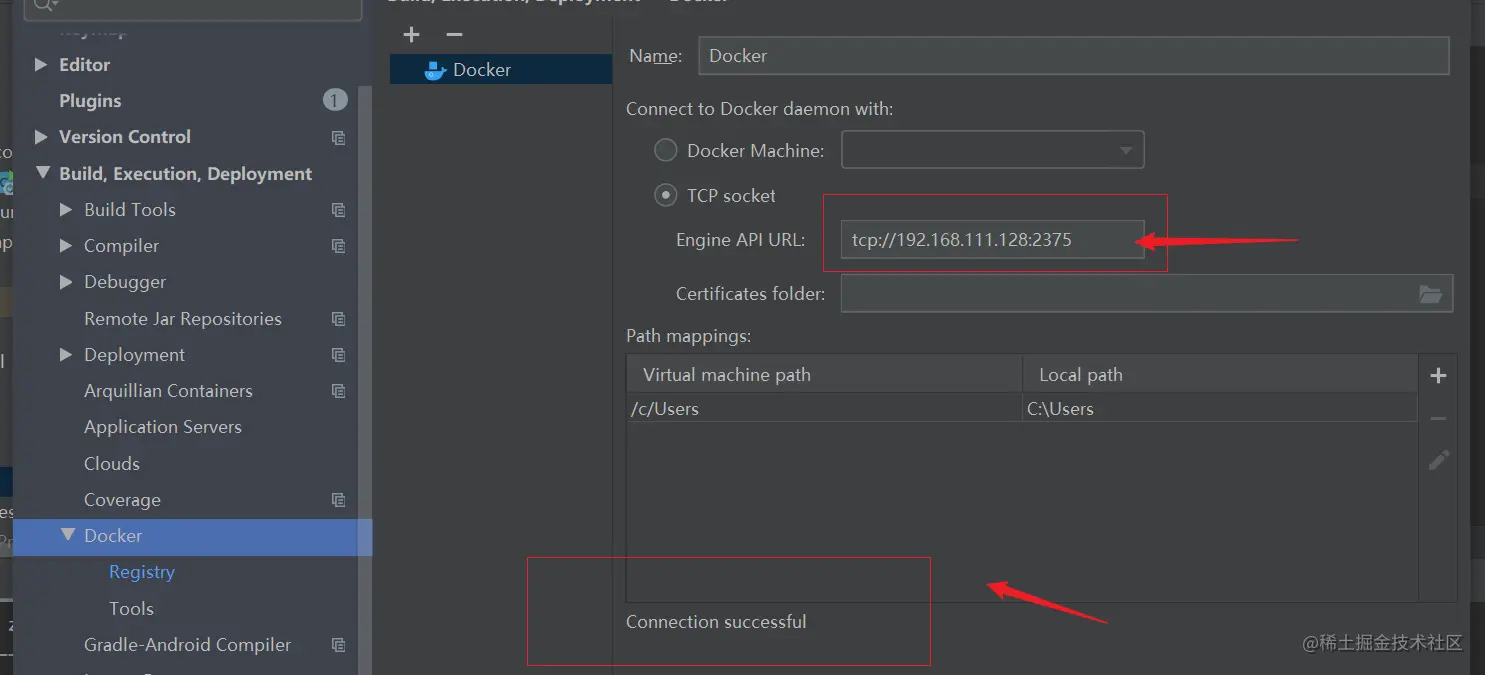

1.配置docker连接地址

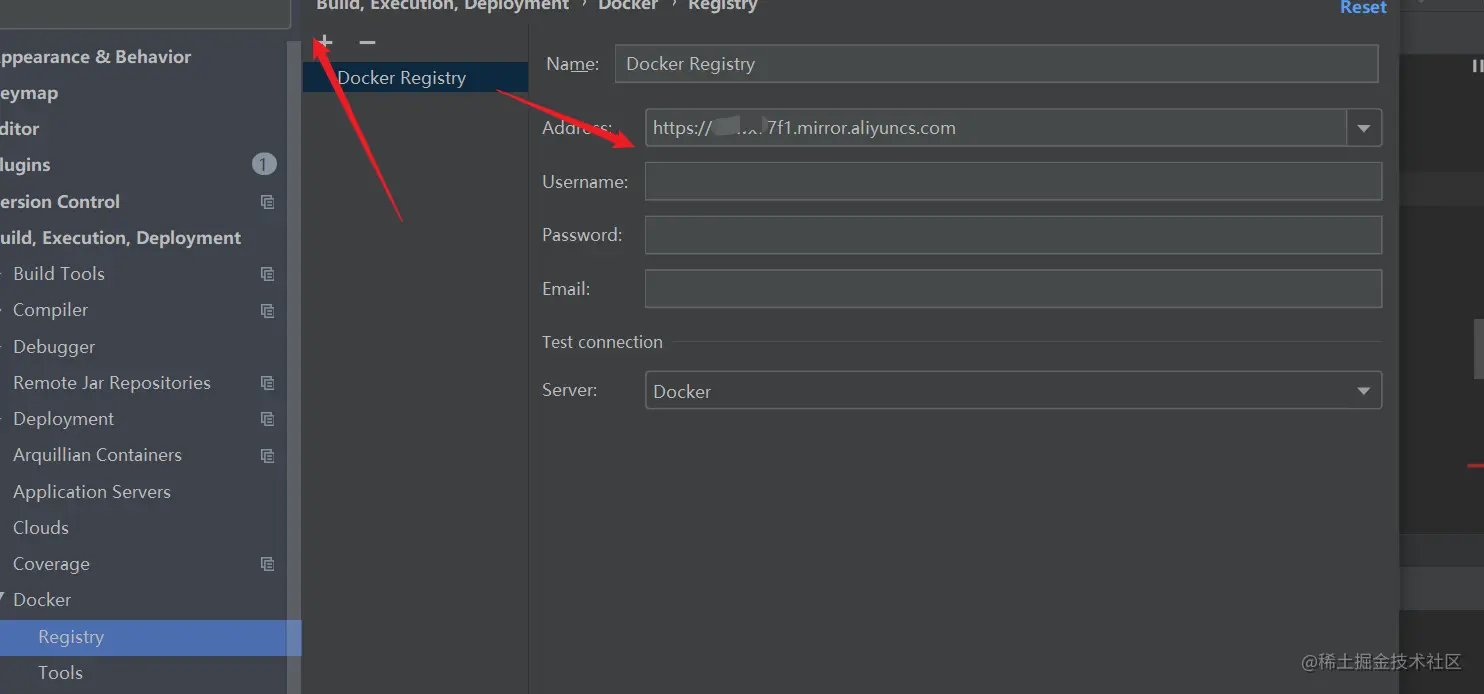

2.设置镜像代理地址

image.png 说明：这里可以申请个人镜像代理地址，输入地址：https://dev.aliyun.com/


3.添加docker依赖插件及配置

image.png pom.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.6</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>demo02</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo02</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <!-- Docker镜像上传的用户名 -->
        <docker.image.prefix>guoxx</docker.image.prefix>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>RELEASE</version>
            <scope>compile</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
            <groupId>com.spotify</groupId>
            <artifactId>docker-maven-plugin</artifactId>
            <version>1.0.0</version>
            <configuration>
                <!-- 镜像名称 -->
                <imageName>${docker.image.prefix}/${project.artifactId}</imageName>
                <!-- 指定标签 -->
                <imageTags>
                    <imageTag>latest</imageTag>
                </imageTags>
                <!-- 基础镜像版本JDK1.8 -->
                <baseImage>java</baseImage>
                <!-- 作者本人信息 -->
                <maintainer>553605867@qq.com</maintainer>
                <!-- 切换到ROOT目录 -->
                <workdir>/ROOT</workdir>
                <cmd>["java", "-version"]</cmd>
                <entryPoint>["java", "-jar", "${project.build.finalName}.jar"]</entryPoint>

                <!-- 指定 DockerFile路径 -->
                <!-- <dockerDirectory>${project.basedir}/src/main/docker</dockerDirectory>-->
                <!-- 指定远程 Docker api地址 -->
                <dockerHost>http://192.168.111.128:2375</dockerHost>

                <!-- 复制Jar包到指定的Docker容器 -->
                <resources>
                    <resource>
                        <targetPath>/ROOT</targetPath>
                        <!-- 用于指定用于复制的根目录 -->
                        <directory>${project.build.directory}</directory>
                        <!-- 用于指定需要复制的文件 -->
                        <include>${project.build.finalName}.jar</include>
                    </resource>
                </resources>
            </configuration>
            <executions>
                <!-- 当执行maven package时执行maven clean package：build-->
                <execution>
                    <id>build-image</id>
                    <phase>package</phase>
                    <goals>
                        <goal>build</goal>
                    </goals>
                </execution>
            </executions>
        </plugin>
        </plugins>
    </build>

</project>

4.实例代码

@SpringBootApplication
@RestController
public class Demo02Application {

    public static void main(String[] args) {
        SpringApplication.run(Demo02Application.class, args);
    }

    @GetMapping("/index")
    public String index() {
        return "hello world";
    }
}

5.镜像文件打包

执行mvn clean package docker:build命令打包，并且会自动将打包后的镜像文件上传到云服务docker容器中。

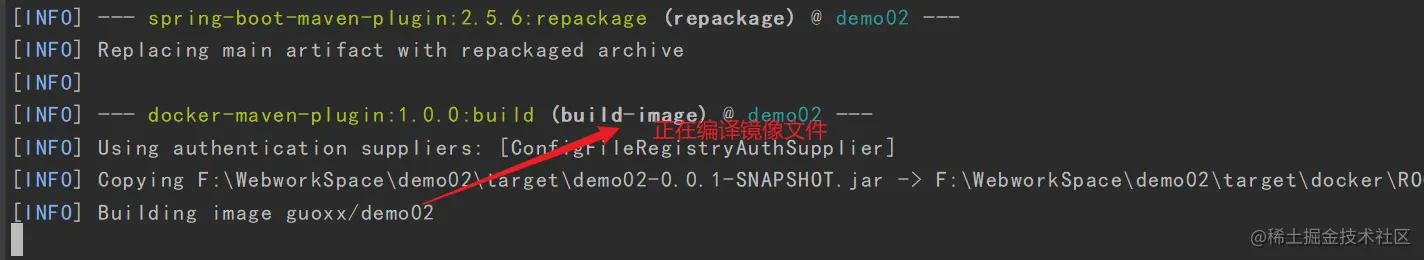

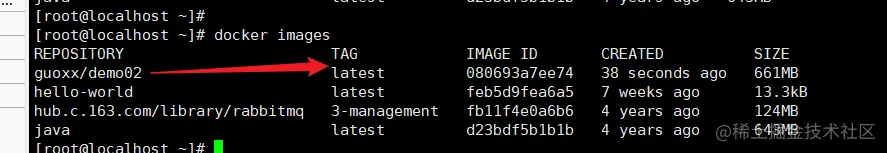

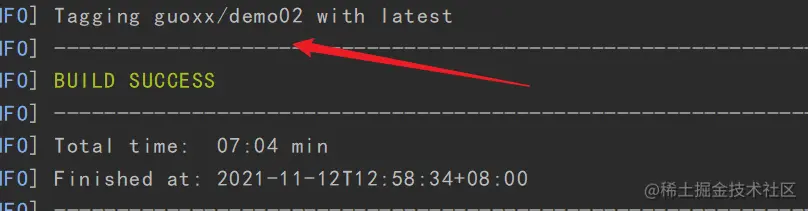

image.png 说明：镜像编译成功，然后回到云服务上用docker images查看当前镜像是否上传成功


6.docker容器中执行镜像文件

执行命令：docker run --name test -d -p 8081:8081 guoxx/demo02:latest

说明:

   --name test  将名称设置为test

    -d -p 8081:8081   将外网端口映射为容器里面的端口

    guoxx/demo02:latest 容器名称及版本号


7.查看docker容器运行进程

执行 docker ps查看当前容器运行情况

image.png docker ps -a 查看当前容器全部运行情况

8.测试

在地址栏输入http://192.168.111.128:8081/index,返回为helloworld表示部署正常


四、总结

以上就是对docker在线部署的一些操作，其他命令可以下来自己操作，不再详细举例说明！
