Netty4源码初学习-客户端连接

219 阅读2分钟

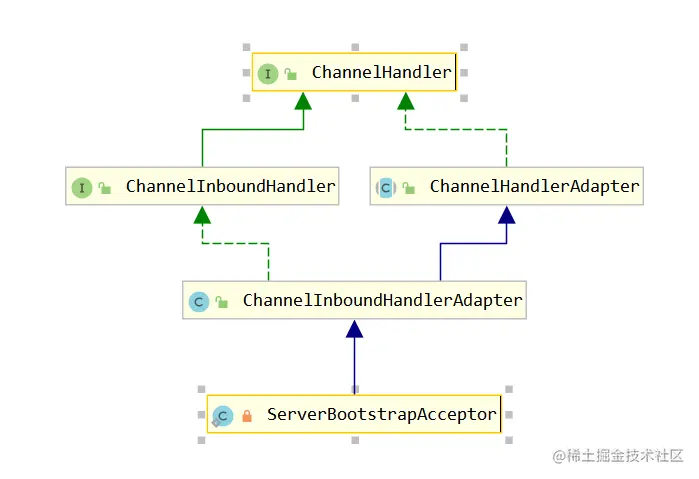

在上篇文章中,分析了启动的流程,遗留一个内部类ServerBootstrapAcceptor,


这个类其实是一个inBound,我们服务器启动的eveentloop线程会回调其channelRead方法

@Override
@SuppressWarnings("unchecked")
public void channelRead(ChannelHandlerContext ctx, Object msg) {
    final Channel child = (Channel) msg;

    child.pipeline().addLast(childHandler);

    for (Entry<ChannelOption<?>, Object> e: childOptions) {
        try {
            if (!child.config().setOption((ChannelOption<Object>) e.getKey(), e.getValue())) {
                logger.warn("Unknown channel option: " + e);
            }
        } catch (Throwable t) {
            logger.warn("Failed to set a channel option: " + child, t);
        }
    }

    for (Entry<AttributeKey<?>, Object> e: childAttrs) {
        child.attr((AttributeKey<Object>) e.getKey()).set(e.getValue());
    }

    try {
    //这里看到的代码和服务端注册异曲同工
    //此处是按照顺序遍历获取eventloop,保证一个客户端channel对应一个eventloop
        childGroup.register(child).addListener(new ChannelFutureListener() {
            @Override
            public void operationComplete(ChannelFuture future) throws Exception {
                if (!future.isSuccess()) {
                    forceClose(child, future.cause());
                }
            }
        });
    } catch (Throwable t) {
        forceClose(child, t);
    }
}

这部分代码得结合服务端启动的代码才更好理解,在服务端启动中,我们eventloop开启了一个线程,这个线程执行代码的关键逻辑如下,是个死循环:

@Override
protected void run() {
    for (;;) {
        try {
            switch (selectStrategy.calculateStrategy(selectNowSupplier, hasTasks())) {
                case SelectStrategy.CONTINUE:
                    continue;
                case SelectStrategy.SELECT:
                    select(wakenUp.getAndSet(false));

                    if (wakenUp.get()) {
                        selector.wakeup();
                    }
                default:
                    // fallthrough
            }

            cancelledKeys = 0;
            needsToSelectAgain = false;
            final int ioRatio = this.ioRatio;
            //此处就是监听io和执行任务cpu分配时间占比
            if (ioRatio == 100) {
                try {
                    processSelectedKeys();
                } finally {
                    // Ensure we always run tasks.
                    runAllTasks();
                }
            } else {
                final long ioStartTime = System.nanoTime();
                try {
                    processSelectedKeys();
                } finally {
                    // Ensure we always run tasks.
                    final long ioTime = System.nanoTime() - ioStartTime;
                    runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
                }
            }
        } catch (Throwable t) {
            handleLoopException(t);
        }
        // Always handle shutdown even if the loop processing threw an exception.
        try {
            if (isShuttingDown()) {
                closeAll();
                if (confirmShutdown()) {
                    return;
                }
            }
        } catch (Throwable t) {
            handleLoopException(t);
        }
    }
}

ioTime/taskTime = ioRatio/(100-ioRatio);

ioTime: 监听客户端io时间花费的时间 taskTime: 任务执行花费时间 ioRatio:监听客户端io时间占比 (100-ioRatio):任务执行时间占比

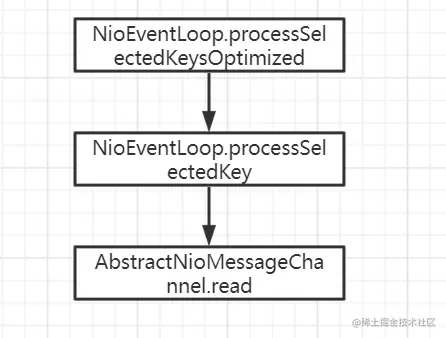

按照下面的流程一路追踪,就能找到ServerBootstrapAcceptor的channelRead被执行


read方法如下:

  @Override
    public void read() {
        assert eventLoop().inEventLoop();
        final ChannelConfig config = config();

        **//服务端pipeline**
        final ChannelPipeline pipeline = pipeline();
        final RecvByteBufAllocator.Handle allocHandle = unsafe().recvBufAllocHandle();
        allocHandle.reset(config);

        boolean closed = false;
        Throwable exception = null;
        try {
            try {
                do {
                    int localRead = doReadMessages(readBuf);
                    if (localRead == 0) {
                        break;
                    }
                    if (localRead < 0) {
                        closed = true;
                        break;
                    }

                    allocHandle.incMessagesRead(localRead);
                } while (allocHandle.continueReading());
            } catch (Throwable t) {
                exception = t;
            }

            int size = readBuf.size();
            for (int i = 0; i < size; i ++) {
                readPending = false;
             //此处是关键,会回调添加到pipechannel的handler,当前就剩ServerBootstrapAcceptor这一个自定义业务
                pipeline.fireChannelRead(readBuf.get(i));
            }
            readBuf.clear();
            allocHandle.readComplete();
            pipeline.fireChannelReadComplete();

            if (exception != null) {
                closed = closeOnReadError(exception);

                pipeline.fireExceptionCaught(exception);
            }

            if (closed) {
                inputShutdown = true;
                if (isOpen()) {
                    close(voidPromise());
                }
            }
        } finally {
            // Check if there is a readPending which was not processed yet.
            // This could be for two reasons:
            // * The user called Channel.read() or ChannelHandlerContext.read() in channelRead(...) method
            // * The user called Channel.read() or ChannelHandlerContext.read() in channelReadComplete(...) method
            //
            // See https://github.com/netty/netty/issues/2254
            if (!readPending && !config.isAutoRead()) {
                removeReadOp();
            }
        }
    }
}

在ServerBootstrapAcceptor的read方法中,和服务端注册差不多,只不过channel由服务端channel,即serverSocketChannel变为客户端channenl,即socketChannel

只不过这里的区别是,会有多个线程池(exccutor)执行客户端socket的请求,每个线程池的就一个线程, 可以理解我多线程,我理解,采用线程池,可以通知根据线程池状态来控制线程的创建,这里是通过CAS来防止并发。

SingleThreadEventExecutor

private void startThread() {
//此处根据状态决定是否重新创建新线程
    if (STATE_UPDATER.get(this) == ST_NOT_STARTED) {
        if (STATE_UPDATER.compareAndSet(this, ST_NOT_STARTED, ST_STARTED)) {
            doStartThread();
        }
    }
}
