Druid原理学习

导言:

​ 项目中使用了flink+mybatis+druid来进行持久化,但是目前的使用方法很粗糙:每个算子实例都有一个sqlSessionFactory,实际上造成了资源的很大浪费, 初始化SqlSessionFactory 的方法类似于SqlSessionFactory initSqlSessionFactory(Set mapperXmls, DataSource dataSource). 实际上这样子flink的每个算子实例(每一个并行度算子实例)都有一个连接池,处理数据的时候都是从自己的连接池中取连接,并没有共享这个连接池创建的连接,利用率很低.

​ 于是决定趁此机会好好了解下连接池druid,进一步思考下怎么优化目前在flink上的使用.

一、Druid + H2数据库使用例子

​ 本文将结合H2数据库 ，先简单介绍用Druid连接池如何实现数据库的简单操作。test1()是利用druid连接池来insert到数据库中，test2()是用原生的jdbc来insert。可以看到其实大体使用上没有差别很多。主要都是几步：1）初始化密码连接等 2）获取connection 3）利用connection获取preparestatement。 4）执行statement 5）statement关闭 6）connection关闭

public class TestDruidDataSourceH2DB {
    public static String insertSql = "INSERT INTO TEST VALUES(\'%s\', 'World')";

    public static void test1() throws SQLException {
        DruidDataSource dataSource = new DruidDataSource();
        String pwd = "";
        String user = "sa";
        String url = "jdbc:h2:tcp://localhost/~/test";
        String driverName = "org.h2.Driver";

        //配置数据库基本四项，创建连接，初始化连接池容器
        dataSource.setDriverClassName(driverName);
        dataSource.setUrl(url);
        dataSource.setUsername(user);
        dataSource.setPassword(pwd);

        // 指定初始化个数
        dataSource.setInitialSize(5);
		// 指定最大个数
        dataSource.setMaxActive(100);
		// 指定低峰期个数
        dataSource.setMinIdle(20);
		// 指定等待时间
        dataSource.setMaxWait(3000);

		// 从连接池中获得连接对象
        Connection connection = dataSource.getConnection();
        System.out.println(connection);

        insert(connection);

		// 归还到连接池
        connection.close(); // 此对象是druid提供的子类，实现了对close方法的增强，不再是销毁对象，而是归还到连接池
    }

    public static void insert(Connection connection) throws SQLException {
        String id = "id";
        String id_numeric = String.valueOf(System.currentTimeMillis());
        System.out.println("description :" + id_numeric);

        String provinceId = "provinceId";
        String cityName = "cityName";

        String insert = String.format(insertSql, id_numeric);
        // 获取statement
        PreparedStatement preparedStatement = connection.prepareStatement(insert);

        preparedStatement.execute();

        preparedStatement.close();

    }

    public static void test2() {
        Connection conn = null;
        Statement stmt = null;

        String pwd = "";
        String user = "sa";
        String url = "jdbc:h2:tcp://localhost/~/test";
        String driverName = "org.h2.Driver";
        try {
            Class.forName(driverName);

            conn = DriverManager.getConnection(url, user, pwd);
            insert(conn);
            conn.close();
        } catch (Exception exception) {
            exception.printStackTrace();
        }
    }

    public static void main(String[] args) throws SQLException {
        test1();
    }
}

二、DruidDataSource的主要方法和属性

Druid核心的逻辑在类DruidDataSource中，从上面的两个例子也可以看出来，大部分代码都是相同的，就是从获取connection的方式那里开始不一样而已。Druid获取连接的方法：

 Connection connection = dataSource.getConnection();

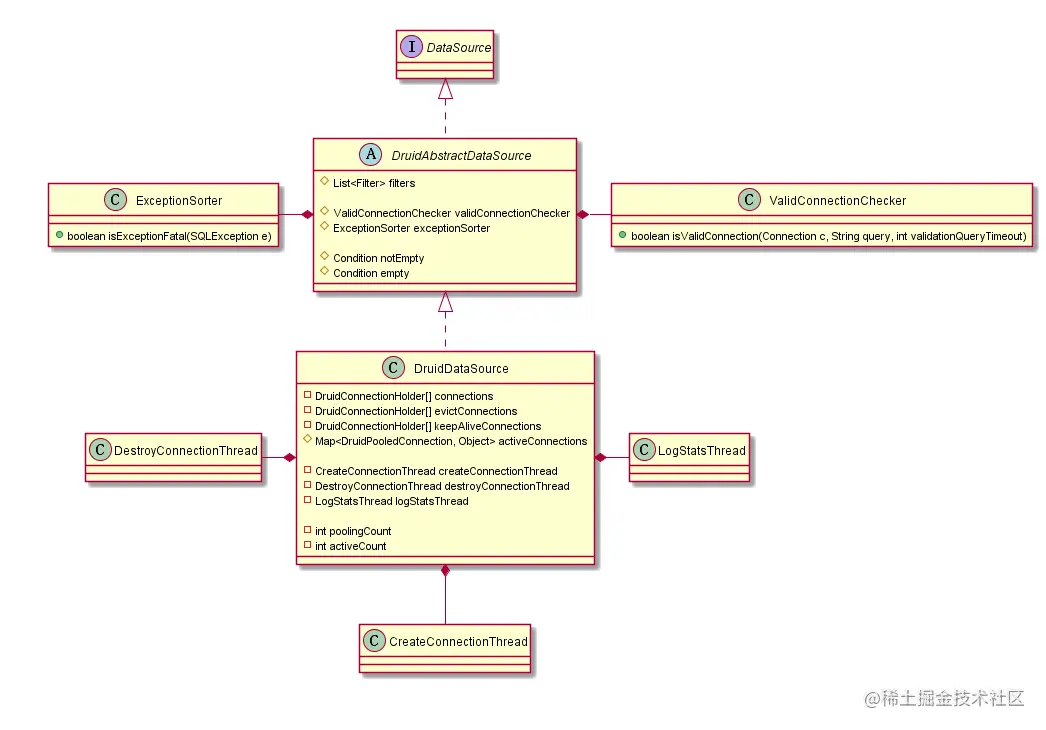

下图是DruidDataSource主要类继承结构及成员变量和方法。

类名或属性名	描述
ExceptionSorter	用于判断SQLException对象是否致命异常
ValidConnectionChecker	用于校验指定连接对象是否有效
CreateConnectionThread	DruidDataSource的内部类，用于异步创建连接对象
notEmpty	调用notEmpty.await()时，当前线程进入等待；当连接创建完成或者回收了连接，会调用notEmpty.signal()时，将等待线程唤醒；
empty	调用empty.await()时，CreateConnectionThread进入等待；调用empty.signal()时，CreateConnectionThread被唤醒，并进入创建连接；
DestroyConnectionThread	DruidDataSource的内部类，用于异步检验连接对象，包括校验空闲连接的phyTimeoutMillis、minEvictableIdleTimeMillis，以及校验借出连接的removeAbandonedTimeoutMillis
LogStatsThread	DruidDataSource的内部类，用于异步记录统计信息
connections	用于存放所有连接对象
evictConnections	用于存放需要丢弃的连接对象
keepAliveConnections	用于存放需要keepAlive的连接对象
activeConnections	用于存放需要进行removeAbandoned的连接对象
poolingCount	空闲连接对象的数量
activeCount	借出连接对象的数量

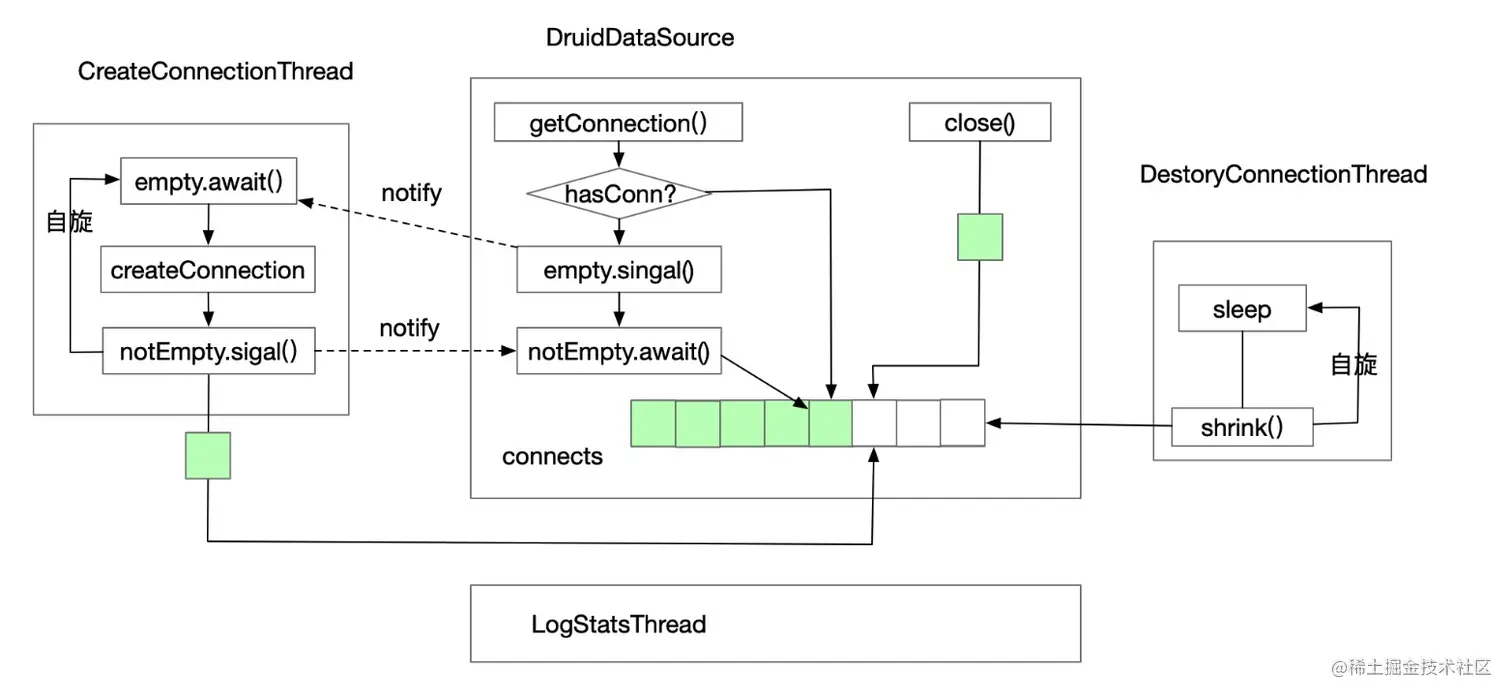

另外，DruidDatasource类总体的工作流程大致如下：

三、Druid获取连接，执行sql流程

下面会针对上面用到的测试例子代讲解下DruidDataSource的大概运行原理

public static void test1() throws SQLException {
              DruidDataSource dataSource = new DruidDataSource();
        String pwd = "";
        String user = "sa";
        String url = "jdbc:h2:tcp://localhost/~/test";
        String driverName = "org.h2.Driver";

        //配置数据库基本四项，创建连接，初始化连接池容器
        dataSource.setDriverClassName(driverName);
        dataSource.setUrl(url);
        dataSource.setUsername(user);
        dataSource.setPassword(pwd);

        // 指定初始化个数
        //dataSource.setInitialSize(0);
        // 指定最大个数
        dataSource.setMaxActive(100);
        // 指定低峰期个数
        dataSource.setMinIdle(20);
        // 指定等待时间
        dataSource.setMaxWait(3000);

        //设定初始化连接数量
        dataSource.setInitialSize(2);

        // 从连接池中获得连接对象
        Connection connection = dataSource.getConnection();
        System.out.println(connection);

        insert(connection);

        // 归还到连接池
        connection.close(); // 此对象是druid提供的子类，实现了对close方法的增强，不再是销毁对象，而是归还到连接池
    }

总的来说只是初始化变量多一点。后面会补充一些重要参数的作用说明。

3.1 DruidDataSource的构造函数

// 客户端新建一个DruidDataSource实例
DruidDataSource dataSource = new DruidDataSource();

​

	//DruidDataSource构造函数
    public DruidDataSource(){
        this(false);
    }

    public DruidDataSource(boolean fairLock){
        super(fairLock);

        // 从System配置中初始化一些变量
        configFromPropety(System.getProperties());
    }

​

   super(fairLock)调用的是父类的构造方法

   public DruidAbstractDataSource(boolean lockFair){
   		//初始化
        lock = new ReentrantLock(lockFair);

        //初始化两个Condition类。用于同步CreateConnectionThread 和 DestroyConnectionThread
        notEmpty = lock.newCondition();
        empty = lock.newCondition();
    }

3.2 从连接池中获取连接对象

// 从连接池中获得连接对象
Connection connection = dataSource.getConnection();

@Override
public DruidPooledConnection getConnection() throws SQLException {
    return getConnection(maxWait);
}

@Override
public DruidPooledConnection getConnection() throws SQLException {
    return getConnection(maxWait);
}

 public DruidPooledConnection getConnection(long maxWaitMillis) throws SQLException {
        init();

        if (filters.size() > 0) {
            FilterChainImpl filterChain = new FilterChainImpl(this);
            return filterChain.dataSource_connect(this, maxWaitMillis);
        } else {
            return getConnectionDirect(maxWaitMillis);
        }
    }

3.2.1 init() 方法

public void init() throws SQLException {
    if (inited) {
        return;
    }

    // 注册驱动driver
    DruidDriver.getInstance();

    // 获取锁
    final ReentrantLock lock = this.lock;
    try {
        lock.lockInterruptibly();
    } catch (InterruptedException e) {
        throw new SQLException("interrupt", e);
    }

    boolean init = false;
    try {
        if (inited) {
            return;
        }

        initStackTrace = Utils.toString(Thread.currentThread().getStackTrace());

        // 这里使用了AtomicLongFieldUpdater来进行原子更新，保证了写的安全和读的高效
        this.id = DruidDriver.createDataSourceId();
        if (this.id > 1) {
            long delta = (this.id - 1) * 100000;
            this.connectionIdSeedUpdater.addAndGet(this, delta);
            this.statementIdSeedUpdater.addAndGet(this, delta);
            this.resultSetIdSeedUpdater.addAndGet(this, delta);
            this.transactionIdSeedUpdater.addAndGet(this, delta);
        }

        // 根据url前缀，确定dbType
        if (this.jdbcUrl != null) {
            this.jdbcUrl = this.jdbcUrl.trim();
            // 针对druid自定义的一种url格式，进行解析
            // jdbc:wrap-jdbc:开头，可设置driver、name、jmx等
            initFromWrapDriverUrl();
        }

        // 初始化过滤器。后面会讲解如何使用filter进行？？？？
        for (Filter filter : filters) {
            filter.init(this);
        }

        if (this.dbTypeName == null || this.dbTypeName.length() == 0) {
            this.dbTypeName = JdbcUtils.getDbType(jdbcUrl, null);
        }

        DbType dbType = DbType.of(this.dbTypeName);
        if (dbType == DbType.mysql
                || dbType == DbType.mariadb
                || dbType == DbType.oceanbase
                || dbType == DbType.ads) {
            boolean cacheServerConfigurationSet = false;
            if (this.connectProperties.containsKey("cacheServerConfiguration")) {
                cacheServerConfigurationSet = true;
            } else if (this.jdbcUrl.indexOf("cacheServerConfiguration") != -1) {
                cacheServerConfigurationSet = true;
            }
            if (cacheServerConfigurationSet) {
                this.connectProperties.put("cacheServerConfiguration", "true");
            }
        }

        //参数校验
        if (maxActive <= 0) {
            throw new IllegalArgumentException("illegal maxActive " + maxActive);
        }

        if (maxActive < minIdle) {
            throw new IllegalArgumentException("illegal maxActive " + maxActive);
        }

        if (getInitialSize() > maxActive) {
            throw new IllegalArgumentException("illegal initialSize " + this.initialSize + ", maxActive " + maxActive);
        }

        if (timeBetweenLogStatsMillis > 0 && useGlobalDataSourceStat) {
            throw new IllegalArgumentException("timeBetweenLogStatsMillis not support useGlobalDataSourceStat=true");
        }

        if (maxEvictableIdleTimeMillis < minEvictableIdleTimeMillis) {
            throw new SQLException("maxEvictableIdleTimeMillis must be grater than minEvictableIdleTimeMillis");
        }

        if (keepAlive && keepAliveBetweenTimeMillis <= timeBetweenEvictionRunsMillis) {
            throw new SQLException("keepAliveBetweenTimeMillis must be grater than timeBetweenEvictionRunsMillis");
        }
         //参数校验
        if (this.driverClass != null) {
            this.driverClass = driverClass.trim();
        }
        //采用SPI机制加载过滤器，这部分过滤器除了放入filters，还会放入autoFilters
        initFromSPIServiceLoader();

        resolveDriver();

        initCheck();

        initExceptionSorter();
        initValidConnectionChecker();
        validationQueryCheck();

        if (isUseGlobalDataSourceStat()) {
            dataSourceStat = JdbcDataSourceStat.getGlobal();
            if (dataSourceStat == null) {
                dataSourceStat = new JdbcDataSourceStat("Global", "Global", this.dbTypeName);
                JdbcDataSourceStat.setGlobal(dataSourceStat);
            }
            if (dataSourceStat.getDbType() == null) {
                dataSourceStat.setDbType(this.dbTypeName);
            }
        } else {
            // 用于监控sql。但是有内存泄漏的风险 参考：https://segmentfault.com/a/1190000021636834
            dataSourceStat = new JdbcDataSourceStat(this.name, this.jdbcUrl, this.dbTypeName, this.connectProperties);
        }
        dataSourceStat.setResetStatEnable(this.resetStatEnable);

        connections = new DruidConnectionHolder[maxActive];
        evictConnections = new DruidConnectionHolder[maxActive];
        keepAliveConnections = new DruidConnectionHolder[maxActive];

        SQLException connectError = null;

        if (createScheduler != null && asyncInit) {
            for (int i = 0; i < initialSize; ++i) {
                submitCreateTask(true);
            }
        } else if (!asyncInit) {
            // init connections
            while (poolingCount < initialSize) {
                try {
                    PhysicalConnectionInfo pyConnectInfo = createPhysicalConnection();
                    DruidConnectionHolder holder = new DruidConnectionHolder(this, pyConnectInfo);
                    connections[poolingCount++] = holder;
                } catch (SQLException ex) {
                    LOG.error("init datasource error, url: " + this.getUrl(), ex);
                    if (initExceptionThrow) {
                        connectError = ex;
                        break;
                    } else {
                        Thread.sleep(3000);
                    }
                }
            }

            if (poolingCount > 0) {
                poolingPeak = poolingCount;
                poolingPeakTime = System.currentTimeMillis();
            }
        }

        createAndLogThread();
        createAndStartCreatorThread();
        createAndStartDestroyThread();

        initedLatch.await();
        init = true;

        initedTime = new Date();
        registerMbean();

        if (connectError != null && poolingCount == 0) {
            throw connectError;
        }

        if (keepAlive) {
            // async fill to minIdle
            if (createScheduler != null) {
                for (int i = 0; i < minIdle; ++i) {
                    submitCreateTask(true);
                }
            } else {
                this.emptySignal();
            }
        }

    } catch (SQLException e) {
        LOG.error("{dataSource-" + this.getID() + "} init error", e);
        throw e;
    } catch (InterruptedException e) {
        throw new SQLException(e.getMessage(), e);
    } catch (RuntimeException e){
        LOG.error("{dataSource-" + this.getID() + "} init error", e);
        throw e;
    } catch (Error e){
        LOG.error("{dataSource-" + this.getID() + "} init error", e);
        throw e;

    } finally {
        inited = true;
        lock.unlock();

        if (init && LOG.isInfoEnabled()) {
            String msg = "{dataSource-" + this.getID();

            if (this.name != null && !this.name.isEmpty()) {
                msg += ",";
                msg += this.name;
            }

            msg += "} inited";

            LOG.info(msg);
        }
    }
}

初始化Filter

还可以利用SPI机制来加载filter。注意到还需要有AutoLoad注解才行，另外还需要配置load.spifilter.skip=false

 private void initFromSPIServiceLoader() {
        if (loadSpifilterSkip) {
            return;
        }

        if (autoFilters == null) {
            List<Filter> filters = new ArrayList<Filter>();
            ServiceLoader<Filter> autoFilterLoader = ServiceLoader.load(Filter.class);

            for (Filter filter : autoFilterLoader) {
                AutoLoad autoLoad = filter.getClass().getAnnotation(AutoLoad.class);
                if (autoLoad != null && autoLoad.value()) {
                    filters.add(filter);
                }
            }
            autoFilters = filters;
        }

        for (Filter filter : autoFilters) {
            if (LOG.isInfoEnabled()) {
                LOG.info("load filter from spi :" + filter.getClass().getName());
            }
            addFilter(filter);
        }
    }

用了反射的方法加载Filter

private S nextService() {
    if (!hasNextService())
        throw new NoSuchElementException();
    String cn = nextName;
    nextName = null;
    Class<?> c = null;
    try {
        // 加载类
        c = Class.forName(cn, false, loader);
    } catch (ClassNotFoundException x) {
        fail(service,
             "Provider " + cn + " not found");
    }
    if (!service.isAssignableFrom(c)) {
        fail(service,
             "Provider " + cn  + " not a subtype");
    }
    try {
        // 实例化
        S p = service.cast(c.newInstance());
        providers.put(cn, p);
        return p;
    } catch (Throwable x) {
        fail(service,
             "Provider " + cn + " could not be instantiated",
             x);
    }
    throw new Error();          // This cannot happen
}

初始化Driver

利用反射加载配置的DriverClass，并且调用DriverManager.registerDriver(driver)注册。

protected void resolveDriver() throws SQLException {
    if (this.driver == null) {
        if (this.driverClass == null || this.driverClass.isEmpty()) {
            this.driverClass = JdbcUtils.getDriverClassName(this.jdbcUrl);
        }

        if (MockDriver.class.getName().equals(driverClass)) {
            driver = MockDriver.instance;
        } else if ("com.alibaba.druid.support.clickhouse.BalancedClickhouseDriver".equals(driverClass)) {
            Properties info = new Properties();
            info.put("user", username);
            info.put("password", password);
            info.putAll(connectProperties);
            driver = new BalancedClickhouseDriver(jdbcUrl, info);
        } else {
            if (jdbcUrl == null && (driverClass == null || driverClass.length() == 0)) {
                throw new SQLException("url not set");
            }
            driver = JdbcUtils.createDriver(driverClassLoader, driverClass);
        }
    } else {
        if (this.driverClass == null) {
            this.driverClass = driver.getClass().getName();
        }
    }
}


 public static Driver createDriver(ClassLoader classLoader, String driverClassName) throws SQLException {
        Class<?> clazz = null;
        if (classLoader != null) {
            try {
                clazz = classLoader.loadClass(driverClassName);
            } catch (ClassNotFoundException e) {
                // skip
            }
        }

        if (clazz == null) {
            try {
                ClassLoader contextLoader = Thread.currentThread().getContextClassLoader();
                if (contextLoader != null) {
                    clazz = contextLoader.loadClass(driverClassName);
                }
            } catch (ClassNotFoundException e) {
                // skip
            }
        }

        if (clazz == null) {
            try {
                // 加载配置的Driver Class
                clazz = Class.forName(driverClassName);
            } catch (ClassNotFoundException e) {
                throw new SQLException(e.getMessage(), e);
            }
        }

        try {
            // 实例化
            return (Driver) clazz.newInstance();
        } catch (IllegalAccessException e) {
            throw new SQLException(e.getMessage(), e);
        } catch (InstantiationException e) {
            throw new SQLException(e.getMessage(), e);
        }
    }

校验参数

        // 校验maxActive、minIdle、initialSize、timeBetweenLogStatsMillis、useGlobalDataSourceStat、maxEvictableIdleTimeMillis、minEvictableIdleTimeMillis等配置是否合法
        // ·······

        // 针对oracle和DB2，需要校验validationQuery
        initCheck();

        // 当开启了testOnBorrow/testOnReturn/testWhileIdle，判断是否设置了validationQuery，没有的话会打印错误信息
        validationQueryCheck();

初始化ExceptionSorter、ValidConnectionChecker、JdbcDataSourceStat

根据不同的数据驱动实例化不同的ExceptionSorter。
    ExceptionSorter接口如下，从中可以看出这个类是用来判断异常是不是致命"Fatal"异常

    public interface ExceptionSorter {

    /**
     * Returns true or false whether or not the exception is fatal.
     *
     * @param e the exception
     * @return true or false if the exception is fatal.
     */
    boolean isExceptionFatal(SQLException e);

    void configFromProperties(Properties properties);
}

private void initExceptionSorter() {
    if (exceptionSorter instanceof NullExceptionSorter) {
        if (driver instanceof MockDriver) {
            return;
        }
    } else if (this.exceptionSorter != null) {
        return;
    }


    for (Class<?> driverClass = driver.getClass();;) {
        String realDriverClassName = driverClass.getName();
        if (realDriverClassName.equals(JdbcConstants.MYSQL_DRIVER) //
                || realDriverClassName.equals(JdbcConstants.MYSQL_DRIVER_6)) {
            this.exceptionSorter = new MySqlExceptionSorter();
            this.isMySql = true;
        } else if (realDriverClassName.equals(JdbcConstants.ORACLE_DRIVER)
                || realDriverClassName.equals(JdbcConstants.ORACLE_DRIVER2)) {
            this.exceptionSorter = new OracleExceptionSorter();
        } else if (realDriverClassName.equals(JdbcConstants.OCEANBASE_DRIVER)) { // 写一个真实的 TestCase
            if (JdbcUtils.OCEANBASE_ORACLE.name().equalsIgnoreCase(dbTypeName)) {
                this.exceptionSorter = new OceanBaseOracleExceptionSorter();
            } else {
                this.exceptionSorter = new MySqlExceptionSorter();
            }
        } else if (realDriverClassName.equals("com.informix.jdbc.IfxDriver")) {
            this.exceptionSorter = new InformixExceptionSorter();

        } else if (realDriverClassName.equals("com.sybase.jdbc2.jdbc.SybDriver")) {
            this.exceptionSorter = new SybaseExceptionSorter();

        } else if (realDriverClassName.equals(JdbcConstants.POSTGRESQL_DRIVER)
                || realDriverClassName.equals(JdbcConstants.ENTERPRISEDB_DRIVER)
                || realDriverClassName.equals(JdbcConstants.POLARDB_DRIVER)) {
            this.exceptionSorter = new PGExceptionSorter();

        } else if (realDriverClassName.equals("com.alibaba.druid.mock.MockDriver")) {
            this.exceptionSorter = new MockExceptionSorter();
        } else if (realDriverClassName.contains("DB2")) {
            this.exceptionSorter = new DB2ExceptionSorter();

        } else {
            Class<?> superClass = driverClass.getSuperclass();
            if (superClass != null && superClass != Object.class) {
                driverClass = superClass;
                continue;
            }
        }

        break;
    }
}

// 根据不同的driver class 用不同的连接检查器。比如，当testOnBorrow设置为true的时候就会调用ValidConnectionChecker去检查连接是否有效
private void initValidConnectionChecker() {
    if (this.validConnectionChecker != null) {
        return;
    }

    String realDriverClassName = driver.getClass().getName();
    if (JdbcUtils.isMySqlDriver(realDriverClassName)) {
        this.validConnectionChecker = new MySqlValidConnectionChecker();

    } else if (realDriverClassName.equals(JdbcConstants.ORACLE_DRIVER)
            || realDriverClassName.equals(JdbcConstants.ORACLE_DRIVER2)) {
        this.validConnectionChecker = new OracleValidConnectionChecker();

    } else if (realDriverClassName.equals(JdbcConstants.SQL_SERVER_DRIVER)
               || realDriverClassName.equals(JdbcConstants.SQL_SERVER_DRIVER_SQLJDBC4)
               || realDriverClassName.equals(JdbcConstants.SQL_SERVER_DRIVER_JTDS)) {
        this.validConnectionChecker = new MSSQLValidConnectionChecker();

    } else if (realDriverClassName.equals(JdbcConstants.POSTGRESQL_DRIVER)
            || realDriverClassName.equals(JdbcConstants.ENTERPRISEDB_DRIVER)
            || realDriverClassName.equals(JdbcConstants.POLARDB_DRIVER)) {
        this.validConnectionChecker = new PGValidConnectionChecker();
    }
}

private void validationQueryCheck() {
    if (!(testOnBorrow || testOnReturn || testWhileIdle)) {
        return;
    }

    if (this.validConnectionChecker != null) {
        return;
    }

    if (this.validationQuery != null && this.validationQuery.length() > 0) {
        return;
    }

    String errorMessage = "";

    if (testOnBorrow) {
        errorMessage += "testOnBorrow is true, ";
    }

    if (testOnReturn) {
        errorMessage += "testOnReturn is true, ";
    }

    if (testWhileIdle) {
        errorMessage += "testWhileIdle is true, ";
    }

    LOG.error(errorMessage + "validationQuery not set");
}

初始化3个连接对象封装类

connections = new DruidConnectionHolder[maxActive];
evictConnections = new DruidConnectionHolder[maxActive];
keepAliveConnections = new DruidConnectionHolder[maxActive];

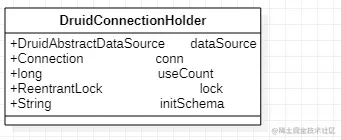

DruidConnectionHolder类构造不复杂，主要属性和方法有下面这些：

初始化连接，数量为参数initialSize

创建的方式有两种，一种是同步一种是异步

// init connections
while (poolingCount < initialSize) {
    try {
    	// 创建连接。用DruidConnectionHolder来封装
        PhysicalConnectionInfo pyConnectInfo = createPhysicalConnection();
        DruidConnectionHolder holder = new DruidConnectionHolder(this, pyConnectInfo);
        connections[poolingCount++] = holder;
    } catch (SQLException ex) {
        LOG.error("init datasource error, url: " + this.getUrl(), ex);
        if (initExceptionThrow) {
            connectError = ex;
            break;
        } else {
            Thread.sleep(3000);
        }
    }
}

创建连接的过程

前面大部分代码可以暂时不用关注，主要是createPhysicalConnection、initPhysicalConnection方法

public PhysicalConnectionInfo createPhysicalConnection() throws SQLException {
    String url = this.getUrl();
    Properties connectProperties = getConnectProperties();

    String user;
    if (getUserCallback() != null) {
        user = getUserCallback().getName();
    } else {
        user = getUsername();
    }

    String password = getPassword();
    PasswordCallback passwordCallback = getPasswordCallback();

    if (passwordCallback != null) {
        if (passwordCallback instanceof DruidPasswordCallback) {
            DruidPasswordCallback druidPasswordCallback = (DruidPasswordCallback) passwordCallback;

            druidPasswordCallback.setUrl(url);
            druidPasswordCallback.setProperties(connectProperties);
        }

        char[] chars = passwordCallback.getPassword();
        if (chars != null) {
            password = new String(chars);
        }
    }

    Properties physicalConnectProperties = new Properties();
    if (connectProperties != null) {
        physicalConnectProperties.putAll(connectProperties);
    }

    if (user != null && user.length() != 0) {
        physicalConnectProperties.put("user", user);
    }

    if (password != null && password.length() != 0) {
        physicalConnectProperties.put("password", password);
    }

    Connection conn = null;

    long connectStartNanos = System.nanoTime();
    long connectedNanos, initedNanos, validatedNanos;

    Map<String, Object> variables = initVariants
            ? new HashMap<String, Object>()
            : null;
    Map<String, Object> globalVariables = initGlobalVariants
            ? new HashMap<String, Object>()
            : null;

    createStartNanosUpdater.set(this, connectStartNanos);
    creatingCountUpdater.incrementAndGet(this);
    try {
        // 在这里开始调用驱动。参考后面的介绍
        conn = createPhysicalConnection(url, physicalConnectProperties);
        connectedNanos = System.nanoTime();

        if (conn == null) {
            throw new SQLException("connect error, url " + url + ", driverClass " + this.driverClass);
        }

        initPhysicalConnection(conn, variables, globalVariables);
        initedNanos = System.nanoTime();

        validateConnection(conn);
        validatedNanos = System.nanoTime();

        setFailContinuous(false);
        setCreateError(null);
    } catch (SQLException ex) {
        setCreateError(ex);
        JdbcUtils.close(conn);
        throw ex;
    } catch (RuntimeException ex) {
        setCreateError(ex);
        JdbcUtils.close(conn);
        throw ex;
    } catch (Error ex) {
        createErrorCountUpdater.incrementAndGet(this);
        setCreateError(ex);
        JdbcUtils.close(conn);
        throw ex;
    } finally {
        long nano = System.nanoTime() - connectStartNanos;
        createTimespan += nano;
        creatingCountUpdater.decrementAndGet(this);
    }

    return new PhysicalConnectionInfo(conn, connectStartNanos, connectedNanos, initedNanos, validatedNanos, variables, globalVariables);
}

DruidAbstractDataSource类的创建连接的方法

具体的创建连接过程由相应的Driver的connect方法来执行。其实说白了就是返回一个封装了Socket的Connect类

public Connection createPhysicalConnection(String url, Properties info) throws SQLException {
    Connection conn;
    if (getProxyFilters().size() == 0) {
        // getDriver 返回驱动类。这里就是我们注册的org.h2.Driver。
        conn = getDriver().connect(url, info);
    } else {
        conn = new FilterChainImpl(this).connection_connect(info);
    }

    createCountUpdater.incrementAndGet(this);

    return conn;
}

这里一h2数据库的驱动org.h2.Driver来讲解下“创建连接”是怎么一回事。这个驱动源码也十分简单，但所谓麻雀虽小，五脏俱全，通过看源码能充分了解连接过程。

//org.h2.Driver 创建连接过程
public Connection connect(String url, Properties info) throws SQLException {
    try {
        if (info == null) {
            info = new Properties();
        }
        if (!acceptsURL(url)) {
            return null;
        }
        if (url.equals(DEFAULT_URL)) {
            return DEFAULT_CONNECTION.get();
        }
       // 这里看上去是更新的。进去就返回了，先不用管。
        Connection c = DbUpgrade.connectOrUpgrade(url, info);
        if (c != null) {
            return c;
        }
         // 在这里创建连接
        return new JdbcConnection(url, info);
    } catch (Exception e) {
        throw DbException.toSQLException(e);
    }
}

  //JdbcConnection构造方法
    public JdbcConnection(ConnectionInfo ci, boolean useBaseDir)
            throws SQLException {
        try {
            if (useBaseDir) {
                String baseDir = SysProperties.getBaseDir();
                if (baseDir != null) {
                    ci.setBaseDir(baseDir);
                }
            }
            // this will return an embedded or server connection 在这里创建会话。里面封装了Socket信息
            session = new SessionRemote(ci).connectEmbeddedOrServer(false);
            trace = session.getTrace();
            int id = getNextId(TraceObject.CONNECTION);
            setTrace(trace, TraceObject.CONNECTION, id);
            this.user = ci.getUserName();
            if (isInfoEnabled()) {
                trace.infoCode("Connection " + getTraceObjectName()
                        + " = DriverManager.getConnection("
                        + quote(ci.getOriginalURL()) + ", " + quote(user)
                        + ", \"\");");
            }
            this.url = ci.getURL();
            scopeGeneratedKeys = ci.getProperty("SCOPE_GENERATED_KEYS", false);
            closeOld();
            watcher = CloseWatcher.register(this, session, keepOpenStackTrace);
        } catch (Exception e) {
            throw logAndConvert(e);
        }
    }

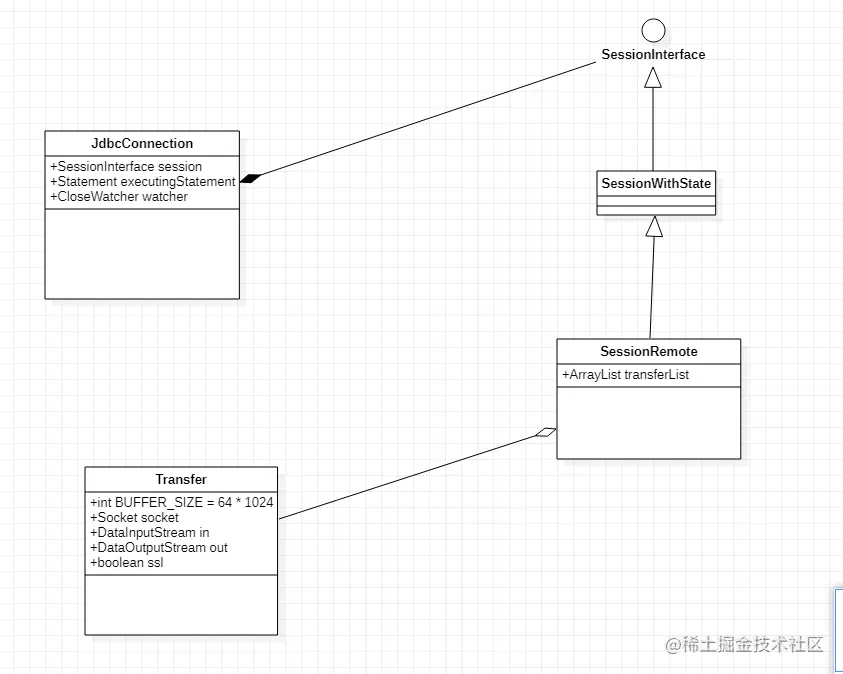

JdbcConnection类主要构造：

可以看到JdbcConnection类有一个属性是SessionInterface，它的实现类是SessionRemote。SessionRemote类有一个Transfer类的List(顺便说下这里用list是用来针对多个数据库的主机的)。重点是Transfer类里就有一个属性Socket，还有DataInputInputStream和DataOutputStream等用来通信的class

// 初始化Transfer类。 这里可以看到设置了用户名，密码等，与数据库主机连接
  private Transfer initTransfer(ConnectionInfo ci, String db, String server)
            throws IOException {
        Socket socket = NetUtils.createSocket(server,
                Constants.DEFAULT_TCP_PORT, ci.isSSL());
        Transfer trans = new Transfer(this, socket);
        trans.setSSL(ci.isSSL());
        trans.init();
        trans.writeInt(Constants.TCP_PROTOCOL_VERSION_MIN_SUPPORTED);
        trans.writeInt(Constants.TCP_PROTOCOL_VERSION_MAX_SUPPORTED);
        trans.writeString(db);
        trans.writeString(ci.getOriginalURL());
       // 用户名
        trans.writeString(ci.getUserName());
      // 密码
        trans.writeBytes(ci.getUserPasswordHash());
        trans.writeBytes(ci.getFilePasswordHash());
        String[] keys = ci.getKeys();
        trans.writeInt(keys.length);
        for (String key : keys) {
            trans.writeString(key).writeString(ci.getProperty(key));
        }
        try {
            done(trans);
            clientVersion = trans.readInt();
            trans.setVersion(clientVersion);
            if (clientVersion >= Constants.TCP_PROTOCOL_VERSION_14) {
                if (ci.getFileEncryptionKey() != null) {
                    trans.writeBytes(ci.getFileEncryptionKey());
                }
            }
            trans.writeInt(SessionRemote.SESSION_SET_ID);
            trans.writeString(sessionId);
            done(trans);
            if (clientVersion >= Constants.TCP_PROTOCOL_VERSION_15) {
                autoCommit = trans.readBoolean();
            } else {
                autoCommit = true;
            }
            return trans;
        } catch (DbException e) {
            trans.close();
            throw e;
        }
    }

详细的创建过程这里就不展开介绍了，毕竟这不是本文介绍的重点，感兴趣的读者可以自行下载h2的源码来学习，另外作者在工作中也看过公司某自研数据库的java客户端驱动。大概流程也是类似，都是Connection类封装了Socket信息。然后发送和接受消息就用往socket中写入和读取（类似于socket和ServerSocket通信的流程）。

DruidAbstractDataSource的validateConnection方法

在createPhysicalConnection方法创建完连接之后，Druid会验证连接是否有效。dataSource可以通过方法dataSource.setValidationQuery()设置用于验证的语句。通常我们可以设置validationQuery = select 1之类。

public void validateConnection(Connection conn) throws SQLException {
    // 返回属性validationQuery
    String query = getValidationQuery();
    if (conn.isClosed()) {
        throw new SQLException("validateConnection: connection closed");
    }

    // 如果validConnectionChecker不为null则用validConnectionChecker来检查连接是否有效。针对Mysql，PG，Oracle等有特定的
    //  validConnectionChecker
    if (validConnectionChecker != null) {
        boolean result;
        Exception error = null;
        try {
            result = validConnectionChecker.isValidConnection(conn, validationQuery, validationQueryTimeout);

            if (result && onFatalError) {
                lock.lock();
                try {
                    if (onFatalError) {
                        onFatalError = false;
                    }
                } finally {
                    lock.unlock();
                }
            }
        } catch (SQLException ex) {
            throw ex;
        } catch (Exception ex) {
            result = false;
            error = ex;
        }

        if (!result) {
            SQLException sqlError = error != null ? //
                new SQLException("validateConnection false", error) //
                : new SQLException("validateConnection false");
            throw sqlError;
        }
        return;
    }
    // 如果有设置validationQuery,则会去执行该查询语句。没有返回结果的话就会抛出异常
    if (null != query) {
        Statement stmt = null;
        ResultSet rs = null;
        try {
            stmt = conn.createStatement();
            if (getValidationQueryTimeout() > 0) {
                stmt.setQueryTimeout(getValidationQueryTimeout());
            }
            rs = stmt.executeQuery(query);
            if (!rs.next()) {
                throw new SQLException("validationQuery didn't return a row");
            }

            if (onFatalError) {
                lock.lock();
                try {
                    if (onFatalError) {
                        onFatalError = false;
                    }
                }
                finally {
                    lock.unlock();
                }
            }
        } finally {
            JdbcUtils.close(rs);
            JdbcUtils.close(stmt);
        }
    }
}

Druid将Connection封装成PhysicalConnectionInfo类返回

PhysicalConnectionInfo的主要属性如下：

private Connection connection;
private long connectStartNanos;
private long connectedNanos;
private long initedNanos;
private long validatedNanos;
private Map<String, Object> vairiables;
private Map<String, Object> globalVairiables;

DruidConnectionHolder将DataSource，PhysicalConnectionInfo封装在一起

DruidConnectionHolder[] connections 将连接添加到末尾

// init connections
while (poolingCount < initialSize) {
    try {
    	// 创建连接。用DruidConnectionHolder来封装
        PhysicalConnectionInfo pyConnectInfo = createPhysicalConnection();
        // DruidConnectionHolder将DataSource，PhysicalConnectionInfo封装在一起
        DruidConnectionHolder holder = new DruidConnectionHolder(this, pyConnectInfo);
        connections[poolingCount++] = holder;
    } catch (SQLException ex) {
        LOG.error("init datasource error, url: " + this.getUrl(), ex);
        if (initExceptionThrow) {
            connectError = ex;
            break;
        } else {
            Thread.sleep(3000);
        }
    }
}

// DruidConnectionHolder的构造器。
public DruidConnectionHolder(DruidAbstractDataSource dataSource, PhysicalConnectionInfo pyConnectInfo)
                                                                                                      throws SQLException{
    this(dataSource,
        pyConnectInfo.getPhysicalConnection(),
        pyConnectInfo.getConnectNanoSpan(),
        pyConnectInfo.getVairiables(),
        pyConnectInfo.getGlobalVairiables());
}

调用createAndLogThread(), createAndStartCreatorThread(), createAndStartDestroyThread()方法创建线程

// 启动监控数据记录线程
createAndLogThread();
// 启动连接创建线程
createAndStartCreatorThread();
// 启动连接检测线程
createAndStartDestroyThread();

// 主线程用CountDownLatch 来等待上面的CreateConnectionThread和DestroyConnectionThread创建完才继续
initedLatch.await();

createAndStartCreatorThread类的run方法

public void run() {
    initedLatch.countDown();

    long lastDiscardCount = 0;
    int errorCount = 0;
    for (;;) {
        // addLast
        try {
            lock.lockInterruptibly();
        } catch (InterruptedException e2) {
            break;
        }

        long discardCount = DruidDataSource.this.discardCount;
        boolean discardChanged = discardCount - lastDiscardCount > 0;
        lastDiscardCount = discardCount;

        try {
            boolean emptyWait = true;

            if (createError != null
                    && poolingCount == 0
                    && !discardChanged) {
                emptyWait = false;
            }

            if (emptyWait
                    && asyncInit && createCount < initialSize) {
                emptyWait = false;
            }

            if (emptyWait) {
                // 必须存在线程等待，才创建连接
                // poolingCount是已经有的连接，notEmptyWaitThreadCount是因为连接不够正在等待创建连接的线程的数量
                if (poolingCount >= notEmptyWaitThreadCount //
                        && (!(keepAlive && activeCount + poolingCount < minIdle))
                        && !isFailContinuous()
                ) {
                    empty.await();
                }

                // 防止创建超过maxActive数量的连接
                if (activeCount + poolingCount >= maxActive) {
                    empty.await();
                    continue;
                }
            }

        } catch (InterruptedException e) {
            lastCreateError = e;
            lastErrorTimeMillis = System.currentTimeMillis();

            if ((!closing) && (!closed)) {
                LOG.error("create connection Thread Interrupted, url: " + jdbcUrl, e);
            }
            break;
        } finally {
            lock.unlock();
        }
        // 满足条件后可以创建连接了
        PhysicalConnectionInfo connection = null;

        try {
            connection = createPhysicalConnection();
        } catch (SQLException e) {
            LOG.error("create connection SQLException, url: " + jdbcUrl + ", errorCode " + e.getErrorCode()
                      + ", state " + e.getSQLState(), e);

            errorCount++;
            if (errorCount > connectionErrorRetryAttempts && timeBetweenConnectErrorMillis > 0) {
                // fail over retry attempts
                setFailContinuous(true);
                if (failFast) {
                    lock.lock();
                    try {
                        notEmpty.signalAll();
                    } finally {
                        lock.unlock();
                    }
                }

                if (breakAfterAcquireFailure) {
                    break;
                }

                try {
                    Thread.sleep(timeBetweenConnectErrorMillis);
                } catch (InterruptedException interruptEx) {
                    break;
                }
            }
        } catch (RuntimeException e) {
            LOG.error("create connection RuntimeException", e);
            setFailContinuous(true);
            continue;
        } catch (Error e) {
            LOG.error("create connection Error", e);
            setFailContinuous(true);
            break;
        }

        if (connection == null) {
            continue;
        }

        boolean result = put(connection);
        if (!result) {
            JdbcUtils.close(connection.getPhysicalConnection());
            LOG.info("put physical connection to pool failed.");
        }

        errorCount = 0; // reset errorCount

        if (closing || closed) {
            break;
        }
    }
}

DestroyConnectionThread的run方法

public void run() {
    initedLatch.countDown();

    for (;;) {
        // 从前面开始删除
        try {
            if (closed || closing) {
                break;
            }

            if (timeBetweenEvictionRunsMillis > 0) {
                Thread.sleep(timeBetweenEvictionRunsMillis);
            } else {
                Thread.sleep(1000); //
            }

            if (Thread.interrupted()) {
                break;
            }

            destroyTask.run();
        } catch (InterruptedException e) {
            break;
        }
    }
}

3.2.2getConnectionDirect()

init() 方法后，就是直接获取连接

  public DruidPooledConnection getConnectionDirect(long maxWaitMillis) throws SQLException {
        int notFullTimeoutRetryCnt = 0;
        for (;;) {
            // handle notFullTimeoutRetry
            DruidPooledConnection poolableConnection;
            try {
                // 获取连接
                poolableConnection = getConnectionInternal(maxWaitMillis);
            } catch (GetConnectionTimeoutException ex) {
                if (notFullTimeoutRetryCnt <= this.notFullTimeoutRetryCount && !isFull()) {
                    notFullTimeoutRetryCnt++;
                    if (LOG.isWarnEnabled()) {
                        LOG.warn("get connection timeout retry : " + notFullTimeoutRetryCnt);
                    }
                    continue;
                }
                throw ex;
            }
            // 如果设置了testOnBorrow为true。则在获取连接的时候会去检查该连接是否可用(用validConnectionChecker或validationQuery)
            if (testOnBorrow) {
                boolean validate = testConnectionInternal(poolableConnection.holder, poolableConnection.conn);
                if (!validate) {
                    if (LOG.isDebugEnabled()) {
                        LOG.debug("skip not validate connection.");
                    }

                    discardConnection(poolableConnection.holder);
                    continue;
                }
            } else {
                if (poolableConnection.conn.isClosed()) {
                    discardConnection(poolableConnection.holder); // 传入null，避免重复关闭
                    continue;
                }

                if (testWhileIdle) {
                    final DruidConnectionHolder holder = poolableConnection.holder;
                    long currentTimeMillis             = System.currentTimeMillis();
                    long lastActiveTimeMillis          = holder.lastActiveTimeMillis;
                    long lastExecTimeMillis            = holder.lastExecTimeMillis;
                    long lastKeepTimeMillis            = holder.lastKeepTimeMillis;

                    if (checkExecuteTime
                            && lastExecTimeMillis != lastActiveTimeMillis) {
                        lastActiveTimeMillis = lastExecTimeMillis;
                    }

                    if (lastKeepTimeMillis > lastActiveTimeMillis) {
                        lastActiveTimeMillis = lastKeepTimeMillis;
                    }

                    long idleMillis                    = currentTimeMillis - lastActiveTimeMillis;

                    long timeBetweenEvictionRunsMillis = this.timeBetweenEvictionRunsMillis;

                    if (timeBetweenEvictionRunsMillis <= 0) {
                        timeBetweenEvictionRunsMillis = DEFAULT_TIME_BETWEEN_EVICTION_RUNS_MILLIS;
                    }

                    if (idleMillis >= timeBetweenEvictionRunsMillis
                            || idleMillis < 0 // unexcepted branch
                            ) {
                        boolean validate = testConnectionInternal(poolableConnection.holder, poolableConnection.conn);
                        if (!validate) {
                            if (LOG.isDebugEnabled()) {
                                LOG.debug("skip not validate connection.");
                            }

                            discardConnection(poolableConnection.holder);
                             continue;
                        }
                    }
                }
            }

            if (removeAbandoned) {
                StackTraceElement[] stackTrace = Thread.currentThread().getStackTrace();
                poolableConnection.connectStackTrace = stackTrace;
                poolableConnection.setConnectedTimeNano();
                poolableConnection.traceEnable = true;

                activeConnectionLock.lock();
                try {
                    activeConnections.put(poolableConnection, PRESENT);
                } finally {
                    activeConnectionLock.unlock();
                }
            }

            if (!this.defaultAutoCommit) {
                poolableConnection.setAutoCommit(false);
            }

            return poolableConnection;
        }
    }

在调用**getConnectionInternal(long maxWait)**方法获取连接的时候，会传入maxWait参数。这个参数的表示：从连接池中获取连接的最大等待时间，单位ms，默认-1，即会一直等待下去

if (maxWait > 0) {
    holder = pollLast(nanos);
} else {
    holder = takeLast();
}

下面是pollLast方法：

利用了Condition的awaitNanos(long nanosTimeout)方法来阻塞线程。如果连接池内没有连接了，则调用empty.signal()，通知CreateThread创建连接，并且等待指定的时间，被唤醒之后再去查看是否有可用连接。

并且，当wait的时间到了之后就会直接返回null，不会一直等待下去

if (poolingCount == 0) {
    if (estimate > 0) {
        continue;
    }

    waitNanosLocal.set(nanos - estimate);
    return null;
}

private DruidConnectionHolder pollLast(long nanos) throws InterruptedException, SQLException {
    long estimate = nanos;

    for (;;) {
        if (poolingCount == 0) {
            emptySignal(); // send signal to CreateThread create connection

            if (failFast && isFailContinuous()) {
                throw new DataSourceNotAvailableException(createError);
            }

            if (estimate <= 0) {
                waitNanosLocal.set(nanos - estimate);
                return null;
            }

            notEmptyWaitThreadCount++;
            if (notEmptyWaitThreadCount > notEmptyWaitThreadPeak) {
                notEmptyWaitThreadPeak = notEmptyWaitThreadCount;
            }

            try {
                long startEstimate = estimate;
                estimate = notEmpty.awaitNanos(estimate); // signal by
                                                          // recycle or
                                                          // creator
                notEmptyWaitCount++;
                notEmptyWaitNanos += (startEstimate - estimate);

                if (!enable) {
                    connectErrorCountUpdater.incrementAndGet(this);

                    if (disableException != null) {
                        throw disableException;
                    }

                    throw new DataSourceDisableException();
                }
            } catch (InterruptedException ie) {
                notEmpty.signal(); // propagate to non-interrupted thread
                notEmptySignalCount++;
                throw ie;
            } finally {
                notEmptyWaitThreadCount--;
            }

            if (poolingCount == 0) {
                if (estimate > 0) {
                    continue;
                }

                waitNanosLocal.set(nanos - estimate);
                return null;
            }
        }

        decrementPoolingCount();
        DruidConnectionHolder last = connections[poolingCount];
        connections[poolingCount] = null;

        long waitNanos = nanos - estimate;
        last.setLastNotEmptyWaitNanos(waitNanos);

        return last;
    }
}

下面是takeLast()方法：

可以看到takeLast调用的是notEmpty.await()方法，会一直调用下去。

maxWait默认是不超时，即如果连接池没有空闲连接，则会一直等待下去

DruidConnectionHolder takeLast() throws InterruptedException, SQLException {
    try {
        while (poolingCount == 0) {
            emptySignal(); // send signal to CreateThread create connection

            if (failFast && isFailContinuous()) {
                throw new DataSourceNotAvailableException(createError);
            }

            notEmptyWaitThreadCount++;
            if (notEmptyWaitThreadCount > notEmptyWaitThreadPeak) {
                notEmptyWaitThreadPeak = notEmptyWaitThreadCount;
            }
            try {
                notEmpty.await(); // signal by recycle or creator
            } finally {
                notEmptyWaitThreadCount--;
            }
            notEmptyWaitCount++;

            if (!enable) {
                connectErrorCountUpdater.incrementAndGet(this);
                if (disableException != null) {
                    throw disableException;
                }

                throw new DataSourceDisableException();
            }
        }
    } catch (InterruptedException ie) {
        notEmpty.signal(); // propagate to non-interrupted thread
        notEmptySignalCount++;
        throw ie;
    }

    decrementPoolingCount();
    DruidConnectionHolder last = connections[poolingCount];
    connections[poolingCount] = null;

    return last;
}

testOnBorrow、testWhileIdle、removeAbandoned参数

• 如果testOnBorrow为true，则进行对连接进行校验，校验失败则进行清理并重新进入循环，否则跳到下一步
• 如果testWhileIdle为true，距离上次激活时间超过timeBetweenEvictionRunsMillis，则进行清理
• 如果removeAbandoned为true，则会把连接存放在activeConnections中，清理线程会对其定期进行处理

CreateThread和向线程池取连接的消费者线程形成了一个消费者，生产者模型

3.2.3Connection.close() 连接回收

调用的是DruidPooledConnection类的close()方法。代码如下：

实际调用的是回收recycle方法

public void close() throws SQLException {
    if (this.disable) {
        return;
    }

    DruidConnectionHolder holder = this.holder;
    if (holder == null) {
        if (dupCloseLogEnable) {
            LOG.error("dup close");
        }
        return;
    }

    DruidAbstractDataSource dataSource = holder.getDataSource();
    boolean isSameThread = this.getOwnerThread() == Thread.currentThread();

    if (!isSameThread) {
        dataSource.setAsyncCloseConnectionEnable(true);
    }

    if (dataSource.isAsyncCloseConnectionEnable()) {
        syncClose();
        return;
    }

    if (!CLOSING_UPDATER.compareAndSet(this, 0, 1)) {
        return;
    }

    try {
        for (ConnectionEventListener listener : holder.getConnectionEventListeners()) {
            listener.connectionClosed(new ConnectionEvent(this));
        }

        List<Filter> filters = dataSource.getProxyFilters();
        if (filters.size() > 0) {
            FilterChainImpl filterChain = new FilterChainImpl(dataSource);
            filterChain.dataSource_recycle(this);
        } else {
            //  实际调用的是回收recycle方法
            recycle();
        }
    } finally {
        CLOSING_UPDATER.set(this, 0);
    }

    this.disable = true;
}

recycle()方法，已省略部分代码：

protected void recycle(DruidPooledConnection pooledConnection) throws SQLException {

     ......
         // 如果连接已经close掉了就把closeCount加1后返回
      if (physicalConnection.isClosed()) {
                lock.lock();
                try {
                    if (holder.active) {
                        activeCount--;
                        holder.active = false;
                    }
                    closeCount++;
                } finally {
                    lock.unlock();
                }
                return;
            }

            ......
            // 如果设置了testOnReturn参数则会调用testConnectionInternal(DruidConnectionHolder holder, Connection conn)方法检查连接是否有效，可参考前面讲的validateConnection(Connection conn)方法
            if (testOnReturn) {
                boolean validate = testConnectionInternal(holder, physicalConnection);
                if (!validate) {
                    JdbcUtils.close(physicalConnection);

                    destroyCountUpdater.incrementAndGet(this);

                    lock.lock();
                    try {
                        if (holder.active) {
                            activeCount--;
                            holder.active = false;
                        }
                        closeCount++;
                    } finally {
                        lock.unlock();
                    }
                    return;
                }
            }


          ..........
              // 最后获取锁，并把连接放回到connections数组中
            lock.lock();
            try {
                if (holder.active) {
                    activeCount--;
                    holder.active = false;
                }
                closeCount++;

                result = putLast(holder, currentTimeMillis);
                recycleCount++;
            } finally {
                lock.unlock();
            }


}

  boolean putLast(DruidConnectionHolder e, long lastActiveTimeMillis) {
        if (poolingCount >= maxActive || e.discard || this.closed) {
            return false;
        }

        e.lastActiveTimeMillis = lastActiveTimeMillis;
        connections[poolingCount] = e;
        incrementPoolingCount();

        if (poolingCount > poolingPeak) {
            poolingPeak = poolingCount;
            poolingPeakTime = lastActiveTimeMillis;
        }

        notEmpty.signal();
        notEmptySignalCount++;

        return true;
    }


Ref:

www.cnblogs.com/ZhangZiShen…

blog.csdn.net/lishoubin_1…

tech.youzan.com/shu-ju-ku-l…

zhengjianglong.cn/2019/07/14/…
