简介
fishhook是动态重新绑定iOS中Mach-O二进制文件中符号的库。
这是一个很好的用于hook libSystem的方式，以便调试和追踪。iOS系统中多数系统库都是动态库的形式，由dyld在运行时加载。可以应用于hook load方法，hook GCD的方法等。
功能类似于在OS X中使用的DYLD_INTERPOSE。
DYLD_INTERPOSE
iOS/OS X系统中，进程首先加载可执行文件，然后从Mach-O文件的Load_Command中找到dyld的加载路径，只后交给dyld进行动态连接，通常采用/usr/lib/dyld作为动态链接器。
dyld提供了一些独有的特性，如函数拦截等。DYLD_INTERPOSE宏定义允许一个库将其函数实现替换为另一个函数实现。
#if !defined(_DYLD_INTERPOSING_H_)
#define _DYLD_INTERPOSING_H_
#define DYLD_INTERPOSE(_replacment,_replacee) \ __attribute__((used)) static strut{const void* replacment;const void* replacee;}
_interpose_##_replace \ __attribute__((section ("__DATA,__interpose"))) = { (const void*)(unsigned long)&_replacement, (const void*)(unsigned long)&_replacee};
#endif
一、Mach-O结构

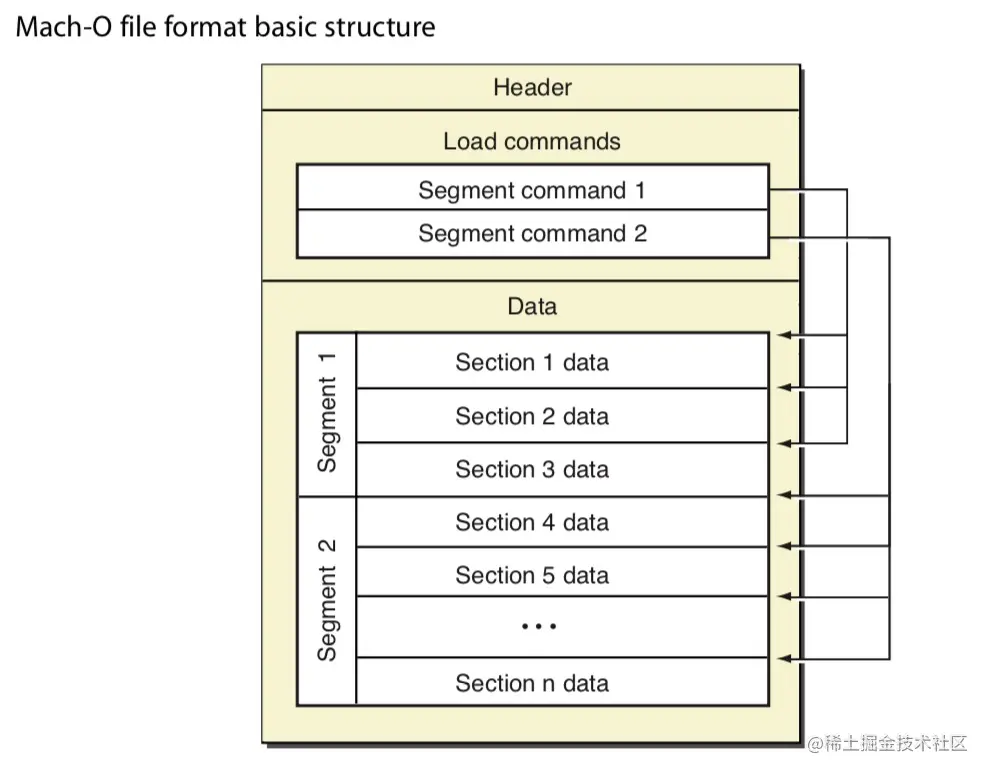

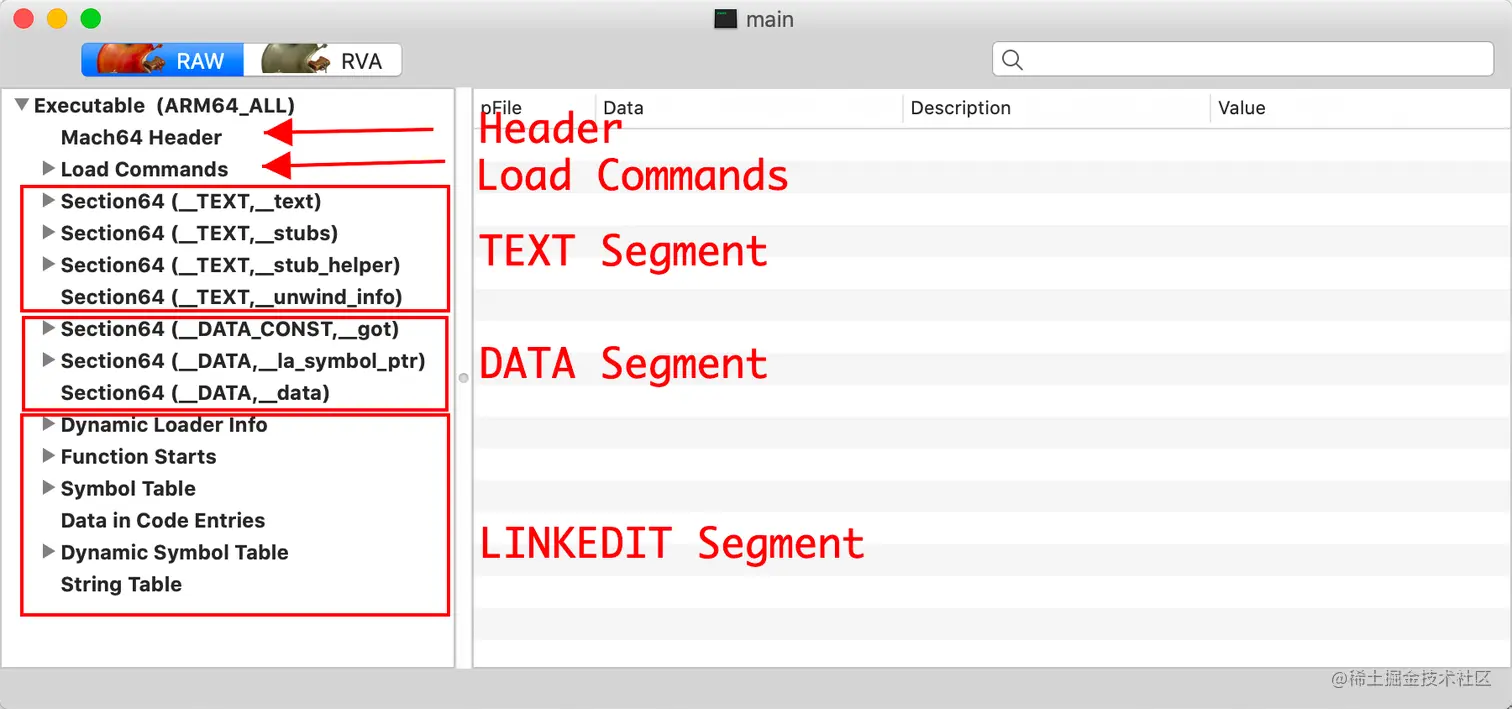

注意一下Mach-O的结构，以及Segment Command指向Section X Data
Section是编译器对.o内容的划分，将同类资源在逻辑上划分到一起
Segment是按照虚拟内存访问权限来分配的，是权限属性相同section的集合
-
TEXT(VM_PROT_READ/VM_PROT_EXECUTE)
-
DATA(VM_PROT_READ/VM_PROT_WRITE)
-
LINKEDIT(VM_PROT_READ)
二、Fishhook代码结构
1. Public API
/*
* A structure representing a particular intended rebinding from a symbol
* name to its replacement
*/ struct rebinding {
const char *name;
void *replacement;
void **replaced;
};
/*
* For each rebinding in rebindings, rebinds references to external, indirect
* symbols with the specified name to instead point at replacement for each
* image in the calling process as well as for all future images that are loaded
* by the process. If rebind_functions is called more than once, the symbols to
* rebind are added to the existing list of rebindings, and if a given symbol
* is rebound more than once, the later rebinding will take precedence.
*/
// 对所有的image中的符号做替换/*
int rebind_symbols(struct rebinding rebindings[], size_t rebindings_nel);
* Rebinds as above, but only in the specified image. The header should point
* to the mach-o header, the slide should be the slide offset. Others as above.
*/
// 对指定image中的符号做替换
int rebind_symbols_image(void *header,
intptr_t slide,
struct rebinding rebindings[],
size_t rebindings_nel);
**
2. 内部实现
static int prepend_rebindings(struct rebindings_entry **rebindings_head,
struct rebinding rebindings[],
size_t nel);
static void perform_rebinding_with_section(struct rebindings_entry *rebindings,
section_t *section,
intptr_t slide,
nlist_t *symtab,
char *strtab,
uint32_t *indirect_symtab)
static void rebind_symbols_for_image(struct rebindings_entry *rebindings,
const struct mach_header *header,
intptr_t slide);
/* _dyld_register_func_for_add_image(_rebind_symbols_for_image); */ static void _rebind_symbols_for_image(const struct mach_header *header,
intptr_t slide);
int rebind_symbols_image(void *header,
intptr_t slide,
struct rebinding rebindings[],
size_t rebindings_nel);
int rebind_symbols(struct rebinding rebindings[], size_t rebindings_nel;
三、Fishhook使用
#import "ViewController.h"
#import "fishhook.h"
@interface ViewController ()
@end
@implementation ViewController
- (void)viewDidLoad {
[super viewDidLoad];
// Do any additional setup after loading the view.
NSLog(@"hello world");
struct rebinding nslogBind;
nslogBind.name = "NSLog";
nslogBind.replacement = myNSLog;
nslogBind.replaced = (void *)&old_nslog;
struct rebinding rebs[] = {nslogBind};
rebind_symbols(rebs, 1);
}
static void (*old_nslog)(NSString *format, ...);
void myNSLog(NSString *format, ...) {
format = [format stringByAppendingString:@"勾上了"];
old_nslog(format);
}
- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event {
NSLog(@"点击了屏幕！");
}
@end
四、Fishhook原理
dyld通过更新在一个Mach-O二进制文件的__DATA段中的特定区域的指针，来绑定懒加载和非懒加载符号。fishhook重新绑定这些符号找到每个传进rebind_symbols的符号的位置，更新这些符号的位置，并用符合的替换。
在给定的Image中，__DATA段包括两个跟动态符号绑定的区域__nl_symbol_ptr和__la_symbol_ptr.
__nl_symbol_ptr是一个数组的指针指向于非懒加载绑定数据（这些被绑定在库被加载的时候）
__la_symbol_ptr是一个数组的指针指向引入的函数，通常被一个叫做dyld_stub_binder机制在符号首次调用的时候绑定（也可以是指定dyld在启动的时候来绑定）
为了在这些section中找到指定符号名字的位置，我们必须跳转几个间接层。
对于这两个section，section header（struct section结构体在<mach-o/loader.h>）提供偏移量（在reserved1字段中），是间接符号表中的偏移位置。间接符号表也存在二进制的 __LINKEDIT Segment中，间接符号表就是一个索引数组，索引值指向符号表（也是在__LINKEDIT），符号表的目的是为了定位非懒加载和懒加载符号section中的函数指针。有了结构体struct section nl_symbol_ptr, 符合的符号表中的index第一个section中的地址是indirect_symbol_table[nl_symbol_ptr->reserved1].
这个符号表本身是一个struct nlist的数组（结构体在<mach-o/nlist.h>），并且每个nlist包括了一个索引到__LINKEDIT string table，那里是实际存储符号名称的地方。
对于每个__nl_symbol_ptr和__la_symbol_ptr的指针，我们可以找到对应的符号名称字符串，逐个遍历和需要替换的符号名字做比较，并且如果匹配的话，我们就用指定的新的函数指针，替换这个指针。

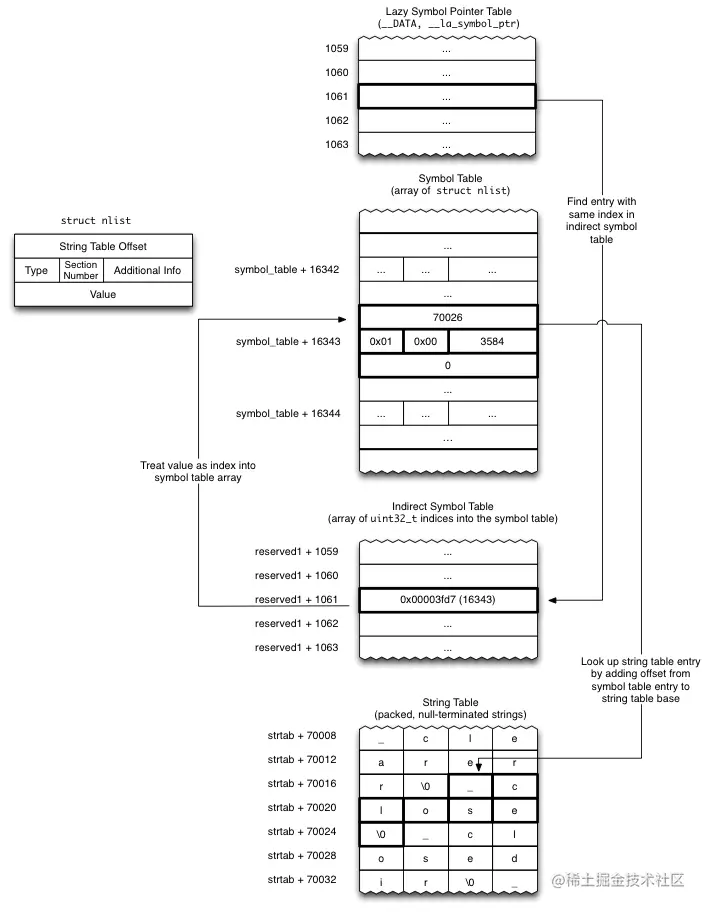

从一个给定的懒加载或者非懒加载符号表中寻找给定的entry名称的过程，如图所示：
__got
对于程序段__text里的代码，对数据型符号的引用，指向到了__got；可以把__got看作是一个表，每个条目是一个地址值。
在符号绑定（binding）前，__got里所有条目的内容都是 0，当镜像被加载时，dyld 会对__got每个条目所对应的符号进行重定位，将其真正的地址填入，作为条目的内容。__got各个条目的具体值，在加载期会被 dyld 重写，这也是为啥这个 section 被分配在 __DATA segment 的原因。
dyld_stub_binder

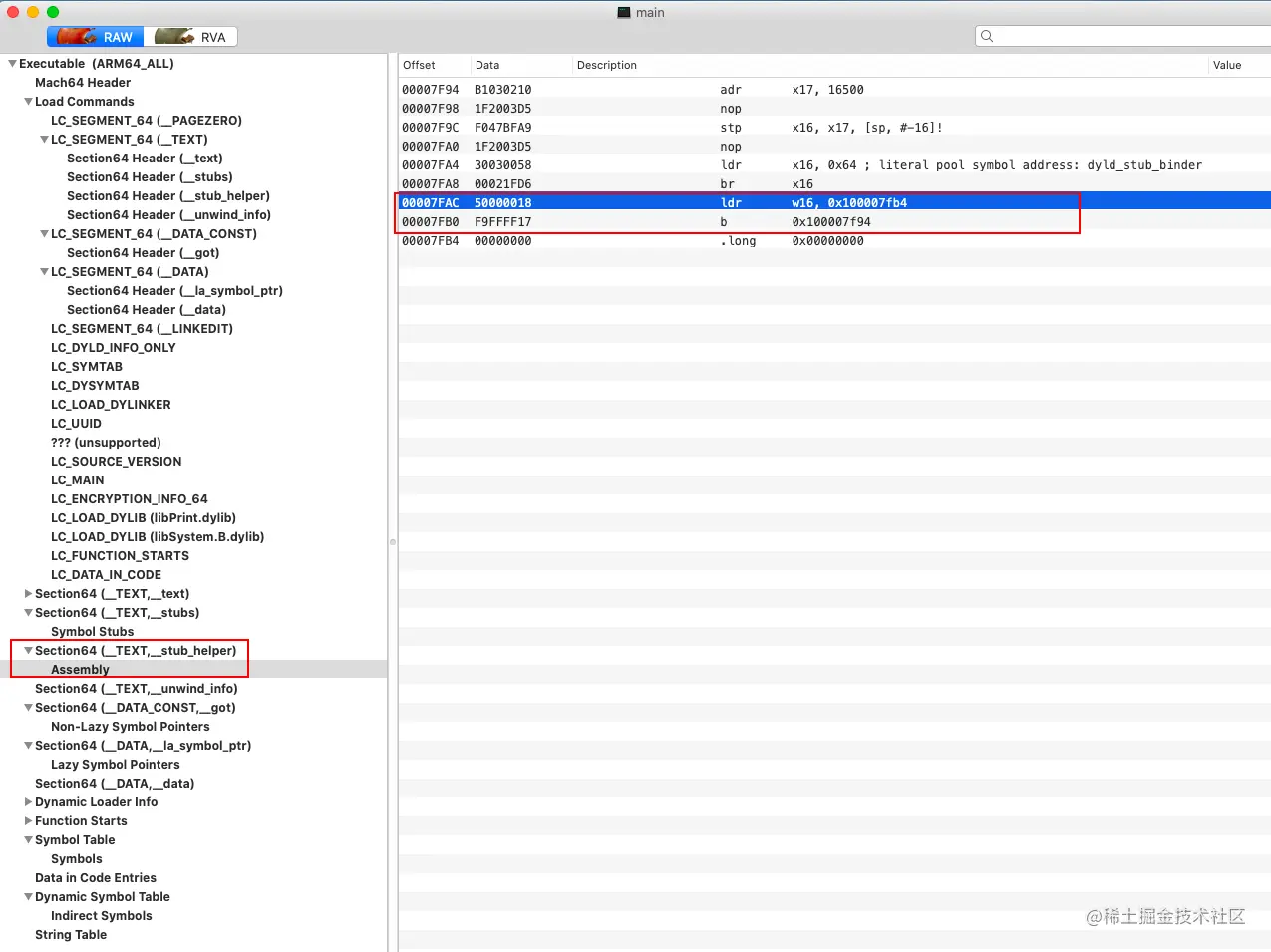

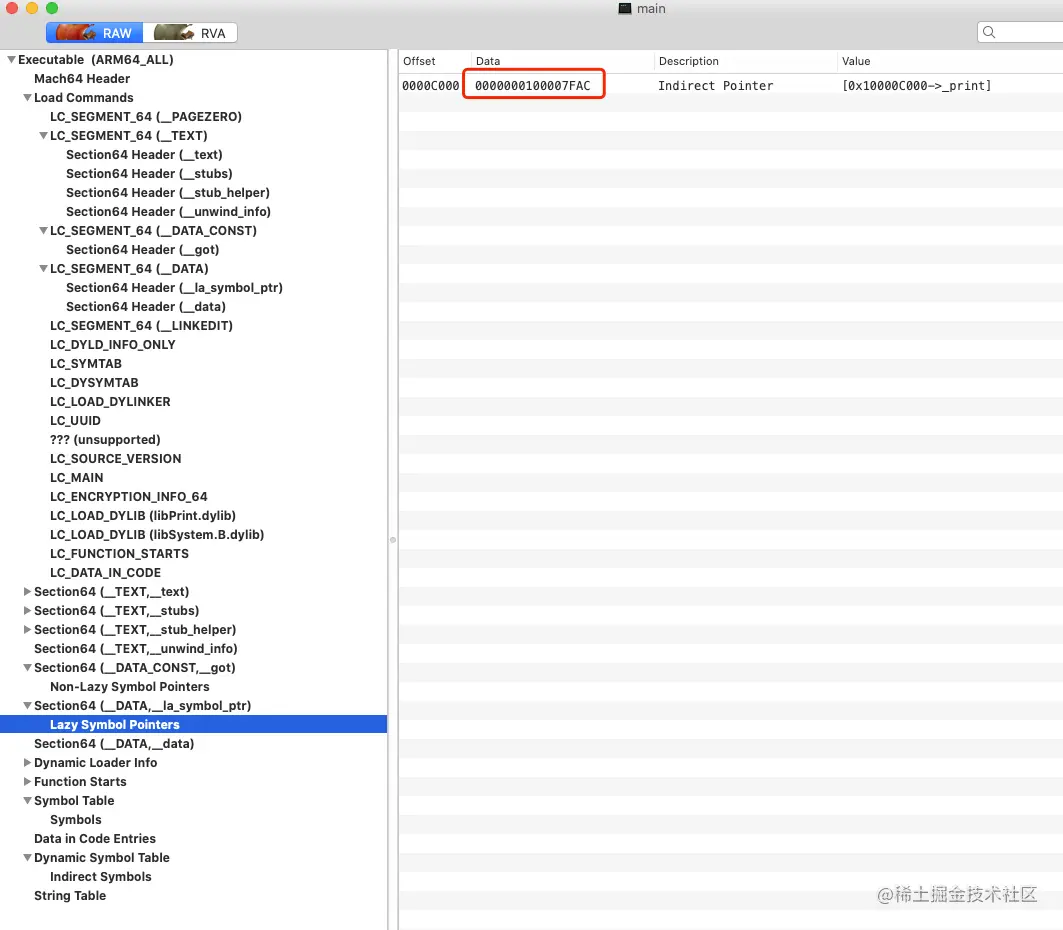

函数符号在第一次使用时才进行绑定，是通过dyld_stub_binder来进行符号查找和地址重定位。绑定好之后函数地址会被写到__la_symbol_ptr条目中，再次访问的时候可以直接跳转。
dyld_stub_binder使用汇编实现的，在 dyld_stub_binder.s 中。
调用链路如下：
// 汇编中调用 fastBindLazySymbol
1. dyld::fastBindLazySymbol
// 调用 ImageLoader 处理
2. ImageLoaderMachOCompressed::doBindFastLazySymbol
// 符号绑定
3. ImageLoaderMachOCompressed::bindAt
// 符号地址解析
4. ImageLoaderMachOCompressed::resolve
// 符号地址更新
5. ImageLoaderMachO::bindLocation
五、Fishhook代码解析
示例代码
print.c
#include <stdio.h>
char *global = "hello";
void print(char *str)
{
printf("%s\n", str);
}
main.c
void print(char *str);
extern char *global;
int main()
{
print(global);
return 0;
}
1. 注册镜像加载回调，遍历所有的Image
int rebind_symbols(struct rebinding rebindings[], size_t rebindings_nel) {
int retval = prepend_rebindings(&_rebindings_head, rebindings, rebindings_nel);
if (retval < 0) {
return retval;
}
// If this was the first call, register callback for image additions (which is also invoked for
// existing images, otherwise, just run on existing images
if (!_rebindings_head->next) {
_dyld_register_func_for_add_image(_rebind_symbols_for_image);
} else {
uint32_t c = _dyld_image_count();
for (uint32_t i = 0; i < c; i++) {
_rebind_symbols_for_image(_dyld_get_image_header(i), _dyld_get_image_vmaddr_slide(i));
}
}
return retval;
}
static void _rebind_symbols_for_image(const struct mach_header *header,
intptr_t slide) {
rebind_symbols_for_image(_rebindings_head, header, slide);
}
_dyld_register_func_for_add_image
注册了一个镜像被加载时的回调函数
- 当镜像被加载但未初始化前就会调用注册的回调函数，回调函数的两个入参分别表示加载的镜像的头结构和对应的Slide值
- 如果在调用_dyld_register_func_for_add_image时系统已经加载了某些映像，则会分别对这些加载完毕的每个映像调用注册的回调函数
2. prepend_rebindings方法使用头插法把结构体数组转成了单链表
static struct rebindings_entry *_rebindings_head;
/* 把输入的rebindings数组组合为单链表 */ struct rebindings_entry {
struct rebinding *rebindings;
size_t rebindings_nel;
struct rebindings_entry *next;
};
static int prepend_rebindings(struct rebindings_entry **rebindings_head,
struct rebinding rebindings[],
size_t nel) {
struct rebindings_entry *new_entry = malloc(sizeof(struct rebindings_entry));
if (!new_entry) {
return -1;
}
new_entry->rebindings = malloc(sizeof(struct rebinding) * nel);
if (!new_entry->rebindings) {
free(new_entry);
return -1;
}
memcpy(new_entry->rebindings, rebindings, sizeof(struct rebinding) * nel);
new_entry->rebindings_nel = nel;
new_entry->next = *rebindings_head;
*rebindings_head = new_entry;
return 0;
}

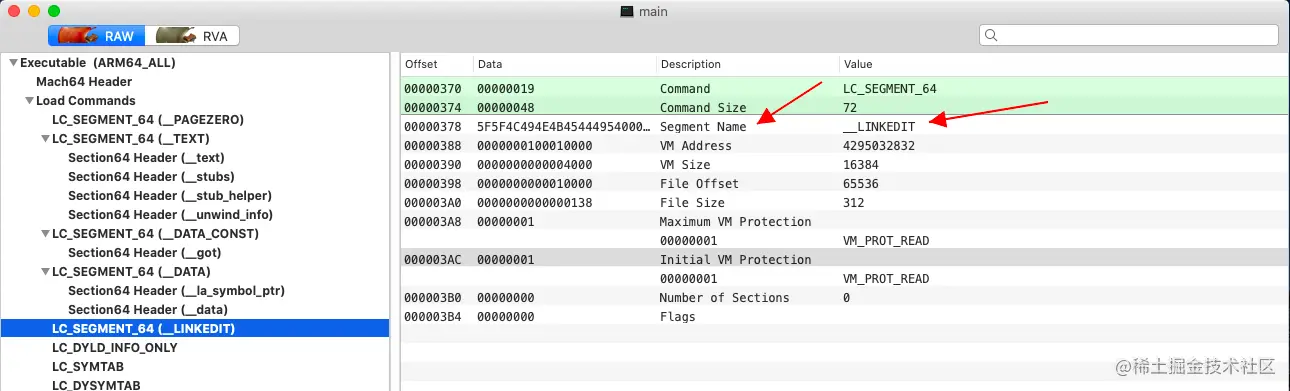

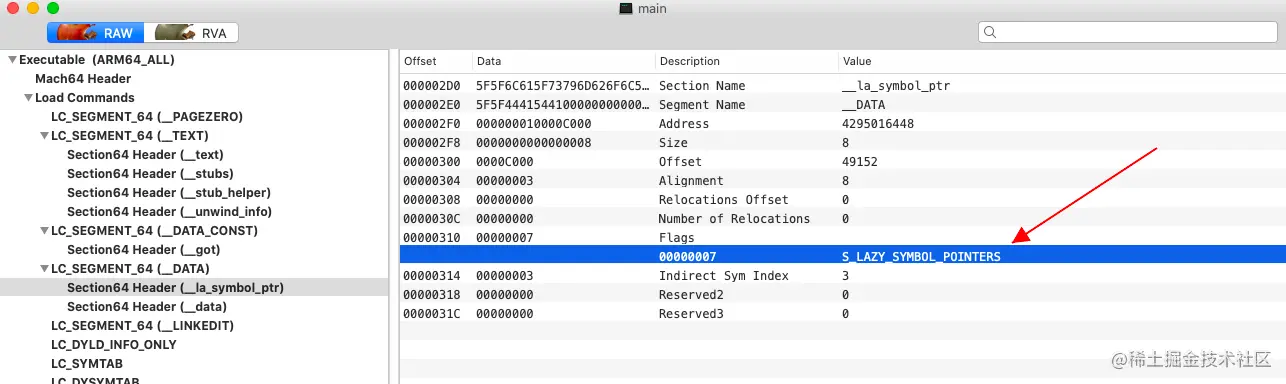

3. rebind_symbols_for_image从Image中寻找S_LAZY_SYMBOL_POINTERS和S_NON_LAZY_SYMBOL_POINTERS这两个section

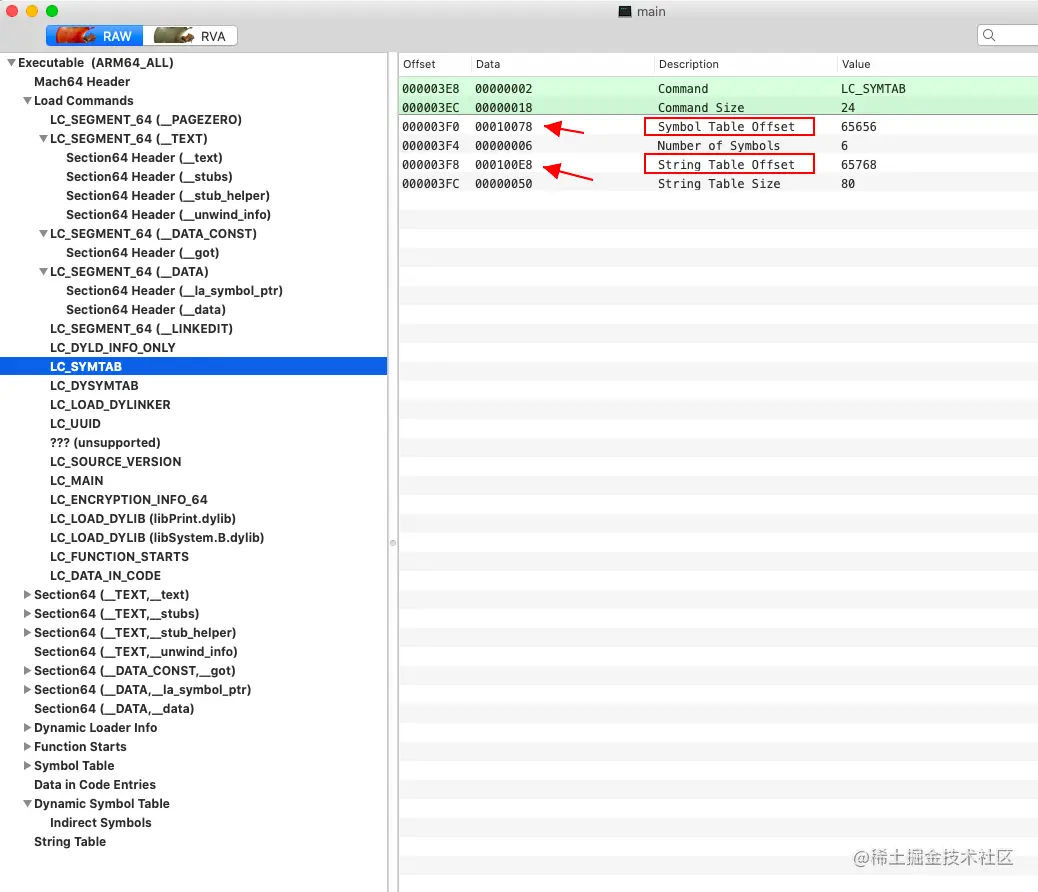

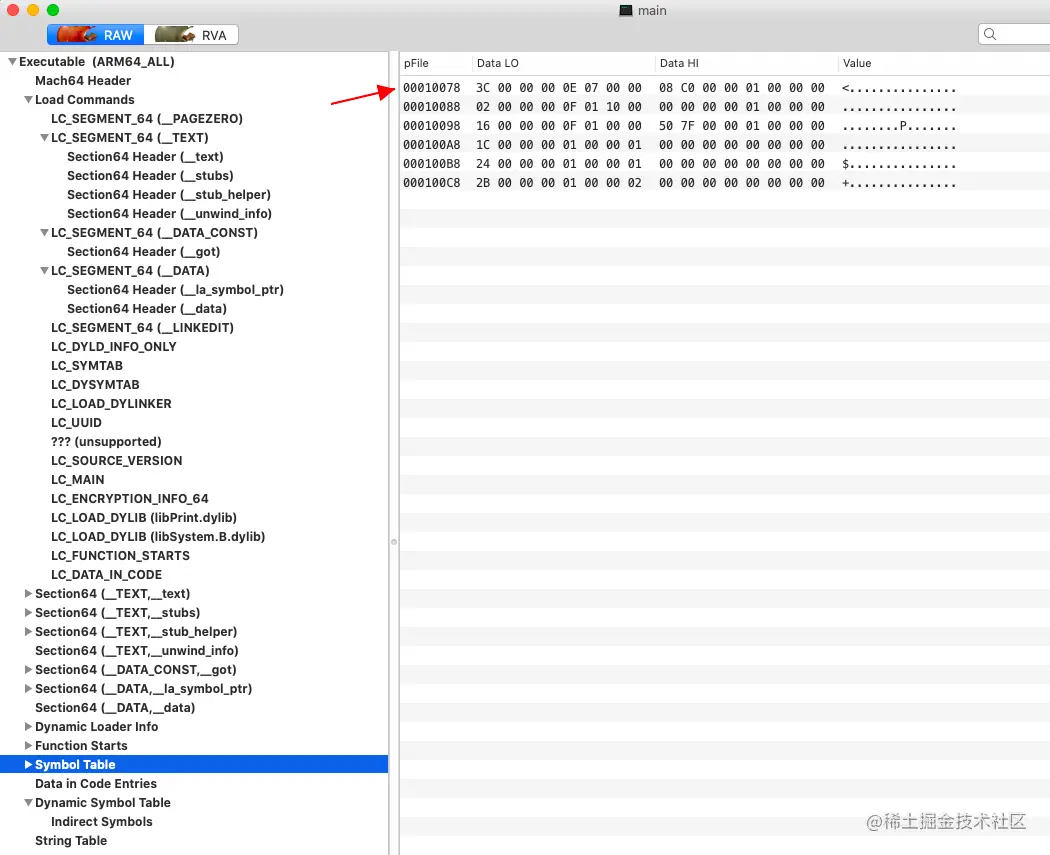

在LC_SYMTAB中找到Symbol Table Offset，String Table Offset

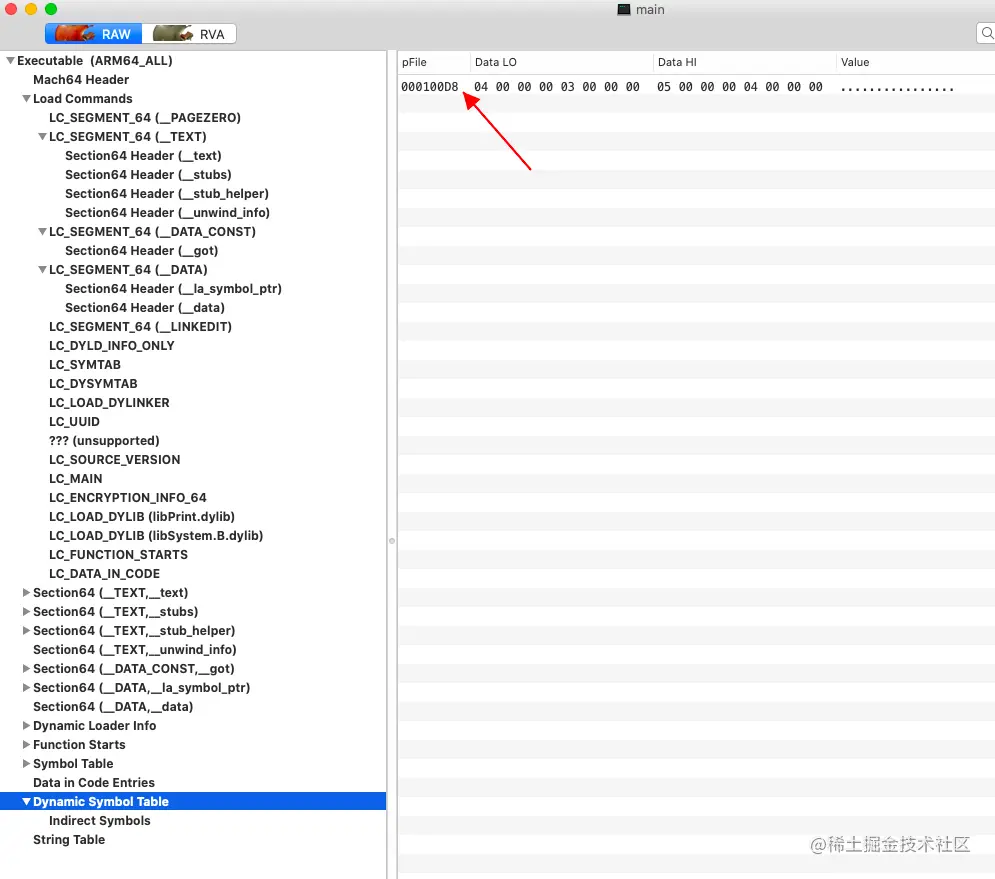

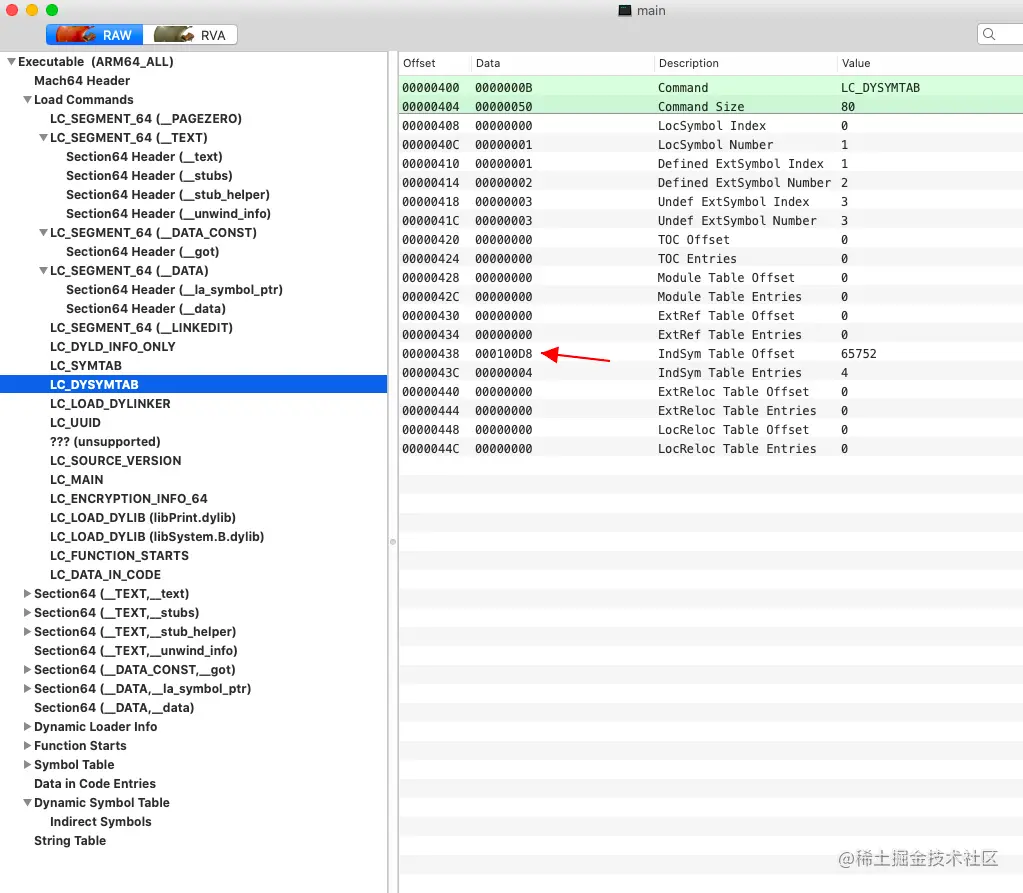

在LC_DYSYMTAB找到IndSym Table Offset
static void rebind_symbols_for_image(struct rebindings_entry *rebindings,
const struct mach_header *header,
intptr_t slide) {
// 4.1 从LC_Command寻找linkedit_segment, symtab_cmd, dysymtab_cmd地址
Dl_info info;
if (dladdr(header, &info) == 0) {
return;
}
segment_command_t *cur_seg_cmd;
segment_command_t *linkedit_segment = NULL;
struct symtab_command* symtab_cmd = NULL;
struct dysymtab_command* dysymtab_cmd = NULL;
uintptr_t cur = (uintptr_t)header + sizeof(mach_header_t);
for (uint i = 0; i < header->ncmds; i++, cur += cur_seg_cmd->cmdsize) {
cur_seg_cmd = (segment_command_t *)cur;
if (cur_seg_cmd->cmd == LC_SEGMENT_ARCH_DEPENDENT) {
if (strcmp(cur_seg_cmd->segname, SEG_LINKEDIT) == 0) {
linkedit_segment = cur_seg_cmd;
}
} else if (cur_seg_cmd->cmd == LC_SYMTAB) {
symtab_cmd = (struct symtab_command*)cur_seg_cmd;
} else if (cur_seg_cmd->cmd == LC_DYSYMTAB) {
dysymtab_cmd = (struct dysymtab_command*)cur_seg_cmd;
}
}
// 4.2 寻找symtab, strtab, indirect_symtab地址
if (!symtab_cmd || !dysymtab_cmd || !linkedit_segment ||
!dysymtab_cmd->nindirectsyms) {
return;
}
// Find base symbol/string table addresses
uintptr_t linkedit_base = (uintptr_t)slide + linkedit_segment->vmaddr - linkedit_segment->fileoff;
nlist_t *symtab = (nlist_t *)(linkedit_base + symtab_cmd->symoff);
char *strtab = (char *)(linkedit_base + symtab_cmd->stroff);
// Get indirect symbol table (array of uint32_t indices into symbol table)
uint32_t *indirect_symtab = (uint32_t *)(linkedit_base + dysymtab_cmd->indirectsymoff);
// 4.3 遍历LC_Command寻找SEG_DATA, SEG_DATA_CONST这两个Segment;从这两个Segment寻找S_LAZY_SYMBOL_POINTERS, S_NON_LAZY_SYMBOL_POINTERS这两个Section，执行perform_rebinding_with_section.
cur = (uintptr_t)header + sizeof(mach_header_t);
for (uint i = 0; i < header->ncmds; i++, cur += cur_seg_cmd->cmdsize) {
cur_seg_cmd = (segment_command_t *)cur;
if (cur_seg_cmd->cmd == LC_SEGMENT_ARCH_DEPENDENT) {
if (strcmp(cur_seg_cmd->segname, SEG_DATA) != 0 &&
strcmp(cur_seg_cmd->segname, SEG_DATA_CONST) != 0) {
continue;
}
for (uint j = 0; j < cur_seg_cmd->nsects; j++) {
section_t *sect =
(section_t *)(cur + sizeof(segment_command_t)) + j;
if ((sect->flags & SECTION_TYPE) == S_LAZY_SYMBOL_POINTERS) {
perform_rebinding_with_section(rebindings, sect, slide, symtab, strtab, indirect_symtab);
}
if ((sect->flags & SECTION_TYPE) == S_NON_LAZY_SYMBOL_POINTERS) {
perform_rebinding_with_section(rebindings, sect, slide, symtab, strtab, indirect_symtab);
}
}
}
}
}
4. perform_rebinding_with_section函数的参数分别是需要执行替换和被替换的结构体的单链表rebindings，S_LAZY_SYMBOL_POINTERS, S_NON_LAZY_SYMBOL_POINTERS这两个Section的地址，偏移量，symtab地址，strtab地址，indirect_symtab地址

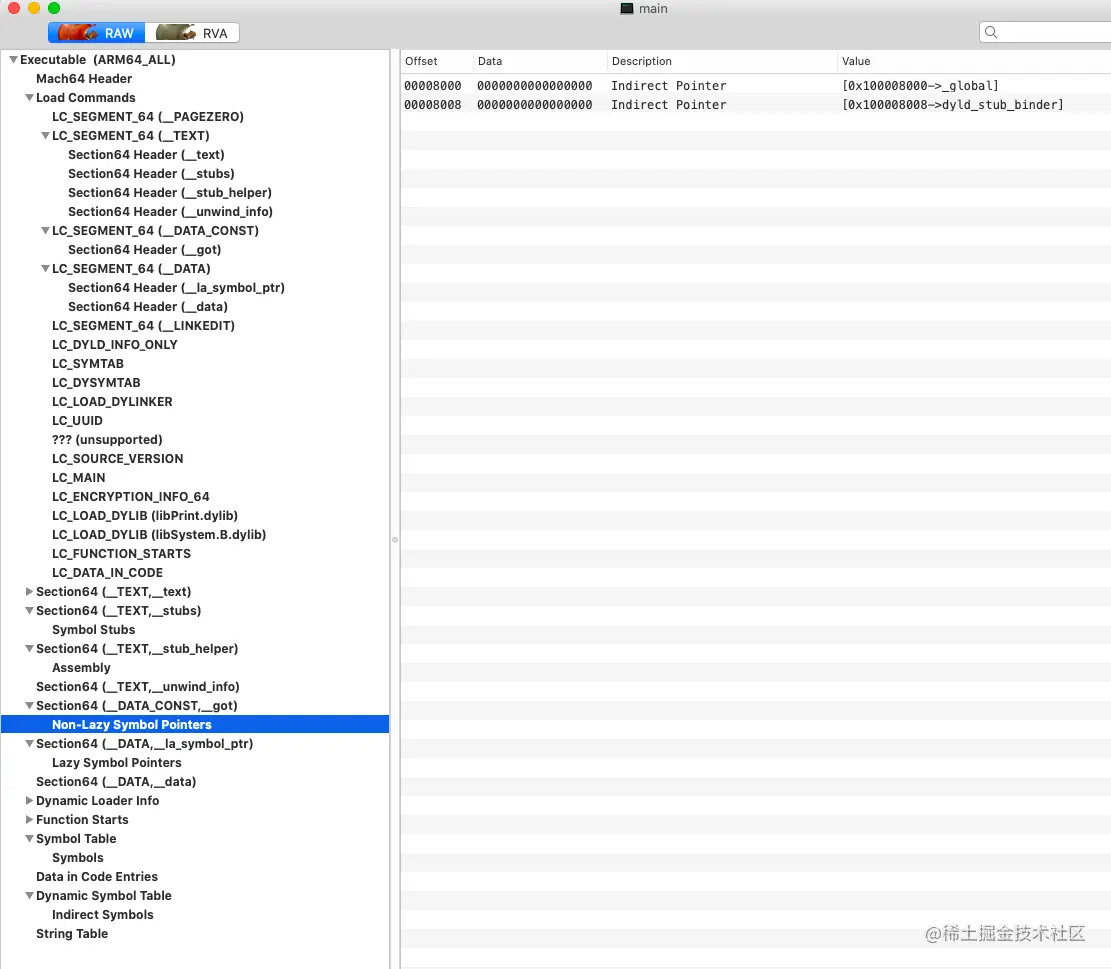

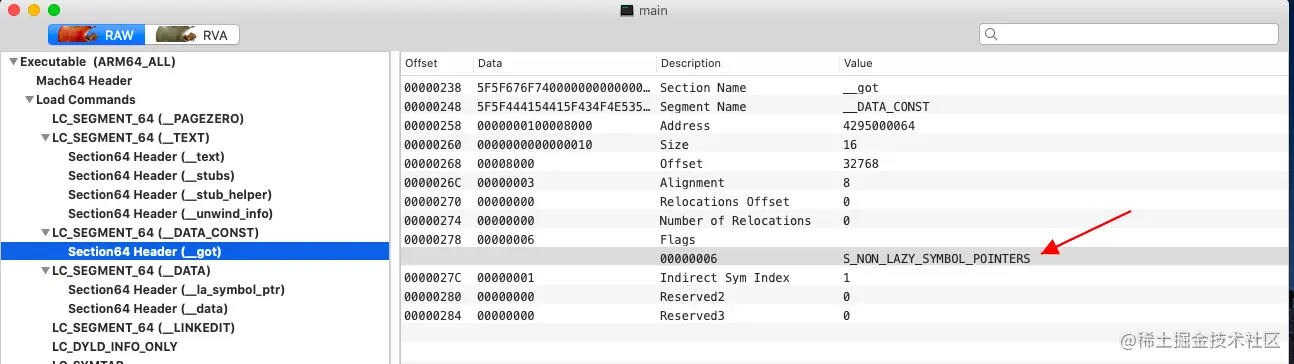

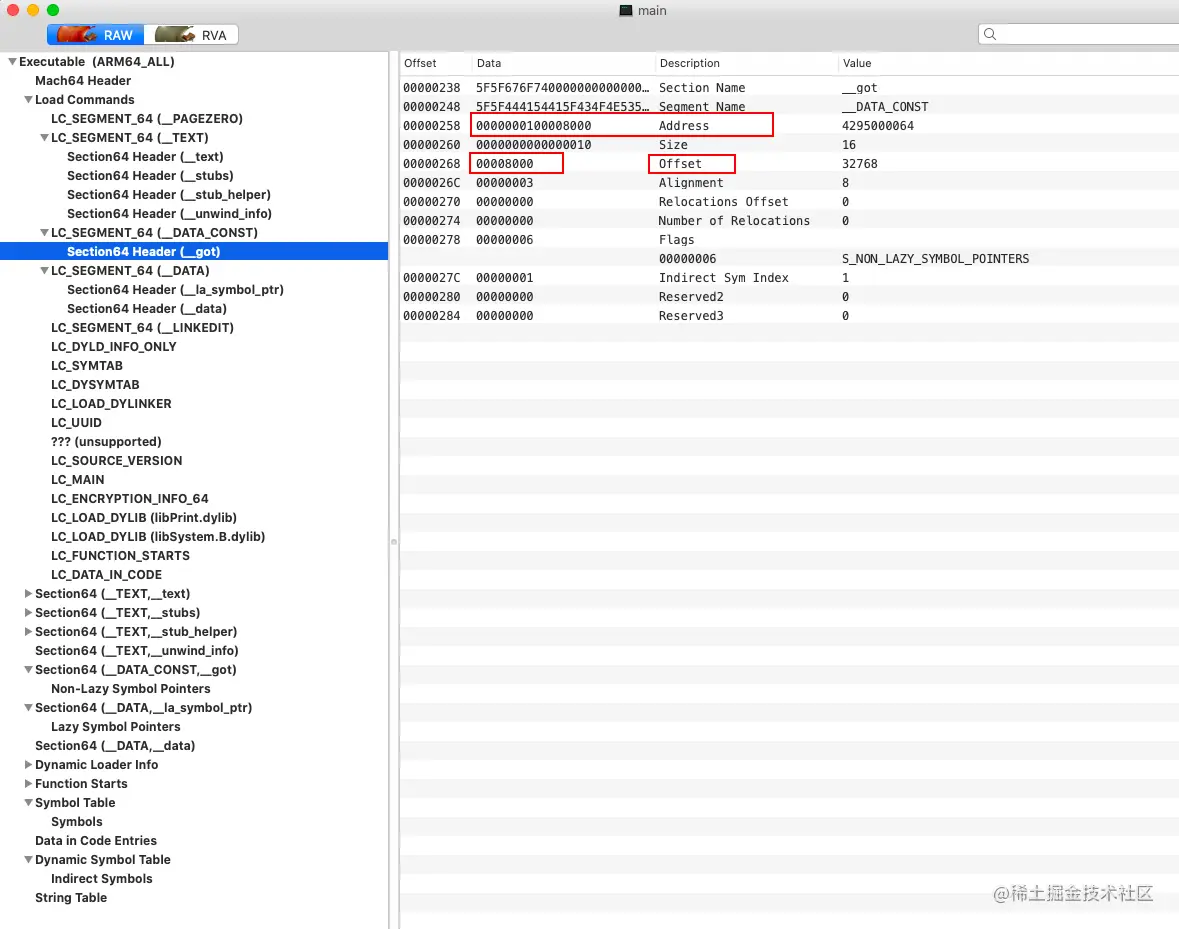

在S_NON_LAZY_SYMBOL_POINTERS中找到Address，找到__got Section中的符号绑定表。同样方式，S_LAZY_SYMBOL_POINTERS中找到__la_symbol_ptr符号绑定表。

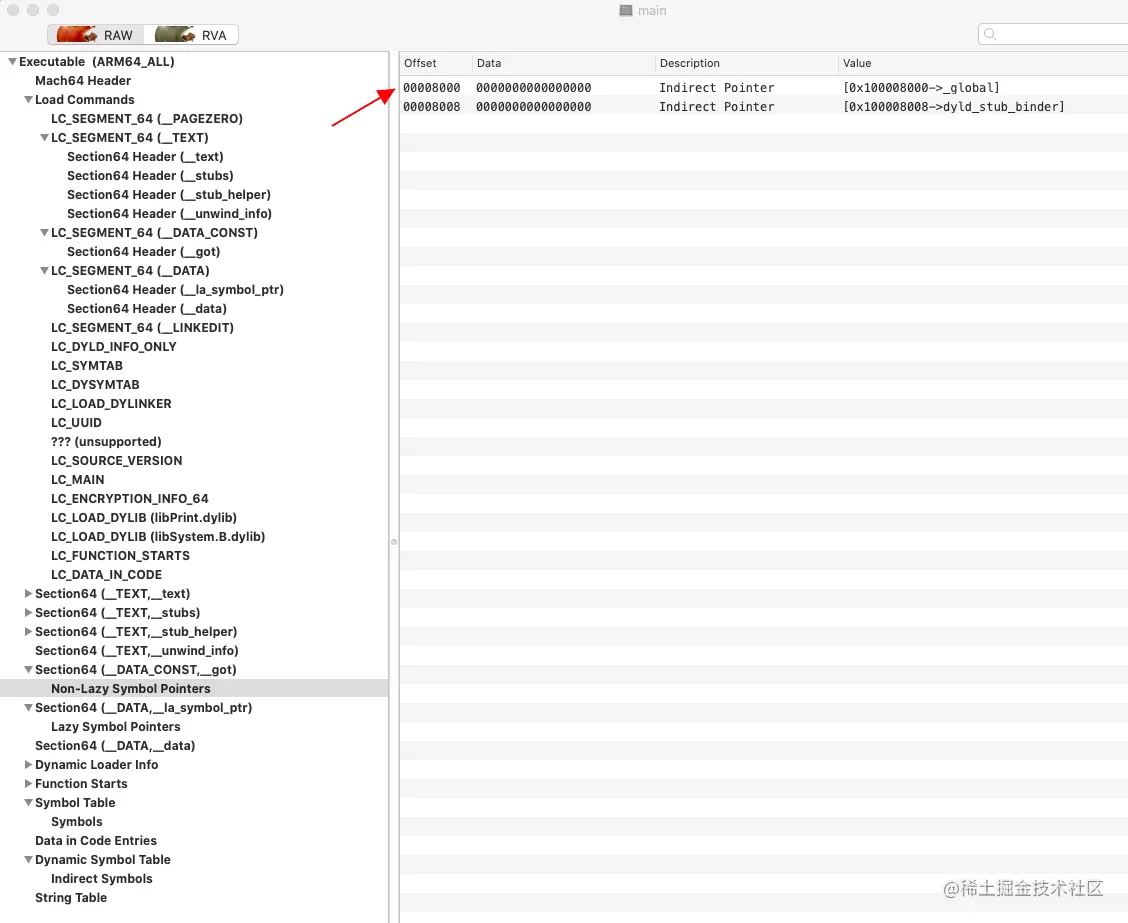

这就是符号绑定表，最后会修改这边的Data，来填充最终执行的函数指针。

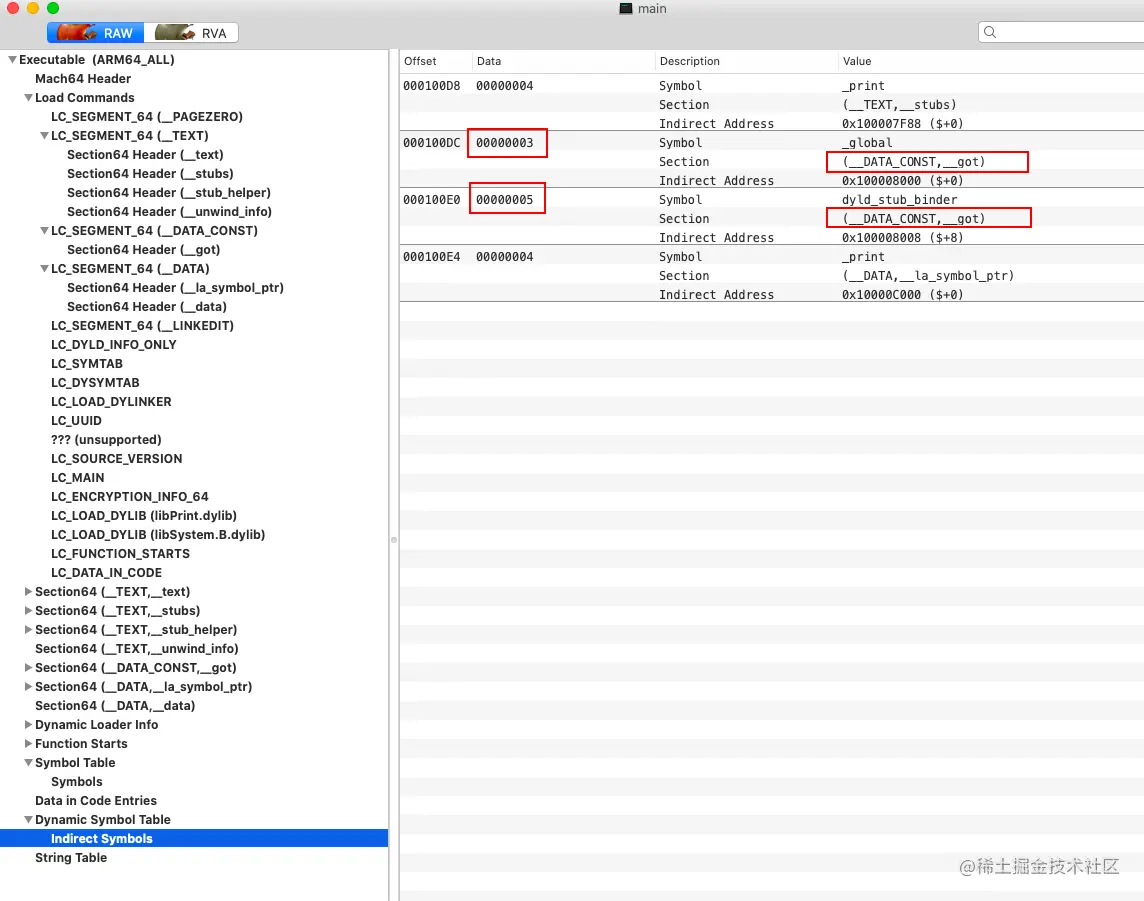

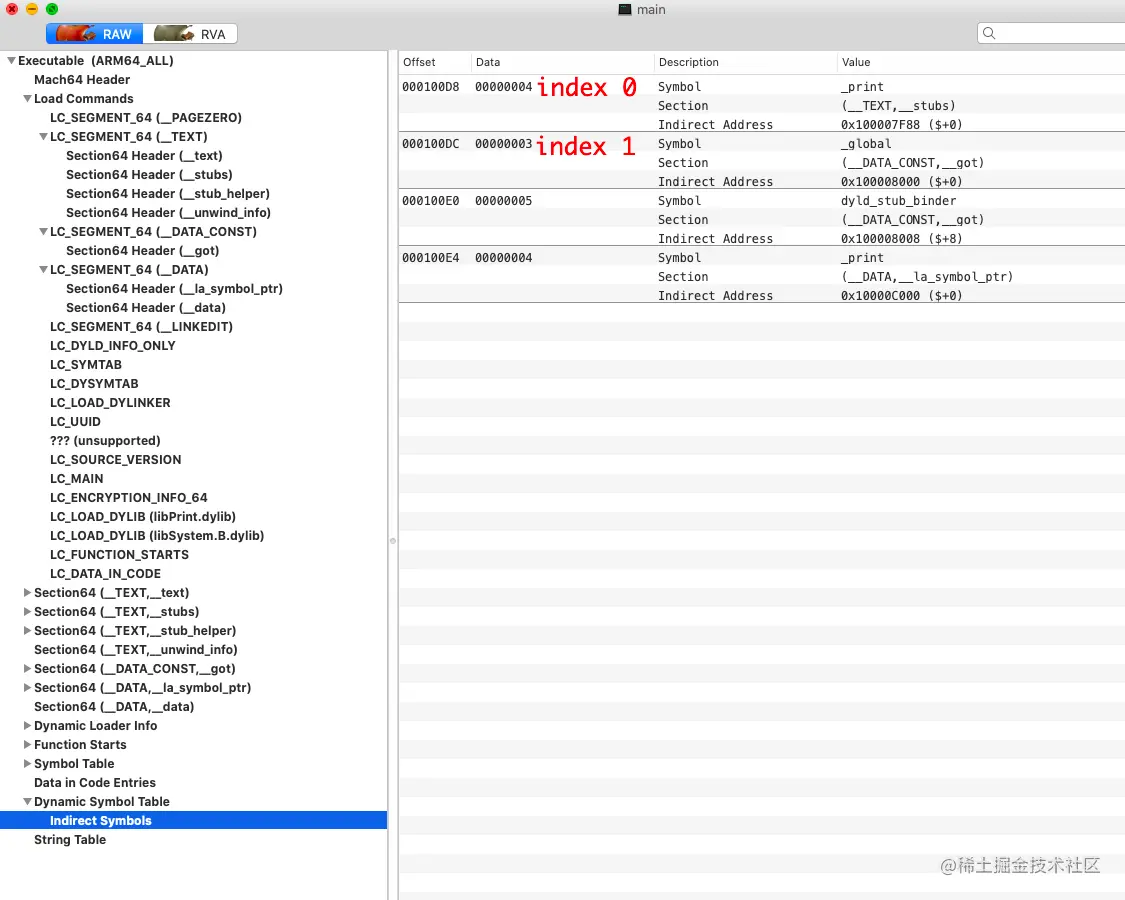

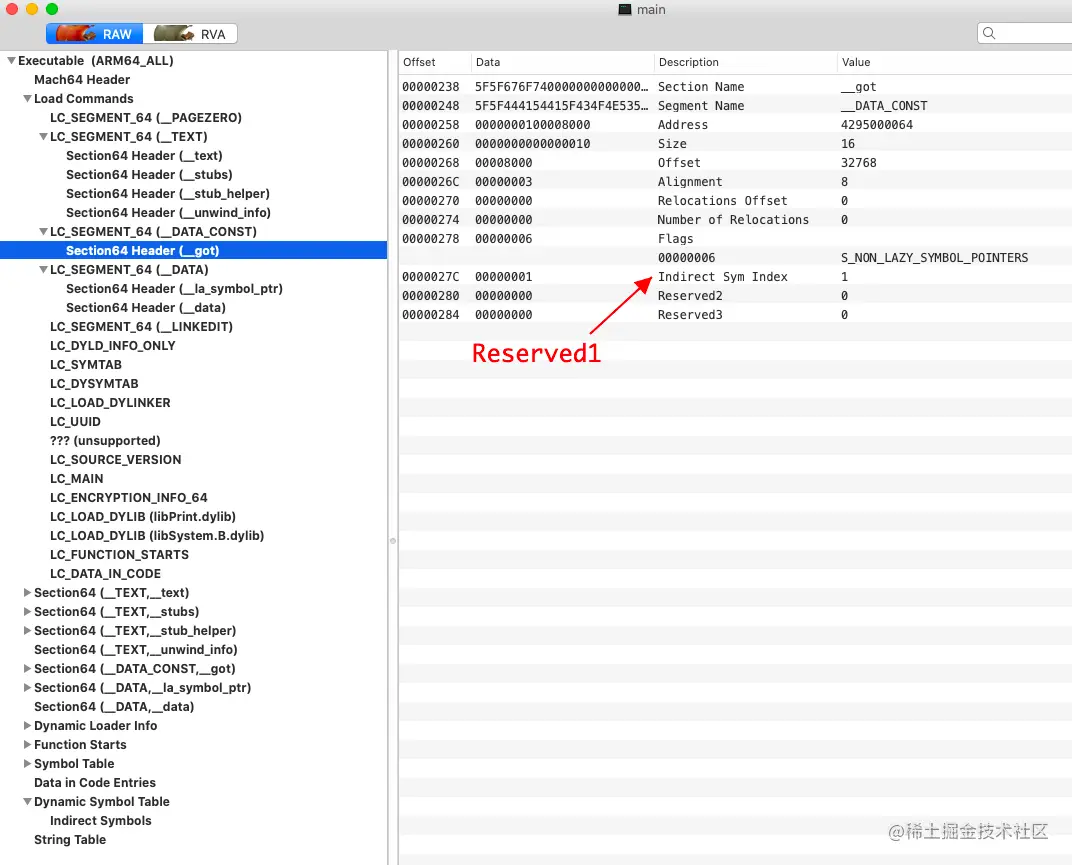

在S_NON_LAZY_SYMBOL_POINTERS中找到Indirect Sym Index为1
在Indirect Symbols中找到Index为1的符号，这个就是__got这个section的开始位置。
遍历这个section，获取到Data值，即符号Index。
使用Index在Symbol Table找到对应的符号。

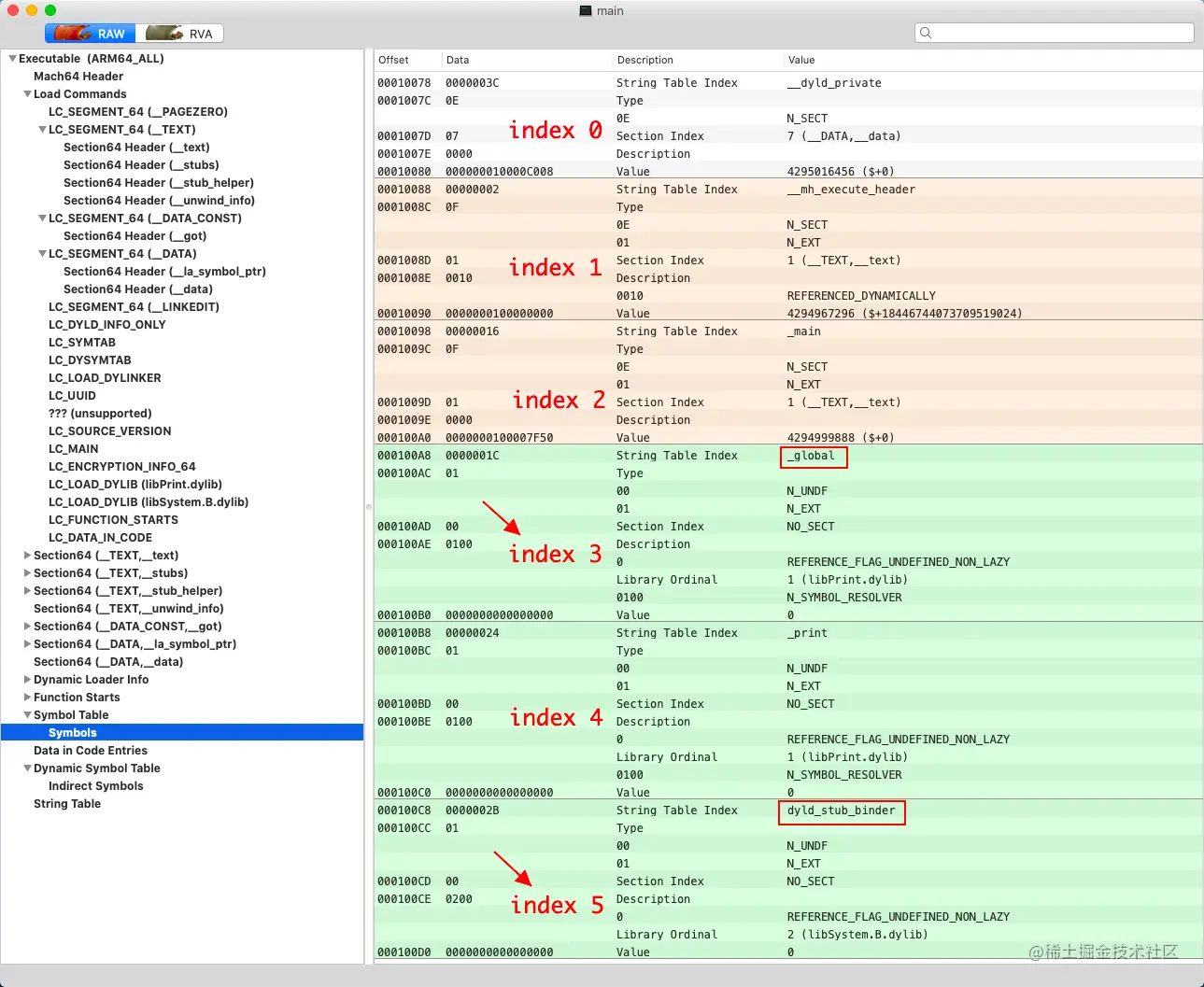

如上图，对应的index3和index5的符号，String Table Index的Data是0x0000001C和0x0000002B。这也是这个符号名字在String Table中存储的位置。从String Table中找到这个名字。
可以对照16进制ASCII码表看一下，0x5F是_，0x67是g，0x6C是l，0x6F是o，下一行后面几个分别是b，a，l，正是图中Value显示的值。
最终，遍历符号绑定表，遍历需要重新绑定的单链表，使用符号名称做匹配，匹配之后，**replaced指向原来indirect_symbol_bindings[i]中记录的指针，indirect_symbol_bindings[i]指针替换为cur->rebindings[j].replacement
static void perform_rebinding_with_section(struct rebindings_entry *rebindings,
section_t *section,
intptr_t slide,
nlist_t *symtab,
char *strtab,
uint32_t *indirect_symtab) {
uint32_t *indirect_symbol_indices = indirect_symtab + section->reserved1;
void **indirect_symbol_bindings = (void **)((uintptr_t)slide + section->addr);
for (uint i = 0; i < section->size / sizeof(void *); i++) {
uint32_t symtab_index = indirect_symbol_indices[i];
if (symtab_index == INDIRECT_SYMBOL_ABS || symtab_index == INDIRECT_SYMBOL_LOCAL ||
symtab_index == (INDIRECT_SYMBOL_LOCAL | INDIRECT_SYMBOL_ABS)) {
continue;
}
uint32_t strtab_offset = symtab[symtab_index].n_un.n_strx;
char *symbol_name = strtab + strtab_offset;
struct rebindings_entry *cur = rebindings;
while (cur) {
for (uint j = 0; j < cur->rebindings_nel; j++) {
if (strlen(symbol_name) > 1 &&
strcmp(&symbol_name[1], cur->rebindings[j].name) == 0) {
if (cur->rebindings[j].replaced != NULL &&
indirect_symbol_bindings[i] != cur->rebindings[j].replacement) {
*(cur->rebindings[j].replaced) = indirect_symbol_bindings[i];
}
indirect_symbol_bindings[i] = cur->rebindings[j].replacement;
goto symbol_loop;
}
}
cur = cur->next;
}
symbol_loop:;
}
}
六、Fishhook应用
由于可以hook系统函数，使用场景很多，可以用与监控和调试、安全和逆向等场景。这边只做简单介绍。
-
Wechat-Matrix
耗电监控中，Hook GCD函数，用于获取异步任务堆栈
#define BEGIN_HOOK(func) \
ks_rebind_symbols((struct ks_rebinding[2]){{#func, WRAP(func), (void *)&ORIFUNC(func)}}, 1);
#define HOOK_FUNC(ret_type, func, ...) \
ret_type func(__VA_ARGS__); \
static ret_type WRAP(func)(__VA_ARGS__); \
static ret_type (*ORIFUNC(func))(__VA_ARGS__); \
ret_type WRAP(func)(__VA_ARGS__) {
// 1. hook dispatch
BEGIN_HOOK(dispatch_async);
BEGIN_HOOK(dispatch_after);
BEGIN_HOOK(dispatch_barrier_async);
BEGIN_HOOK(dispatch_async_f);
BEGIN_HOOK(dispatch_after_f);
BEGIN_HOOK(dispatch_barrier_async_f);
HOOK_FUNC(void, dispatch_async, dispatch_queue_t queue, dispatch_block_t block)
orig_dispatch_async(queue,blockRecordAsyncTrace(block));
}
static inline dispatch_block_t blockRecordAsyncTrace(dispatch_block_t block)
{
// 1. get origin stack
AsyncStackTrace stackTrace = getCurAsyncStackTrace();
NSMutableArray *stackArray = [[NSMutableArray alloc] init];
for (int i = 0; i < stackTrace.size; i++) {
NSNumber *temp =[NSNumber numberWithUnsignedLong:(unsigned long)stackTrace.backTrace[i]];
[stackArray addObject:temp];
}
free(stackTrace.backTrace);
stackTrace.backTrace = NULL;
// 2. execute the block
dispatch_block_t newBlock = ^() {
pthread_mutex_lock(&m_threadLock);
thread_t current_thread = (thread_t)ksthread_self();
NSNumber *key = [[NSNumber alloc] initWithInt:current_thread];
[asyncOriginThreadDict setObject:stackArray forKey:key];
pthread_mutex_unlock(&m_threadLock);
block();
pthread_mutex_lock(&m_threadLock);
if (key != nil && [asyncOriginThreadDict objectForKey:key] != nil) {
[asyncOriginThreadDict removeObjectForKey:key];
}
pthread_mutex_unlock(&m_threadLock);
};
// 3. return the new block
return newBlock;
}
2. KSCrash
hook __cxa_throw ，用于track CPP抛出异常函数
static void setEnabled(bool isEnabled)
{
if(isEnabled != g_isEnabled)
{
g_isEnabled = isEnabled;
if(isEnabled)
{
initialize();
ksid_generate(g_eventID);
g_originalTerminateHandler = std::set_terminate(CPPExceptionTerminate);
ks_rebinding item;
item.name = "__cxa_throw";
item.replacement = (void *)my_cxa_throw;
item.replaced = (void **)&orig_cxa_throw;
ks_rebind_symbols(&item, 1);
// int ret_val = ks_rebind_symbols(&item, 1);
// KSLOG_DEBUG("rebind ret: %d", ret_val);
}
else
{
std::set_terminate(g_originalTerminateHandler);
}
g_captureNextStackTrace = isEnabled;
}
}
3. MLeaksFinder
hook objc_setAssociatedObject 用于track强引用
+ (void)hook
{
#if _INTERNAL_RCD_ENABLED
std::lock_guard<std::mutex> l(*FB::AssociationManager::hookMutex);
rcd_rebind_symbols((struct rcd_rebinding[2]){
{
"objc_setAssociatedObject",
(void *)FB::AssociationManager::fb_objc_setAssociatedObject,
(void **)&FB::AssociationManager::fb_orig_objc_setAssociatedObject
},
{
"objc_removeAssociatedObjects",
(void *)FB::AssociationManager::fb_objc_removeAssociatedObjects,
(void **)&FB::AssociationManager::fb_orig_objc_removeAssociatedObjects
}}, 2);
FB::AssociationManager::hookTaken = true;
#endif //_INTERNAL_RCD_ENABLED
}
static void fb_objc_setAssociatedObject(id object, void *key, id value, objc_AssociationPolicy policy) {
{
std::lock_guard<std::mutex> l(*_associationMutex);
// Track strong references only
if (policy == OBJC_ASSOCIATION_RETAIN ||
policy == OBJC_ASSOCIATION_RETAIN_NONATOMIC) {
_threadUnsafeSetStrongAssociation(object, key, value);
} else {
// We can change the policy, we need to clear out the key
_threadUnsafeResetAssociationAtKey(object, key);
}
}
/**
We are doing that behind the lock. Otherwise it could deadlock.
The reason for that is when objc calls up _object_set_associative_reference, when we nil out
a reference for some object, it will also release this value, which could cause it to dealloc.
This is done inside _object_set_associative_reference without lock. Otherwise it would deadlock,
since the object that is released, could also clean up some associated objects.
If we would keep a lock during that, we would fall for that deadlock.
Unfortunately this also means the association manager can be not a 100% accurate, since there
can technically be a race condition between setting values on the same object and same key from
different threads. (One thread sets value, other nil, we are missing this value)
*/
fb_orig_objc_setAssociatedObject(object, key, value, policy);
}
void _threadUnsafeSetStrongAssociation(id object, void *key, id value) {
if (value) {
auto i = _associationMap->find(object);
ObjectAssociationSet *refs;
if (i != _associationMap->end()) {
refs = i->second;
} else {
refs = new ObjectAssociationSet;
(*_associationMap)[object] = refs;
}
refs->insert(key);
} else {
_threadUnsafeResetAssociationAtKey(object, key);
}
}
-
调试与反调试
Hook method_getImplementation、method_setImplementation函数、sysctl函数、dlsym函数，用于调试和反调试
#import "InjectCode.h"
#import "fishhook.h"
#import <sys/sysctl.h>
@implementation InjectCode
//原始函数指针
int (*sysctl_p)(int *, u_int, void *, size_t *, void *, size_t);
//新函数地址
int my_sysctl(int *name, u_int namelen, void *info, size_t *infosize, void *newInfo, size_t newInfoSize) {
if (namelen == 4
&& name[0] == CTL_KERN
&& name[1] == KERN_PROC
&& name[2] == KERN_PROC_PID
&& info
&& (int)*infosize == sizeof(struct kinfo_proc)) {
int err = sysctl_p(name,namelen,info,infosize,newInfo,newInfoSize);
struct kinfo_proc * myinfo = (struct kinfo_proc *)info;
if ((myinfo->kp_proc.p_flag & P_TRACED) != 0) {
//使用异或可以取反
myinfo->kp_proc.p_flag ^= P_TRACED;
}
return err;
}
return sysctl_p(name,namelen,info,infosize,newInfo,newInfoSize);
}
+(void)load
{
rebind_symbols((struct rebinding[1]){{"sysctl",my_sysctl,(void *)&sysctl_p}}, 1);
}
@end
