杨辉三角 II

  杨辉三角具有以下性质:

  1. 每行数字左右对称,由 1 开始逐渐变大再变小,并最终回到 1。
  2. 第 n 行(从 0 开始编号)的数字有 n+1 项,前 n 行共有 n(n+1)/2 个数。
  3. 每个数字等于上一行的左右两个数字之和,可用此性质写出整个杨辉三角。
class Solution {
public:
    vector<int> getRow(int rowIndex) {
        vector<int> row(rowIndex + 1);
        row[0] = 1;
        for (int i = 1; i <= rowIndex; ++i) {
            for (int j = i; j > 0; --j) {
                row[j] += row[j - 1];
            }
        }
        return row;
    }
};

旋转图像

对于矩阵中第 i 行的第 j 个元素,在旋转后,它出现在倒数第 i 列的第 j 个位置。

将其翻译成代码

由于矩阵中的行列从 0 开始计数,因此对于矩阵中的元素 matrix[i][j],在旋转后,它的新位置为 new_matrix[j][n-i-1]

使用翻转代替旋转

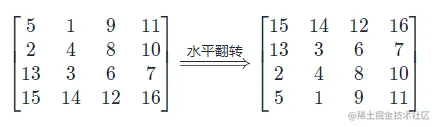

作为例子,先将其通过水平轴翻转得到:

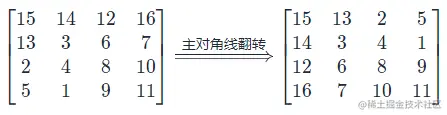

再根据主对角线翻转得到:


class Solution {
public:
    void rotate(vector<vector<int>>& matrix) {
        int n = matrix.size();
        // 水平翻转
        for (int i = 0; i < n / 2; ++i) {
            for (int j = 0; j < n; ++j) {
                swap(matrix[i][j], matrix[n - i - 1][j]);
            }
        }
        // 主对角线翻转
        for (int i = 0; i < n; ++i) {
            for (int j = 0; j < i; ++j) {
                swap(matrix[i][j], matrix[j][i]);
            }
        }
    }
};

螺旋矩阵 II

  按照要求,初始位置设为矩阵的左上角,初始方向设为向右。若下一步的位置超出矩阵边界,或者是之前访问过的位置,则顺时针旋转,进入下一个方向。如此反复直至填入 n*n 个元素。

  记 matrix 为生成的矩阵,其初始元素设为 0。由于填入的元素均为正数,我们可以判断当前位置的元素值,若不为 0,则说明已经访问过此位置。

class Solution {
public:
    vector<vector<int>> generateMatrix(int n) {
        int maxNum = n * n;
        int curNum = 1;
        vector<vector<int>> matrix(n, vector<int>(n));
        int row = 0, column = 0;
        vector<vector<int>> directions = {{0, 1}, {1, 0}, {0, -1}, {-1, 0}};  // 右下左上
        int directionIndex = 0;
        while (curNum <= maxNum) {
            matrix[row][column] = curNum;
            curNum++;
            int nextRow = row + directions[directionIndex][0], nextColumn = column + directions[directionIndex][1];
            if (nextRow < 0 || nextRow >= n || nextColumn < 0 || nextColumn >= n || matrix[nextRow][nextColumn] != 0) {
                directionIndex = (directionIndex + 1) % 4;  // 顺时针旋转至下一个方向
            }
            row = row + directions[directionIndex][0];
            column = column + directions[directionIndex][1];
        }
        return matrix;
    }
};
