Grafana+Loki 轻量化日志平台

昵称为空C
1,824 阅读3分钟

摘要：本文主要介绍了基于docker搭建的Grafana+Loki轻量化日志搜索，功能没有ELK那么强大，但是基本上够用了。 一、基础环境准备

Docker环境安装地址 》 juejin.cn/post/696827…

二、服务启动

先下载服务的基础配置文件

wget https://raw.githubusercontent.com/grafana/loki/v2.3.0/cmd/loki/loki-local-config.yaml -O loki-config.yaml

wget https://raw.githubusercontent.com/grafana/loki/v2.3.0/clients/cmd/promtail/promtail-docker-config.yaml -O promtail-config.yaml

wget https://raw.githubusercontent.com/grafana/loki/v2.3.0/production/docker-compose.yaml -O docker-compose.yaml

然后做如下修改，如果下载不下来，也可以复制下面的文件

  • loki-config.yaml
auth_enabled: false

server:
  http_listen_port: 3100
  grpc_listen_port: 9096

ingester:
  wal:
    enabled: true
    dir: /tmp/wal
  lifecycler:
    address: 127.0.0.1
    ring:
      kvstore:
        store: inmemory
      replication_factor: 1
    final_sleep: 0s
  chunk_idle_period: 1h       # Any chunk not receiving new logs in this time will be flushed
  max_chunk_age: 1h           # All chunks will be flushed when they hit this age, default is 1h
  chunk_target_size: 1048576  # Loki will attempt to build chunks up to 1.5MB, flushing first if chunk_idle_period or max_chunk_age is reached first
  chunk_retain_period: 30s    # Must be greater than index read cache TTL if using an index cache (Default index read cache TTL is 5m)
  max_transfer_retries: 0     # Chunk transfers disabled

schema_config:
  configs:
    - from: 2020-10-24
      store: boltdb-shipper
      object_store: filesystem
      schema: v11
      index:
        prefix: index_
        period: 24h

storage_config:
  boltdb_shipper:
    active_index_directory: /tmp/loki/boltdb-shipper-active
    cache_location: /tmp/loki/boltdb-shipper-cache
    cache_ttl: 24h         # Can be increased for faster performance over longer query periods, uses more disk space
    shared_store: filesystem
  filesystem:
    directory: /tmp/loki/chunks

compactor:
  working_directory: /tmp/loki/boltdb-shipper-compactor
  shared_store: filesystem

limits_config:
  reject_old_samples: true
  reject_old_samples_max_age: 168h

chunk_store_config:
  max_look_back_period: 0s

table_manager:
  retention_deletes_enabled: false
  retention_period: 0s

ruler:
  storage:
    type: local
    local:
      directory: /tmp/loki/rules
  rule_path: /tmp/loki/rules-temp
  alertmanager_url: http://localhost:9093
  ring:
    kvstore:
      store: inmemory
  enable_api: true
  • promtail-config.yaml
server:
  http_listen_port: 9080
  grpc_listen_port: 0

positions:
  filename: /tmp/positions.yaml

clients:
  - url: http://loki:3100/loki/api/v1/push

scrape_configs:
- job_name: system
  static_configs:
  - targets:
      - localhost
    labels:
      job: varlogs
      __path__: /var/log/*log
  • docker-compose.yaml
version: "3"

networks:
  loki:

services:
  loki:
    image: grafana/loki:2.3.0
    container_name: loki
    ports:
      - "3100:3100"
    command: -config.file=/mnt/config/loki-config.yaml
    networks:
      - loki
    volumes:
      - ./config:/mnt/config

  promtail:
    image: grafana/promtail:2.3.0
    container_name: promtail
    volumes:
      - ./config:/mnt/config
      - /var/log:/var/log
    command: -config.file=/mnt/config/promtail-config.yaml
    networks:
      - loki

  grafana:
    image: grafana/grafana:latest
    container_name: grafana
    ports:
      - "3000:3000"
    networks:
      - loki

我把两个配置文件放到了./config目录下面，按照实际地址进行文件挂载，然后执行docker-compose up -d；就可以访问了

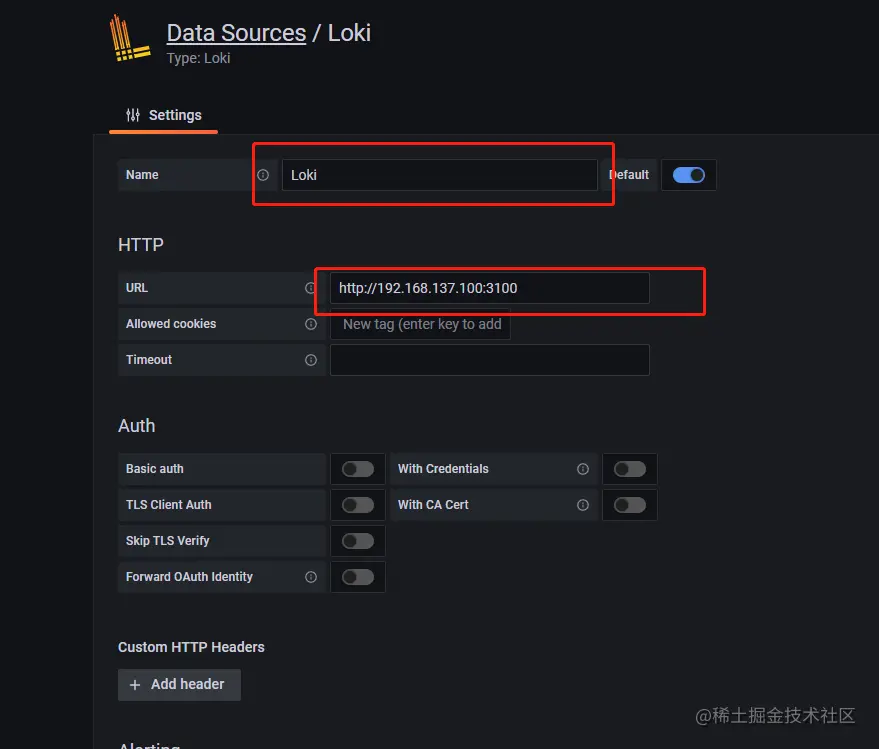

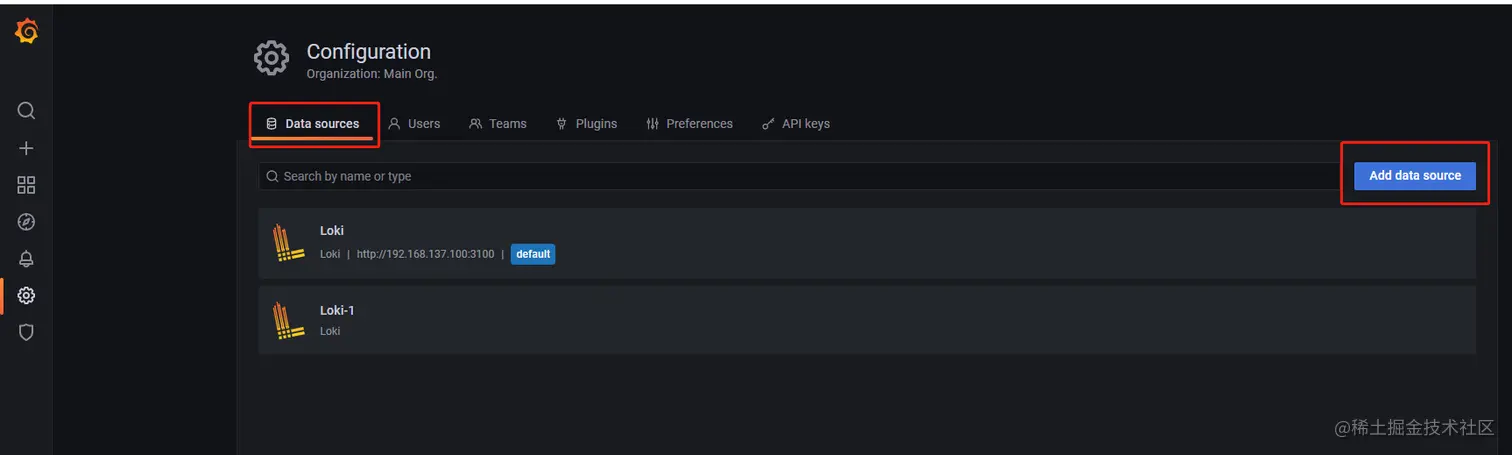

配置日志数据源

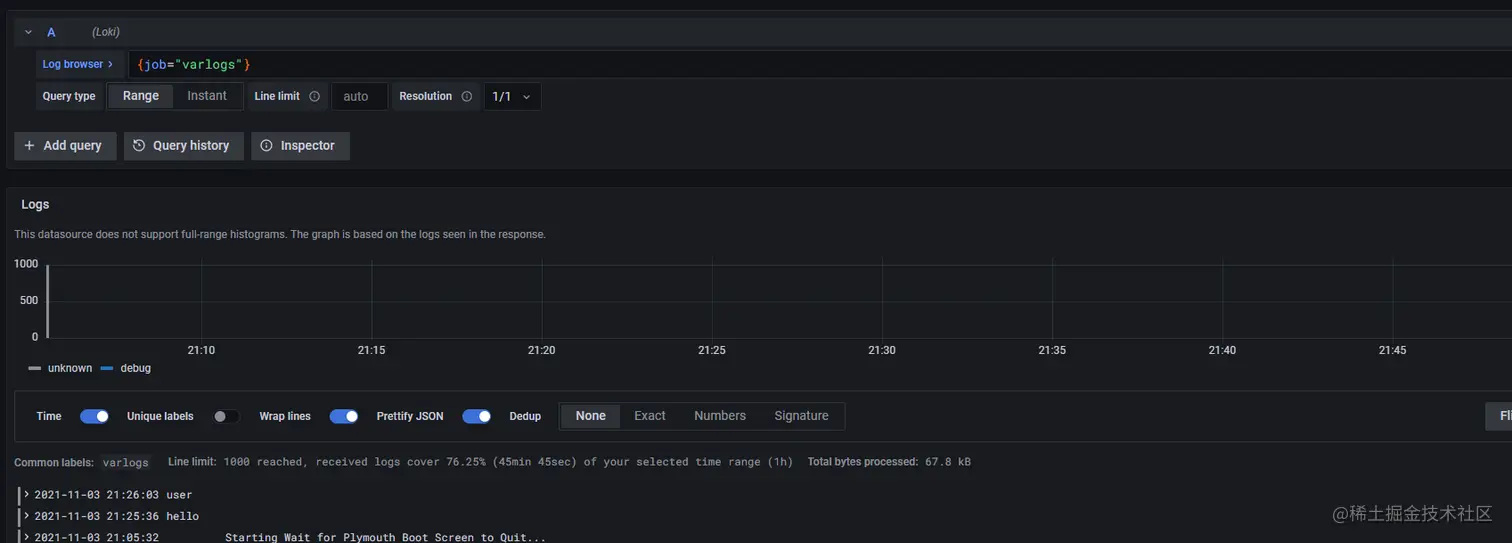

查询日志


高级用法

文档地址：grafana.com/docs/loki/l…

我个人常用的一些查询函数和方法

Log Stream Selector 大范围区间匹配

{app="mysql",name="mysql-backup"}
  • =: exactly equal
  • !=: not equal
  • =~: regex matches
  • !~: regex does not match
  • 下面是实例
  • {name =~ "mysql.+"}
  • {name !~ "mysql.+"}
  • {name !~ `mysql-\d+`}

Log Pipeline 日志详细的一些搜索条件

  • |=: Log line contains string
  • !=: Log line does not contain string
  • |~: Log line contains a match to the regular expression
  • !~: Log line does not contain a match to the regular expression
  • 实例
  • {job="mysql"} |= "error"

Log Range Aggregations 区间查询和聚合的一些用法

  • rate(log-range): calculates the number of entries per second
  • count_over_time(log-range): counts the entries for each log stream within the given range.
  • bytes_rate(log-range): calculates the number of bytes per second for each stream.
  • bytes_over_time(log-range): counts the amount of bytes used by each log stream for a given range.
  • absent_over_time(log-range): returns an empty vector if the range vector passed to it has any elements and a 1-element vector with the value 1
  • 计算日志行数 count_over_time({job="mysql"}[5m])

Unwrapped Range Aggregations

  • duration_seconds(label_identifier) (or its short equivalent duration) which will convert the label value in seconds from the go duration format(e.g 5m, 24s30ms).
  • bytes(label_identifier) which will convert the label value to raw bytes applying the bytes unit (e.g. 5 MiB, 3k, 1G).

Supported function for operating over unwrapped ranges are:

  • rate(unwrapped-range): calculates per second rate of all values in the specified interval.
  • sum_over_time(unwrapped-range): the sum of all values in the specified interval.
  • avg_over_time(unwrapped-range): the average value of all points in the specified interval.
  • max_over_time(unwrapped-range): the maximum value of all points in the specified interval.
  • min_over_time(unwrapped-range): the minimum value of all points in the specified interval
  • first_over_time(unwrapped-range): the first value of all points in the specified interval
  • last_over_time(unwrapped-range): the last value of all points in the specified interval
  • stdvar_over_time(unwrapped-range): the population standard variance of the values in the specified interval.
  • stddev_over_time(unwrapped-range): the population standard deviation of the values in the specified interval.
  • quantile_over_time(scalar,unwrapped-range): the φ-quantile (0 ≤ φ ≤ 1) of the values in the specified interval.
  • absent_over_time(unwrapped-range): returns an empty vector if the range vector passed to it has any elements and a 1-element vector with the value 1 if the range vector passed to it has no elements. (absent_over_time is useful for alerting on when no time series and logs stream exist for label combination for a certain amount of time.)

Aggregation operators

  • sum: Calculate sum over labels
  • min: Select minimum over labels
  • max: Select maximum over labels
  • avg: Calculate the average over labels
  • stddev: Calculate the population standard deviation over labels
  • stdvar: Calculate the population standard variance over labels
  • count: Count number of elements in the vector
  • bottomk: Select smallest k elements by sample value
  • topk: Select largest k elements by sample value
