利用XState实现有限状态机

总体来说有限状态机有三个特征：

1. 状态是有限的
2. 某一时刻只处于一种状态
3. 通过满足某种条件，触发改变状态函数来改变状态

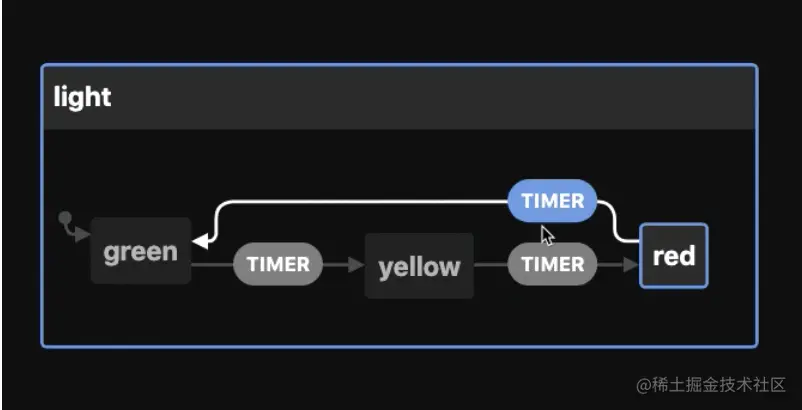

简单状态机

import { createMachine, interpret } from 'xstate'

const lightMachine = createMachine({
  // 识别 id, SCXML id 必须唯一
  id: 'light',
  // 初始化状态，绿灯
  initial: 'green',

  // 状态定义
  states: {
    green: {
      on: {
        // 事件名称，如果触发 TIMRE 事件，直接转入 yellow 状态
        TIMRE: 'yellow'
      }
    },
    yellow: {
      on: {
        TIMER: 'red'
      }
    },
    red: {
      on: {
        TIMER: 'green'
      }
    }
  }
})

// 设置当前状态
const currentState = 'green'

// 在currentState触发TIMER事件 转换的结果
const nextState = lightMachine.transition(currentState, 'TIMER').value
// => 'yellow'

// 如果传入的事件没有定义，则不会发生转换，如果是严格模式，将会抛出错误
lightMachine.transition(currentState, 'UNKNOWN').value

const toggleService = interpret(lightMachine)
.onTransition((state) => console.log(state.value))
.start(); // => 'green'
toggleService.send('TIMER'); // => 'yellow'
toggleService.send('TIMER'); // => 'red'

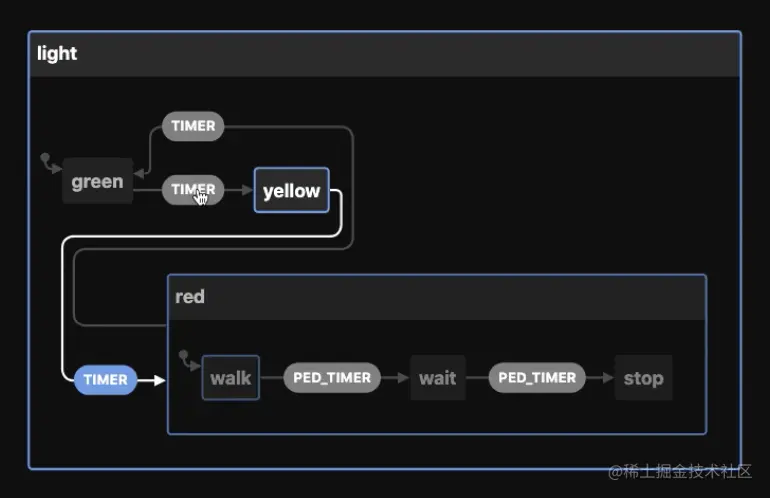

层叠状态机

import { createMachine } from 'xstate';

const pedestrianStates = {
  initial: 'walk',
  states: {
    walk: {
      on: {
        PED_TIMER: 'wait'
      }
    },
    wait: {
      on: {
        PED_TIMER: 'stop'
      }
    },
    stop: {}
  }
};

const lightMachine = createMachine({
  id: 'light',
  initial: 'green',
  states: {
    green: {
      on: {
        TIMER: 'yellow'
      }
    },
    yellow: {
      on: {
        TIMER: 'red'
      }
    },
    red: {
      on: {
        TIMER: 'green'
      },
      //行人状态写到red对象里，当处在red状态时，直接等同于red.walk嵌套状态(initial pedstrian state)
      ...pedestrianStates
    }
  }
});

const currentState = 'yellow';

const nextState = lightMachine.transition(currentState, 'TIMER').value;
// => {
//   red: 'walk'
// }

lightMachine.transition('red.walk', 'PED_TIMER').value;
// => {
//   red: 'wait'
// }

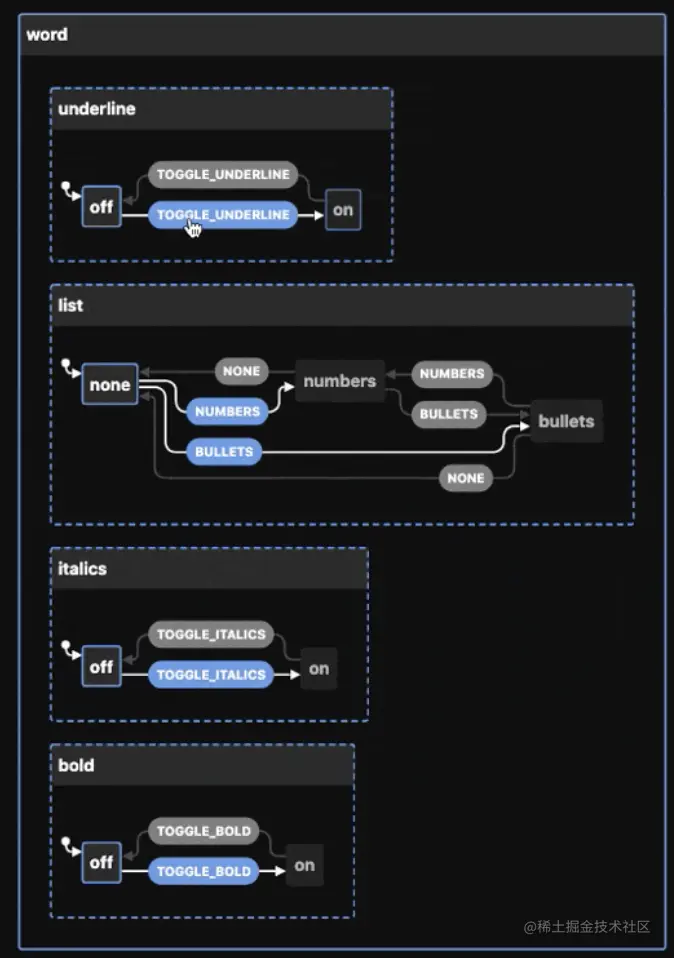

平行状态机

各状态都是独立互不影响的对象

const wordMachine = createMachine({
  id: 'word',
  type: 'parallel',
  states: {
    bold: {
      initial: 'off',
      states: {
        on: {
          on: { TOGGLE_BOLD: 'off' }
        },
        off: {
          on: { TOGGLE_BOLD: 'on' }
        }
      }
    },
    underline: {
      initial: 'off',
      states: {
        on: {
          on: { TOGGLE_UNDERLINE: 'off' }
        },
        off: {
          on: { TOGGLE_UNDERLINE: 'on' }
        }
      }
    },
    italics: {
      initial: 'off',
      states: {
        on: {
          on: { TOGGLE_ITALICS: 'off' }
        },
        off: {
          on: { TOGGLE_ITALICS: 'on' }
        }
      }
    },
    list: {
      initial: 'none',
      states: {
        none: {
          on: { BULLETS: 'bullets', NUMBERS: 'numbers' }
        },
        bullets: {
          on: { NONE: 'none', NUMBERS: 'numbers' }
        },
        numbers: {
          on: { BULLETS: 'bullets', NONE: 'none' }
        }
      }
    }
  }
});

const boldState = wordMachine.transition('bold.off', 'TOGGLE_BOLD').value;

// {
//   bold: 'on',
//   italics: 'off',
//   underline: 'off',
//   list: 'none'
// }

const nextState = wordMachine.transition(
  {
    bold: 'off',
    italics: 'off',
    underline: 'on',
    list: 'bullets'
  },
  'TOGGLE_ITALICS'
).value;

// {
//   bold: 'off',
//   italics: 'on',
//   underline: 'on',
//   list: 'bullets'
// }

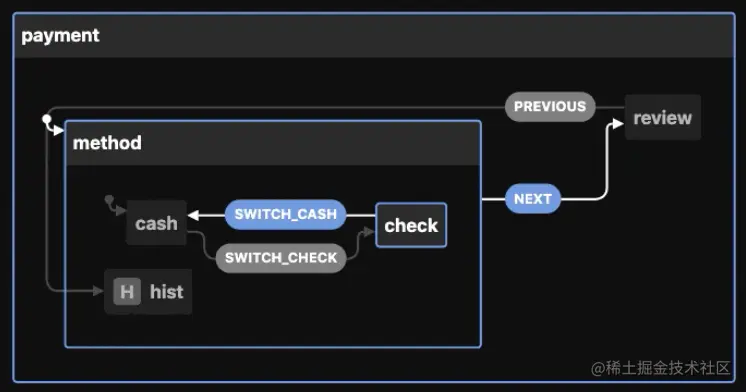

历史状态机

const paymentMachine = createMachine({
  id: 'payment',
  initial: 'method',
  states: {
    method: {
      initial: 'cash',
      states: {
        cash: { on: { SWITCH_CHECK: 'check' } },
        check: { on: { SWITCH_CASH: 'cash' } },
        hist: { type: 'history' }
      },
      on: { NEXT: 'review' }
    },
    review: {
      on: { PREVIOUS: 'method.hist' }
    }
  }
});

const checkState = paymentMachine.transition('method.cash', 'SWITCH_CHECK');

// => State {
//   value: { method: 'check' },
//   history: State { ... }
// }

const reviewState = paymentMachine.transition(checkState, 'NEXT');

// => State {
//   value: 'review',
//   history: State { ... }
// }

const previousState = paymentMachine.transition(reviewState, 'PREVIOUS').value;

// => { method: 'check' }
