Sentinel是什么
Sentinel的官方标题是:分布式系统的流量防卫兵。从名字上来看,很容易就能猜到它是用来作服务稳定性保障的。对于服务稳定性保障组件,如果熟悉Spring Cloud的用户,第一反应应该就是Hystrix。但是比较可惜的是Netflix已经宣布对Hystrix停止更新。那么,在未来我们还有什么更好的选择呢?除了Spring Cloud官方推荐的resilience4j之外,目前Spring Cloud Alibaba下整合的Sentinel也是用户可以重点考察和选型的目标。
Sentinel的功能和细节比较多,一篇内容很难介绍完整。所以下面我会分多篇来一一介绍Sentinel的重要功能。本文就先从限流入手,说说如何把Sentinel整合到Spring Cloud应用中,以及如何使用Sentinel Dashboard来配置限流规则。通过这个简单的例子,先将这一套基础配置搭建起来。
使用Sentinel实现接口限流
Sentinel的使用分为两部分:
sentinel-dashboard:与hystrix-dashboard类似,但是它更为强大一些。除了与hystrix-dashboard一样提供实时监控之外,还提供了流控规则、熔断规则的在线维护等功能。
客户端整合:每个微服务客户端都需要整合sentinel的客户端封装与配置,才能将监控信息上报给dashboard展示以及实时的更改限流或熔断规则等。
下面我们就分两部分来看看,如何使用Sentienl来实现接口限流。
部署Sentinel Dashboard
使用Spring Cloud Alibaba 0.2.2,由于该版本中升级了Sentinel到1.5.2,所以对sentinel-dashboard做一次升级。但是sentinel-dashboard的1.5.2版本的打包文件没有提供下载,如果一定要该版本的话,需要自己编译。这里笔者尝试了一下直接使用1.6.0的sentinel-dashboard,暂时也没有发现什么问题,所以就以这个版本为例。
下载地址:sentinel-dashboard-1.6.0.jar github.com/alibaba/Sen…
其他版本:Sentinel/releases
同以往的Spring Cloud教程一样,这里也不推荐大家跨版本使用,不然可能会出现各种各样的问题。

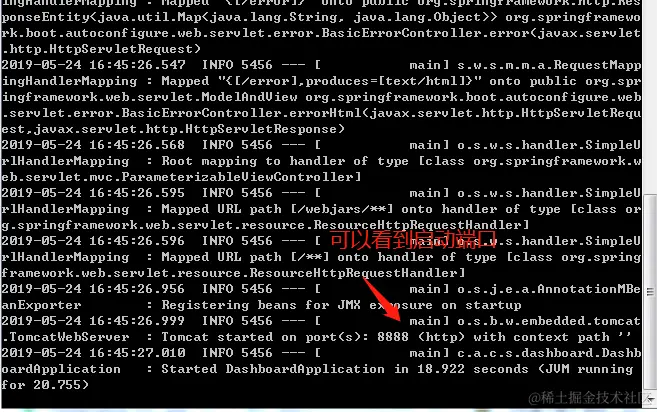

通过命令启动:
java -jar sentinel-dashboard-1.6.0.jar --server port =8888 后面是指定端口的,

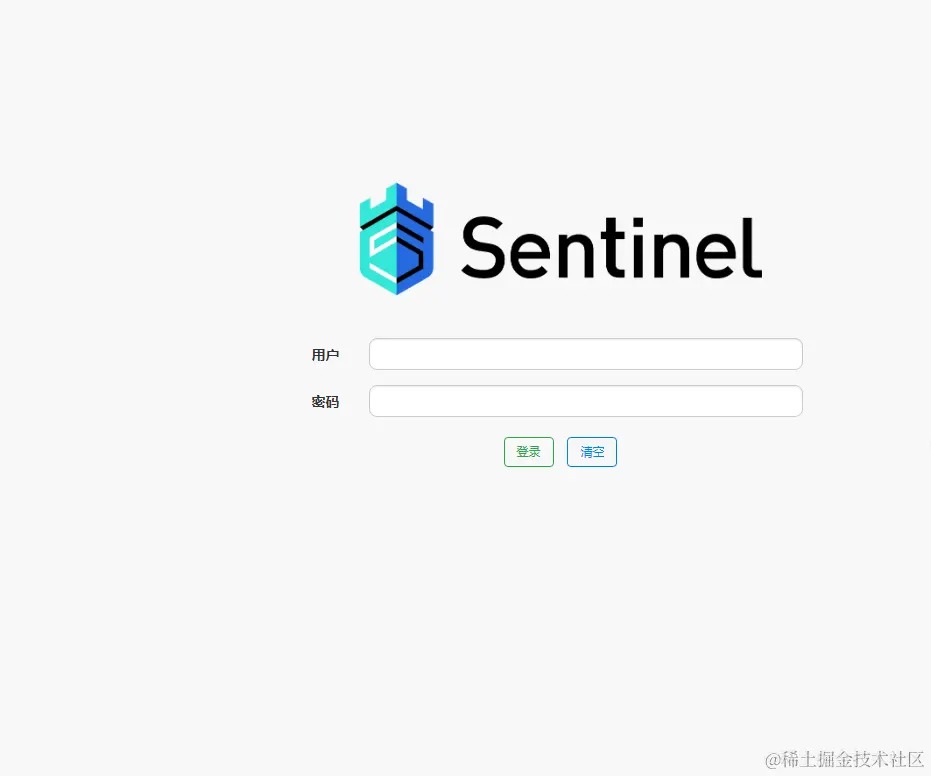

在浏览器输入localhost:8888
然后使用项目整合:
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.0.5.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.cxy</groupId>
<artifactId>sentinel</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>sentinel</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>Finchley.SR1</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-alibaba-dependencies</artifactId>
<version>0.2.1.RELEASE</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.2</version>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
配置:
spring.application.name=alibaba-sentinel-rate-limiting
server.port=8001
# sentinel dashboard
spring.cloud.sentinel.transport.dashboard=localhost:8888
启动类:
package com.cxy;
import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
@SpringBootApplication
public class SentinelApplication {
public static void main(String[] args) {
SpringApplication.run(SentinelApplication.class, args);
}
@Slf4j
@RestController
static class TestController {
@GetMapping("/hello")
public String hello() {
return "didispace.com";
}
}
}
访问:

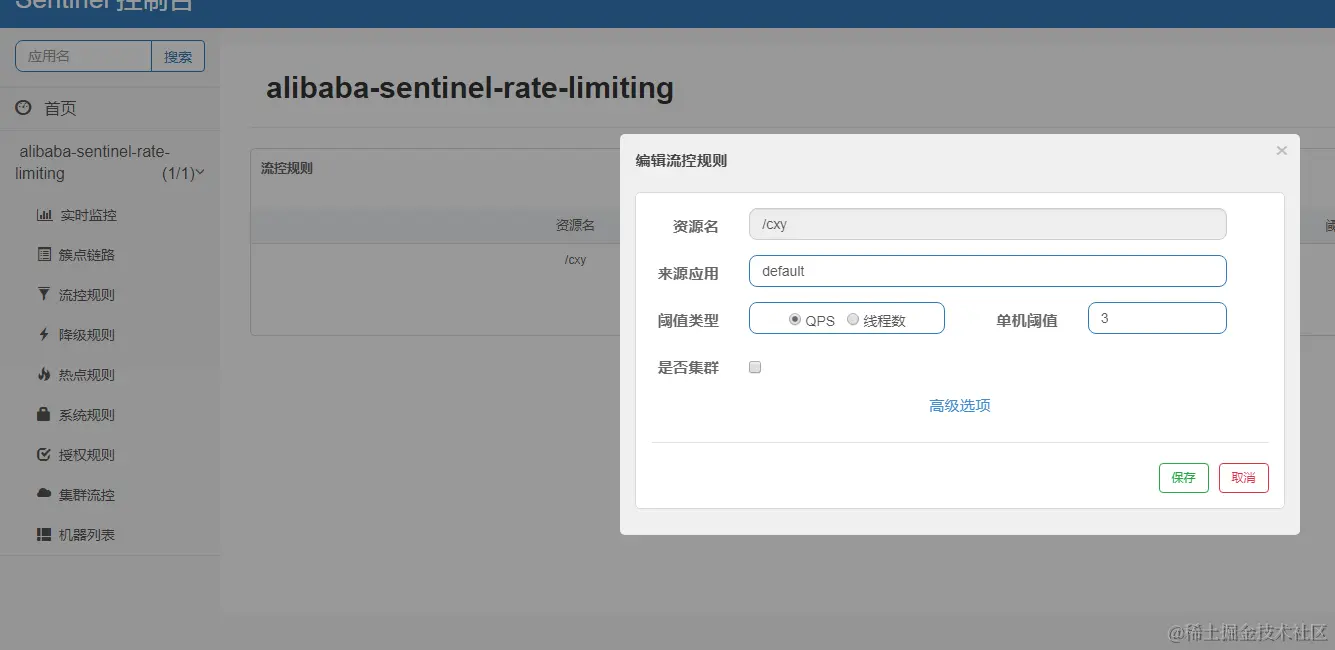

进行限流:
说明在控制台的限流是生效了
