如何实现Android Studio Release/Canary版本无缝切换

2,349 阅读6分钟

本文已参与「掘力星计划」,赢取创作大礼包,挑战创作激励金。

背景

首先众所周知的,Android Studio 有四个渠道包

  • Canary
  • Dev
  • Beta
  • Stable

这四个版本的根本区别在于他们的稳定性

Canary(中文名金丝雀)是 Android Studio 最早发布的预览版,用于获取开发过程中的真实反馈,通常一周更新一次,比如Android  Studio 3.2 Canary 2、3、4.。。。,但是对应的也会有stable,dev,beta版本,例如现在最新的 Android Studio Chipmunk Canary 3

Dev(开发版) 在Canary版本之后,经过完整测试之后即发布一个Dev版本,而在Dev版本中选择相对稳定的发布为Beta版本。

Beta(Beta版本) 通常选择稳定的Canary版本也就是Dev版本中的一个作为Beta版本发行。而每发布一个Beta版本时,通常会同时发行一个stable版本。

Stable 即稳定版本

目的

首先我们知道,Android Studio 不同版本是可以共存的,比如我同时安装一个Stable版本用作平时开发,但是我又想提前体验一些新鲜的功能,这时候我就需要一个Canary版本

但是这样问题就来了,Android Studio 默认会为我们每个版本生成对应的缓存配置文件夹,比如我在Windows上同时安装了 Android Studio 3.4.2 稳定版Android Studio Chipmunk Canary,那么每个版本的设置会分别保存在类似如下的目录中

C:\Users\xxx\.AndroidStudio3.4.2\
C:\Users\xxx\.AndroidStudioChipmunkPreview\

在 Mac 上,这些目录位于 ~/Library/Preferences/ 和 ~/Library/Application Support/ 中。在 Linux 上,这些目录位于 /home 主目录中。

这样有好处,所有的版本的数据都是完全隔离的,但是隔离意味着独立,然而我们有许多的东西并不想独立,比如我的IDE的设置,比如我已经习惯了的一套快捷键,假如是完全分开的,那么我就要在新的Android Studio中去重新设置一下这些,很是繁琐,且没必要

就像 Android SDK 一样,我们一般只会下一份,所有的 Android Studio 都共用一份

那么现在我们的目的就很明确了,我希望 Android Studio 的配置可以做到像SDK一样的,全局只有一份,这样我不管用哪个版本的 Android Studio ,打开就是熟悉的配方,一样的项目分布,一样的IDE设置,一样的插件,不一样的仅仅是 Android Studio 本身的功能差异

比如我突然想体验一个 Canary 才上的功能,我希望我切过去的时候,我的项目还是那样,而不是要重新导入一份

又或者比如我最近在用 Canary 版本开发,但是由于 Canary 本身的不稳定,我突然遇到了一个棘手的Canary版本的bug,这时候我要切回 Release 版本开发,同样的,我希望我的项目用 Release 打开还是一样的。

解决方案

首先我们在 Android Studio 官方的文档中就有专门的一项 配置IDE,里面就提到了

您可以通过 Android Studio 的 Help 菜单访问下面这两个配置文件:

  • studio.vmoptions:自定义 Studio 的 Java 虚拟机 (JVM) 选项,例如堆大小和缓存大小。请注意,在 Linux 计算机上,此文件可能会命名为 studio64.vmoptions,具体取决于您的 Android Studio 版本。
  • idea.properties:自定义 Android Studio 的属性,例如插件文件夹路径或支持的文件大小上限。

我们可以看到通过 idea.properties 文件,我们可以自定义 Android Studio 的 IDE 属性,例如用户所安装插件的路径以及 Android Studio 支持的文件大小上限。idea.properties 文件会与 Android Studio 的默认属性合并,以便我们可以仅指定需替换的属性。

可啊

这不正是我们需要的吗

首先我们先抽出一份自定义的 idea.properties 文件 ,接下来我们只要想办法让所有的 Android Studio 都用这份自定义的文件,而不用自带的不就完事了吗

是不是很熟悉,想想我们的SDK,是怎么做到的,通过环境变量啊,大胆猜一猜,Android Studio 肯定会支持设置环境变量啊,我们去扒文档

果然有,我们很容易就在 官方文档 找到了

您也可以使用以下环境变量指向其他位置的特定替换文件:

  • STUDIO_VM_OPTIONS:设置 .vmoptions 文件的名称和位置
  • STUDIO_PROPERTIES:设置 .properties 文件的名称和位置
  • STUDIO_JDK:设置运行 Studio 所使用的 JDK

所以到此为止,路就已经完全打通了,剩下的我们就是去熟悉下 idea.properties 都有哪些内容,只有了解这些,我们才能去做自己的定制

我们先看一份常见的 idea.properties 吧,这文件里面包括常见的自定义的 IDE 属性。如需获取完整的属性列表,请参阅 IntelliJ IDEA 的 idea.properties 文件

#---------------------------------------------------------------------
# Uncomment this option if you want to customize path to user installed plugins folder. Make sure
# you're using forward slashes.
#---------------------------------------------------------------------
# idea.plugins.path=${idea.config.path}/plugins
#---------------------------------------------------------------------
# Maximum file size (kilobytes) IDE should provide code assistance for.
# The larger file is the slower its editor works and higher overall system memory requirements are
# if code assistance is enabled. Remove this property or set to very large number if you need
# code assistance for any files available regardless their size.
#---------------------------------------------------------------------
idea.max.intellisense.filesize=2500
#---------------------------------------------------------------------
# This option controls console cyclic buffer: keeps the console output size not higher than the
# specified buffer size (Kb). Older lines are deleted. In order to disable cycle buffer use
# idea.cycle.buffer.size=disabled
#---------------------------------------------------------------------
idea.cycle.buffer.size=1024
#---------------------------------------------------------------------
# Configure if a special launcher should be used when running processes from within IDE.
# Using Launcher enables "soft exit" and "thread dump" features
#---------------------------------------------------------------------
idea.no.launcher=false
#---------------------------------------------------------------------
# To avoid too long classpath
#---------------------------------------------------------------------
idea.dynamic.classpath=false
#---------------------------------------------------------------------
# There are two possible values of idea.popup.weight property: "heavy" and "medium".
# If you have WM configured as "Focus follows mouse with Auto Raise" then you have to
# set this property to "medium". It prevents problems with popup menus on some
# configurations.
#---------------------------------------------------------------------
idea.popup.weight=heavy
#---------------------------------------------------------------------
# Use default anti-aliasing in system, i.e. override value of
# "Settings|Editor|Appearance|Use anti-aliased font" option. May be useful when using Windows
# Remote Desktop Connection for instance.
#---------------------------------------------------------------------
idea.use.default.antialiasing.in.editor=false
#---------------------------------------------------------------------
# Disabling this property may lead to visual glitches like blinking and fail to repaint
# on certain display adapter cards.
#---------------------------------------------------------------------
sun.java2d.noddraw=true
#---------------------------------------------------------------------
# Removing this property may lead to editor performance degradation under Windows.
#---------------------------------------------------------------------
sun.java2d.d3d=false
#---------------------------------------------------------------------
# Workaround for slow scrolling in JDK6
#---------------------------------------------------------------------
swing.bufferPerWindow=false
#---------------------------------------------------------------------
# Removing this property may lead to editor performance degradation under X Window.
#---------------------------------------------------------------------
sun.java2d.pmoffscreen=false
#---------------------------------------------------------------------
# Workaround to avoid long hangs while accessing clipboard under Mac OS X.
#---------------------------------------------------------------------
# ide.mac.useNativeClipboard=True
#---------------------------------------------------------------------
# Maximum size (kilobytes) IDEA will load for showing past file contents -
# in Show Diff or when calculating Digest Diff
#---------------------------------------------------------------------
# idea.max.vcs.loaded.size.kb=20480

这里面的属性我就不带大家一个一个去解释了,一般都是知名见意的,遇到不了解的,google一下就有

最佳实践

下面贴下我的方案,已经用了五六年了,这么多年,我电脑上一般同时安装3个版本的Android StudioCanaryBetaRelease各一份,由于我本人毕竟喜欢追新,所以这么多年我99%的时间都是用Canary版本开发的,也有很紧急遇到bug的需要临时切换到BetaRelease的,我所做的就是关掉预览版,打开稳定版就完事了,项目都保持原样,包括你在上个IDE打开的页面,完全一毛一样。

下面贴下我的设置,我目前切回Windows了,以前也用过Arch,Mac开发,都是这样搞的,都可以实现。下面就只贴Windows的了

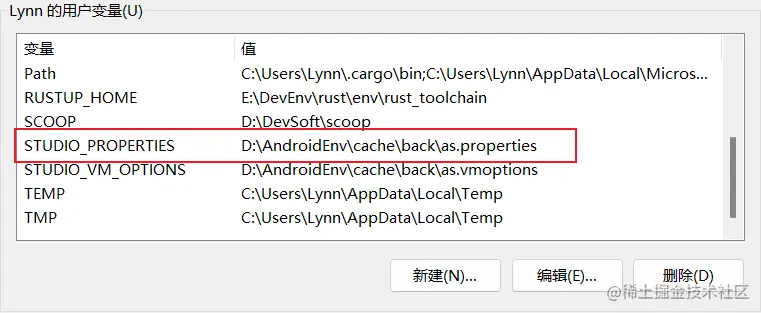

首先环境变量

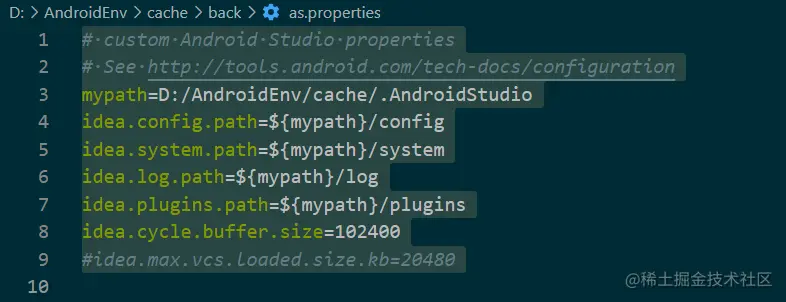

看到我已经设置了环境变量,使得我所有的Android Studio 都使用这份配置,我们再去打开这个自定义的文件看一下

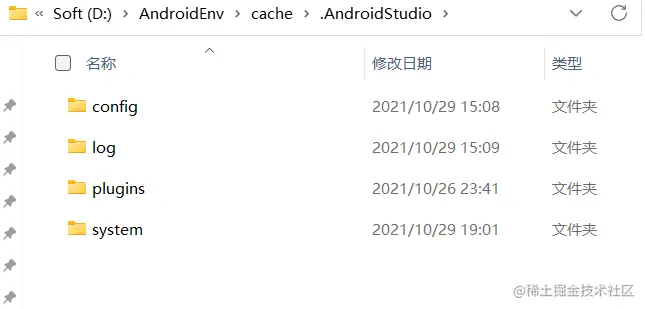

这样就行了,以后我们所有的Android Studio 的配置都在下面的四个文件夹里
