背景：
推荐系统升级RedisCluster4的SDK后，与之前的redis2.8的jedis客户端相比性能下降，具体表现在对应接口P99升高
问题原因：
在项目中使用了parallelStream的并行执行，其和lettuce的异步获取结果的CompletableFuture线程共用了一个ForkJoinPool
解决方案：
去除对于parallelStream的依赖，使用单独的线程池
通过排查堆栈，发现parallelStream产生大量的ForkJoin线程，怀疑其和lettuce的future线程之间产生资源竞争，将parallelStream去掉之后，P99明显改善
这个是接口的P99
这个是REDIS4Client的hmget P99
这个是REDIS4Client的firstResponse的 P99
matrix.snowballfinance.com/d/RGsiCO7Zz…
另外CPU和线程总数也不再出现大的波动
原理分析：
ParallelStream的执行线程池
对应forEach流``ForEachOps::compute方法打个断点，``或者直接forEach方法的输出语句打个断点，找到ForkJoinWorkerThread类``public class ForkJoinWorkerThread ``extends Thread {`` ``final ForkJoinPool pool; ``// the pool this thread works in`` ``final ForkJoinPool.WorkQueue workQueue; ``// work-stea`` ``public void run() {`` ``....`` ``pool.runWorker(workQueue);`` ``....`` ``}`` ``} |
|---|
completableFuture的执行线程池
private static final Executor asyncPool = useCommonPool ?`` ``ForkJoinPool.commonPool() : ``new ThreadPerTaskExecutor();``//useCommonPool是什么？``private static final boolean useCommonPool =`` ``(ForkJoinPool.getCommonPoolParallelism() > ``1``);``public static int getCommonPoolParallelism() {`` ``return commonParallelism;``} private static ForkJoinPool makeCommonPool() {`` ``int parallelism = -``1``; ``//这个并发的线程数默认是-1`` ``ForkJoinWorkerThreadFactory factory = ``null``;`` ``。。。。。。`` ``if (parallelism < ``0 &&`` ``(parallelism = Runtime.getRuntime().availableProcessors() - ``1``) <= ``0``) ``//看到了吧，线程池中的处理线程数=电脑核数-1`` ``parallelism = ``1``;`` ``if (parallelism > MAX_CAP)`` ``parallelism = MAX_CAP;`` ``return new ForkJoinPool(parallelism, factory, handler, LIFO_QUEUE,`` ``"ForkJoinPool.commonPool-worker-"``); ``//指定线程的名字``} |
|---|
而lettuce中对于结果的返回使用的LettuceFutures--awaitOrCancel(RedisFuture<T> cmd, long timeout, TimeUnit unit)获取执行结果，
其中RedisFuture的awite实现AsyncCommand类的就是靠CompletableFuture完成的，就会和上面的parallelStream共用一个ForkJoinPool
/**`` ``* Wait until futures are complete or the supplied timeout is reached. Commands are canceled if the timeout is reached but`` ``* the command is not finished.`` ``*`` ``* @param cmd Command to wait for`` ``* @param timeout Maximum time to wait for futures to complete`` ``* @param unit Unit of time for the timeout`` ``* @param <T> Result type`` ``*`` ``* @return Result of the command.`` ``*/``public static <T> T awaitOrCancel(RedisFuture<T> cmd, ``long timeout, TimeUnit unit) { ``try {`` ``if (!cmd.await(timeout, unit)) {`` ``cmd.cancel(``true``);`` ``throw ExceptionFactory.createTimeoutException(Duration.ofNanos(unit.toNanos(timeout)));`` ``}`` ``return cmd.get();`` ``} ``catch (RuntimeException e) {`` ``throw e;`` ``} ``catch (ExecutionException e) { ``if (e.getCause() ``instanceof RedisCommandExecutionException) {`` ``throw ExceptionFactory.createExecutionException(e.getCause().getMessage(), e.getCause());`` ``} ``if (e.getCause() ``instanceof RedisCommandTimeoutException) {`` ``throw new RedisCommandTimeoutException(e.getCause());`` ``} ``throw new RedisException(e.getCause());`` ``} ``catch (InterruptedException e) { ``Thread.currentThread().interrupt();`` ``throw new RedisCommandInterruptedException(e);`` ``} ``catch (Exception e) {`` ``throw ExceptionFactory.createExecutionException(``null``, e);`` ``}``} |
|---|

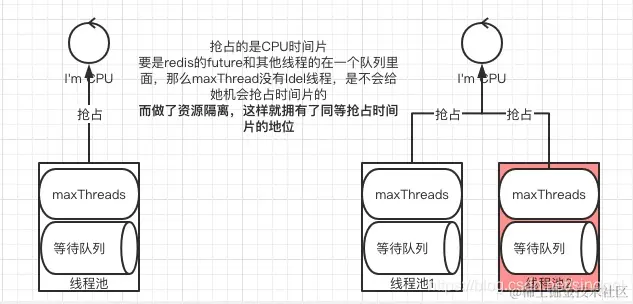

隔离了这种线程池的资源，这样对redis这种快速的线程就不会被队列中慢的线程影响获取时间片
这里留下一个问题：并发和并行的区别是？
测试代码：
1.使用parallelStream
RedisCluster redisCluster = RedisClusterImpl.create(``"192.168.64.169:8056,192.168.64.169:8053"``, ``4``);``Thread thread1 = ``new Thread(() -> {`` ``int i = ``0``;`` ``while (``true``) {`` ``try {`` ``redisCluster.setex(``"k" + i, ``10000``, ``"v" + i);`` ``Long start = System.currentTimeMillis();`` ``logger.info(``"RedisCluster4 info key:{}, value:{}"``, ``"k" + i, redisCluster.get(``"k" + i));`` ``Long costTime = System.currentTimeMillis() - start;`` ``if (costTime > ``10``) {`` ``logger.info(``"RedisCluster4 slowlog :{}"``, costTime);`` ``}`` ``i++;`` ``} ``catch (Exception ex) {`` ``logger.error(``"RedisCluster4 error, {}"``, ex.getMessage(), ex);`` ``}`` ``}``});``thread1.start(); Thread thread2 = ``new Thread(() -> {`` ``while (``true``) {`` ``try {`` ``List<Integer> list = ``new ArrayList<>();`` ``for (``int j = ``0``; j < ``10000``; j++) {`` ``list.add(j);`` ``}`` ``list.parallelStream().forEach(f-> {`` ``logger.info(``"parallelStream log :{}"``, f);`` ``for (``int j = ``0``; j < ``10000``; j++) {`` ``}`` ``});`` ``} ``catch (Exception ex) {`` ``logger.error(``"RedisCluster4 error, {}"``, ex.getMessage(), ex);`` ``}`` ``}``}); thread2.start(); |
|---|
打印的监控日志：平均P99≈100ms
2021-03-25 11:38:33.976|192.168.18.128|sep|UNKNOWN|app|TIMER|REDIS4.get||{"count":7509,"delta":7509,"min":0.22,"max":183.88,"mean":20.53,"stddev":27.56,"median":20.53,"p50":5.44,"p75":38.77,"p95":59.57,"p98":104.12,"p99":150.59,"p999":177.77,"mean_rate":739.0,"m1":660.86,"m5":647.65,"m15":645.36,"ratio":7.33,"rate_unit":"events/second","duration_unit":"milliseconds"}
2021-03-25 11:38:33.979|192.168.18.128|sep|UNKNOWN|app|TIMER|REDIS4.setex||{"count":275,"delta":275,"min":0.27,"max":215.22,"mean":19.2,"stddev":30.82,"median":19.2,"p50":3.88,"p75":38.08,"p95":56.55,"p98":107.48,"p99":176.4,"p999":215.22,"mean_rate":27.3,"m1":21.87,"m5":21.02,"m15":20.87,"ratio":9.19,"rate_unit":"events/second","duration_unit":"milliseconds"}
2.使用多线程，但是得做到控制的和ForkJoinPool一样
RedisCluster redisCluster = RedisClusterImpl.create(``"192.168.64.169:8056,192.168.64.169:8053"``, ``4``);``Thread thread1 = ``new Thread(() -> {`` ``int i = ``0``;`` ``while (``true``) {`` ``try {`` ``redisCluster.setex(``"k" + i, ``10000``, ``"v" + i);`` ``Long start = System.currentTimeMillis();`` ``logger.info(``"RedisCluster4 info key:{}, value:{}"``, ``"k" + i, redisCluster.get(``"k" + i));`` ``Long costTime = System.currentTimeMillis() - start;`` ``if (costTime > ``10``) {`` ``logger.info(``"RedisCluster4 slowlog :{}"``, costTime);`` ``}`` ``i++;`` ``} ``catch (Exception ex) {`` ``logger.error(``"RedisCluster4 error, {}"``, ex.getMessage(), ex);`` ``}`` ``}``});``thread1.start(); ForkJoinPool forkJoinPool = ``new ForkJoinPool(Runtime.getRuntime().availableProcessors() - ``1``, ForkJoinPool.defaultForkJoinWorkerThreadFactory, ``null``, ``true``);``forkJoinPool.submit(``new Runnable() {`` ``@Override`` ``public void run() {`` ``while (``true``) {`` ``try {`` ``for (``int j = ``0``; j < ``10000``; j++) {`` ``logger.info(``"parallelStream log :{}"``, j);`` ``redisCluster.get(``"k" + j);`` ``}`` ``} ``catch (Exception ex) {`` ``logger.error(``"RedisCluster4 error, {}"``, ex.getMessage(), ex);`` ``}`` ``}`` ``}``});``} |
|---|
打印的监控日志：平均P99≈36ms
2021-03-25 11:43:58.565|192.168.18.128|sep|UNKNOWN|app|TIMER|REDIS4.get||{"count":22924,"delta":4670,"min":0.2,"max":91.88,"mean":3.45,"stddev":9.19,"median":3.45,"p50":0.8,"p75":1.24,"p95":34.76,"p98":35.57,"p99":36.17,"p999":40.72,"mean_rate":456.99,"m1":445.99,"m5":433.02,"m15":430.13,"ratio":10.5,"rate_unit":"events/second","duration_unit":"milliseconds"}
2021-03-25 11:43:58.575|192.168.18.128|sep|UNKNOWN|app|TIMER|REDIS4.setex||{"count":7421,"delta":1510,"min":0.22,"max":152.41,"mean":3.36,"stddev":9.85,"median":3.36,"p50":0.88,"p75":1.3,"p95":34.92,"p98":36.06,"p99":37.13,"p999":152.41,"mean_rate":147.83,"m1":145.05,"m5":141.57,"m15":140.81,"ratio":11.06,"rate_unit":"events/second","duration_unit":"milliseconds"}
与forkJoin一起在池里面的那个线程栈
java.util.concurrent.locks.LockSupport.parkNanos(LockSupport.java:215)
java.util.concurrent.CompletableFuture$Signaller.block(CompletableFuture.java:1695)
java.util.concurrent.ForkJoinPool.managedBlock(ForkJoinPool.java:3323)
java.util.concurrent.CompletableFuture.timedGet(CompletableFuture.java:1775)
java.util.concurrent.CompletableFuture.get(CompletableFuture.java:1915)
io.lettuce.core.protocol.AsyncCommand.await(AsyncCommand.java:83)
io.lettuce.core.LettuceFutures.awaitOrCancel(LettuceFutures.java:112)
3.最单纯redis4Client查询
RedisCluster redisCluster = RedisClusterImpl.create(``"192.168.64.169:8056,192.168.64.169:8053"``, ``4``);``Thread thread1 = ``new Thread(() -> {`` ``int i = ``0``;`` ``while (``true``) {`` ``try {`` ``redisCluster.setex(``"k" + i, ``10000``, ``"v" + i);`` ``Long start = System.currentTimeMillis();`` ``logger.info(``"RedisCluster4 info key:{}, value:{}"``, ``"k" + i, redisCluster.get(``"k" + i));`` ``Long costTime = System.currentTimeMillis() - start;`` ``if (costTime > ``10``) {`` ``logger.info(``"RedisCluster4 slowlog :{}"``, costTime);`` ``}`` ``i++;`` ``} ``catch (Exception ex) {`` ``logger.error(``"RedisCluster4 error, {}"``, ex.getMessage(), ex);`` ``}`` ``}``});``thread1.start(); |
|---|
打印的监控日志：平均P99≈35ms
2021-03-25 13:47:05.137|192.168.18.128|sep|UNKNOWN|app|TIMER|REDIS4.get||{"count":12846,"delta":2362,"min":0.21,"max":85.23,"mean":2.27,"stddev":7.77,"median":2.27,"p50":0.54,"p75":0.71,"p95":2.55,"p98":34.67,"p99":35.12,"p999":85.23,"mean_rate":213.46,"m1":195.49,"m5":164.06,"m15":156.74,"ratio":15.48,"rate_unit":"events/second","duration_unit":"milliseconds"}
2021-03-25 13:47:05.146|192.168.18.128|sep|UNKNOWN|app|TIMER|REDIS4.setex||{"count":12847,"delta":2362,"min":0.22,"max":84.04,"mean":1.96,"stddev":6.91,"median":1.96,"p50":0.62,"p75":0.79,"p95":1.9,"p98":34.53,"p99":35.03,"p999":84.04,"mean_rate":213.32,"m1":195.42,"m5":163.9,"m15":156.56,"ratio":17.9,"rate_unit":"events/second","duration_unit":"milliseconds"}
所有的监控日志文件： text fileMyselfRedis4Test.java
从三者的对比可以验证上面的那个结论，就是做了资源隔离，是有一定的帮助
建议：
不要在高并发的接口中使用并行流，有i/o操作的一定不要使用并行流，有线程休眠的也一定不要使用并行流，如果有需要，那就全局创建一个Fork-Join线程池自己切分任务来执行。
彩蛋：
对上面的遗留小问题解答：
并行同时执行，并发可以交替执行
