贝塞尔曲线

贝塞尔曲线，又称贝兹曲线或贝济埃曲线，是应用于二维图形应用程序的数学曲线。一般的矢量图形软件通过它来精确画出曲线，贝兹曲线由线段与节点组成，节点是可拖动的支点，线段像可伸缩的皮筋，我们在绘图工具上看到的钢笔工具就是来做这种矢量曲线的

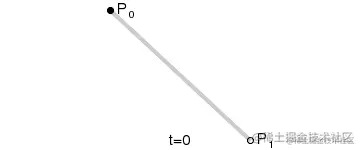

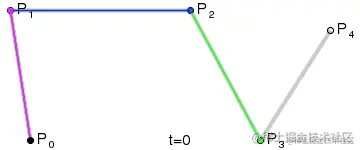

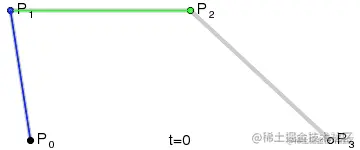

下面分别是 一阶、二阶、三阶、高阶 曲线图 image.gif




贝塞尔曲线的应用

贝塞尔曲线在iOS中有一个对应的类，叫做UIBezierPath，UIBezierPath是Core Graphics框架关于路径的封装

UIBezierPath通常与CAShapeLayer配合使用。CAShapeLayer继承自CALayer，它拥有CALayer的所有属性。UIBezierPath为CAShapeLayer提供路径， CAShapeLayer在提供的路径中进行渲染， 绘制出图形

属性介绍

  • CGPath：将UIBezierPath类转换成CGPath，类似于UIColor的CGColor

  • empty：只读类型，路径上是否有有效的元素

  • bounds：和view的bounds是不一样的，它获取path的X坐标、Y坐标、宽度，但是高度为0

  • currentPoint：当前path的位置，可以理解为path的终点

  • lineWidth：path宽度

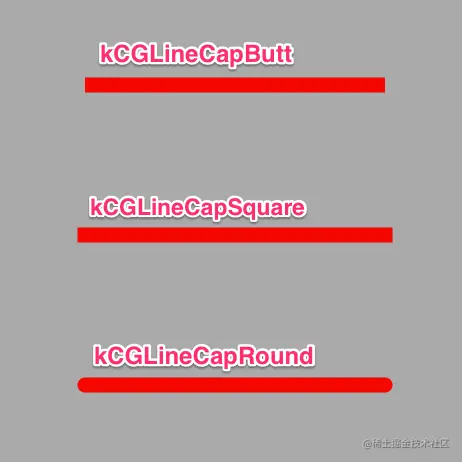

  • lineCapStyle：path端点样式，有3种样式 image.png

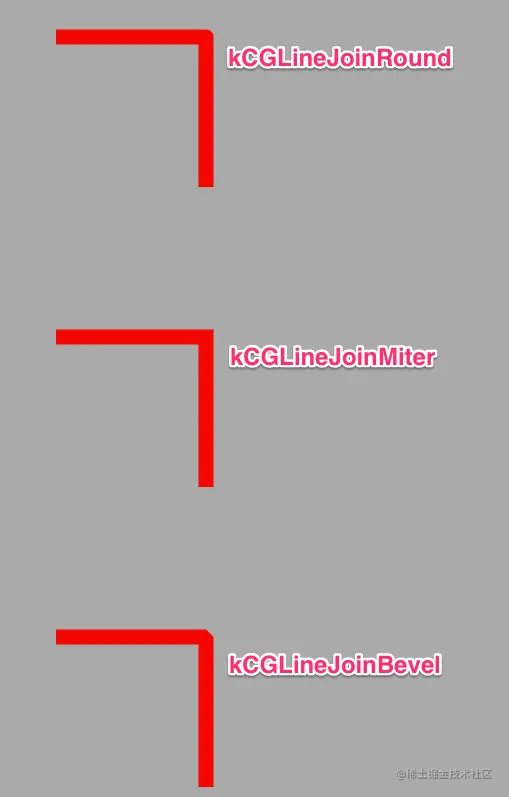

  • lineJoinStyle：拐角样式 image.png

  • miterLimit：最大斜接长度（只有在使用kCGLineJoinMiter是才有效）， 边角的角度越小，斜接长度就会越大 image.png

为了避免斜接长度过长，使用lineLimit属性限制，如果斜接长度超过miterLimit，边角就会以KCALineJoinBevel类型来显示


  • flatness：弯曲路径的渲染精度，默认为0.6，越小精度越高，相应的更加消耗性能。

  • usesEvenOddFillRule：单双数圈规则是否用于绘制路径，默认是NO。 - UIRectCorner:角

  • 创建在rect内的矩形:

    • (instancetype)bezierPathWithRect:(CGRect)rect：

  • 创建在rect里的内切曲线:

    • (instancetype)bezierPathWithOvalInRect:(CGRect)rect:

  • 创建带有圆角的矩形，当矩形变成正圆的时候，Radius就不再起作用: 　　+ (instancetype)bezierPathWithRoundedRect:(CGRect)rect cornerRadius:(CGFloat)cornerRadius

  • 设定特定的角为圆角的矩形：

    • (instancetype)bezierPathWithRoundedRect:(CGRect)rect byRoundingCorners:(UIRectCorner)corners cornerRadii:(CGSize)cornerRadii

  • 创建圆弧

    • (instancetype)bezierPathWithArcCenter:(CGPoint)center radius:(CGFloat)radius startAngle:(CGFloat)startAngle endAngle:(CGFloat)endAngle clockwise:(BOOL)clockwise

  • 通过已有路径创建路径:

    UIBezierPath *path_A = [UIBezierPath bezierPath];
    [path_A moveToPoint:CGPointMake(200, 50)];
    [path_A addLineToPoint:CGPointMake(250, 100)];
    path_A.lineWidth = 5.0f;
    UIBezierPath *path_B = [UIBezierPath bezierPathWithCGPath:path_A.CGPath];
    [path_B stroke];
  • 创建二次贝塞尔曲线
    UIBezierPath *path = [UIBezierPath bezierPath];
    [path moveToPoint:CGPointMake(200, 300)];
    [path addQuadCurveToPoint:endPoint controlPoint:controlPoint];
    [path stroke];
  • 创建三次贝塞尔曲线
    UIBezierPath *path = [UIBezierPath bezierPath];
    [path moveToPoint:CGPointMake(200, 200)];
    [path addCurveToPoint:endPoint controlPoint1:controlPoint1 controlPoint2:controlPoint2];
    [path stroke];
  • 添加圆弧
/**
 *  添加圆弧
 *  @param center     圆点
 *  @param radius     半径
 *  @param startAngle 起始位置
 *  @param endAngle   结束为止
 *  @param clockwise  是否顺时针方向
 */
- (void)createAddArcWithCenter:(CGPoint)center radius:(CGFloat)radius startAngle:(CGFloat)startAngle endAngle:(CGFloat)endAngle clockwise:(BOOL)clockwise{

    UIBezierPath *path = [UIBezierPath bezierPath];
    [path moveToPoint:CGPointMake(200, 400)];
    [path addLineToPoint:CGPointMake(225, 410)];
    [path addArcWithCenter:center radius:radius startAngle:startAngle endAngle:endAngle clockwise:clockwise];
    [path closePath];
    [path removeAllPoints];
    [path stroke];
}
  • 追加路径
/**
 *  追加路径
 */
- (void)appendPath{
    UIBezierPath *path_A = [UIBezierPath bezierPath];
    [path_A moveToPoint:CGPointMake(200, 500)];
    [path_A addLineToPoint:CGPointMake(225, 410)];
    UIBezierPath *path_B = [UIBezierPath bezierPath];
    [path_B moveToPoint:CGPointMake(200, 600)];
    [path_B addLineToPoint:CGPointMake(225, 500)];
    [path_A appendPath:path_B];
    [path_A stroke];

}
  • 创建翻转路径，即起点变成终点，终点变成起点
- (void)createReversingPath{
    UIBezierPath *path = [UIBezierPath bezierPath];
    [path moveToPoint:CGPointMake(50, 50)];
    [path addLineToPoint:CGPointMake(100, 50)];
    path.lineWidth = 5.0f;
    NSLog(@"%@",NSStringFromCGPoint(path.currentPoint));
    UIBezierPath *path_b = [path bezierPathByReversingPath];
    NSLog(@"%@",NSStringFromCGPoint(path_b.currentPoint));
    [path_b stroke];
}
  • 路径进行仿射变换
- (void)createApplyTransform{

    CGAffineTransform transform = CGAffineTransformMakeScale(2, 2);
    UIBezierPath *path = [UIBezierPath bezierPath];
    [path moveToPoint:CGPointMake(10, 50)];
    [path addLineToPoint:CGPointMake(100, 50)];
    [path applyTransform:transform];
    path.lineWidth = 5.0f;
    [path stroke];
}
  • 创建虚线
/**
 *  创建虚线
 *  @param pattern C类型线性数据
 *  @param count   pattern中数据个数
 *  @param phase   起始位置
 */

- (void)createLineDash:(nullable const CGFloat *)pattern count:(NSInteger)count phase:(CGFloat)phase{
    UIBezierPath *path = [UIBezierPath bezierPath];
    [path moveToPoint:CGPointMake(50, 50)];
    [path addLineToPoint:CGPointMake(100, 50)];
    [path setLineDash:pattern count:count phase:0.0];
    [path stroke];

}
  • 设置颜色
- (void)setLineColor:(UIColor *)lineColor fillColor:(UIColor *)fillColor{
    UIBezierPath *path = [UIBezierPath bezierPathWithOvalInRect:CGRectMake(100, 100, 100, 100)];
    [lineColor setStroke];
    [fillColor setFill];
    [path stroke];
    [path fill];

}
  • 设置描边混合模式
- (void)setFillWithBlendMode{
    UIBezierPath *path = [UIBezierPath bezierPathWithOvalInRect:CGRectMake(100, 100, 100, 100)];
    [[UIColor redColor] setFill];
    [path fillWithBlendMode:kCGBlendModeSaturation alpha:0.6];
    [path fill];

}

- (void)setStrokeWithBlendMode{

    UIBezierPath *path = [UIBezierPath bezierPathWithOvalInRect:CGRectMake(100, 100, 100, 100)];
    [[UIColor greenColor] setStroke];
    path.lineWidth = 10.0f;
    [path strokeWithBlendMode:kCGBlendModeSaturation alpha:1.0];
    [path stroke];

}
  • 修改当前图形上下文的绘图区域可见,随后的绘图操作导致呈现内容只有发生在指定路径的填充区域
- (void)createAddClip{
    UIBezierPath *path = [UIBezierPath bezierPathWithOvalInRect:CGRectMake(100, 100, 100, 100)];
    [[UIColor greenColor] setStroke];
    [path addClip];
    [path stroke];
}
