📃 题目描述
题目链接:59. 螺旋矩阵 II - 力扣(LeetCode) (leetcode-cn.com)
给你一个正整数 n ,生成一个包含 1 到 n^2 所有元素,且元素按顺时针顺序螺旋排列的 n x n 正方形矩阵 matrix 。
示例 1:
输入:n = 3
输出:[[1,2,3],[8,9,4],[7,6,5]]
示例 2:
输入:n = 1
输出:[[1]]
🔔 解题思路
本题没有什么算法思想可言,主要思路就是按照螺旋顺序对数组进行循环赋值就行了,其难点就在于边界的处理。
这种看起来没啥套路,直接按照过程进行逐步求解的思想,也成为 “模拟法”
顺时针螺旋的四个方向:
- 从左到右
- 从上到下
- 从右到左
- 从下到上

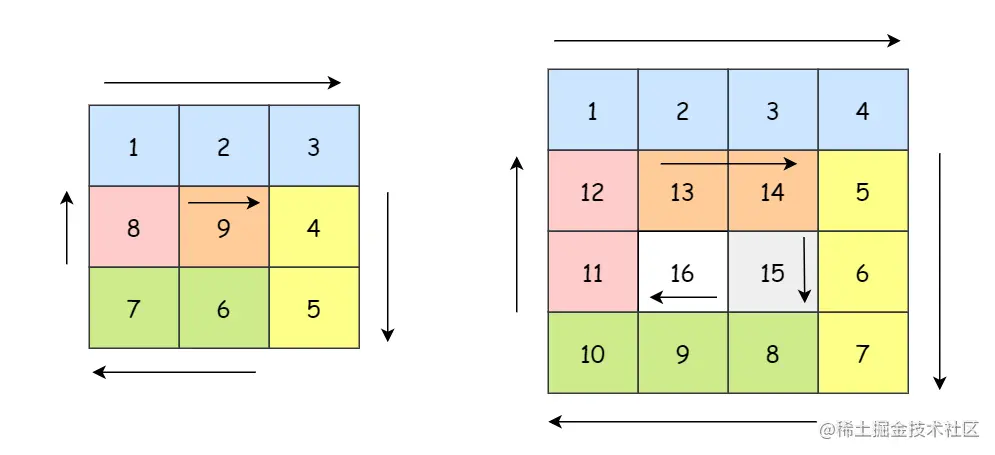

具体过程咱也不整文字了,直接看图就明白了:
class Solution {
public int[][] generateMatrix(int n) {
int[][] res = new int[n][n];
// 最左列
int left = 0;
// 最右列
int right = n - 1;
// 最上行
int up = 0;
// 最下行
int bottom = n - 1;
// 当前填充的数
int curNum = 1;
// 循环 n/2 次
while (curNum <= n * n) {
// 左 -> 右 (触碰到右边界则转为向下遍历)
for (int j = left; j <= right; j++) {
res[up][j] = curNum++;
}
up++;
// 上 -> 下 (触碰到下边界则转为向左遍历)
for (int j = up; j <= bottom; j++) {
res[j][right] = curNum++;
}
right--;
// 右 -> 左 (触碰到左边界则转为向上遍历)
for (int j = right; j >= left; j--) {
res[bottom][j] = curNum++;
}
bottom--;
// 下 -> 上 (触碰到上边界则转为向右遍历)
for (int j = bottom; j >= up; j--) {
res[j][left] = curNum++;
}
left++;
}
return res;
}
}
这个解法也直接适用于这道题,基本上一模一样:54. 螺旋矩阵 - 力扣(LeetCode) (leetcode-cn.com)
还有一种写起来比较简单的解法:
class Solution {
public int[][] generateMatrix(int n) {
int[][] res = new int[n][n];
// 四个方向: 右下左上
int[][] directions = {{0, 1}, {1, 0}, {0, -1}, {-1, 0}};
// 指定哪个方向
int directionIndex = 0;
// 当前填充的数
int curNum = 1;
// 最后一个数
int maxNum = n * n;
// 行数
int row = 0;
// 列数
int column = 0;
while (curNum <= maxNum) {
// 填充一个数
res[row][column] = curNum;
curNum ++;
// 若下一步的位置超出矩阵边界,或者是已经被赋过值的位置,则进入下一个方向
int nextRow = row + directions[directionIndex][0];
int nextColumn = column + directions[directionIndex][1];
if (nextRow < 0 || nextRow >= n || nextColumn < 0 || nextColumn >= n || res[nextRow][nextColumn] != 0) {
directionIndex = (directionIndex + 1) % 4;
}
// 进入下一个位置
row = row + directions[directionIndex][0];
column = column + directions[directionIndex][1];
}
return res;
}
}
💥 复杂度分析
- 空间复杂度:O(N^2)
- 时间复杂度:O(N^2)
