Runtime
面试问题：
- 编译时语言和动态运行时 语言区别？
- 消息与函数调用有什么区别？
- 当我们方法没有实现的时候，系统是如何给我们做消息转发的？
本文研究重点
- 数据结构
- 类对象与元类对象

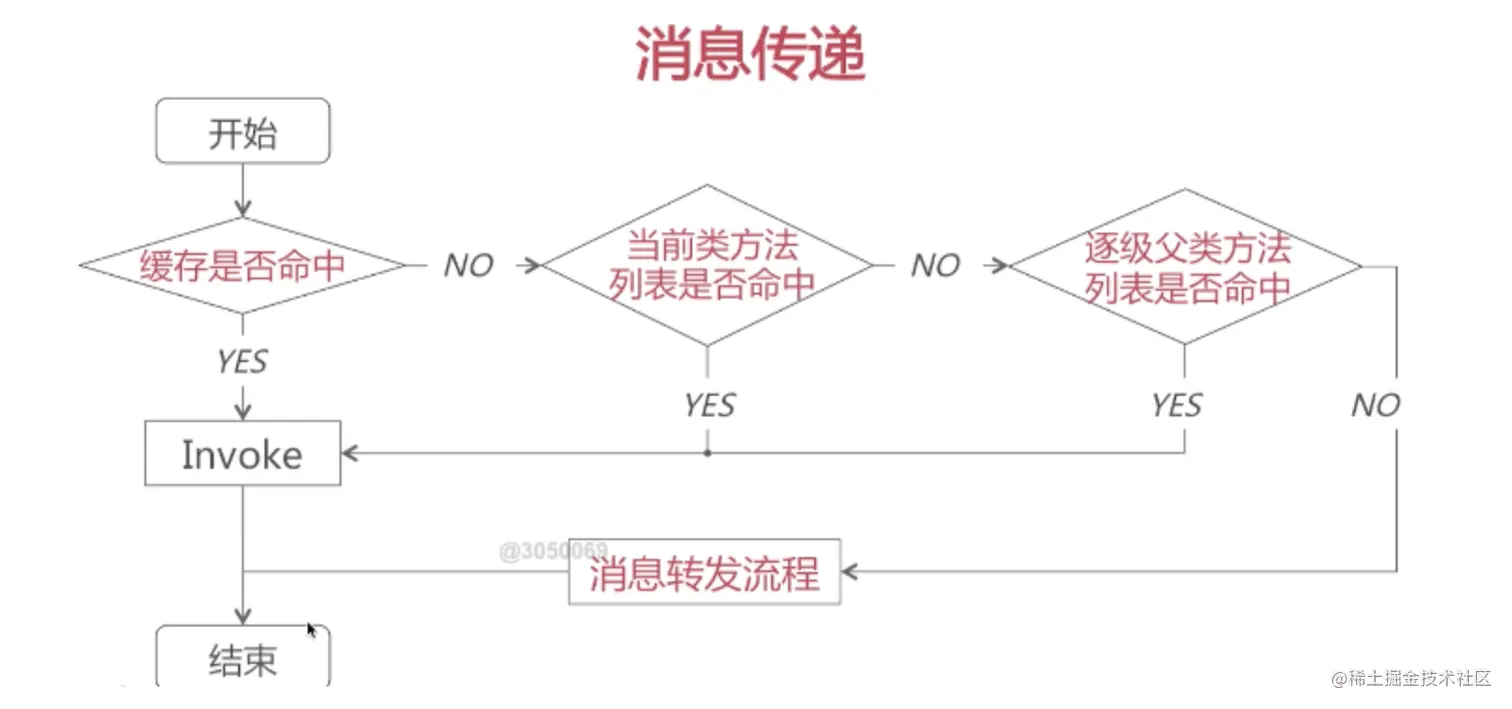

- 消息传递机制

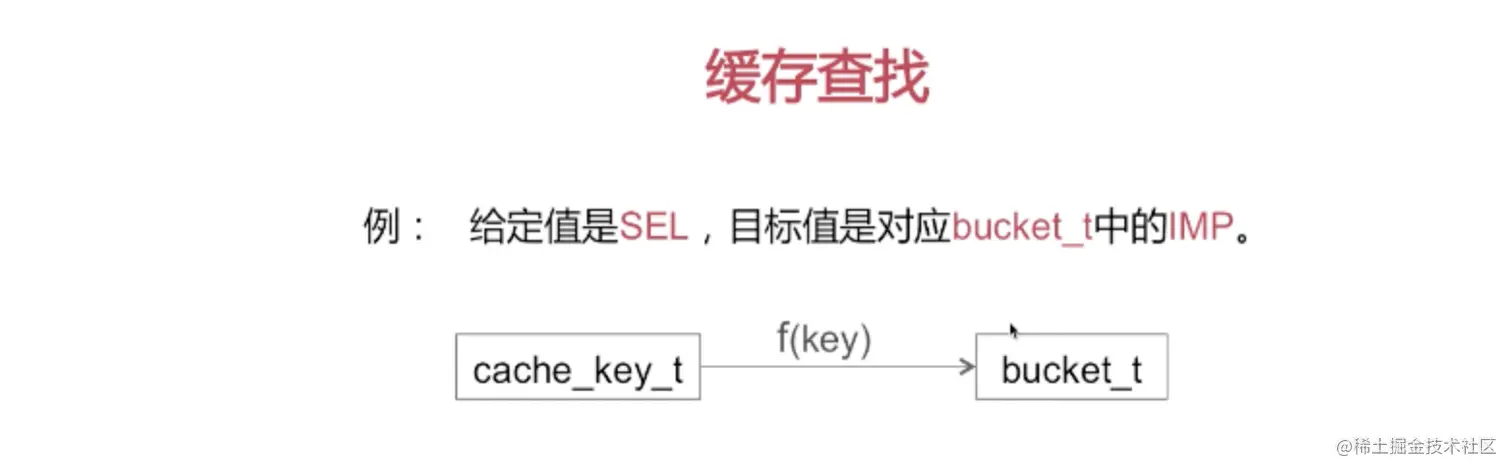

- 方法缓存 如何进行方法缓存的查找
- 消息转发
- 动态添加方法
- 动态方法解析
1. 数据结构
- Objc_object
- objc_class
- isa指针

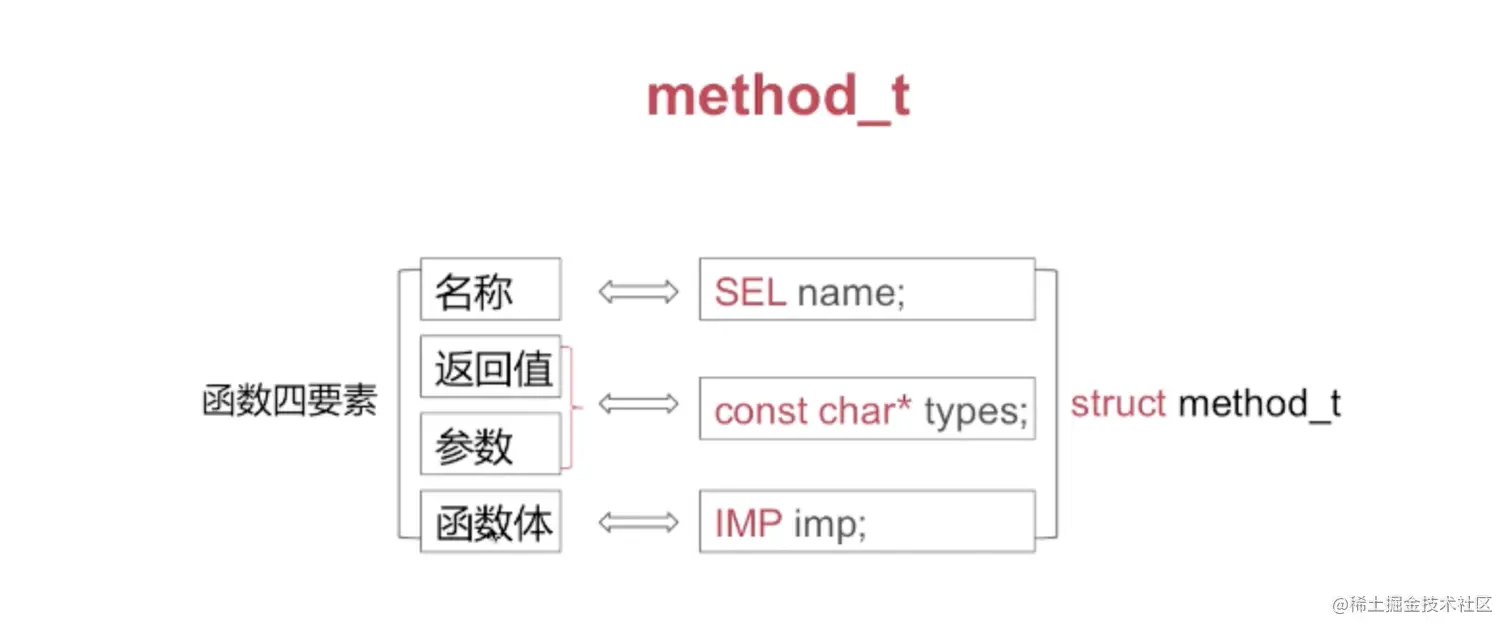

- Method_t
Id = objc_object
typedef struct objc_object *id;
struct objc_object {
private:
isa_t isa;
public:
// ISA() assumes this is NOT a tagged pointer object
Class ISA();
// getIsa() allows this to be a tagged pointer object
Class getIsa();
// initIsa() should be used to init the isa of new objects only.
// If this object already has an isa, use changeIsa() for correctness.
// initInstanceIsa(): objects with no custom RR/AWZ
// initClassIsa(): class objects
// initProtocolIsa(): protocol objects
// initIsa(): other objects
void initIsa(Class cls /*indexed=false*/);
void initClassIsa(Class cls /*indexed=maybe*/);
void initProtocolIsa(Class cls /*indexed=maybe*/);
void initInstanceIsa(Class cls, bool hasCxxDtor);
// changeIsa() should be used to change the isa of existing objects.
// If this is a new object, use initIsa() for performance.
Class changeIsa(Class newCls);
bool hasIndexedIsa();
bool isTaggedPointer();
bool isClass();
// object may have associated objects?
bool hasAssociatedObjects();
void setHasAssociatedObjects();
// object may be weakly referenced?
bool isWeaklyReferenced();
void setWeaklyReferenced_nolock();
// object may have -.cxx_destruct implementation?
bool hasCxxDtor();
// Optimized calls to retain/release methods
id retain();
void release();
id autorelease();
// Implementations of retain/release methods
id rootRetain();
bool rootRelease();
id rootAutorelease();
bool rootTryRetain();
bool rootReleaseShouldDealloc();
uintptr_t rootRetainCount();
// Implementation of dealloc methods
bool rootIsDeallocating();
void clearDeallocating();
void rootDealloc();
private:
void initIsa(Class newCls, bool indexed, bool hasCxxDtor);
// Slow paths for inline control
id rootAutorelease2();
bool overrelease_error();
#if SUPPORT_NONPOINTER_ISA
// Unified retain count manipulation for nonpointer isa
id rootRetain(bool tryRetain, bool handleOverflow);
bool rootRelease(bool performDealloc, bool handleUnderflow);
id rootRetain_overflow(bool tryRetain);
bool rootRelease_underflow(bool performDealloc);
void clearDeallocating_slow();
// Side table retain count overflow for nonpointer isa
void sidetable_lock();
void sidetable_unlock();
void sidetable_moveExtraRC_nolock(size_t extra_rc, bool isDeallocating, bool weaklyReferenced);
bool sidetable_addExtraRC_nolock(size_t delta_rc);
size_t sidetable_subExtraRC_nolock(size_t delta_rc);
size_t sidetable_getExtraRC_nolock();
#endif
// Side-table-only retain count
bool sidetable_isDeallocating();
void sidetable_clearDeallocating();
bool sidetable_isWeaklyReferenced();
void sidetable_setWeaklyReferenced_nolock();
id sidetable_retain();
id sidetable_retain_slow(SideTable& table);
uintptr_t sidetable_release(bool performDealloc = true);
uintptr_t sidetable_release_slow(SideTable& table, bool performDealloc = true);
bool sidetable_tryRetain();
uintptr_t sidetable_retainCount();
#if DEBUG
bool sidetable_present();
#endif
};
Objc_object 还提供过了其他信息
isa_t
关于isa操作相关
弱引用相关
关联对象相关
内存管理相关
** objc_class**
typedef struct objc_class *Class;
// 继承自objc_object
struct objc_class : objc_object {
// Class ISA;
Class superclass;
cache_t cache; // formerly cache pointer and vtable
class_data_bits_t bits; // class_rw_t * plus custom rr/alloc flags
class_rw_t *data() {
return bits.data();
}
void setData(class_rw_t *newData) {
bits.setData(newData);
}
void setInfo(uint32_t set) {
assert(isFuture() || isRealized());
data()->setFlags(set);
}
void clearInfo(uint32_t clear) {
assert(isFuture() || isRealized());
data()->clearFlags(clear);
}
// set and clear must not overlap
void changeInfo(uint32_t set, uint32_t clear) {
assert(isFuture() || isRealized());
assert((set & clear) == 0);
data()->changeFlags(set, clear);
}
bool hasCustomRR() {
return ! bits.hasDefaultRR();
}
void setHasDefaultRR() {
assert(isInitializing());
bits.setHasDefaultRR();
}
void setHasCustomRR(bool inherited = false);
void printCustomRR(bool inherited);
bool hasCustomAWZ() {
return ! bits.hasDefaultAWZ();
}
void setHasDefaultAWZ() {
assert(isInitializing());
bits.setHasDefaultAWZ();
}
void setHasCustomAWZ(bool inherited = false);
void printCustomAWZ(bool inherited);
bool requiresRawIsa() {
return bits.requiresRawIsa();
}
void setRequiresRawIsa(bool inherited = false);
void printRequiresRawIsa(bool inherited);
bool canAllocIndexed() {
assert(!isFuture());
return !requiresRawIsa();
}
bool canAllocFast() {
assert(!isFuture());
return bits.canAllocFast();
}
bool hasCxxCtor() {
// addSubclass() propagates this flag from the superclass.
assert(isRealized());
return bits.hasCxxCtor();
}
void setHasCxxCtor() {
bits.setHasCxxCtor();
}
bool hasCxxDtor() {
// addSubclass() propagates this flag from the superclass.
assert(isRealized());
return bits.hasCxxDtor();
}
void setHasCxxDtor() {
bits.setHasCxxDtor();
}
bool isSwift() {
return bits.isSwift();
}
#if SUPPORT_NONPOINTER_ISA
// Tracked in non-pointer isas; not tracked otherwise
#else
bool instancesHaveAssociatedObjects() {
// this may be an unrealized future class in the CF-bridged case
assert(isFuture() || isRealized());
return data()->flags & RW_INSTANCES_HAVE_ASSOCIATED_OBJECTS;
}
void setInstancesHaveAssociatedObjects() {
// this may be an unrealized future class in the CF-bridged case
assert(isFuture() || isRealized());
setInfo(RW_INSTANCES_HAVE_ASSOCIATED_OBJECTS);
}
#endif
bool shouldGrowCache() {
return true;
}
void setShouldGrowCache(bool) {
// fixme good or bad for memory use?
}
bool shouldFinalizeOnMainThread() {
// finishInitializing() propagates this flag from the superclass.
assert(isRealized());
return data()->flags & RW_FINALIZE_ON_MAIN_THREAD;
}
void setShouldFinalizeOnMainThread() {
assert(isRealized());
setInfo(RW_FINALIZE_ON_MAIN_THREAD);
}
bool isInitializing() {
return getMeta()->data()->flags & RW_INITIALIZING;
}
void setInitializing() {
assert(!isMetaClass());
ISA()->setInfo(RW_INITIALIZING);
}
bool isInitialized() {
return getMeta()->data()->flags & RW_INITIALIZED;
}
void setInitialized();
bool isLoadable() {
assert(isRealized());
return true; // any class registered for +load is definitely loadable
}
IMP getLoadMethod();
// Locking: To prevent concurrent realization, hold runtimeLock.
bool isRealized() {
return data()->flags & RW_REALIZED;
}
// Returns true if this is an unrealized future class.
// Locking: To prevent concurrent realization, hold runtimeLock.
bool isFuture() {
return data()->flags & RW_FUTURE;
}
bool isMetaClass() {
assert(this);
assert(isRealized());
return data()->ro->flags & RO_META;
}
// NOT identical to this->ISA when this is a metaclass
Class getMeta() {
if (isMetaClass()) return (Class)this;
else return this->ISA();
}
bool isRootClass() {
return superclass == nil;
}
bool isRootMetaclass() {
return ISA() == (Class)this;
}
const char *mangledName() {
// fixme can't assert locks here
assert(this);
if (isRealized() || isFuture()) {
return data()->ro->name;
} else {
return ((const class_ro_t *)data())->name;
}
}
const char *demangledName(bool realize = false);
const char *nameForLogging();
// May be unaligned depending on class's ivars.
uint32_t unalignedInstanceSize() {
assert(isRealized());
return data()->ro->instanceSize;
}
// Class's ivar size rounded up to a pointer-size boundary.
uint32_t alignedInstanceSize() {
return word_align(unalignedInstanceSize());
}
size_t instanceSize(size_t extraBytes) {
size_t size = alignedInstanceSize() + extraBytes;
// CF requires all objects be at least 16 bytes.
if (size < 16) size = 16;
return size;
}
void setInstanceSize(uint32_t newSize) {
assert(isRealized());
if (newSize != data()->ro->instanceSize) {
assert(data()->flags & RW_COPIED_RO);
*const_cast<uint32_t *>(&data()->ro->instanceSize) = newSize;
}
bits.setFastInstanceSize(newSize);
}
};
- isa指针
// 共用体
union isa_t
{
isa_t() { }
isa_t(uintptr_t value) : bits(value) { }
Class cls;
uintptr_t bits;
#if SUPPORT_NONPOINTER_ISA
// extra_rc must be the MSB-most field (so it matches carry/overflow flags)
// indexed must be the LSB (fixme or get rid of it)
// shiftcls must occupy the same bits that a real class pointer would
// bits + RC_ONE is equivalent to extra_rc + 1
// RC_HALF is the high bit of extra_rc (i.e. half of its range)
// future expansion:
// uintptr_t fast_rr : 1; // no r/r overrides
// uintptr_t lock : 2; // lock for atomic property, @synch
// uintptr_t extraBytes : 1; // allocated with extra bytes
# if __arm64__
# define ISA_MASK 0x0000000ffffffff8ULL
# define ISA_MAGIC_MASK 0x000003f000000001ULL
# define ISA_MAGIC_VALUE 0x000001a000000001ULL
struct {
uintptr_t indexed : 1;
uintptr_t has_assoc : 1;
uintptr_t has_cxx_dtor : 1;
uintptr_t shiftcls : 33; // MACH_VM_MAX_ADDRESS 0x1000000000
uintptr_t magic : 6;
uintptr_t weakly_referenced : 1;
uintptr_t deallocating : 1;
uintptr_t has_sidetable_rc : 1;
uintptr_t extra_rc : 19;
# define RC_ONE (1ULL<<45)
# define RC_HALF (1ULL<<18)
};
# elif __x86_64__
# define ISA_MASK 0x00007ffffffffff8ULL
# define ISA_MAGIC_MASK 0x001f800000000001ULL
# define ISA_MAGIC_VALUE 0x001d800000000001ULL
struct {
uintptr_t indexed : 1;
uintptr_t has_assoc : 1;
uintptr_t has_cxx_dtor : 1;
uintptr_t shiftcls : 44; // MACH_VM_MAX_ADDRESS 0x7fffffe00000
uintptr_t magic : 6;
uintptr_t weakly_referenced : 1;
uintptr_t deallocating : 1;
uintptr_t has_sidetable_rc : 1;
uintptr_t extra_rc : 8;
# define RC_ONE (1ULL<<56)
# define RC_HALF (1ULL<<7)
};
# else
// Available bits in isa field are architecture-specific.
# error unknown architecture
# endif
// SUPPORT_NONPOINTER_ISA
#endif
};
对于非指针型isa,实际上只需要三四十位进行保存地址就可以了。
问题：isa指针是什么含义的时候？
有指针类型的isa和非指针类型的isa. （标准答案）

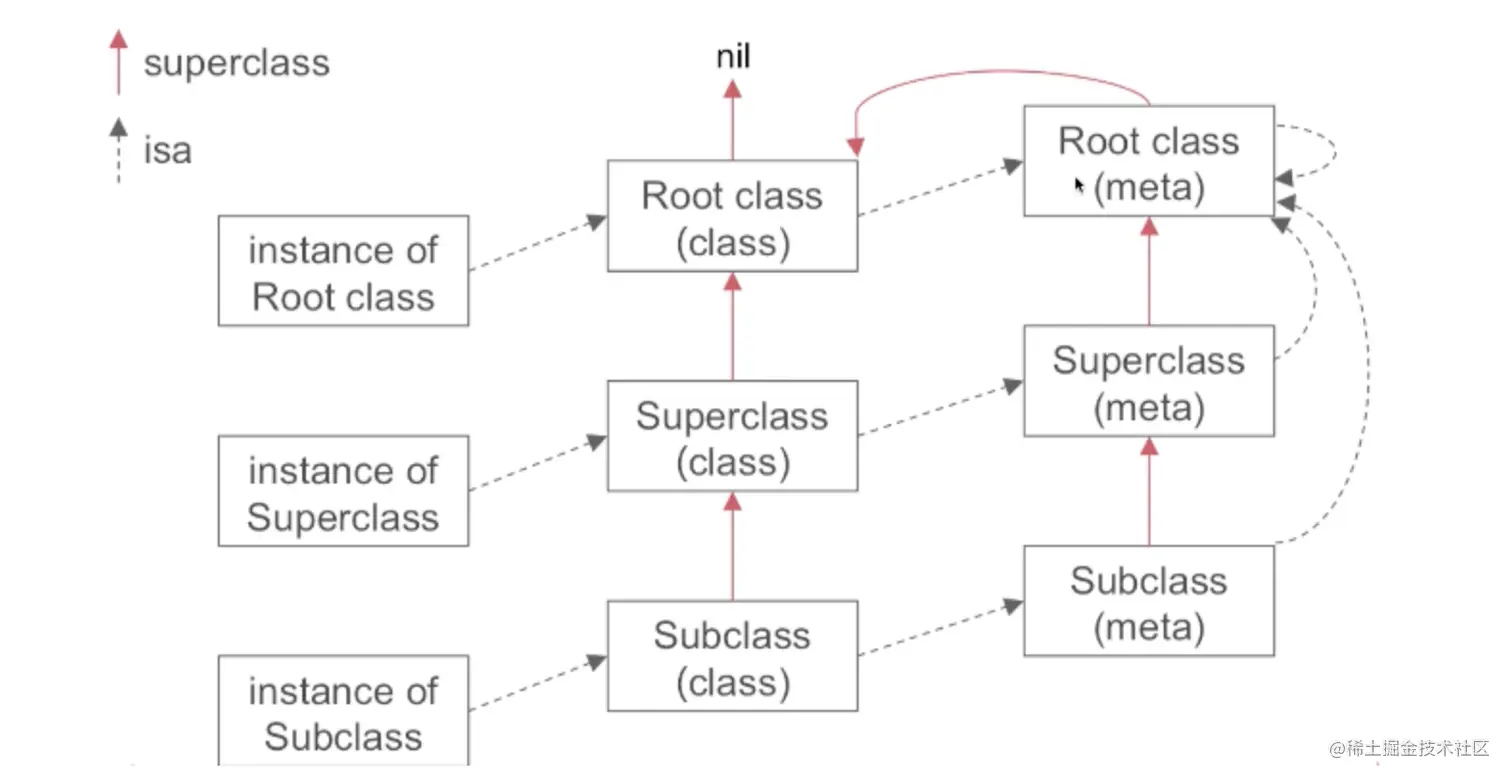

isa指向
关于对象，其指向类对象。
关于类对象，其指向元类对象。
调用实例方法，实际上是通过isa指针到类对象里面进行查找的。

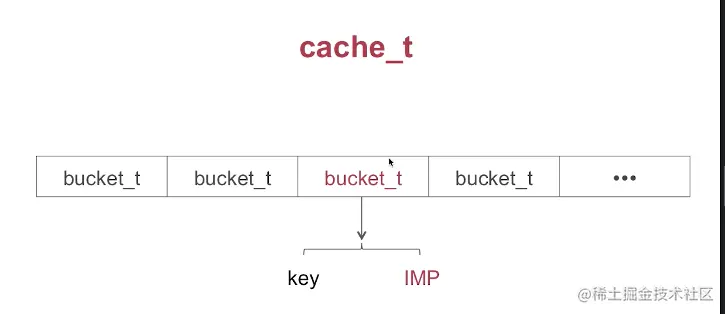

cache_t
用于快速查找方法执行的函数
是可增量扩展的哈希表结构，结构存储增大 也会动态增加的。
是局部性原理的最佳应用
struct cache_t {
struct bucket_t *_buckets;
mask_t _mask;
mask_t _occupied;
public:
struct bucket_t *buckets();
mask_t mask();
mask_t occupied();
void incrementOccupied();
void setBucketsAndMask(struct bucket_t *newBuckets, mask_t newMask);
void initializeToEmpty();
mask_t capacity();
bool isConstantEmptyCache();
bool canBeFreed();
static size_t bytesForCapacity(uint32_t cap);
static struct bucket_t * endMarker(struct bucket_t *b, uint32_t cap);
void expand();
void reallocate(mask_t oldCapacity, mask_t newCapacity);
struct bucket_t * find(cache_key_t key, id receiver);
static void bad_cache(id receiver, SEL sel, Class isa) __attribute__((noreturn));
};
bucket_t
struct bucket_t {
private:
cache_key_t _key; // 对应于OC的selector
IMP _imp; // 无类型的函数指针
public:
inline cache_key_t key() const { return _key; }
inline IMP imp() const { return (IMP)_imp; }
inline void setKey(cache_key_t newKey) { _key = newKey; }
inline void setImp(IMP newImp) { _imp = newImp; }
void set(cache_key_t newKey, IMP newImp);
};
class_data_bits_t
主要是对class_rw_t的封装
class_rw_t代表了类相关读写信息，对class_ro_t的封装。
class_ro_t代表了类相关只读信息。
struct class_data_bits_t {
// Values are the FAST_ flags above.
uintptr_t bits;
private:
bool getBit(uintptr_t bit)
{
return bits & bit;
}
#if FAST_ALLOC
static uintptr_t updateFastAlloc(uintptr_t oldBits, uintptr_t change)
{
if (change & FAST_ALLOC_MASK) {
if (((oldBits & FAST_ALLOC_MASK) == FAST_ALLOC_VALUE) &&
((oldBits >> FAST_SHIFTED_SIZE_SHIFT) != 0))
{
oldBits |= FAST_ALLOC;
} else {
oldBits &= ~FAST_ALLOC;
}
}
return oldBits;
}
#else
static uintptr_t updateFastAlloc(uintptr_t oldBits, uintptr_t change) {
return oldBits;
}
#endif
void setBits(uintptr_t set)
{
uintptr_t oldBits;
uintptr_t newBits;
do {
oldBits = LoadExclusive(&bits);
newBits = updateFastAlloc(oldBits | set, set);
} while (!StoreReleaseExclusive(&bits, oldBits, newBits));
}
void clearBits(uintptr_t clear)
{
uintptr_t oldBits;
uintptr_t newBits;
do {
oldBits = LoadExclusive(&bits);
newBits = updateFastAlloc(oldBits & ~clear, clear);
} while (!StoreReleaseExclusive(&bits, oldBits, newBits));
}
public:
class_rw_t* data() {
return (class_rw_t *)(bits & FAST_DATA_MASK);
}
void setData(class_rw_t *newData)
{
assert(!data() || (newData->flags & (RW_REALIZING | RW_FUTURE)));
// Set during realization or construction only. No locking needed.
bits = (bits & ~FAST_DATA_MASK) | (uintptr_t)newData;
}
bool hasDefaultRR() {
return getBit(FAST_HAS_DEFAULT_RR);
}
void setHasDefaultRR() {
setBits(FAST_HAS_DEFAULT_RR);
}
void setHasCustomRR() {
clearBits(FAST_HAS_DEFAULT_RR);
}
#if FAST_HAS_DEFAULT_AWZ
bool hasDefaultAWZ() {
return getBit(FAST_HAS_DEFAULT_AWZ);
}
void setHasDefaultAWZ() {
setBits(FAST_HAS_DEFAULT_AWZ);
}
void setHasCustomAWZ() {
clearBits(FAST_HAS_DEFAULT_AWZ);
}
#else
bool hasDefaultAWZ() {
return data()->flags & RW_HAS_DEFAULT_AWZ;
}
void setHasDefaultAWZ() {
data()->setFlags(RW_HAS_DEFAULT_AWZ);
}
void setHasCustomAWZ() {
data()->clearFlags(RW_HAS_DEFAULT_AWZ);
}
#endif
#if FAST_HAS_CXX_CTOR
bool hasCxxCtor() {
return getBit(FAST_HAS_CXX_CTOR);
}
void setHasCxxCtor() {
setBits(FAST_HAS_CXX_CTOR);
}
#else
bool hasCxxCtor() {
return data()->flags & RW_HAS_CXX_CTOR;
}
void setHasCxxCtor() {
data()->setFlags(RW_HAS_CXX_CTOR);
}
#endif
#if FAST_HAS_CXX_DTOR
bool hasCxxDtor() {
return getBit(FAST_HAS_CXX_DTOR);
}
void setHasCxxDtor() {
setBits(FAST_HAS_CXX_DTOR);
}
#else
bool hasCxxDtor() {
return data()->flags & RW_HAS_CXX_DTOR;
}
void setHasCxxDtor() {
data()->setFlags(RW_HAS_CXX_DTOR);
}
#endif
#if FAST_REQUIRES_RAW_ISA
bool requiresRawIsa() {
return getBit(FAST_REQUIRES_RAW_ISA);
}
void setRequiresRawIsa() {
setBits(FAST_REQUIRES_RAW_ISA);
}
#else
# if SUPPORT_NONPOINTER_ISA
# error oops
# endif
bool requiresRawIsa() {
return true;
}
void setRequiresRawIsa() {
// nothing
}
#endif
#if FAST_ALLOC
size_t fastInstanceSize()
{
assert(bits & FAST_ALLOC);
return (bits >> FAST_SHIFTED_SIZE_SHIFT) * 16;
}
void setFastInstanceSize(size_t newSize)
{
// Set during realization or construction only. No locking needed.
assert(data()->flags & RW_REALIZING);
// Round up to 16-byte boundary, then divide to get 16-byte units
newSize = ((newSize + 15) & ~15) / 16;
uintptr_t newBits = newSize << FAST_SHIFTED_SIZE_SHIFT;
if ((newBits >> FAST_SHIFTED_SIZE_SHIFT) == newSize) {
int shift = WORD_BITS - FAST_SHIFTED_SIZE_SHIFT;
uintptr_t oldBits = (bits << shift) >> shift;
if ((oldBits & FAST_ALLOC_MASK) == FAST_ALLOC_VALUE) {
newBits |= FAST_ALLOC;
}
bits = oldBits | newBits;
}
}
bool canAllocFast() {
return bits & FAST_ALLOC;
}
#else
size_t fastInstanceSize() {
abort();
}
void setFastInstanceSize(size_t) {
// nothing
}
bool canAllocFast() {
return false;
}
#endif
bool isSwift() {
return getBit(FAST_IS_SWIFT);
}
void setIsSwift() {
setBits(FAST_IS_SWIFT);
}
};

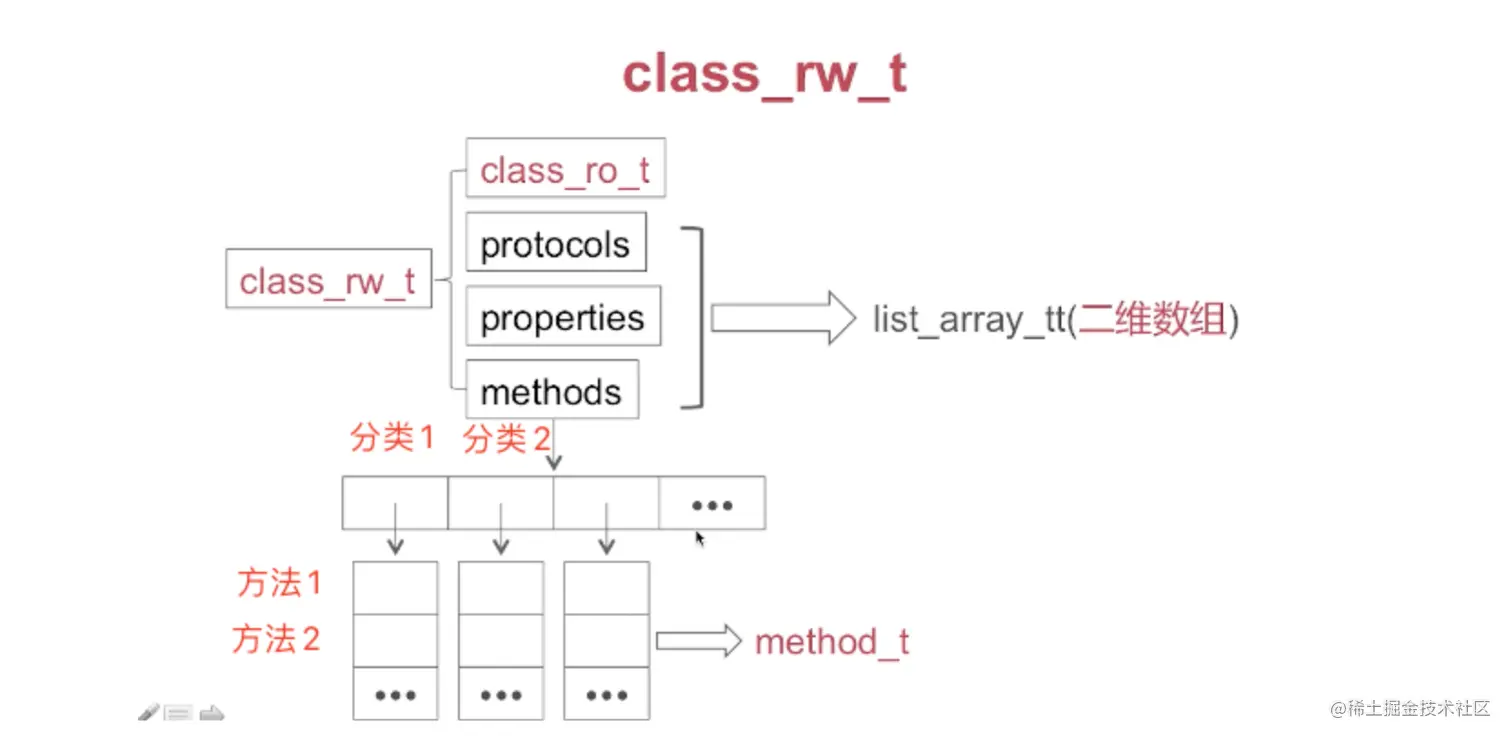

Class_rw_t
主要包含了
- class_ro_t
- protocols list_array_tt 二维数组
- properties list_array_tt 二维数组
- methods list_array_tt 二维数组
struct class_rw_t {
uint32_t flags;
uint32_t version;
const class_ro_t *ro;
method_array_t methods;
property_array_t properties;
protocol_array_t protocols;
Class firstSubclass;
Class nextSiblingClass;
char *demangledName;
void setFlags(uint32_t set)
{
OSAtomicOr32Barrier(set, &flags);
}
void clearFlags(uint32_t clear)
{
OSAtomicXor32Barrier(clear, &flags);
}
// set and clear must not overlap
void changeFlags(uint32_t set, uint32_t clear)
{
assert((set & clear) == 0);
uint32_t oldf, newf;
do {
oldf = flags;
newf = (oldf | set) & ~clear;
} while (!OSAtomicCompareAndSwap32Barrier(oldf, newf, (volatile int32_t *)&flags));
}
};
Class_ro_t
主要包含几个属性
name
baseMethodList 一维数组
baseProtocols 一维数组
baseProperties 一维数组
ivars 一维数组
存储原始定义的一些方法列表，属性列表，协议列表。
struct class_ro_t {
uint32_t flags;
uint32_t instanceStart;
uint32_t instanceSize;
#ifdef __LP64__
uint32_t reserved;
#endif
const uint8_t * ivarLayout;
const char * name;
method_list_t * baseMethodList;
protocol_list_t * baseProtocols;
const ivar_list_t * ivars;
const uint8_t * weakIvarLayout;
property_list_t *baseProperties;
method_list_t *baseMethods() const {
return baseMethodList;
}
};
- Method_t
函数四要素：
- 名称
- 返回值
- 参数
- 函数体
struct method_t {
SEL name;
const char *types;
IMP imp;
struct SortBySELAddress :
public std::binary_function<const method_t&,
const method_t&, bool>
{
bool operator() (const method_t& lhs,
const method_t& rhs)
{ return lhs.name < rhs.name; }
};
};

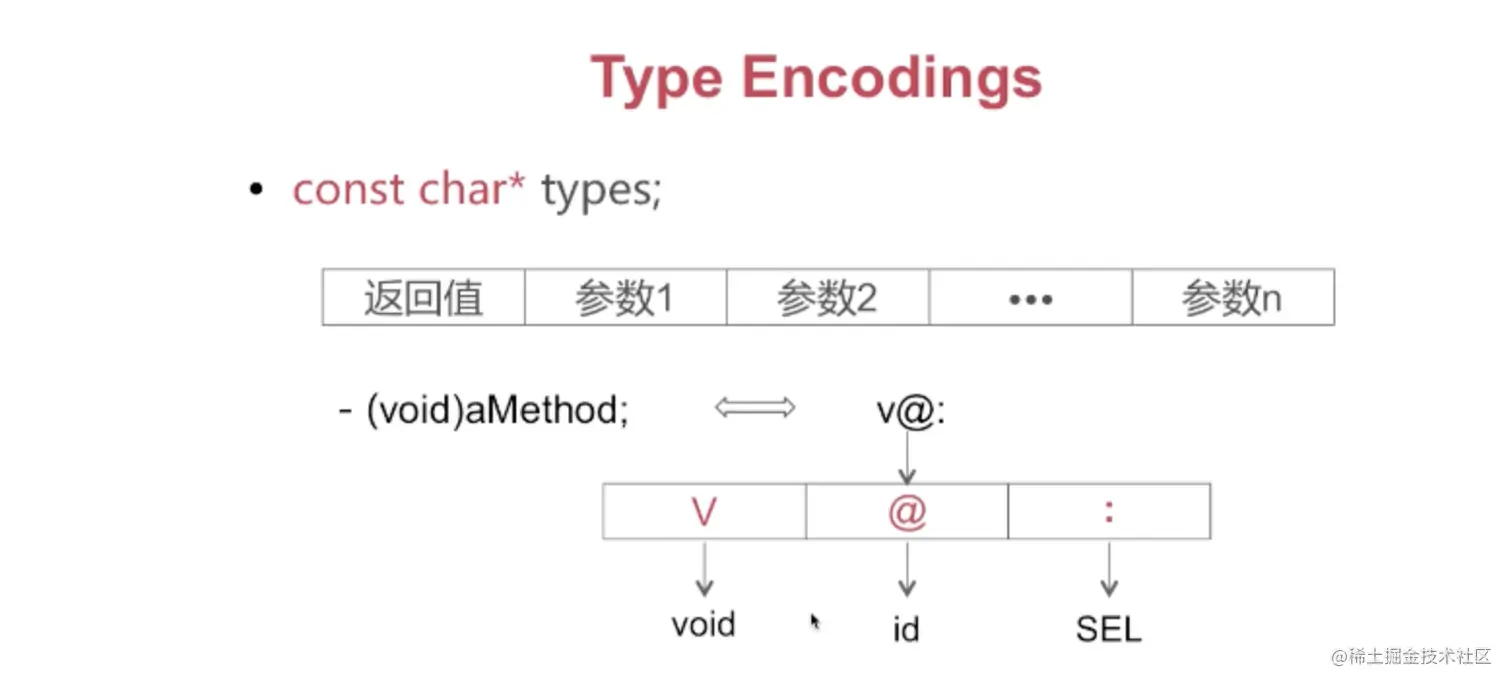

types 编码规则
IMP SEL
/// An opaque type that represents a method selector.
typedef struct objc_selector *SEL;
/// A pointer to the function of a method implementation.
#if !OBJC_OLD_DISPATCH_PROTOTYPES
typedef void (*IMP)(void /* id, SEL, ... */ );
#else
typedef id (*IMP)(id, SEL, ...);
#endif

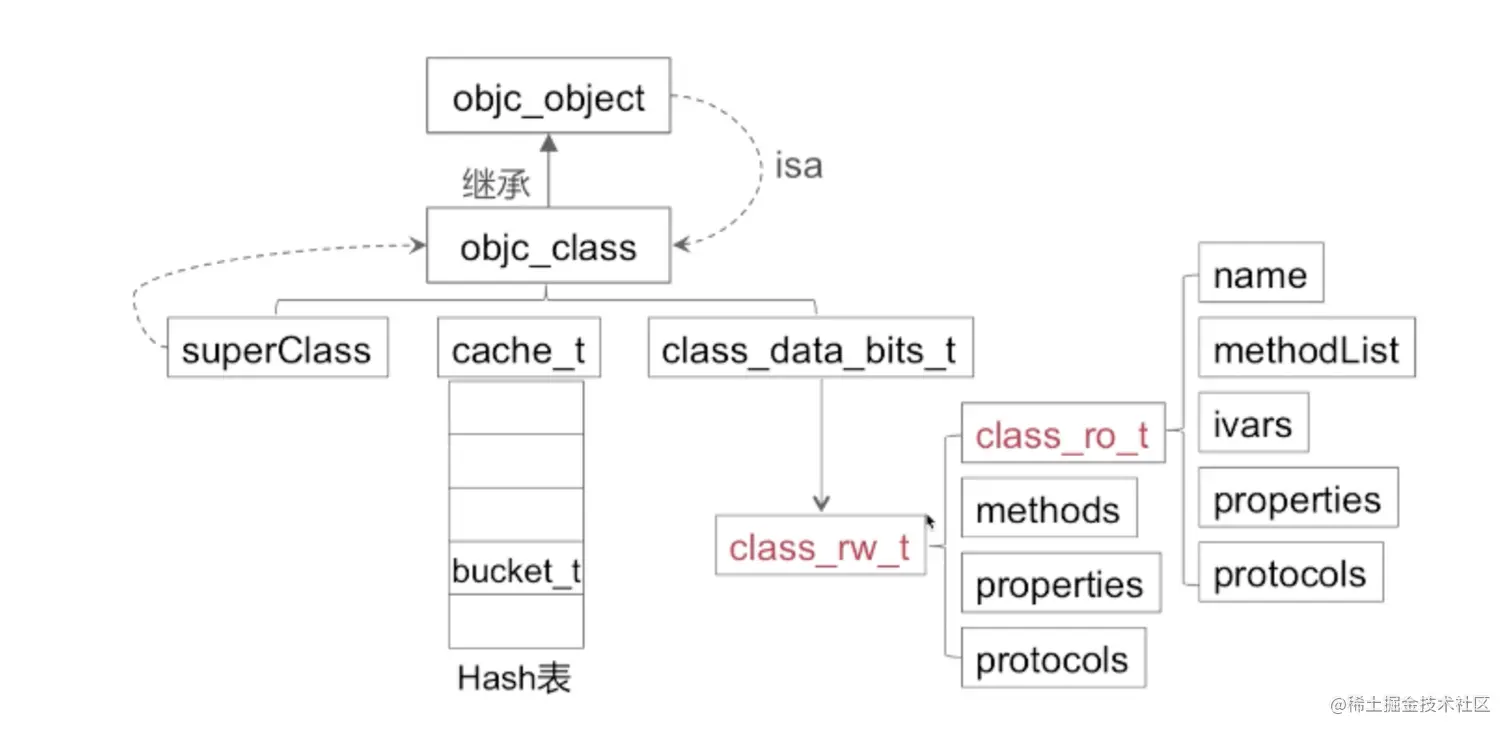

整体走向
- 类对象与元类对象
实例对象通过isa指针找到他的类对象，类对象中存储方法列表。
类对象通过isa指针找到他的元类对象。元类对象中存储类方法列表。
类对象和元类对象都是objc_class 数据结构的，由于objc_class继承自objc_object，所以他们都有isa指针，进而可以实现上面描述的两点。(一定要全，加分项)
- 如果说我们调用的类方法没有对应的实现，但是有同名的实例方法的时候，会不会发生崩溃？会不会产生实际的调用？
根元类的superClass 指向根类对象，当我们在元类对象当中找类方法的时候，类方法没有找到的情况下，就会顺着指针，向实例方法中进行查找。如果有同名方法，就会执行同名的实例方法的调用。
关键点：同名实例方法要写到NSObject上，已有的实例方法或者是通过分类添加。
- 消息传递机制
调用实例方法, 顺着实例对象的isa指针找到类对象，类对象依次顺着superclass进行查找
调用类方法，顺着类对象的isa指针找到元类对象，元类对象依次顺着superclass进行查找，一直找到Nil。
面试题
@interface Person()
@end
@implementation Person
- (instancetype)init{
self = [super init];
if (self) {
//打印结果是什么呢
NSLog(@"%@",NSStringFromClass([self class]));
NSLog(@"%@",NSStringFromClass([super class]));
}
return self;
}
@end

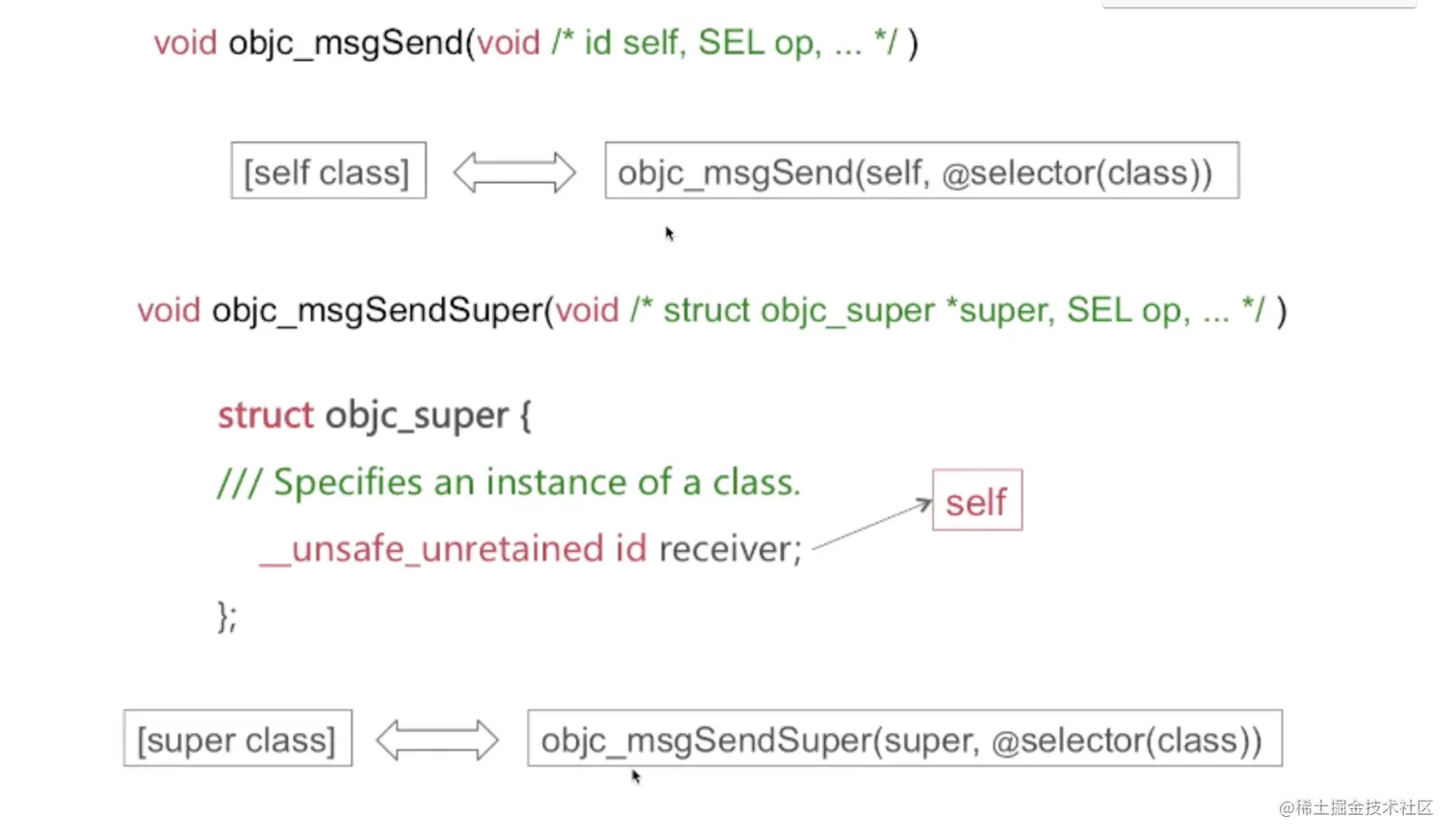

super 编译器关键字，会转换成objc_super这样的结构体
缓存查找
方法缓存 如何进行方法缓存的查找，具体是怎样的流程
如果当前类的缓存没有，会查找父类的缓存吗， 父类找到了，会存到 缓存列表吗，缓存的话，父类缓存列表会缓存还是当前类的会缓存。
f(key):hash查找 key&mask
当前类中查找
对于已排序好的列表，采用二分查找算法查找方法对应执行函数。
对于没有排序的列表，采用一般遍历查找算法查找方法对应执行函数。
消息传递中，什么情况下方法列表是已排序好的，什么情况下是没有排序的？
/***********************************************************************
* getMethodNoSuper_nolock
* fixme
* Locking: runtimeLock must be read- or write-locked by the caller
**********************************************************************/
static method_t *search_method_list(const method_list_t *mlist, SEL sel)
{
int methodListIsFixedUp = mlist->isFixedUp();
int methodListHasExpectedSize = mlist->entsize() == sizeof(method_t);
//判断有序 进行二分查找
if (__builtin_expect(methodListIsFixedUp && methodListHasExpectedSize, 1)) {
return findMethodInSortedMethodList(sel, mlist);
} else {
// Linear search of unsorted method list
// 线性遍历查找
for (auto& meth : *mlist) {
if (meth.name == sel) return &meth;
}
}
#if DEBUG
// sanity-check negative results
if (mlist->isFixedUp()) {
for (auto& meth : *mlist) {
if (meth.name == sel) {
_objc_fatal("linear search worked when binary search did not");
}
}
}
#endif
return nil;
}

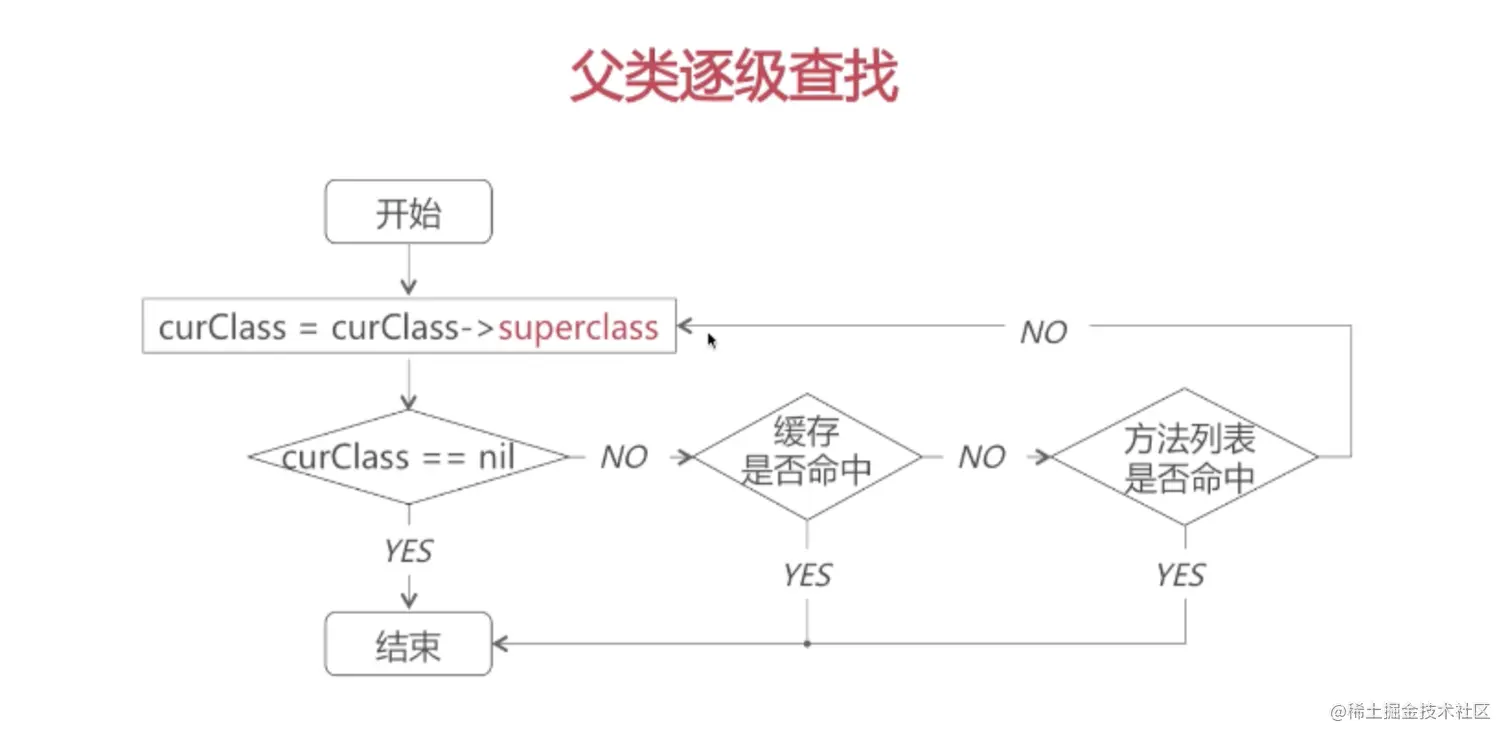

父类中逐级查找
- 消息转发
- 动态添加方法
- 动态方法解析
/***********************************************************************
* lookUpImpOrForward.
* The standard IMP lookup.
* initialize==NO tries to avoid +initialize (but sometimes fails)
* cache==NO skips optimistic unlocked lookup (but uses cache elsewhere)
* Most callers should use initialize==YES and cache==YES.
* inst is an instance of cls or a subclass thereof, or nil if none is known.
* If cls is an un-initialized metaclass then a non-nil inst is faster.
* May return _objc_msgForward_impcache. IMPs destined for external use
* must be converted to _objc_msgForward or _objc_msgForward_stret.
* If you don't want forwarding at all, use lookUpImpOrNil() instead.
**********************************************************************/
IMP lookUpImpOrForward(Class cls, SEL sel, id inst,
bool initialize, bool cache, bool resolver)
{
Class curClass;
IMP imp = nil;
Method meth;
bool triedResolver = NO;
runtimeLock.assertUnlocked();
// Optimistic cache lookup
if (cache) {
imp = cache_getImp(cls, sel);
if (imp) return imp;
}
if (!cls->isRealized()) {
rwlock_writer_t lock(runtimeLock);
realizeClass(cls);
}
if (initialize && !cls->isInitialized()) {
_class_initialize (_class_getNonMetaClass(cls, inst));
// If sel == initialize, _class_initialize will send +initialize and
// then the messenger will send +initialize again after this
// procedure finishes. Of course, if this is not being called
// from the messenger then it won't happen. 2778172
}
// The lock is held to make method-lookup + cache-fill atomic
// with respect to method addition. Otherwise, a category could
// be added but ignored indefinitely because the cache was re-filled
// with the old value after the cache flush on behalf of the category.
retry:
runtimeLock.read();
// Ignore GC selectors
if (ignoreSelector(sel)) {
imp = _objc_ignored_method;
cache_fill(cls, sel, imp, inst);
goto done;
}
// Try this class's cache.
imp = cache_getImp(cls, sel);
if (imp) goto done;
// Try this class's method lists.
meth = getMethodNoSuper_nolock(cls, sel);
if (meth) {
// 缓存在当前类
log_and_fill_cache(cls, meth->imp, sel, inst, cls);
imp = meth->imp;
goto done;
}
// Try superclass caches and method lists.
curClass = cls;
while ((curClass = curClass->superclass)) {
// Superclass cache.
imp = cache_getImp(curClass, sel);
if (imp) {
if (imp != (IMP)_objc_msgForward_impcache) {
// Found the method in a superclass. Cache it in this class.
// 缓存在当前类
log_and_fill_cache(cls, imp, sel, inst, curClass);
goto done;
}
else {
// Found a forward:: entry in a superclass.
// Stop searching, but don't cache yet; call method
// resolver for this class first.
break;
}
}
// Superclass method list.
meth = getMethodNoSuper_nolock(curClass, sel);
if (meth) {
// 缓存在当前类
log_and_fill_cache(cls, meth->imp, sel, inst, curClass);
imp = meth->imp;
goto done;
}
}
// No implementation found. Try method resolver once.
if (resolver && !triedResolver) {
runtimeLock.unlockRead();
_class_resolveMethod(cls, sel, inst);
// Don't cache the result; we don't hold the lock so it may have
// changed already. Re-do the search from scratch instead.
triedResolver = YES;
goto retry;
}
// No implementation found, and method resolver didn't help.
// Use forwarding.
imp = (IMP)_objc_msgForward_impcache;
cache_fill(cls, sel, imp, inst);
done:
runtimeLock.unlockRead();
// paranoia: look for ignored selectors with non-ignored implementations
assert(!(ignoreSelector(sel) && imp != (IMP)&_objc_ignored_method));
// paranoia: never let uncached leak out
assert(imp != _objc_msgSend_uncached_impcache);
return imp;
}

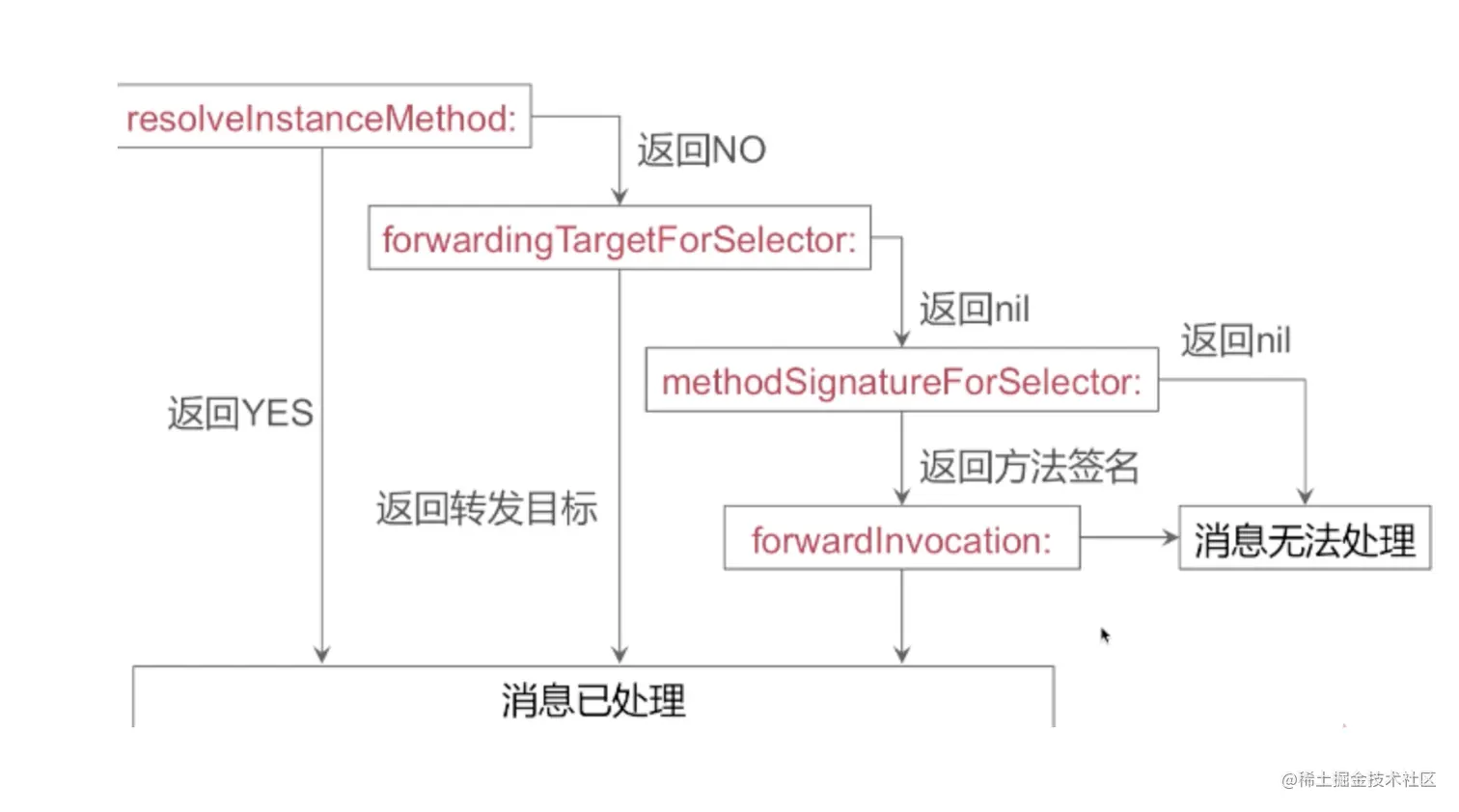

消息转发
Method-Swizzling
- 注意事项
动态添加方法
你是否用过peformSlector:? 涉及很多东西，可能是涉及动态添加方法。
- 什么情况下需要用到动态添加方法？？

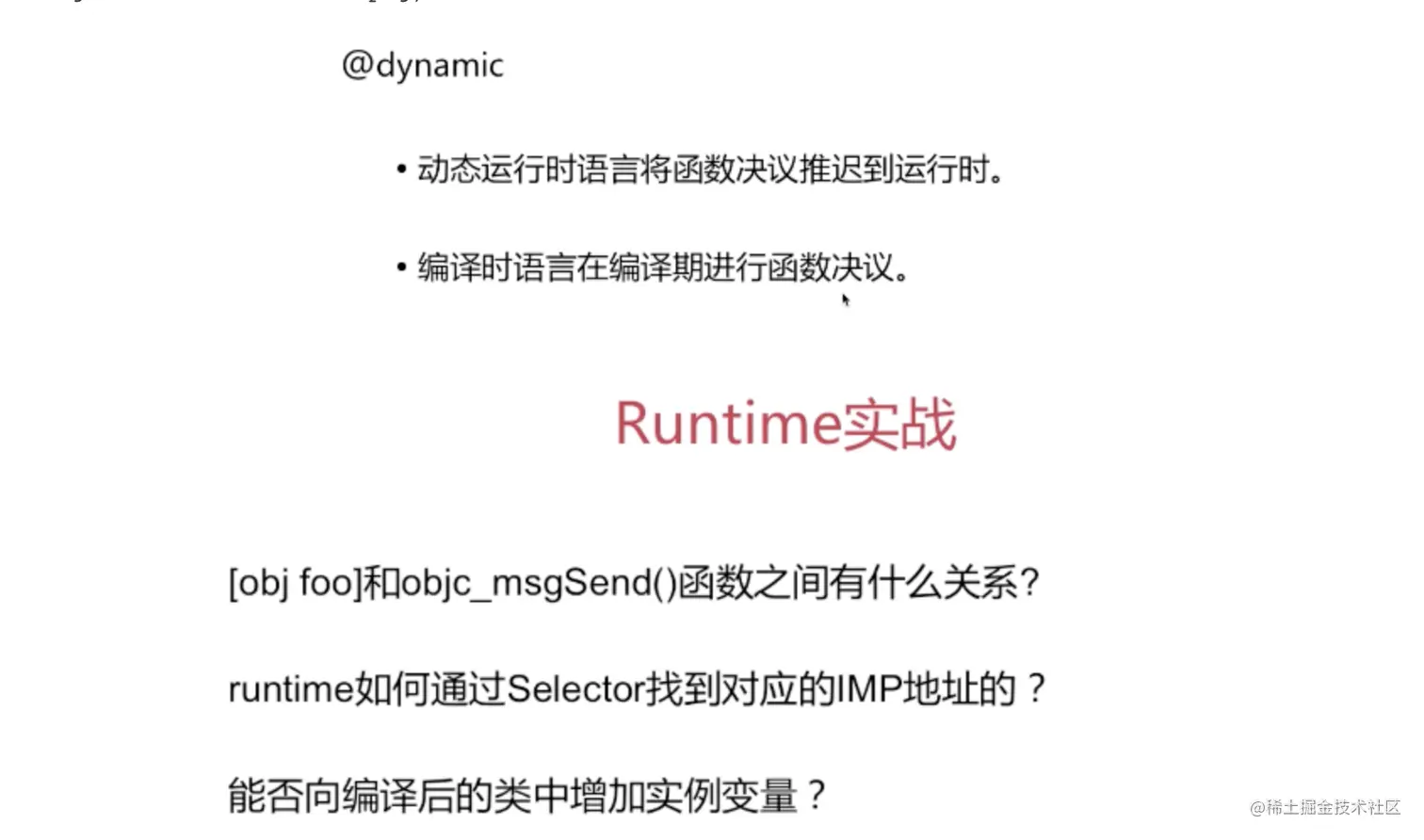

常见场景就是@dynamic定义的变量属性，可能会用到动态添加setter getter方法
另外比较常见的就是在进行消息转发的时候，如果消息接收对象没有该方法，可以为其动态添加一个方法
- 返回消息转发第一步函数，不管返回yes或者no，只要你动态添加了方法，方法列表更新了之后，系统会自动去重新进行消息传递机制，重新进行方法查找。
动态添加方法在系统第一次回调resolveInstanceMethod的时候我们一般先注册方法，然后返回yes 系统会重新查找方法。这一步骤返回no的话 系统会进行转发走forwardTarget回调来寻求转发。如果这一步骤没有处理 那么系统会进行最后一次处理进行foralwardInvocation
