我用响应式编程实现了一个验证码验证服务（By Vert.X）使用Vert.X来构建自己的 Reactive Web A

能随时把想到的东西用喜欢的工具实现，真令人开心 ————— 匿名.

因为一直对响应式编程很感兴趣，就使用它来实现一些服务/应用（大大小小），磨练手感。

响应式工具集我选择 Vert.X，来构建自己的 Reactive Web Application。SpringWebFlux虽然Web框架是响应式的，但是同步的配置方案、IOC、AOP我不喜欢，对于享受Reactive来说不够爽。Quarkus 封装的太好了，我比较喜欢原生（作为一名学习者/个人开发者而不是团队成员），把控自己应用的方方面面（我可没有自造HTTPServer的打算）。

什么是响应式？—— 反应式宣言 (reactivemanifesto.org)

Vertx 响应式介绍](vertx.io/introductio…)

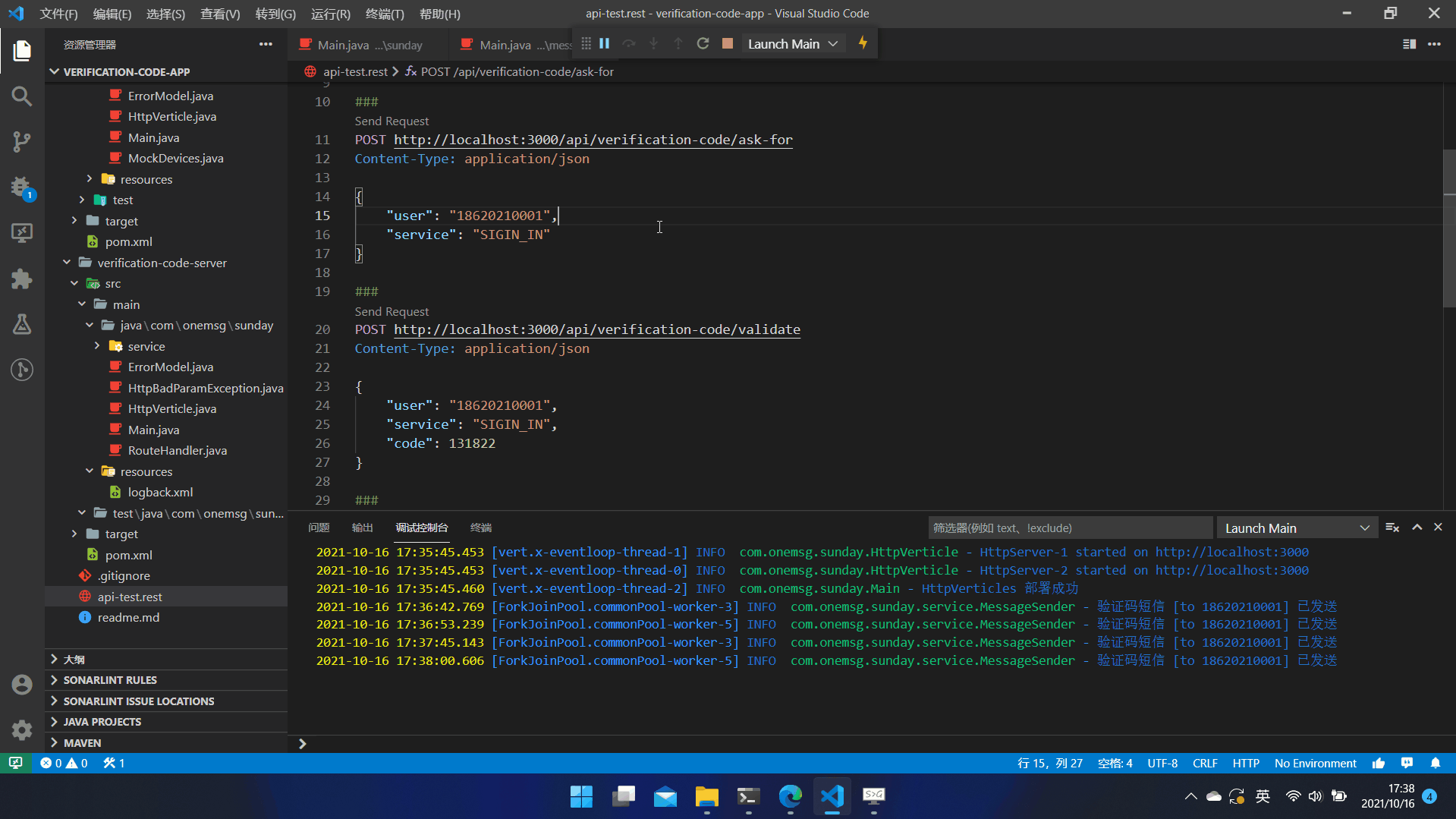

先上图

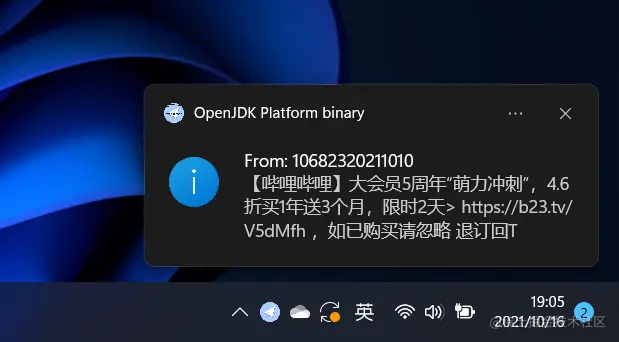

如图展示了一次验证码的发送和验证（用windows通知模拟手机接收短信）。

验证码验证服务如何设计？

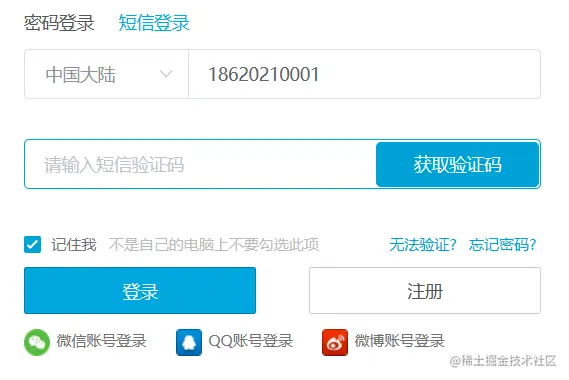

验证码验证，在我们

登录
身份验证
帐号注册
找回密码

的时候会用到，作为一种身份验证的方式。接受验证码的方式可以是手机号（短信）、邮箱（邮件）。

当用户触发一次验证事件时：

发送一个验证码申请请求给服务端
服务段收到请求，生成一个验证码与当前会话(用户和服务（比如登录服务、修改代码服务）)绑定
发送验证码到某个手机号或邮箱
用户收到->填写验证码，并提交验证码开始验证请求
服务端验证验证码，返回验证状态（成功、失败、过期、无效成），结束

通常，假如验证码通过的话，服务端会继续进行下一步操作，比如直接登录，保存用户登录态，返回重定向到首页

*有空加个流程图

一些约束

一个验证码session由用户和服务唯一确定；服务是账号登陆证、注册帐号等这些需要用到验证码的场景
一个session同一时刻与一个验证码绑定
一个验证码有过期时间（比如60s后失效）
一个session也有过期时间（避免收到任何验证请求都走一边流程），通常比验证码过期时间长

对后端来说，需要什么组件？

验证码 Session 管理器
- 生成新验证码
- 存储验证码
- 一对一绑定验证码和session（用户与服务唯一确定）
- 验证验证码（正确？过期？）
先就这吧，够了

对客户端来说，需要什么接口？

POST /api/verification-code/ask-for | 获取验证码

{
    "user": "18620210001",    // 手机号
    "service": "SIGIN_IN"    // 登录，这里表示登录场景服务
}

POST /api/verification-code/validate | 验证码验证
```
{
    "user": "18620210001",
    "service": "SIGIN_IN",
    "code": 925191   //验证码
}
```
Response Status Code:
- 200 - 验证成功
- 400 - 验证失败
- 410 - 验证码过期
- 404 - 无可用验证码
Response Body 如何设计看自己了

如何开发？

Web框架选择 Vert.x Web
验证码存储MongoDB、SQLDB、Redis都可以（能过期就像）（我选用Java缓存对象）
验证码生成器，4或6位数字带不带字母都行（我用ThreadLocalRadom生成随机 100_000 - 999_999 int）
别老玩Spring services、respositorys、controllers 那套了
Vert.x 比较觉得你很👍，你会妥善处理好一切你可能会遇到的异常，还不会写出阻塞事件循环的代码
写一个短信应用，来模拟接受验证码短信和显示

Here Is Key Code

Full Code: awesome-project/verification-code-app at master · onemsg/awesome-project (github.com)

VerificationCode

验证码的生命周期管理都包含在类 VerificationCode 中（naming better, annotation less）:

package com.onemsg.sunday.service;

import java.time.Duration;
import java.util.Objects;
import java.util.concurrent.ThreadLocalRandom;
import java.util.function.BiFunction;

import com.github.benmanes.caffeine.cache.Cache;
import com.github.benmanes.caffeine.cache.Caffeine;

public class VerificationCode {

    public final int id;
    public final String user;
    public final String service;
    public final int data;
    public final long timestramp = System.currentTimeMillis();
    public final long duration;

    /** 验证码默认过期时间，60_000毫秒  */
    public static final long DEFAULT_DURATION = 60_000L;
    public static final BiFunction<String,String,Integer> ID_GENERATOR = Objects::hash;

    private VerificationCode(String user, String service, int data, long duration){
        this.user = user;
        this.service = service;
        this.data = data;
        this.duration = duration;
        id = ID_GENERATOR.apply(user, service);
    }

    private static Cache<Integer, VerificationCode> store = Caffeine.newBuilder()
        .maximumSize(100_000)
        .expireAfterWrite(Duration.ofSeconds(600))
        .build();

    public static VerificationCode create(String user, String service, long duration){
        Objects.requireNonNull(user);
        Objects.requireNonNull(service);

        int data = generateCode();
        VerificationCode code = new VerificationCode(user, service, data, duration);
        store.put(code.id, code);
        return code;
    }

    public static VerificationCode create(String user, String service) {
        return create(user, service, DEFAULT_DURATION);
    }


    public static VerificationCode get(String user, String service){
        Objects.requireNonNull(user);
        Objects.requireNonNull(service);

        return store.getIfPresent(ID_GENERATOR.apply(user, service));
    }


    public static VerifiedState verify(String user, String service, int code){
        Objects.requireNonNull(user);
        Objects.requireNonNull(service);

        int id = ID_GENERATOR.apply(user, service);
        var vcode = store.getIfPresent(id);

        if( vcode == null) return VerifiedState.NOT_FOUND;

        if( System.currentTimeMillis() > vcode.timestramp + vcode.duration)
            return VerifiedState.EXPIRED;

        return vcode.data == code ? VerifiedState.SUCCESS : VerifiedState.FAIL;
    }


    static final int generateCode(){
        return ThreadLocalRandom.current().nextInt(100_000, 999_999);
    }


    public enum VerifiedState {
        /** 验证正确 */
        SUCCESS,
        /** 验证错误 */
        FAIL,
        /** 验证码过期 */
        EXPIRED,
        /** 验证码不存在 */
        NOT_FOUND
    }
}

路由处理器

/api/verification-code/ask-for 路由处理器:

    void handleCodeAskFor(RoutingContext rtx) {

        String user;
        String service;
        try {
            var body = rtx.getBodyAsJson();
            user = body.getString("user");
            service = body.getString("service");
            Objects.requireNonNull(user);
            Objects.requireNonNull(service);
        } catch (Exception e) {
            rtx.fail(400, new HttpBadParamException(e.getMessage()));
            return;
        }

        var code = VerificationCode.create(user, service, DEFAULT_CODE_DURATION);

        sendCode(code.data, user); // 调用短信发送服务（异步）

        rtx.end();
    }

/api/verification-code/validate 路由处理器:


    void handleCodeValidate(RoutingContext rtx) {
        String user;
        String service;
        int code = 0;
        try {
            var body = rtx.getBodyAsJson();
            user = body.getString("user");
            service = body.getString("service");
            code = body.getInteger("code");
            Objects.requireNonNull(user);
            Objects.requireNonNull(service);
        } catch (Exception e) {
            log.warn("json body 获取出错", e);
            rtx.fail(400, new HttpBadParamException(e.getMessage()));
            return;
        }

        VerifiedState state = VerificationCode.verify(user, service, code);

        if (VerifiedState.SUCCESS == state) {
            rtx.end();
        } else if (VerifiedState.FAIL == state) {
            var errorModel = ErrorModel.of(400, "验证失败", "当前验证码不正确: " + code);
            respondJson(rtx, 400, errorModel);
        } else if (VerifiedState.EXPIRED == state) {
            var errorModel = ErrorModel.of(410, "验证码已过期", null);
            respondJson(rtx, 410, errorModel);
        } else if (VerifiedState.NOT_FOUND == state) {
            var errorModel = ErrorModel.of(404, "无可用验证码", null);
            respondJson(rtx, 404, errorModel);
        }

    }

异常处理器这里的异常处理粗糙点

提醒：在异常处理器中，千万别再调用 rtx.fail 方法，否则会限于死循环，电脑卡死

    void handleException(RoutingContext rtx) {

        Throwable t = rtx.failure();

        log.warn("HTTP {} {} 处理发生异常", rtx.request().method(), rtx.request().uri(), t);

        if (t == null) {
            rtx.response().setStatusCode(rtx.statusCode()).end();
        }
        ErrorModel errorModel = null;
        var res = rtx.response();
        if (t instanceof HttpBadParamException) {
            var e = (HttpBadParamException) t;
            errorModel = ErrorModel.of(400, "HTTP 请求参数错误", e.getMessage());
            res.setStatusCode(400);
        } else {
            errorModel = ErrorModel.of(rtx.statusCode(), "HTTP 请求处理发生错误", rtx.failure().getMessage());
            res.setStatusCode(rtx.statusCode());
        }
        res.putHeader(HttpHeaders.CONTENT_TYPE, "application/json")
            .end(Json.encodeToBuffer(errorModel));
    }

短信发送？

OK，我另外做了一个短信应用，模拟了手机（有自己的手机号，能接收、发送短信）和网络（手机之间传输短信），当手机号在收到短信时会打印信息到控制台顺带发个Windows通知（方便查看）；这个应用（下面会说下设计）还提供了一个公开接口（类似各种云厂家的短信服务API），方便调用:

POST http://localhost:3001/api/sendMsg
Authorization: Basic faeFaeGEerfteEFmO458
Content-Type: application/json

{
    "Message": "【哔哩哔哩】大会员5周年“萌力冲刺”，4.6折买1年送3个月，限时2天> https://b23.tv/V5dMfh ，如已购买请忽略 退订回T",
    "PhoneNumber": "18620210001"
}

有了这个短信服务接口之后，封装一个短信发送方法就很容易了。当然作为响应式编程，不能阻塞哦😗

@Slf4j
public class MessageSender {

    static HttpClient client = HttpClient.newHttpClient();

    static String webhook = "http://localhost:3001/api/sendMsg";
    static URI uri = URI.create(webhook);

    private MessageSender() {}

    public static void sendAsync(String message, String phoneNumber){
        client.sendAsync( buildRequest(message, phoneNumber), BodyHandlers.ofString())
            .whenCompleteAsync( (res, t) -> {
                if(t != null){
                    log.warn("验证码短信 [to {}] 发送出现异常", phoneNumber, t);
                    return;
                }

                if(200 == res.statusCode()){
                    log.info("验证码短信 [to {}] 已发送", phoneNumber);
                }else {
                    log.warn("验证码短信 [to {}] 发送失败 | {} - {}", res.statusCode(), res.body());
                }
            });
    }

    private static HttpRequest buildRequest(String message, String phoneNumber){

        String body = toJson(message, phoneNumber);
        return HttpRequest.newBuilder()
            .uri(uri)
            .POST(BodyPublishers.ofString(body))
            .header("Authorization", "Basic faeFaeGEerfteEFmO458")
            .header("Content-Type", "application/json")
            .build();
    }

    private static String toJson(String message, String phoneNumber){
        return String.format("{\"Message\": \"%s\", \"PhoneNumber\": \"%s\"}",
            message, phoneNumber);
    }

}

发送验证码短信:

    private static final String MESSAGE_FORMAT = "【SUNDAY】你的验证码是 %s，请勿告诉他人";

    private static void sendCode(int code, String user) {
        MessageSender.sendAsync(String.format(MESSAGE_FORMAT, code), user);
    }

短信应用

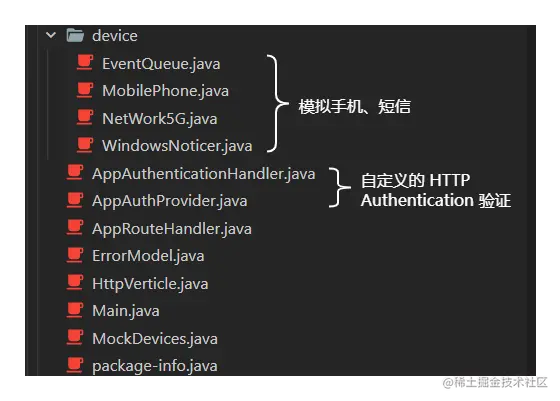

👉目录结构:


调用两次短信服务

POST http://localhost:3001/api/sendMsg
Authorization: Basic faeFaeGEerfteEFmO458
Content-Type: application/json

{
    "Message": "【哔哩哔哩】大会员5周年“萌力冲刺”，4.6折买1年送3个月，限时2天> https://b23.tv/V5dMfh ，如已购买请忽略 退订回T",
    "PhoneNumber": "17520212021"
}

###
POST http://localhost:3001/api/sendMsg
Authorization: Basic faeFaeGEerfteEFmO458
Content-Type: application/json

{
    "Message": "【宜家俱乐部】焕新家装季，收纳有妙招！至10/25来四元桥宜家\n⭐帕克思衣柜每满4000送300元电子券\n⭐斯玛斯塔儿童衣柜每满1500送100元电子券\n 线上线下同享>  c8b.co/Vpz8xpA 回0退订",
    "PhoneNumber": "17520212021"
}

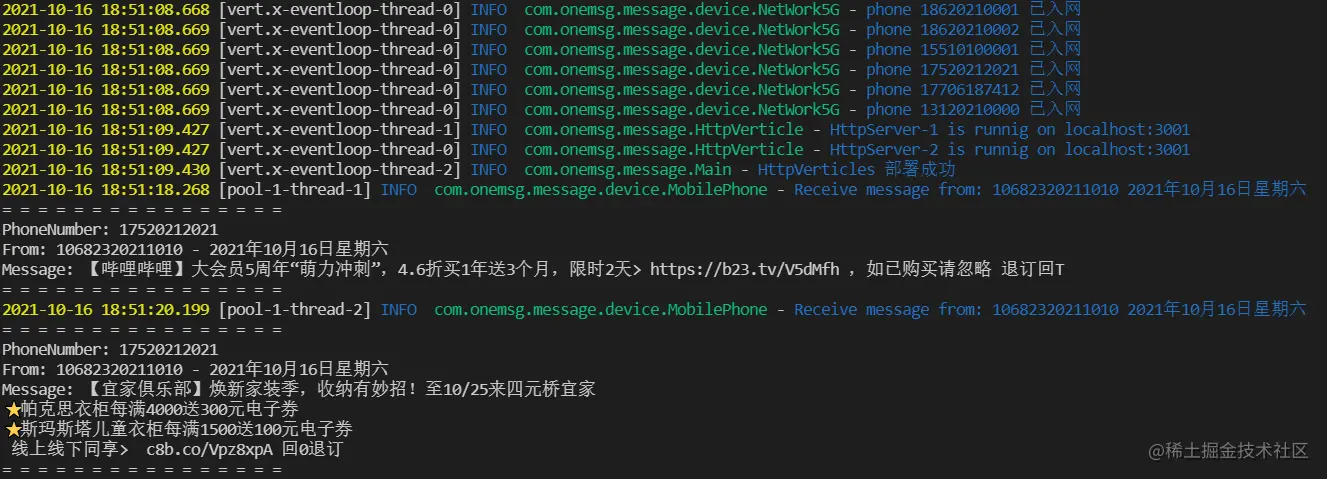

看下日志👇

手机、5G网络和 Event Driven

MobilePhone

/**
  * 模拟手机设备
  *
  * @author onemsg
  * @since 2021-10
  */
 @Slf4j
 public class MobilePhone {

     private static final NetWork5G NETWORK = new NetWork5G();
     private static final ExecutorService executor = Executors.newFixedThreadPool(5);

     public final String phoneNumber;

     public final Deque<Message> inBoxes = new ConcurrentLinkedDeque<>();

     private MobilePhone(String phoneNumber) {
         Objects.requireNonNull(phoneNumber);
         this.phoneNumber = phoneNumber;
     }

     public void send(String phoneNumber, String message) {
         Packet packet = new Packet(message, this.phoneNumber, phoneNumber);
         NETWORK.transport(packet);
     }

     public Future<Void> sendAsync(String phoneNumber, String message){
        return  executor.submit(() -> send(phoneNumber, message), null);
     }

     void accept(String phoneNumber, String message) {
         Message newMessage = new Message(message, phoneNumber, LocalDateTime.now());
         inBoxes.add(newMessage);
         notice(newMessage);

         AcceptEvent event = new AcceptEvent(this.phoneNumber, newMessage);
         EventQueue.publish(event);
     }

     private static final DateTimeFormatter DTF = DateTimeFormatter.ofLocalizedDate(FormatStyle.FULL);

     private synchronized void notice(Message message) {
         log.info("Receive message from: {} {}", message.sender, message.datetime.format(DTF));
         System.out.println("= = = = = = = = = = = = = = = =");
         System.out.printf("PhoneNumber: %s %n", phoneNumber);
         System.out.printf("From: %s - %s %n", message.sender, message.datetime.format(DTF));
         System.out.printf("Message: %s %n", message.content);
         System.out.println("= = = = = = = = = = = = = = = =");
     }

     /**
      * 创建一部新手机，并入网
      *
      * @param phoneNumber 手机号
      */
     public static MobilePhone create(String phoneNumber) {
         if (NETWORK.phones.containsKey(phoneNumber)) {
             return NETWORK.phones.get(phoneNumber);
         }

         var newPhone = new MobilePhone(phoneNumber);
         NETWORK.register(newPhone);
         return newPhone;
     }

     public static void register(Consumer<AcceptEvent> consumer) {
         EventQueue.register(consumer);
     }

     @ToString
     @AllArgsConstructor
     public static class Message {

         public final String content;

         public final String sender;

         public final LocalDateTime datetime;

     }
 }

NetWork5G

/**
 * 模拟 5G 网络
 *
 * @author onemsg
 * @since 2021-10
 */
@Slf4j
class NetWork5G {

    Map<String, MobilePhone> phones = new ConcurrentHashMap<>();

    public void register(MobilePhone phone) {
        phones.put(phone.phoneNumber, phone);
        log.info("phone {} 已入网", phone.phoneNumber);
    }

    void transport(Packet packet) {
        var toPhone = phones.get(packet.to);
        if(toPhone != null){
            toPhone.accept(packet.from, packet.content);
        }
    }

    @ToString
    @AllArgsConstructor
    static class Packet {
        final String content;
        final String from;
        final String to;
    }

}

EventQueue

@Slf4j
public class EventQueue {

    private static BlockingQueue<AcceptEvent> queue = new ArrayBlockingQueue<>(1024);

    private static final Thread worker;

    private static Set<Consumer<AcceptEvent>> consumers = new ConcurrentHashSet<>();

    static {
        worker = new Thread(() -> {
            AcceptEvent event = null;
            while (true) {
                if(Thread.currentThread().isInterrupted()){
                    return;
                }

                try {
                    event = queue.take();
                } catch (InterruptedException e) {
                    log.warn("Event Queue is Interrupted", e);
                    return;
                }
                for (Consumer<AcceptEvent> consumer : consumers) {
                    consumer.accept(event);
                }
            }
        }, "EventQueue-Worker-Thread");

        worker.setDaemon(true);
        worker.start();
    }

    private EventQueue() {}

    static void publish(AcceptEvent event){
        queue.add(event);
    }

    public static void register(Consumer<AcceptEvent> consumer){
        consumers.add(consumer);
    }

    public static void stop(){
        worker.interrupt();
    }

    @AllArgsConstructor
    @ToString
    public static class AcceptEvent{

        public final String phoneNumber;
        public final Message message;
    }

}

🎈 使用的容器和处理模型尽量保证线程安全

如何给你的 Windows10/11 发送通知？

📣🔊📢 Dont need third libs, here is code 👇

import java.awt.AWTException;
import java.awt.SystemTray;
import java.awt.TrayIcon;
import java.awt.TrayIcon.MessageType;
import java.awt.image.BufferedImage;
import java.io.IOException;
import java.net.URL;
import java.util.concurrent.TimeUnit;

import javax.imageio.ImageIO;

import lombok.extern.slf4j.Slf4j;

@Slf4j
public class WindowsNoticer{

    // windows 托盘图标，比如QQ的小企鹅
    private static final String ICON_FILE = "icon.png";

    private TrayIcon trayIcon;
    private String tooltip;

    public WindowsNoticer(){
        this("短信模拟收件箱");
    }

    public WindowsNoticer(String tooltip){

        this.tooltip = tooltip;

        URL url = WindowsNoticer.class.getClassLoader().getResource(ICON_FILE);
        BufferedImage image = null;
        try {
            image = ImageIO.read(url);
        } catch (IOException e) {
            throw new RuntimeException("WindowsNoticer 创建失败, icon 文件没有找到", e);
        }
        trayIcon = new TrayIcon(image, tooltip);
        trayIcon.setImageAutoSize(true);
        try {
            SystemTray.getSystemTray().add(trayIcon);
        } catch (AWTException e) {
            throw new RuntimeException("WindowsNoticer 创建失败, desktop system tray is missing", e);
        }

        log.debug("WindowsNoticer - {} 创建成功", tooltip);
    }

    public void notice(String title, String message){
        trayIcon.displayMessage(title, message, MessageType.INFO);
    }

    public void stop() {
        SystemTray.getSystemTray().remove(trayIcon);
        log.debug("WindowsNoticer - {} 已暂停", tooltip);
    }

    public static void main(String[] args) throws InterruptedException{

        WindowsNoticer noticer = new WindowsNoticer();

        noticer.notice("【掘金】系统消息", "Hello, 别忘了为你喜欢的文章点赞👍");
        TimeUnit.SECONDS.sleep(5);
        noticer.stop();
    }

}

我用响应式编程实现了一个验证码验证服务 （By Vert.X）

先上图
