map结构
- hmap.B
在map中，桶的个数 n=2^B 次方，但是为什么规定是2^B呢，因为hash%n可以定位桶，但是%操作速度没有位运算快. 当n为2的B次方时，有如下替换公式:
hash%n = hash&(n-1) = hash&(2^B-1) = hash&(1<<B-1)
(1<<B-1)就是源码中的bucketMask
map初始化
func makemap(t *maptype, hint int, h *hmap) *hmap {
mem, overflow := math.MulUintptr(uintptr(hint), t.bucket.size)
if overflow || mem > maxAlloc {
hint = 0
}
// initialize Hmap
if h == nil {
h = new(hmap)
}
h.hash0 = fastrand()
// Find the size parameter B which will hold the requested # of elements.
// For hint < 0 overLoadFactor returns false since hint < bucketCnt.
B := uint8(0)
for overLoadFactor(hint, B) {
B++
}
h.B = B
// allocate initial hash table
// if B == 0, the buckets field is allocated lazily later (in mapassign)
// If hint is large zeroing this memory could take a while.
if h.B != 0 {
var nextOverflow *bmap
h.buckets, nextOverflow = makeBucketArray(t, h.B, nil)
if nextOverflow != nil {
h.extra = new(mapextra)
h.extra.nextOverflow = nextOverflow
}
}
return h
}
首先通过fastrand创建一个hash种子，再利用overLoadFactor计算出能够容纳hint(创建map传入的个数参数)的最小的B,
// overLoadFactor reports whether count items placed in 1<<B buckets is over loadFactor.
func overLoadFactor(count int, B uint8) bool {
return count > bucketCnt && uintptr(count) > loadFactorNum*(bucketShift(B)/loadFactorDen)
}
以上代码可转化成：
初始化bucket个数 > 6.5*2^B
比如传入16，则：
B = 0， 16 > 6.5*1 => 16 > 6.5，返回true，继续执行for循环
B = 1， 16 > 6.5*2 => 16 > 13，返回true，继续执行for循环
B = 2， 16 > 6.5*4 => 16 > 24，返回false，结束for循环
这个map就有2^2=4个桶
// makeBucketArray initializes a backing array for map buckets.
// 1<<b is the minimum number of buckets to allocate.
// dirtyalloc should either be nil or a bucket array previously
// allocated by makeBucketArray with the same t and b parameters.
// If dirtyalloc is nil a new backing array will be alloced and
// otherwise dirtyalloc will be cleared and reused as backing array.
func makeBucketArray(t *maptype, b uint8, dirtyalloc unsafe.Pointer) (buckets unsafe.Pointer, nextOverflow *bmap) {
base := bucketShift(b)
// 如果b >=4, 那么 nbuckets 就会大于base
nbuckets := base
// b >= 4时候，有可能出现用到溢出桶的情况，所以这里先申请一些桶，留着以后用，节省之后的计算消耗
if b >= 4 {
// Add on the estimated number of overflow buckets
// required to insert the median number of elements
// used with this value of b.
nbuckets += bucketShift(b - 4)
sz := t.bucket.size * nbuckets
up := roundupsize(sz)
if up != sz {
nbuckets = up / t.bucket.size
}
}
if dirtyalloc == nil {
// 如果之前没分配过，那么申请一块连续的空间
buckets = newarray(t.bucket, int(nbuckets))
} else {
// dirtyalloc was previously generated by
// the above newarray(t.bucket, int(nbuckets))
// but may not be empty.
buckets = dirtyalloc
size := t.bucket.size * nbuckets
if t.bucket.ptrdata != 0 {
memclrHasPointers(buckets, size)
} else {
memclrNoHeapPointers(buckets, size)
}
}
// 处理多出来的溢出桶
if base != nbuckets {
// We preallocated some overflow buckets.
// To keep the overhead of tracking these overflow buckets to a minimum,
// we use the convention that if a preallocated overflow bucket's overflow
// pointer is nil, then there are more available by bumping the pointer.
// We need a safe non-nil pointer for the last overflow bucket; just use buckets.
// 因为多申请了一些用于溢出情况的桶，所以溢出的桶对B取模不合理，根本获得不到溢出桶的位置，
// 所以就把溢出桶的起始地址放到mapextra.nextOverflow字段上
nextOverflow = (*bmap)(add(buckets, base*uintptr(t.bucketsize)))
// last 指向nextOverflow最后一个bucket
last := (*bmap)(add(buckets, (nbuckets-1)*uintptr(t.bucketsize)))
// 将最后一个bucket的overflow字段指向bucket(就是这段内存的开头)
// 获取预分配的溢出桶里`bmap`时，可以通过判断overflow是不是为nil判断是不是最后一个
last.setoverflow(t, (*bmap)(buckets))
}
return buckets, nextOverflow
}
makeBucketArray做的事为：
如果多申请了用于处理溢出情况的bucket，那么计算吃溢出空间的最后一块bucket地址，并将次bucket的overflow指针指向整个bucket连续空间的头(获取预分配的溢出桶里bmap时，可以通过判断overflow是不是为nil判断是不是最后一个)

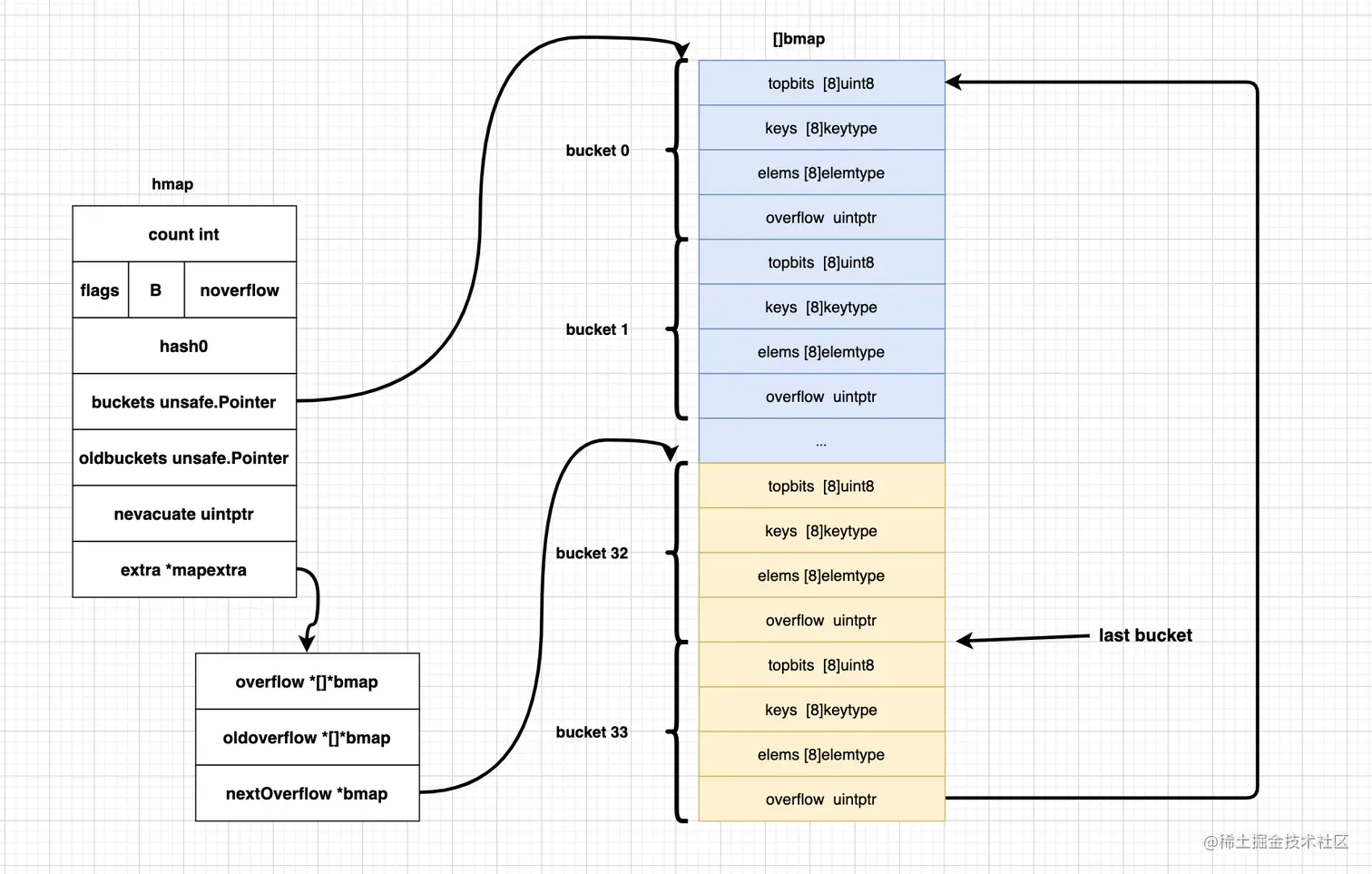

下图为初始化时，为hint=208,B=5的情况,此时nbuckets = 2^5 + 2^(5-4) = 32 + 2 = 34，多出来两个bucket放到nextoverflow字段下
map访问
func mapaccess2(t *maptype, h *hmap, key unsafe.Pointer) (unsafe.Pointer, bool) {
(...)
// map为空或者元素为0，返回零值和false
if h == nil || h.count == 0 {
if t.hashMightPanic() {
t.hasher(key, 0) // see issue 23734
}
return unsafe.Pointer(&zeroVal[0]), false
}
// 目前正在写的话，直接报错
if h.flags&hashWriting != 0 {
throw("concurrent map read and map write")
}
// 计算key的hash值
hash := t.hasher(key, uintptr(h.hash0))
// m用于接下来从hash的最后B位计算出bucket的位置
// B = 3, 则m二进制为 111
// B = 4, 则m二进制为 1111
m := bucketMask(h.B)
// b为计算出来bucket的位置
b := (*bmap)(add(h.buckets, (hash&m)*uintptr(t.bucketsize)))
// oldbuckets则代表正在扩容，如果正在扩容，则从老得bucket里找，
// 但是若该bucket搬迁完，则从buckets里找
if c := h.oldbuckets; c != nil {
if !h.sameSizeGrow() {
// There used to be half as many buckets; mask down one more power of two.
m >>= 1
}
oldb := (*bmap)(add(c, (hash&m)*uintptr(t.bucketsize)))
if !evacuated(oldb) {
b = oldb
}
}
// 取高8位的值
top := tophash(hash)
bucketloop:
// 外层遍历用于解决冲突的链表
for ; b != nil; b = b.overflow(t) {
// 遍历当前bucket上的tophash
for i := uintptr(0); i < bucketCnt; i++ {
// 不相等
if b.tophash[i] != top {
if b.tophash[i] == emptyRest {
// 表示后面没有数据了 (包括overflow 和 index)，这个值是delete操作设置的
break bucketloop
}
continue
}
// 计算k的位置
k := add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize))
// 如果k是指针，则解引用
if t.indirectkey() {
k = *((*unsafe.Pointer)(k))
}
// 判断key与k代表的值是否相同
if t.key.equal(key, k) {
//
e := add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize))
if t.indirectelem() {
e = *((*unsafe.Pointer)(e))
}
return e, true
}
}
}
return unsafe.Pointer(&zeroVal[0]), false
}
dataOffset其实就是bmap的大小，所以dataOffset + i * keySize就可以计算出key在bmap的位置，要访问的value地址也是如此。
dataOffset = unsafe.Offsetof(struct {
b bmap
v int64
}{}.v)
总结
- 计算出key的hash，计算在buckets中要访问的bucket的位置
- 若正在扩容，则计算出在oldbuckets中要访问bucket的位置
- 遍历得到的bucket，以及bucket所在的链表
- 遍历当前bucket，若bucket的tophash中存在emptyRest，则代表后续无元素，直接返回零值
- 若hash匹配成功，则匹配key是否相等，不想等继续遍历，相等就计算value的位置，并返回
map赋值
// Like mapaccess, but allocates a slot for the key if it is not present in the map.
func mapassign(t *maptype, h *hmap, key unsafe.Pointer) unsafe.Pointer {
if h == nil {
panic(plainError("assignment to entry in nil map"))
}
if raceenabled {
callerpc := getcallerpc()
pc := funcPC(mapassign)
racewritepc(unsafe.Pointer(h), callerpc, pc)
raceReadObjectPC(t.key, key, callerpc, pc)
}
if msanenabled {
msanread(key, t.key.size)
}
// 如果正在被写，则报错
if h.flags&hashWriting != 0 {
throw("concurrent map writes")
}
// 计算key的hash值
hash := t.hasher(key, uintptr(h.hash0))
// Set hashWriting after calling t.hasher, since t.hasher may panic,
// in which case we have not actually done a write.
// 标记当前为写状态
h.flags ^= hashWriting
// 若当前没有bucket，则分配一个
if h.buckets == nil {
h.buckets = newobject(t.bucket) // newarray(t.bucket, 1)
}
again:
// 计算bucket的偏移量
bucket := hash & bucketMask(h.B)
if h.growing() {
growWork(t, h, bucket)
}
// 计算bucket的位置
b := (*bmap)(add(h.buckets, bucket*uintptr(t.bucketsize)))
// 高8位的值
top := tophash(hash)
var inserti *uint8
var insertk unsafe.Pointer
var elem unsafe.Pointer
bucketloop:
for {
for i := uintptr(0); i < bucketCnt; i++ {
// 与top不想等
if b.tophash[i] != top {
if isEmpty(b.tophash[i]) && inserti == nil {
// 这里是记录第一个空位置
inserti = &b.tophash[i]
insertk = add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize))
elem = add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize))
}
// 代表之后都没有值了，就不用再找了
if b.tophash[i] == emptyRest {
break bucketloop
}
continue
}
// 这里代表tophash匹配成功
k := add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize))
// key是指针的话，就解指针
if t.indirectkey() {
k = *((*unsafe.Pointer)(k))
}
// 比较key是否相等，不等则继续遍历
if !t.key.equal(key, k) {
continue
}
// 直接更新
// already have a mapping for key. Update it.
if t.needkeyupdate() {
typedmemmove(t.key, k, key)
}
elem = add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize))
goto done
}
ovf := b.overflow(t)
if ovf == nil {
break
}
b = ovf
}
// Did not find mapping for key. Allocate new cell & add entry.
// If we hit the max load factor or we have too many overflow buckets,
// and we're not already in the middle of growing, start growing.
if !h.growing() && (overLoadFactor(h.count+1, h.B) || tooManyOverflowBuckets(h.noverflow, h.B)) {
hashGrow(t, h)
goto again // Growing the table invalidates everything, so try again
}
// 在前面没有找到能放key的位置，说明所有bucket都是满的，则分配一个新的bucket,
// 这个新的bucket先从nextOverflow里获取，获取不到再新建
if inserti == nil {
// The current bucket and all the overflow buckets connected to it are full, allocate a new one.
newb := h.newoverflow(t, b)
inserti = &newb.tophash[0]
insertk = add(unsafe.Pointer(newb), dataOffset)
elem = add(insertk, bucketCnt*uintptr(t.keysize))
}
// 写数据
// store new key/elem at insert position
if t.indirectkey() {
kmem := newobject(t.key)
*(*unsafe.Pointer)(insertk) = kmem
insertk = kmem
}
if t.indirectelem() {
vmem := newobject(t.elem)
*(*unsafe.Pointer)(elem) = vmem
}
typedmemmove(t.key, insertk, key)
*inserti = top
h.count++
done:
if h.flags&hashWriting == 0 {
throw("concurrent map writes")
}
// 去掉写标记
h.flags &^= hashWriting
if t.indirectelem() {
elem = *((*unsafe.Pointer)(elem))
}
return elem
}
func (h *hmap) newoverflow(t *maptype, b *bmap) *bmap {
var ovf *bmap
if h.extra != nil && h.extra.nextOverflow != nil {
// We have preallocated overflow buckets available.
// See makeBucketArray for more details.
ovf = h.extra.nextOverflow
// 表示ovf不是overflow中的最后一个
if ovf.overflow(t) == nil {
// We're not at the end of the preallocated overflow buckets. Bump the pointer.
// 将h.extra.nextOverflow向后移动一个bmap
h.extra.nextOverflow = (*bmap)(add(unsafe.Pointer(ovf), uintptr(t.bucketsize)))
} else {
// This is the last preallocated overflow bucket.
// Reset the overflow pointer on this bucket,
// which was set to a non-nil sentinel value.
// 这里代表是overflow里面的最后一个
// 把last bmap指向buckets起点的指针清空
ovf.setoverflow(t, nil)
// 代表overflow用完了
h.extra.nextOverflow = nil
}
} else {
// 没有overflow，新建一个
ovf = (*bmap)(newobject(t.bucket))
}
// 增加hmap中noverflow数量
h.incrnoverflow()
if t.bucket.ptrdata == 0 {
// 初始化extra字段
h.createOverflow()
// 将此次加入的overflow追加到全局的h.extra.overflow数组中
*h.extra.overflow = append(*h.extra.overflow, ovf)
}
b.setoverflow(t, ovf)
return ovf
}
对于newoverflow，有两种情况(以B=5进行分析，并且key的后B位落在bucket1上，bucket1无可用位置了)

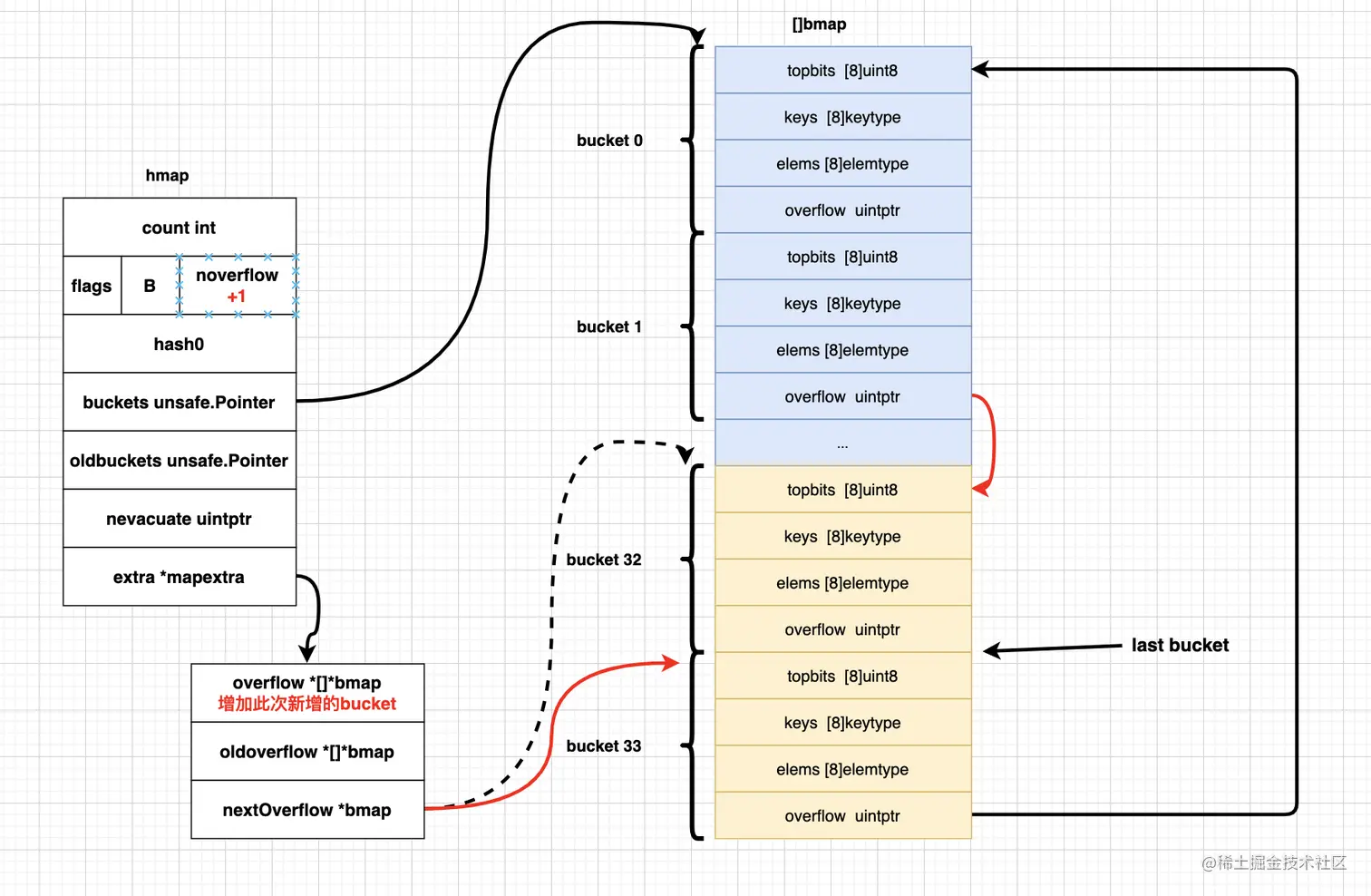

情况一： h.extra.nextOverflow != nil

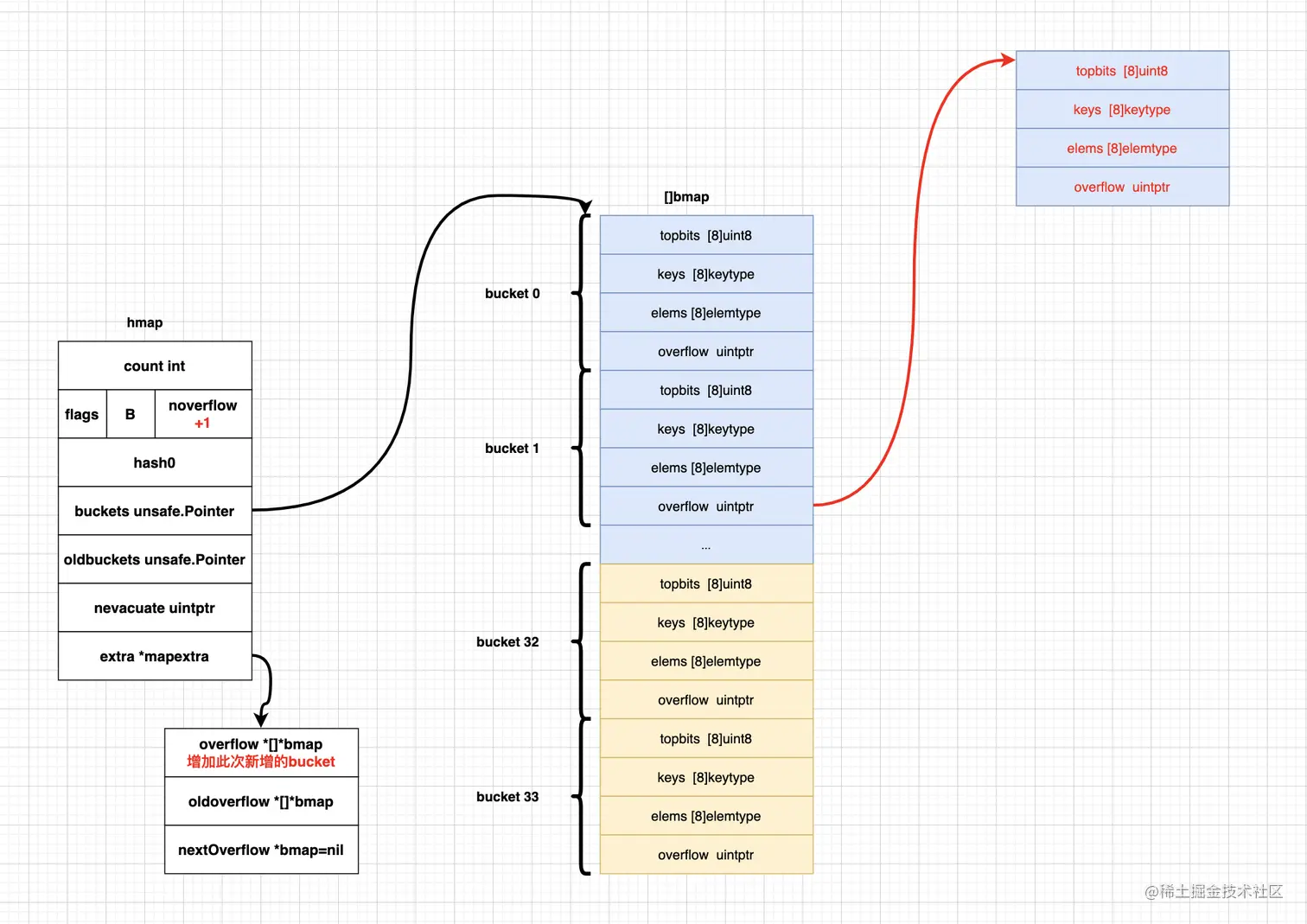

情况二：
h.extra.nextOverflow == nil
总结
- 判断是否被其他的goroutine写，是则报错
- 更新写flags为写状态
- 若当前buckets为空，则新建一个
- 计算hash值，并得到要进行写的bucket的位置
- 遍历bucket的tophash，遍历过程中
- tophash不匹配，保存第一个值为空的位置，若遍历中发现
emptyRest，则取消遍历 - tophash匹配，判断key值是否相等，相等则直接更新，不想等则继续遍历
- tophash不匹配，保存第一个值为空的位置，若遍历中发现
- 若
inserti == nil，则代表bucket都满了，通过newoverflow获取一个新的，并写入数据 - 去掉flags的写状态
map扩容
发生扩容有两种情况：
overLoadFactor(h.count+1, h.B) || tooManyOverflowBuckets(h.noverflow, h.B)
// overLoadFactor reports whether count items placed in 1<<B buckets is over loadFactor.
func overLoadFactor(count int, B uint8) bool {
return count > bucketCnt && uintptr(count) > loadFactorNum*(bucketShift(B)/loadFactorDen)
}
可以简化成:count > 6.5*2^B
// tooManyOverflowBuckets reports whether noverflow buckets is too many for a map with 1<<B buckets.
// Note that most of these overflow buckets must be in sparse use;
// if use was dense, then we'd have already triggered regular map growth.
func tooManyOverflowBuckets(noverflow uint16, B uint8) bool {
// If the threshold is too low, we do extraneous work.
// If the threshold is too high, maps that grow and shrink can hold on to lots of unused memory.
// "too many" means (approximately) as many overflow buckets as regular buckets.
// See incrnoverflow for more details.
if B > 15 {
B = 15
}
// The compiler doesn't see here that B < 16; mask B to generate shorter shift code.
return noverflow >= uint16(1)<<(B&15)
}
情况一：说明大多数哦桶都快满了，在插入新数据，大概率会放在overflow的桶上
情况二:
a. 当bucket总数 <= 2^15时候，若overflow桶数量 > 2^B数量，则认为overflow太多了
b. 当bucket > 2^15，直接和2^15比
针对情况一：将B+1，桶数量增加一倍 针对情况而：申请同等大小bucket，将旧的内容移动到新的bucket里
func hashGrow(t *maptype, h *hmap) {
// If we've hit the load factor, get bigger.
// Otherwise, there are too many overflow buckets,
// so keep the same number of buckets and "grow" laterally.
bigger := uint8(1)
// 如果未超过load factor，则等大扩容
if !overLoadFactor(h.count+1, h.B) {
bigger = 0
// 标记sameSizeGrow，容量不变
h.flags |= sameSizeGrow
}
oldbuckets := h.buckets
// 分配新的buckets和overflow
newbuckets, nextOverflow := makeBucketArray(t, h.B+bigger, nil)
flags := h.flags &^ (iterator | oldIterator)
if h.flags&iterator != 0 {
flags |= oldIterator
}
// commit the grow (atomic wrt gc)
// 更新hmap属性
h.B += bigger
h.flags = flags
h.oldbuckets = oldbuckets
h.buckets = newbuckets
h.nevacuate = 0
h.noverflow = 0
if h.extra != nil && h.extra.overflow != nil {
// Promote current overflow buckets to the old generation.
if h.extra.oldoverflow != nil {
throw("oldoverflow is not nil")
}
// 将当前的overflow赋值给oldoverflow
h.extra.oldoverflow = h.extra.overflow
h.extra.overflow = nil
}
if nextOverflow != nil {
if h.extra == nil {
h.extra = new(mapextra)
}
h.extra.nextOverflow = nextOverflow
}
// the actual copying of the hash table data is done incrementally
// by growWork() and evacuate().
}
func growWork(t *maptype, h *hmap, bucket uintptr) {
// make sure we evacuate the oldbucket corresponding
// to the bucket we're about to use
evacuate(t, h, bucket&h.oldbucketmask())
// evacuate one more oldbucket to make progress on growing
if h.growing() {
evacuate(t, h, h.nevacuate)
}
}
func evacuated(b *bmap) bool {
h := b.tophash[0]
return h > emptyOne && h < minTopHash
}
当前bucket是否搬迁完是通过检查tophash[0]的值来完成的，所以在下面的搬迁过程中会设置这个值
func evacuate(t *maptype, h *hmap, oldbucket uintptr) {
// 找到老的bucket的位置
b := (*bmap)(add(h.oldbuckets, oldbucket*uintptr(t.bucketsize)))
newbit := h.noldbuckets()
// 是否搬迁过
if !evacuated(b) {
// TODO: reuse overflow buckets instead of using new ones, if there
// is no iterator using the old buckets. (If !oldIterator.)
// xy contains the x and y (low and high) evacuation destinations.
var xy [2]evacDst
// x代表新bucket数组的前半部分
// y代表新bucket数组的后半部分
x := &xy[0]
x.b = (*bmap)(add(h.buckets, oldbucket*uintptr(t.bucketsize)))
x.k = add(unsafe.Pointer(x.b), dataOffset)
x.e = add(x.k, bucketCnt*uintptr(t.keysize))
if !h.sameSizeGrow() {
// 如果是增量扩容，则计算出新的位置
// Only calculate y pointers if we're growing bigger.
// Otherwise GC can see bad pointers.
y := &xy[1]
y.b = (*bmap)(add(h.buckets, (oldbucket+newbit)*uintptr(t.bucketsize)))
y.k = add(unsafe.Pointer(y.b), dataOffset)
y.e = add(y.k, bucketCnt*uintptr(t.keysize))
}
// 遍历oldbuckets以及对应的overflow
for ; b != nil; b = b.overflow(t) {
// 获取key的位置
k := add(unsafe.Pointer(b), dataOffset)
// 获取value的位置
e := add(k, bucketCnt*uintptr(t.keysize))
for i := 0; i < bucketCnt; i, k, e = i+1, add(k, uintptr(t.keysize)), add(e, uintptr(t.elemsize)) {
top := b.tophash[i]
// 如果未空则跳过
if isEmpty(top) {
b.tophash[i] = evacuatedEmpty
continue
}
if top < minTopHash {
throw("bad map state")
}
k2 := k
if t.indirectkey() {
k2 = *((*unsafe.Pointer)(k2))
}
var useY uint8
if !h.sameSizeGrow() {
// Compute hash to make our evacuation decision (whether we need
// to send this key/elem to bucket x or bucket y).
hash := t.hasher(k2, uintptr(h.hash0))
if h.flags&iterator != 0 && !t.reflexivekey() && !t.key.equal(k2, k2) {
// 为什么要加 reflexivekey 的判断，可以参考这里:
// https://go-review.googlesource.com/c/go/+/1480
// key != key，只有在 float 数的 NaN 时会出现
// 比如:
// n1 := math.NaN()
// n2 := math.NaN()
// fmt.Println(n1, n2)
// fmt.Println(n1 == n2)
// 这种情况下 n1 和 n2 的哈希值也完全不一样
// 这里官方表示这种情况是不可复现的
// 需要在 iterators 参与的情况下才能复现
// 但是对于这种 key 我们也可以随意对其目标进行发配
// 同时 tophash 对于 NaN 也没啥意义
// 还是按正常的情况下算一个随机的 tophash
// 然后公平地把这些 key 平均分布到各 bucket 就好
// 让这个 key 50% 概率去 Y 半区
useY = top & 1
top = tophash(hash)
} else {
// 这里写的比较 trick
// 比如当前有 8 个桶
// 那么如果 hash & 8 != 0
// 那么说明这个元素的 hash 这种形式
// xxx1xxx
// 而扩容后的 bucketMask 是
// 1111
// 所以实际上这个就是
// xxx1xxx & 1000 > 0
// 说明这个元素在扩容后一定会去下半区，即Y部分
// 所以就是 useY 了
if hash&newbit != 0 {
useY = 1
}
}
}
if evacuatedX+1 != evacuatedY || evacuatedX^1 != evacuatedY {
throw("bad evacuatedN")
}
b.tophash[i] = evacuatedX + useY // evacuatedX + 1 == evacuatedY
dst := &xy[useY] // evacuation destination
if dst.i == bucketCnt {
dst.b = h.newoverflow(t, dst.b)
dst.i = 0
dst.k = add(unsafe.Pointer(dst.b), dataOffset)
dst.e = add(dst.k, bucketCnt*uintptr(t.keysize))
}
dst.b.tophash[dst.i&(bucketCnt-1)] = top // mask dst.i as an optimization, to avoid a bounds check
if t.indirectkey() {
*(*unsafe.Pointer)(dst.k) = k2 // copy pointer
} else {
typedmemmove(t.key, dst.k, k) // copy elem
}
if t.indirectelem() {
*(*unsafe.Pointer)(dst.e) = *(*unsafe.Pointer)(e)
} else {
typedmemmove(t.elem, dst.e, e)
}
dst.i++
// These updates might push these pointers past the end of the
// key or elem arrays. That's ok, as we have the overflow pointer
// at the end of the bucket to protect against pointing past the
// end of the bucket.
dst.k = add(dst.k, uintptr(t.keysize))
dst.e = add(dst.e, uintptr(t.elemsize))
}
}
// Unlink the overflow buckets & clear key/elem to help GC.
if h.flags&oldIterator == 0 && t.bucket.ptrdata != 0 {
b := add(h.oldbuckets, oldbucket*uintptr(t.bucketsize))
// Preserve b.tophash because the evacuation
// state is maintained there.
ptr := add(b, dataOffset)
n := uintptr(t.bucketsize) - dataOffset
memclrHasPointers(ptr, n)
}
}
if oldbucket == h.nevacuate {
advanceEvacuationMark(h, t, newbit)
}
}
map删除
func mapdelete(t *maptype, h *hmap, key unsafe.Pointer) {
if raceenabled && h != nil {
callerpc := getcallerpc()
pc := funcPC(mapdelete)
racewritepc(unsafe.Pointer(h), callerpc, pc)
raceReadObjectPC(t.key, key, callerpc, pc)
}
if msanenabled && h != nil {
msanread(key, t.key.size)
}
if h == nil || h.count == 0 {
if t.hashMightPanic() {
t.hasher(key, 0) // see issue 23734
}
return
}
// 状态检查
if h.flags&hashWriting != 0 {
throw("concurrent map writes")
}
// 计算key的hash
hash := t.hasher(key, uintptr(h.hash0))
// Set hashWriting after calling t.hasher, since t.hasher may panic,
// in which case we have not actually done a write (delete).
// 写入位置1
h.flags ^= hashWriting
// 计算出key的后B位
bucket := hash & bucketMask(h.B)
if h.growing() {
growWork(t, h, bucket)
}
// 计算出bucket的位置
b := (*bmap)(add(h.buckets, bucket*uintptr(t.bucketsize)))
bOrig := b
// 找到对应的top
top := tophash(hash)
search:
// 遍历当前的bucket以及overflow
for ; b != nil; b = b.overflow(t) {
for i := uintptr(0); i < bucketCnt; i++ {
if b.tophash[i] != top {
// emptyRest代表本位置以及后面都是空的，没必要遍历了
if b.tophash[i] == emptyRest {
break search
}
continue
}
k := add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize))
k2 := k
if t.indirectkey() {
k2 = *((*unsafe.Pointer)(k2))
}
// key值不相等，继续遍历
if !t.key.equal(key, k2) {
continue
}
// Only clear key if there are pointers in it.
if t.indirectkey() {
*(*unsafe.Pointer)(k) = nil
} else if t.key.ptrdata != 0 {
memclrHasPointers(k, t.key.size)
}
e := add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize))
if t.indirectelem() {
*(*unsafe.Pointer)(e) = nil
} else if t.elem.ptrdata != 0 {
memclrHasPointers(e, t.elem.size)
} else {
memclrNoHeapPointers(e, t.elem.size)
}
// emptyOne只代表本位置是空的
b.tophash[i] = emptyOne
// If the bucket now ends in a bunch of emptyOne states,
// change those to emptyRest states.
// It would be nice to make this a separate function, but
// for loops are not currently inlineable.
// ====这一块代码判断当前位置之后是否都是空的====
if i == bucketCnt-1 {
if b.overflow(t) != nil && b.overflow(t).tophash[0] != emptyRest {
goto notLast
}
} else {
if b.tophash[i+1] != emptyRest {
goto notLast
}
}
// =========================================
// 走到这里说明当前位置以及后面的位置都是空的
// 从后向前，处理
for {
// 将当前top设置为emptyRest
b.tophash[i] = emptyRest
if i == 0 {
if b == bOrig {
break // beginning of initial bucket, we're done.
}
// Find previous bucket, continue at its last entry.
c := b
// 找到上一个bucket
for b = bOrig; b.overflow(t) != c; b = b.overflow(t) {
}
i = bucketCnt - 1
} else {
i--
}
if b.tophash[i] != emptyOne {
break
}
}
notLast:
h.count--
// Reset the hash seed to make it more difficult for attackers to
// repeatedly trigger hash collisions. See issue 25237.
if h.count == 0 {
h.hash0 = fastrand()
}
break search
}
}
