源码分析go channel以及相关的操作

go version: 1.17

本文从源码层面分析channel是如何创建、发送、接收、关闭的。

找到源码位置

package main

func main() {

	ch := make(chan int)
	ch <- 1
	<-ch

	select {
	case ch <- 1:
	default:
	}

	select {
	case <-ch:
	default:
	}
	close(ch)
}
复制代码

查看汇编代码:
go tool compile -S -l -N main.go
输出为(省略了不必要的代码):

(...)
0x0021 00033 (main.go:5)        CALL    runtime.makechan(SB)
0x0026 00038 (main.go:5)        MOVQ    AX, "".ch+32(SP)
0x002b 00043 (main.go:6)        LEAQ    ""..stmp_0(SB), BX
0x0032 00050 (main.go:6)        PCDATA  $1, $1
0x0032 00050 (main.go:6)        CALL    runtime.chansend1(SB)
0x0037 00055 (main.go:7)        MOVQ    "".ch+32(SP), AX
0x003c 00060 (main.go:7)        XORL    BX, BX
0x003e 00062 (main.go:7)        NOP
0x0040 00064 (main.go:7)        CALL    runtime.chanrecv1(SB)
(...)
0x0062 00098 (main.go:10)       CALL    runtime.selectnbsend(SB)
(...)
0x0080 00128 (main.go:15)       CALL    runtime.selectnbrecv(SB)
(...)
0x009a 00154 (main.go:18)       CALL    runtime.closechan(SB)
(...)
复制代码

可以得出:

  • makechan : channel的创建
  • chansend1: channel的阻塞发送
  • chanrecv1: channel的阻塞接收
  • selectnbsend: channel的无阻塞发送
  • selectnbrecv: channel的无阻塞接收
  • closechan: channel的关闭

channel结构

type hchan struct {
   qcount   uint           // 目前循环队列里数据个数
   dataqsiz uint           // 这个循环队列的大小
   buf      unsafe.Pointer // 为指针,指向一个大小固定的数组,用来存放channel的数据
   elemsize uint16         // channel中元素的大小
   closed   uint32         // channel是否关闭,1为关闭
   elemtype *_type // channel中元素的类型
   sendx    uint   // 发送数据的索引
   recvx    uint   // 接收数据的索引
   recvq    waitq  // 等待接收的队列,里面放的是goroutne
   sendq    waitq  // 等待发送的队列,里面放的是goroutne

   // lock protects all fields in hchan, as well as several
   // fields in sudogs blocked on this channel.
   //
   // Do not change another G's status while holding this lock
   // (in particular, do not ready a G), as this can deadlock
   // with stack shrinking.
   lock mutex // 此channel的互斥锁
}
复制代码

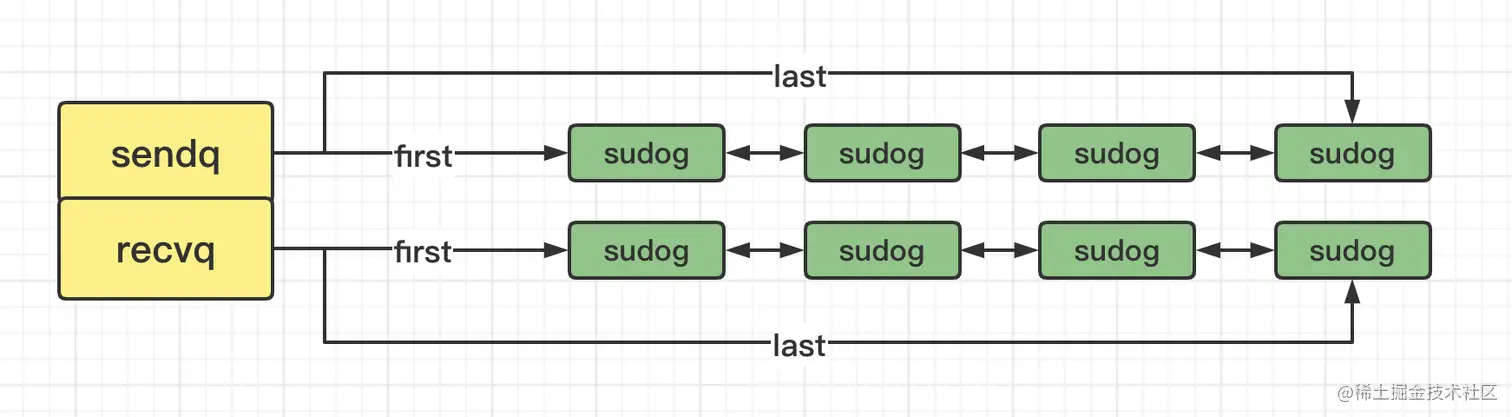

sendqrecvq的数据结构如下所示:

type waitq struct {
   first *sudog
   last  *sudog
}
复制代码


创建channel

const (
   maxAlign  = 8
   hchanSize = unsafe.Sizeof(hchan{}) + uintptr(-int(unsafe.Sizeof(hchan{}))&(maxAlign-1))
)

func makechan(t *chantype, size int) *hchan {
   elem := t.elem

   (...)
   // 这里判断elem.size * size是否越界。返回值:需要申请的空间大小以及是否越界
   mem, overflow := math.MulUintptr(elem.size, uintptr(size))
   if overflow || mem > maxAlloc-hchanSize || size < 0 {
      panic(plainError("makechan: size out of range"))
   }

   // Hchan does not contain pointers interesting for GC when elements stored in buf do not contain pointers.
   // buf points into the same allocation, elemtype is persistent.
   // SudoG's are referenced from their owning thread so they can't be collected.
   // TODO(dvyukov,rlh): Rethink when collector can move allocated objects.
   var c *hchan
   switch {
   // 如果无缓存,则不需要创建buf
   case mem == 0:
      // Queue or element size is zero.
      c = (*hchan)(mallocgc(hchanSize, nil, true))
      // Race detector uses this location for synchronization.
      c.buf = c.raceaddr()
   case elem.ptrdata == 0:
      // 元素不包含指针,则给hchan和buf分配一块公用的空间,并且buf紧挨着hchan
      c = (*hchan)(mallocgc(hchanSize+mem, nil, true))
      c.buf = add(unsafe.Pointer(c), hchanSize)
   default:
      // 元素包含指针,hchan和buf各自单独分配空间
      c = new(hchan)
      c.buf = mallocgc(mem, elem, true)
   }

   c.elemsize = uint16(elem.size)
   c.elemtype = elem
   c.dataqsiz = uint(size)
   lockInit(&c.lock, lockRankHchan)

   if debugChan {
      print("makechan: chan=", c, "; elemsize=", elem.size, "; dataqsiz=", size, "\n")
   }
   return c
}
复制代码

hchanSize:
意思就是按照maxAlign倍数对齐,大于等于size(hchan),需要申请的最小空间 比如size(hchan)为5字节,maxAlign为8字节,转换成公式为(5 + uintptr( (-5) & (8 - 1)))=8,只需要申请8字节,用来存放hchan

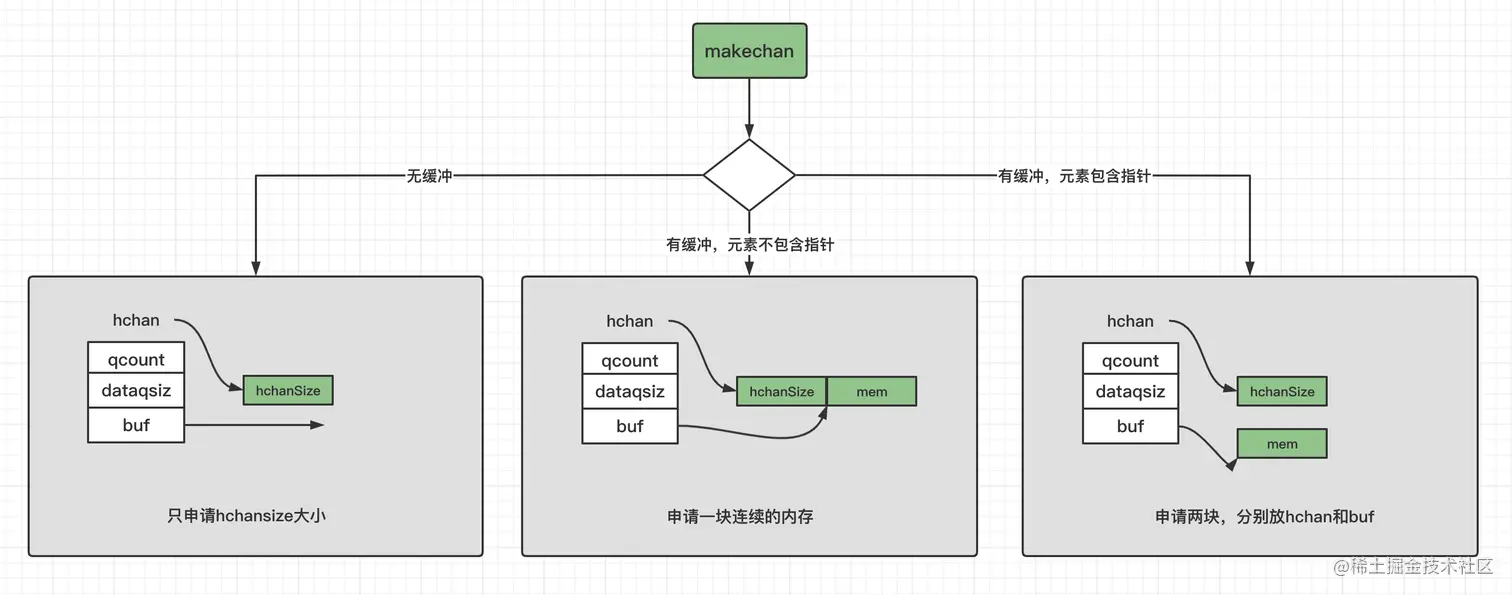

总结流程


发送数据

阻塞发送

func chansend1(c *hchan, elem unsafe.Pointer) {
   chansend(c, elem, true, getcallerpc())
}
复制代码

无阻塞发送

func selectnbsend(c *hchan, elem unsafe.Pointer) (selected bool) {
   return chansend(c, elem, false, getcallerpc())
}
复制代码

可以看出来这两个函数都是调用chansend,只不过block参数一个为true,一个为false而已.
所以直接分析chansend即可:

func chansend(c *hchan, ep unsafe.Pointer, block bool, callerpc uintptr) bool {
   if c == nil {
      if !block {
         return false
      }
      gopark(nil, nil, waitReasonChanSendNilChan, traceEvGoStop, 2)
      throw("unreachable")
   }
(...)
}
复制代码

逻辑如下
如果是channel空的

  1. 对于非阻塞,直接返回false
  2. 对于阻塞,会调用gopark挂起,不会返回
func chansend(c *hchan, ep unsafe.Pointer, block bool, callerpc uintptr) bool {
   (...)
   if !block && c.closed == 0 && full(c) {
      return false
   }
   (...)
}
复制代码
func full(c *hchan) bool {
   // c.dataqsiz is immutable (never written after the channel is created)
   // so it is safe to read at any time during channel operation.
   if c.dataqsiz == 0 {
      // Assumes that a pointer read is relaxed-atomic.
      return c.recvq.first == nil
   }
   // Assumes that a uint read is relaxed-atomic.
   return c.qcount == c.dataqsiz
}
复制代码

逻辑如下
对于非阻塞,并且channel没有关闭 满足以下两种情况会直接返回false

  1. 没有缓冲区,并且当前没有接受者
  2. 有缓冲区,并且满了
func chansend(c *hchan, ep unsafe.Pointer, block bool, callerpc uintptr) bool {
  (...)
  // 加锁
  lock(&c.lock)
  // 若关闭了,则解锁并且panic
  if c.closed != 0 {
     unlock(&c.lock)
     panic(plainError("send on closed channel"))
  }
  // 从recvq里取一个接收者
  if sg := c.recvq.dequeue(); sg != nil {
     // Found a waiting receiver. We pass the value we want to send
     // directly to the receiver, bypassing the channel buffer (if any).
     // 若有接收者,则直接向接收者发送数据,不经过buf
     send(c, sg, ep, func() { unlock(&c.lock) }, 3)
     return true
  }
  (...)
}
复制代码

看下send函数

// send processes a send operation on an empty channel c.
// The value ep sent by the sender is copied to the receiver sg.
// The receiver is then woken up to go on its merry way.
// Channel c must be empty and locked.  send unlocks c with unlockf.
// sg must already be dequeued from c.
// ep must be non-nil and point to the heap or the caller's stack.
func send(c *hchan, sg *sudog, ep unsafe.Pointer, unlockf func(), skip int) {
   // c为channel
   // sg为接收者
   // ep为要发送数据的地址
   (...)
   // sg.elem指向接收者存数据的地址
   if sg.elem != nil {
      // 把要发送的数据copy到接收者存数据的地方
      sendDirect(c.elemtype, sg, ep)
      sg.elem = nil
   }
   gp := sg.g
   unlockf()
   gp.param = unsafe.Pointer(sg)
   sg.success = true
   if sg.releasetime != 0 {
      sg.releasetime = cputicks()
   }
   // 唤醒接收者的goroutine
   goready(gp, skip+1)
}
复制代码

逻辑如下
recvq中有接收者

  1. 则直接把数据拷贝到接收者存数据的地方
  2. 唤醒接收者的goroutine.

继续往下看:

func chansend(c *hchan, ep unsafe.Pointer, block bool, callerpc uintptr) bool {
   (...)
   // 如果缓冲区没满,则将发送的数据copy至缓冲区
   if c.qcount < c.dataqsiz {
      // Space is available in the channel buffer. Enqueue the element to send.
      // 找到缓冲区要放数据的位置
      qp := chanbuf(c, c.sendx)
      (...)
      typedmemmove(c.elemtype, qp, ep)
      c.sendx++
      if c.sendx == c.dataqsiz {
         c.sendx = 0
      }
      c.qcount++
      unlock(&c.lock)
      return true
   }
   (...)
}
复制代码

逻辑如下
如果缓冲区没满

  1. 则先获得缓冲区中要放数据的位置
  2. 将要发送的数据拷贝到缓冲区
  3. 更新sendx
  4. channel中元素数量+1
func chansend(c *hchan, ep unsafe.Pointer, block bool, callerpc uintptr) bool {
   (...)
   // 缓冲区满了,非阻塞直接返回false
   if !block {
      unlock(&c.lock)
      return false
   }

   // Block on the channel. Some receiver will complete our operation for us.
   gp := getg()
   // 新建一个sudog对象
   mysg := acquireSudog()
   mysg.releasetime = 0
   if t0 != 0 {
      mysg.releasetime = -1
   }
   // No stack splits between assigning elem and enqueuing mysg
   // on gp.waiting where copystack can find it.
   // 这里elem指向要发送数据的地址
   mysg.elem = ep
   mysg.waitlink = nil
   mysg.g = gp
   mysg.isSelect = false
   mysg.c = c
   gp.waiting = mysg
   gp.param = nil
   // 将sudog放入sendq队列中
   c.sendq.enqueue(mysg)
   // Signal to anyone trying to shrink our stack that we're about
   // to park on a channel. The window between when this G's status
   // changes and when we set gp.activeStackChans is not safe for
   // stack shrinking.
   atomic.Store8(&gp.parkingOnChan, 1)
   // 进入等待状态
   gopark(chanparkcommit, unsafe.Pointer(&c.lock), waitReasonChanSend, traceEvGoBlockSend, 2)
   (...)
}
复制代码

逻辑如下
缓冲区满了

  1. 非阻塞直接返回false
  2. 阻塞的新建sudog,并放入sendq

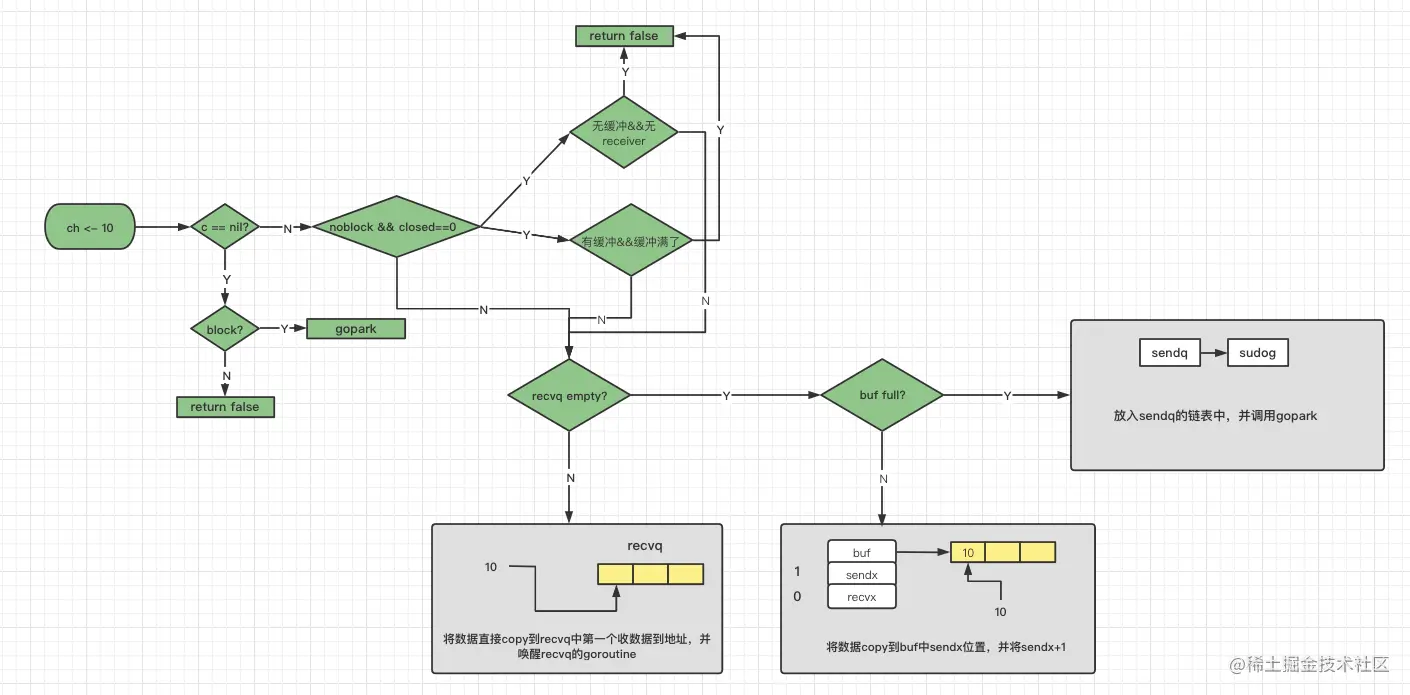

总结流程


接收数据

阻塞接收

// entry points for <- c from compiled code
//go:nosplit
func chanrecv1(c *hchan, elem unsafe.Pointer) {
   chanrecv(c, elem, true)
}
复制代码

无阻塞接收

func selectnbrecv(elem unsafe.Pointer, c *hchan) (selected, received bool) {
   return chanrecv(c, elem, false)
}
复制代码

可以看到,最终都是调用chanrecv,所以直接分析chanrecv

func chanrecv(c *hchan, ep unsafe.Pointer, block bool) (selected, received bool) {
   (...)
   // channel为nil
   if c == nil {
      // 非阻塞直接返回
      if !block {
         return
      }
      // 阻塞就等待
      gopark(nil, nil, waitReasonChanReceiveNilChan, traceEvGoStop, 2)
      throw("unreachable")
   }

   // Fast path: check for failed non-blocking operation without acquiring the lock.
   // 非阻塞并且 && (channel无缓冲|| channel无数据)
   if !block && empty(c) {
      // channel已关闭,返回false,false
      if atomic.Load(&c.closed) == 0 {

         return
      }
      // The channel is irreversibly closed. Re-check whether the channel has any pending data
      // to receive, which could have arrived between the empty and closed checks above.
      // Sequential consistency is also required here, when racing with such a send.
      if empty(c) {
         // The channel is irreversibly closed and empty.
         if raceenabled {
            raceacquire(c.raceaddr())
         }
         if ep != nil {
            typedmemclr(c.elemtype, ep)
         }
          // channel未关闭,返回true,false
         return true, false
      }
   }
   (...)
}
复制代码

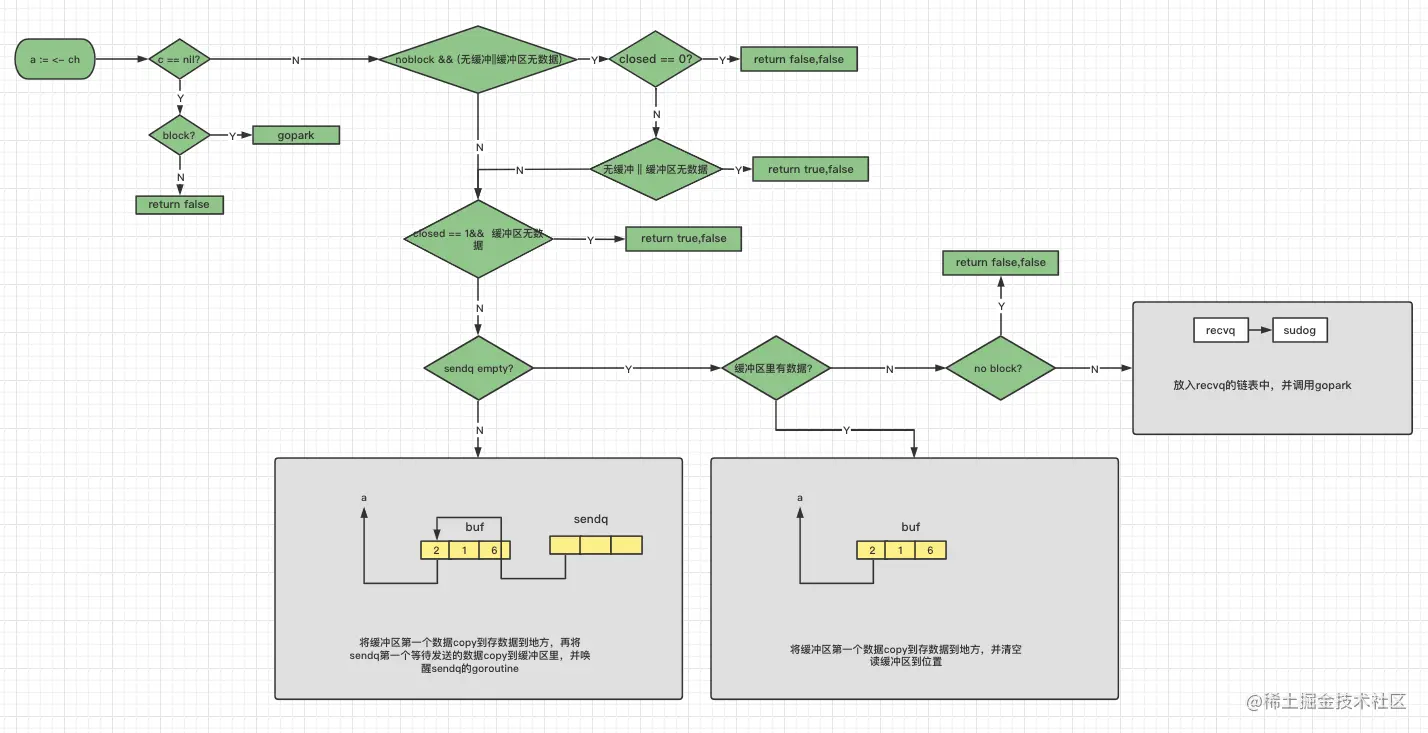

逻辑如下

  1. channel为nil
    a. 非阻塞直接返回 b. 阻塞则等待
  2. 非阻塞并且 && (channel无缓冲|| channel无数据)
    a. channel已关闭,返回false,false
    b. channel未关闭,返回true,false
func chanrecv(c *hchan, ep unsafe.Pointer, block bool) (selected, received bool) {
    (...)
    //  上锁
    lock(&c.lock)
    // 再次判断channel已关闭,并且channel中无数据,则直接返回false,false
    if c.closed != 0 && c.qcount == 0 {
       if raceenabled {
          raceacquire(c.raceaddr())
       }
       unlock(&c.lock)
       if ep != nil {
          typedmemclr(c.elemtype, ep)
       }
       return true, false
    }
    // sendq里有接收者
    if sg := c.sendq.dequeue(); sg != nil {
       // Found a waiting sender. If buffer is size 0, receive value
       // directly from sender. Otherwise, receive from head of queue
       // and add sender's value to the tail of the queue (both map to
       // the same buffer slot because the queue is full).
       recv(c, sg, ep, func() { unlock(&c.lock) }, 3)
       return true, true
    }
    (...)
}
复制代码
// recv processes a receive operation on a full channel c.
// There are 2 parts:
// 1) The value sent by the sender sg is put into the channel
//    and the sender is woken up to go on its merry way.
// 2) The value received by the receiver (the current G) is
//    written to ep.
// For synchronous channels, both values are the same.
// For asynchronous channels, the receiver gets its data from
// the channel buffer and the sender's data is put in the
// channel buffer.
// Channel c must be full and locked. recv unlocks c with unlockf.
// sg must already be dequeued from c.
// A non-nil ep must point to the heap or the caller's stack.
func recv(c *hchan, sg *sudog, ep unsafe.Pointer, unlockf func(), skip int) {
   // 无缓冲区
   if c.dataqsiz == 0 {
      (...)
      if ep != nil {
         // copy data from sender
         // 直接从发送者copy数据到ep
         recvDirect(c.elemtype, sg, ep)
      }
   } else {
      // 有缓冲区
      qp := chanbuf(c, c.recvx)
      (...)
      // 因为既然sendq不为空,所以缓冲区里一定有数据
      // 从缓冲期copy数据到ep
      if ep != nil {
         typedmemmove(c.elemtype, ep, qp)
      }
      // 将发送者到数据copy到缓冲区
      typedmemmove(c.elemtype, qp, sg.elem)
      c.recvx++
      if c.recvx == c.dataqsiz {
         c.recvx = 0
      }
      c.sendx = c.recvx // c.sendx = (c.sendx+1) % c.dataqsiz
   }
   sg.elem = nil
   gp := sg.g
   unlockf()
   gp.param = unsafe.Pointer(sg)
   sg.success = true
   if sg.releasetime != 0 {
      sg.releasetime = cputicks()
   }
   // 唤醒sender的goroutine
   goready(gp, skip+1)
}
复制代码

逻辑如下

  1. 再次判断channel已关闭,并且channel中无数据,则直接返回false,false
  2. sendq里有等待的sender
    a. channel无缓冲区,直接将sender的数据copy到ep b. channel有缓冲区,将缓冲区到数据copy到ep,再将sender的数据copy到缓冲区
  3. 唤起sender到goroutine
func chanrecv(c *hchan, ep unsafe.Pointer, block bool) (selected, received bool) {
    (...)
    // 缓冲区有数据
    if c.qcount > 0 {
       // Receive directly from queue
       qp := chanbuf(c, c.recvx)
       (...)
       // 直接将缓冲区数据copy到ep
       if ep != nil {
          typedmemmove(c.elemtype, ep, qp)
       }
       // 清空当前缓冲区刚刚读数据的地方
       typedmemclr(c.elemtype, qp)
       c.recvx++
       if c.recvx == c.dataqsiz {
          c.recvx = 0
       }
       c.qcount--
       unlock(&c.lock)
       return true, true
    }
    (...)
}
复制代码

逻辑如下
缓冲区有数据

  1. 直接将缓冲区数据copy到ep
  2. 清空当前缓冲区刚刚读数据的地方
  3. 更新c.recvx
  4. c.qcount--
func chanrecv(c *hchan, ep unsafe.Pointer, block bool) (selected, received bool) {
    (...)
    // 缓从区满了,无阻塞channel直接返回
    if !block {
       unlock(&c.lock)
       return false, false
    }

    // no sender available: block on this channel.
    gp := getg()
    mysg := acquireSudog()
    mysg.releasetime = 0
    if t0 != 0 {
       mysg.releasetime = -1
    }
    // No stack splits between assigning elem and enqueuing mysg
    // on gp.waiting where copystack can find it.
    mysg.elem = ep
    mysg.waitlink = nil
    gp.waiting = mysg
    mysg.g = gp
    mysg.isSelect = false
    mysg.c = c
    gp.param = nil
    c.recvq.enqueue(mysg)
    // Signal to anyone trying to shrink our stack that we're about
    // to park on a channel. The window between when this G's status
    // changes and when we set gp.activeStackChans is not safe for
    // stack shrinking.
    atomic.Store8(&gp.parkingOnChan, 1)
    gopark(chanparkcommit, unsafe.Pointer(&c.lock), waitReasonChanReceive, traceEvGoBlockRecv, 2)
    (...)
}
复制代码

逻辑如下

  1. 缓冲区满了,无阻塞channel直接返回
  2. 阻塞channel的话
    a. 新建sudog b. 将sudog放入recvq c. 调用gopark,等待

总结流程


关闭channel

func closechan(c *hchan) {
   // channel为nil,panic
   if c == nil {
      panic(plainError("close of nil channel"))
   }

   lock(&c.lock)
   // channel已关闭,panic
   if c.closed != 0 {
      unlock(&c.lock)
      panic(plainError("close of closed channel"))
   }

   (...)

   // close设置为1
   c.closed = 1

   var glist gList

   // release all readers
   // 将所有接收者放入glist
   for {
      sg := c.recvq.dequeue()
      if sg == nil {
         break
      }
      if sg.elem != nil {
         typedmemclr(c.elemtype, sg.elem)
         sg.elem = nil
      }
      if sg.releasetime != 0 {
         sg.releasetime = cputicks()
      }
      gp := sg.g
      gp.param = unsafe.Pointer(sg)
      sg.success = false
      if raceenabled {
         raceacquireg(gp, c.raceaddr())
      }
      glist.push(gp)
   }

   // release all writers (they will panic)
    // 将所有发送者放入glist
   for {
      sg := c.sendq.dequeue()
      if sg == nil {
         break
      }
      sg.elem = nil
      if sg.releasetime != 0 {
         sg.releasetime = cputicks()
      }
      gp := sg.g
      gp.param = unsafe.Pointer(sg)
      sg.success = false
      if raceenabled {
         raceacquireg(gp, c.raceaddr())
      }
      glist.push(gp)
   }
   unlock(&c.lock)

   // Ready all Gs now that we've dropped the channel lock.
   // 唤醒所有接收者以及发送者的goroutine,但是唤醒发送者会导致panic
   for !glist.empty() {
      gp := glist.pop()
      gp.schedlink = 0
      goready(gp, 3)
   }
}
复制代码
文章分类
后端
文章标签
