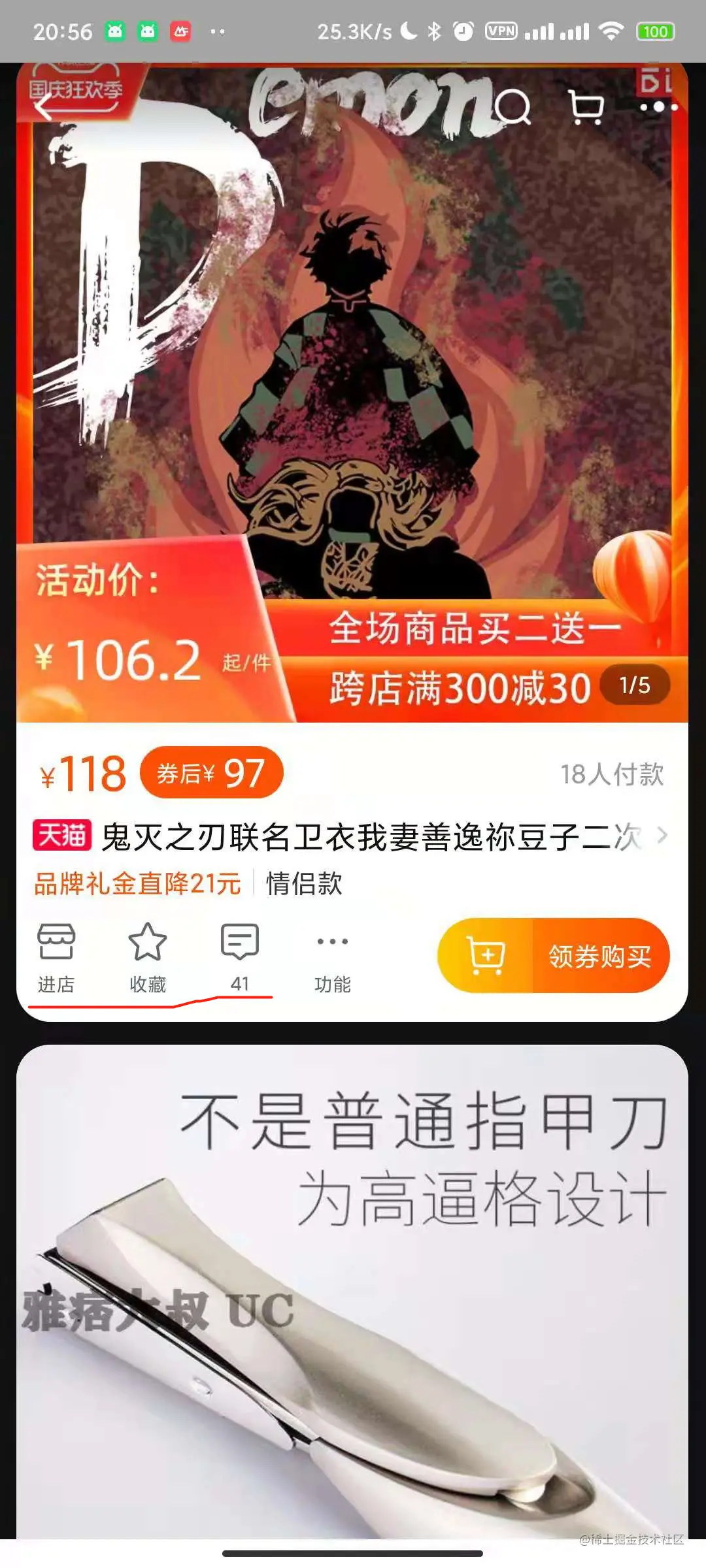

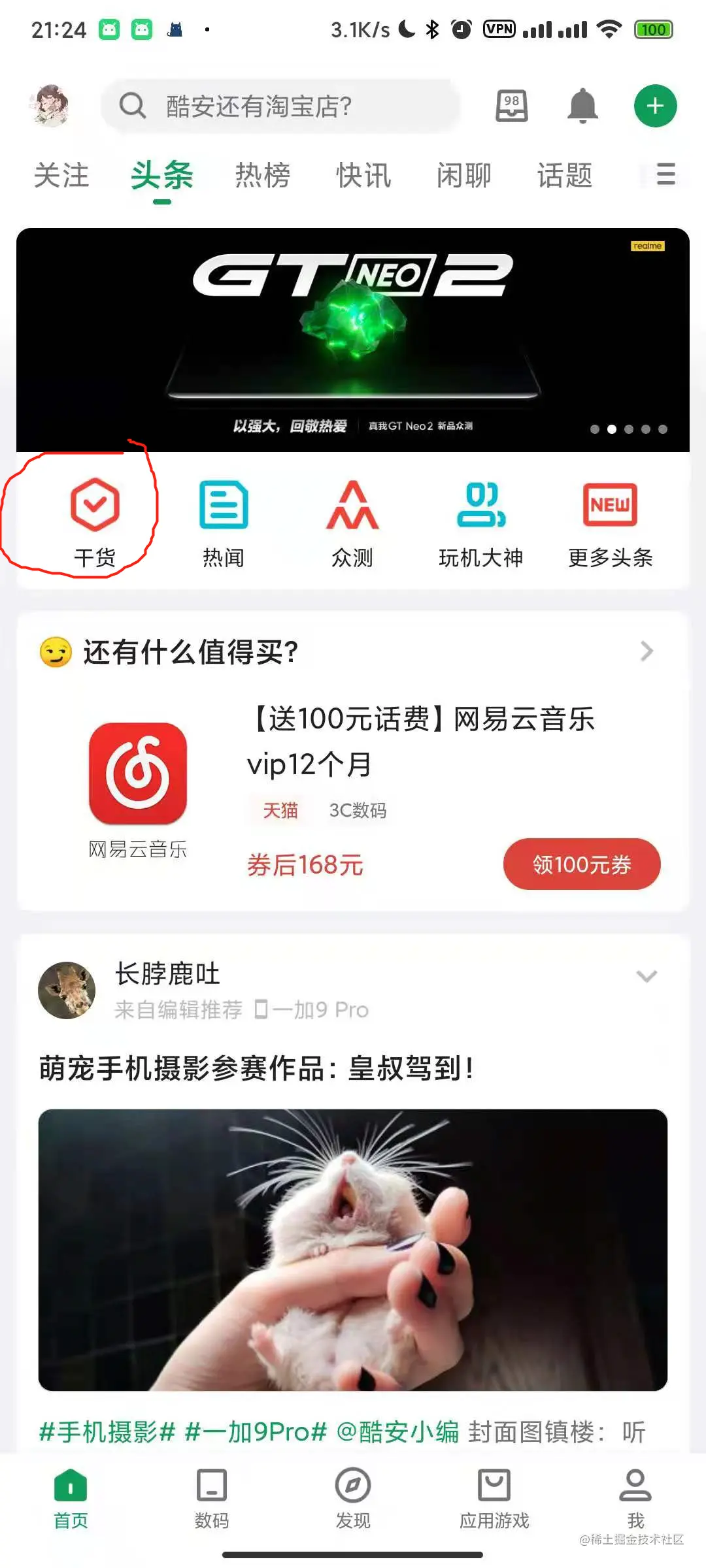

一般来说,我们在实际开发场景中都会碰到这种情况

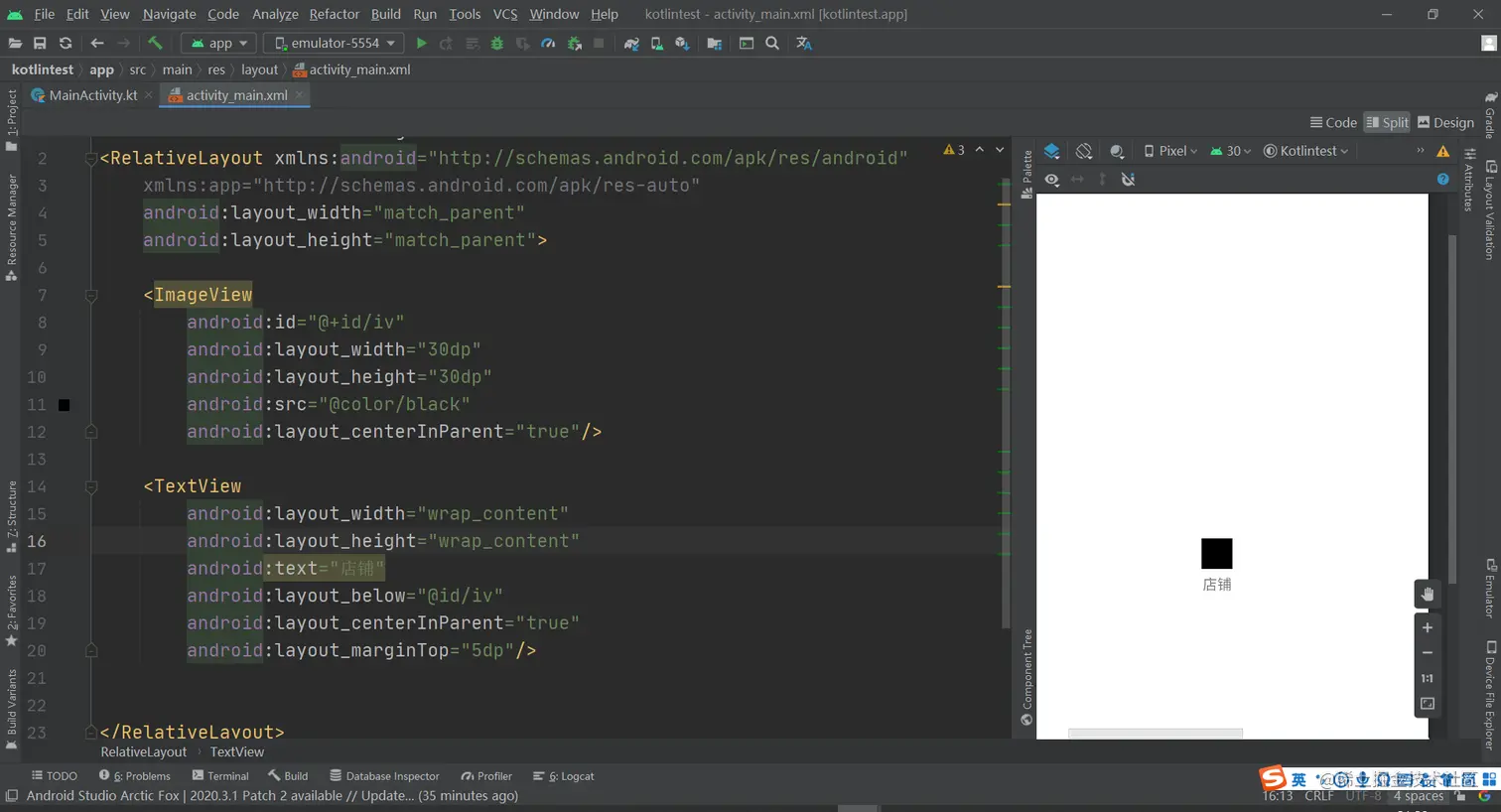

一般来说我们会如下进行布局
但是要知道,ViewGroup也就是我们根布局,会对子View进行测量,每多一个View就会导致多测量一个View,而且我们设置点击也不好进行操作.当然如果你说再包一层那我确实没话说
所以我们需要一个更简洁更方便的方法来解决这种让人抓狂的问题
恰巧TextView就为我们提供了一个方式.
我们可以通过DrawableTop,DrawableBottom.DrawableLeft,DrawableRight为Textview的Drawable设置位置. 但是新的问题出现了,Drawable的大小我们无法在Xml里进行控制,在不同的手机上他展示的效果很可能会不一致,甚至导致你的布局出现错乱.
当然你可以通过以下方式设置
如果你是独立开发,无所谓,如果是协同开发,你这么写会死人的.
这个时候就需要我们对TextView进行自定义了.
/**
* 可自定义Drawable的TextView
* strokeWidth 可设置字体粗细 中粗建议0.3f 默认不加粗
*/
public class DrawableTextView extends androidx.appcompat.widget.AppCompatTextView {
private final int DRAWABLE_LEFT = 0;
private final int DRAWABLE_TOP = 1;
private final int DRAWABLE_RIGHT = 2;
private final int DRAWABLE_BOTTOM = 3;
private final int leftDrawableWidth;
private final int leftDrawableHeight;
private final int rightDrawableWidth;
private final int rightDrawableHeight;
private final int topDrawableWidth;
private final int topDrawableHeight;
private final int bottomDrawableWidth;
private final int bottomDrawableHeight;
private final float strokeWidth;
private int leftWidth, rightWidth;//左右图片宽度
private DrawableListener.DrawableRightListener drawableRightListener;
private DrawableListener.DrawableLeftListener drawableLeftListener;
private DrawableListener.DrawableTopListener drawableTopListener;
private DrawableListener.DrawableBottomListener drawableBottomListener;
private Context context;
public DrawableTextView(Context context) {
this(context, null);
init(context);
}
public DrawableTextView(Context context, AttributeSet attrs) {
this(context, attrs, 0);
init(context);
}
public DrawableTextView(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.DrawableTextView, defStyleAttr, 0);
leftDrawableHeight = typedArray.getDimensionPixelSize(R.styleable.DrawableTextView_leftDrawableHeight,
(int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, -1, getResources().getDisplayMetrics()));
leftDrawableWidth = typedArray.getDimensionPixelSize(R.styleable.DrawableTextView_leftDrawableWidth,
(int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, -1, getResources().getDisplayMetrics()));
rightDrawableHeight = typedArray.getDimensionPixelSize(R.styleable.DrawableTextView_rightDrawableHeight,
(int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, -1, getResources().getDisplayMetrics()));
rightDrawableWidth = typedArray.getDimensionPixelSize(R.styleable.DrawableTextView_rightDrawableWidth,
(int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, -1, getResources().getDisplayMetrics()));
topDrawableHeight = typedArray.getDimensionPixelSize(R.styleable.DrawableTextView_topDrawableHeight,
(int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, -1, getResources().getDisplayMetrics()));
topDrawableWidth = typedArray.getDimensionPixelSize(R.styleable.DrawableTextView_topDrawableWidth,
(int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, -1, getResources().getDisplayMetrics()));
bottomDrawableHeight = typedArray.getDimensionPixelSize(R.styleable.DrawableTextView_bottomDrawableHeight,
(int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, -1, getResources().getDisplayMetrics()));
bottomDrawableWidth = typedArray.getDimensionPixelSize(R.styleable.DrawableTextView_bottomDrawableWidth,
(int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, -1, getResources().getDisplayMetrics()));
strokeWidth = typedArray.getFloat(R.styleable.DrawableTextView_StrokeWidth, 0);
typedArray.recycle();
init(context);
}
private void init(Context context) {
//自定义加粗程度 建议0.3f
if (strokeWidth != 0) {
TextPaint paint = getPaint();
paint.setStrokeWidth(strokeWidth);
paint.setStyle(Paint.Style.FILL_AND_STROKE);
}
drawable();
}
private void drawable() {
Drawable[] drawables = getCompoundDrawables();
for (int i = 0; i < drawables.length; i++) {
setDrawableSize(drawables[i], i);
}
//放置图片
setCompoundDrawables(drawables[DRAWABLE_LEFT], drawables[DRAWABLE_TOP], drawables[DRAWABLE_RIGHT], drawables[DRAWABLE_BOTTOM]);
}
//设置drawableRight 图片的点击监听
public void setDrawableRightListener(DrawableListener.DrawableRightListener drawableRightListener) {
this.drawableRightListener = drawableRightListener;
}
public void setDrawableLeftListener(DrawableListener.DrawableLeftListener drawableLeftListener) {
this.drawableLeftListener = drawableLeftListener;
}
public void setDrawableTopListener(DrawableListener.DrawableTopListener drawableTopListener) {
this.drawableTopListener = drawableTopListener;
}
public void setDrawableBottomListener(DrawableListener.DrawableBottomListener drawableBottomListener) {
this.drawableBottomListener = drawableBottomListener;
}
@Override
public boolean onTouchEvent(MotionEvent event) {
switch (event.getAction()) {
case MotionEvent.ACTION_UP:
if (drawableRightListener != null) {
Drawable drawableRight = getCompoundDrawables()[DRAWABLE_RIGHT];
if (drawableRight != null && event.getRawX() >= (getRight() - drawableRight.getBounds().width())
&& event.getRawX() < getRight()) {
drawableRightListener.drawableRightListener(this);
return true;
}
}
if (drawableLeftListener != null) {
Drawable drawableLeft = getCompoundDrawables()[DRAWABLE_LEFT];
if (drawableLeft != null && event.getRawX() <= (getLeft() + drawableLeft.getBounds().width())
&& event.getRawX() > getLeft()) {
drawableLeftListener.drawableLeftListener(this);
return true;
}
}
if (drawableTopListener != null) {
Drawable drawableTop = getCompoundDrawables()[DRAWABLE_TOP];
if (drawableTop != null && event.getRawY() <= (getTop() + drawableTop.getBounds().height())
&& event.getRawY() > getTop()) {
drawableTopListener.drawableTopListener(this);
return true;
}
}
if (drawableBottomListener != null) {
Drawable drawableBottom = getCompoundDrawables()[DRAWABLE_BOTTOM];
if (drawableBottom != null && event.getRawY() >= (getBottom() - drawableBottom.getBounds().height())
&& event.getRawY() < getBottom()) {
drawableBottomListener.drawableBottomListener(this);
return true;
}
}
break;
}
return super.onTouchEvent(event);
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
}
//设置图片的高度和宽度
private void setDrawableSize(Drawable drawable, int index) {
if (drawable == null) {
return;
}
//左上右下
int width = 0, height = 0;
switch (index) {
case DRAWABLE_LEFT:
width = leftDrawableWidth;
height = leftDrawableHeight;
break;
case DRAWABLE_TOP:
width = topDrawableWidth;
height = topDrawableWidth;
break;
case DRAWABLE_RIGHT:
width = rightDrawableWidth;
height = rightDrawableWidth;
break;
case DRAWABLE_BOTTOM:
width = bottomDrawableWidth;
height = bottomDrawableHeight;
break;
}
//如果没有设置图片的高度和宽度具使用默认的图片高度和宽度
if (width < 0) {
width = drawable.getIntrinsicWidth();
}
if (height < 0) {
height = drawable.getIntrinsicHeight();
}
if (index == 0) {
leftWidth = width;
} else if (index == 2) {
rightWidth = width;
}
drawable.setBounds(0, 0, width, height);
}
}
必要的注释,我已经写在代码里了.里面其实我做了一些自己的常用的封装..
- 对于Drawable的点击监听,因为有时候实际的业务场景很复杂,阴间的产品需求可能会让你只能对Drawable点击触发事件
- 设置字体的粗细程度,Textview我们虽然可以设置是否粗细,但是官方提供的API设置的太粗了,你仔细看蓝湖上的字体粗细,有很大差别.

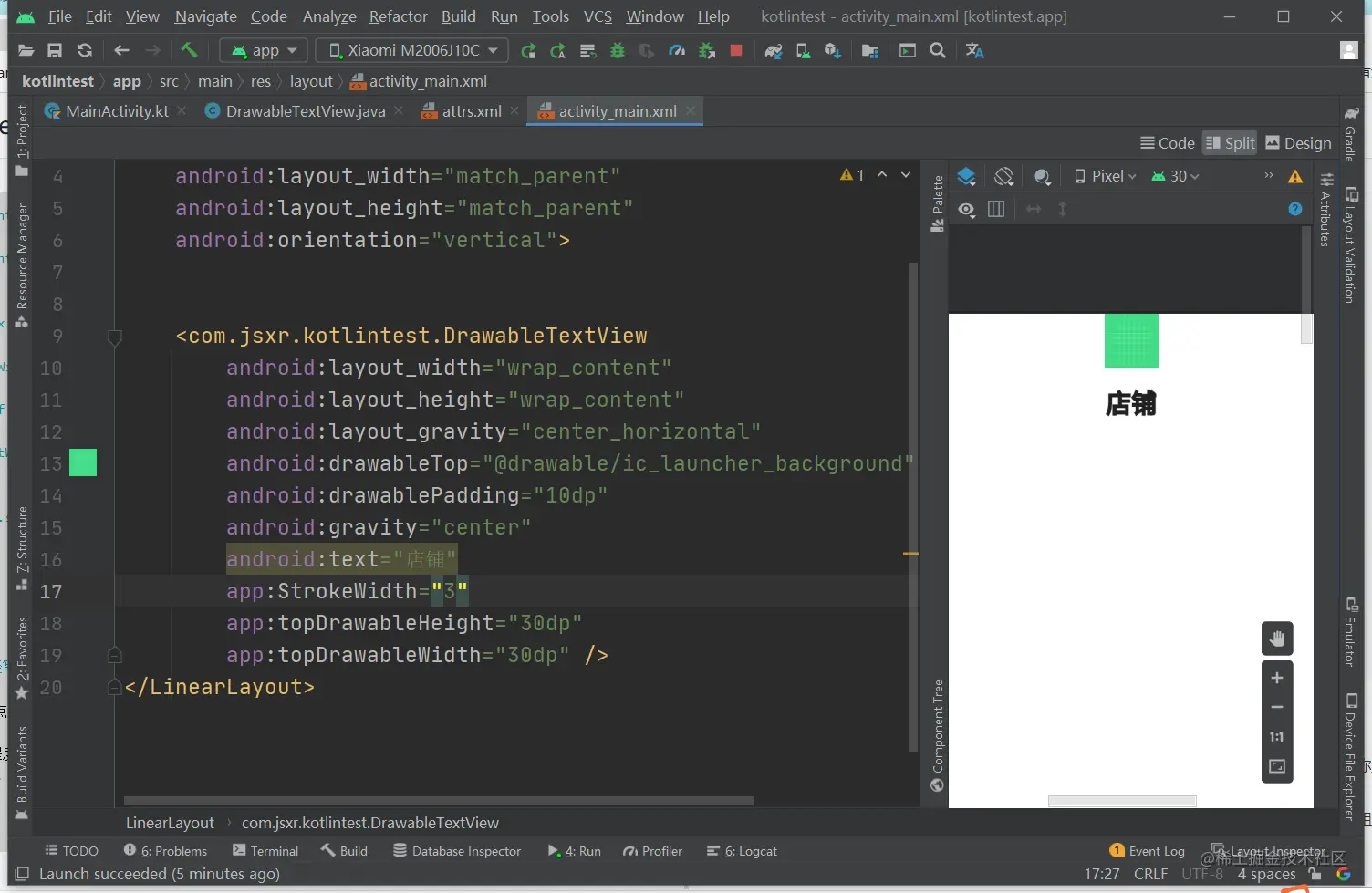

以下是使用方式
上面可以看到我的StrokeWidth是3,这个我给予的是float,你按照自己的感觉设置即可.

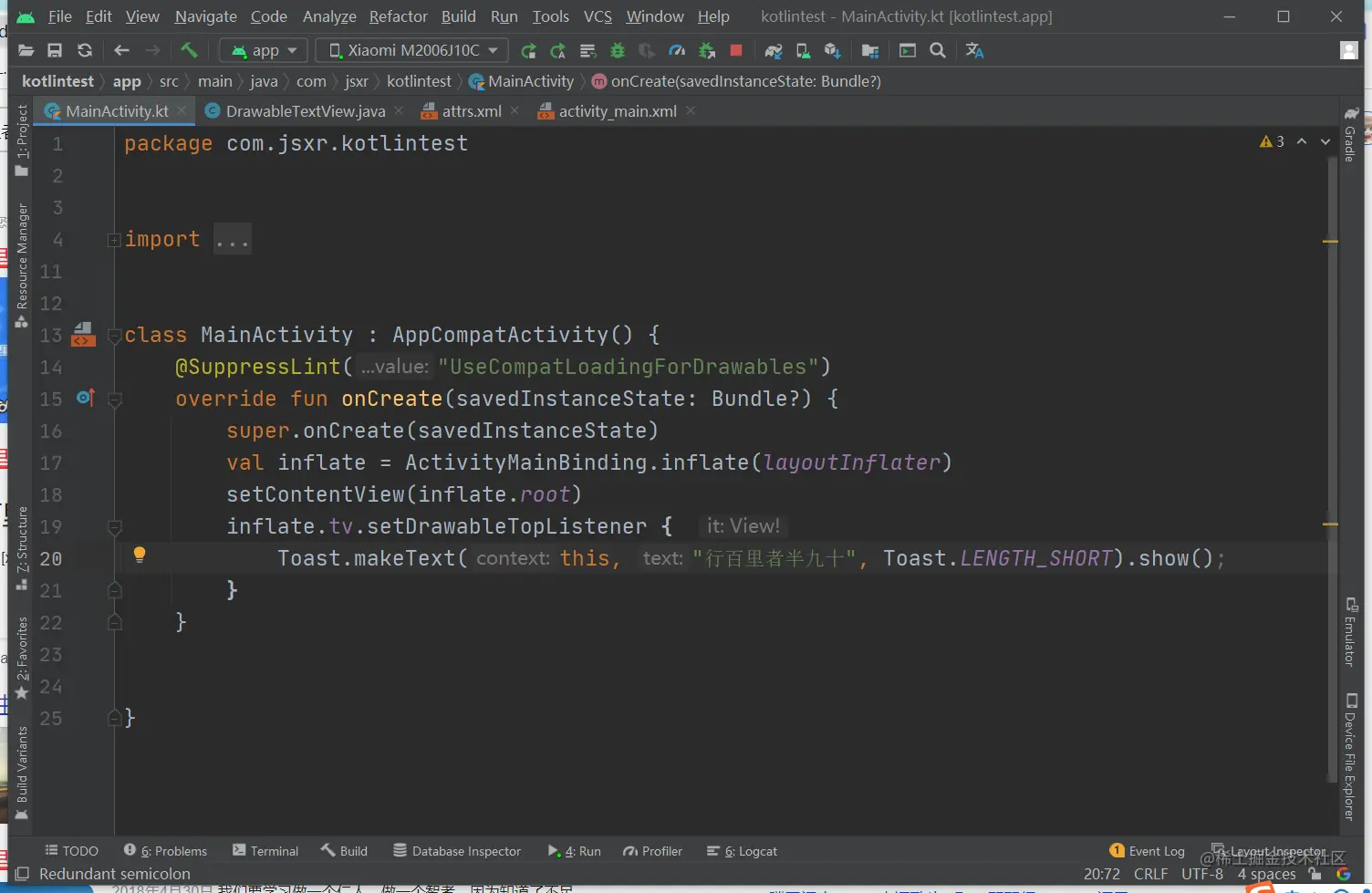

监听要设置你Drawable位置的监听,如果你的xml是DrawableLeft,在Activity里你设置的DrawableTop点击事件他是不会生效的.
为了方便大家复制下面是attrs里的配置
<!--drawableTextView-->
<declare-styleable name="DrawableTextView">
<attr name="leftDrawableWidth" format="dimension" />
<attr name="leftDrawableHeight" format="dimension" />
<attr name="rightDrawableWidth" format="dimension" />
<attr name="rightDrawableHeight" format="dimension" />
<attr name="topDrawableWidth" format="dimension" />
<attr name="topDrawableHeight" format="dimension" />
<attr name="bottomDrawableWidth" format="dimension" />
<attr name="bottomDrawableHeight" format="dimension" />
<attr name="StrokeWidth" format="float" />
</declare-styleable>
其实上面的封装没有什么高深的东西,都是一些基础,不过一些涉及的东西比较乱而已,大家不用太注意细节,只要能解决项目中的实际问题即可.
2021年10月31日22:41:07
补上Listener代码
public class DrawableListener {
public interface DrawableRightListener{
void drawableRightListener(View view);
}
public interface DrawableLeftListener{
void drawableLeftListener(View view);
}
public interface DrawableTopListener{
void drawableTopListener(View view);
}
public interface DrawableBottomListener{
void drawableBottomListener(View view);
}
}
