一、图像增强简介
图像增强是对图像的某些特征，如边缘、轮廓、对比度等进行强调或锐化，以便于显示、观察或进一步分析与处理。通过对图像的特定加工，将被处理的图像转化为对具体应用来说视觉质量和效果更“好”或更“有用”的图像。
图像增强是最基本最常用的图像处理技术，常用于其他图像处理的预处理阶段。
（1）高通平滑、低通锐化；平滑模糊、锐化突出图像细节
（2）滤波器还有带通、带阻等形式
（3）根据噪声（椒盐噪声、高斯噪声....）的不同，选用不同的滤波
（4）邻域有4-邻域、对角邻域、8-邻域，相对应的有邻接，即空间上相邻、像素灰度相似
（5）图像边缘处理：忽略不处理、补充、循环使用
（6）目前尚未图像处理大多基于灰度图像
二、快速亮通双边滤波器(FBPBF)简介
双边滤波是由Tomasi和Manduchi提出来的一种具有保持边缘和降噪效果的非线性滤波器，双边滤波采用基于高斯分布的加权平均的方法，用某个像素的周边像素亮度值的加权平均代表该点的强度．
2.1 亮通双边滤波器(BPBF)
亮通双边滤波(BPBF)是基于双边滤波的一种变体，可用于光照分量估计，相比于双边滤波，BPBF计算更复杂，但滤波效果更好，对细节的保持更精准．BPBF对图像V通道的光照分量估计的表达如下:
其中:f(i)表示HSV色彩空间的V通道;g(i)表示BPBF的输出;Ω是执行聚合的邻域．
其中，高斯空间核φ与单边高斯范围核ψ的表达如下:
其中:θ与σ分别是各自的标准差，一般而言，标准差越小，平滑的结果越不理想，标准差越大，平滑效果越好．

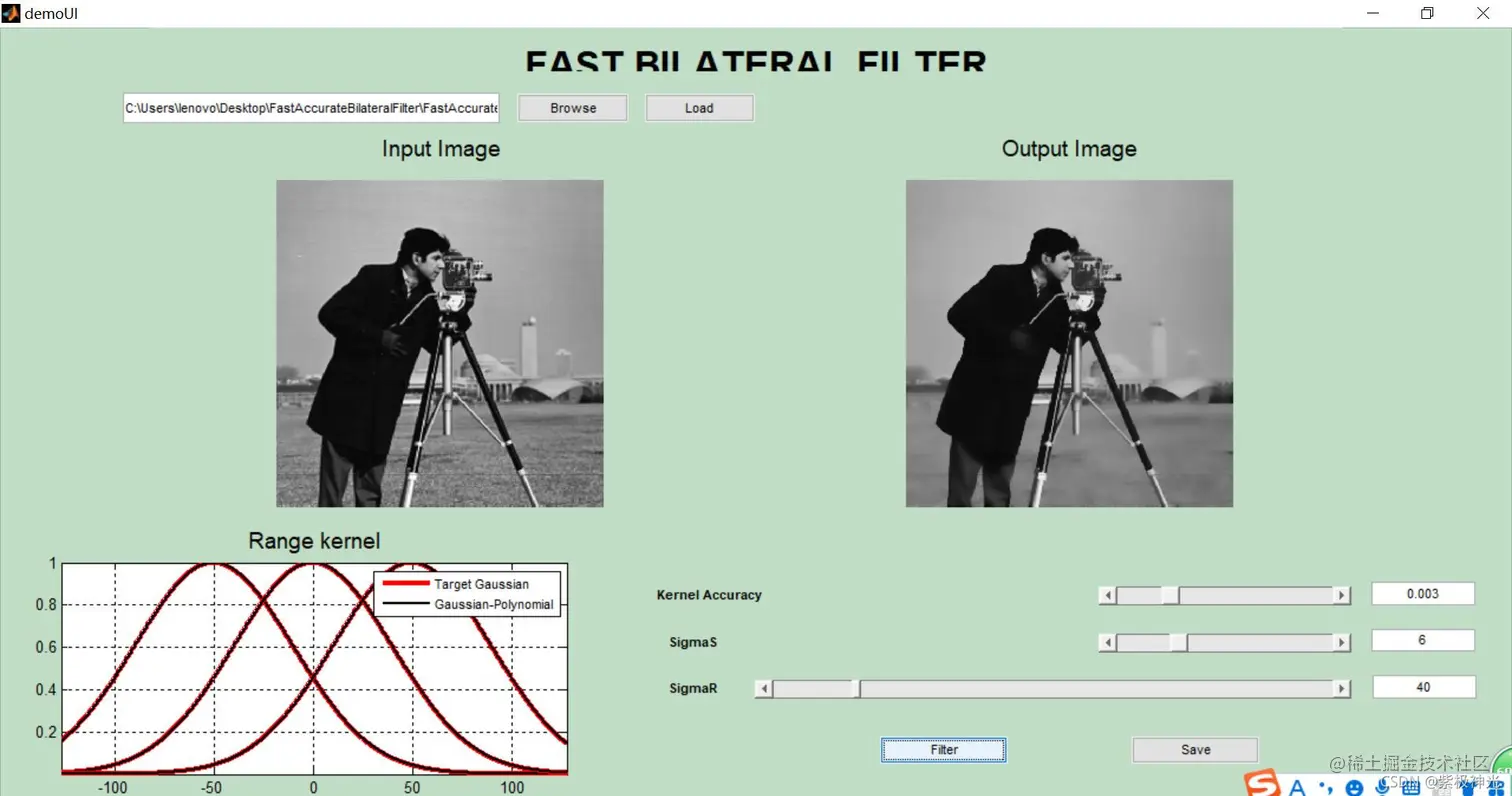

三、部分源代码
