ProjectDiscovery组织开源了很多自动化扫描的内部工具和研究，它们都是基于Go语言编写，并且在实际渗透中有极大的作用。我非常喜欢这个组织开源的软件，它也是我学习Go语言的动力之一，所以计划写一个系列文章来研究下它们的代码。

介绍

几个特性：

  • 基于syn/connect两种模式扫描
  • 多种输入类型支持，包括HOST / IP / CIDR表示法。
  • 自动处理多个子域之间的重复主机
  • Stdin和stdout支持集成到工作流中
  • 易于使用的轻量级资源

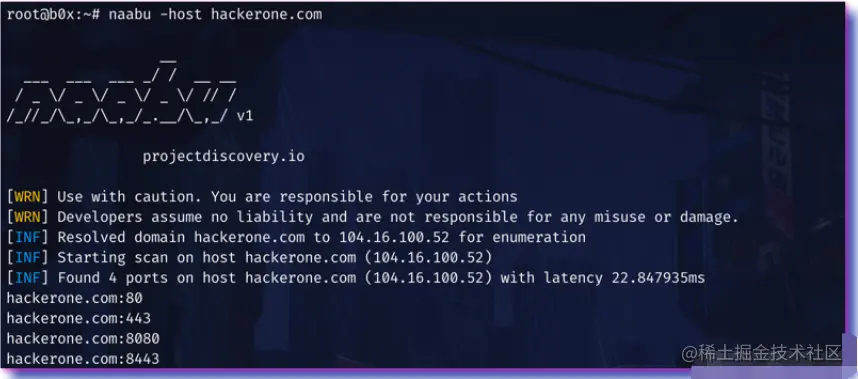

▶ naabu -host hackerone.com

                  __
  ___  ___  ___ _/ /  __ __
 / _ / _ / _ / _ / // /
/_//_/_,_/_,_/_.__/_,_/ v2.0.3

    projectdiscovery.io

[WRN] Use with caution. You are responsible for your actions
[WRN] Developers assume no liability and are not responsible for any misuse or damage.
[INF] Running SYN scan with root privileges
[INF] Found 4 ports on host hackerone.com (104.16.100.52)
hackerone.com:80
hackerone.com:443
hackerone.com:8443
hackerone.com:8080

扫描方式

扫描相关的代码在 v2/pkg/scan目录

cdn check

顾名思义，跟踪一下，发现cdn检查调用的是github.com/projectdiscovery/cdncheck中的项目。

通过接口获取一些CDN的ip段，判断ip是否在这些ip段中

 // scrapeCloudflare scrapes cloudflare firewall's CIDR ranges from their API
func scrapeCloudflare ( httpClient  * http . Client )   ([] string ,  error ) {
    resp , err := httpClient . Get ( "https://www.cloudflare.com/ips-v4" )
    if err != nil {
        return nil , err
    }
    defer resp . Body . Close ()

    data , err := ioutil . ReadAll ( resp . Body )
    if err != nil {
        return nil , err
    }
    body := string ( data )

    cidrs := cidrRegex . FindAllString ( body , - 1 )
    return cidrs , nil
}

// scrapeIncapsula scrapes incapsula firewall's CIDR ranges from their API
func scrapeIncapsula ( httpClient  * http . Client )   ([] string ,  error ) {
    req , err := http . NewRequest ( http . MethodPost , "https://my.incapsula.com/api/integration/v1/ips" , strings . NewReader ( "resp_format=text" ))
    if err != nil {
        return nil , err
    }
    req . Header . Set ( "Content-Type" , "application/x-www-form-urlencoded" )

    resp , err := httpClient . Do ( req )
    if err != nil {
        return nil , err
    }
    defer resp . Body . Close ()

    data , err := ioutil . ReadAll ( resp . Body )
    if err != nil {
        return nil , err
    }
    body := string ( data )

    cidrs := cidrRegex . FindAllString ( body , - 1 )
    return cidrs , nil
}

// scrapeAkamai scrapes akamai firewall's CIDR ranges from ipinfo
func scrapeAkamai ( httpClient  * http . Client )   ([] string ,  error ) {
    resp , err := httpClient . Get ( "https://ipinfo.io/AS12222" )
    if err != nil {
        return nil , err
    }
    defer resp . Body . Close ()

    data , err := ioutil . ReadAll ( resp . Body )
    if err != nil {
        return nil , err
    }
    body := string ( data )

    cidrs := cidrRegex . FindAllString ( body , - 1 )
    return cidrs , nil
}

// scrapeSucuri scrapes sucuri firewall's CIDR ranges from ipinfo
func scrapeSucuri ( httpClient  * http . Client )   ([] string ,  error ) {
    resp , err := httpClient . Get ( "https://ipinfo.io/AS30148" )
    if err != nil {
        return nil , err
    }
    defer resp . Body . Close ()

    data , err := ioutil . ReadAll ( resp . Body )
    if err != nil {
        return nil , err
    }
    body := string ( data )

    cidrs := cidrRegex . FindAllString ( body , - 1 )
    return cidrs , nil
}

func scrapeProjectDiscovery ( httpClient  * http . Client )   ([] string ,  error ) {
    resp , err := httpClient . Get ( "https://cdn.projectdiscovery.io/cdn/cdn-ips" )
    if err != nil {
        return nil , err
    }
    defer resp . Body . Close ()

    data , err := ioutil . ReadAll ( resp . Body )
    if err != nil {
        return nil , err
    }
    body := string ( data )

    cidrs := cidrRegex . FindAllString ( body , - 1 )
    return cidrs , nil
}

connect扫描

naabu的connect扫描就是简单的建立一个tcp连接

 // ConnectVerify is used to verify if ports are accurate using a connect request
func  ( s  * Scanner )  ConnectVerify ( host string ,  ports map [ int ] struct {})  map [ int ] struct {} {
    for port := range ports {
        conn , err := net . DialTimeout ( "tcp" , fmt . Sprintf ( "%s:%d" , host , port ), s . timeout )
        if err != nil {
            delete ( ports , port )
            continue
        }
        gologger . Debugf ( "Validated active port %d on %s\n" , port , host )
        conn . Close ()
    }
    return ports
}

syn扫描

syn扫描只能在unix操作系统上运行，如果是windows系统，会切换到connect扫描。

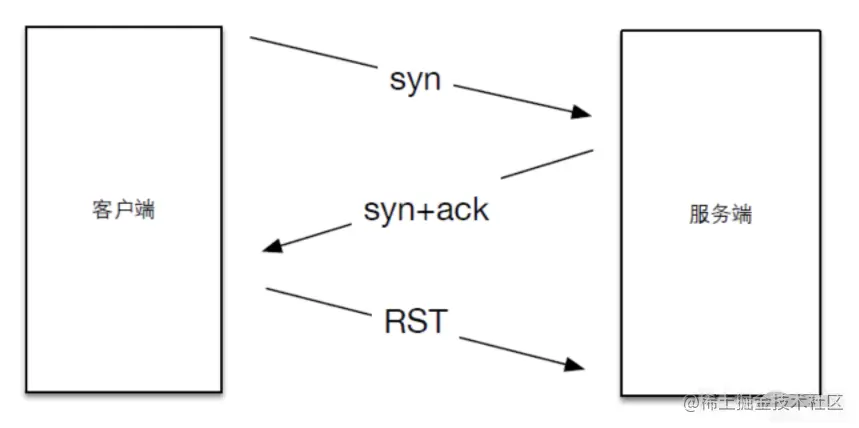

syn扫描的原理是只用发一个syn包，节省发包时间，而完整的tcp需要进行三次握手。

获取空闲端口

初始化时，获取空闲端口，并监听这个端口

import github . com / phayes / freeport

func NewScannerUnix ( scanner  * Scanner )  error {
    rawPort , err := freeport . GetFreePort ()
    if err != nil {
        return err
    }
    scanner . listenPort = rawPort

    tcpConn , err := net . ListenIP ( "ip4:tcp" , & net . IPAddr { IP : net . ParseIP ( fmt . Sprintf ( "0.0.0.0:%d" , rawPort ))})
    if err != nil {
        return err
    }
    scanner . tcpPacketlistener = tcpConn

    var handlers Handlers
    scanner . handlers = handlers

    scanner . tcpChan = make ( chan * PkgResult , chanSize )
    scanner . tcpPacketSend = make ( chan * PkgSend , packetSendSize )
    return nil
}

监听网卡

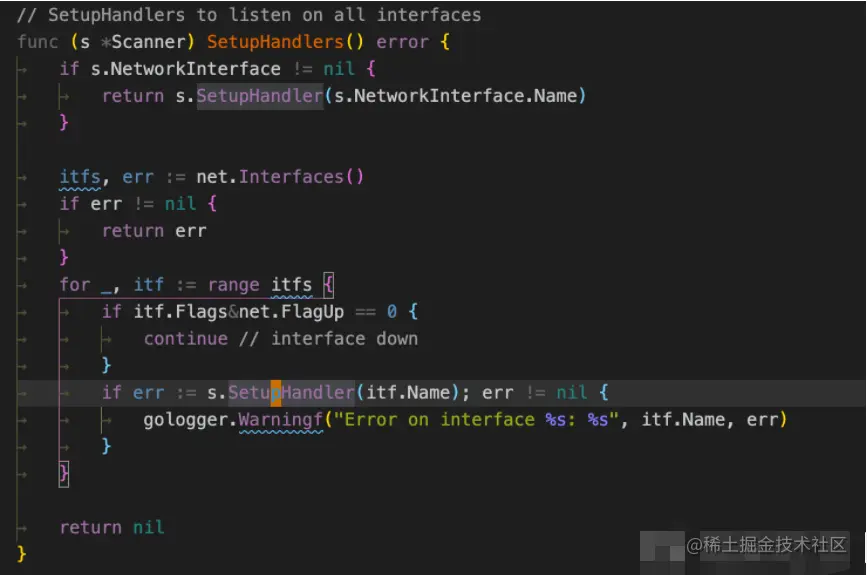

获取网卡名称

SetupHandlerUnix 监听网卡

const (
    maxRetries     = 10
    sendDelayMsec  = 10
    chanSize       = 1000
    packetSendSize = 2500
    snaplen        = 65536
    readtimeout    = 1500
)

func SetupHandlerUnix ( s  * Scanner ,  interfaceName string )  error {
    inactive , err := pcap . NewInactiveHandle ( interfaceName )
    if err != nil {
        return err
    }

    err = inactive . SetSnapLen ( snaplen )
    if err != nil {
        return err
    }

    readTimeout := time . Duration ( readtimeout ) * time . Millisecond
    if err = inactive . SetTimeout ( readTimeout ); err != nil {
        s . CleanupHandlers ()
        return err
    }
    err = inactive . SetImmediateMode ( true )
    if err != nil {
        return err
    }

    handlers := s . handlers .( Handlers )
    handlers . Inactive = append ( handlers . Inactive , inactive )

    handle , err := inactive . Activate ()
    if err != nil {
        s . CleanupHandlers ()
        return err
    }

    handlers . Active = append ( handlers . Active , handle )

    // Strict BPF filter
    // + Packets coming from target ip
    // + Destination port equals to sender socket source port
    err = handle . SetBPFFilter ( fmt . Sprintf ( "tcp and dst port %d and tcp[13]=18" , s . listenPort ))
    if err != nil {
        s . CleanupHandlers ()
        return err
    }
    s . handlers = handlers

    return nil
}

从网卡中过滤数据包 tcp and dst port %d and tcp[13]=18

%d 即第一步获取的空闲端口，tcp[13]=18 即tcp的第十三位偏移的值为18，即仅抓取TCP SYN标记的数据包。

监听数据

通过pcap监听数据

func TCPReadWorkerPCAPUnix ( s  * Scanner ) {
    defer s . CleanupHandlers ()

    var wgread sync . WaitGroup

    handlers := s . handlers .( Handlers )

    for _ , handler := range handlers . Active {
        wgread . Add ( 1 )
        go func ( handler  * pcap . Handle ) {
            defer wgread . Done ()

            var (
                eth layers . Ethernet
                ip4 layers . IPv4
                tcp layers . TCP
            )

            // Interfaces with MAC (Physical + Virtualized)
            parserMac := gopacket . NewDecodingLayerParser ( layers . LayerTypeEthernet , ð , & ip4 , & tcp )
            // Interfaces without MAC (TUN/TAP)
            parserNoMac := gopacket . NewDecodingLayerParser ( layers . LayerTypeIPv4 , & ip4 , & tcp )

            var parsers [] * gopacket . DecodingLayerParser
            parsers = append ( parsers , parserMac , parserNoMac )

            decoded := [] gopacket . LayerType {}

            for {
                data , _ , err := handler . ReadPacketData ()
                if err == io . EOF {
                    break
                } else if err != nil {
                    continue
                }

                for _ , parser := range parsers {
                    if err := parser . DecodeLayers ( data , & decoded ); err != nil {
                        continue
                    }
                    for _ , layerType := range decoded {
                        if layerType == layers . LayerTypeTCP {
                            if ! s . IPRanger . Contains ( ip4 . SrcIP . String ()) {
                                gologger . Debugf ( "Discarding TCP packet from non target ip %s\n" , ip4 . SrcIP . String ())
                                continue
                            }

                            // We consider only incoming packets
                            if tcp . DstPort != layers . TCPPort ( s . listenPort ) {
                                continue
                            } else if tcp . SYN && tcp . ACK {
                                s . tcpChan <- & PkgResult { ip : ip4 . SrcIP . String (), port : int ( tcp . SrcPort )}
                            }
                        }
                    }
                }
            }
        }( handler )
    }

    wgread . Wait ()
}

如果dstport为我们监听的端口，并且标志位是 syn+ack，就将端口和ip加入到结果中。

发送数据包

核心内容是从之前监听的tcp发送。

 // SendAsyncPkg sends a single packet to a port
func  ( s  * Scanner )  SendAsyncPkg ( ip string ,  port int ,  pkgFlag PkgFlag ) {
    // Construct all the network layers we need.
    ip4 := layers . IPv4 {
        SrcIP :    s . SourceIP ,
        DstIP :    net . ParseIP ( ip ),
        Version :  4 ,
        TTL :      255 ,
        Protocol : layers . IPProtocolTCP ,
    }
    tcpOption := layers . TCPOption {
        OptionType :   layers . TCPOptionKindMSS ,
        OptionLength : 4 ,
        OptionData :   [] byte { 0x05 , 0xB4 },
    }

    tcp := layers . TCP {
        SrcPort : layers . TCPPort ( s . listenPort ),
        DstPort : layers . TCPPort ( port ),
        Window :  1024 ,
        Seq :     s . tcpsequencer . Next (),
        Options : [] layers . TCPOption { tcpOption },
    }

    if pkgFlag == SYN {
        tcp . SYN = true
    } else if pkgFlag == ACK {
        tcp . ACK = true
    }

    err := tcp . SetNetworkLayerForChecksum ( & ip4 )
    if err != nil {
        if s . debug {
            gologger . Debugf ( "Can not set network layer for %s:%d port: %s\n" , ip , port , err )
        }
    } else {
        err = s . send ( ip , s . tcpPacketlistener , & tcp )
        if err != nil {
            if s . debug {
                gologger . Debugf ( "Can not send packet to %s:%d port: %s\n" , ip , port , err )
            }
        }
    }
}


// send sends the given layers as a single packet on the network.
func  ( s  * Scanner )  send ( destIP string ,  conn net . PacketConn ,  l  ... gopacket . SerializableLayer )  error {
    buf := gopacket . NewSerializeBuffer ()
    if err := gopacket . SerializeLayers ( buf , s . serializeOptions , l ... ); err != nil {
        return err
    }

    var (
        retries int
        err     error
    )

send :
    if retries >= maxRetries {
        return err
    }
    _ , err = conn . WriteTo ( buf . Bytes (), & net . IPAddr { IP : net . ParseIP ( destIP )})
    if err != nil {
        retries ++
        // introduce a small delay to allow the network interface to flush the queue
        time . Sleep ( time . Duration ( sendDelayMsec ) * time . Millisecond )
        goto send
    }
    return err
}

其他

修改ulimit

大多数类UNIX操作系统（包括Linux和macOS）在每个进程和每个用户的基础上提供了系统资源的限制和控制（如线程，文件和网络连接）的方法。 这些“ulimits”阻止单个用户使用太多系统资源。

import (
    _ "github.com/projectdiscovery/fdmax/autofdmax"
)

修改ulimit,只针对unix系统

fdmax.go

 // +build !windows

package fdmax

import (
    "runtime"

    "golang.org/x/sys/unix"
)

const (
    UnixMax uint64 = 999999
    OSXMax  uint64 = 24576
)

type Limits struct {
    Current uint64
    Max     uint64
}

func Get ()   ( * Limits ,  error ) {
    var rLimit unix . Rlimit
    err := unix . Getrlimit ( unix . RLIMIT_NOFILE , & rLimit )
    if err != nil {
        return nil , err
    }

    return & Limits { Current : uint64 ( rLimit . Cur ), Max : uint64 ( rLimit . Max )}, nil
}

func Set ( maxLimit uint64 )  error {
    var rLimit unix . Rlimit
    rLimit . Max = maxLimit

    rLimit . Cur = maxLimit
    // https://github.com/golang/go/issues/30401
    if runtime . GOOS == "darwin" && rLimit . Cur > OSXMax {
        rLimit . Cur = OSXMax
    }

    return unix . Setrlimit ( unix . RLIMIT_NOFILE , & rLimit )
}

随机IP PICK

import "github.com/projectdiscovery/ipranger"

ipranger 实现就是来自masscan的随机化地址扫描算法

随机化地址扫描

在读取地址后，如果进行顺序扫描，伪代码如下

for ( i = 0 ; i < range ; i ++ ) {
    scan ( i );
}

但是考虑到有的网段可能对扫描进行检测从而封掉整个网段，顺序扫描效率是较低的，所以需要将地址进行随机的打乱，用算法描述就是设计一个打乱数组的算法，Masscan是设计了一个加密算法，伪代码如下

range = ip_count  *  port_count ;
for ( i = 0 ;  i  <  range ;  i ++ )   {
    x = encrypt ( i );
    ip   = pick ( addresses ,  x  /  port_count );
    port = pick ( ports ,      x  %  port_count );
    scan ( ip , port );
}

随机种子就是i的值，这种加密算法能够建立一种一一对应的映射关系，即在[1...range]的区间内通过i来生成[1...range]内不重复的随机数。同时如果中断了扫描，只需要记住i的值就能重新启动，在分布式上也可以根据i来进行。

可缓存的hashmap

ipranger中使用了github.com/projectdiscovery/hmap/store/hybrid

看了下代码，是一个带缓存功能的hashmap，也带有超时时间。

所有添加的目标(ip)会加入到缓存中，让我想到ksubdomain中也有实现类似的功能，不过是在内存中进行，导致目标很多的时候内存操作会有点问题。如果用这个库应该可以解决这个问题 。

总结

naabu的代码架构很清晰，一个文件完成一个功能，通过看文件名就知道这个实现了什么功能，所以看代码的时候很轻松，naabu也模仿masscan中的部分代码，将它go化，值得学习。

  1. 但是从代码来看，naabu只是实现了在linux上的syn扫描，在Windows上会使用三次握手的tcp连接(基于pcap，可以实现在windows上组合tcp发包的，但naabu没有实现)，所以在windows上扫描速度和一般扫描器几乎无差别。
  2. naabu的目标添加是先循环读取目标一遍，如果目标cidr地址很大，会造成很多内存占用(虽然也会有硬盘缓存)，如果边读取边发送就没有这种烦恼，但naabu不是这样的。
