flink1.12消费kafka

小知识，大挑战！本文正在参与“程序员必备小知识”创作活动。

上篇介绍使用maxwell将mysql binlog日志采集并发送到了kafka里面

本文就写一个flink小demo将kafka消息消费出来

代码如下

package com.study.cdc.mysql;

import org.apache.flink.api.common.RuntimeExecutionMode;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer;

import java.util.Properties;

public class FlinkKafkaTest {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env= StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        env.setRuntimeMode(RuntimeExecutionMode.AUTOMATIC);

        Properties properties=new Properties();
        properties.setProperty("bootstrap.servers","kafka_ip:9092");
        properties.setProperty("group.id","flink-kafka-test");
        properties.setProperty("auto.offset.reset","latest");
        properties.setProperty("flink.partition-discovery.interval-millis","5000");
        properties.setProperty("key.deserializer","org.apache.kafka.common.serialization.StringDeserializer");
        properties.setProperty("value.deserializer","org.apache.kafka.common.serialization.StringDeserializer");
        properties.setProperty("enable.auto.commit","true");
        properties.setProperty("auto.commit.interval.ms","5000");

        FlinkKafkaConsumer<String> eventConsumer = new FlinkKafkaConsumer<String>("maxwell",new SimpleStringSchema(), properties);
        eventConsumer.setCommitOffsetsOnCheckpoints(false);
        DataStreamSource<String> eventStream = env.addSource(eventConsumer).setParallelism(1);

        eventStream.print();

        env.execute();
    }
}

打包命令

mvn clean  package -Dmaven.test.skip=true

提交到yarn运行命令

/opt/flink-1.12.1/bin/flink run -m yarn-cluster -p 1 -yjm 1024m -ytm 1024m -ynm Flink-kafka-test -yqu root.default -c com.study.cdc.mysql.FlinkKafkaTest  cdc-1.0-SNAPSHOT.jar

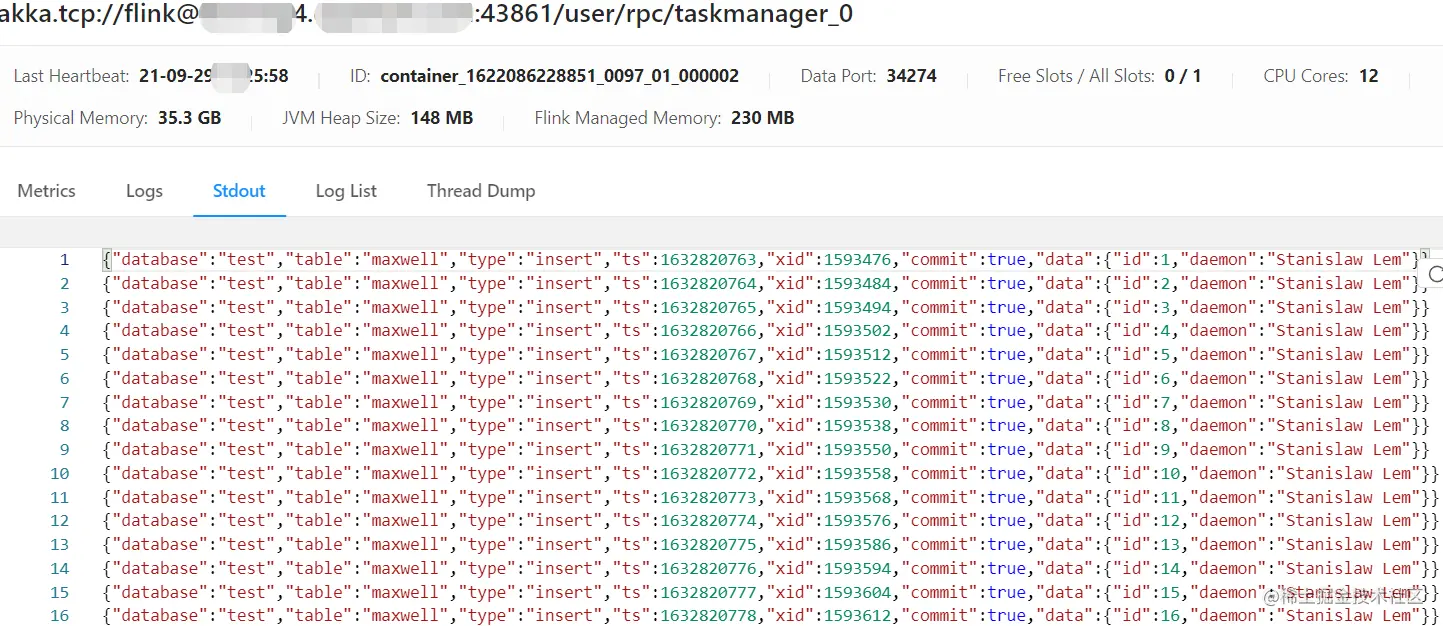

在FlinkUI是查看该Job的TaskManager，输出中显示消费到的数据

注意的点

在代码中使用了DataStreamSource来接收加载的数据源，然后进一步做transitions操作，如果在idea里面启动该函数，是没有什么数据输出的。实际上已经将kafka消息消费了，只是不打印在终端

如果想要输出在控制台需要使用DataStream来接收加载的数据源。。但是该api只会在终端输出，提交到yarn里面 Stdout也是没有日志的

#只在Stdout输出数据
DataStreamSource<String> eventStream = env.addSource(eventConsumer).setParallelism(1);

#只在终端输出数据
DataStream<String> eventStream = env.addSource(eventConsumer);
