近期用Echarts开发数据可视化的中国地图，发现控制台一直报错，原来是Echarts已经更新到5.0，不仅新增了一些动态图表，也对一些属性进行了更改，在此写个教程
一、npm安装依赖
Echarts最新的5.0版本，缺少内置的中国地图资料文件（china.js），所以只能用4.9版本，命令如下
`npm install echarts@4.9.0`

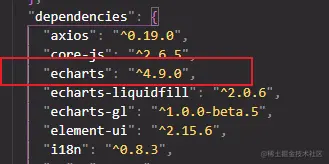

也可通过package.json文件查看/修改版本号
二、引入Echarts相关依赖
import echarts from "echarts/lib/echarts"
import china from 'echarts/map/json/china.json'
echarts.registerMap('china',china)
Vue.prototype.$echarts = echarts

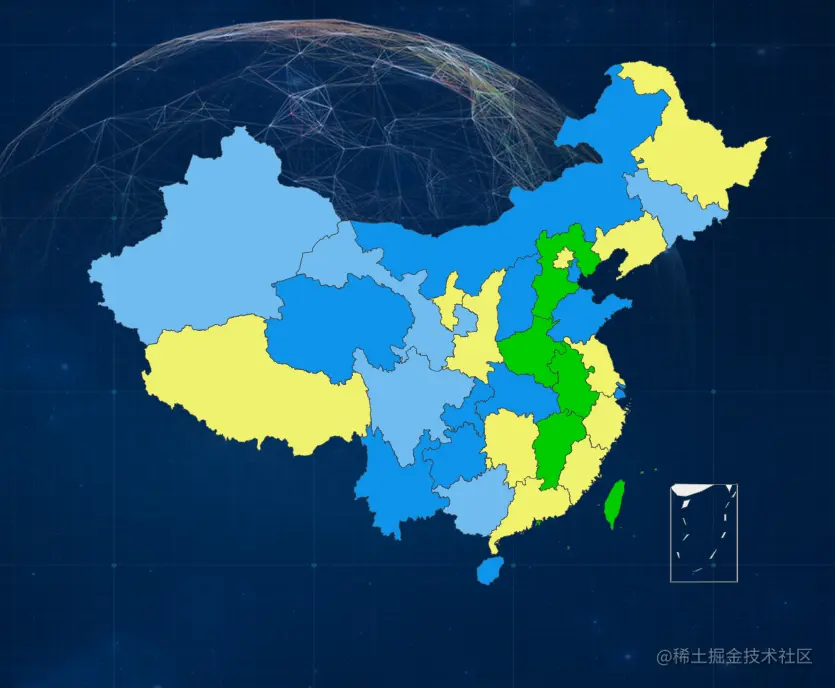

三、地图代码
<template>
<div class="map">
<div id="myChartChina" :style="{ width: '80%', height: '80%' }"></div>
</div>
</template>
<script>
require("echarts/map/json/china.json");
export default {
props: {},
data() {
return {};
},
created() {
},
mounted(){
this.drawLine()
},
methods: {
drawLine() {
var myChartContainer = document.getElementById("myChartChina"); //绑定div容器
var resizeMyChartContainer = function () {
myChartContainer.style.width = 100 + "%";
myChartContainer.style.height = window.innerHeight * 0.7 + "px";
};
resizeMyChartContainer();
var myChartChina = this.$echarts.init(myChartContainer);
function randomData() {
return Math.round(Math.random() * 500);
}
// 绘制图表
var optionMap = {
tooltip: {
trigger: "item",
},
//左侧小导航图标
visualMap: {
show: false,
x: "left",
y: "center",
//改变地图区域颜色
splitList: [
{ start: 500, end: 600 },
{ start: 400, end: 500 },
{ start: 300, end: 400 },
{ start: 200, end: 300 },
{ start: 100, end: 200 },
{ start: 0, end: 100 },
],
color: [
"#ffff00",
"#0e94eb",
"#70bcf0",
"#f0f26c",
"#00cd00",
"#eff26f",
],
},
//配置属性
series: [
{
name: "数据",
type: "map",
mapType: "china",
roam: false,
label: {
normal: {
show: false, //省份名称
},
emphasis: {
show: false,
},
},
data: [
{ name: "北京", value: "100" },
{ name: "天津", value: randomData() },
{ name: "上海", value: randomData() },
{ name: "重庆", value: randomData() },
{ name: "河北", value: randomData() },
{ name: "河南", value: randomData() },
{ name: "云南", value: randomData() },
{ name: "辽宁", value: randomData() },
{ name: "黑龙江", value: randomData() },
{ name: "湖南", value: randomData() },
{ name: "安徽", value: randomData() },
{ name: "山东", value: randomData() },
{ name: "新疆", value: randomData() },
{ name: "江苏", value: randomData() },
{ name: "浙江", value: randomData() },
{ name: "江西", value: randomData() },
{ name: "湖北", value: randomData() },
{ name: "广西", value: randomData() },
{ name: "甘肃", value: randomData() },
{ name: "山西", value: randomData() },
{ name: "内蒙古", value: randomData() },
{ name: "陕西", value: randomData() },
{ name: "吉林", value: randomData() },
{ name: "福建", value: randomData() },
{ name: "贵州", value: randomData() },
{ name: "广东", value: randomData() },
{ name: "青海", value: randomData() },
{ name: "西藏", value: randomData() },
{ name: "四川", value: randomData() },
{ name: "宁夏", value: randomData() },
{ name: "海南", value: randomData() },
{ name: "台湾", value: randomData() },
{ name: "香港", value: randomData() },
{ name: "澳门", value: randomData() },
], //数据
},
],
};
myChartChina.setOption(optionMap);
window.onresize = function () {
resizeMyChartContainer();
myChartChina.resize();
};
},
}
};
</script>
