H5端扫码功能实现-uniapp/Vue项目

12,669 阅读1分钟
  • 应用场景:使用移动设备在浏览器扫描二维码并搜索对应产品信息,需支持微信浏览器等其他主流浏览器
  • 技术栈:uni-app+uView
  • 最终实现:使用html5-qrcode插件

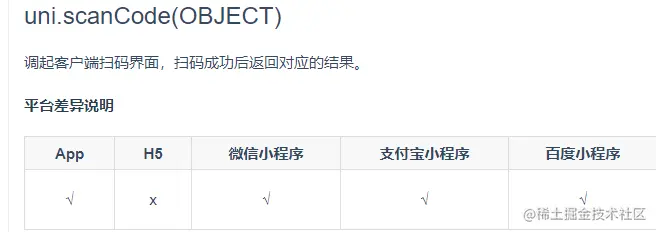

1.查阅文档发现uni-app提供的API不支持H5端✖

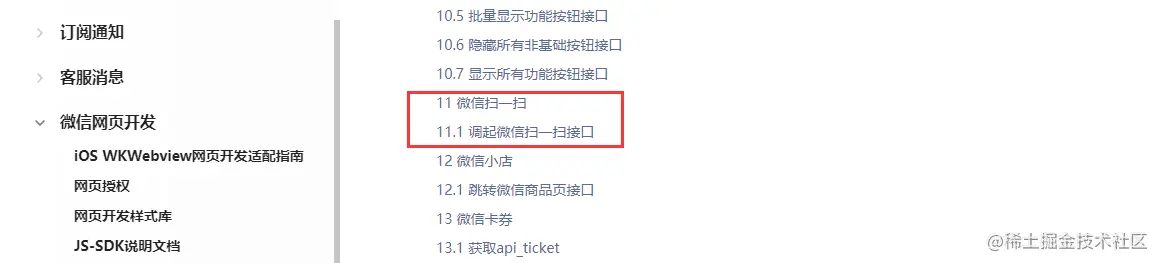

2.微信提供扫一扫接口(由于不支持其他浏览器,因此不选用此方法✖)

3.引入插件库html5-qrcode(✔)

本文参考链接:blog.csdn.net/happlyli/ar…

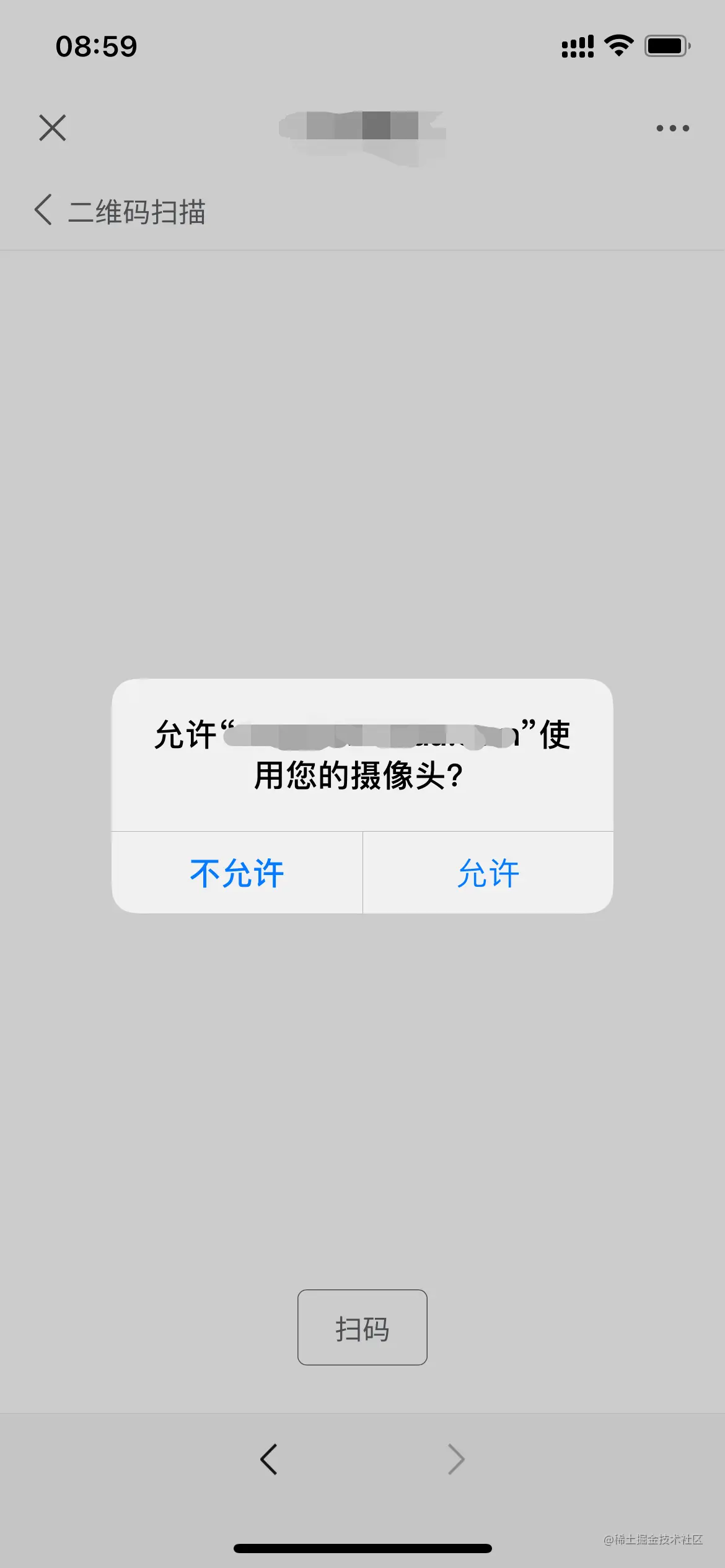

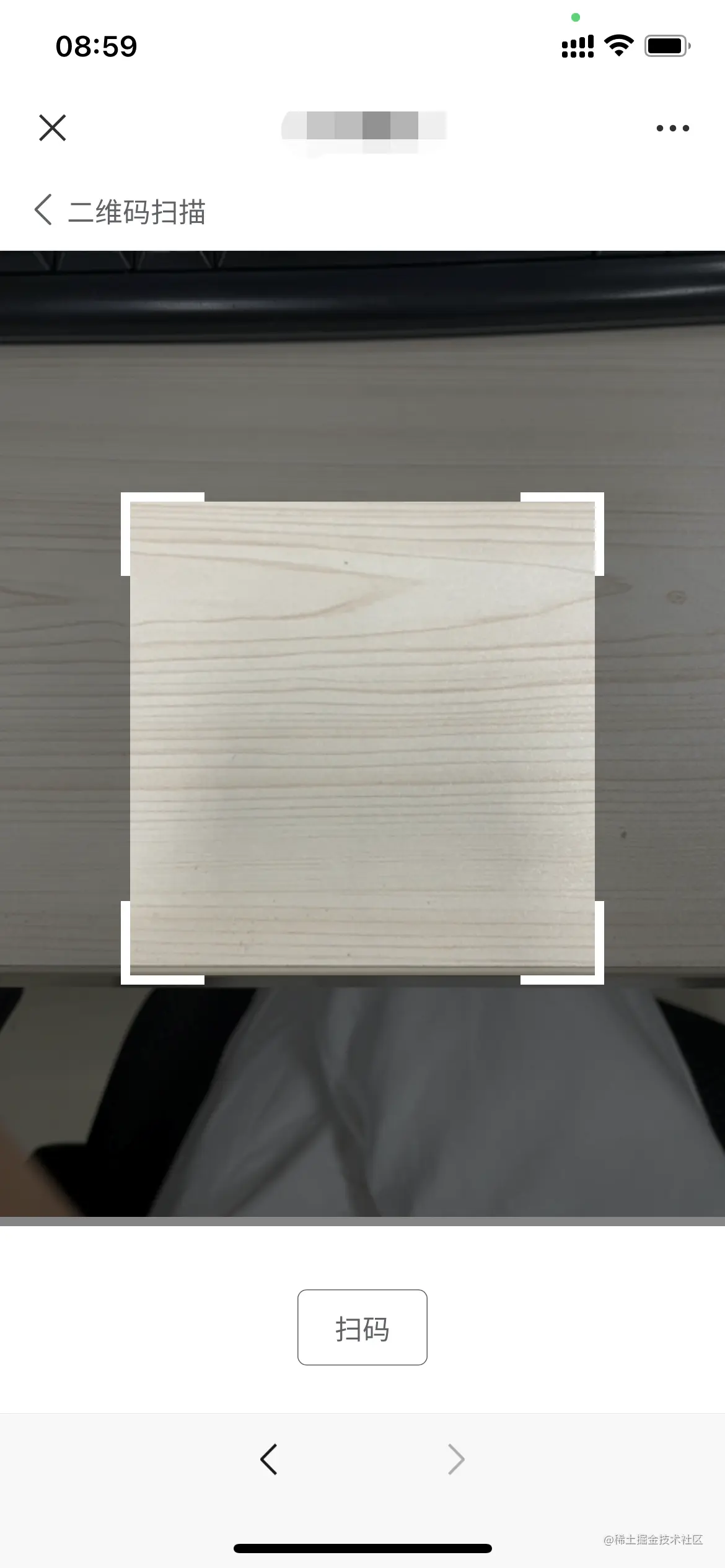

最终效果图如下:

注意事项:

  • H5端、PC端必须要有摄像头,且在https环境中使用,否则启用失败
  • 原参考文章中CDN引入失败,换成以下即可:blog.minhazav.dev/assets/rese…

完整代码:

<template>
    <view class="scan size">
        <u-navbar back-text="二维码扫描"></u-navbar>
        <view class="sectionview"><view id="qr-reader" style="width:100%;height:100%;"></view></view>
        <view class="footer"><u-button @click="getCameras" color="rgba(249, 185, 73, 1)">扫码</u-button></view>
        <u-toast ref="uToast" />
    </view>
</template>
<script>
export default {
    data() {
        return {
            codeUrl: '',
            cameraId: '',
        };
    },
    mounted() {
        this.current = this.$route.query.current || 0;
        this.init();
    },
    beforeDestroy() {
        this.stop();
    },
    methods: {
        //返回结果
        getCode(id) {
            if (!id) return;
            //跳转页面
            this.$u.route('/pages/selfInquiry/index', {
                paraValue: id
            });
        },
        init() {
            this.AddJs('https://blog.minhazav.dev/assets/research/html5qrcode/html5-qrcode.min.js');
            //需要加载时间建议延时一点再获取设备列表
            setTimeout(() => {
                this.getCameras();
            }, 1000);
        },
        stop() {
            this.html5QrCode
                .stop()
                .then(ignore => {
                    // QR Code scanning is stopped.
                    console.log('QR Code scanning stopped.');
                })
                .catch(err => {
                    // Stop failed, handle it.
                    console.log('Unable to stop scanning.');
                });
        },
        start() {
            this.html5QrCode = new Html5Qrcode('qr-reader');
            this.html5QrCode
                .start(
                    this.cameraId, // retreived in the previous step.
                    {
                        fps: 10, // sets the framerate to 10 frame per second
                        qrbox: 250 // sets only 250 X 250 region of viewfinder to
                        // scannable, rest shaded.
                    },
                    qrCodeMessage => {
                        // do something when code is read. For example:
                        if (qrCodeMessage) {
                            this.$refs.uToast.show({
                                title: `扫码成功`,
                                type: 'success'
                            });
                            this.getCode(qrCodeMessage);
                            this.stop();
                        }
                    },
                    errorMessage => {
                        // parse error, ideally ignore it. For example:
                        // console.log(`QR Code no longer in front of camera.`);
                    }
                )
                .catch(err => {
                    // Start failed, handle it. For example,
                    console.log(`Unable to start scanning, error: ${err}`);
                    this.$refs.uToast.show({
                        title: `扫码失败:${err}`,
                        type: 'error'
                    });
                });
        },
        getCameras() {
            Html5Qrcode.getCameras()
                .then(devices => {
                    /**
                     * devices would be an array of objects of type:
                     * { id: "id", label: "label" }
                     */
                    if (devices && devices.length) {
                        if (devices.length > 1) {
                            this.cameraId = devices[1].id;
                        } else {
                            this.cameraId = devices[0].id;
                        }
                        console.log(this.cameraId, 'cameraId');
                        this.start();
                    }
                })
                .catch(err => {
                    this.$refs.uToast.show({
                        title: '启用相机失败',
                        type: 'error'
                    });
                });
        },
        //动态创建script的方法
        AddJs(url) {
            //console.log( 'url:',url);
            return new Promise((resolve, reject) => {
                const script = document.createElement('script');
                script.src = url;
                script.type = 'text/javascript';
                document.body.appendChild(script);
                script.onload = () => {
                    resolve();
                };
            });
        }
    }
};
</script>
<style lang="less">
.scan {
    width: 100%;
    display: flex;
    flex-direction: column;
    height: 100vh;
    overflow: hidden;
    .footer {
        position: fixed;
        bottom: 50rpx;
        width: 100%;
        display: flex;
        justify-content: center;
    }
}
</style>
