一、Page的格式
每一个map都是一个B-树，并且map的数据存储在B-树的页中(page)。叶结点含有key-value键值对，内部结点只含有键(keys)还有指向叶结点的指针。树的根节点要么是叶子结点，要么是内部结点。与文件头，chunk头 ，chunk尾不同，page的数据是不能直接读懂的。因为Page的数据是作为字节数组储存的，长整型long占用8个字节，普通整型int占用4个字节，短整型short占用2个字节。
Page的型式如下：
- 长度length(int): 表示page的大小，单位是字节。用int来表示。
- 校验和checksum(short): 计算方法：chunk id 异或 page在chunk中的偏移量offset 异或 page大小
- mapid(int): 该page所属map的id
- len(int): 该page所包含的key的数量
- 类型type(byte)：page的类型。叶节点：0。内部节点：1.
- 子节点children(长整型long 数组。只有内部节点有)：表示子节点的位置
- 子节点数量childrenCounts(long型数组。只有内部节点有)：每个子结点页包含的entries的数量
- keys(字节数组)：所有的keys。按照key的类型转换的字节数组
- values(字节数组；只有叶子结点有)：所有的values。按照values的类型转换的字节数组
尽管文件格式没有强制要求，但是pages一般会按照如下顺序存储：对于每一个map，根节点页(root page)被储存在第一位，接着才是内部节点，然后是叶子结点。这样能使得硬盘的IO读入更快，因为顺序读比随机读更快。元数据map(metadata map)存储在chunk中的最后。
指向pages的指针(pointer)是一个长整型long。它的构造格式如下：高26位表示chunk的id，接着32位是chunk内的偏移量，接着5位是长度编码，最后1位是page的类型(叶子结点还是内部结点)。page类型被编码在指针中是为了在移除map的时候，叶子pages不需要被读入，但是内部结点还是需要读入，从而能找到所有pages的位置。但对于一个典型的B-树来说大部分页都是叶子结点。我们看到page的指针并不是page在文件中的绝对位置，这种方法可以让chunk在文件中移动，移动后我们只需要改变chunk元数据的值就行了（见前文中chunk格式的介绍）。page的长度编码(就是前面说的5个bit的那个)是一个从0到31的数字，0表示page的最大大小是32字节，1表示48字节，2的话是64,3是96,4是128,5是192....31表示大于1MB。由此，读入一个page只需要一次读入操作（除了非常大的页之外）。在一个chunk中的所有页的最大长度之和就是chunk 元数据中的max字段。当page被标记为移除的时候，可用最大长度(lived maximum length)会被调整。这能够让我们估算出block中的可用空闲空间好可用page的数量。
二、从存储文件中读入Page的过程

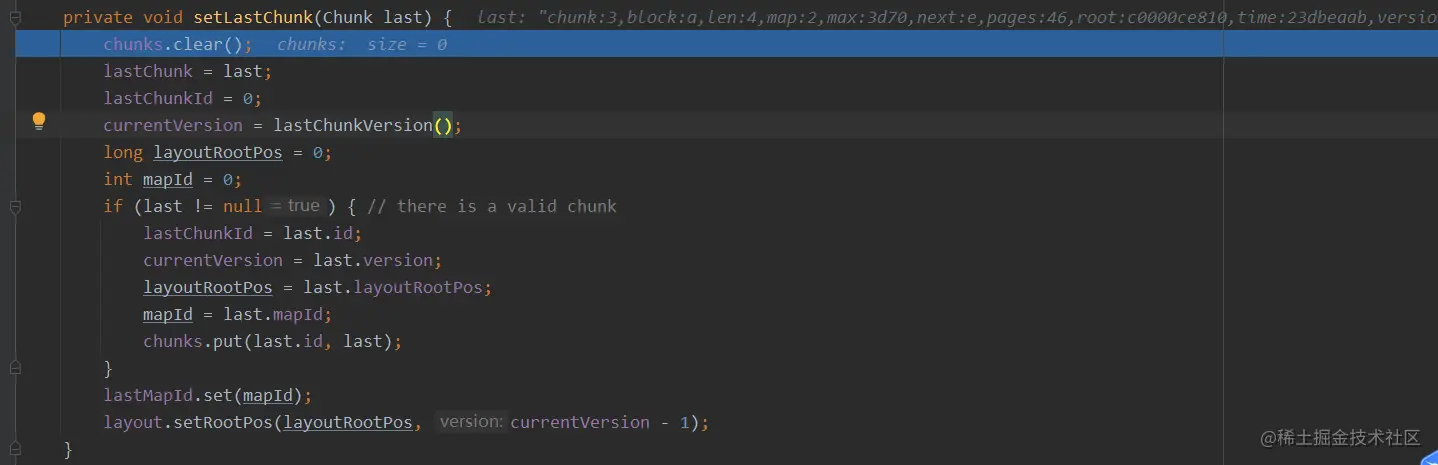

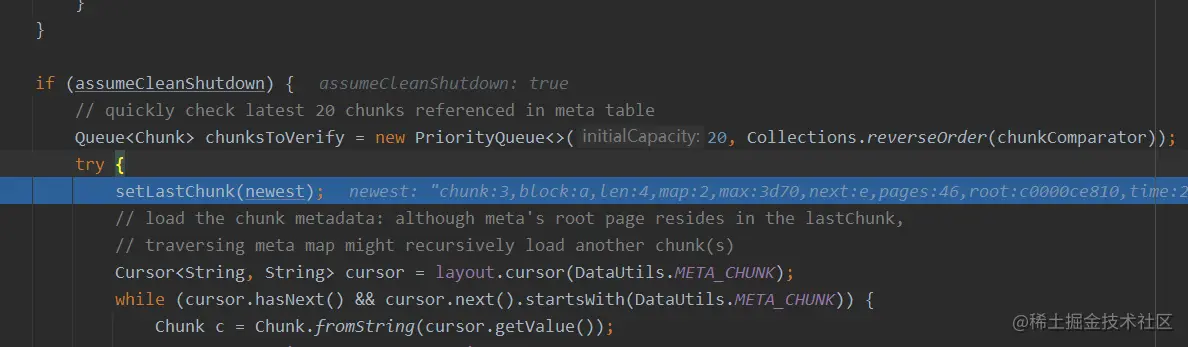

上一篇有说到，在readStoreHeader()方法中，当找到最新的那个chunk之后。会调用setLastChunk方法。
在这个方法中，最新的chunk会被当做参数传入
比较特殊的就是最后的这个方法。
layout.setRootPos(layoutRootPos, currentVersion - 1);
layout是一个MVMap，个人理解layout相当于一个记录其他MVMap信息的一个系统Map。有点类似于Mysql中的information_schema这个元数据库或者pg中的元数据schema。
下面看下layout.setRootPos(layoutRootPos, currentVersion - 1)做了些什么。
/**
* Set the position of the root page.
* @param rootPos the position, 0 for empty
* @param version to set for this map
*
*/
final void setRootPos(long rootPos, long version) {
Page<K,V> root = readOrCreateRootPage(rootPos);
setInitialRoot(root, version);
setWriteVersion(store.getCurrentVersion());
}
包含了3个方法。
首先是根据page的地址rootPos去存储文件中读入。
2.1readOrCreateRootPage
private Page<K,V> readOrCreateRootPage(long rootPos) {
Page<K,V> root = rootPos == 0 ? createEmptyLeaf() : readPage(rootPos);
return root;
}
由于rootPos不为0，所以会去执行readPage方法。
每个MVMap都有一个成员变量MVStore store
/**
* Read a page.
*
* @param pos the position of the page
* @return the page
*/
final Page<K,V> readPage(long pos) {
return store.readPage(this, pos);
}
如下：
/**
* Read a page.
*
* @param map the map
* @param pos the page position
* @return the page
*/

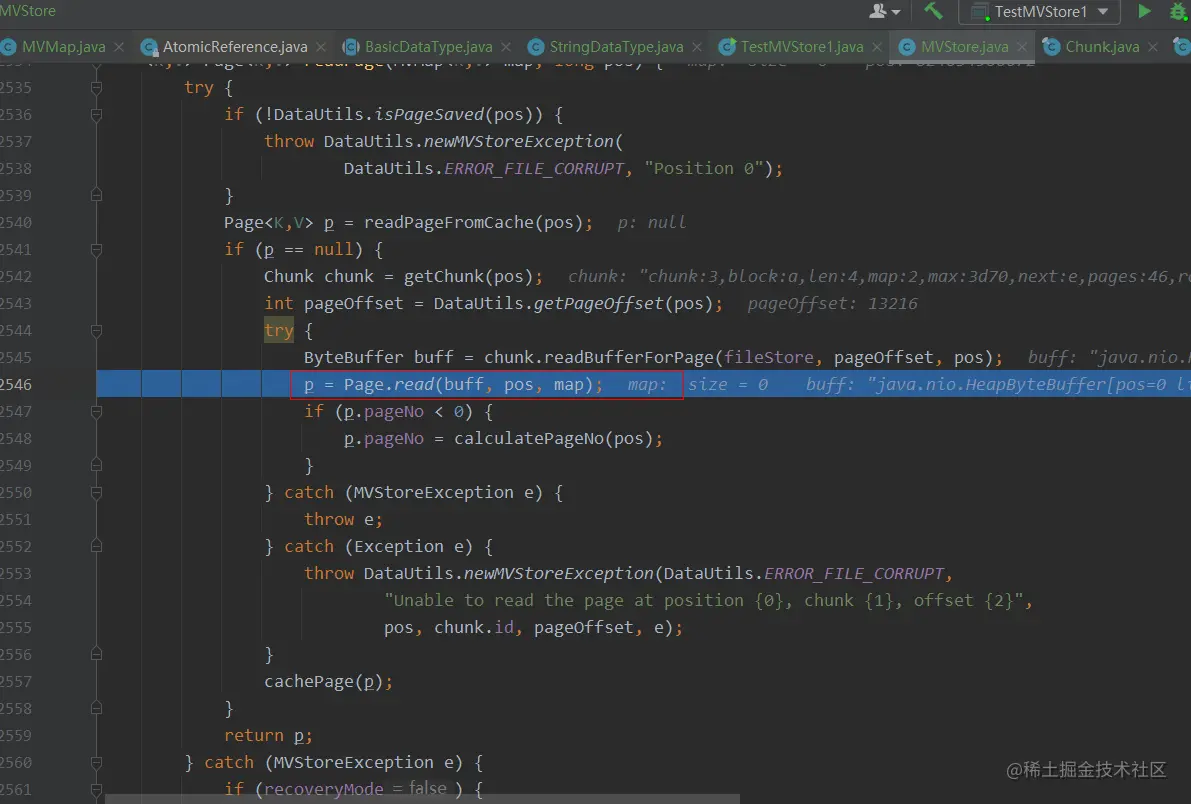

<K,V> Page<K,V> readPage(MVMap<K,V> map, long pos) {
try {
if (!DataUtils.isPageSaved(pos)) {
throw DataUtils.newMVStoreException(
DataUtils.ERROR_FILE_CORRUPT, "Position 0");
}
Page<K,V> p = readPageFromCache(pos);
if (p == null) {
Chunk chunk = getChunk(pos);
int pageOffset = DataUtils.getPageOffset(pos);
try {
ByteBuffer buff = chunk.readBufferForPage(fileStore, pageOffset, pos);
p = Page.read(buff, pos, map);
if (p.pageNo < 0) {
p.pageNo = calculatePageNo(pos);
}
} catch (MVStoreException e) {
throw e;
} catch (Exception e) {
throw DataUtils.newMVStoreException(DataUtils.ERROR_FILE_CORRUPT,
"Unable to read the page at position {0}, chunk {1}, offset {2}",
pos, chunk.id, pageOffset, e);
}
cachePage(p);
}
return p;
} catch (MVStoreException e) {
if (recoveryMode) {
return map.createEmptyLeaf();
}
throw e;
}
}
重点关注这一行及后面的内容
/**
* Get the offset from the position.
*
* @param tocElement packed table of content element
* @return the offset
*/
public static int getPageOffset(long tocElement) {
return (int) (tocElement >> 6);
}
前面说过，page的指针的后6位是长度编码+page类型。这里右移6位再取整型就会得到32位的表示Page在chunk中的偏移量（注意高26位被强转成int后去掉了）。通过这个方法能获取到page在chunk中的偏移量
然后是调用方法：
ByteBuffer buff = chunk.readBufferForPage(fileStore, pageOffset, pos);
具体实现如下：
/**
* Read a page of data into a ByteBuffer.
*
* @param fileStore to use
* @param pos page pos
* @return ByteBuffer containing page data.
*/
ByteBuffer readBufferForPage(FileStore fileStore, int offset, long pos) {
assert isSaved() : this;
while (true) {
long originalBlock = block;
try {
long filePos = originalBlock * MVStore.BLOCK_SIZE;
long maxPos = filePos + len * MVStore.BLOCK_SIZE;
filePos += offset;
if (filePos < 0) {
throw DataUtils.newMVStoreException(
DataUtils.ERROR_FILE_CORRUPT,
"Negative position {0}; p={1}, c={2}", filePos, pos, toString());
}
int length = DataUtils.getPageMaxLength(pos);
if (length == DataUtils.PAGE_LARGE) {
// read the first bytes to figure out actual length
length = fileStore.readFully(filePos, 128).getInt();
// pageNo is deliberately not included into length to preserve compatibility
// TODO: remove this adjustment when page on disk format is re-organized
length += 4;
}
length = (int) Math.min(maxPos - filePos, length);
if (length < 0) {
throw DataUtils.newMVStoreException(DataUtils.ERROR_FILE_CORRUPT,
"Illegal page length {0} reading at {1}; max pos {2} ", length, filePos, maxPos);
}
ByteBuffer buff = fileStore.readFully(filePos, length);
if (originalBlock == block) {
return buff;
}
} catch (MVStoreException ex) {
if (originalBlock == block) {
throw ex;
}
}
}
}
这个方法其实不难理解，结合上一篇关于chunk的介绍基本上没什么大问题。
// filePos：chunk的起始位置。long filePos = originalBlock * MVStore.BLOCK_SIZE;long maxPos = filePos + len * MVStore.BLOCK_SIZE;// chunk的起始位置加上这个页的偏移量offsetfilePos += offset;.....//计算出page的最大长度，不是page的精确长度length = (int) Math.min(maxPos - filePos, length);.....//读入字节到ByteBuffer，其实位置filePos，长度lengthByteBuffer buff = fileStore.readFully(filePos, length);
接着从ByteBuffer中读入Page，执行方法p = Page.read(buff, pos, map);
具体实现如下：
/** * Read a page. * * @param buff ByteBuffer containing serialized page info * @param pos the position * @param map the map * @return the page */static <K,V> Page<K,V> read(ByteBuffer buff, long pos, MVMap<K,V> map) { boolean leaf = (DataUtils.getPageType(pos) & 1) == PAGE_TYPE_LEAF; Page<K,V> p = leaf ? new Leaf<>(map) : new NonLeaf<>(map); p.pos = pos; p.read(buff); return p;}
需要关注的是：
把map通过构造方法传给Page。Page中有一个成员变量map。并且前面也说过map有一个成员变量是MVStore。由此形成了如下应用关系：
Page ==> Map ==> MVStore
Page<K,V> p = leaf ? new Leaf<>(map) : new NonLeaf<>(map); p.pos = pos;
接着是： p.read(buff);
就是按照前面说的page的结构来解析的。首先是page的长度pageLength。然后是校验和check，然后是mapId，然后是page中key的数量len，接着调用createKeyStorage(len)方法创建给page的keys属性初始化。然后是读取page的类型type。
/** * Read the page from the buffer. * * @param buff the buffer to read from */private void read(ByteBuffer buff) { int chunkId = DataUtils.getPageChunkId(pos); int offset = DataUtils.getPageOffset(pos); int start = buff.position(); int pageLength = buff.getInt(); // does not include optional part (pageNo) int remaining = buff.remaining() + 4; if (pageLength > remaining || pageLength < 4) { throw DataUtils.newMVStoreException(DataUtils.ERROR_FILE_CORRUPT, "File corrupted in chunk {0}, expected page length 4..{1}, got {2}", chunkId, remaining, pageLength); } short check = buff.getShort(); int checkTest = DataUtils.getCheckValue(chunkId) ^ DataUtils.getCheckValue(offset) ^ DataUtils.getCheckValue(pageLength); if (check != (short) checkTest) { throw DataUtils.newMVStoreException(DataUtils.ERROR_FILE_CORRUPT, "File corrupted in chunk {0}, expected check value {1}, got {2}", chunkId, checkTest, check); } int mapId = DataUtils.readVarInt(buff); if (mapId != map.getId()) { throw DataUtils.newMVStoreException(DataUtils.ERROR_FILE_CORRUPT, "File corrupted in chunk {0}, expected map id {1}, got {2}", chunkId, map.getId(), mapId); } int len = DataUtils.readVarInt(buff); keys = createKeyStorage(len); int type = buff.get(); if(isLeaf() != ((type & 1) == PAGE_TYPE_LEAF)) { throw DataUtils.newMVStoreException( DataUtils.ERROR_FILE_CORRUPT, "File corrupted in chunk {0}, expected node type {1}, got {2}", chunkId, isLeaf() ? "0" : "1" , type); } // jump ahead and read pageNo, because if page is compressed, // buffer will be replaced by uncompressed one if ((type & DataUtils.PAGE_HAS_PAGE_NO) != 0) { int position = buff.position(); buff.position(start + pageLength); pageNo = DataUtils.readVarInt(buff); buff.position(position); } // to restrain hacky GenericDataType, which grabs the whole remainder of the buffer buff.limit(start + pageLength); if (!isLeaf()) { readPayLoad(buff); } boolean compressed = (type & DataUtils.PAGE_COMPRESSED) != 0; if (compressed) { Compressor compressor; if ((type & DataUtils.PAGE_COMPRESSED_HIGH) == DataUtils.PAGE_COMPRESSED_HIGH) { compressor = map.getStore().getCompressorHigh(); } else { compressor = map.getStore().getCompressorFast(); } int lenAdd = DataUtils.readVarInt(buff); int compLen = buff.remaining(); byte[] comp; int pos = 0; if (buff.hasArray()) { comp = buff.array(); pos = buff.arrayOffset() + buff.position(); } else { comp = Utils.newBytes(compLen); buff.get(comp); } int l = compLen + lenAdd; buff = ByteBuffer.allocate(l); compressor.expand(comp, pos, compLen, buff.array(), buff.arrayOffset(), l); } map.getKeyType().read(buff, keys, len); if (isLeaf()) { readPayLoad(buff); } diskSpaceUsed = pageLength; recalculateMemory();}
接着是调用map.getKeyType().read(buff, keys, len);继续读取内容到key中，
@Overridepublic void read(ByteBuffer buff, Object storage, int len) { for (int i = 0; i < len; i++) { cast(storage)[i] = read(buff); }}
具体实现是由子类的read(ByteBuffer buff)方法实现，以Key为String类型为例，在ByteBuffer中，会以key的长度+key的内容的排列形式存储。比如像key=chunk.1,那么在chunk.1前面就会有一个7来表示后面要读如的key=chunk.1的长度。然后程序就一会一个一个字节地读入，最后返回一个String。
接着，如果是叶子结点的话会继续读入内容
if (isLeaf()) { readPayLoad(buff);}
具体实现：
@Overrideprotected void readPayLoad(ByteBuffer buff) { int keyCount = getKeyCount(); values = createValueStorage(keyCount); map.getValueType().read(buff, values, getKeyCount());}
可以看到是跟读入key的时候差不多的。 Leaf 的变量 V[] values，传入去读出来然后赋值。
public void read(ByteBuffer buff, Object storage, int len) { for (int i = 0; i < len; i++) { cast(storage)[i] = read(buff); }}

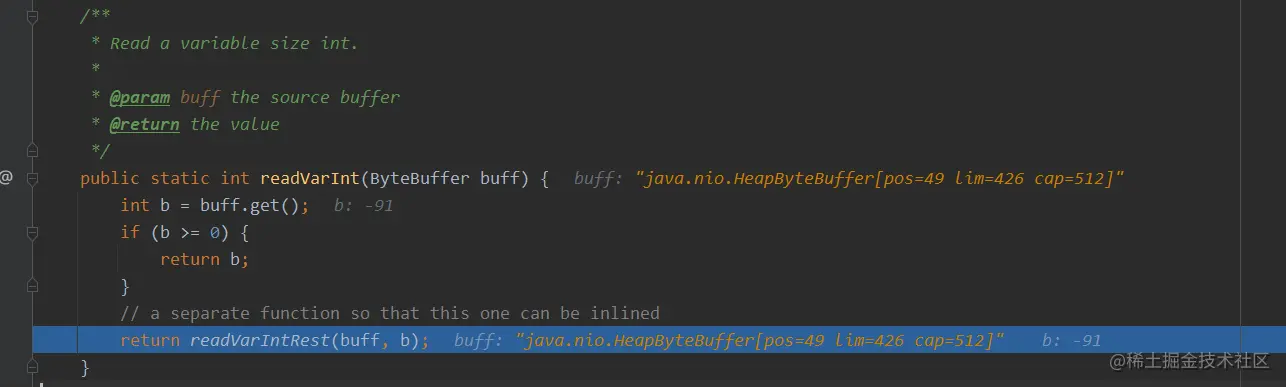

注意，当长度是个超过一个byte的范围的时候，会去调用readVarIntRest(buff, b);方法
private static int readVarIntRest(ByteBuffer buff, int b) { int x = b & 0x7f; b = buff.get(); if (b >= 0) { return x | (b << 7); } x |= (b & 0x7f) << 7; b = buff.get(); if (b >= 0) { return x | (b << 14); } x |= (b & 0x7f) << 14; b = buff.get(); if (b >= 0) { return x | b << 21; } x |= ((b & 0x7f) << 21) | (buff.get() << 28); return x;}
最后返回一个整数int

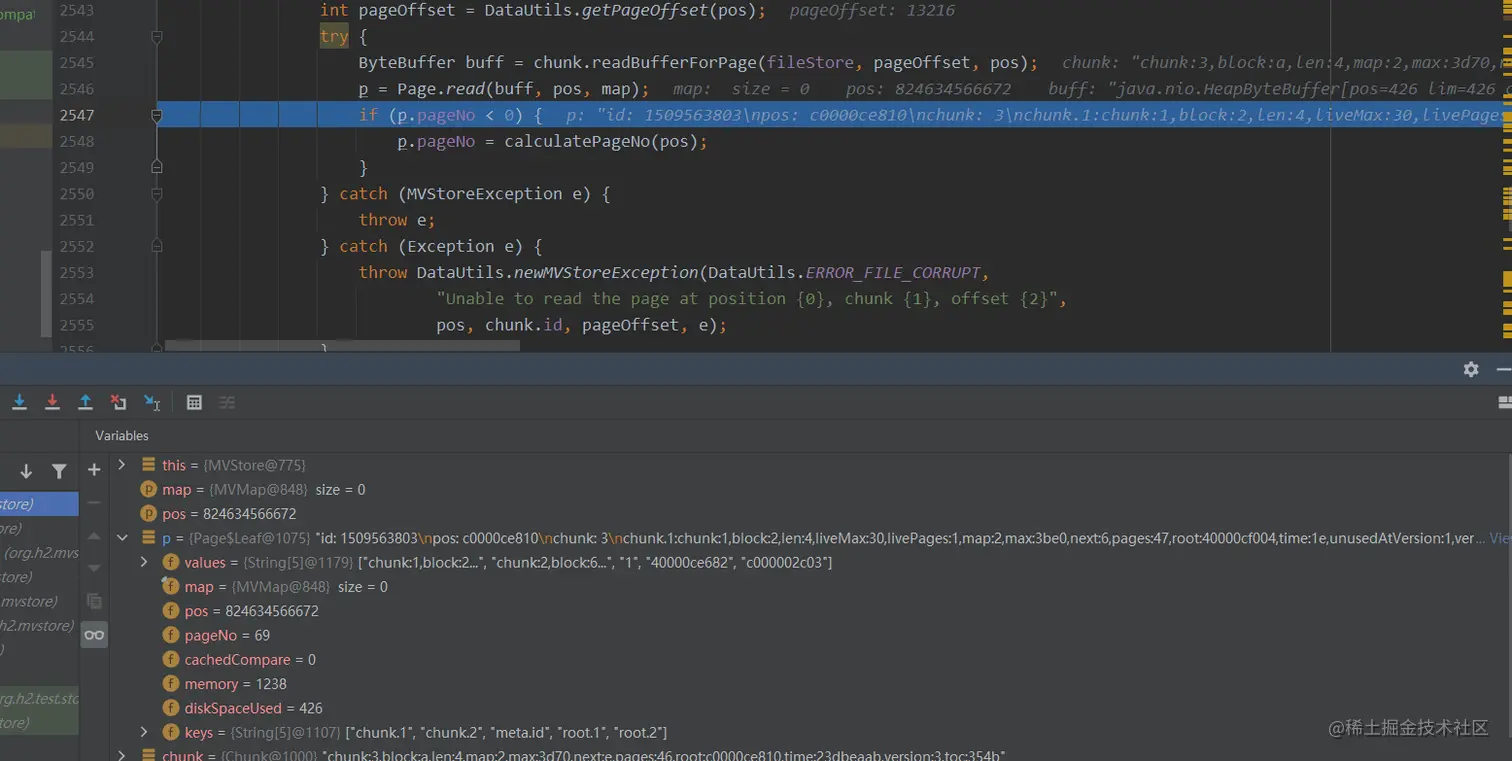

可以看到page读出来后，属性keys，values都有值了。
2.2setInitialRoot
将读出来的page传入方法setInitialRoot
/** * Set the initial root. * * @param rootPage root page * @param version initial version */final void setInitialRoot(Page<K,V> rootPage, long version) { root.set(new RootReference<>(rootPage, version));}
RootReference有很多构造函数，上面这个目前只是赋值。RootReference的构造函数会有很多用途，后面会讲到
// This one is used to set root initially and for r/o snapshotsRootReference(Page<K,V> root, long version) { this.root = root; this.version = version; this.previous = null; this.updateCounter = 1; this.updateAttemptCounter = 1; this.holdCount = 0; this.ownerId = 0; this.appendCounter = 0;}
2.3setWriteVersion(store.getCurrentVersion())
final RootReference<K,V> setWriteVersion(long writeVersion) { int attempt = 0; while(true) { RootReference<K,V> rootReference = flushAndGetRoot(); if(rootReference.version >= writeVersion) { return rootReference; } else if (isClosed()) { // map was closed a while back and can not possibly be in use by now // it's time to remove it completely from the store (it was anonymous already) if (rootReference.getVersion() + 1 < store.getOldestVersionToKeep()) { store.deregisterMapRoot(id); return null; } } RootReference<K,V> lockedRootReference = null; if (++attempt > 3 || rootReference.isLocked()) { lockedRootReference = lockRoot(rootReference, attempt); rootReference = flushAndGetRoot(); } try { rootReference = rootReference.tryUnlockAndUpdateVersion(writeVersion, attempt); if (rootReference != null) { lockedRootReference = null; removeUnusedOldVersions(rootReference); return rootReference; } } finally { if (lockedRootReference != null) { unlockRoot(); } } }}
第一步先获取rootReference
RootReference<K,V> rootReference = flushAndGetRoot();暂时没有理解到flushAppendBuffer(rootReference, true);这个分支的作用 /** * Get the root reference, flushing any current append buffer. * * @return current root reference */ public RootReference<K,V> flushAndGetRoot() { RootReference<K,V> rootReference = getRoot(); if (singleWriter && rootReference.getAppendCounter() > 0) { return flushAppendBuffer(rootReference, true); } return rootReference; }
第二步比较重要的是去到rootReference = rootReference.tryUnlockAndUpdateVersion(writeVersion, attempt);
rootReference = rootReference.tryUnlockAndUpdateVersion(writeVersion, attempt);返回一个新的RootReference /** * Try to unlock, and if successful update the version * * @param version the version * @param attempt the number of attempts so far * @return the new, unlocked and updated, root reference, or null if not successful */ RootReference<K,V> tryUnlockAndUpdateVersion(long version, int attempt) { return canUpdate() ? tryUpdate(new RootReference<>(this, version, attempt)) : null; } // This one is used for version change private RootReference(RootReference<K,V> r, long version, int attempt) { RootReference<K,V> previous = r; RootReference<K,V> tmp; while ((tmp = previous.previous) != null && tmp.root == r.root) { previous = tmp; } this.root = r.root; this.version = version; this.previous = previous; this.updateCounter = r.updateCounter + 1; this.updateAttemptCounter = r.updateAttemptCounter + attempt; this.holdCount = r.holdCount == 0 ? 0 : (byte)(r.holdCount - 1); this.ownerId = this.holdCount == 0 ? 0 : r.ownerId; assert r.appendCounter == 0; this.appendCounter = 0; }
可以看到运用了一个previous的指针指向上一个版本，有点类似于Mysql InnoDB引擎中的Read Commited和REPEATABEL READ级别下使用的一种叫“一致性非锁定读”的技术。
结合MVMap中的一个回滚的方法来看应该就是为了版本管理：
/** * Roll the root back to the specified version. * * @param version to rollback to * @return true if rollback was a success, false if there was not enough in-memory history */boolean rollbackRoot(long version) { RootReference<K,V> rootReference = flushAndGetRoot(); RootReference<K,V> previous; while (rootReference.version >= version && (previous = rootReference.previous) != null) { if (root.compareAndSet(rootReference, previous)) { rootReference = previous; closed = false; } } setWriteVersion(version); return rootReference.version < version;}
