基于Mac环境Kylin-2.x源码编译

YBCarry_段松啓
627 阅读3分钟

一、写在前面

1、需求提出

  • 当前环境Kylin版本为2.6，现在需要兼容CDH平台的大数据组件，从Kylin官网下载页面查看到的Kylin-2.6官方匹配CDH版本为5.7和6.0，与要兼容的CDH版本不一致，为避免之后由于版本差异带来的兼容性问题，对Kylin-2.6进行指定CDH版本编译。

2、存在问题

  • 由于Kylin-2.x部分版本相对久远，在Mac环境编译可能存在相关依赖的前端组件版本兼容性问题，现将全流程和趟坑经验分享如下。

二、前置准备

1、编译环境

  • macOS Catalina 10.15.5
  • JDK 8
  • Maven 3.6.3

2、前端环境

  • nodejs
  • bower
  • phantomjs

3、修改pom.xml文件

  • <1>. 添加阿里云仓库，提高依赖下载速度
    • <repository>
  <id>nexus-aliyun</id>
  <name>nexus-aliyun</name>
  <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
  <releases>
      <enabled>true</enabled>
  </releases>
  <snapshots>
      <enabled>false</enabled>
  </snapshots>
</repository>
<repository>
  <id>alimaven</id>
  <name>aliyun maven</name>
  <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
</repository>
  • <2>. 修改cdh5.7为对应所要编译的CDH版本
    • vi /XXX/apache-kylin-2.6.0/pom.xml：
    • $> sed -i "s/2.6.0-cdh5.7.0/2.6.0-cdhXXXX/g" `grep "cdh" -rl pom.xml`
$> sed -i "s/1.1.0-cdh5.7.0/1.1.0-cdhXXXX/g" `grep "cdh" -rl pom.xml`
$> sed -i "s/1.2.0-cdh5.7.0/1.2.0-cdhXXXX/g" `grep "cdh" -rl pom.xml`
$> sed -i "s/3.4.5-cdh5.7.0/3.4.5-cdhXXXX/g" `grep "cdh" -rl pom.xml`
$> sed -i "s/cdh5.7/cdhXXXX/g" `grep "cdh" -rl pom.xml`
  • <3>. 找到net.alchim31.maven，对版本取消注释
    • <plugin>
  <groupId>net.alchim31.maven</groupId>
  <artifactId>scala-maven-plugin</artifactId>
  <!-- uncomment this on release -->
  <version>3.4.1</version>
</plugin>

三、编译Kylin

1、编译命令

  • sudo build/script/package.sh -Dmaven.test.skip=true -Dcheckstyle.skip -PcdhXXX
    • 说明：
      • -Dmaven.test.skip=true：跳过单元测试的运行和跳过测试代码的编译
      • -DskipTests：跳过单元测试，但是会继续编译
      • 编译中会执行bower --allow-root install，需要添加sudo

2、编译后续步骤

  • 在/XXX/apache-kylin-2.6.0/build/script/build.sh查看到：

    • #package webapp
echo 'package front-end'
cd webapp
npm install -g bower			 || { exit 1; }
bower --allow-root install		 || { exit 1; }
npm install						 || { exit 1; }
npm install -g grunt-cli		 || { exit 1; }
grunt dev --buildEnv=dev --buildNumber=`date "+%Y%m%d%H%M%S"`  || { exit 1; }

  • 下面报错开始了...

  • <1>. 执行到bower --allow-root install

    • 报错1： image.png

    • 解决：

      • git config --global url."git://".insteadOf https://
      • 或者
      • git config --global url."https://".insteadOf git://
      • 本人使用git config --global url."git://".insteadOf https://解决

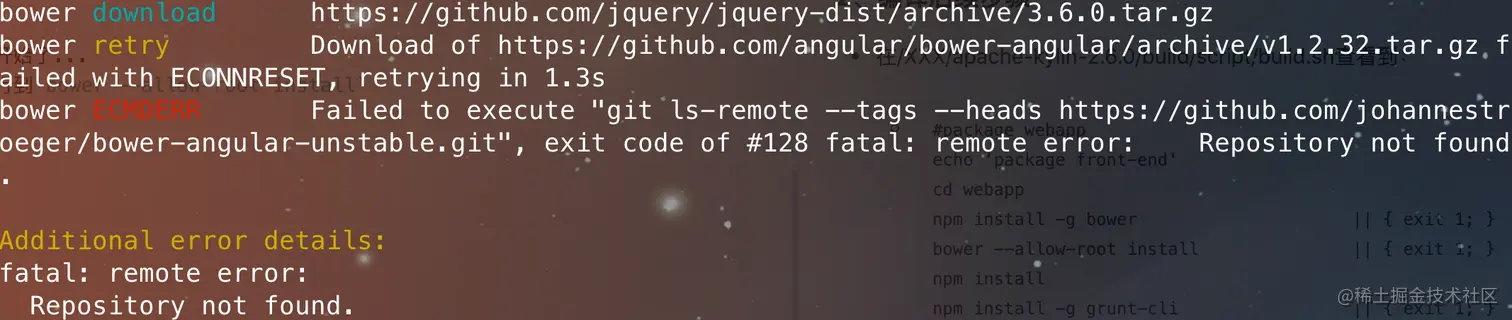

    • 报错2：

      • 由于不可知原因，https://github.com/johannestroeger/bower-angular-unstable.git 已经在GitHub消失了...

    • 解决：

      • 修改/XXX/apache-kylin-2.6.0/webapp/bower.json：
      • 把"angular-mocks-unstable": "~1.1.5"替换为："angular-mocks": "~1.2.0"

  • <2>. 执行到npm install

    • 报错：
      • phantomjs版本与系统安装版本不一致：
      • phantomjs查找版本：phantomjs-1.9.8
      • phantomjs安装版本：phantomjs-2.1.1
    • 解决：
      • 尝试手动安装部署phantomjs-1.9.8，发现与macOS Catalina 10.15.5不兼容： image.png
      • 查找phantomjs版本校验位置：
      • /XXX/apache-kylin-2.6.0/webapp/package-lock.json
      • 删除phantomjs部分：
      •   "phantomjs": {
    "version": "1.9.20",
    "resolved": "https://registry.npmjs.org/phantomjs/-/phantomjs-1.9.20.tgz",
    "integrity": "sha1-RCSsog4U0lXAsIia9va4lz2hDg0=",
    "dev": true,
    "requires": {
      "extract-zip": "~1.5.0",
      "fs-extra": "~0.26.4",
      "hasha": "^2.2.0",
      "kew": "~0.7.0",
      "progress": "~1.1.8",
      "request": "~2.67.0",
      "request-progress": "~2.0.1",
      "which": "~1.2.2"
    },
    "dependencies": {
      "async": {
        "version": "2.6.3",
        "resolved": "https://registry.npmjs.org/async/-/async-2.6.3.tgz",
        "integrity": "sha512-zflvls11DCy+dQWzTW2dzuilv8Z5X/pjfmZOWba6TNIVDm+2UDaJmXSOXlasHKfNBs8oo3M0aT50fDEWfKZjXg==",
        "dev": true,
        "requires": {
          "lodash": "^4.17.14"
        }
      },
      "boom": {
        "version": "2.10.1",
        "resolved": "https://registry.npmjs.org/boom/-/boom-2.10.1.tgz",
        "integrity": "sha1-OciRjO/1eZ+D+UkqhI9iWt0Mdm8=",
        "dev": true,
        "requires": {
          "hoek": "2.x.x"
        }
      },
      "combined-stream": {
        "version": "1.0.8",
        "resolved": "https://registry.npmjs.org/combined-stream/-/combined-stream-1.0.8.tgz",
        "integrity": "sha512-FQN4MRfuJeHf7cBbBMJFXhKSDq+2kAArBlmRBvcvFE5BB1HZKXtSFASDhdlz9zOYwxh8lDdnvmMOe/+5cdoEdg==",
        "dev": true,
        "requires": {
          "delayed-stream": "~1.0.0"
        }
      },
      "cryptiles": {
        "version": "2.0.5",
        "resolved": "https://registry.npmjs.org/cryptiles/-/cryptiles-2.0.5.tgz",
        "integrity": "sha1-O9/s3GCBR8HGcgL6KR59ylnqo7g=",
        "dev": true,
        "requires": {
          "boom": "2.x.x"
        }
      },
      "delayed-stream": {
        "version": "1.0.0",
        "resolved": "https://registry.npmjs.org/delayed-stream/-/delayed-stream-1.0.0.tgz",
        "integrity": "sha1-3zrhmayt+31ECqrgsp4icrJOxhk=",
        "dev": true
      },
      "forever-agent": {
        "version": "0.6.1",
        "resolved": "https://registry.npmjs.org/forever-agent/-/forever-agent-0.6.1.tgz",
        "integrity": "sha1-+8cfDEGt6zf5bFd60e1C2P2sypE=",
        "dev": true
      },
      "form-data": {
        "version": "1.0.1",
        "resolved": "https://registry.npmjs.org/form-data/-/form-data-1.0.1.tgz",
        "integrity": "sha1-rjFduaSQf6BlUCMEpm13M0de43w=",
        "dev": true,
        "requires": {
          "async": "^2.0.1",
          "combined-stream": "^1.0.5",
          "mime-types": "^2.1.11"
        }
      },
      "hawk": {
        "version": "3.1.3",
        "resolved": "https://registry.npmjs.org/hawk/-/hawk-3.1.3.tgz",
        "integrity": "sha1-B4REvXwWQLD+VA0sm3PVlnjo4cQ=",
        "dev": true,
        "requires": {
          "boom": "2.x.x",
          "cryptiles": "2.x.x",
          "hoek": "2.x.x",
          "sntp": "1.x.x"
        }
      },
      "hoek": {
        "version": "2.16.3",
        "resolved": "https://registry.npmjs.org/hoek/-/hoek-2.16.3.tgz",
        "integrity": "sha1-ILt0A9POo5jpHcRxCo/xuCdKJe0=",
        "dev": true
      },
      "json-stringify-safe": {
        "version": "5.0.1",
        "resolved": "https://registry.npmjs.org/json-stringify-safe/-/json-stringify-safe-5.0.1.tgz",
        "integrity": "sha1-Epai1Y/UXxmg9s4B1lcB4sc1tus=",
        "dev": true
      },
      "lodash": {
        "version": "4.17.21",
        "resolved": "https://registry.npmjs.org/lodash/-/lodash-4.17.21.tgz",
        "integrity": "sha512-v2kDEe57lecTulaDIuNTPy3Ry4gLGJ6Z1O3vE1krgXZNrsQ+LFTGHVxVjcXPs17LhbZVGedAJv8XZ1tvj5FvSg==",
        "dev": true
      },
      "oauth-sign": {
        "version": "0.8.2",
        "resolved": "https://registry.npmjs.org/oauth-sign/-/oauth-sign-0.8.2.tgz",
        "integrity": "sha1-Rqarfwrq2N6unsBWV4C31O/rnUM=",
        "dev": true
      },
      "qs": {
        "version": "5.2.1",
        "resolved": "https://registry.npmjs.org/qs/-/qs-5.2.1.tgz",
        "integrity": "sha1-gB/uAw4LlFDWOFrcSKTMVbRK7fw=",
        "dev": true
      },
      "request": {
        "version": "2.67.0",
        "resolved": "https://registry.npmjs.org/request/-/request-2.67.0.tgz",
        "integrity": "sha1-ivdHgOK/EeoK6aqWXBHxGv0nJ0I=",
        "dev": true,
        "requires": {
          "aws-sign2": "~0.6.0",
          "bl": "~1.0.0",
          "caseless": "~0.11.0",
          "combined-stream": "~1.0.5",
          "extend": "~3.0.0",
          "forever-agent": "~0.6.1",
          "form-data": "~1.0.0-rc3",
          "har-validator": "~2.0.2",
          "hawk": "~3.1.0",
          "http-signature": "~1.1.0",
          "is-typedarray": "~1.0.0",
          "isstream": "~0.1.2",
          "json-stringify-safe": "~5.0.1",
          "mime-types": "~2.1.7",
          "node-uuid": "~1.4.7",
          "oauth-sign": "~0.8.0",
          "qs": "~5.2.0",
          "stringstream": "~0.0.4",
          "tough-cookie": "~2.2.0",
          "tunnel-agent": "~0.4.1"
        }
      },
      "sntp": {
        "version": "1.0.9",
        "resolved": "https://registry.npmjs.org/sntp/-/sntp-1.0.9.tgz",
        "integrity": "sha1-ZUEYTMkK7qbG57NeJlkIJEPGYZg=",
        "dev": true,
        "requires": {
          "hoek": "2.x.x"
        }
      },
      "tunnel-agent": {
        "version": "0.4.3",
        "resolved": "https://registry.npmjs.org/tunnel-agent/-/tunnel-agent-0.4.3.tgz",
        "integrity": "sha1-Y3PbdpCf5XDgjXNYM2Xtgop07us=",
        "dev": true
      },
      "which": {
        "version": "1.2.14",
        "resolved": "https://registry.npmjs.org/which/-/which-1.2.14.tgz",
        "integrity": "sha1-mofEN48D6CfOyvGs31bHNsAcFOU=",
        "dev": true,
        "requires": {
          "isexe": "^2.0.0"
        }
      }
    }
  },

四、结束

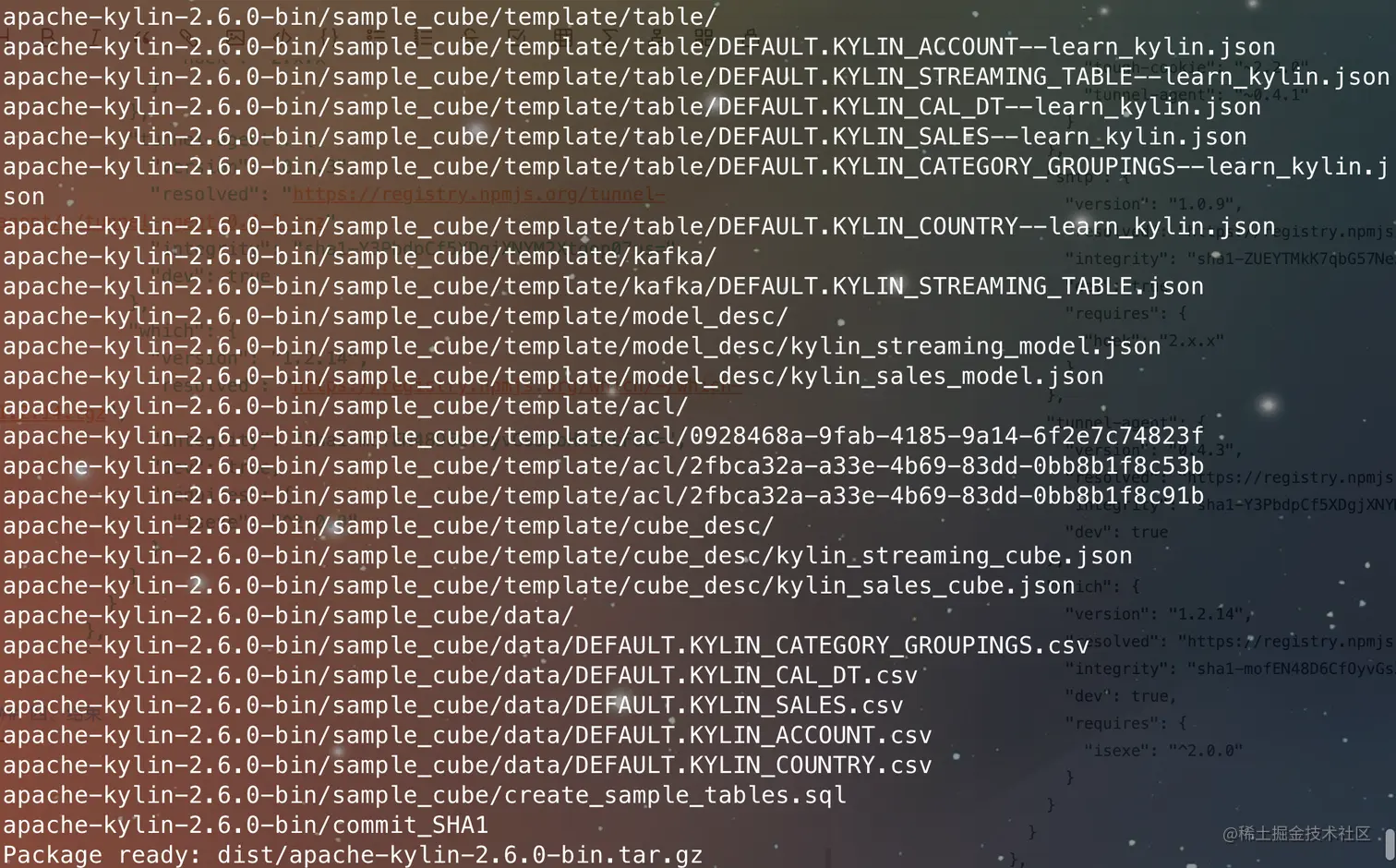

  • 安装包位置：
    • /XXX/apache-kylin-2.6.0/dist：
    • apache-kylin-2.6.0-bin.tar.gz
