背景
看过egg文档的话，应该对它描述的“内置多进程管理”有点印象吧。
我们也知道，node中js的执行是单线程的，无法更好利用服务器资源。为了解决这个问题，一般是用PM2进程管理，多个进程共用一个端口； 以及node自带的cluster模块。
那么本文主要描述的便是egg-cluster
在这之前，需要先简单描述下egg项目的npm run dev，其实是执行egg-bin中的run方法，最终是会执行egg-cluster暴露出的startCluster方法。
require(options.framework).startCluster(options);
什么是egg-cluster?
egg-cluster是egg内置的基础模块之一,能够更好利用服务器资源,解决一个进程只能运行在一个CPU的问题。通过node提供的cluster实现了多进程模式，并且一般会根据服务器的 CPU 核数来定Worker 进程的数量，达到更好利用多核资源。
关于egg多进程模型
在了解egg多进程模型之前，需要先描述下 IPC，即‘进程间通讯’

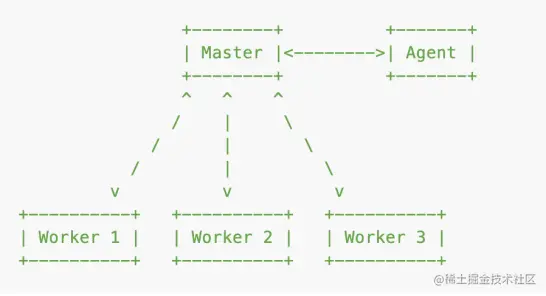

以下这张图便是来自官网文档的进程模型。cluster 的 IPC 通道只存在于 Master 和 Worker/Agent 之间，Worker 与 Agent 进程互相间是没有的，通过 Master 来转发。

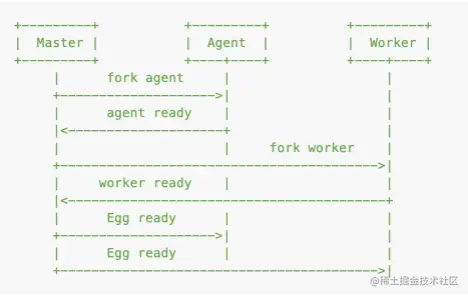

框架的启动时序如下：
- Master 启动后先 fork Agent 进程
- Agent 初始化成功后，通过 IPC 通道通知 Master
- Master 再 fork 多个 App Worker
- App Worker 初始化成功，通知 Master
- 所有的进程初始化成功后，Master 通知 Agent 和 Worker 应用启动成功
当一个应用启动时，大致上就是利用Master作为主线程，启动Agent作为秘书进程协助Worker处理一些公共事务（日志之类），启动Worker进程执行真正的业务代码。
接下来我们看看具体的实现
egg-cluster启动流程源码
从入口文件index.js看，egg在此处暴露了egg.startCluster,且这个API的作用主要是启动Master
exports.startCluster = function(options, callback) {
new Master(options).ready(callback);
};
接下来便从Master出发
class Master extends EventEmitter {
constructor(options) {
super();
// 初始化参数，如https，port等
this.options = parseOptions(options);
// worker实例,包含setAgent/deleteAgent/setWorker/getWorker等
this.workerManager = new Manager();
// messenger实例,相关通信规则
this.messenger = new Messenger(this);
// get-ready模块
ready.mixin(this);
//判断环境
this.isProduction = isProduction();
...
//Master启动后处理
this.ready(() => {
this.isStarted = true;
//发送egg-ready至各个进程
const action = "egg-ready";
this.messenger.send({action,to: "parent",data: {port: this[REAL_PORT],address: this[APP_ADDRESS], protocol: this[PROTOCOL],},});
this.messenger.send({action,to: "app",data: this.options,});
this.messenger.send({action,to: "agent",data: this.options,});
//进行检查处理,检查agent跟work状态
if (this.isProduction) {
this.workerManager.startCheck();
}
});
//事件注册监听
this.on("agent-exit", this.onAgentExit.bind(this));
this.on("agent-start", this.onAgentStart.bind(this));
this.on("app-exit", this.onAppExit.bind(this));
this.on("app-start", this.onAppStart.bind(this));
this.on("reload-worker", this.onReload.bind(this));
this.once("agent-start", this.forkAppWorkers.bind(this));
this.on("realport", ({ port, protocol }) => {
if (port) this[REAL_PORT] = port;
if (protocol) this[PROTOCOL] = protocol;
});
process.once("SIGINT", this.onSignal.bind(this, "SIGINT"));
process.once("SIGQUIT", this.onSignal.bind(this, "SIGQUIT"));
process.once("SIGTERM", this.onSignal.bind(this, "SIGTERM"));
process.once("exit", this.onExit.bind(this));
...
//检测端口,fork个agent
this.detectPorts().then(() => {
this.forkAgentWorker();
});
。。。
从上面代码可以看出，先是进行了准备工作，如：初始化参数、Manager实例（worker相关的处理setAgent/deleteAgent/setWorker/getWorker）、Messenger实例（用于master/agent/worker之间通讯）、注册事件监听（agent-exit/agent-start等），最主要的是下面这段过程，检测端口，fork个agent，我们看看检测完端口detectPorts后，forkAgentWorker的过程
forkAgentWorker() {
this.agentStartTime = Date.now();
const args = [JSON.stringify(this.options)];
const opt = {};
if (process.platform === "win32") opt.windowsHide = true;
// add debug execArgv
const debugPort = process.env.EGG_AGENT_DEBUG_PORT || 5800;
if (this.options.isDebug)
opt.execArgv = process.execArgv.concat([
`--${
semver.gte(process.version, "8.0.0") ? "inspect" : "debug"
}-port=${debugPort}`,
]);
const agentWorker = childprocess.fork(this.getAgentWorkerFile(), args, opt);
agentWorker.status = "starting";
agentWorker.id = ++this.agentWorkerIndex;
this.workerManager.setAgent(agentWorker)
// send debug message
if (this.options.isDebug) {
this.messenger.send({
to: "parent",
from: "agent",
action: "debug",
data: {
debugPort,
pid: agentWorker.pid,
},
});
}
// forwarding agent' message to messenger
agentWorker.on("message", (msg) => {
if (typeof msg === "string") {
msg = {
action: msg,
data: msg,
};
}
msg.from = "agent";
this.messenger.send(msg);
});
//监听agent报错
agentWorker.on("error", (err) => {
err.name = "AgentWorkerError";
err.id = agentWorker.id;
err.pid = agentWorker.pid;
this.logger.error(err);
});
// 监听agent退出 agent exit message
agentWorker.once("exit", (code, signal) => {
this.messenger.send({
action: "agent-exit",
data: {
code,
signal,
},
to: "master",
from: "agent",
});
});
}
可能代码有点多，其实最主要的是下面这句，用childprocess启动agent
const agentWorker = childprocess.fork(this.getAgentWorkerFile(), args, opt);
继续查this.getAgentWorkerFile
getAgentWorkerFile() {
return path.join(__dirname, "agent_worker.js");
}
继续挖进agent_worker.js，终于找到了。。如下，调用process.send发了通知“agent-start”给master
agent.ready(err => {
// don't send started message to master when start error
if (err) return;
agent.removeListener('error', startErrorHandler);
process.send({ action: 'agent-start', to: 'master' });
});
此时来到Master中的代码，那也就是接下来会执行相应的this.onAgentStart（）以及this.forkAppWorkers()
//注册事件监听
this.on("agent-exit", this.onAgentExit.bind(this));
this.on("agent-start", this.onAgentStart.bind(this));
this.on("app-exit", this.onAppExit.bind(this));
this.on("app-start", this.onAppStart.bind(this));
this.on("reload-worker", this.onReload.bind(this));
this.once("agent-start", this.forkAppWorkers.bind(this));
先来看看以下this.onAgentStart()代码，主要是进行通知的操作
onAgentStart() {
this.agentWorker.status = "started";
// Send egg-ready when agent is started after launched
if (this.isAllAppWorkerStarted) {
this.messenger.send({
action: "egg-ready",
to: "agent",
data: this.options,
});
}
this.messenger.send({
action: "egg-pids",
to: "app",
data: [this.agentWorker.pid],
});
// should send current worker pids when agent restart
if (this.isStarted) {
this.messenger.send({
action: "egg-pids",
to: "agent",
data: this.workerManager.getListeningWorkerIds(),
});
}
this.messenger.send({
action: "agent-start",
to: "app",
});
}
再往下看看接下来执行的this.forkAppWorkers()，cfork?此刻是否出现了疑问，查了下，npm上描述如下123，大概就是启动worker、重启以及日志监听。这个forkAppWorkers（）方法的过程主要就是cfork启动worker,触发相应的app-start。
1.- Easy fork with worker file path
2.- Handle worker restart, even it was exit unexpected.
3.- Auto error log process uncaughtException event
forkAppWorkers() {
this.appStartTime = Date.now();
this.isAllAppWorkerStarted = false;
this.startSuccessCount = 0;
const args = [JSON.stringify(this.options)];
//启动worker
cfork({
exec: this.getAppWorkerFile(),
args,
silent: false,
count: this.options.workers,
// don't refork in local env
refork: this.isProduction,
windowsHide: process.platform === "win32",
});
let debugPort = process.debugPort;
//master监听fork
cluster.on("fork", (worker) => {
worker.disableRefork = true;
this.workerManager.setWorker(worker);
worker.on("message", (msg) => {
if (typeof msg === "string") {
msg = {
action: msg,
data: msg,
};
}
msg.from = "app";
this.messenger.send(msg);
});
});
//监听disconnect
cluster.on("disconnect", (worker) => {
this.logger.info(
"[master] app_worker#%s:%s disconnect, suicide: %s, state: %s, current workers: %j",
worker.id,
worker.process.pid,
worker.exitedAfterDisconnect,
worker.state,
Object.keys(cluster.workers)
);
});
//监听worker的exit
cluster.on("exit", (worker, code, signal) => {
this.messenger.send({
action: "app-exit",
data: {
workerPid: worker.process.pid,
code,
signal,
},
to: "master",
from: "app",
});
});
//监听worker的listening
cluster.on("listening", (worker, address) => {
this.messenger.send({
action: "app-start",
data: {
workerPid: worker.process.pid,
address,
},
to: "master",
from: "app",
});
});
}
触发相应的app-start后，又回到Master的初始代码，接下来便会执行this.onAppStart()，如下所示，主要是worker发消息给agent以及app worker:‘egg-ready’。最后触发ready
this.on("app-start", this.onAppStart.bind(this));
onAppStart(data) {
const worker = this.workerManager.getWorker(data.workerPid);
const address = data.address;
// worker should listen stickyWorkerPort when sticky mode
if (this.options.sticky) {
if (String(address.port) !== String(this.options.stickyWorkerPort)) {
return;
}
// worker should listen REALPORT when not sticky mode
} else if (
!isUnixSock(address) &&
String(address.port) !== String(this[REAL_PORT])
) {
return;
}
// send message to agent with alive workers
this.messenger.send({
action: "egg-pids",
to: "agent",
data: this.workerManager.getListeningWorkerIds(),
});
...
...
// Send egg-ready when app is started after launched
if (this.isAllAppWorkerStarted) {
this.messenger.send({
action: "egg-ready",
to: "app",
data: this.options,
});
}
...
...
if (this.options.sticky) {
this.startMasterSocketServer((err) => {
if (err) return this.ready(err);
this.ready(true);
});
} else {
this.ready(true);
}
}
ready相关如下，master发消息给parent、app、agent：‘egg-ready’
this.ready(() => {
this.isStarted = true;
//发送egg-ready至各个进程
const action = "egg-ready";
this.messenger.send({action,to: "parent",data: {port: this[REAL_PORT],address: this[APP_ADDRESS], protocol: this[PROTOCOL],},});
this.messenger.send({action,to: "app",data: this.options,});
this.messenger.send({action,to: "agent",data: this.options,});
//进行检查处理,检查agent跟work状态
if (this.isProduction) {
this.workerManager.startCheck();
}
});
启动流程大概这样也就结束了，最后的最后，补充张来源于源码中messenger模块携带的进程通信关系图。
* master messenger,provide communication between parent, master, agent and app.
*
* ┌────────┐
* │ parent │
* /└────────┘\
* / | \
* / ┌────────┐ \
* / │ master │ \
* / └────────┘ \
* / / \ \
* ┌───────┐ ┌───────┐
* │ agent │ ------- │ app │
* └───────┘ └───────┘
*
总结
看完这篇，可以了解到, Master继承EventEmitter使用订阅/通知模式进行信息采集以及send进行转发.且会发现,agent是使用child_process.fork方法启动的，worker是通过cluster启动。

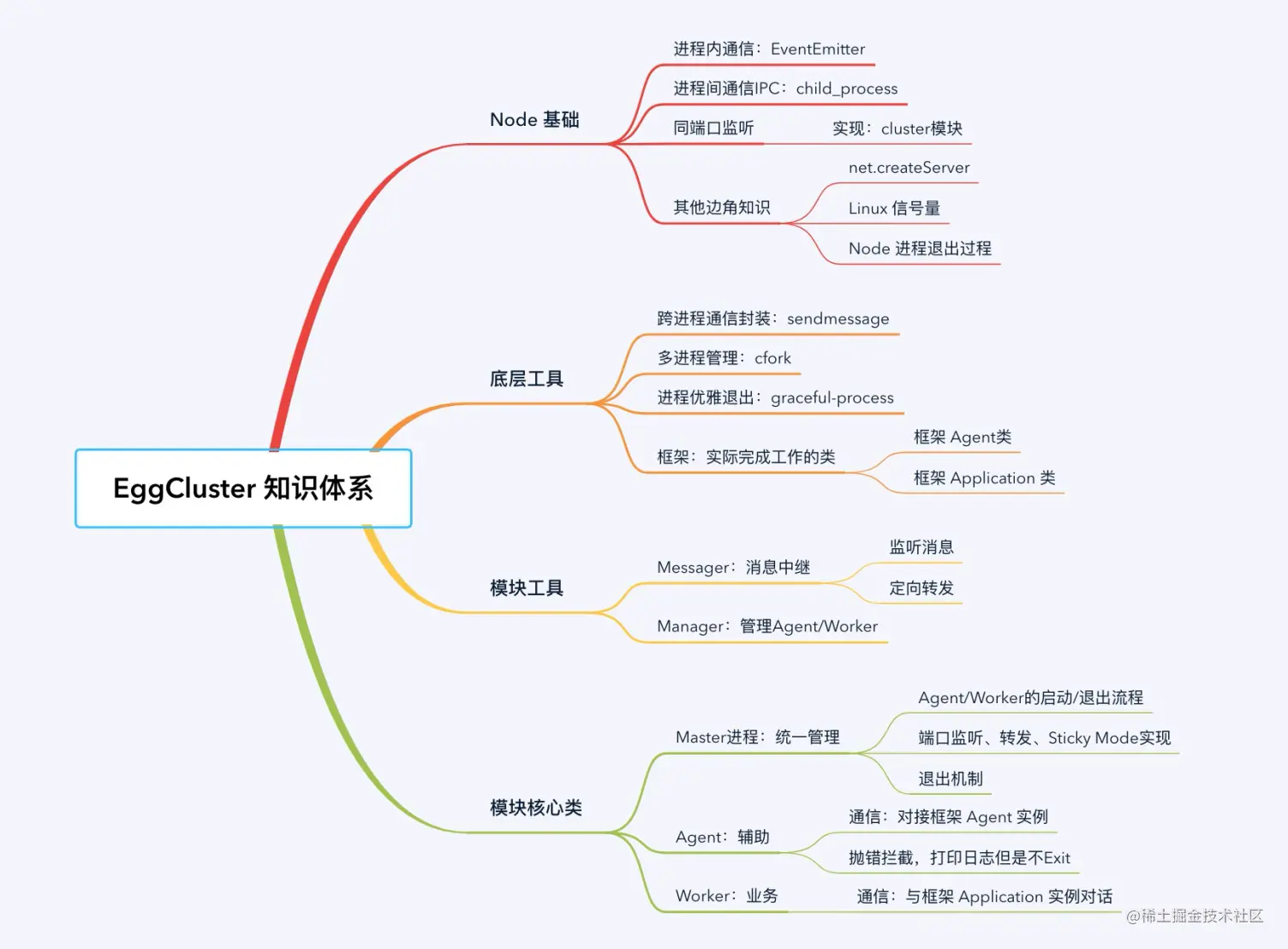

关于EggCluster涉及知识体系图如下:
