背景
前面一节就讲了独立的画线。这一章节结合有一个例子我们来画一个。
例子:画车道线
需求拆解
我们拿到道路数据,本质上就是一条条的线段,直接绘制出来就行。
但是要区分不能的线条类型。。
正文
单实线
拿了五条线的数据。
// 单实线
const line11 = [
new BABYLON.Vector3(0, 0, 0),
new BABYLON.Vector3(50, 0, 0)
]
const line12 = [
new BABYLON.Vector3(0, 0, 10),
new BABYLON.Vector3(50, 0, 10)
]
const line21 = [
new BABYLON.Vector3(0, 0, 10),
new BABYLON.Vector3(0, 0, 60)
]
const line22 = [
new BABYLON.Vector3(-10, 0, 10),
new BABYLON.Vector3(-10, 0, 60)
]
var line33 = [];
for(let i=180; i<=270; i++){
line33.push(new BABYLON.Vector3(10* Math.sin(i/180*Math.PI), 0, 10 + 10 * Math.cos(i/180*Math.PI)));
}
const singleSolidLineOptions = {
lines: [line11, line12, line21, line22, line33],
useVertexAlpha: false
}
BABYLON.MeshBuilder.CreateLineSystem('', singleSolidLineOptions, scene)
线宽
这个问题暂时没法解决 没找到width的配置项。 forum.babylonjs.com/t/setting-l…

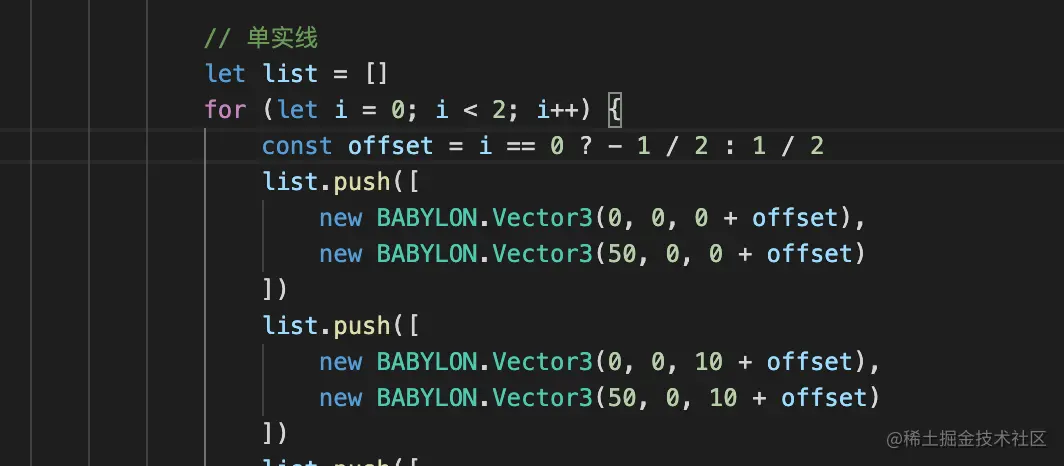

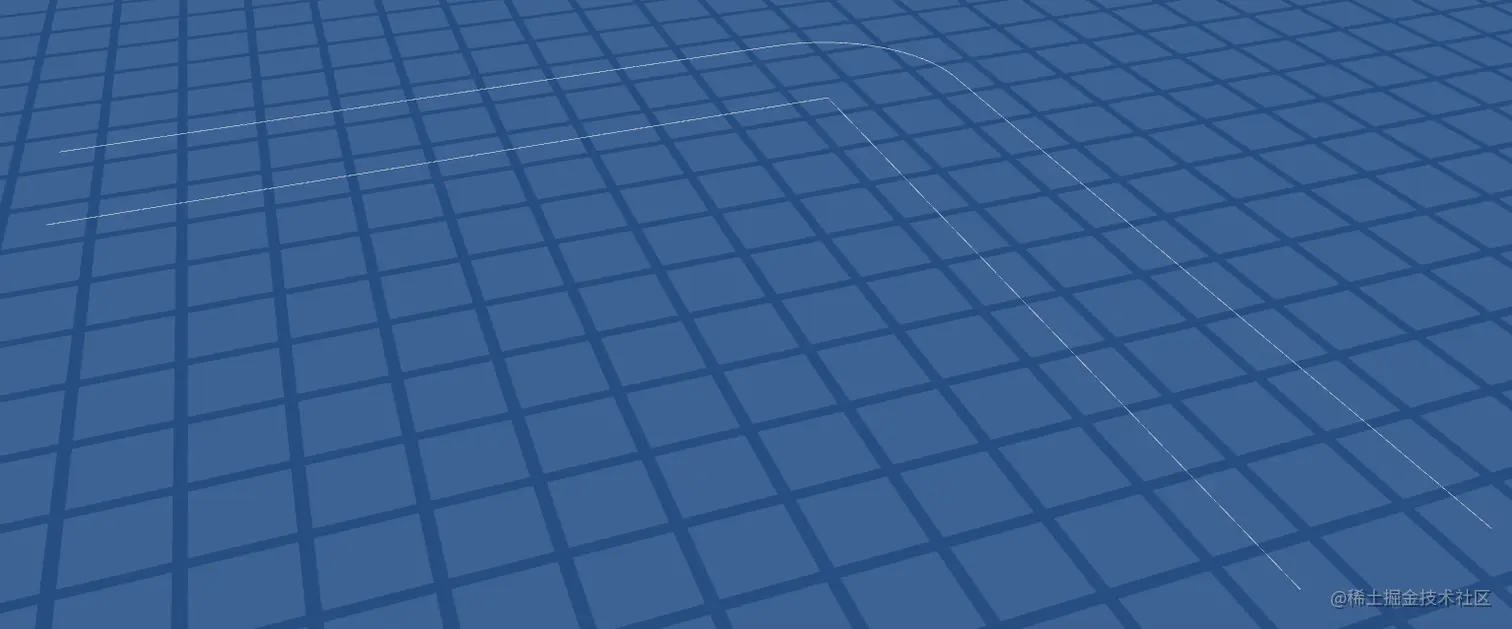

做一种尝试 那么就画两条线来处理。 但是线宽的1px实际上展示的时候不是这么回事。
不行。

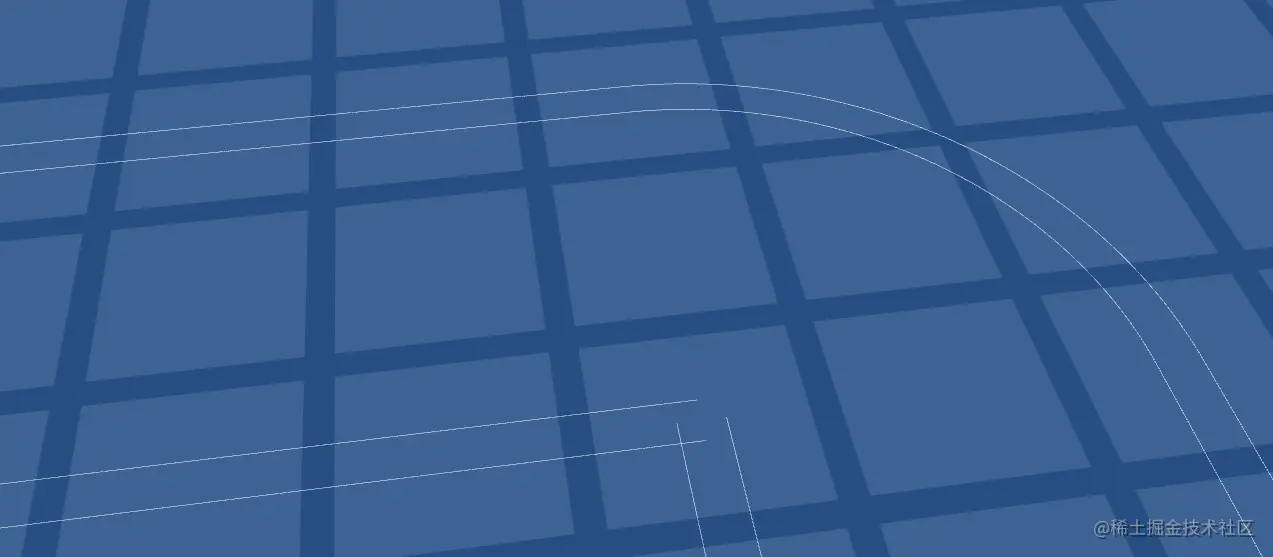

另外一种尝试就是用矩形。
如果用矩形实体的话距离远了会有看不清楚的问题,用线渲染不会有这个问题。还记得之前绘制车辆的时候,最开始不是用线框绘制的,在距离很高的天空往下看时车子看上去很模糊。
暂时放弃。
双黄线
const computeOffsetPoint = (targetPoint, referencePoint, changeSide = false) => {
const offsetDirection = referencePoint.subtract(targetPoint).cross(new BABYLON.Vector3(0, 1, 0)).normalize()
const offsetDimension = 0.3
if (changeSide) {
offsetDirection.scaleInPlace(-1.0)
}
const offsetPoint = targetPoint.add(offsetDirection.scale(offsetDimension))
return offsetPoint
}
// 双黄线
const line51 = [
computeOffsetPoint(new BABYLON.Vector3(0, 0, 5),new BABYLON.Vector3(50, 0, 5)),
computeOffsetPoint(new BABYLON.Vector3(50, 0, 5),new BABYLON.Vector3(100, 0, 5)),
]
const line52 = [
computeOffsetPoint(new BABYLON.Vector3(-5, 0, 10),new BABYLON.Vector3(-5, 0, 60)),
computeOffsetPoint(new BABYLON.Vector3(-5, 0, 60),new BABYLON.Vector3(-5, 0, 110)),
]
var line53 = [];
for (let i = 180; i <= 270; i++) {
line53.push(new BABYLON.Vector3(5 * Math.sin(i / 180 * Math.PI), 0, 10 + 5 * Math.cos(i / 180 * Math.PI)));
}
var line54 = []
for(let i = 0; i<line53.length-1; i++){
line54.push(computeOffsetPoint(line53[i], line53[i+1]))
}
const line511 = [
computeOffsetPoint(new BABYLON.Vector3(0, 0, 5),new BABYLON.Vector3(50, 0, 5), true),
computeOffsetPoint(new BABYLON.Vector3(50, 0, 5),new BABYLON.Vector3(100, 0, 5), true),
]
const line521 = [
computeOffsetPoint(new BABYLON.Vector3(-5, 0, 10),new BABYLON.Vector3(-5, 0, 60), true),
computeOffsetPoint(new BABYLON.Vector3(-5, 0, 60),new BABYLON.Vector3(-5, 0, 110), true),
]
var line541 = []
for(let i = 0; i<line53.length-1; i++){
line541.push(computeOffsetPoint(line53[i], line53[i+1], true))
}
const options22 = {
lines: [line51, line52, line54, line511, line521, line541],
useVertexAlpha: false
}
var line = BABYLON.MeshBuilder.CreateLineSystem('', options22, scene)
line.color = new BABYLON.Color3(1,1, 0)

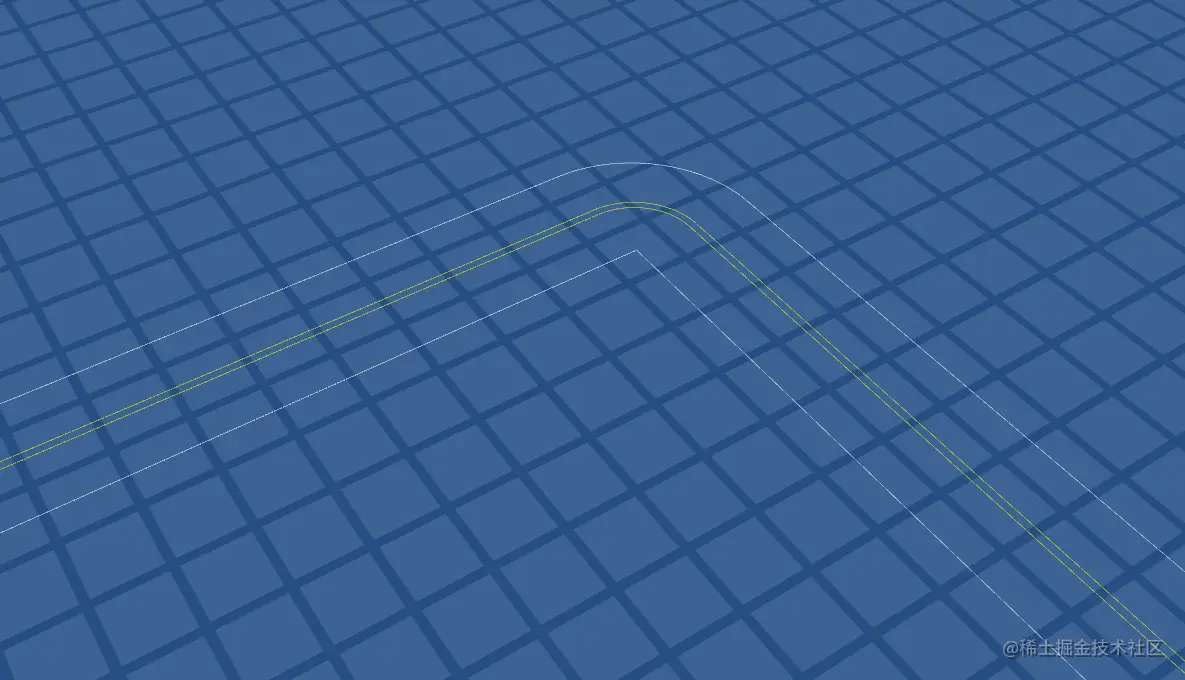

效果如下
还有一点再次再讲。涉及computeOffsetPoint这个方法。
真实地图绘制
就是数据源的区别。
地图的数据是直接从ue中导出,然后转成json格式的。
每个项目中数据源的格式不一样,处理的时候对应处理上就行。
"roadLine": [
{
"BoundaryPoints": [
{
"x": 349.93106079101563,
"y": -202.75816345214844,
"LineType": "solid",
"LineColor": "white"
},
...
这样子的格式,一条道路由一个BoundaryPoints的数据组成。
每个元素为一个道路点,表明了坐标,和这个点出去的线的样式和颜色。
