本文基于go1.15.8源码对GPM的系统初始化、协程创建及调度进行了分析,GPM调度器的相关结构体存在于runtime/runtime2.go中,而调度过程的源码主要集中在runtime/proc.go中。
关于GPM调度器的结构及容器参考:
arong.blog.csdn.net/article/det…
一、系统初始化
核心流程
Go程序的引导程序启动进行系统初始化,核心步骤:
- 调用osinit方法,根据操作系统CPU核数为ncpu字段赋值
- 调用schedinit方法,调度器初始化
- 调用newproc方法,创建G并加入队列中
- 调用mstart方法,开始初始化M,关联P对G进行调度
在系统初始化阶段,osinit及schedinit都是为运行时系统及调度器系统进行初始化,而newproc及mstart则是进行第一轮调度,主要是用于执行g0及main函数的主goroutine,后续创建用户G时仍会调用newproc及mstart对其进行调度。
osinit

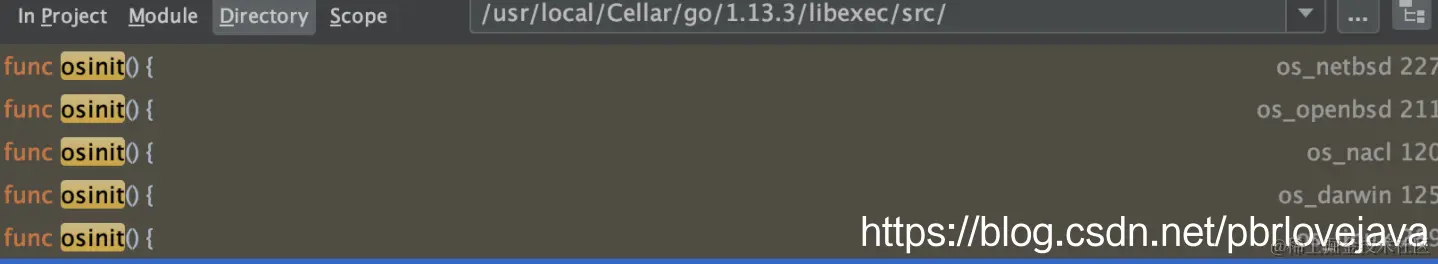

Go程序在启动时会根据当前所处的操作系统环境,去调用特定操作系统包的osinit方法:
osinit方法不仅对CPU核数进行判断,还会获取到当前操作系统下的页存大小:
func osinit() {
// 获取CPU核数
ncpu = getncpu()
if physPageSize == 0 {
physPageSize = getPageSize()
}
}
schedinit
schedinit方法主要对M和P进行初始化,M最大数量被限制为10000,M实例会在需要时被初始化,并在不需要时进行销毁,而P数量默认为cpu核心数和参数GOMAXPROCS即为ncpu数目,并且会被直接初始化。
func schedinit() {
// 从TLS或者专用寄存器获取当前g的指针类型
_g_ := getg()
// 设置M最大的数量
sched.maxmcount = 10000
// 初始化栈的复用空间
stackinit()
// 初始化当前M
mcommoninit(_g_.m)
// P数目默认为cpu核心数和参数GOMAXPROCS即为ncpu数目
procs := ncpu
if n, ok := atoi32(gogetenv("GOMAXPROCS")); ok && n > 0 {
procs = n
}
// 生成设定数量的P
if procresize(procs) != nil {
throw("unknown runnable goroutine during bootstrap")
}
}
mcommoninit
mcommoninit对当前M进行初始化,实际上是把M与allm列表进行关联,将M设置为allm列表表头。
func mcommoninit(mp *m) {
// 获取当前的G
_g_ := getg()
// 判断M数量是否比maxmcount设定的要多
checkmcount()
// 将当前M设置为allm列表表头
mp.alllink = allm
}
procresize
procresize可以初始化或更改指定数目的P,并将其添加到allp列表中,在调用procresize过程中,Go程序处于Stop the world状态,调度器也无法执行。
func procresize(nprocs int32) *p {
// 获取旧的P数目
old := gomaxprocs
if old < 0 || nprocs <= 0 {
throw("procresize: invalid arg")
}
now := nanotime()
if sched.procresizetime != 0 {
// 累加所有P初始化花费的时间
sched.totaltime += int64(old) * (now - sched.procresizetime)
}
// 为调度器标记P初始化的时间
sched.procresizetime = now
// 如果需要初始化的P数目大于旧P列表数目,则重新初始化allp列表
// 首先进行旧P列表的复制形成nallp,再复制回去allp = nallp,这是扩容操作
if nprocs > int32(len(allp)) {
// Synchronize with retake, which could be running
// concurrently since it doesn't run on a P.
lock(&allpLock)
if nprocs <= int32(cap(allp)) {
allp = allp[:nprocs]
} else {
nallp := make([]*p, nprocs)
// Copy everything up to allp's cap so we
// never lose old allocated Ps.
copy(nallp, allp[:cap(allp)])
allp = nallp
}
unlock(&allpLock)
}
// 对扩容过的allp中,未初始化的P进行初始化
for i := old; i < nprocs; i++ {
pp := allp[i]
if pp == nil {
pp = new(p)
}
pp.init(i)
atomicstorep(unsafe.Pointer(&allp[i]), unsafe.Pointer(pp))
}
// 对当前G及其关联的P进行校验,若已经存在关联的P则继续运行,不存在则从allp列表中取表头
// 关联到该G
_g_ := getg()
if _g_.m.p != 0 && _g_.m.p.ptr().id < nprocs {
_g_.m.p.ptr().status = _Prunning
_g_.m.p.ptr().mcache.prepareForSweep()
} else {
// release the current P and acquire allp[0].
//
// We must do this before destroying our current P
// because p.destroy itself has write barriers, so we
// need to do that from a valid P.
if _g_.m.p != 0 {
if trace.enabled {
// Pretend that we were descheduled
// and then scheduled again to keep
// the trace sane.
traceGoSched()
traceProcStop(_g_.m.p.ptr())
}
_g_.m.p.ptr().m = 0
}
_g_.m.p = 0
_g_.m.mcache = nil
p := allp[0]
p.m = 0
p.status = _Pidle
acquirep(p)
if trace.enabled {
traceGoStart()
}
}
// 如果是缩小了P列表,则需要销毁掉用不到的P
for i := nprocs; i < old; i++ {
p := allp[i]
p.destroy()
}
// 构建空闲P列表返回
var runnablePs *p
for i := nprocs - 1; i >= 0; i-- {
p := allp[i]
if _g_.m.p.ptr() == p {
continue
}
p.status = _Pidle
if runqempty(p) {
pidleput(p)
} else {
p.m.set(mget())
p.link.set(runnablePs)
runnablePs = p
}
}
stealOrder.reset(uint32(nprocs))
var int32p *int32 = &gomaxprocs // make compiler check that gomaxprocs is an int32
atomic.Store((*uint32)(unsafe.Pointer(int32p)), uint32(nprocs))
return runnablePs
}
二、协程创建
核心流程
使用go func()关键字开启协程时,实质上运行时系统会调用runtime/proc.go下的newproc函数获取到一个G并封装需要执行的func(),并且调用startm方法开启M并绑定P,其源码中的核心步骤如下:
- 调用gfget方法,从本地P的gfree列表获取空闲G,不存在则从sched调度器的全局gfreeStack及gfreeNoStack列表获取空闲G,在此处将全局空闲G偷取都本地空闲P中
- 若当前不存在空闲G,则调用malg方法申请一个G的栈内存(默认为2kb),创建新的G,并将其由Gidle状态置换为GDead状态
- 将新生成的G放入全局G列表中(runtime.allgs)
- 为该G绑定当前传入的func()函数
- 将该G状态由GDead状态设置为GRunnable状态,并执行runqput方法,绑定当前P.runnext为该G,使其能够被运行,并将该G放入sched调度器的全局可运行列表runq中
- 调用wakep方法,本质是调用startm方法唤醒或创建M,并关联P
- startm方法会对M进行一系列内存分配、内核线程绑定操作(newm),最终执行mstart方法开启GPM调度
newproc
newproc方法获取了方法参数地址和当前的G,并通过getcallerpc方法获取开启该G的父G程序片段地址,通过g0调用newproc1执行创建或获取可用的G
func newproc(siz int32, fn *funcval) {
// 获取参数地址
argp := add(unsafe.Pointer(&fn), sys.PtrSize)
// 获取当前执行的G
gp := getg()
// 获取开启该G的父G程序片段地址
pc := getcallerpc()
systemstack(func() {
// g0执行newproc1
newproc1(fn, (*uint8)(argp), siz, gp, pc)
})
}
newproc1
newproc1的作用是初始化G,分配内存空间,保存调用现场信息并关联func,最后生成一个可运行的G并放入队列中,唤醒M执行。
func newproc1(fn *funcval, argp *uint8, narg int32, callergp *g, callerpc uintptr) {
// 获取当前G
_g_ := getg()
// 要携带的func不能为nil
if fn == nil {
_g_.m.throwing = -1 // do not dump full stacks
throw("go of nil func value")
}
// 获取当前G的M,加锁禁止其他G占有该M
acquirem()
// 判断func参数是否过多导致栈内存溢出
siz := narg
siz = (siz + 7) &^ 7
if siz >= _StackMin-4*sys.RegSize-sys.RegSize {
throw("newproc: function arguments too large for new goroutine")
}
// 查找是否有可用的G
_p_ := _g_.m.p.ptr()
newg := gfget(_p_)
if newg == nil {
// 不存在可用的G则创建一个新的G,栈内存为2kb
newg = malg(_StackMin)
// CAS更新该G的状态为Gdead
casgstatus(newg, _Gidle, _Gdead)
// 将新的G添加到runtime.allg列表末尾
allgadd(newg)
}
if newg.stack.hi == 0 {
throw("newproc1: newg missing stack")
}
if readgstatus(newg) != _Gdead {
throw("newproc1: new g is not Gdead")
}
totalSize := 4*sys.RegSize + uintptr(siz) + sys.MinFrameSize // extra space in case of reads slightly beyond frame
totalSize += -totalSize & (sys.SpAlign - 1) // align to spAlign
sp := newg.stack.hi - totalSize
spArg := sp
if usesLR {
// caller's LR
*(*uintptr)(unsafe.Pointer(sp)) = 0
prepGoExitFrame(sp)
spArg += sys.MinFrameSize
}
// 如果func需要携带参数则封装进入栈中
if narg > 0 {
memmove(unsafe.Pointer(spArg), unsafe.Pointer(argp), uintptr(narg))
// This is a stack-to-stack copy. If write barriers
// are enabled and the source stack is grey (the
// destination is always black), then perform a
// barrier copy. We do this *after* the memmove
// because the destination stack may have garbage on
// it.
if writeBarrier.needed && !_g_.m.curg.gcscandone {
f := findfunc(fn.fn)
stkmap := (*stackmap)(funcdata(f, _FUNCDATA_ArgsPointerMaps))
if stkmap.nbit > 0 {
// We're in the prologue, so it's always stack map index 0.
bv := stackmapdata(stkmap, 0)
bulkBarrierBitmap(spArg, spArg, uintptr(bv.n)*sys.PtrSize, 0, bv.bytedata)
}
}
}
// 保留调用现场信息、相关栈顶指针信息
memclrNoHeapPointers(unsafe.Pointer(&newg.sched), unsafe.Sizeof(newg.sched))
newg.sched.sp = sp
newg.stktopsp = sp
// 保存goexit指令指针和关联G,使G在执行完成func后退出
newg.sched.pc = funcPC(goexit) + sys.PCQuantum // +PCQuantum so that previous instruction is in same function
newg.sched.g = guintptr(unsafe.Pointer(newg))
// 保存func指针信息,使其能够执行func
gostartcallfn(&newg.sched, fn)
newg.gopc = callerpc
newg.ancestors = saveAncestors(callergp)
newg.startpc = fn.fn
if _g_.m.curg != nil {
newg.labels = _g_.m.curg.labels
}
if isSystemGoroutine(newg, false) {
atomic.Xadd(&sched.ngsys, +1)
}
newg.gcscanvalid = false
// G初始化完成,将其转化为G runnable状态使其能够被执行
casgstatus(newg, _Gdead, _Grunnable)
if _p_.goidcache == _p_.goidcacheend {
// Sched.goidgen is the last allocated id,
// this batch must be [sched.goidgen+1, sched.goidgen+GoidCacheBatch].
// At startup sched.goidgen=0, so main goroutine receives goid=1.
_p_.goidcache = atomic.Xadd64(&sched.goidgen, _GoidCacheBatch)
_p_.goidcache -= _GoidCacheBatch - 1
_p_.goidcacheend = _p_.goidcache + _GoidCacheBatch
}
newg.goid = int64(_p_.goidcache)
_p_.goidcache++
if raceenabled {
newg.racectx = racegostart(callerpc)
}
if trace.enabled {
traceGoCreate(newg, newg.startpc)
}
// 将G放入到P的本地队列或全局队列
runqput(_p_, newg, true)
// 判断是否有空闲P,且是否需要唤醒一个M来执行G
if atomic.Load(&sched.npidle) != 0 && atomic.Load(&sched.nmspinning) == 0 && mainStarted {
wakep()
}
// 执行完成需要释放M
releasem(_g_.m)
}
gfget
gfget查看当前P是否有空闲的G,没有则去全局的freeg队列中查找,并检查获取到的G栈内存是否为空,为空则再次为该G分配栈内存。
func gfget(_p_ *p) *g {
retry:
if _p_.gFree.empty() && (!sched.gFree.stack.empty() || !sched.gFree.noStack.empty()) {
lock(&sched.gFree.lock)
// Move a batch of free Gs to the P.
for _p_.gFree.n < 32 {
// Prefer Gs with stacks.
gp := sched.gFree.stack.pop()
if gp == nil {
gp = sched.gFree.noStack.pop()
if gp == nil {
break
}
}
sched.gFree.n--
_p_.gFree.push(gp)
_p_.gFree.n++
}
unlock(&sched.gFree.lock)
goto retry
}
gp := _p_.gFree.pop()
if gp == nil {
return nil
}
_p_.gFree.n--
if gp.stack.lo == 0 {
// Stack was deallocated in gfput. Allocate a new one.
systemstack(func() {
gp.stack = stackalloc(_FixedStack)
})
gp.stackguard0 = gp.stack.lo + _StackGuard
} else {
if raceenabled {
racemalloc(unsafe.Pointer(gp.stack.lo), gp.stack.hi-gp.stack.lo)
}
if msanenabled {
msanmalloc(unsafe.Pointer(gp.stack.lo), gp.stack.hi-gp.stack.lo)
}
}
return gp
}
runqput
runqput方法会把新的G(状态被置为runnable)放入P的本地队列或者p.runnext进行预联,如果P的本地队列过长,则把G放到全局队列(runqputslow):
func runqput(_p_ *p, gp *g, next bool) {
if randomizeScheduler && next && fastrand()%2 == 0 {
next = false
}
// 如果next为true,则放入到p.runnext里面,并把原先runnext的G交换出来
if next {
retryNext:
oldnext := _p_.runnext
if !_p_.runnext.cas(oldnext, guintptr(unsafe.Pointer(gp))) {
goto retryNext
}
if oldnext == 0 {
return
}
// Kick the old runnext out to the regular run queue.
gp = oldnext.ptr()
}
retry:
h := atomic.Load(&_p_.runqhead) // load-acquire, synchronize with consumers
t := _p_.runqtail
// runq是一个长度为256的数组,是P的本地可执行G队列,如果可以容纳则添加到该队列中
if t-h < uint32(len(_p_.runq)) {
_p_.runq[t%uint32(len(_p_.runq))].set(gp)
atomic.Store(&_p_.runqtail, t+1) // store-release, makes the item available for consumption
return
}
// runq无法容纳G,放到全局队列
if runqputslow(_p_, gp, h, t) {
return
}
// the queue is not full, now the put above must succeed
goto retry
}
wakeup
当将G放入到可执行队列之后,尝试执行wakeup方法唤醒一个M来执行G,注意,并不一定会执行到该新建的G,而是看具体的情况。
func wakep() {
// 一次只需要唤醒1个M
if !atomic.Cas(&sched.nmspinning, 0, 1) {
return
}
// 调用startm
startm(nil, true)
}
startm
startm的作用是获取空闲的或者新建一个M,并且获取空闲的P,将该P关联为m.nextp,此时形成M-P关联后,就可以通过P获取到G,开始执行相应的func:
func startm(_p_ *p, spinning bool) {
lock(&sched.lock)
if _p_ == nil {
// 如果没有指定P, 则从sched.pidle获取空闲P
_p_ = pidleget()
if _p_ == nil {
unlock(&sched.lock)
// 如果没有获取到P,nmspinning计数器-1
if spinning {
// The caller incremented nmspinning, but there are no idle Ps,
// so it's okay to just undo the increment and give up.
if int32(atomic.Xadd(&sched.nmspinning, -1)) < 0 {
throw("startm: negative nmspinning")
}
}
return
}
}
// 尝试从 sched.midle获取一个空闲M
mp := mget()
unlock(&sched.lock)
if mp == nil {
// 获取不到空闲的M,则创建一个 mspining = true的M,并将P绑定到M上,直接返回,下次唤醒时则有可用的M了
var fn func()
if spinning {
// The caller incremented nmspinning, so set m.spinning in the new M.
fn = mspinning
}
// 创建内核线程与M关联,并且使M绑定该P及fn
newm(fn, _p_)
return
}
// 当前M必须为自旋状态
if mp.spinning {
throw("startm: m is spinning")
}
// 当前M必须关联P
if mp.nextp != 0 {
throw("startm: m has p")
}
// 当前关联的P必须处于空闲状态,runq队列为空
if spinning && !runqempty(_p_) {
throw("startm: p has runnable gs")
}
// 设定该M为自旋状态并绑定P
mp.spinning = spinning
mp.nextp.set(_p_)
// 唤醒M
notewakeup(&mp.park)
}
newm
newm方法真正地创建内核线程与M的关联,并且将P和func绑定在M上,并且执行mstart开启真正的调度过程:
func newm(fn func(), _p_ *p) {
// 新建M绑定P及fn
mp := allocm(_p_, fn)
// M绑定指定P
mp.nextp.set(_p_)
// 创建内核线程与M绑定
newm1(mp)
}
func newm1(mp *m) {
if iscgo {
var ts cgothreadstart
if _cgo_thread_start == nil {
throw("_cgo_thread_start missing")
}
ts.g.set(mp.g0)
ts.tls = (*uint64)(unsafe.Pointer(&mp.tls[0]))
// 绑定该内核线程启动调用mstart方法
ts.fn = unsafe.Pointer(funcPC(mstart))
if msanenabled {
msanwrite(unsafe.Pointer(&ts), unsafe.Sizeof(ts))
}
execLock.rlock() // Prevent process clone.
asmcgocall(_cgo_thread_start, unsafe.Pointer(&ts))
execLock.runlock()
return
}
execLock.rlock() // Prevent process clone.
newosproc(mp)
execLock.runlock()
}
func newosproc(mp *m) {
stk := unsafe.Pointer(mp.g0.stack.hi)
// Initialize an attribute object.
var attr pthreadattr
var err int32
err = pthread_attr_init(&attr)
// Finally, create the thread. It starts at mstart_stub, which does some low-level
// setup and then calls mstart.
var oset sigset
sigprocmask(_SIG_SETMASK, &sigset_all, &oset)
// 创建内核线程,并传入启动启动函数 mstart_stub, mstart_stub 之后调用mstart
err = pthread_create(&attr, funcPC(mstart_stub), unsafe.Pointer(mp))
sigprocmask(_SIG_SETMASK, &oset, nil)
if err != 0 {
write(2, unsafe.Pointer(&failthreadcreate[0]), int32(len(failthreadcreate)))
exit(1)
}
}
三、调度过程
经过系统初始化以及go func创建协程后,G会封装好需要执行的func位于p.runnext、p.runq或sched.runq这三个队列之一,接下来就是调用mstart开启真正的调度过程(startm是对M进行初始化操作,而不是进行调度)。需要注意的是,调度程序会在多个M实例中进行,并且会在以下场景中进行触发schedule函数进行调度:
- Go程序初始化
- 使用go关键字开启协程
- 执行runtime.Gosched,当前G暂停运行让给其他G运行机会
- 执行runtime.Goexit,当前G结束运行程序
- G状态转化时
mstart
mstart在Go程序初始化或使用go关键字开启协程时被调用,本质上也是调用schedule函数进行调度:
func mstart() {
_g_ := getg()
osStack := _g_.stack.lo == 0
if osStack {
// Initialize stack bounds from system stack.
// Cgo may have left stack size in stack.hi.
// minit may update the stack bounds.
size := _g_.stack.hi
if size == 0 {
size = 8192 * sys.StackGuardMultiplier
}
_g_.stack.hi = uintptr(noescape(unsafe.Pointer(&size)))
_g_.stack.lo = _g_.stack.hi - size + 1024
}
// Initialize stack guard so that we can start calling regular
// Go code.
_g_.stackguard0 = _g_.stack.lo + _StackGuard
// This is the g0, so we can also call go:systemstack
// functions, which check stackguard1.
_g_.stackguard1 = _g_.stackguard0
mstart1()
// Exit this thread.
if GOOS == "windows" || GOOS == "solaris" || GOOS == "illumos" || GOOS == "plan9" || GOOS == "darwin" || GOOS == "aix" {
// Windows, Solaris, illumos, Darwin, AIX and Plan 9 always system-allocate
// the stack, but put it in _g_.stack before mstart,
// so the logic above hasn't set osStack yet.
osStack = true
}
mexit(osStack)
}
func mstart1() {
_g_ := getg()
// 保存调用信息
save(getcallerpc(), getcallersp())
asminit()
// 对M进行初始化
minit()
// 执行m0的任务
if _g_.m == &m0 {
mstartm0()
}
// 如果该M存在startfn,则执行startfn
if fn := _g_.m.mstartfn; fn != nil {
fn()
}
// 开始进入调度循环
schedule()
}
schedule
schedule函数又称为一轮调度函数,它的作用是全力查找可执行的G并最后执行execute函数运行,在恶执行完用户代码后,会执行go exit命令, 会跳转到runtime.Goexit0函数,该函数最后仍调用了schedule函数,形成了一个调度闭环操作。

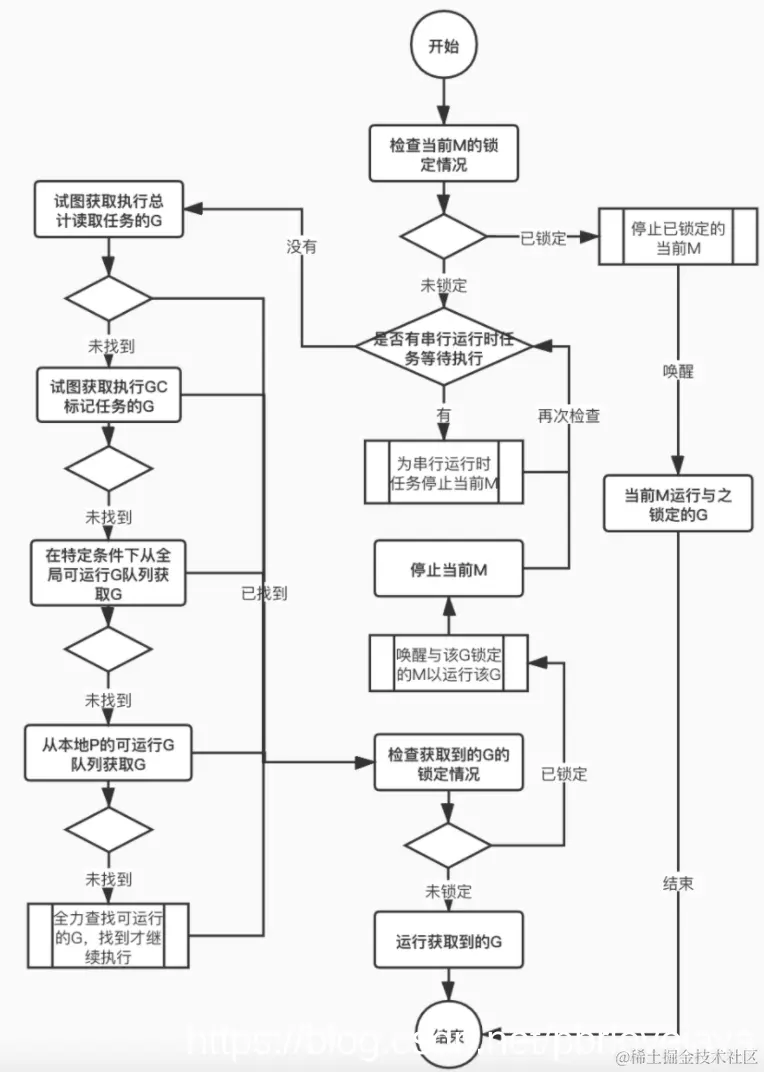

一轮调度的执行核心流程如下,需要注意的是当当前M已经被特定的G锁定(lockedg)时,则需要停止已锁定的当前M,待该锁定的G达到可运行状态时对该M进行唤醒,这是因为M与G锁定后,该G会占用M相关栈空间,所以不能够使用无关的M来运行已经被其他M锁定的G。
func schedule() {
_g_ := getg()
if _g_.m.locks != 0 {
throw("schedule: holding locks")
}
// 当前M有lockg,停止执行当前M
if _g_.m.lockedg != 0 {
// 停止当前M,直到其绑定的G处于可运行状态
stoplockedm()
// 开始执行绑定的G
execute(_g_.m.lockedg.ptr(), false) // Never returns.
}
top:
// GC进行中,停止M
if sched.gcwaiting != 0 {
gcstopm()
// 跳转到top循环,再次寻找可执行G
goto top
}
// 需要执行的G
var gp *g
// 继承时间片
var inheritTime bool
if gp == nil {
// 每隔61次从全局队列上获取可执行的G
if _g_.m.p.ptr().schedtick%61 == 0 && sched.runqsize > 0 {
lock(&sched.lock)
gp = globrunqget(_g_.m.p.ptr(), 1)
unlock(&sched.lock)
}
}
if gp == nil {
// 从P的本地队列获取可执行的G
gp, inheritTime = runqget(_g_.m.p.ptr())
if gp != nil && _g_.m.spinning {
throw("schedule: spinning with local work")
}
}
if gp == nil {
// 如果从全局队列以及P本地队列都无法获取到可执行的P,开始全力查找可执行的G
gp, inheritTime = findrunnable()
}
if _g_.m.spinning {
// 如果M是自旋状态,取消自旋
resetspinning()
}
if gp.lockedm != 0 {
// 如果当前G已经被其他M锁定,则唤醒与该G锁定的M
startlockedm(gp)
// 跳转到top循环,再次寻找可执行G
goto top
}
// 开始执行这个G
execute(gp, inheritTime)
}
execute
开始真正执行G,在执行完G携带的func后,会执行runtime.Goexit函数:
func execute(gp *g, inheritTime bool) {
_g_ := getg()
// 更改G的状态为running
casgstatus(gp, _Grunnable, _Grunning)
gp.waitsince = 0
// 不允许抢占
gp.preempt = false
gp.stackguard0 = gp.stack.lo + _StackGuard
if !inheritTime {
// 每调度一次则计数+1
_g_.m.p.ptr().schedtick++
}
// 关联M->G
_g_.m.curg = gp
// 关联G->M
gp.m = _g_.m
// 开始执行G的代码
gogo(&gp.sched)
}
Goexit
最后一个环节,执行完G的代码后进行程序退出,执行链路是gogo->runtime.Goexit->runtime.goexit1->runtime.goexit0,在goexit0函数中会真正地把已经执行完的G状态变更为dead,然后再次执行schedule函数,进入下一个调度循环之中,这就是整个GPM调度器的执行核心流程了。
func Goexit() {
// 忽略
goexit1()
}
func goexit1() {
// 忽略
// 调用goexit0
mcall(goexit0)
}
func goexit0(gp *g) {
_g_ := getg()
// 将运行完成G状态转换为dead
casgstatus(gp, _Grunning, _Gdead)
// 忽略
schedule()
}
四、核心流程总结

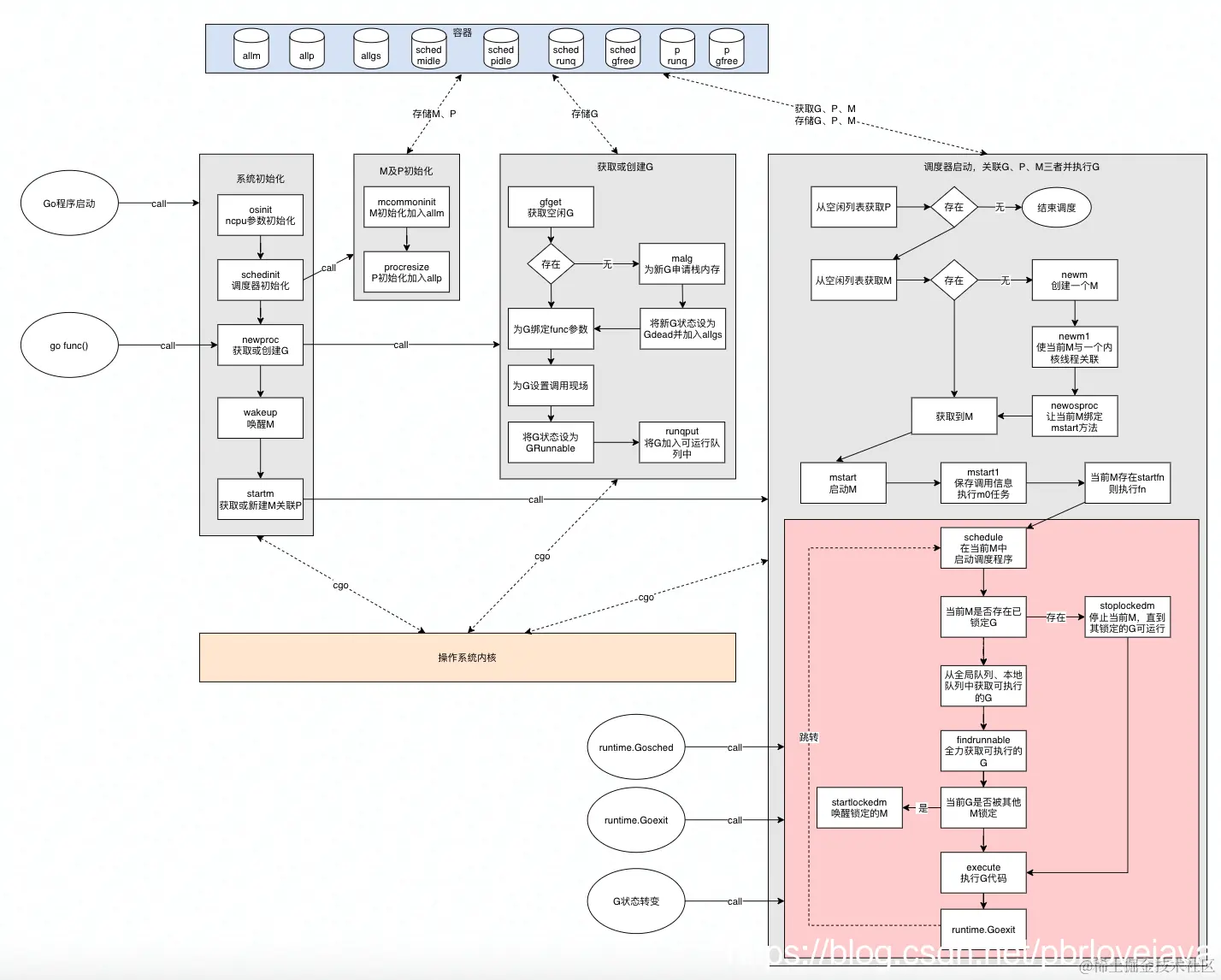

根据上面的源码可以梳理一个核心的协程调度流程图,总结下整个调度过程,关键的步骤就是Go程序启动时对调度器的初始化,会把M和P存储到GPM容器中,然后在go func启动协程时,会进行G的获取及存储,封装需要执行的func,最后调用schedule函数启动调度器,调度过程是一个闭环操作,该过程存在于各个M实例之中,所以每个M都可以独立进行调度,启动调度程序后会寻找可执行的G,最后执行完G的程序后,会执行runtime.Goexit退出协程程序,此时会跳转到schedule函数继续执行调度操作,形成闭环。
