Filebeat实战采集日志到ES

·  阅读 1794

1.解压filebeat文件

将filebeat.tar上传到服务器,并解压到指定路径下


2.filebeat.yml配置

打开解压完成的filebeat,配置里面的filebeat.yml

###################### Filebeat Configuration Example #########################

# This file is an example configuration file highlighting only the most common
# options. The filebeat.reference.yml file from the same directory contains all the
# supported options with more comments. You can use it as a reference.
#
# You can find the full configuration reference here:
# https://www.elastic.co/guide/en/beats/filebeat/index.html

# For more available modules and options, please see the filebeat.reference.yml sample
# configuration file.

#=========================== Filebeat inputs =============================

filebeat.inputs:

# Each - is an input. Most options can be set at the input level, so
# you can use different inputs for various configurations.
# Below are the input specific configurations.


- type: log
  # Change to true to enable this input configuration.
  enabled: true
  # Paths that should be crawled and fetched. Glob based paths.
  paths:
  # 日志实际路径地址
   - /data/learning/learning*.log
  fields:
  # 日志标签,区别不同日志,下面建立索引会用到
    type: "learning"
  fields_under_root: true
  # 指定被监控的文件的编码类型,使用plain和utf-8都是可以处理中文日志的
  encoding: utf-8
  # 多行日志开始的那一行匹配的pattern
  multiline.pattern: ^{
  # 是否需要对pattern条件转置使用,不翻转设为true,反转设置为false。  【建议设置为true】
  multiline.negate: true
  # 匹配pattern后,与前面(before)还是后面(after)的内容合并为一条日志
  multiline.match: after

- type: log
  # Change to true to enable this input configuration.
  enabled: true
  # Paths that should be crawled and fetched. Glob based paths.
  paths:
  # 日志实际路径地址
   - /data/study/study*.log
  fields:
    type: "study"
  fields_under_root: true
  # 指定被监控的文件的编码类型,使用plain和utf-8都是可以处理中文日志的
  encoding: utf-8
  # 多行日志开始的那一行匹配的pattern
  multiline.pattern: ^\s*\d\d\d\d-\d\d-\d\d
  # 是否需要对pattern条件转置使用,不翻转设为true,反转设置为false。  【建议设置为true】
  multiline.negate: true
  # 匹配pattern后,与前面(before)还是后面(after)的内容合并为一条日志
  multiline.match: after

#============================= Filebeat modules ===============================

#filebeat.config.modules:
  # Glob pattern for configuration loading
 # path: ${path.config}/modules.d/*.yml

  # Set to true to enable config reloading
  #reload.enabled: true

  # Period on which files under path should be checked for changes
  #reload.period: 10s

#==================== Elasticsearch template setting ==========================

#================================ General =====================================

#============================== Dashboards =====================================

#============================== Kibana =====================================

# Starting with Beats version 6.0.0, the dashboards are loaded via the Kibana API.
# This requires a Kibana endpoint configuration.
setup.kibana:
  #kibanaIP地址
  host: "localhost:5601"
  # Kibana Host
  # Scheme and port can be left out and will be set to the default (http and 5601)
  # In case you specify and additional path, the scheme is required: http://localhost:5601/path
  # IPv6 addresses should always be defined as: https://[2001:db8::1]:5601
  #host: "localhost:5601"
  # Kibana Space ID
  # ID of the Kibana Space into which the dashboards should be loaded. By default,
  # the Default Space will be used.
  #space.id:

#============================= Elastic Cloud ==================================

#================================ Outputs =====================================

# Configure what output to use when sending the data collected by the beat.
setup.ilm.enabled: false
#-------------------------- Elasticsearch output ------------------------------
output.elasticsearch:
  enabled: true
  # Array of hosts to connect to
  hosts: ["localhost:9200"]
#  index: "logs-%{[beat.version]}-%{+yyyy.MM.dd}"
  indices:
       #索引名称,一般为  ‘服务名称+ip+ --%{+yyyy.MM.dd}’。
    - index: "learning-%{+yyyy.MM.dd}"
      when.contains:
      #标签,对应日志和索引,和上面对应
        type: "learning"
    - index: "study-%{+yyyy.MM.dd}"
      when.contains:
        type: "study"

  # Optional protocol and basic auth credentials.
  #protocol: "https"
  username: "#name"
  password: "#pwd"

#----------------------------- Logstash output --------------------------------

#================================ Processors =====================================

# Configure processors to enhance or manipulate events generated by the beat.

processors:
- drop_fields:
# 去除多余字段
     fields: ["agent.type","agent.name", "agent.version","log.file.path","log.offset","input.type","ecs.version","host.name","agent.ephemeral_id","agent.hostname","agent.id","_id","_index","_score","_suricata.eve.timestamp","agent.hostname","cloud. availability_zone","host.containerized","host.os.kernel","host.os.name","host.os.version"]

#================================ Logging =====================================


#============================== Xpack Monitoring ===============================

#================================= Migration ==================================

# This allows to enable 6.7 migration aliases
#migration.6_to_7.enabled: true
复制代码

3.启动filebeat

nohup  ./filebeat  -c  filebeat.yml  -e  >/dev/null  2>&1  &
复制代码

4.配置kibana

如果安装启动正常,应可在kibana后台设置看到配置的索引名称。

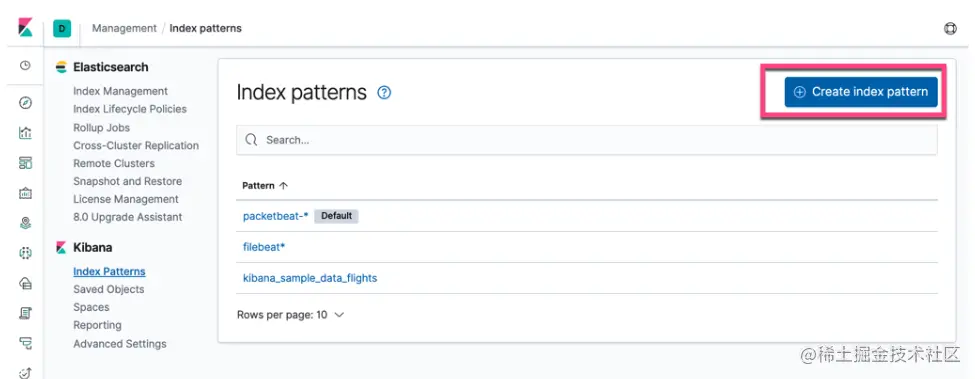

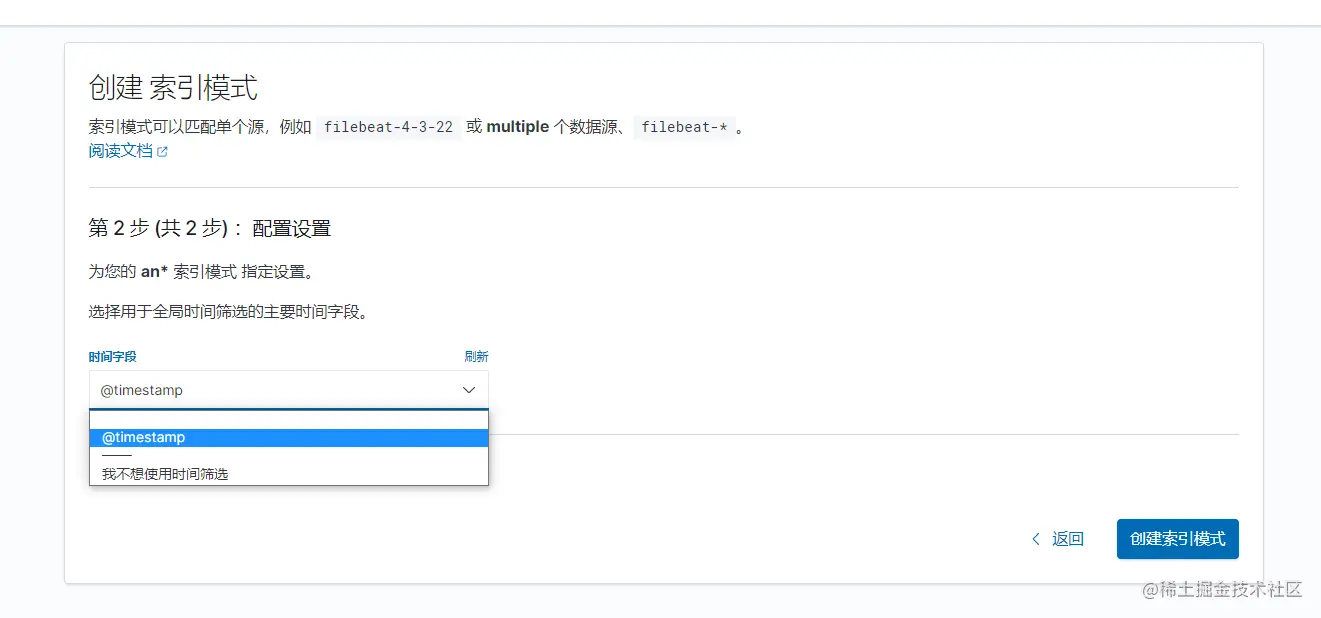

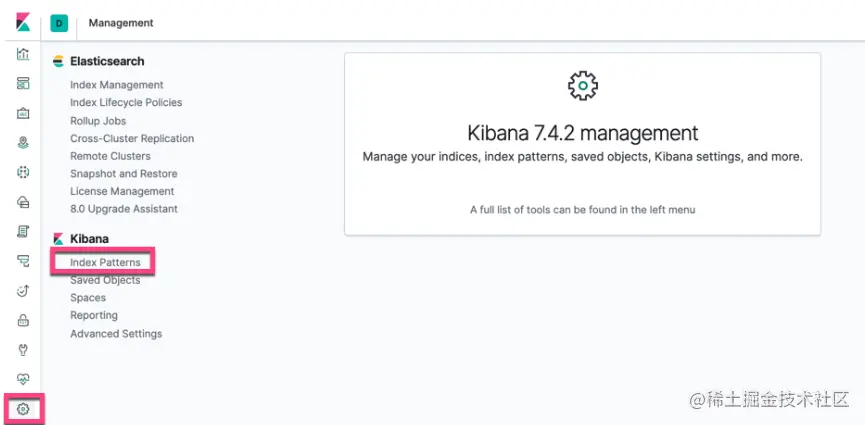

4.1 配置index pattern

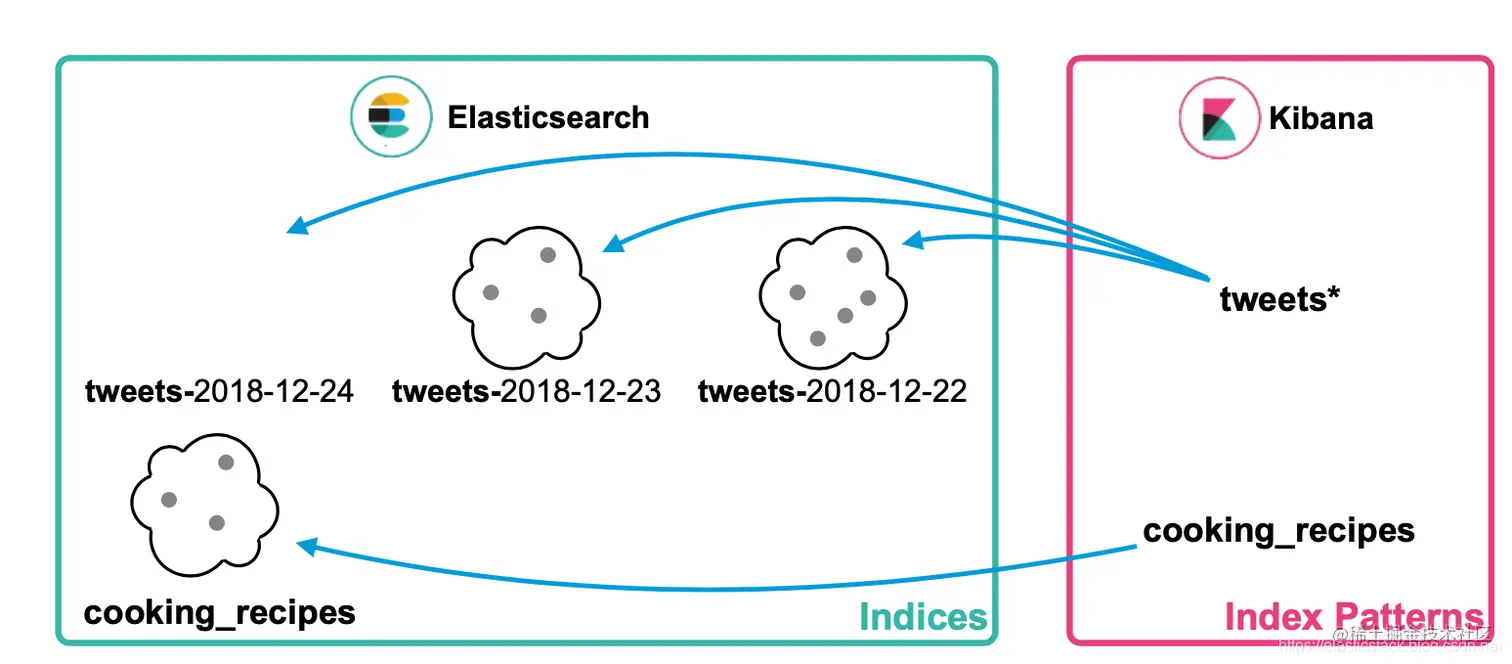

Index pattern:它指向一个或多个 Elasticsearch 的索引,并告诉 Kibana 想对哪些索引进行操作
复制代码


在上面我们需要根据自己的索引的名称输入相应的 index pattern。它可以是指向某单个的索引,也可以通过通配符指向多个索引。

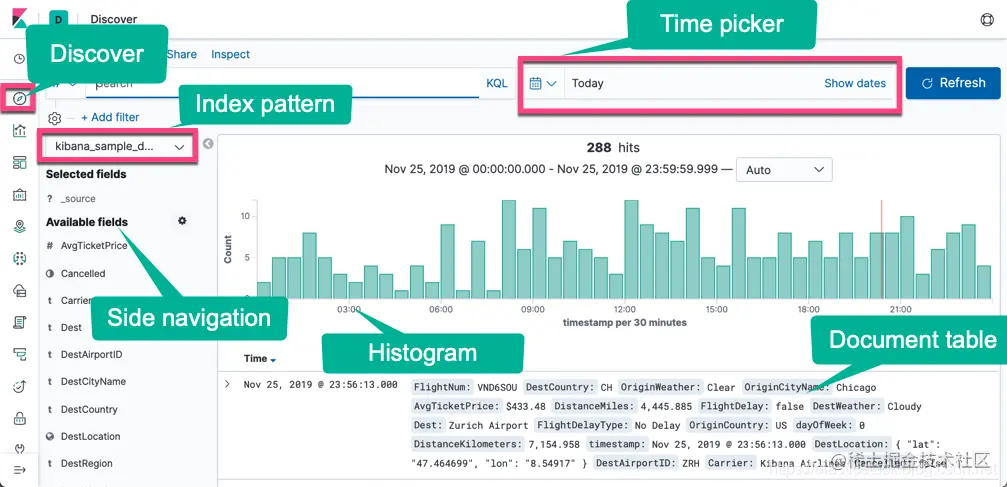

4.2 查看discover
