1 SCAN IP连接测试
Oracle RAC集群搭建完成后需要对连接进行校验，判断数据库集群是否可以对外提供服务。本次校验客户端使用HHDBCS数据库管理工具进行验证。

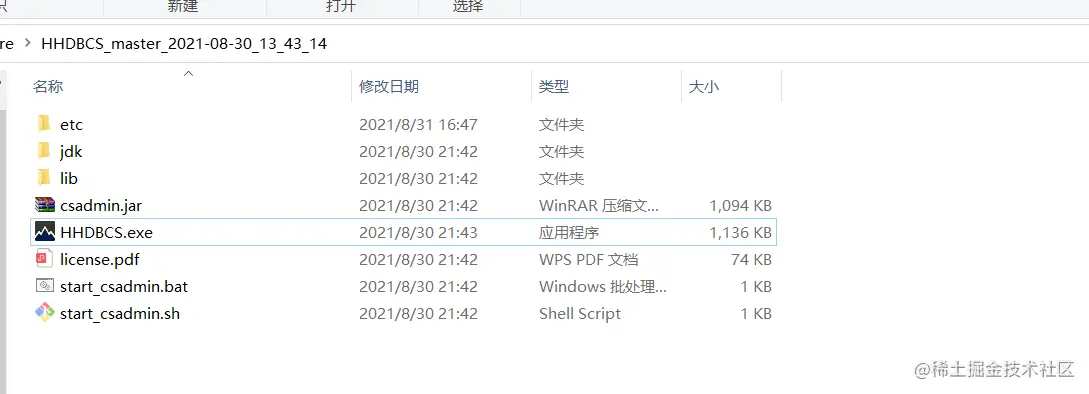

HHDBCS数据库管理工具是一个跨平台的数据库管理工具，可以在WINDOWS、LINUX、MAC等操作系统运行，比如linux可以执行start_csadmin.sh文件启动。
填入集群SCAN IP对应的连接信息、账号和密码点击【测试连接】按钮测试是否连接成功。
2 RAC巡检
点击查询窗口，将巡检sql输入到查询窗口中，点击执行或者按快捷键F8执行。对于巡检的结果可以进行导出操作，可以导出成csv、excel等多种格式的文件。
下面是rac巡检工作中一些常用的sql：
locked_objects_rac.sql：Lists all locked objects for whole RAC.
SELECT b.inst_id,
b.session_id AS sid,
NVL(b.oracle_username, '(oracle)') AS username,
a.owner AS object_owner,
a.object_name,
Decode(b.locked_mode, 0, 'None',
1, 'Null (NULL)',
2, 'Row-S (SS)',
3, 'Row-X (SX)',
4, 'Share (S)',
5, 'S/Row-X (SSX)',
6, 'Exclusive (X)',
b.locked_mode) locked_mode,
b.os_user_name
FROM dba_objects a,
gv$locked_object b
WHERE a.object_id = b.object_id
ORDER BY 1, 2, 3, 4;
longops_rac.sql：Displays information on all long operations for whole RAC.
SELECT s.inst_id,
s.sid,
s.serial#,
s.username,
s.module,
ROUND(sl.elapsed_seconds/60) || ':' || MOD(sl.elapsed_seconds,60) elapsed,
ROUND(sl.time_remaining/60) || ':' || MOD(sl.time_remaining,60) remaining,
ROUND(sl.sofar/sl.totalwork*100, 2) progress_pct
FROM gv$session s,
gv$session_longops sl
WHERE s.sid = sl.sid
AND s.inst_id = sl.inst_id
AND s.serial# = sl.serial#;
monitor_memory_rac.sql：Displays memory allocations for the current database sessions for the whole RAC.
SELECT a.inst_id,
NVL(a.username,'(oracle)') AS username,
a.module,
a.program,
Trunc(b.value/1024) AS memory_kb
FROM gv$session a,
gv$sesstat b,
gv$statname c
WHERE a.sid = b.sid
AND a.inst_id = b.inst_id
AND b.statistic# = c.statistic#
AND b.inst_id = c.inst_id
AND c.name = 'session pga memory'
AND a.program IS NOT NULL
ORDER BY b.value DESC;
session_undo_rac.sql: Displays undo information on relevant database sessions. SELECT s.inst_id,
SELECT s.inst_id,
s.username,
s.sid,
s.serial#,
t.used_ublk,
t.used_urec,
rs.segment_name,
r.rssize,
r.status
FROM gv$transaction t,
gv$session s,
gv$rollstat r,
dba_rollback_segs rs
WHERE s.saddr = t.ses_addr
AND s.inst_id = t.inst_id
AND t.xidusn = r.usn
AND t.inst_id = r.inst_id
AND rs.segment_id = t.xidusn
ORDER BY t.used_ublk DESC;
session_waits_rac.sql：Displays information on all database session waits for the whole RAC.
SELECT s.inst_id,
NVL(s.username, '(oracle)') AS username,
s.sid,
s.serial#,
sw.event,
sw.wait_class,
sw.wait_time,
sw.seconds_in_wait,
sw.state
FROM gv$session_wait sw,
gv$session s
WHERE s.sid = sw.sid
AND s.inst_id = sw.inst_id
ORDER BY sw.seconds_in_wait DESC;
sessions_rac.sql：Displays information on all database sessions for whole RAC. SELECT NVL(s.username, '(oracle)') AS username,
SELECT NVL(s.username, '(oracle)') AS username,
s.inst_id,
s.osuser,
s.sid,
s.serial#,
p.spid,
s.lockwait,
s.status,
s.module,
s.machine,
s.program,
TO_CHAR(s.logon_Time,'DD-MON-YYYY HH24:MI:SS') AS logon_time
FROM gv$session s,
gv$process p
WHERE s.paddr = p.addr
AND s.inst_id = p.inst_id
ORDER BY s.username, s.osuser
