圣杯布局&双飞翼布局

426 阅读1分钟

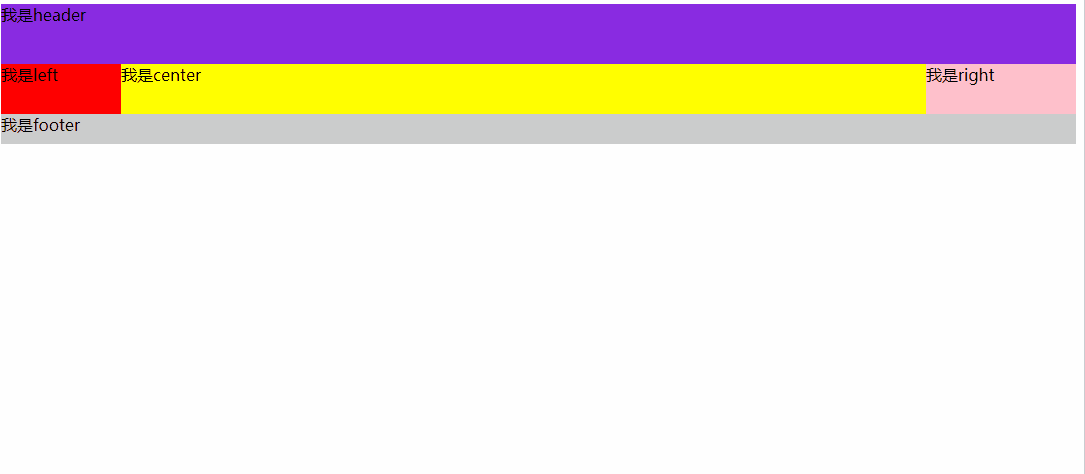

1 圣杯布局

   body {min-width: 390px;}
  .header {height: 60px;background-color: blueviolet;}
  .container {padding: 0 150px 0 120px;}
  .container::after {content: '';display: block;clear: both;}
  .container>div {float: left;}
  .center {height: 50px;background-color: yellow;width: 100%;}
  .left { height: 50px;background-color: red;width: 120px;margin-left:-100%;position:relative;left: -120px;}
  .right {height: 50px;background-color: pink;width: 150px;margin-right: -150px; }
  .footer {height: 30px; background-color: #ccc;}
<body>
  <div class="header">我是header</div>
  <div class="container">
    <div class="center">我是center</div>
    <div class="left">我是left</div>
    <div class="right">我是right</div>
  </div>
  <div class="footer">我是footer</div>
</body>

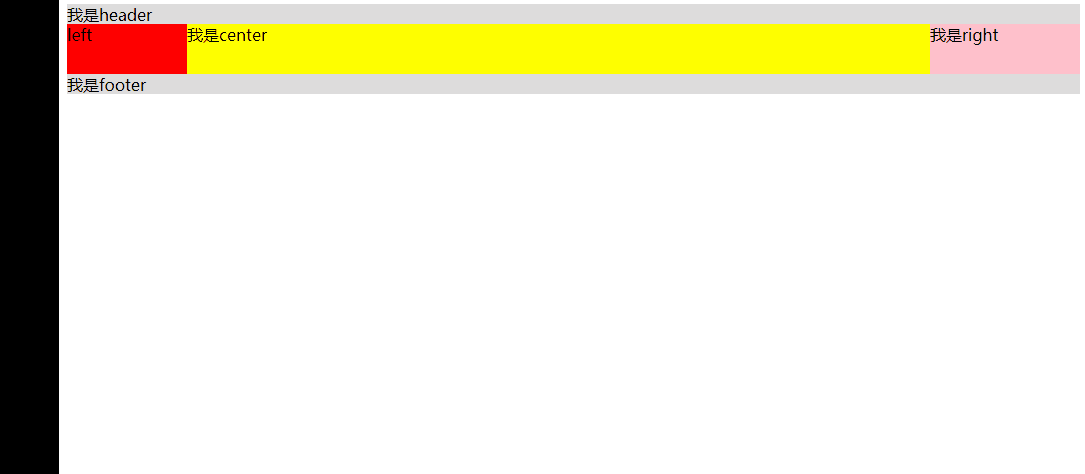

2 双飞翼布局

 .header, .footer { height: 20px;background: #ddd; }
 .footer { clear: both; }
.container { width: 100%;}
.center { background-color: yellow; height: 50px;margin: 0 150px 0 120px;}
.left {height: 50px;background-color: red; width: 120px;margin-left: -100%;}
.right { height: 50px; background-color: pink;width: 150px; margin-left: -150px;}
.column { float: left;}
 body { min-width: 400px }
<body>
  <div class="header">我是header</div>
  <div class="container column">
    <div class="center">
      我是center
    </div>
  </div>
  <div class="left column">
    left
  </div>
  <div class="right column">
    我是right
  </div>
  <div class="footer">我是footer</div>
</body>


3 总结

  • 使用float布局
  • 两侧使用margin复制,以便和中间内容横向重叠
  • 防止中间内容被覆盖,圣杯布局用padding,双飞翼布局margin
