MAC PRO上安装PMEM仿真环境

相关资料

如何搭建PMEM仿真环境

MacOS下使用llpl的一种开发环境布置方式

VMware安装（multipass/VirtualBox）

VMware Fusion or Fusion Pro

安装Ubuntu 20.04.3 LTS (Focal Fossa)

Ubuntu 20.04.3 LTS (Focal Fossa)

在VMware Fusion Pro上安装，网络连接方式选择桥接模式。

选择此版本是因为内核版本最后需要4.2以上

遇到问题

无法复制黏贴拖拽文件。暂无解决方案，目前开启ssh，使用mac终端连上去 ssh root@127.0.0.1

重装vm-tool

www.jianshu.com/p/b9585e0f4… blog.csdn.net/Victor2code…

验证是否支持PMEM

egrep '(DAX|PMEM)' /boot/config-`uname -r`

正确返回

CONFIG_X86_PMEM_LEGACY_DEVICE=y
CONFIG_X86_PMEM_LEGACY=y
CONFIG_BLK_DEV_RAM_DAX=y
CONFIG_BLK_DEV_PMEM=m
CONFIG_FS_DAX=y
CONFIG_FS_DAX_PMD=y
CONFIG_ARCH_HAS_PMEM_API=y

假如不支持还需要编译高版本内核

GRUB 配置

确认可用的物理空间

how_to_choose_the_correct_memmap_kernel_parameter_for_pmem_on_your_system

设置grub配置

# vi /etc/default/grub
GRUB_CMDLINE_LINUX="memmap=nn[KMG]!ss[KMG]"

Build the configuration on a BIOS machine:

# grub2-mkconfig -o /boot/grub2/grub.cfg

Build the configuration on an EFI machine:

Copy Code
# grub2-mkconfig -o /boot/efi/EFI/centos/grub.cfg

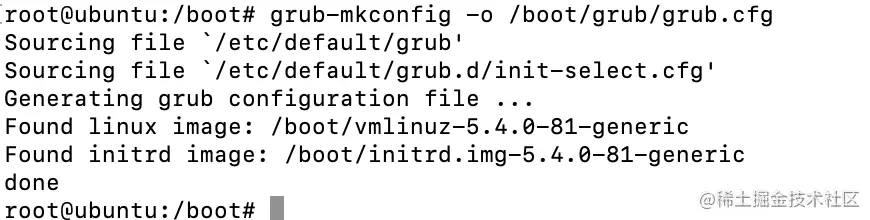

实际命令

grub-mkconfig -o /boot/grub/grub.cfg

预期结果

重启机器后验证

dmesg | grep user

确认到存在persistent

构建支持 DAX 的文件系统

### lsblk查看pmem内存块


 mkdir /mnt/pmemdir
 mkfs.ext4 /dev/pmem0
 mount -o dax /dev/pmem0 /mnt/pmemdir

安装PMDK

安装依赖

执行以下命令安装必要依赖：

sudo apt-get install make build-essential libdaxctl-dev libndctl-dev pandoc m4 libfabric-dev pkg-config

过程中需要输入几次Y

安装PMDK

git clone https://github.com/pmem/pmdk.git

cd pmdk

使用最新稳定版分支

git checkout tags/1.11.0

sudo make

sudo make install

追加/usr/local/lib路径到/etc/ld.so.conf文件中（很重要）

sudo vim /etc/ld.so.conf
追加/usr/local/lib
保存退出编辑

sudo /sbin/ldconfig

安装 jDK MAVEN

sudo apt install openjdk-8-jdk-headless maven

切换jdk版本、假如不是jdk8

update-alternatives --config java

修改Maven镜像源地址到阿里云（加速用）

sudo vim /usr/share/maven/conf/settings.xml
搜索/<mirrors>
在其下方追加如下信息
<mirror>
 <id>aliyunmaven</id>
 <mirrorOf>*</mirrorOf>
 <name>阿里云公共仓库</name>
 <url>https://maven.aliyun.com/repository/public</url>
</mirror>

测试PMEM

pmdk-examples

测试代码

package io.openmessaging;

import com.intel.pmem.llpl.Heap;
import com.intel.pmem.llpl.MemoryBlock;
import org.junit.Assert;
import org.junit.Test;

public class LlplTest {
    /**************************** * This function writes the "Hello..." string to persistent-memory. *****************************/
    public void write_hello_string(byte[] input, Heap h, int size) {
        // block allocation (transactional allocation)
        MemoryBlock newBlock = h.allocateMemoryBlock(size, true);

        //Attached the newBllock to the root address
        h.setRoot(newBlock.handle());

        // Write byte array (input) to newBlock @ offset 0 (on both) for 26 bytes
        newBlock.copyFromArray(input, 0, 0, size);

        //Ensure that the array (input) is in persistent memory
        newBlock.flush();

        //Convert byte array (input) to String format and write to console
        System.out.printf("\nWrite the (%s) string to persistent-memory.\n", new String(input));
        return;
    }

    /**************************** * This function reads the "Hello..." string from persistent-memory. *****************************/
    public String read_hello_string(Heap h, int size) {
        // Allocate buffer for string
        // To retrieve byte array from persistent heap
        byte[] output = new byte[size];

        //Get the root block address
        long rootAddr = h.getRoot();
        if (rootAddr == 0) {
            System.out.println("Root Block NOT found!");
            System.exit(0);
        }
        // Map the newBlock to the root of Flushable class
        MemoryBlock newBlock = h.memoryBlockFromHandle(rootAddr);

        // Read 26 bytes @ offset 0 from newBlock to byte array (output)
        newBlock.copyToArray(0L, output, 0, size);

        //Convert byte array (output) to String format and write to console
        String msg = new String(output);
        System.out.printf("\nRead the (%s) string from persistent-memory.\n", msg);
        return msg;
    }

    @Test
    public void main0() {
        String option = "0";
        byte[] input;
        int    size;  // String length

        // Define Heap
        String  path        = "./persistent_heap";
        boolean initialized = Heap.exists(path);
        Heap    h           = initialized ? Heap.openHeap(path) : Heap.createHeap(path, 1024 * 1024 * 16L);

        //Initialize the msg string
        String msg = "Hello Persistent Memory!!!";

        // Convert String to byte array format
        // To store in persistent heap
        input = msg.getBytes();

        // Get the array size
        size = input.length;

        write_hello_string(input, h, size);

        String msgRead = read_hello_string(h, size);

        Assert.assertEquals(msgRead, msg);
    }    // End of main function
}

共享对应代码文件夹

共享目录 /mnt/hgfs

执行 mvn test

待续

• 看下后续打个docker使用，更方便，docker PMDK环境
