日志管理之添加操作日志页面（1）

这是我参与 8 月更文挑战的第 22 天，活动详情查看： 8月更文挑战

前言

之前的日志管理中利用Springboot中的AOP来记录用户操作，能够清楚的看出用户操作了哪些类，使用了哪些方法名，输入到函数中的参数值以及操作ip，但这些日志记录数据更适合有一定编程基础的人查看，而对于负责日志管理的用户来说，他可能只想要知道，哪些人做了哪些操作，做了什么样的操作。

目标

添加操作日志页面，能够展现操作日志记录包括操作人、操作模块、操作类型、操作描述和操作时间。

具体实现步骤

1. 在pom.xml中添加AOP依赖

  <!-- aop依赖 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>

2. 数据库设计

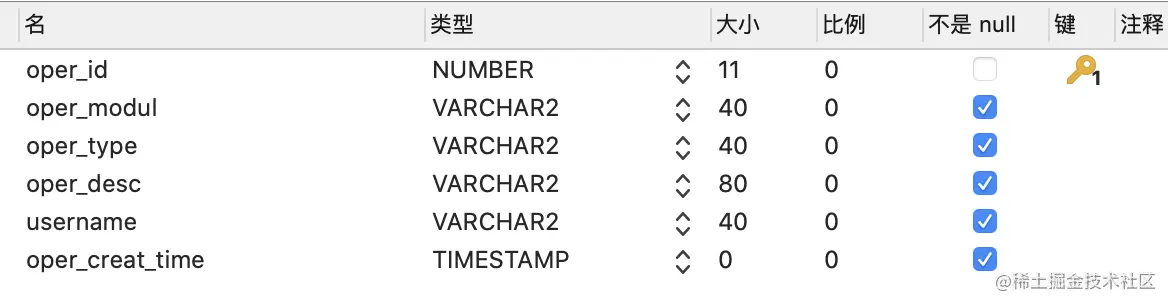

OperationLog表设计如下：

3. pojo层

在pojo层new一个名为OperationLog的java文件。

package com.tjm.pojo;

import lombok.AllArgsConstructor;
import lombok.NoArgsConstructor;
import lombok.Data;
import java.sql.Timestamp;

@AllArgsConstructor
@NoArgsConstructor
@Data
public class OperationLog {
    int oper_id;
    String oper_modul;
    String oper_type;
    String oper_desc;
    String username;
    Timestamp oper_creat_time;
}

4. service层

创建service接口文件以及接口实现类，代码如下：

（1）OperationLogService

package com.tjm.service;

import com.tjm.pojo.OperationLog;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public interface OperationLogService {

    int insertOperLog(OperationLog operationLog);

    List<OperationLog> queryLogList();
}

(2) OperationLogServiceImpl

package com.tjm.service;

import com.tjm.mapper.OperLogMapper;
import com.tjm.pojo.OperationLog;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service("OperationLogService")
public class OperationLogServiceImpl implements OperationLogService{

    @Autowired
    private OperLogMapper operLogMapper;

    @Override
    public int insertOperLog(OperationLog operationLog) {
        return operLogMapper.insertOperLog(operationLog);
    }

    @Override
    public List<OperationLog> queryLogList(){
        return operLogMapper.queryLogList();
    }
}

5. mapper层

OperLogMapper

package com.tjm.mapper;

import com.tjm.pojo.OperationLog;
import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Repository;

import java.util.List;

@Repository
@Mapper
public interface OperLogMapper {
    int insertOperLog(OperationLog operationLog);

    List<OperationLog> queryLogList();
}

然后在resources/mapper下新建一个OperLogMapper.xml，代码如下：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.tjm.mapper.OperLogMapper">

    <insert id="insertOperLog" parameterType="OperationLog" >
        <selectKey keyProperty="oper_id" resultType="int" order="BEFORE">
            select nvl(max("oper_id"),0)+1 from "OperationLog"
        </selectKey>
        insert into "OperationLog"("oper_id","oper_modul","oper_type","oper_desc","username","oper_creat_time")
        values(#{oper_id},#{oper_modul},#{oper_type},#{oper_desc},#{username},#{oper_creat_time})
    </insert>

    <select id="queryLogList" resultType="OperationLog">
        select * from "OperationLog" Order by "oper_id"
    </select>

</mapper>
