简介

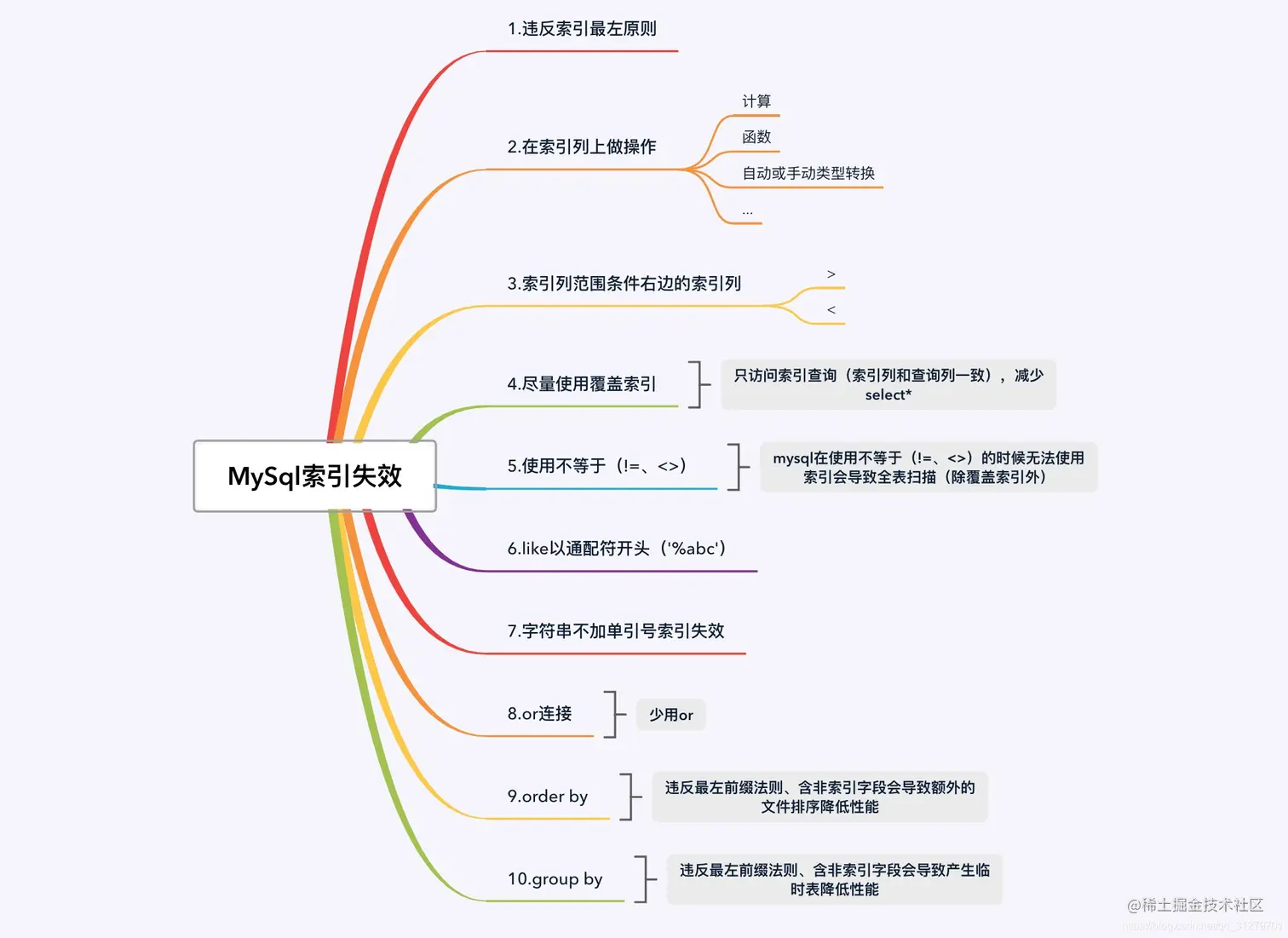

索引对于MySql来说是相当重要的，合理的使用索引能够提高查询效率，MySql支持的所有有主键索引、唯一索引、联合索引、全文索引、普通索引，本篇文章简单分析一下MySql索引失效的几种情况，下面的图总结了索引失效一些情况，后面就针对图中的10点进行验证。
MySql索引失效验证
测试用DDL和DML
/*
Navicat Premium Data Transfer
Source Server : master
Source Server Type : MySQL
Source Server Version : 50732
Source Host : localhost:3316
Source Schema : order
Target Server Type : MySQL
Target Server Version : 50732
File Encoding : 65001
Date: 23/03/2021 22:53:53
*/
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for order
-- ----------------------------
DROP TABLE IF EXISTS `order`;
CREATE TABLE `order` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`create_time` datetime NOT NULL,
`number` varchar(20) COLLATE utf8mb4_bin NOT NULL,
`status` tinyint(4) NOT NULL,
`product_id` varchar(128) COLLATE utf8mb4_bin NOT NULL,
`total_amount` decimal(10,0) NOT NULL,
`count` int(4) NOT NULL,
`user_id` varchar(128) COLLATE utf8mb4_bin NOT NULL,
PRIMARY KEY (`id`),
KEY `idx_1` (`number`,`status`,`total_amount`,`user_id`) USING BTREE COMMENT '测试索引'
) ENGINE=InnoDB AUTO_INCREMENT=8 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_bin;
-- ----------------------------
-- Records of order
-- ----------------------------
BEGIN;
INSERT INTO `order` VALUES (3, '2020-12-11 03:24:56', '543995759748632576', 1, '1', 100, 1, '10000');
INSERT INTO `order` VALUES (4, '2020-12-11 03:24:56', '543995759748632576', 1, '1', 100, 1, '10000');
INSERT INTO `order` VALUES (5, '2020-12-11 03:24:56', '543995759748632576', 1, '1', 100, 1, '10000');
INSERT INTO `order` VALUES (6, '2020-12-11 03:24:56', '543995759748632576', 1, '1', 100, 1, '10000');
INSERT INTO `order` VALUES (7, '2020-12-11 03:24:56', '543995759748632576', 1, '1', 100, 1, '10000');
COMMIT;
SET FOREIGN_KEY_CHECKS = 1;
全值匹配（索引最佳）
顺序匹配所有的字段，走索引idx_1，扫描行数为1
mysql> explain select * from `order` where number='543995759748632576' and `status`=1 and total_amount=20 and user_id='10000';
+----+-------------+-------+------------+------+---------------+-------+---------+-------------------------+------+----------+-------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+-------+---------+-------------------------+------+----------+-------+
| 1 | SIMPLE | order | NULL | ref | idx_1 | idx_1 | 602 | const,const,const,const | 1 | 100.00 | NULL |
+----+-------------+-------+------------+------+---------------+-------+---------+-------------------------+------+----------+-------+
索引顺序打乱了，仍然走索引，全值匹配和索引顺序无关，MySQL底层的优化器会进行优化，调整索引的顺序
mysql> explain select * from `order` where number='543995759748632576' and `status`=1 and user_id='10000' and total_amount=20;
+----+-------------+-------+------------+------+---------------+-------+---------+-------------------------+------+----------+-------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+-------+---------+-------------------------+------+----------+-------+
| 1 | SIMPLE | order | NULL | ref | idx_1 | idx_1 | 602 | const,const,const,const | 1 | 100.00 | NULL |
+----+-------------+-------+------------+------+---------------+-------+---------+-------------------------+------+----------+-------+
违反最左原则
未匹配到联合索引最左边的索引，索引失效，全表扫描
mysql> explain select * from `order` where `status`=1 and total_amount=20;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | order | NULL | ALL | NULL | NULL | NULL | NULL | 5 | 20.00 | Using where |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
在索引列上做任何操作
number字段是varchar类型，这里去掉单引号就是int类型了，这时候索引失效，全表扫描；第二个sql对number字段进行了函数操作，索引也失效了，
mysql> explain select * from `order` where number=543995759748632576 and `status`=1 and user_id='10000' and total_amount=20;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | order | NULL | ALL | idx_1 | NULL | NULL | NULL | 5 | 20.00 | Using where |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
mysql> explain select * from `order` where left(number,5)='543995759748632576' and `status`=1 and user_id='10000' and total_amount=20;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | order | NULL | ALL | NULL | NULL | NULL | NULL | 5 | 20.00 | Using where |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
索引范围条件右边的索引列会失效
这条sql也匹配到了索引，但是索引范围条件右边的索引列失效了
mysql> explain select * from `order` where number='543995759748632576' and `status`=1 and total_amount>20 and user_id='10000';
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+-----------------------+
| 1 | SIMPLE | order | NULL | range | idx_1 | idx_1 | 88 | NULL | 1 | 20.00 | Using index condition |
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+-----------------------+
尽量使用覆盖索引
索引列和查询列一致，匹配到了索引，违反最左原则索引失效了
mysql> explain select number,`status`,total_amount,user_id from `order` where `status`=1;
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+--------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+--------------------------+
| 1 | SIMPLE | order | NULL | index | NULL | idx_1 | 602 | NULL | 5 | 20.00 | Using where; Using index |
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+--------------------------+
使用不等于（!=、<>）（除覆盖索引外）
mysql在使用不等于（!=、<>）的时候无法使用索引会导致全表扫描
mysql> explain select * from `order` where number!='543995759748632576' and `status`=1;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | order | NULL | ALL | idx_1 | NULL | NULL | NULL | 5 | 20.00 | Using where |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
mysql> explain select * from `order` where number<>'543995759748632576' and `status`=1;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | order | NULL | ALL | idx_1 | NULL | NULL | NULL | 5 | 20.00 | Using where |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
1 row in set, 1 warning (0.01 sec)
- 下面是个反例
下面sql条件虽然是<>，但是因为查询列覆盖索引了，索引索引未失效
mysql> explain select number,`status`,total_amount,user_id from `order` where number<>'543995759748632576' and `status`=1;
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+--------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+--------------------------+
| 1 | SIMPLE | order | NULL | range | idx_1 | idx_1 | 82 | NULL | 4 | 20.00 | Using where; Using index |
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+--------------------------+
1 row in set, 1 warning (0.00 sec)
like以通配符开头（'%abc'）
通配符'%abc'索引失效，'abc%'索引不会失效
mysql> explain select * from `order` where number LIKE '%543995759748632' and `status`=1;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | order | NULL | ALL | NULL | NULL | NULL | NULL | 5 | 20.00 | Using where |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
mysql> explain select * from `order` where number LIKE '5759748632576%' and `status`=1;
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+-----------------------+
| 1 | SIMPLE | order | NULL | range | idx_1 | idx_1 | 83 | NULL | 1 | 20.00 | Using index condition |
+----+-------------+-------+------------+-------+---------------+-------+---------+------+------+----------+-----------------------+
1 row in set, 1 warning (0.00 sec)
字符串不加单引号索引失效（数据类型隐式转换）
mysql> explain select * from `order` where number =543995759748632576 and `status`=1;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | order | NULL | ALL | idx_1 | NULL | NULL | NULL | 5 | 20.00 | Using where |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
1 row in set, 3 warnings (0.00 sec)
or连接索引失效
用or分割开的条件，如果or前的条件中的列有索引，而后面的列中没有索引，那么设计的索引不会被用到，因为or后面的条件列表中没有索引，那么后面的查询条件肯定要走全表扫描。在存在的全表扫描的情况下，就没有必要多一次索引扫描增加I/O访问，一次全表扫描过滤条件就足够了。
mysql> explain select * from `order` where number ='543995759748632576' or `count`=1;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | order | NULL | ALL | idx_1 | NULL | NULL | NULL | 5 | 100.00 | Using where |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+
1 row in set, 1 warning (0.00 sec)
order by
正常（索引参与了排序），索引未失效，索引有两个作用，排序和查找
mysql> explain select * from `order` where number ='543995759748632576' and `status`=1 ORDER BY total_amount;
+----+-------------+-------+------------+------+---------------+-------+---------+-------------+------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+-------+---------+-------------+------+----------+-----------------------+
| 1 | SIMPLE | order | NULL | ref | idx_1 | idx_1 | 83 | const,const | 1 | 100.00 | Using index condition |
+----+-------------+-------+------------+------+---------------+-------+---------+-------------+------+----------+-----------------------+
1 row in set, 1 warning (0.00 sec)
可以看到两个sql都走了索引，但是由于order by后边的子句没有匹配索引，Extra中有Using filesort代表额外的文件排序（会降低性能）
// 违反最左原则
explain select number,user_id from order where number ='543995759748632576' ORDER BY user_id;
// order by字段不是索引字段
explain select number,user_id from order where number ='543995759748632576' ORDER BY count;
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+------------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+------------------------------------------+
| 1 | SIMPLE | order | NULL | ref | idx_1 | idx_1 | 82 | const | 1 | 100.00 | Using where; Using index; Using filesort |
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+------------------------------------------+
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+---------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+---------------------------------------+
| 1 | SIMPLE | order | NULL | ref | idx_1 | idx_1 | 82 | const | 1 | 100.00 | Using index condition; Using filesort |
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+---------------------------------------+
group by
导致产生临时表（会降低性能）
mysql> explain select number,total_amount from `order` where number ='543995759748632576' GROUP BY total_amount;
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+-----------------------------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+-----------------------------------------------------------+
| 1 | SIMPLE | order | NULL | ref | idx_1 | idx_1 | 82 | const | 1 | 100.00 | Using where; Using index; Using temporary; Using filesort |
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+-----------------------------------------------------------+
1 row in set, 1 warning (0.00 sec)
mysql>
mysql> explain select number,total_amount from `order` where number ='543995759748632576' GROUP BY total_amount,count;
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+--------------------------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+--------------------------------------------------------+
| 1 | SIMPLE | order | NULL | ref | idx_1 | idx_1 | 82 | const | 1 | 100.00 | Using index condition; Using temporary; Using filesort |
+----+-------------+-------+------------+------+---------------+-------+---------+-------+------+----------+--------------------------------------------------------+
1 row in set, 1 warning (0.00 sec)
查看索引使用情况
SHOW STATUS LIKE 'Handler_read%';
结果：
Handler_read_first 3
Handler_read_key 563
Handler_read_last 0
Handler_read_next 62
Handler_read_prev 0
Handler_read_rnd 478
Handler_read_rnd_next 27722
如果索引工作，Handler_read_key的值将很高，这个值代表了一个行被索引值的次数，很低的值表明增加索引得到的性能改善不高，因为索引并不经常使用。
Handler_read_rnd_next的值高则意味着查询运行低效，并且应该建立索引补救。这个值的含义实在数据文件中读下一行的请求数，如果正在进行大量的表扫描，Handler_read_rnd_next的值较高，则通常说明表索引不正确或写入的查询没有利用索引。
