栅栏函数
举个🌰
- (void)demo2{
dispatch_queue_t concurrentQueue = dispatch_queue_create("cooci", DISPATCH_QUEUE_CONCURRENT);
/* 1.异步函数 */
dispatch_async(concurrentQueue, ^{
NSLog(@"123");
});
dispatch_async(concurrentQueue, ^{
NSLog(@"456");
});
/* 2. 栅栏函数 */ // 栏队列
dispatch_barrier_async(concurrentQueue, ^{
NSLog(@"---------------------%@------------------------",[NSThread currentThread]);
});
/* 3. 异步函数 */
dispatch_async(concurrentQueue, ^{
NSLog(@"加载那么多,喘口气!!!");
});
NSLog(@"**********起来干!!");
}
输出结果：
** 123**
** 456**
** **********起来干!!**
** ---------------------<NSThread: 0x600002344780>{number = 6, name = (null)}------------------------**
** 加载那么多,喘口气!!!**
dispatch_barrier_async阻碍的是在barrier里block后面加入到concurrentQueue的任务。
dispatch_barrier_async我们把dispatch_barrier_async改成dispatch_barrier_sync, 输出结果如下
** 123**
** 456**
** ---------------------<NSThread: 0x600002344780>{number = 6, name = (null)}------------------------**
** **********起来干!!**
** 加载那么多,喘口气!!!**
从上面的例子中我们看到
dispatch_barrier_async 前面的任务执行完毕才会到它里面的块的代码中来
dispatch_barrier_sync 作用相同，但是这个会阻塞线程，影响后面的任务执行
非常重要的一点：栅栏函数只能控制同一并发队列，而且必须是自定义并发队列，全局并发队列是不能加栅栏的，那么我们来看一下同步是怎么实现的。
dispatch_barrier_sync的源码分析
void
dispatch_barrier_sync(dispatch_queue_t dq, dispatch_block_t work)
{
uintptr_t dc_flags = DC_FLAG_BARRIER | DC_FLAG_BLOCK;
if (unlikely(_dispatch_block_has_private_data(work))) {
return _dispatch_sync_block_with_privdata(dq, work, dc_flags);
}
_dispatch_barrier_sync_f(dq, work, _dispatch_Block_invoke(work), dc_flags);
}
dispatch_barrier_sync->_dispatch_barrier_sync_f
_dispatch_barrier_sync_f里面封装的是_dispatch_barrier_sync_f_inline
static inline void
_dispatch_barrier_sync_f_inline(dispatch_queue_t dq, void *ctxt,
dispatch_function_t func, uintptr_t dc_flags)
{
dispatch_tid tid = _dispatch_tid_self();
if (unlikely(dx_metatype(dq) != _DISPATCH_LANE_TYPE)) {
DISPATCH_CLIENT_CRASH(0, "Queue type doesn't support dispatch_sync");
}
dispatch_lane_t dl = upcast(dq)._dl;
// The more correct thing to do would be to merge the qos of the thread
// that just acquired the barrier lock into the queue state.
//
// However this is too expensive for the fast path, so skip doing it.
// The chosen tradeoff is that if an enqueue on a lower priority thread
// contends with this fast path, this thread may receive a useless override.
//
// Global concurrent queues and queues bound to non-dispatch threads
// always fall into the slow case, see DISPATCH_ROOT_QUEUE_STATE_INIT_VALUE
if (unlikely(!_dispatch_queue_try_acquire_barrier_sync(dl, tid))) {
return _dispatch_sync_f_slow(dl, ctxt, func, DC_FLAG_BARRIER, dl,
DC_FLAG_BARRIER | dc_flags);
}
if (unlikely(dl->do_targetq->do_targetq)) {
return _dispatch_sync_recurse(dl, ctxt, func,
DC_FLAG_BARRIER | dc_flags);
}
_dispatch_introspection_sync_begin(dl);
_dispatch_lane_barrier_sync_invoke_and_complete(dl, ctxt, func
DISPATCH_TRACE_ARG(_dispatch_trace_item_sync_push_pop(
dq, ctxt, func, dc_flags | DC_FLAG_BARRIER)));
}

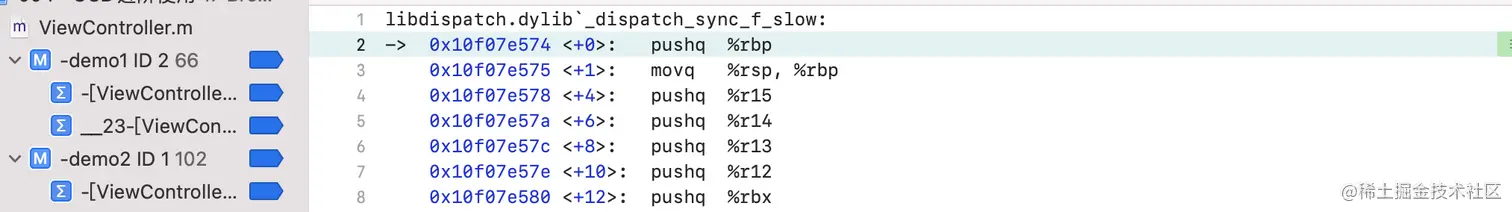

添加符号断点，走的是_dispatch_sync_f_slow
DISPATCH_NOINLINE
static void
_dispatch_sync_f_slow(dispatch_queue_class_t top_dqu, void *ctxt,
dispatch_function_t func, uintptr_t top_dc_flags,
dispatch_queue_class_t dqu, uintptr_t dc_flags)
{
...
_dispatch_sync_invoke_and_complete_recurse(top_dq, ctxt, func,top_dc_flags
DISPATCH_TRACE_ARG(&dsc));
}
static void
_dispatch_sync_invoke_and_complete_recurse(dispatch_queue_class_t dq,
void *ctxt, dispatch_function_t func, uintptr_t dc_flags
DISPATCH_TRACE_ARG(void *dc))
{
_dispatch_sync_function_invoke_inline(dq, ctxt, func);
_dispatch_trace_item_complete(dc);
_dispatch_sync_complete_recurse(dq._dq, NULL, dc_flags);
}
调用_dispatch_sync_complete_recurse,这个函数中有一个do..while如果没有barrier就直接走_dispatch_lane_non_barrier_complete,如果有barrier就走dx_wakeup(dq, 0,DISPATCH_WAKEUP_BARRIER_COMPLETE);唤醒队列中的任务开始执行
static void
_dispatch_sync_complete_recurse(dispatch_queue_t dq, dispatch_queue_t stop_dq,
uintptr_t dc_flags)
{
bool barrier = (dc_flags & DC_FLAG_BARRIER);
do {
if (dq == stop_dq) return;
if (barrier) {
dx_wakeup(dq, 0, DISPATCH_WAKEUP_BARRIER_COMPLETE);
} else {
_dispatch_lane_non_barrier_complete(upcast(dq)._dl, 0);
}
dq = dq->do_targetq;
barrier = (dq->dq_width == 1);
} while (unlikely(dq->do_targetq));
}
#define dx_wakeup(x, y, z) dx_vtable(x)->dq_wakeup(x, y, z)
DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_concurrent, lane,
.do_type = DISPATCH_QUEUE_CONCURRENT_TYPE,
.do_dispose = _dispatch_lane_dispose,
.do_debug = _dispatch_queue_debug,
.do_invoke = _dispatch_lane_invoke,
.dq_activate = _dispatch_lane_activate,
.dq_wakeup = _dispatch_lane_wakeup,
.dq_push = _dispatch_lane_concurrent_push,
);
DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_global, lane,
.do_type = DISPATCH_QUEUE_GLOBAL_ROOT_TYPE,
.do_dispose = _dispatch_object_no_dispose,
.do_debug = _dispatch_queue_debug,
.do_invoke = _dispatch_object_no_invoke,
.dq_activate = _dispatch_queue_no_activate,
.dq_wakeup = _dispatch_root_queue_wakeup,
.dq_push = _dispatch_root_queue_push,
);
并发队列调用的是_dispatch_lane_wakeup，而全局并发队列调用的是_dispatch_root_queue_wakeup
_dispatch_lane_wakeup源码实现，如果if (unlikely(flags & DISPATCH_WAKEUP_BARRIER_COMPLETE)) { flags是DISPATCH_WAKEUP_BARRIER_COMPLETE则走_dispatch_lane_barrier_complete
void
_dispatch_lane_wakeup(dispatch_lane_class_t dqu, dispatch_qos_t qos,
dispatch_wakeup_flags_t flags)
{
dispatch_queue_wakeup_target_t target = DISPATCH_QUEUE_WAKEUP_NONE;
if (unlikely(flags & DISPATCH_WAKEUP_BARRIER_COMPLETE)) {
return _dispatch_lane_barrier_complete(dqu, qos, flags);
}
if (_dispatch_queue_class_probe(dqu)) {
target = DISPATCH_QUEUE_WAKEUP_TARGET;
}
return _dispatch_queue_wakeup(dqu, qos, flags, target);
}
_dispatch_lane_barrier_complete这是一个循环操作，如果是_dispatch_object_is_barrier则_dispatch_lane_drain_barrier_waiter，一直等到没有barrier了然后走_dispatch_lane_drain_non_barriers
_dispatch_lane_drain_barrier_waiter里面做了一些barrier的唤醒和重新标记barrier状态的事情
_dispatch_lane_barrier_complete(dispatch_lane_class_t dqu, dispatch_qos_t qos,
dispatch_wakeup_flags_t flags)
{
dispatch_queue_wakeup_target_t target = DISPATCH_QUEUE_WAKEUP_NONE;
dispatch_lane_t dq = dqu._dl;
if (dq->dq_items_tail && !DISPATCH_QUEUE_IS_SUSPENDED(dq)) {
struct dispatch_object_s *dc = _dispatch_queue_get_head(dq);
if (likely(dq->dq_width == 1 || _dispatch_object_is_barrier(dc))) {
if (_dispatch_object_is_waiter(dc)) {
return _dispatch_lane_drain_barrier_waiter(dq, dc, flags, 0);
}
} else if (dq->dq_width > 1 && !_dispatch_object_is_barrier(dc)) {
return _dispatch_lane_drain_non_barriers(dq, dc, flags);
}
if (!(flags & DISPATCH_WAKEUP_CONSUME_2)) {
_dispatch_retain_2(dq);
flags |= DISPATCH_WAKEUP_CONSUME_2;
}
target = DISPATCH_QUEUE_WAKEUP_TARGET;
}
uint64_t owned = DISPATCH_QUEUE_IN_BARRIER +
dq->dq_width * DISPATCH_QUEUE_WIDTH_INTERVAL;
return _dispatch_lane_class_barrier_complete(dq, qos, flags, target, owned);
dispatch_lane_drain_barrier_waiter调用了_dispatch_barrier_waiter_redirect_or_wake里面传入了新状态和旧状态
dispatch_lane_drain_barrier_waiter(dispatch_lane_t dq,
struct dispatch_object_s *dc, dispatch_wakeup_flags_t flags,
uint64_t enqueued_bits)
{
dispatch_sync_context_t dsc = (dispatch_sync_context_t)dc;
struct dispatch_object_s *next_dc;
uint64_t next_owner = 0, old_state, new_state;
next_owner = _dispatch_lock_value_from_tid(dsc->dsc_waiter);
next_dc = _dispatch_queue_pop_head(dq, dc);
transfer_lock_again:
os_atomic_rmw_loop2o(dq, dq_state, old_state, new_state, release, {
if (unlikely(_dq_state_needs_ensure_ownership(old_state))) {
_dispatch_event_loop_ensure_ownership((dispatch_wlh_t)dq);
_dispatch_queue_move_to_contended_sync(dq->_as_dq);
os_atomic_rmw_loop_give_up(goto transfer_lock_again);
}
new_state = old_state;
new_state &= ~DISPATCH_QUEUE_DRAIN_UNLOCK_MASK;
new_state &= ~DISPATCH_QUEUE_DIRTY;
new_state |= next_owner;
if (_dq_state_is_base_wlh(old_state)) {
if (next_dc) {
// we know there's a next item, keep the enqueued bit if any
} else if (unlikely(_dq_state_is_dirty(old_state))) {
os_atomic_rmw_loop_give_up({
os_atomic_xor2o(dq, dq_state, DISPATCH_QUEUE_DIRTY, acquire);
next_dc = os_atomic_load2o(dq, dq_items_head, relaxed);
goto transfer_lock_again;
});
} else {
new_state &= ~DISPATCH_QUEUE_MAX_QOS_MASK;
new_state &= ~DISPATCH_QUEUE_ENQUEUED;
}
} else {
new_state -= enqueued_bits;
}
});
return _dispatch_barrier_waiter_redirect_or_wake(dq, dc, flags,
old_state, new_state);
}
DISPATCH_NOINLINE
static void
_dispatch_barrier_waiter_redirect_or_wake(dispatch_queue_class_t dqu,
dispatch_object_t dc, dispatch_wakeup_flags_t flags,
uint64_t old_state, uint64_t new_state)
{
...
//重新标记
if (unlikely(_dq_state_is_inner_queue(old_state))) {
dispatch_queue_t tq = dq->do_targetq;
if (dsc->dc_flags & DC_FLAG_ASYNC_AND_WAIT) {
_dispatch_async_waiter_update(dsc, dq);
}
if (likely(tq->dq_width == 1)) {
dsc->dc_flags |= DC_FLAG_BARRIER;
} else {
dispatch_lane_t dl = upcast(tq)._dl;
dsc->dc_flags &= ~DC_FLAG_BARRIER;
if (_dispatch_queue_try_reserve_sync_width(dl)) {
return _dispatch_non_barrier_waiter_redirect_or_wake(dl, dc);
}
}
// passing the QoS of `dq` helps pushing on low priority waiters with
// legacy workloops.
dsc->dsc_from_async = false;
//层层push
return dx_push(tq, dsc, _dq_state_max_qos(old_state));
}
...
return _dispatch_waiter_wake(dsc, wlh, old_state, new_state);
}
当barrier前面的都执行完了，也就没有barrier了，然后调用barrier里面的block执行，调用完之后
_dispatch_sync_complete_recurse_dispatch_lane_barrier_complete_dispatch_lane_class_barrier_complete我们看下全局并发队列的
void
_dispatch_root_queue_wakeup(dispatch_queue_global_t dq,
DISPATCH_UNUSED dispatch_qos_t qos, dispatch_wakeup_flags_t flags)
{
if (!(flags & DISPATCH_WAKEUP_BLOCK_WAIT)) {
DISPATCH_INTERNAL_CRASH(dq->dq_priority,
"Don't try to wake up or override a root queue");
}
if (flags & DISPATCH_WAKEUP_CONSUME_2) {
return _dispatch_release_2_tailcall(dq);
}
}
它里面没有对barrier的处理，所以栈栏函数只对自定义的队列有用。从上面的源码中看到，栅栏函数会去队列中找到之前队列的任务进行一个唤醒，前面的都唤醒执行完之后才会执行栅栏函数的block，栅栏执行完之后标记完成。栅栏函数起到一个阻塞队列的效果，全局并发队列里面除了处理用户加入的一些事件，还要处理很多系统的事件，如果给全局并发队列中加入栅栏，系统将可能出现一些意想不到的情况。所以栅栏不能阻塞全局并发队列。
信号量
由前面知道，栅栏函数只能阻塞当前自定义的队列。我们有时候会用到一些三方库，如果我们想在别的队列里面做一些处理，栅栏函数就不在起作用了。 信号量常用函数
dispatch_semaphore_create创建信号量dispatch_semaphore_wait信号量等待dispatch_semaphore_signal信号量释放
dispatch_semaphore_t semap = dispatch_semaphore_create(2);
//任务1
dispatch_async(queue, ^{
dispatch_semaphore_wait(semap, DISPATCH_TIME_FOREVER);
NSLog(@"执行任务1");
sleep(1);
NSLog(@"任务1完成");
dispatch_semaphore_signal(semap);
});
//任务2
dispatch_async(queue, ^{
dispatch_semaphore_signal(semap);
NSLog(@"执行任务2");
sleep(1);
NSLog(@"任务2完成");
});

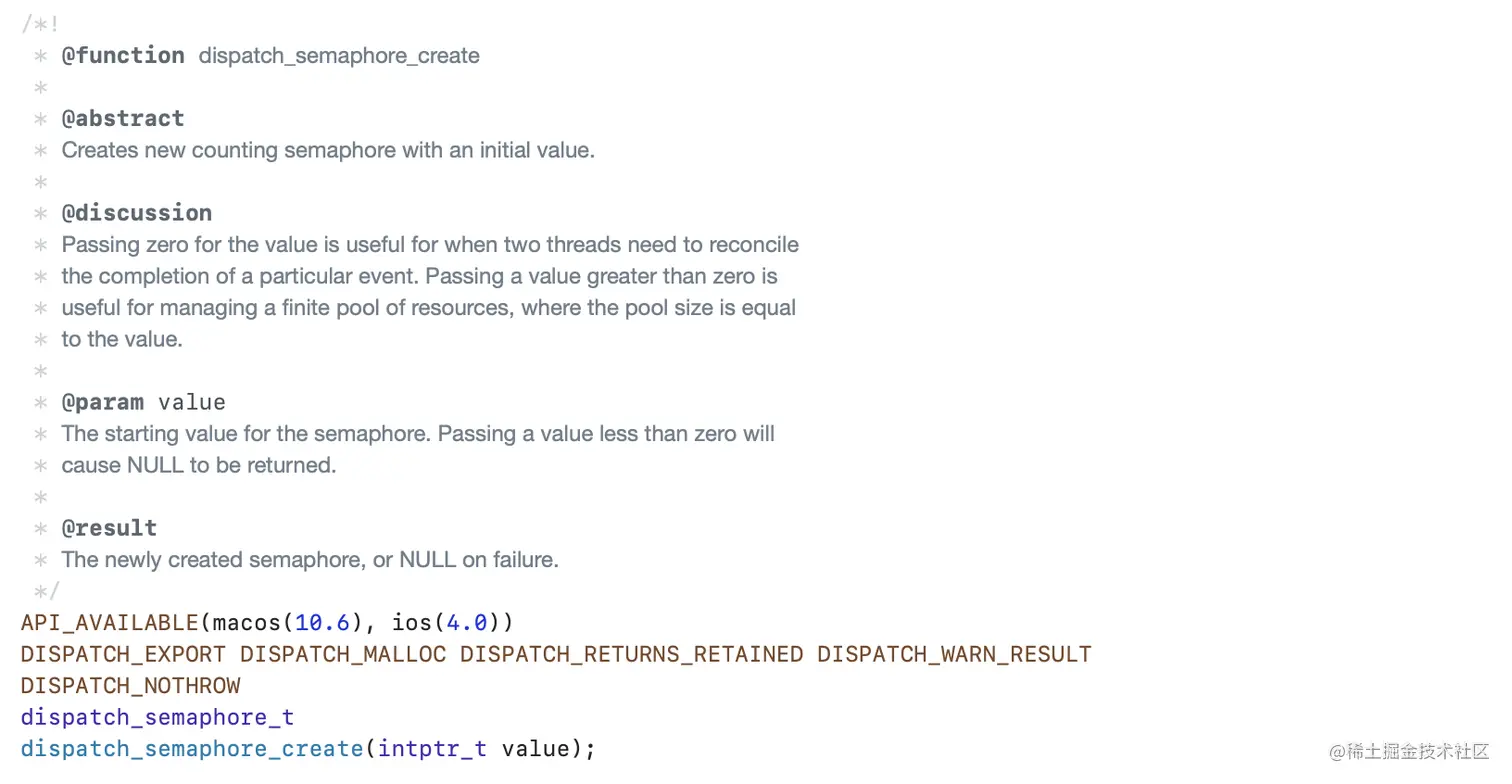

当 dispatch_semaphore_t semap = dispatch_semaphore_create(2);可以控制最大并发量为2。
当信号量小于0的时候，将返回NULL
我们来看一下工作原理：
dispatch_semaphore_wait
intptr_t
dispatch_semaphore_wait(dispatch_semaphore_t dsema, dispatch_time_t timeout)
{
long value = os_atomic_dec2o(dsema, dsema_value, acquire);
if (likely(value >= 0)) {
return 0;
}
return _dispatch_semaphore_wait_slow(dsema, timeout);
}
os_atomic_dec2o减一操作，执行wait，则信号量减一，如果vlaue>=0,则返回0，如果小于0则执行_dispatch_semaphore_wait_slow
static intptr_t
_dispatch_semaphore_wait_slow(dispatch_semaphore_t dsema,
dispatch_time_t timeout)
{
long orig;
_dispatch_sema4_create(&dsema->dsema_sema, _DSEMA4_POLICY_FIFO);
switch (timeout) {
default:
if (!_dispatch_sema4_timedwait(&dsema->dsema_sema, timeout)) {
break;
}
// Fall through and try to undo what the fast path did to
// dsema->dsema_value
case DISPATCH_TIME_NOW:
orig = dsema->dsema_value;
while (orig < 0) {
if (os_atomic_cmpxchgv2o(dsema, dsema_value, orig, orig + 1,
&orig, relaxed)) {
return _DSEMA4_TIMEOUT();
}
}
// Another thread called semaphore_signal().
// Fall through and drain the wakeup.
case DISPATCH_TIME_FOREVER:
_dispatch_sema4_wait(&dsema->dsema_sema);
break;
}
return 0;
}
我们一般传参为DISPATCH_TIME_FOREVER
看下_dispatch_sema4_wait的实现：
void
_dispatch_sema4_wait(_dispatch_sema4_t *sema)
{
int ret = 0;
do {
ret = sem_wait(sema);
} while (ret == -1 && errno == EINTR);
DISPATCH_SEMAPHORE_VERIFY_RET(ret);
}
里面是一个do..while循环，do..while循环里面执行了sem_wait(sema)
所以当我们调用dispatch_semaphore_wait(semap, DISPATCH_TIME_FOREVER);如果信号量<0,则相当于加了一个do...while循环，此时就处于等待中
intptr_t
dispatch_semaphore_signal(dispatch_semaphore_t dsema)
{
long value = os_atomic_inc2o(dsema, dsema_value, release);
if (likely(value > 0)) {
return 0;
}
if (unlikely(value == LONG_MIN)) {
DISPATCH_CLIENT_CRASH(value,
"Unbalanced call to dispatch_semaphore_signal()");
}
return _dispatch_semaphore_signal_slow(dsema);
}
os_atomic_inc2o是一个加一的操作，当信号量>0时发返回0，否则，报错"Unbalanced call to dispatch_semaphore_signal()" 执行_dispatch_semaphore_signal_slow,大概是为了防止程序的异常，错误抛出之后，仍要进行加加操作
DISPATCH_NOINLINE
intptr_t
_dispatch_semaphore_signal_slow(dispatch_semaphore_t dsema)
{
_dispatch_sema4_create(&dsema->dsema_sema, _DSEMA4_POLICY_FIFO);
_dispatch_sema4_signal(&dsema->dsema_sema, 1);
return 1;
}
调度组
调度组函数常用API如下：
dispatch_group_create 创建组
dispatch_group_async 进组
dispatch_group_notify 进组任务执行完成通知
dispatch_group_wait 进组任务执行等待时间
dispatch_group_enter 进组
dispatch_group_leave 出组
注意搭配使用
eg：
- (void)groupDemo{
self.group = dispatch_group_create();
dispatch_queue_t queue = dispatch_get_global_queue(0, 0);
dispatch_group_async(_group, queue, ^{
//创建调度组
NSString *logoStr1 = @"https://f12.baidu.com/it/u=711217113,818398466&fm=72";
NSData *data1 = [NSData dataWithContentsOfURL:[NSURL URLWithString:logoStr1]];
[self.mArray addObject:data1];
});
dispatch_group_async( self.group , queue, ^{
//创建调度组
NSString *logoStr2 = @"https://f12.baidu.com/it/u=3172787957,1000491180&fm=72";
NSData *data2 = [NSData dataWithContentsOfURL:[NSURL URLWithString:logoStr2]];
[self.mArray addObject:data2];
});
// 进组和出租 成对 先进后出
dispatch_group_enter( self.group );
dispatch_async(queue, ^{
//创建调度组
NSString *logoStr2 = @"https://f12.baidu.com/it/u=3172787957,1000491180&fm=72";
NSData *data2 = [NSData dataWithContentsOfURL:[NSURL URLWithString:logoStr2]];
[self.mArray addObject:data2];
});
// long time = dispatch_group_wait(group, 1);
//
// if (time == 0) {
//
// }
dispatch_group_notify( self.group , dispatch_get_main_queue(), ^{
UIImage *newImage = nil;
NSLog(@"数组个数:%ld",self.mArray.count);
});
}
- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event {
dispatch_group_leave( self.group );
}
当点击屏幕的时候，打印**数组个数:3**
我们看到
dispatch_group_enter
dispatch_group_leave 这一对组合 就相当于dispatch_group_async ，然后他们执行完之后dispatch_group_notify才会执行。
dispatch_group_create之前的源码中底层是由信号量封装，但是818之后，重写了一套，实现和信号量的比较相似
底层源码分析:
dispatch_group_t
dispatch_group_create(void)
{
return _dispatch_group_create_with_count(0);
}
我们看下_dispatch_group_create_with_count
static inline dispatch_group_t
_dispatch_group_create_with_count(uint32_t n)
{
dispatch_group_t dg = _dispatch_object_alloc(DISPATCH_VTABLE(group),
sizeof(struct dispatch_group_s));
dg->do_next = DISPATCH_OBJECT_LISTLESS;
dg->do_targetq = _dispatch_get_default_queue(false);
if (n) {
os_atomic_store2o(dg, dg_bits,
(uint32_t)-n * DISPATCH_GROUP_VALUE_INTERVAL, relaxed);
os_atomic_store2o(dg, do_ref_cnt, 1, relaxed); // <rdar://22318411>
}
return dg;
}
我们看下dispatch_group_enter
void
dispatch_group_enter(dispatch_group_t dg)
{
// The value is decremented on a 32bits wide atomic so that the carry
// for the 0 -> -1 transition is not propagated to the upper 32bits.
uint32_t old_bits = os_atomic_sub_orig2o(dg, dg_bits,
DISPATCH_GROUP_VALUE_INTERVAL, acquire);
uint32_t old_value = old_bits & DISPATCH_GROUP_VALUE_MASK;
if (unlikely(old_value == 0)) {
_dispatch_retain(dg); // <rdar://problem/22318411>
}
if (unlikely(old_value == DISPATCH_GROUP_VALUE_MAX)) {
DISPATCH_CLIENT_CRASH(old_bits,
"Too many nested calls to dispatch_group_enter()");
}
}
和 dispatch_group_leave
void
dispatch_group_leave(dispatch_group_t dg)
{
// The value is incremented on a 64bits wide atomic so that the carry for
// the -1 -> 0 transition increments the generation atomically.
uint64_t new_state, old_state = os_atomic_add_orig2o(dg, dg_state,
DISPATCH_GROUP_VALUE_INTERVAL, release);
uint32_t old_value = (uint32_t)(old_state & DISPATCH_GROUP_VALUE_MASK);
if (unlikely(old_value == DISPATCH_GROUP_VALUE_1)) {
old_state += DISPATCH_GROUP_VALUE_INTERVAL;
do {
new_state = old_state;
if ((old_state & DISPATCH_GROUP_VALUE_MASK) == 0) {
new_state &= ~DISPATCH_GROUP_HAS_WAITERS;
new_state &= ~DISPATCH_GROUP_HAS_NOTIFS;
} else {
// If the group was entered again since the atomic_add above,
// we can't clear the waiters bit anymore as we don't know for
// which generation the waiters are for
new_state &= ~DISPATCH_GROUP_HAS_NOTIFS;
}
if (old_state == new_state) break;
} while (unlikely(!os_atomic_cmpxchgv2o(dg, dg_state,
old_state, new_state, &old_state, relaxed)));
return _dispatch_group_wake(dg, old_state, true);
}
if (unlikely(old_value == 0)) {
DISPATCH_CLIENT_CRASH((uintptr_t)old_value,
"Unbalanced call to dispatch_group_leave()");
}
}
可以看到dispatch_group_enter里面是一个减一的操作os_atomic_sub_orig2o。
dispatch_group_leave中
#define DISPATCH_GROUP_VALUE_1 DISPATCH_GROUP_VALUE_MASK如果
if (unlikely(old_value == DISPATCH_GROUP_VALUE_1)) {要执行，那么old_value为-1
在这个if里面
执行了old_state += DISPATCH_GROUP_VALUE_INTERVAL; 和_dispatch_group_wake(dg, old_state, true);
_dispatch_group_wake唤起了_dispatch_group_notify函数。
dispatch_group_enter和dispatch_group_leave阻塞的是_dispatch_group_notify的执行，我们看下_dispatch_group_notify
static inline void
_dispatch_group_notify(dispatch_group_t dg, dispatch_queue_t dq,
dispatch_continuation_t dsn)
{
uint64_t old_state, new_state;
dispatch_continuation_t prev;
dsn->dc_data = dq;
_dispatch_retain(dq);
prev = os_mpsc_push_update_tail(os_mpsc(dg, dg_notify), dsn, do_next);
if (os_mpsc_push_was_empty(prev)) _dispatch_retain(dg);
os_mpsc_push_update_prev(os_mpsc(dg, dg_notify), prev, dsn, do_next);
if (os_mpsc_push_was_empty(prev)) {
os_atomic_rmw_loop2o(dg, dg_state, old_state, new_state, release, {
new_state = old_state | DISPATCH_GROUP_HAS_NOTIFS;
if ((uint32_t)old_state == 0) {
os_atomic_rmw_loop_give_up({
return _dispatch_group_wake(dg, new_state, false);
});
}
});
}
}
如果old_state == 0会执行_dispatch_group_wake，在dispatch_group_leave里面也有唤醒的函数，说明dispatch_group_notify函数中将block块和group绑定在了一起。由于异步函数，可能直接先执行到dispatch_group_notify函数中，但是此时dispatch_group_leave还没有回来，当dispatch_group_leave执行完的时候，也会进行一个唤醒，由于dispatch_group_notify已经将block和group绑定在了一起，所以dispatch_group_leave也可以进行唤醒。
为什么dispatch_group_async就等于dispatch_group_enter和dispatch_group_leave,是不是底层封装了dispatch_group_enter和dispatch_group_leave。
我们看一下源码：
void
dispatch_group_async(dispatch_group_t dg, dispatch_queue_t dq,
dispatch_block_t db)
{
dispatch_continuation_t dc = _dispatch_continuation_alloc();
uintptr_t dc_flags = DC_FLAG_CONSUME | DC_FLAG_GROUP_ASYNC;
dispatch_qos_t qos;
qos = _dispatch_continuation_init(dc, dq, db, 0, dc_flags);
_dispatch_continuation_group_async(dg, dq, dc, qos);
}
我们看下_dispatch_continuation_group_async
static inline void
_dispatch_continuation_group_async(dispatch_group_t dg, dispatch_queue_t dq,
dispatch_continuation_t dc, dispatch_qos_t qos)
{
dispatch_group_enter(dg);
dc->dc_data = dg;
_dispatch_continuation_async(dq, dc, qos, dc->dc_flags);
}
dispatch_group_leave函数在哪里呢，应该在block执行完之后。我们继续追踪源码
经过一系列的调用栈，最后到了下面这个函数
static inline void
_dispatch_continuation_invoke_inline(dispatch_object_t dou,
dispatch_invoke_flags_t flags, dispatch_queue_class_t dqu)
{
...
if (unlikely(dc_flags & DC_FLAG_GROUP_ASYNC)) {
_dispatch_continuation_with_group_invoke(dc);
} else {
_dispatch_client_callout(dc->dc_ctxt, dc->dc_func);
_dispatch_trace_item_complete(dc);
}
if (unlikely(dc1)) {
_dispatch_continuation_free_to_cache_limit(dc1);
}
});
_dispatch_perfmon_workitem_inc();
}
_dispatch_continuation_with_group_invoke这个函数实现如下：
static inline void
_dispatch_continuation_with_group_invoke(dispatch_continuation_t dc)
{
struct dispatch_object_s *dou = dc->dc_data;
unsigned long type = dx_type(dou);
if (type == DISPATCH_GROUP_TYPE) {
_dispatch_client_callout(dc->dc_ctxt, dc->dc_func);
_dispatch_trace_item_complete(dc);
dispatch_group_leave((dispatch_group_t)dou);
} else {
DISPATCH_INTERNAL_CRASH(dx_type(dou), "Unexpected object type");
}
}
所以dispatch_group_async底层是对dispatch_group_enter和dispatch_group_leave的封装。
