iOS 8 消息快速查找

真机调试分析

• 新建NBPerson

@interface NBPerson : NSObject
- (void)sayNB;
@end

@implementation NBPerson
- (void)sayNB{
    NSLog(@"%s",__func__);
}
@end

• 断点调试

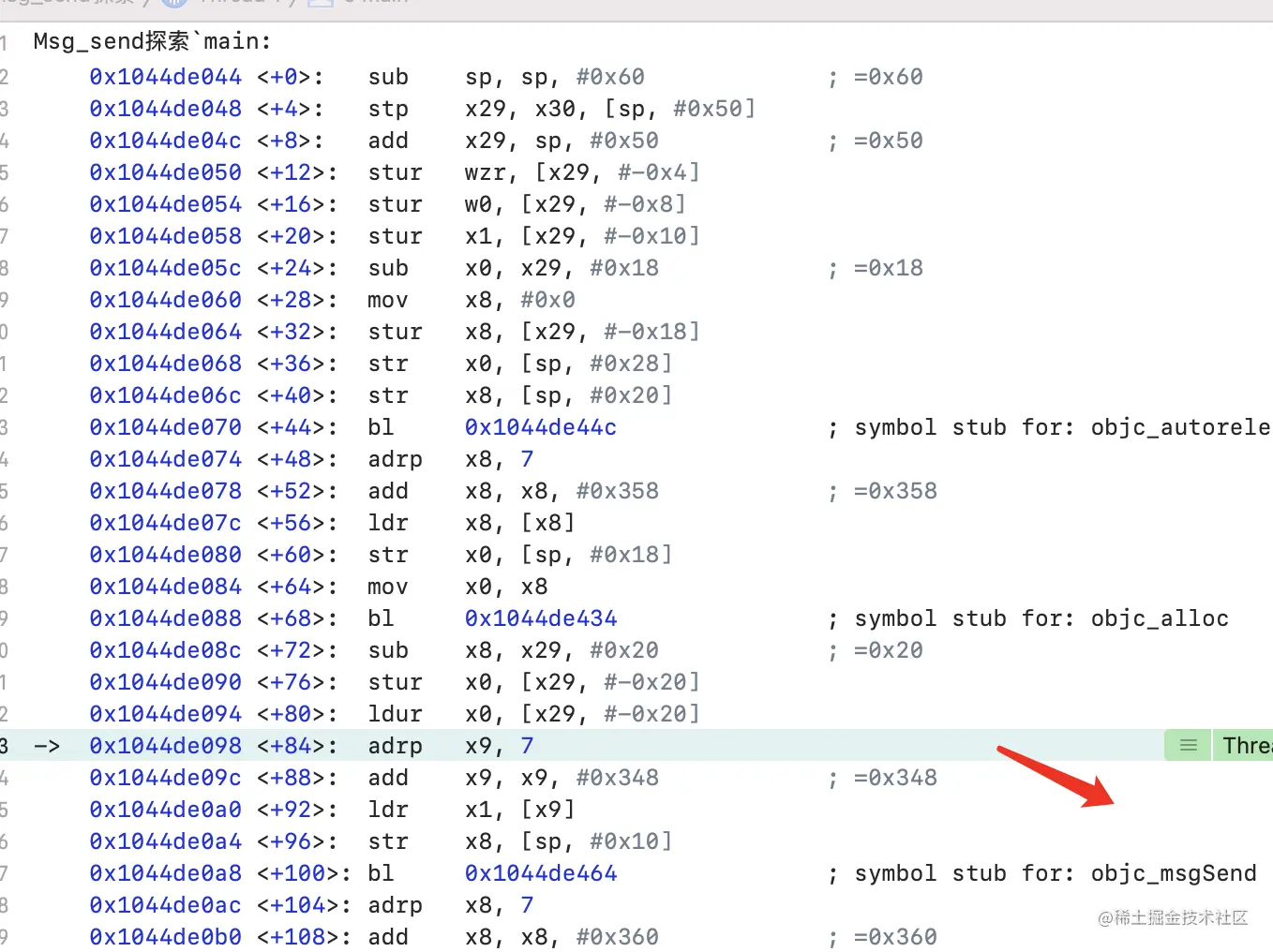

• control into step进入汇编

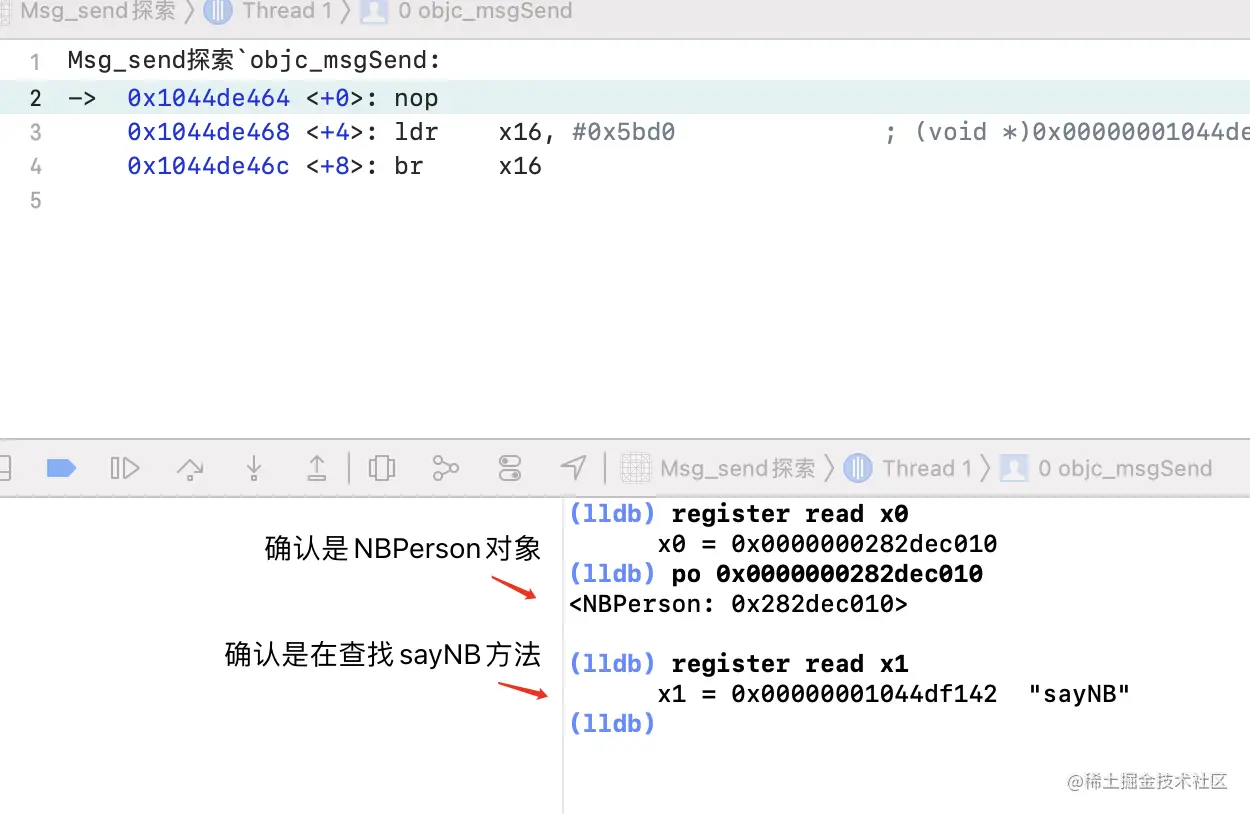

• 继续下一步control into step找到 objc_msgSend

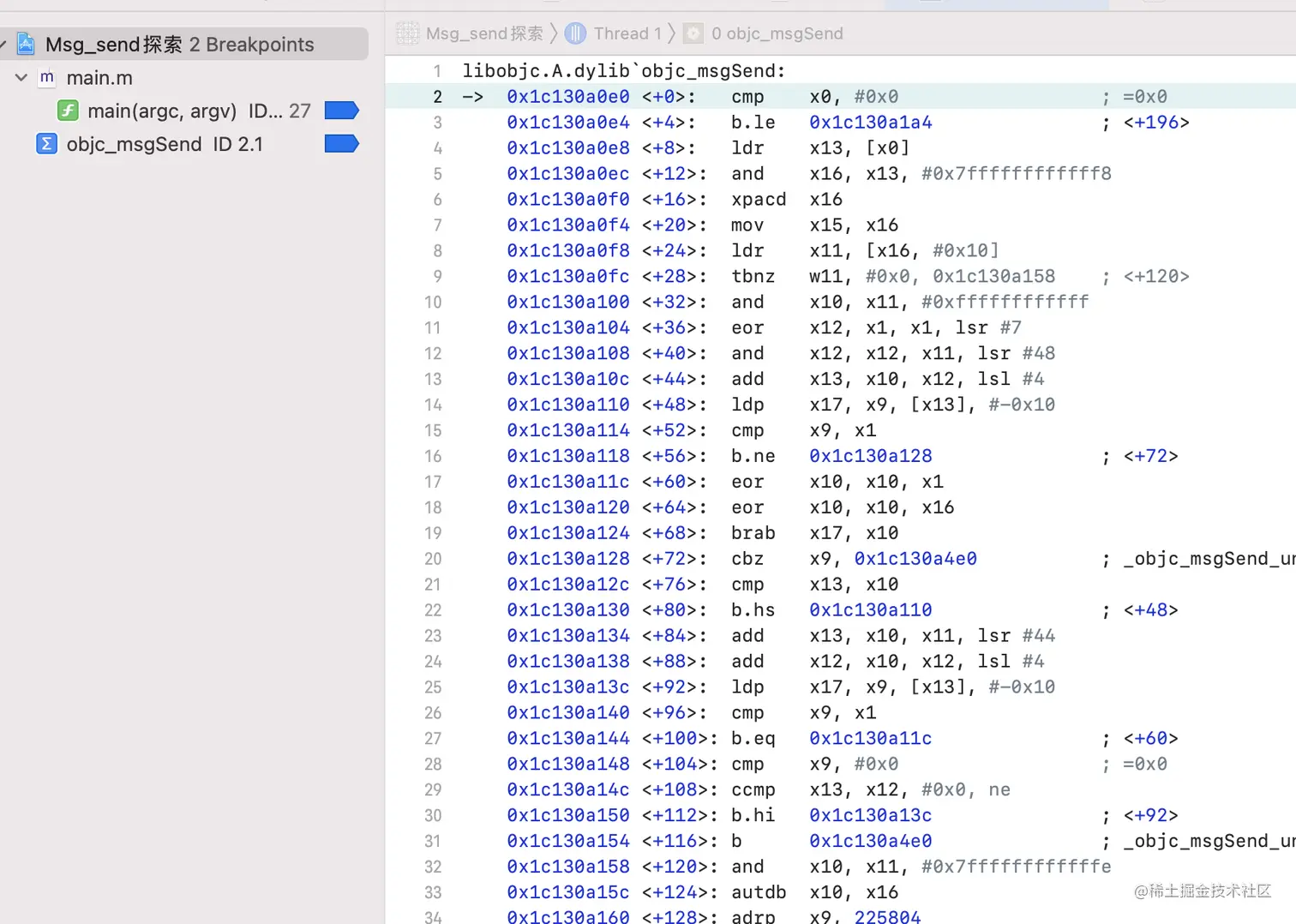

• 然后断点到

• 代码详解

libobjc.A.dylib`objc_msgSend:
    //1,判断receiver是否存在
->  0x1c130a0e0 <+0>:   cmp    x0, #0x0                  ; =0x0
    0x1c130a0e4 <+4>:   b.le   0x1c130a1a4               ; <+196>
    //将实例对象的isa复制给 x13寄存器
    0x1c130a0e8 <+8>:   ldr    x13, [x0]
    //将isa&ISA_MASK得到类NBPerson
    0x1c130a0ec <+12>:  and    x16, x13, #0x7ffffffffffff8
    0x1c130a0f0 <+16>:  xpacd  x16
    0x1c130a0f4 <+20>:  mov    x15, x16
    //将NBPerson的isa地址加16个字节，得到cache_t
    0x1c130a0f8 <+24>:  ldr    x11, [x16, #0x10]
    //w11的0号位置不为0，跳转不为0，继续向下执行
    0x1c130a0fc <+28>:  tbnz   w11, #0x0, 0x1c130a158    ; <+120>
    //将x11&0xffffffffffff可以保留cache_t的低48位，即拿到的buckets
    0x1c130a100 <+32>:  and    x10, x11, #0xffffffffffff
    //x12=_cmd&(_cmd>>7)，mask = x11>>48，x12 = x12&masek
    //x12位第一个检索的位置，即firs_preopt
    0x1c130a104 <+36>:  eor    x12, x1, x1, lsr #7
    0x1c130a108 <+40>:  and    x12, x12, x11, lsr #48
    //buckets + first_preopt 得到第一个探查的bucket_t的地址
    0x1c130a10c <+44>:  add    x13, x10, x12, lsl #4
    //将bucket_t的imp和sel取出，分别存在P17和P9
    0x1c130a110 <+48>:  ldp    x17, x9, [x13], #-0x10
    //比较sel与 _cmd不相等就跳转，否则命中缓存buckets = buckets&_cmd buckets = buckets & isa
    0x1c130a114 <+52>:  cmp    x9, x1
    0x1c130a118 <+56>:  b.ne   0x1c130a128               ; <+72>
    0x1c130a11c <+60>:  eor    x10, x10, x1
    0x1c130a120 <+64>:  eor    x10, x10, x16
    0x1c130a124 <+68>:  brab   x17, x10
    //判断x9是否存在
    0x1c130a128 <+72>:  cbz    x9, 0x1c130a4e0           ; _objc_msgSend_uncached
    //比较bucket_t与buckets
    0x1c130a12c <+76>:  cmp    x13, x10
    0x1c130a130 <+80>:  b.hs   0x1c130a110               ; <+48>

    //取末位缓存，取第一次查找的位置，将末尾bucket_t的imp和sel赋值给x17和x9末位bucket
    0x1c130a134 <+84>:  add    x13, x10, x11, lsr #44
    0x1c130a138 <+88>:  add    x12, x10, x12, lsl #4
    0x1c130a13c <+92>:  ldp    x17, x9, [x13], #-0x10
    //比较sel与_cmd，相等：命中缓存 不相等：判定sel是否存在，判定当前搜索的bucket_t是否已经搜索过了，如果大于，继续循环搜索，否则跳转0x1c130a4e0，进入慢速查找流程
    0x1c130a140 <+96>:  cmp    x9, x1
    0x1c130a144 <+100>: b.eq   0x1c130a11c               ; <+60>
    0x1c130a148 <+104>: cmp    x9, #0x0                  ; =0x0
    0x1c130a14c <+108>: ccmp   x13, x12, #0x0, ne
    0x1c130a150 <+112>: b.hi   0x1c130a13c               ; <+92>
    0x1c130a154 <+116>: b      0x1c130a4e0               ; _objc_msgSend_uncached
    //x11&preoptBucketsMask，取buckets
    0x1c130a158 <+120>: and    x10, x11, #0x7ffffffffffffe
    0x1c130a15c <+124>: autdb  x10, x16
    0x1c130a160 <+128>: adrp   x9, 225804
    0x1c130a164 <+132>: add    x9, x9, #0xef0            ; =0xef0
    0x1c130a168 <+136>: sub    x12, x1, x9
    0x1c130a16c <+140>: lsr    x17, x11, #55
    0x1c130a170 <+144>: lsr    w9, w12, w17
    0x1c130a174 <+148>: lsr    x17, x11, #60
    0x1c130a178 <+152>: mov    x11, #0x7fff
    0x1c130a17c <+156>: lsr    x11, x11, x17
    0x1c130a180 <+160>: and    x9, x9, x11
    0x1c130a184 <+164>: ldr    x17, [x10, x9, lsl #3]
    0x1c130a188 <+168>: cmp    x12, w17, uxtw
    0x1c130a18c <+172>: b.ne   0x1c130a198               ; <+184>
    0x1c130a190 <+176>: sub    x17, x16, x17, lsr #32
    0x1c130a194 <+180>: br     x17
    0x1c130a198 <+184>: ldursw x9, [x10, #-0x8]
    0x1c130a19c <+188>: add    x16, x16, x9
    0x1c130a1a0 <+192>: b      0x1c130a0f8               ; <+24>
    0x1c130a1a4 <+196>: b.eq   0x1c130a1c8               ; <+232>
    0x1c130a1a8 <+200>: and    x10, x0, #0x7
    0x1c130a1ac <+204>: asr    x11, x0, #55
    0x1c130a1b0 <+208>: cmp    x10, #0x7                 ; =0x7
    0x1c130a1b4 <+212>: csel   x12, x11, x10, eq
    0x1c130a1b8 <+216>: adrp   x10, 307745
    0x1c130a1bc <+220>: add    x10, x10, #0x820          ; =0x820
    0x1c130a1c0 <+224>: ldr    x16, [x10, x12, lsl #3]
    0x1c130a1c4 <+228>: b      0x1c130a0f4               ; <+20>
    0x1c130a1c8 <+232>: mov    x1, #0x0
    0x1c130a1cc <+236>: movi   d0, #0000000000000000
    0x1c130a1d0 <+240>: movi   d1, #0000000000000000
    0x1c130a1d4 <+244>: movi   d2, #0000000000000000
    0x1c130a1d8 <+248>: movi   d3, #0000000000000000
    0x1c130a1dc <+252>: ret

汇编指令学习

指令	寄存器值	说明
mov x0,#0xffff	0xffff	将0xffff放到寄存器x0
movk x0,#0x3a88,lsl #16	0x3a88ffff	将0x3a44放到寄存器x0，从16bit位开始存放（movk 保持其他位置不变，将值存入指定bit位）
tbnz x0,#0x0,0x1c130a158	......	判断x0的1号位置是否为0，不为零，跳转到0x1c130a158，为0，向下执行
eor x10, x10, x1	x10	将x10与x1逻辑异或，结果存在x10
ldr x13, [x0]	x13	将x0寄存器中的值取出放在x13寄存器
and x10, x11, #0xffffffffffff	x10	将x11 & 0xffffffffffff,结果存在x10
cmp x9, x1	......	比较x9和x1的大小
b.ne 0x1c130a198	......	不相等，跳转至0x0x1c130a198
b.hs 0x199c731f8	......	无符号小于，跳转至0x199c731f8
b.hi 0x199c73224	......	无符号大于，跳转至0x199c73224
b.hi 0x199c73224	......	无符号大于，跳转至0x199c73224
b.eq 0x199c73204	......	等于，跳转至0x199c73204
cbz x9, 0x199c73600	......	判断x9是否存在，不存在，则跳转0x199c73600
