要求

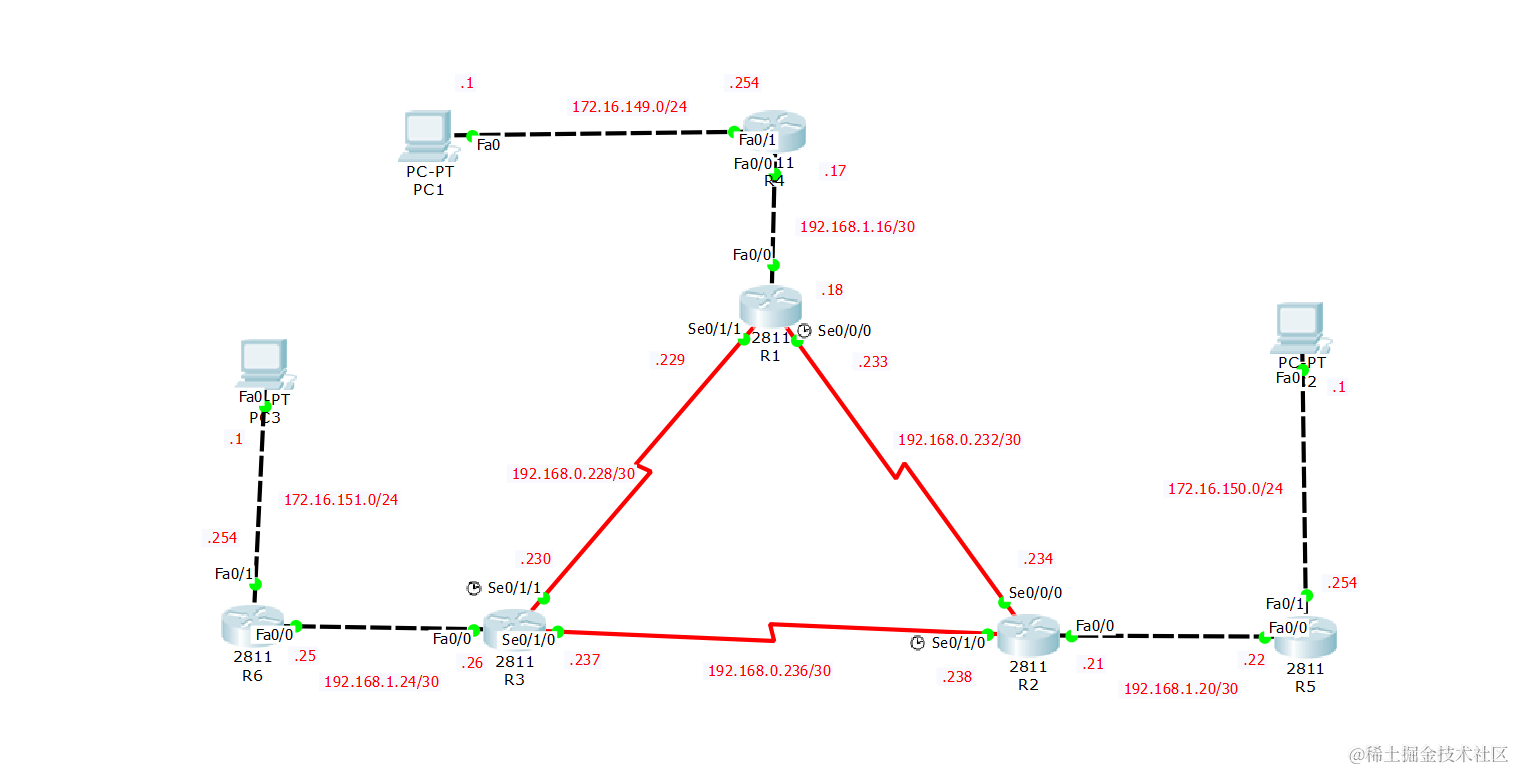

使用动态路由OSPF协议实现全网联通
\
一、基础配置
1、路由器1配置
en
conf t
int f0/0
ip add 192.168.1.18 255.255.255.252
no shut
exit
int s0/0/0
ip add 192.168.0.233 255.255.255.252
clock rate 64000
no shut
exit
int s0/1/1
ip add 192.168.0.229 255.255.255.252
no shut
exit
\
2、路由器2配置
en
conf t
int f0/0
ip add 192.168.1.21 255.255.255.252
no shut
exit
int s0/0/0
ip add 192.168.0.234 255.255.255.252
no shut
exit
int s0/1/0
ip add 192.168.0.238 255.255.255.252
clock rate 64000
no shut
exit
\
3、路由器3配置
en
conf t
int f0/0
ip add 192.168.1.26 255.255.255.252
no shut
exit
int s0/1/1
ip add 192.168.0.230 255.255.255.252
clock rate 64000
no shut
exit
int s0/1/0
ip add 192.168.0.237 255.255.255.252
no shut
exit
\
4、路由器4配置
en
conf t
int f0/0
ip add 192.168.1.17 255.255.255.252
no shut
exit
int f0/1
ip add 172.16.149.254 255.255.255.0
no shut
exit
\
5、路由器5配置
en
conf t
int f0/0
ip add 192.168.1.22 255.255.255.252
no shut
exit
int f0/1
ip add 172.16.150.254 255.255.255.0
no shut
exit
\
6、路由器6配置
en
conf t
int f0/0
ip add 192.168.1.25 255.255.255.252
no shut
exit
int f0/1
ip add 172.16.151.254 255.255.255.0
no shut
exit
\
二、OSPF配置
1、路由器1配置
en
conf t
router ospf 149
router-id 0.0.0.1
network 192.168.1.16 0.0.0.3 area 149
network 192.168.0.232 0.0..0.3 area 149
network 192.168.0.228 0.0.0.3 area 149
\
2、路由器2配置
en
conf t
router ospf 149
router-id 0.0.0.2
network 192.168.1.20 0.0.0.3 area 149
network 192.168.0.232 0.0..0.3 area 149
network 192.168.0.236 0.0.0.3 area 149
\
3、路由器3配置
en
conf t
router ospf 149
router-id 0.0.0.3
network 192.168.1.24 0.0.0.3 area 149
network 192.168.0.236 0.0..0.3 area 149
network 192.168.0.228 0.0.0.3 area 149
\
4、路由器4配置
en
conf t
router ospf 149
router-id 0.0.0.4
network 192.168.1.16 0.0.0.3 area 149
network 172.16.149.0 0.0.0.255 area 149
\
5、路由器5配置
en
conf t
router ospf 149
router-id 0.0.0.5
network 192.168.1.20 0.0.0.3 area 149
network 172.16.150.0 0.0.0.255 area 149
\
6、路由器6配置
en
conf t
router ospf 149
router-id 0.0.0.1
network 192.168.1.24 0.0.0.3 area 149
network 172.16.151.0 0.0.0.255 area 149
\
