RIP
使用RIP路由协议使拓扑图设备联通
\

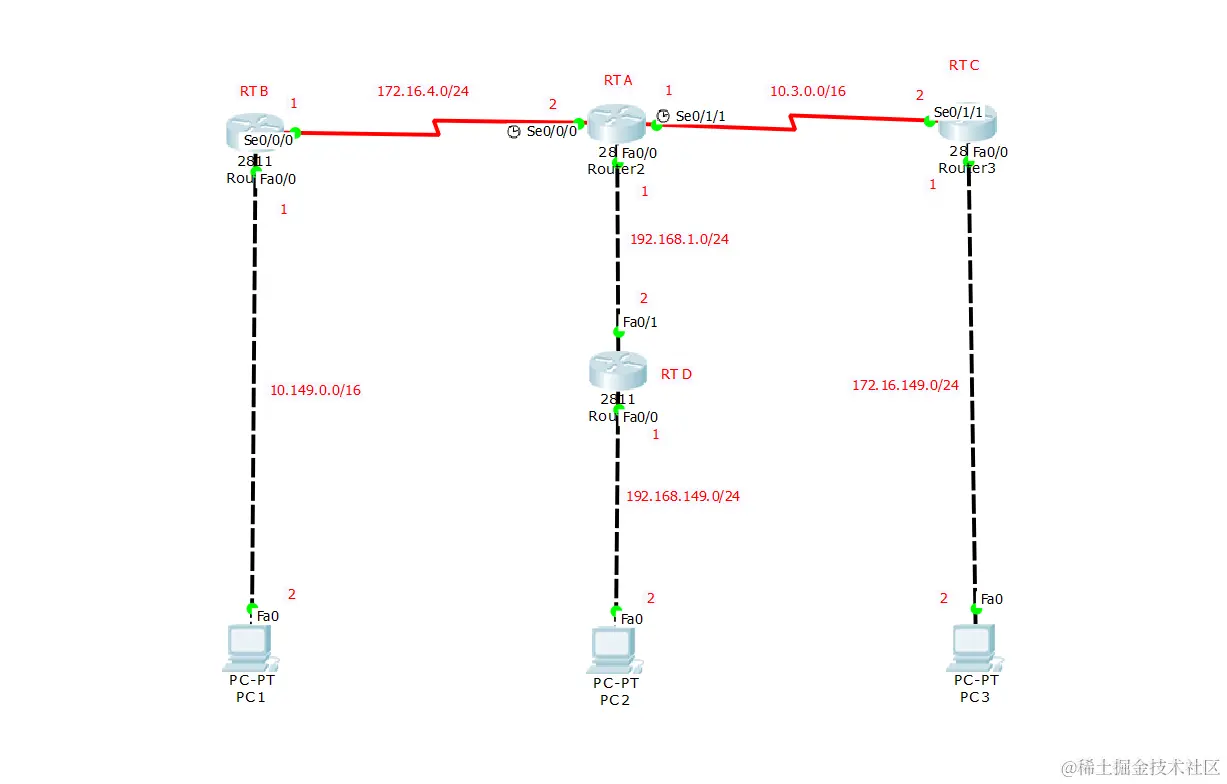

一、进行网络布线并配置IP
1、两条DCE串口线都在RTA的接口上
\
2、配置电脑ip
- 网关为
.1 - 子网掩码
/16配置255.255.0.0
\
3、RTB配置
en
conf t
hostname RTB
int f0/0
ip add 10.149.0.1 255.255.0.0
no shut
exit
int s0/0/0
ip add 172.16.4.1 255.255.255.0
no shut
exit
\
4、RTA配置
en
conf t
hostname RTA
int s0/0/0
ip add 172.16.4.2 255.255.255.0
no shut
clock rate 64000
exit
int s0/1//1
ip add 10.3.0.1 255.255.0.0
no shut
clock rate 64000
exit
int f0/0
ip add 192.168.1.1 255.255.255.0
no shut
exit
\
5、RTD配置
en
conf t
hostname RTD
int f0/1
ip add 192.168.1.2 255.255.255.0
no shut
exit
int f0/0
ip add 192.168.149.1 255.255.255.0
no shut
exit
\
6、RTC配置
en
conf t
hostname RTC
int s0/1/1
ip add 10.3.0.2 255.255.0.0
no shut
exit
int f0/0
ip add 172.16.149.1 255.255.255.0
no shut
exit
\
二、配置RIP协议
说明
10 :属于A类，netwoek 后面用 10.0.0.0
172 :属于B类，netwoek 后面用 172.16.0.0
192 ：属于C类，netwoek 后面用 192.168.149.0
\
1、RTB配置
en
conf t
router rip
ver 2
network 172.16.0.0
network 10.0.0.0
\
2、RTA配置
en
conf t
router rip
ver 2
network 172.16.0.0
network 10.0.0.0
network 192.168.1.0
\
3、RTD配置
en
conf t
router rip
ver 2
network 192.168.1.0
network 192.168.149.0
\
4、RTC配置
en
conf t
router rip
ver 2
network 10.0.0.0
network 172.16.0.0
\
