最初,BLoC 模式 (Business Logic Component)由谷歌提出,作为 Flutter 应用中状态管理的解决方案。它能将业务逻辑从 UI 组件中分离,以此减轻 UI 组件的负担。
随时间的推移,其他框架也开始支持 BLoC 模式。本文将探讨我们该如何在 React 中使用 BLoC 模式。
在 React 中使用 BLoC 模式的好处

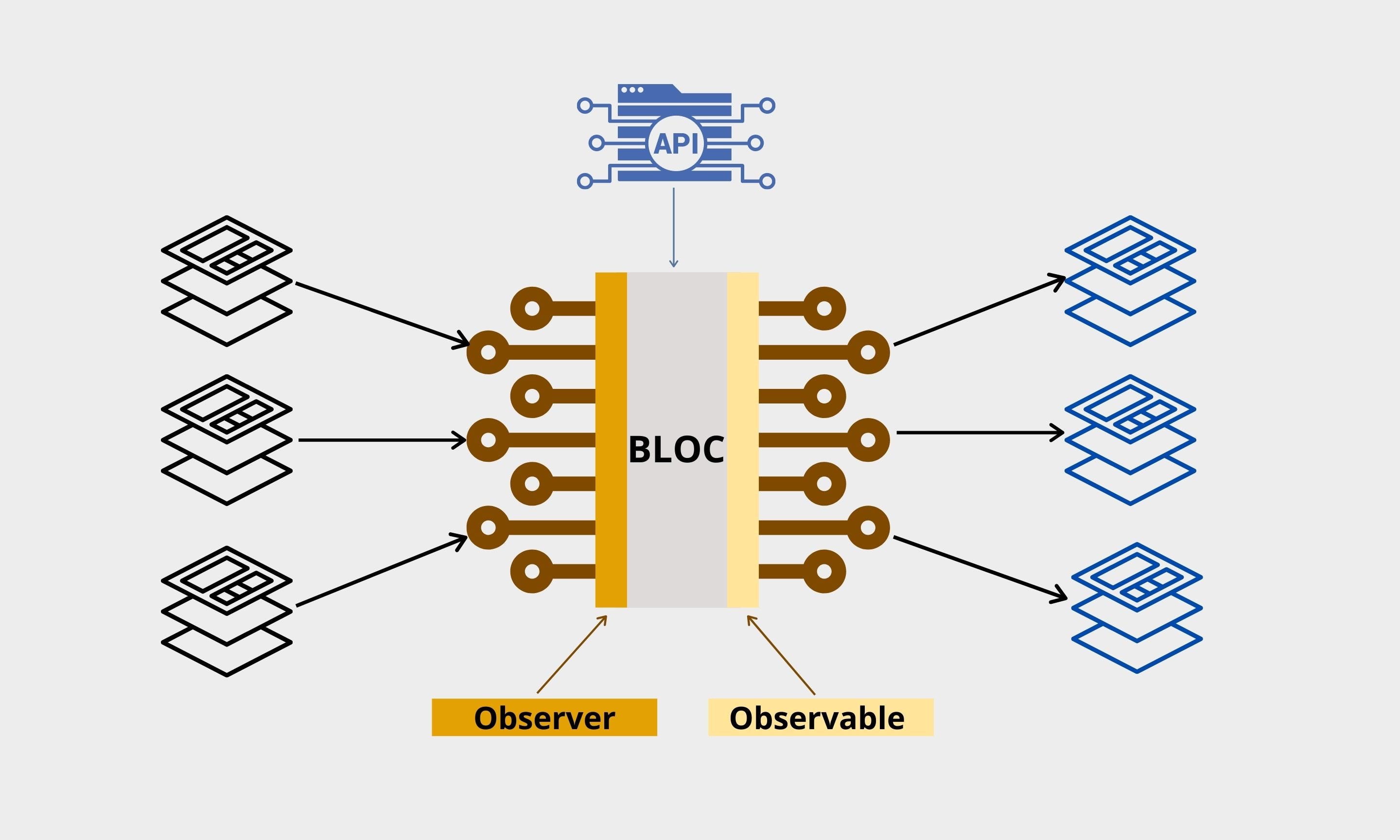

BLoC 模式背后的含义与名字所表达的一致。如上图所示,业务逻辑将会从 UI 组件中分离。首先,它们会通过一个观察者(observer)向 BLoC 发送事件。接着,在处理完请求后,BLoC 借助观察项(observable)通知 UI 组件。
让我们具体看看这种模式的优点。
1. 更新应用逻辑的灵活性
当业务逻辑独立于 UI 组件时,对应用的影响将是最小的。你将能在任何时候修改业务逻辑而不会影响 UI 组件。
2. 复用逻辑
由于业务逻辑写在一个地方,UI 组件能复用逻辑,不需要再复制代码,从而提高程序的简洁程度。
3. 测试的便利性
当编写测试用例时,开发者可以关注 BLoC 本身。所以代码库将不会被弄乱。
4. 可扩展性
随时间的推移,产品需求可能会改变,业务逻辑也随之增长。在这样的情况下,开发者甚至可以创建多个 BLoC 来保持代码的清晰性。
此外,BLoC 模式是独立于平台和环境的,因此开发者可以在许多项目中使用相同的 BLoC 模式。
将概念投入实践
让我们构建一个小型计数程序来演示如何使用 BLoC 模式。
第一步:创建 React 应用并初始化结构
首先,我们需要新建 React 应用。我将它命名为 bloc-counter-app
。此外,我将使用 rxjs
。
// 新建 React 应用
npx create-react-app bloc-counter-app
// 安装 rxjs
yarn add rxjs

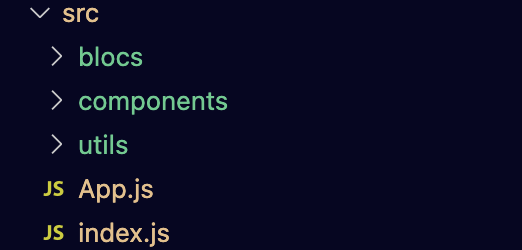

然后,你需要移除所有不必要的代码,按下图所示调整文件结构。
- Blocs — 存放我们需要的 bloc 类
- Components — 存放 UI 组件
- Utils — 存放项目的实用类文件
第二步:实现 BLoC
现在,让我们来实现 BLoC 类。BLoC 类将负责实现和业务逻辑相关的所有 subject
。在本例中,它负责实现计数逻辑。
因此,我在 blocs 文件夹中创建了文件 CounterBloc.js
,并使用 subject
上的 pipe
方法将计数器传递给 UI 组件。
import { Subject } from 'rxjs';
import { scan } from 'rxjs/operators';
export default class CounterBloc {
constructor() {
this._subject = new Subject();
}
get counter() {
return this._subject.pipe(scan((count, v) => count + v, 0));
}
increase() {
this._subject.next(1);
}
decrease() {
this._subject.next(-1);
}
dispose() {
this._subject.complete();
}
}
正如你看到的,在这个类中有一些简单的逻辑。然而,当应用的规模不断增长,如果我们不分离业务逻辑,那时的应用可以想象有多复杂。
第三步:增加中间类让代码更优雅
在这一步,我将在 utils 文件夹中创建了文件 StreamBuilder.js
,用来处理来自 UI 组件的计数请求。此外,开发者能在这里处理错误,实现自定义处理函数。
class AsyncSnapshot {
constructor(data, error) {
this._data = data;
this._error = error;
this._hasData = data ? true : false;
this._hasError = error ? true : false;
}
get data() {
return this._data;
}
get error() {
return this._error;
}
get hasData() {
return this._hasData;
}
get hasError() {
return this._hasError;
}
}
在 AsyncSnapshot
类中,我们可以初始化构造函数,处理数据(检查可用性等)以及处理错误。但是在本例中,为了方便演示,我只返回了数据。
class StreamBuilder extends Component {
constructor(props) {
super(props);
const { initialData, stream } = props;
this.state = {
snapshot: new AsyncSnapshot(initialData),
};
stream.subscribe(
data => {
this.setState({
snapshot: new AsyncSnapshot(data, null),
});
}
);
}
render() {
return this.props.builder(this.state.snapshot);
}
}
初始数据被传入 AysncSnapshot
类,并存储在每个订阅的快照(snapshot
)状态中。然后它将渲染到 UI 组件内。
import { Component } from 'react';
class AsyncSnapshot {
constructor(data) {
this._data = data;
}
get data() {
return this._data;
}
}
class StreamBuilder extends Component {
constructor(props) {
super(props);
const { initialData, stream } = props;
this.state = {
snapshot: new AsyncSnapshot(initialData),
};
stream.subscribe(
data => {
this.setState({
snapshot: new AsyncSnapshot(data, null),
});
}
);
}
render() {
return this.props.builder(this.state.snapshot);
}
}
export default StreamBuilder;
注意: 确保在卸载 UI 组件时,取消订阅所有观察项(observable)并处理 BLoC。
第四步:实现 UI 组件
正如你所见, increase()
和 decrease()
方法在 UI 组件中被直接调用。然而,输出的数据由流构建器处理(stream builder)。
最好由中间层实现自定义处理函数来处理错误。
import { Fragment } from 'react';
import StreamBuilder from '../utils/StreamBuilder';
const Counter = ({ bloc }) => (
<Fragment>
<button onClick={() => bloc.increase()}>+</button>
<button onClick={() => bloc.decrease()}>-</button>
<lable size="large" color="olive">
Count:
<StreamBuilder
initialData={0}
stream={bloc.counter}
builder={snapshot => <p>{snapshot.data}</p>}
/>
</lable>
</Fragment>
);
export default Counter;
在 app.js
文件中,BLoC 使用 CounterBloc
类进行初始化。因此,在使用时,Counter
组件接收 BLoC 作为 props。
import React, { Component } from 'react';
import Counter from './components/Counter';
import CounterBloc from './blocs/CounterBloc';
const bloc = new CounterBloc();
class App extends Component {
componentWillUnmount() {
bloc.dispose();
}
render() {
return (
<div>
<Counter bloc={bloc} />
</div>
);
}
}
export default App;
就是这样。现在,你可以将业务逻辑视为 UI 组件外的独立实体,并根据你的需要进行修改。
如果想使用或改进这个示例应用,请参考项目仓库,不要忘记提 PR。😃
最后的想法
根据我的经验,BLoC 模式能变为小型项目的常用方案。
但是,随着项目发展,使用 BLoC 模式有助于构建模块化应用。
另外,你必须对 rxjs 有一定的基本了解,并理解在 React 项目中实现 BLoC 模式的过程中,观察项(observable)是如何工作的。
因此,我邀请你尝试使用 BLoC 模式,并在评论区分享你的想法。
非常感谢你的阅读!!!
