前言
上一篇 iOS 多线程（二）：GCD基础&源码分析上 中，我们对GCD源码进行了一些初步的探索，今天将对源码进行更加深入的分析。
准备
一、死锁 源码分析
看下面这段代码：
- (void)deadlock {
// 串行队列
dispatch_queue_t queue = dispatch_queue_create("ssl", DISPATCH_QUEUE_SERIAL);
// 异步函数
dispatch_async(queue, ^{
// 同步函数
dispatch_sync(queue, ^{
NSLog(@"???????");
});
});
}
- 这段代码会发生死锁，这与
串行队列和dispatch_sync有这很大的关系，下面通过源码来看看是什么原因。
进入dispatch_sync -> _dispatch_sync_f -> _dispatch_sync_f_inline：
static inline void
_dispatch_sync_f_inline(dispatch_queue_t dq, void *ctxt,
dispatch_function_t func, uintptr_t dc_flags)
{
if (likely(dq->dq_width == 1)) {
return _dispatch_barrier_sync_f(dq, ctxt, func, dc_flags);
}
...
}
- 因为是串行队列，所以
dq->dq_width == 1成立。
进入_dispatch_barrier_sync_f：
static void
_dispatch_barrier_sync_f(dispatch_queue_t dq, void *ctxt,
dispatch_function_t func, uintptr_t dc_flags)
{
_dispatch_barrier_sync_f_inline(dq, ctxt, func, dc_flags);
}
进入_dispatch_barrier_sync_f_inline：
static inline void
_dispatch_barrier_sync_f_inline(dispatch_queue_t dq, void *ctxt,
dispatch_function_t func, uintptr_t dc_flags)
{
dispatch_tid tid = _dispatch_tid_self();
if (unlikely(dx_metatype(dq) != _DISPATCH_LANE_TYPE)) {
DISPATCH_CLIENT_CRASH(0, "Queue type doesn't support dispatch_sync");
}
dispatch_lane_t dl = upcast(dq)._dl;
if (unlikely(!_dispatch_queue_try_acquire_barrier_sync(dl, tid))) {
return _dispatch_sync_f_slow(dl, ctxt, func, DC_FLAG_BARRIER, dl,
DC_FLAG_BARRIER | dc_flags);
}
if (unlikely(dl->do_targetq->do_targetq)) {
return _dispatch_sync_recurse(dl, ctxt, func,
DC_FLAG_BARRIER | dc_flags);
}
_dispatch_introspection_sync_begin(dl);
_dispatch_lane_barrier_sync_invoke_and_complete(dl, ctxt, func
DISPATCH_TRACE_ARG(_dispatch_trace_item_sync_push_pop(
dq, ctxt, func, dc_flags | DC_FLAG_BARRIER)));
}
- 函数中有多个
return，不知道会走哪儿个。

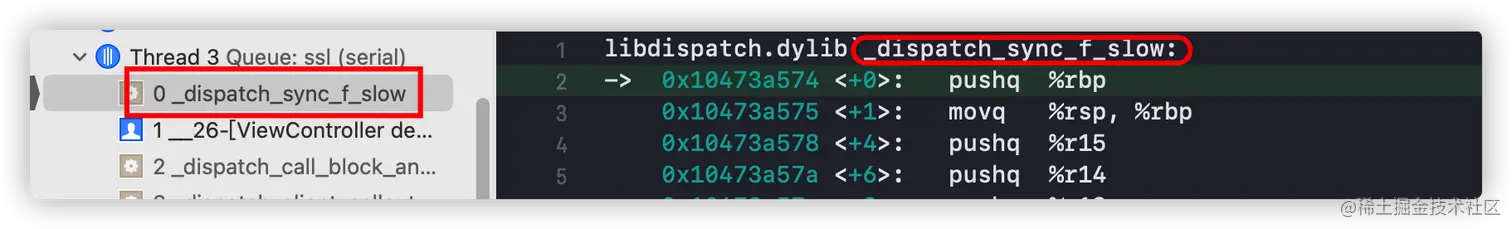

添加符号断点，运行程序：

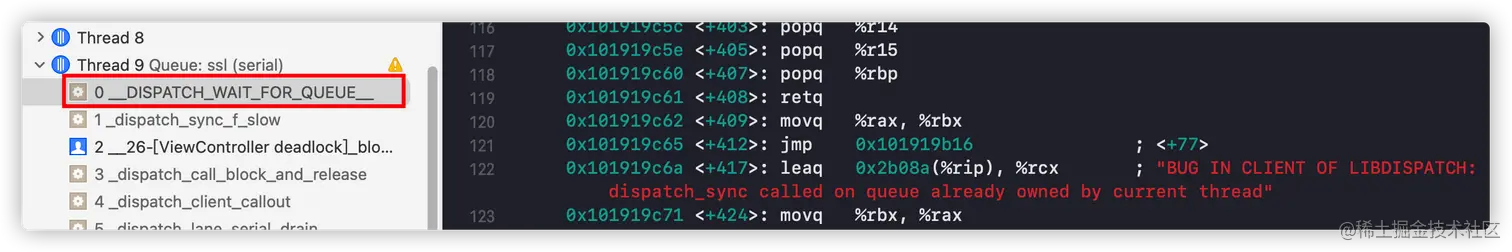

- 可以看到是走了
_dispatch_sync_f_slow中的__DISPATCH_WAIT_FOR_QUEUE__函数。
查看_dispatch_sync_f_slow：
static void
_dispatch_sync_f_slow(dispatch_queue_class_t top_dqu, void *ctxt,
dispatch_function_t func, uintptr_t top_dc_flags,
dispatch_queue_class_t dqu, uintptr_t dc_flags)
{
...
dispatch_queue_t dq = dqu._dq;
pthread_priority_t pp = _dispatch_get_priority();
struct dispatch_sync_context_s dsc = {
.dc_flags = DC_FLAG_SYNC_WAITER | dc_flags,
.dc_func = _dispatch_async_and_wait_invoke,
.dc_ctxt = &dsc,
.dc_other = top_dq,
.dc_priority = pp | _PTHREAD_PRIORITY_ENFORCE_FLAG,
.dc_voucher = _voucher_get(),
.dsc_func = func,
.dsc_ctxt = ctxt,
.dsc_waiter = _dispatch_tid_self(),
};
// 往一个队列中 加入任务，会push加入主队列
_dispatch_trace_item_push(top_dq, &dsc);
__DISPATCH_WAIT_FOR_QUEUE__(&dsc, dq);
...
}
进入__DISPATCH_WAIT_FOR_QUEUE__：
static void
__DISPATCH_WAIT_FOR_QUEUE__(dispatch_sync_context_t dsc, dispatch_queue_t dq)
{
uint64_t dq_state = _dispatch_wait_prepare(dq);
// 判断dq是否为正在等待的队列，然后给出一个状态state，然后将dq的状态和当前任务依赖的队列进行匹配
if (unlikely(_dq_state_drain_locked_by(dq_state, dsc->dsc_waiter))) {
// 这也是上面的报错信息
DISPATCH_CLIENT_CRASH((uintptr_t)dq_state,
"dispatch_sync called on queue "
"already owned by current thread");
}
...
}
dsc->dsc_waiter：_dispatch_sync_f_slow->.dsc_waiter = _dispatch_tid_self()->#define _dispatch_tid_self() ((dispatch_tid)_dispatch_thread_port())-> 当前的线程id。
进入_dq_state_drain_locked_by -> _dispatch_lock_is_locked_by：
static inline bool
_dispatch_lock_is_locked_by(dispatch_lock lock_value, dispatch_tid tid)
{
// equivalent to _dispatch_lock_owner(lock_value) == tid
return ((lock_value ^ tid) & DLOCK_OWNER_MASK) == 0;
}
DLOCK_OWNER_MASK是一个非常大的值：#define DLOCK_OWNER_MASK ((dispatch_lock)0xfffffffc)。DLOCK_OWNER_MASK足够大，只要(lock_value ^ tid)不为0，整个表达式就不会为0。lock_value和tid相等时，(lock_value ^ tid)的值是0，也就是执行和等待的在同一队列时。
二、异步函数分析
异步函数+并发队列：
dispatch_queue_t queue = dispatch_queue_create("ssl", DISPATCH_QUEUE_CONCURRENT);
dispatch_async(queue, ^{
NSLog(@"SSL 函数分析");
});
进入dispatch_async -> _dispatch_continuation_async -> dx_push -> dq_push：
DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_serial, lane,
.do_type = DISPATCH_QUEUE_SERIAL_TYPE,
.do_dispose = _dispatch_lane_dispose,
.do_debug = _dispatch_queue_debug,
.do_invoke = _dispatch_lane_invoke,
.dq_activate = _dispatch_lane_activate,
.dq_wakeup = _dispatch_lane_wakeup,
.dq_push = _dispatch_lane_push,
);
DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_concurrent, lane,
.do_type = DISPATCH_QUEUE_CONCURRENT_TYPE,
.do_dispose = _dispatch_lane_dispose,
.do_debug = _dispatch_queue_debug,
.do_invoke = _dispatch_lane_invoke,
.dq_activate = _dispatch_lane_activate,
.dq_wakeup = _dispatch_lane_wakeup,
.dq_push = _dispatch_lane_concurrent_push,
);
DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_global, lane,
.do_type = DISPATCH_QUEUE_GLOBAL_ROOT_TYPE,
.do_dispose = _dispatch_object_no_dispose,
.do_debug = _dispatch_queue_debug,
.do_invoke = _dispatch_object_no_invoke,
.dq_activate = _dispatch_queue_no_activate,
.dq_wakeup = _dispatch_root_queue_wakeup,
.dq_push = _dispatch_root_queue_push,
);
_dispatch_root_queue_push是全局并发队列的赋值，上一篇 我们有做过分析，_dispatch_lane_concurrent_push是普通并发队列的赋值，我们接下来分析这个。
进入_dispatch_lane_concurrent_push：
void
_dispatch_lane_concurrent_push(dispatch_lane_t dq, dispatch_object_t dou,
dispatch_qos_t qos)
{
// <rdar://problem/24738102&24743140> reserving non barrier width
// doesn't fail if only the ENQUEUED bit is set (unlike its barrier
// width equivalent), so we have to check that this thread hasn't
// enqueued anything ahead of this call or we can break ordering
if (dq->dq_items_tail == NULL &&
!_dispatch_object_is_waiter(dou) &&
!_dispatch_object_is_barrier(dou) &&
_dispatch_queue_try_acquire_async(dq)) {
return _dispatch_continuation_redirect_push(dq, dou, qos);
}
_dispatch_lane_push(dq, dou, qos);
}
进入_dispatch_lane_push：
DISPATCH_NOINLINE
void
_dispatch_lane_push(dispatch_lane_t dq, dispatch_object_t dou,
dispatch_qos_t qos)
{
dispatch_wakeup_flags_t flags = 0;
struct dispatch_object_s *prev;
if (unlikely(_dispatch_object_is_waiter(dou))) {
return _dispatch_lane_push_waiter(dq, dou._dsc, qos);
}
dispatch_assert(!_dispatch_object_is_global(dq));
qos = _dispatch_queue_push_qos(dq, qos);
// If we are going to call dx_wakeup(), the queue must be retained before
// the item we're pushing can be dequeued, which means:
// - before we exchange the tail if we have to override
// - before we set the head if we made the queue non empty.
// Otherwise, if preempted between one of these and the call to dx_wakeup()
// the blocks submitted to the queue may release the last reference to the
// queue when invoked by _dispatch_lane_drain. <rdar://problem/6932776>
prev = os_mpsc_push_update_tail(os_mpsc(dq, dq_items), dou._do, do_next);
if (unlikely(os_mpsc_push_was_empty(prev))) {
_dispatch_retain_2_unsafe(dq);
flags = DISPATCH_WAKEUP_CONSUME_2 | DISPATCH_WAKEUP_MAKE_DIRTY;
} else if (unlikely(_dispatch_queue_need_override(dq, qos))) {
// There's a race here, _dispatch_queue_need_override may read a stale
// dq_state value.
//
// If it's a stale load from the same drain streak, given that
// the max qos is monotonic, too old a read can only cause an
// unnecessary attempt at overriding which is harmless.
//
// We'll assume here that a stale load from an a previous drain streak
// never happens in practice.
_dispatch_retain_2_unsafe(dq);
flags = DISPATCH_WAKEUP_CONSUME_2;
}
os_mpsc_push_update_prev(os_mpsc(dq, dq_items), prev, dou._do, do_next);
if (flags) {
return dx_wakeup(dq, qos, flags);
}
}
- 可以看到有
_dispatch_lane_push_waiter和dx_wakeup两个return。
查看dx_wakeup：
#define dx_wakeup(x, y, z) dx_vtable(x)->dq_wakeup(x, y, z)
查看dq_wakeup：
DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_concurrent, lane,
.do_type = DISPATCH_QUEUE_CONCURRENT_TYPE,
.do_dispose = _dispatch_lane_dispose,
.do_debug = _dispatch_queue_debug,
.do_invoke = _dispatch_lane_invoke,
.dq_activate = _dispatch_lane_activate,
.dq_wakeup = _dispatch_lane_wakeup,
.dq_push = _dispatch_lane_concurrent_push,
);

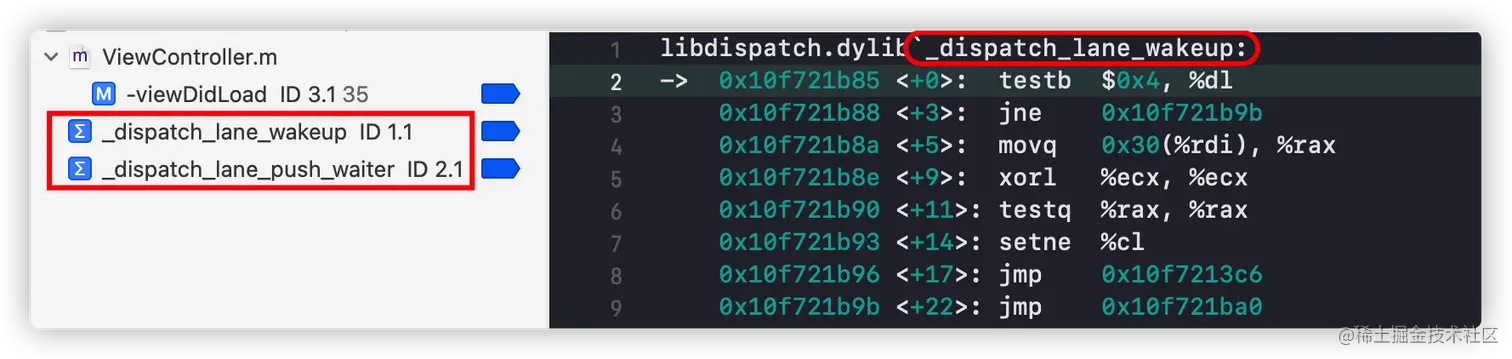

添加_dispatch_lane_push_waiter、_dispatch_lane_wakeup符号断点，运行程序：
- 可以看到程序最终是调用了
_dispatch_lane_wakeup函数。
进入_dispatch_lane_wakeup：
void
_dispatch_lane_wakeup(dispatch_lane_class_t dqu, dispatch_qos_t qos,
dispatch_wakeup_flags_t flags)
{
dispatch_queue_wakeup_target_t target = DISPATCH_QUEUE_WAKEUP_NONE;
if (unlikely(flags & DISPATCH_WAKEUP_BARRIER_COMPLETE)) {
return _dispatch_lane_barrier_complete(dqu, qos, flags);
}
if (_dispatch_queue_class_probe(dqu)) {
target = DISPATCH_QUEUE_WAKEUP_TARGET;
}
return _dispatch_queue_wakeup(dqu, qos, flags, target);
}
进入_dispatch_queue_wakeup：
void
_dispatch_queue_wakeup(dispatch_queue_class_t dqu, dispatch_qos_t qos,
dispatch_wakeup_flags_t flags, dispatch_queue_wakeup_target_t target)
{
dispatch_queue_t dq = dqu._dq;
uint64_t old_state, new_state, enqueue = DISPATCH_QUEUE_ENQUEUED;
dispatch_assert(target != DISPATCH_QUEUE_WAKEUP_WAIT_FOR_EVENT);
if (target && !(flags & DISPATCH_WAKEUP_CONSUME_2)) {
_dispatch_retain_2(dq);
flags |= DISPATCH_WAKEUP_CONSUME_2;
}
if (unlikely(flags & DISPATCH_WAKEUP_BARRIER_COMPLETE)) {
dispatch_assert(dx_metatype(dq) == _DISPATCH_SOURCE_TYPE);
qos = _dispatch_queue_wakeup_qos(dq, qos);
return _dispatch_lane_class_barrier_complete(upcast(dq)._dl, qos,
flags, target, DISPATCH_QUEUE_SERIAL_DRAIN_OWNED);
}
...
}
进入 _dispatch_lane_class_barrier_complete：
static void
_dispatch_lane_class_barrier_complete(dispatch_lane_t dq, dispatch_qos_t qos,
dispatch_wakeup_flags_t flags, dispatch_queue_wakeup_target_t target,
uint64_t owned)
{
again:
os_atomic_rmw_loop2o(dq, dq_state, old_state, new_state, release, {
if (unlikely(_dq_state_needs_ensure_ownership(old_state))) {
_dispatch_event_loop_ensure_ownership((dispatch_wlh_t)dq);
_dispatch_queue_move_to_contended_sync(dq->_as_dq);
os_atomic_rmw_loop_give_up(goto again);
}
new_state = _dq_state_merge_qos(old_state - owned, qos);
new_state &= ~DISPATCH_QUEUE_DRAIN_UNLOCK_MASK;
if (unlikely(_dq_state_is_suspended(old_state))) {
if (likely(_dq_state_is_base_wlh(old_state))) {
new_state &= ~DISPATCH_QUEUE_ENQUEUED;
}
} else if (enqueue) {
if (!_dq_state_is_enqueued(old_state)) {
new_state |= enqueue;
}
} else if (unlikely(_dq_state_is_dirty(old_state))) {
os_atomic_rmw_loop_give_up({
os_atomic_xor2o(dq, dq_state, DISPATCH_QUEUE_DIRTY, acquire);
flags |= DISPATCH_WAKEUP_BARRIER_COMPLETE;
return dx_wakeup(dq, qos, flags);
});
} else {
new_state &= ~DISPATCH_QUEUE_MAX_QOS_MASK;
}
});
if (tq) {
if (likely((old_state ^ new_state) & enqueue)) {
dispatch_assert(_dq_state_is_enqueued(new_state));
dispatch_assert(flags & DISPATCH_WAKEUP_CONSUME_2);
return _dispatch_queue_push_queue(tq, dq, new_state);
}
}
...
}
进入_dispatch_root_queue_push：
void
_dispatch_root_queue_push(dispatch_queue_global_t rq, dispatch_object_t dou,
dispatch_qos_t qos)
{
...
_dispatch_root_queue_push_inline(rq, dou, dou, 1);
}
进入_dispatch_root_queue_push_inline：
static inline void
_dispatch_root_queue_push_inline(dispatch_queue_global_t dq,
dispatch_object_t _head, dispatch_object_t _tail, int n)
{
struct dispatch_object_s *hd = _head._do, *tl = _tail._do;
if (unlikely(os_mpsc_push_list(os_mpsc(dq, dq_items), hd, tl, do_next))) {
return _dispatch_root_queue_poke(dq, n, 0);
}
}
进入_dispatch_root_queue_poke：
void
_dispatch_root_queue_poke(dispatch_queue_global_t dq, int n, int floor)
{
return _dispatch_root_queue_poke_slow(dq, n, floor);
}
进入_dispatch_root_queue_poke_slow：
static void
_dispatch_root_queue_poke_slow(dispatch_queue_global_t dq, int n, int floor)
{
_dispatch_root_queues_init();
...
}
进入_dispatch_root_queues_init：
static inline void
_dispatch_root_queues_init(void)
{

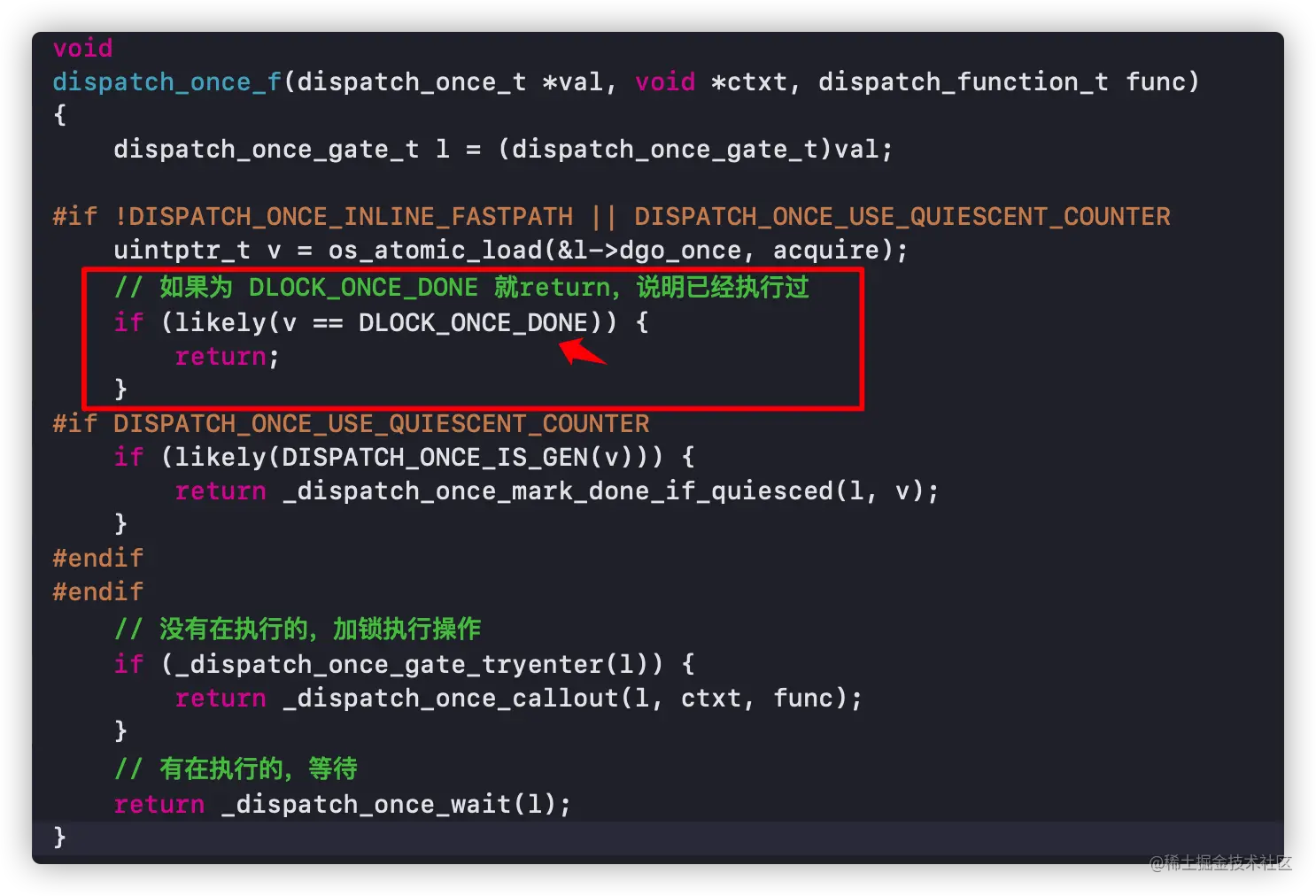

dispatch_once_f(&_dispatch_root_queues_pred, NULL,
_dispatch_root_queues_init_once);
}
进入_dispatch_root_queues_init_once：
static void
_dispatch_root_queues_init_once(void *context DISPATCH_UNUSED)
{
_dispatch_fork_becomes_unsafe();
#if DISPATCH_USE_INTERNAL_WORKQUEUE
size_t i;
// 遍历线程池，线程池的一些相关操作
for (i = 0; i < DISPATCH_ROOT_QUEUE_COUNT; i++) {
_dispatch_root_queue_init_pthread_pool(&_dispatch_root_queues[i], 0,
_dispatch_root_queues[i].dq_priority);
}
#else
int wq_supported = _pthread_workqueue_supported();
int r = ENOTSUP;
#if DISPATCH_USE_KEVENT_SETUP
// 工作队列配置相关
struct pthread_workqueue_config cfg = {
.version = PTHREAD_WORKQUEUE_CONFIG_VERSION,
.flags = 0,
.workq_cb = 0,
.kevent_cb = 0,
.workloop_cb = 0,
.queue_serialno_offs = dispatch_queue_offsets.dqo_serialnum,
#if PTHREAD_WORKQUEUE_CONFIG_VERSION >= 2
.queue_label_offs = dispatch_queue_offsets.dqo_label,
#endif
};
#endif
cfg.workq_cb = _dispatch_worker_thread2;
r = pthread_workqueue_setup(&cfg, sizeof(cfg));
#else
r = _pthread_workqueue_init(_dispatch_worker_thread2,
offsetof(struct dispatch_queue_s, dq_serialnum), 0);
#endif // DISPATCH_USE_KEVENT_SETUP
#if DISPATCH_USE_KEVENT_WORKLOOP
} else if (wq_supported & WORKQ_FEATURE_WORKLOOP) {
#if DISPATCH_USE_KEVENT_SETUP
cfg.workq_cb = _dispatch_worker_thread2;
cfg.kevent_cb = (pthread_workqueue_function_kevent_t) _dispatch_kevent_worker_thread;
cfg.workloop_cb = (pthread_workqueue_function_workloop_t) _dispatch_workloop_worker_thread;
r = pthread_workqueue_setup(&cfg, sizeof(cfg));
#else
// 通过 pthread 进行封装，根据OS决定什么时候执行，受cpu调控处理，并不会立即执行
r = _pthread_workqueue_init_with_workloop(_dispatch_worker_thread2,
(pthread_workqueue_function_kevent_t)
_dispatch_kevent_worker_thread,
(pthread_workqueue_function_workloop_t)
_dispatch_workloop_worker_thread,
offsetof(struct dispatch_queue_s, dq_serialnum), 0);
#endif // DISPATCH_USE_KEVENT_SETUP
#endif // DISPATCH_USE_KEVENT_WORKLOOP
}
_dispatch_root_queues_init封装完毕，继续回到_dispatch_root_queue_poke_slow：
static void
_dispatch_root_queue_poke_slow(dispatch_queue_global_t dq, int n, int floor)
{
int remaining = n;
_dispatch_root_queues_init();
_dispatch_debug_root_queue(dq, __func__);
_dispatch_trace_runtime_event(worker_request, dq, (uint64_t)n);
#if !DISPATCH_USE_INTERNAL_WORKQUEUE
#if DISPATCH_USE_PTHREAD_ROOT_QUEUES
// global 类型的处理
if (dx_type(dq) == DISPATCH_QUEUE_GLOBAL_ROOT_TYPE)
#endif
{
// 创建一个线程去执行
_dispatch_root_queue_debug("requesting new worker thread for global "
"queue: %p", dq);
r = _pthread_workqueue_addthreads(remaining,
_dispatch_priority_to_pp_prefer_fallback(dq->dq_priority));
(void)dispatch_assume_zero(r);
return;
}
#endif // !DISPATCH_USE_INTERNAL_WORKQUEUE
#if DISPATCH_USE_PTHREAD_POOL
dispatch_pthread_root_queue_context_t pqc = dq->do_ctxt;
if (likely(pqc->dpq_thread_mediator.do_vtable)) {
while (dispatch_semaphore_signal(&pqc->dpq_thread_mediator)) {
_dispatch_root_queue_debug("signaled sleeping worker for "
"global queue: %p", dq);
if (!--remaining) {
return;
}
}
}
int can_request, t_count;
// seq_cst with atomic store to tail <rdar://problem/16932833>
// 计算队列，可以使用的线程数，dgq_thread_pool_size 是不断变化的
t_count = os_atomic_load2o(dq, dgq_thread_pool_size, ordered);
do {
// floor 为 0 或 1
can_request = t_count < floor ? 0 : t_count - floor;
// remaining 是传值过来的为1
if (remaining > can_request) {
// 报异常
_dispatch_root_queue_debug("pthread pool reducing request from %d to %d",
remaining, can_request);
os_atomic_sub2o(dq, dgq_pending, remaining - can_request, relaxed);
remaining = can_request;
}
if (remaining == 0) {
_dispatch_root_queue_debug("pthread pool is full for root queue: "
"%p", dq);
return;
}
// 线程池的一些处理，dgq_thread_pool_size 的初始值为1
} while (!os_atomic_cmpxchgv2o(dq, dgq_thread_pool_size, t_count,
t_count - remaining, &t_count, acquire));
#if !defined(_WIN32)
pthread_attr_t *attr = &pqc->dpq_thread_attr;
pthread_t tid, *pthr = &tid;
#if DISPATCH_USE_MGR_THREAD && DISPATCH_USE_PTHREAD_ROOT_QUEUES
if (unlikely(dq == &_dispatch_mgr_root_queue)) {
pthr = _dispatch_mgr_root_queue_init();
}
#endif
do {
_dispatch_retain(dq); // released in _dispatch_worker_thread
while ((r = pthread_create(pthr, attr, _dispatch_worker_thread, dq))) {
if (r != EAGAIN) {
(void)dispatch_assume_zero(r);
}
_dispatch_temporary_resource_shortage();
}
} while (--remaining);
#else // defined(_WIN32)
#if DISPATCH_USE_MGR_THREAD && DISPATCH_USE_PTHREAD_ROOT_QUEUES
if (unlikely(dq == &_dispatch_mgr_root_queue)) {
_dispatch_mgr_root_queue_init();
}
#endif
do {
_dispatch_retain(dq); // released in _dispatch_worker_thread
#if DISPATCH_DEBUG
unsigned dwStackSize = 0;
#else
unsigned dwStackSize = 64 * 1024;
#endif
uintptr_t hThread = 0;
while (!(hThread = _beginthreadex(NULL, dwStackSize, _dispatch_worker_thread_thunk, dq, STACK_SIZE_PARAM_IS_A_RESERVATION, NULL))) {
if (errno != EAGAIN) {
(void)dispatch_assume(hThread);
}
_dispatch_temporary_resource_shortage();
}
#if DISPATCH_USE_PTHREAD_ROOT_QUEUES
if (_dispatch_mgr_sched.prio > _dispatch_mgr_sched.default_prio) {
(void)dispatch_assume_zero(SetThreadPriority((HANDLE)hThread, _dispatch_mgr_sched.prio) == TRUE);
}
#endif
CloseHandle((HANDLE)hThread);
} while (--remaining);
#endif // defined(_WIN32)
#else
(void)floor;
#endif // DISPATCH_USE_PTHREAD_POOL
...
}

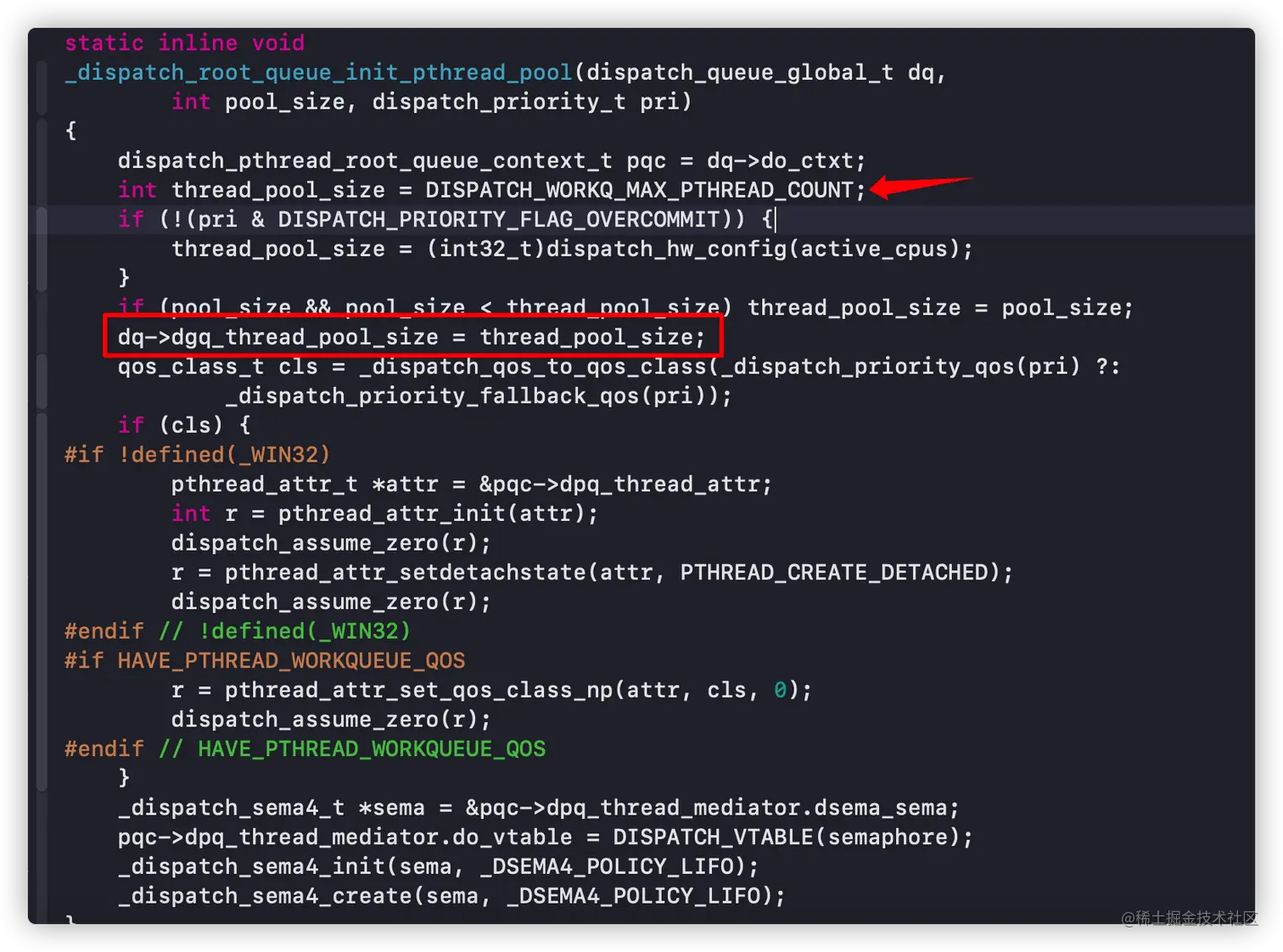

查看dgq_thread_pool_size的赋值：
找到DISPATCH_WORKQ_MAX_PTHREAD_COUNT的定义：
#ifndef DISPATCH_WORKQ_MAX_PTHREAD_COUNT
#define DISPATCH_WORKQ_MAX_PTHREAD_COUNT 255
#endif
255表示理论上线程池的最大数量。

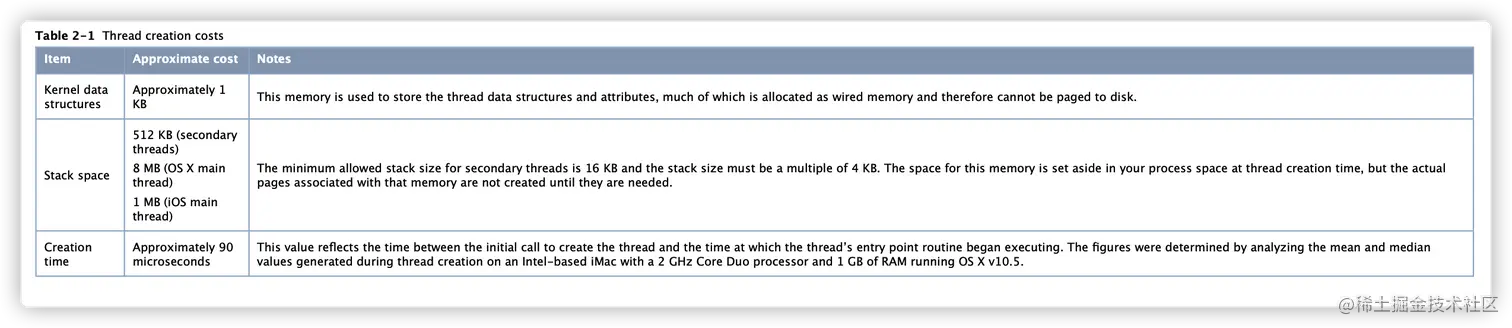

打开 官方文档 看下面这个表格：
- 一个辅助线程的栈空间是
512KB，而一个线程所占用的最小空间是16KB，也就是说栈空间一定的情况下，开辟线程所需的内存越大，所能开辟的线程数就越小。 - 假设一个
4GB内存的iOS系统，内存分为内核态和用户态，如果内核态全部用于创建线程，也就是1GB的空间，那么理论上最多能开辟1024KB / 16KB个线程。
三、单例底层原理
单例的使用：
static dispatch_once_t onceToken;
dispatch_once(&onceToken, ^{
});
进入_dispatch_once：
void
dispatch_once(dispatch_once_t *val, dispatch_block_t block)
{
dispatch_once_f(val, block, _dispatch_Block_invoke(block));
}
进入dispatch_once_f：
void
dispatch_once_f(dispatch_once_t *val, void *ctxt, dispatch_function_t func)
{
dispatch_once_gate_t l = (dispatch_once_gate_t)val;
#if !DISPATCH_ONCE_INLINE_FASTPATH || DISPATCH_ONCE_USE_QUIESCENT_COUNTER
uintptr_t v = os_atomic_load(&l->dgo_once, acquire);
// 如果为 DLOCK_ONCE_DONE 就return，说明已经执行过
if (likely(v == DLOCK_ONCE_DONE)) {
return;
}
#if DISPATCH_ONCE_USE_QUIESCENT_COUNTER
if (likely(DISPATCH_ONCE_IS_GEN(v))) {
return _dispatch_once_mark_done_if_quiesced(l, v);
}
#endif
#endif
// 没有在执行的，加锁执行操作
if (_dispatch_once_gate_tryenter(l)) {
return _dispatch_once_callout(l, ctxt, func);
}
// 有在执行的，等待
return _dispatch_once_wait(l);
}
进入_dispatch_once_gate_tryenter：
static inline bool
_dispatch_once_gate_tryenter(dispatch_once_gate_t l)
{
// 进行原子操作，防止多线程
return os_atomic_cmpxchg(&l->dgo_once, DLOCK_ONCE_UNLOCKED,
(uintptr_t)_dispatch_lock_value_for_self(), relaxed);
}
进入_dispatch_once_callout：
static void
_dispatch_once_callout(dispatch_once_gate_t l, void *ctxt,
dispatch_function_t func)
{
// 执行操作
_dispatch_client_callout(ctxt, func);
// 处理完成，关门处理
_dispatch_once_gate_broadcast(l);
}
进入_dispatch_once_gate_broadcast：
static inline void
_dispatch_once_gate_broadcast(dispatch_once_gate_t l)
{
dispatch_lock value_self = _dispatch_lock_value_for_self();
uintptr_t v;
#if DISPATCH_ONCE_USE_QUIESCENT_COUNTER
v = _dispatch_once_mark_quiescing(l);
#else
v = _dispatch_once_mark_done(l);
#endif
if (likely((dispatch_lock)v == value_self)) return;
_dispatch_gate_broadcast_slow(&l->dgo_gate, (dispatch_lock)v);
}
进入_dispatch_once_mark_done：
static inline uintptr_t
_dispatch_once_mark_done(dispatch_once_gate_t dgo)
{
// 标记为 DLOCK_ONCE_DONE
return os_atomic_xchg(&dgo->dgo_once, DLOCK_ONCE_DONE, release);
}
对应到dispatch_once_f中的判断：
