自动播放匀速轮播图(带匀速运动函数封装)

325 阅读1分钟

函数封装:( 匀速运动函数)

		function animate(obj,target,step,speed){
			   clearInterval(obj.timer);
				var absStep = Math.abs(step);
				step = target > obj.offsetLeft ? absStep : -absStep;
				obj.timer = setInterval(function(){
					var distance = Math.abs(target - obj.offsetLeft);
					obj.style.left = obj.offsetLeft + step + 'px';
					if(distance < absStep){
						clearInterval(obj.timer);
						obj.style.left = target + 'px';
					}
				},speed);
			}

对象可以动态生成属性,用对象的timer,避免了全局变量的使用,

实现步骤:

	1.动态生成ol导航条,并将导航条放入all中使其成为孩子节点
	2.根据ul中图片数量动态生成li标签,使li成为ol的子节点,
	3.给第0li标签加上颜色(添加属性current)
	4.用设置的属性的值去操作图片使图片移动,达到鼠标放上去移动
	  到该图片效果,排它原理实现样式效果
	5.深度克隆ul中的第一张图片并将图片放在ul的末尾
	6.加入自动播放函数使其自动播放,设置两个变量key,squre,key的值用来计算图片的序号,squre用来计算当前li的序号
	7.自动播放函数中排他原理设置当前li标签样式
	8.在设置onmouseover和onmouseout事件鼠标放在盒子上暂停,鼠标离开盒子,继续运动
	9.在鼠标放在li标签时让key等于当前图片的index属性值 ,并把key的值赋给squre。

实现细节:

1.动态给ul克隆出第0张图片补到末尾,以实现自动轮播是无缝的效果,
2.克隆分深克隆和浅克隆,深克隆克隆带标签内的所有内容,
3.浅克隆只克隆外部标签,深克隆参数为true

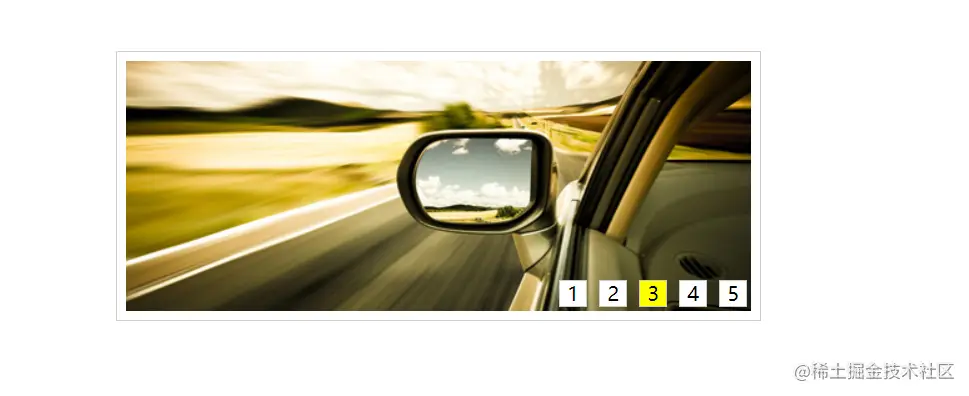

效果:
在这里插入图片描述
代码:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>匀速轮播动画</title>
<style type="text/css">
	*{ padding:0; margin:0; list-style:none; border:0;}
	.all{
	  width:500px;
	  height:200px;
	  padding:7px;
	  border:1px solid #ccc;
	  margin:100px auto;
	  position:relative;
	}
	.screen{
		width:500px;
		height:200px;
		overflow:hidden;
		position:relative;
	}

	.screen li{
		width:500px;
		height:200px;
		overflow:hidden;
		float:left;
	}
	.screen ul{
		position:absolute;
		left:0;
		top:0px;
		width:3000px;
	}
	.all ol{
		position:absolute;
		right:10px;
		bottom:10px;
		line-height:20px;
		text-align:center;
	}
	.all ol li{
		float:left;
		width:20px;
		height:20px;
		background:#fff;
		border:1px solid #ccc;
		margin-left:10px;
		cursor:pointer;
	}
	.all ol li.current{
		background:yellow;
	}
</style>
<script src="js/匀速运动.js"></script>
<script>
    function $(id){
        return document.getElementById(id);
    }
    window.onload = function(){
        var ul = $('ul');
        var all = $('all');
        var imgs = ul.getElementsByTagName('img');
        var ol = document.createElement('ol');
        all.appendChild(ol);
        for(var i=0;i<imgs.length;i++){
            var li = document.createElement('li');
            li.innerHTML = i+1;
            li.setAttribute('index',i);
            ol.appendChild(li);
        }
        ol.childNodes[0].className = 'current';

        var olLis = ol.children;
        for(var i=0;i<olLis.length;i++){
            olLis[i].onmouseover = function(){
                for(var j=0;j<olLis.length;j++){
                    olLis[j].className = '';
                }
                this.className = 'current';
                var index = -500*this.getAttribute('index');
                animate(ul,index,20,10);
                key=this.getAttribute('index');
                squre = key;
            }
        }

  ul.appendChild(ul.children[0].cloneNode(true));

        var timer=null;
        var key=0;
        var squre = 0;
        timer=setInterval(autoPlay, 1000);
         function autoPlay(){
            key++; //记录图片
            squre++;//记录导航条
            if(key>olLis.length){
                key=1;
                ul.style.left = 0 + 'px';
            }
            if(squre>=olLis.length){
                squre = 0;
            }
            animate(ul,-500*key,20,10);
            for(var i=0;i<olLis.length;i++){
                olLis[i].className = '';
            }
            olLis[squre].className = 'current';
         }
         all.onmouseover = function(){
            clearInterval(timer);
         }
         all.onmouseout = function(){
        timer=setInterval(autoPlay, 1000);
         }
    }
</script>
</head>
<body>
<div class="all" id='all'>
	<div class="screen">
        <ul id="ul">
            <li><img src="images/taobao/1.jpg" width="500" height="200" /></li>
            <li><img src="images/taobao/2.jpg" width="500" height="200" /></li>
            <li><img src="images/taobao/3.jpg" width="500" height="200" /></li>
            <li><img src="images/taobao/4.jpg" width="500" height="200" /></li>
            <li><img src="images/taobao/5.jpg" width="500" height="200" /></li>
        </ul>
    </div>

</div>
</body>
</html>
