一背景和架构

本文基于MySQL 8.0.25源码进行分析和总结。这里MySQL Server层指的是MySQL的优化器、执行器部分。我们对MySQL的理解还建立在5.6和5.7版本的理解之上，更多的是对比PostgreSQL或者传统数据库。然而从MySQL 8.0开始，持续每三个月的迭代和重构工作，使得MySQL Server层的整体架构有了质的飞越。下面来看下MySQL最新的架构。

我们可以看到最新的MySQL的分层架构和其他数据库并没有太大的区别，另外值得一提的是从图中可以看出MySQL现在更多的加强InnoDB、NDB集群和RAPID(HeatWave clusters)内存集群架构的演进。下面我们就看下具体细节，我们这次不随着官方的Feature实现和重构顺序进行理解，本文更偏向于从优化器、执行器的流程角度来演进。

二 MySQL 解析器Parser

首先从Parser开始，官方MySQL 8.0使用Bison进行了重写，生成Parser Tree，同时Parser Tree会contextualize生成MySQL抽象语法树（Abstract Syntax Tree）。

MySQL抽象语法树和其他数据库有些不同，是由比较让人拗口的SELECT_LEX_UNIT/SELECT_LEX类交替构成的，然而这两个结构在最新的版本中已经重命名成标准的SELECT_LEX -> Query_block和SELECT_LEX_UNIT -> Query_expression。Query_block是代表查询块，而Query_expression是包含多个查询块的查询表达式，包括UNION AND/OR的查询块（如SELECT

FROM t1 union SELECT

FROM t2）或者有多Level的ORDER BY/LIMIT (如SELECT * FROM t1 ORDER BY a LIMIT 10) ORDER BY b LIMIT 5。

例如，来看一个复杂的嵌套查询：

 (SELECT *
   FROM ttt1)
UNION ALL
  (SELECT *
   FROM
     (SELECT *
      FROM ttt2) AS a,
     (SELECT *
      FROM ttt3
      UNION ALL SELECT *
      FROM ttt4) AS b)

在MySQL中就可以用下面方式表达：

经过解析和转换后的语法树仍然建立在Query_block和Query_expression的框架下，只不过有些LEVEL的query block被消除或者合并了，这里不再详细展开。

三 MySQL prepare/rewrite阶段

接下来我们要经过resolve和transformation过程Query_expression::prepare->Query_block::prepare，这个过程包括（按功能分而非完全按照执行顺序）：

1 Setup and Fix

setup_tables：Set up table leaves in the query block based on list of tables.
resolve_placeholder_tables/merge_derived/setup_table_function/setup_materialized_derived：Resolve derived table, view or table function references in query block.
setup_natural_join_row_types：Compute and store the row types of the top-most NATURAL/USING joins.
setup_wild：Expand all '*' in list of expressions with the matching column references.
setup_base_ref_items：Set query_block's base_ref_items.
setup_fields：Check that all given fields exists and fill struct with current data.
setup_conds：Resolve WHERE condition and join conditions.
setup_group：Resolve and set up the GROUP BY list.
m_having_cond->fix_fields：Setup the HAVING clause.
resolve_rollup：Resolve items in SELECT list and ORDER BY list for rollup processing.
resolve_rollup_item：Resolve an item (and its tree) for rollup processing by replacing items matching grouped expressions with Item_rollup_group_items and updating properties (m_nullable, PROP_ROLLUP_FIELD). Also check any GROUPING function for incorrect column.
setup_order：Set up the ORDER BY clause.
resolve_limits：Resolve OFFSET and LIMIT clauses.
Window::setup_windows1：Set up windows after setup_order() and before setup_order_final().
setup_order_final：Do final setup of ORDER BY clause, after the query block is fully resolved.
setup_ftfuncs：Setup full-text functions after resolving HAVING.
resolve_rollup_wfs : Replace group by field references inside window functions with references in the presence of ROLLUP.

2 Transformation

remove_redundant_subquery_clause : Permanently remove redundant parts from the query if 1) This is a subquery 2) Not normalizing a view. Removal should take place when a query involving a view is optimized, not when the view is created.
remove_base_options：Remove SELECT_DISTINCT options from a query block if can skip distinct.
resolve_subquery : Resolve predicate involving subquery, perform early unconditional subquery transformations.Convert subquery predicate into semi-join, orMark the subquery for execution using materialization, orPerform IN->EXISTS transformation, orPerform more/less ALL/ANY -> MIN/MAX rewriteSubstitute trivial scalar-context subquery with its value
transform_scalar_subqueries_to_join_with_derived：Transform eligible scalar subqueries to derived tables.
flatten_subqueries：Convert semi-join subquery predicates into semi-join join nests. Convert candidate subquery predicates into semi-join join nests. This transformation is performed once in query lifetime and is irreversible.
apply_local_transforms :delete_unused_merged_columns : If query block contains one or more merged derived tables/views, walk through lists of columns in select lists and remove unused columns.simplify_joins：Convert all outer joins to inner joins if possibleprune_partitions：Perform partition pruning for a given table and condition.
push_conditions_to_derived_tables：Pushing conditions down to derived tables must be done after validity checks of grouped queries done by apply_local_transforms();
Window::eliminate_unused_objects：Eliminate unused window definitions, redundant sorts etc.

这里，节省篇幅，我们只举例关注下和top_join_list相关的simple_joins这个函数的作用，对于Query_block中嵌套join的简化过程。

3 对比PostgreSQL

为了更清晰的理解标准数据库的做法，我们这里引用了PostgreSQL的这三个过程：

Parser

下图首先Parser把SQL语句生成parse tree。

testdb=# SELECT id, data FROM tbl_a WHERE id < 300 ORDER BY data;

Analyzer/Analyser

下图展示了PostgreSQL的analyzer/analyser如何将parse tree通过语义分析后生成query tree。

Rewriter

Rewriter会根据规则系统中的规则把query tree进行转换改写。

sampledb=# CREATE VIEW employees_list
sampledb-#      AS SELECT e.id, e.name, d.name AS department
sampledb-#            FROM employees AS e, departments AS d WHERE e.department_id = d.id;

下图的例子就是一个包含view的query tree如何展开成新的query tree。

sampledb=# SELECT * FROM employees_list;

四 MySQL Optimize和Planning阶段

接下来我们进入了逻辑计划生成物理计划的过程，本文还是注重于结构的解析，而不去介绍生成的细节，MySQL过去在8.0.22之前，主要依赖的结构就是JOIN和QEP_TAB。JOIN是与之对应的每个Query_block，而QEP_TAB对应的每个Query_block涉及到的具体“表”的顺序、方法和执行计划。然而在8.0.22之后，新的基于Hypergraph的优化器算法成功的抛弃了QEP_TAB结构来表达左深树的执行计划，而直接使用HyperNode/HyperEdge的图来表示执行计划。

举例可以看到数据结构表达的left deep tree和超图结构表达的bushy tree对应的不同计划展现：

| -> Inner hash join (no condition)  (cost=1.40 rows=1)
    -> Table scan on R4  (cost=0.35 rows=1)
    -> Hash
        -> Inner hash join (no condition)  (cost=1.05 rows=1)
            -> Table scan on R3  (cost=0.35 rows=1)
            -> Hash
                -> Inner hash join (no condition)  (cost=0.70 rows=1)
                    -> Table scan on R2  (cost=0.35 rows=1)
                    -> Hash
                        -> Table scan on R1  (cost=0.35 rows=1)

| -> Nested loop inner join  (cost=0.55..0.55 rows=0)
    -> Nested loop inner join  (cost=0.50..0.50 rows=0)
        -> Table scan on R4  (cost=0.25..0.25 rows=1)
        -> Filter: (R4.c1 = R3.c1)  (cost=0.35..0.35 rows=0)
            -> Table scan on R3  (cost=0.25..0.25 rows=1)
    -> Nested loop inner join  (cost=0.50..0.50 rows=0)
        -> Table scan on R2  (cost=0.25..0.25 rows=1)
        -> Filter: (R2.c1 = R1.c1)  (cost=0.35..0.35 rows=0)
            -> Table scan on R1  (cost=0.25..0.25 rows=1)

MySQL8.0.2x为了更好的兼容两种优化器，引入了新的类AccessPath，可以认为这是MySQL为了解耦执行器和不同优化器抽象出来的Plan Tree。

1 老优化器的入口

老优化器仍然走JOIN::optimize来把query block转换成query execution plan (QEP)。

这个阶段仍然做一些逻辑的重写工作，这个阶段的转换可以理解为基于cost-based优化前做准备，详细步骤如下：

Logical transformationsoptimize_derived : Optimize the query expression representing a derived table/view.optimize_cond : Equality/constant propagation.prune_table_partitions : Partition pruning.optimize_aggregated_query : COUNT(*), MIN(), MAX() constant substitution in case of implicit grouping.substitute_gc : ORDER BY optimization, substitute all expressions in the WHERE condition and ORDER/GROUP lists that match generated columns (GC) expressions with GC fields, if any.
Perform cost-based optimization of table order and access path selection.JOIN::make_join_plan() : Set up join order and initial access paths.
Post-join order optimizationsubstitute_for_best_equal_field : Create optimal table conditions from the where clause and the join conditions.make_join_query_block : Inject outer-join guarding conditions.Adjust data access methods after determining table condition (several times).optimize_distinct_group_order : Optimize ORDER BY/DISTINCT.optimize_fts_query : Perform FULLTEXT search before all regular searches.remove_eq_conds : Removes const and eq items. Returns the new item, or nullptr if no condition.replace_index_subquery/create_access_paths_for_index_subquery : See if this subquery can be evaluated with subselect_indexsubquery_engine.setup_join_buffering : Check whether join cache could be used.
Code generationalloc_qep(tables) : Create QEP_TAB array.test_skip_sort : Try to optimize away sorting/distinct.make_join_readinfo : Plan refinement stage: do various setup things for the executor.make_tmp_tables_info : Setup temporary table usage for grouping and/or sorting.push_to_engines : Push (parts of) the query execution down to the storage engines if they can provide faster execution of the query, or part of it.create_access_paths : generated ACCESS_PATH.

2 新优化器的入口

新优化器默认不打开，必须通过set optimizer_switch="hypergraph_optimizer=on"; 来打开。主要通过FindBestQueryPlan函数来实现，逻辑如下：

先判断是否属于新优化器可以支持的Query语法（CheckSupportedQuery），不支持的直接返回错误ER_HYPERGRAPH_NOT_SUPPORTED_YET。
转化top_join_list变成JoinHypergraph结构。由于Hypergraph是比较独立的算法层面的实现，JoinHypergraph结构用来更好的把数据库的结构包装到Hypergraph的edges和nodes的概念上的。
通过EnumerateAllConnectedPartitions实现论文中的DPhyp算法。
CostingReceiver类包含了过去JOIN planning的主要逻辑，包括根据cost选择相应的访问路径，根据DPhyp生成的子计划进行评估，保留cost最小的子计划。
得到root_path后，接下来处理group/agg/having/sort/limit的。对于Group by操作，目前Hypergraph使用sorting first + streaming aggregation的方式。

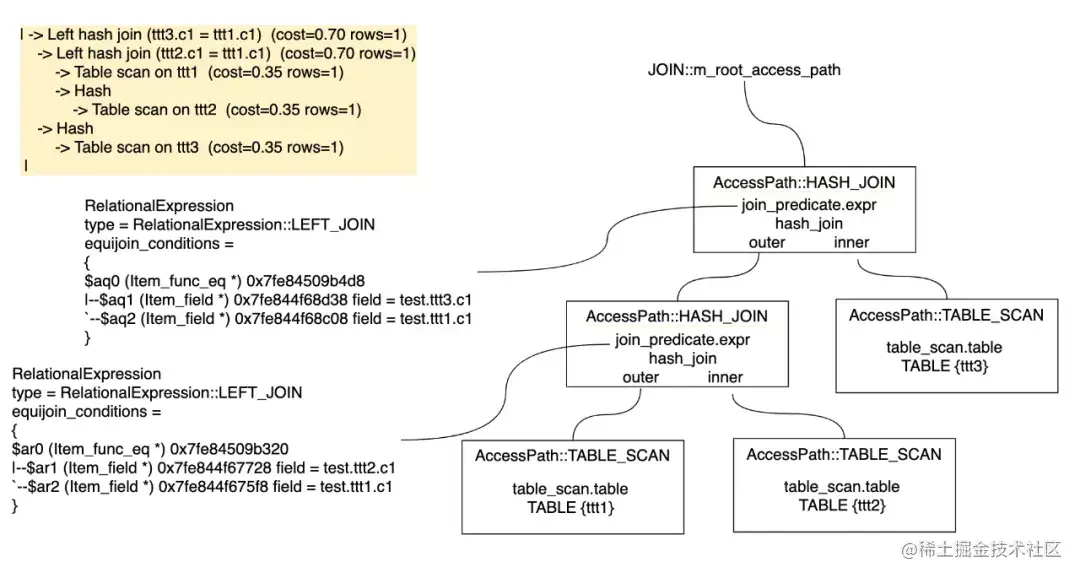

举例看下Plan（AccessPath）和SQL的关系：

最后生成Iterator执行器框架需要的Iterator执行载体，AccessPath和Iterator是一对一的关系（Access paths are a query planning structure that correspond 1:1 to iterators）。

Query_expression::m_root_iterator = CreateIteratorFromAccessPath(......)

unique_ptr_destroy_only<RowIterator> CreateIteratorFromAccessPath(
     THD *thd, AccessPath *path, JOIN *join, bool eligible_for_batch_mode) {
......
   switch (path->type) {
     case AccessPath::TABLE_SCAN: {
       const auto &param = path->table_scan();
       iterator = NewIterator<TableScanIterator>(
           thd, param.table, path->num_output_rows, examined_rows);
       break;
     }
     case AccessPath::INDEX_SCAN: {
       const auto &param = path->index_scan();
       if (param.reverse) {
         iterator = NewIterator<IndexScanIterator<true>>(
             thd, param.table, param.idx, param.use_order, path->num_output_rows,
             examined_rows);
       } else {
         iterator = NewIterator<IndexScanIterator<false>>(
             thd, param.table, param.idx, param.use_order, path->num_output_rows,
             examined_rows);
       }
       break;
     }
     case AccessPath::REF: {
......
}

3 对比PostgreSQL

testdb=# EXPLAIN SELECT * FROM tbl_a WHERE id < 300 ORDER BY data;
                          QUERY PLAN
---------------------------------------------------------------
 Sort  (cost=182.34..183.09 rows=300 width=8)
   Sort Key: data
   ->  Seq Scan on tbl_a  (cost=0.00..170.00 rows=300 width=8)
         Filter: (id < 300)
(4 rows)

五总结

本文主要focus在MySQL最新版本官方的源码上，重点分析了官方的重构在多阶段和各阶段结构上的变化和联系，更多的是为了让大家了解一个全新的MySQL的发展。
