Lighthouse-Performance optimization (一)

509 阅读4分钟

Lighthouse 是什么

Lighthouse 是一种开源的自动化工具,用于提高网页质量。你可以在任何网页上运行它。它能够针对性能、可访问性、渐进式 Web 应用等进行审核。
你可以在 Chrome DevTools 中从命令行运行 Lighthouse,也可以作为 Node.js 模块运行。当你向 Lighthouse 提供了一个 URL 来进行审核时,它会针对该页面运行一系列审核,然后生成一个关于该页面执行情况的报告。这份报告可以作为如何改进页面的指标。每次审核都会产生一份参考文档,解释了这些审核为什么重要,以及如何解决等内容。

如何使用:

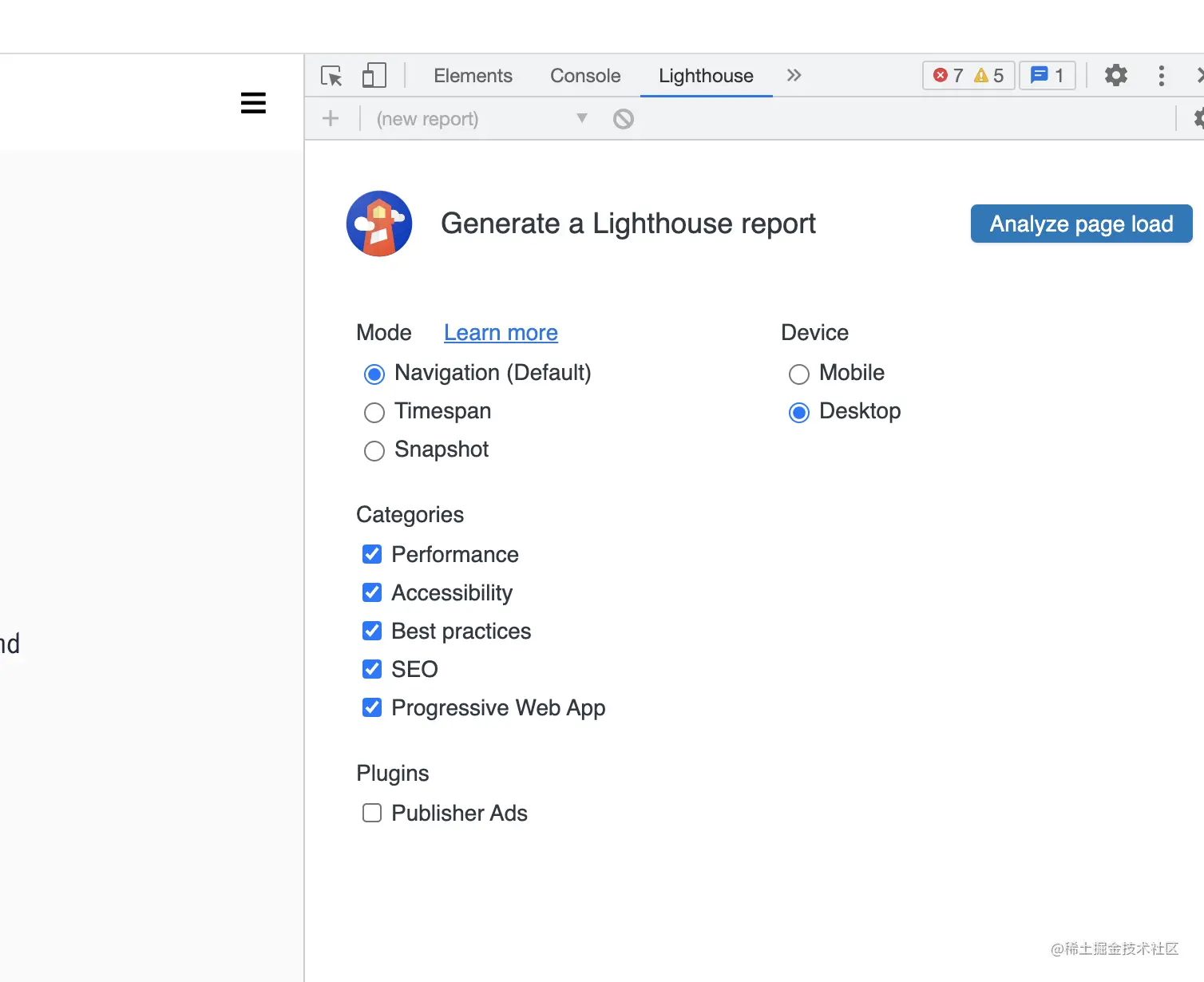

1.google 浏览器直接运行


2. 通过node 安装运行

npm install -g lighthouse
lighthouse <url>

例如

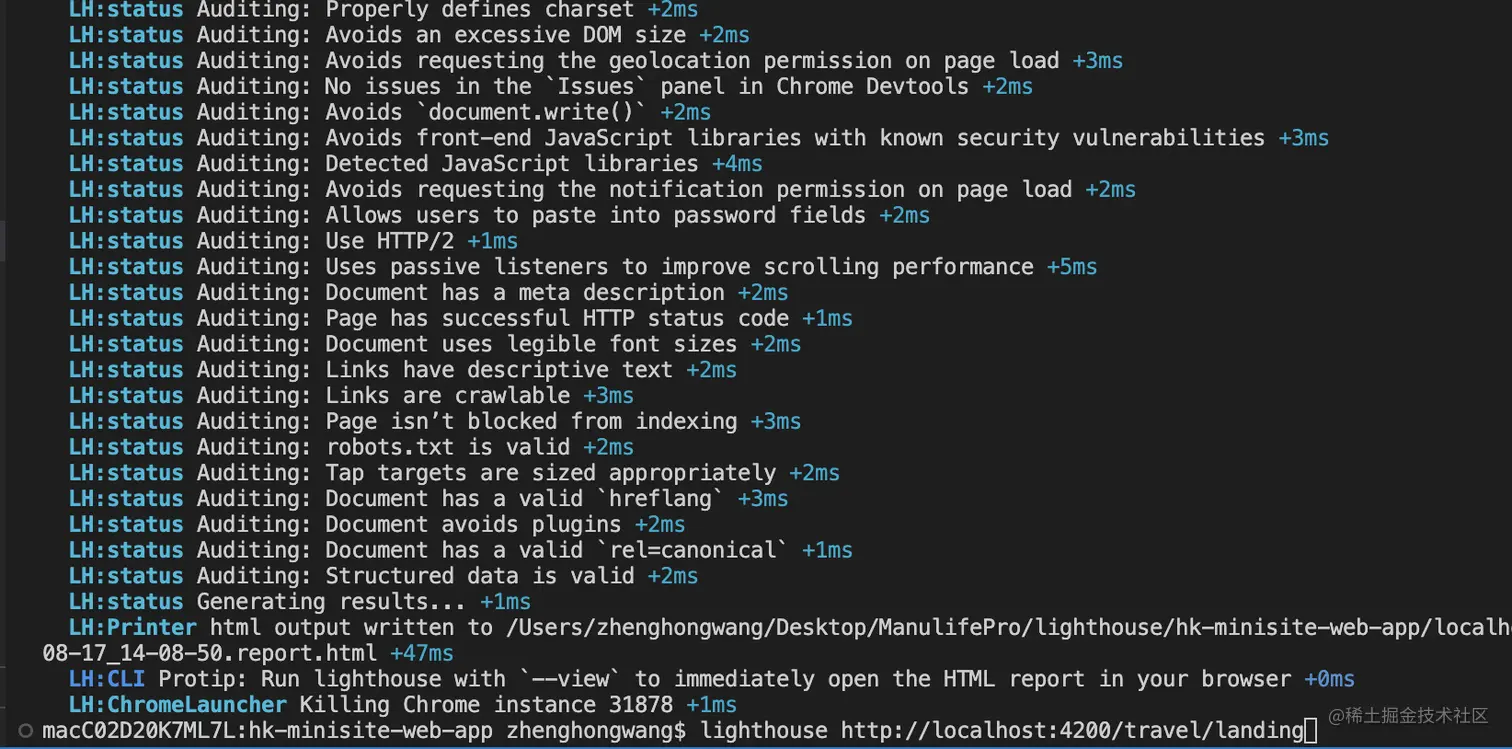

lighthouse http://localhost:4200/travel/landing

Lighthouse 默认生成 HTML 格式的报告文件。你可以通过添加控制选项来控制输出的格式。

报告能够以 HTML 或 JSON 格式显示。

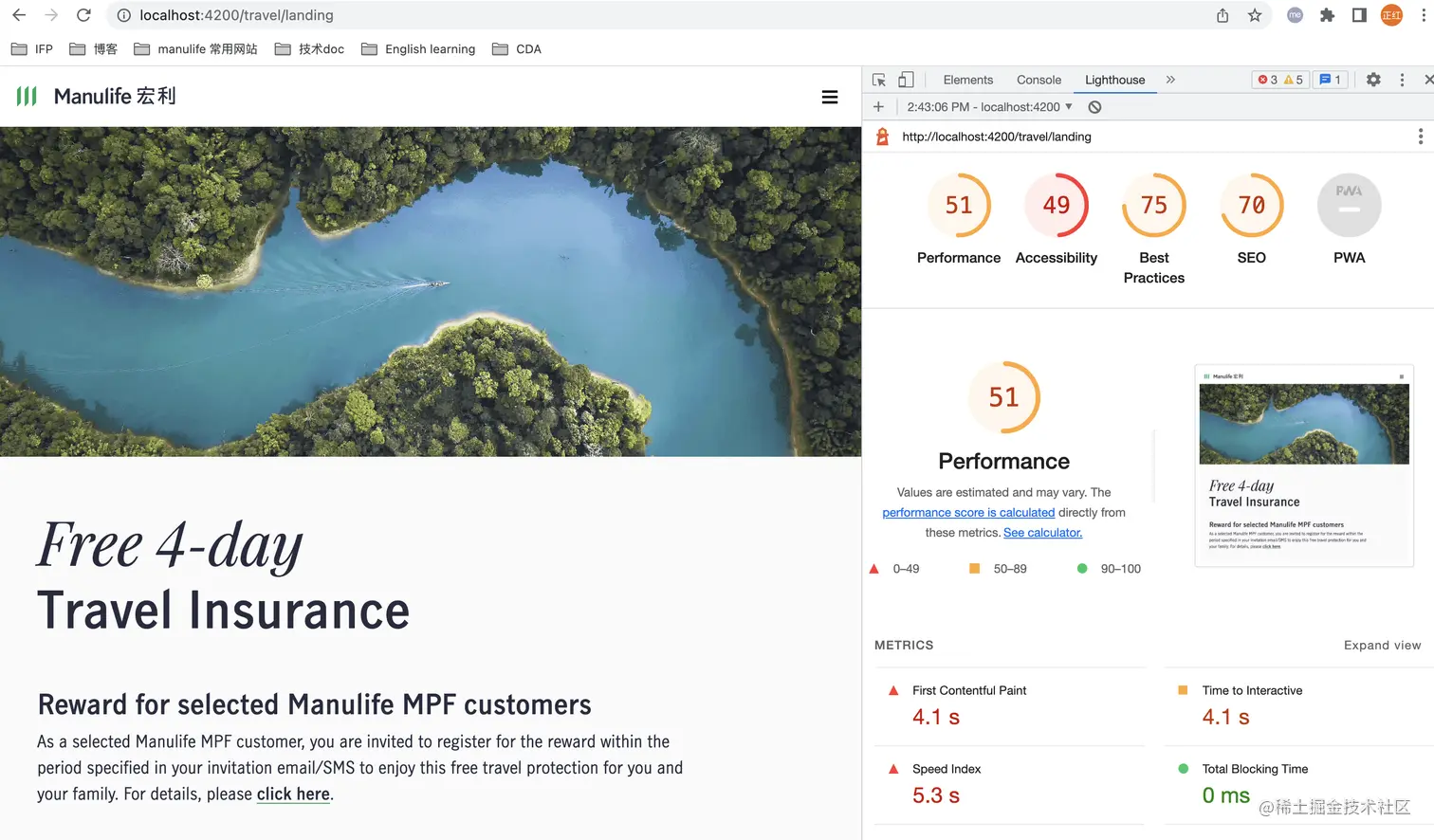

Lighthouse 报告和优化流程

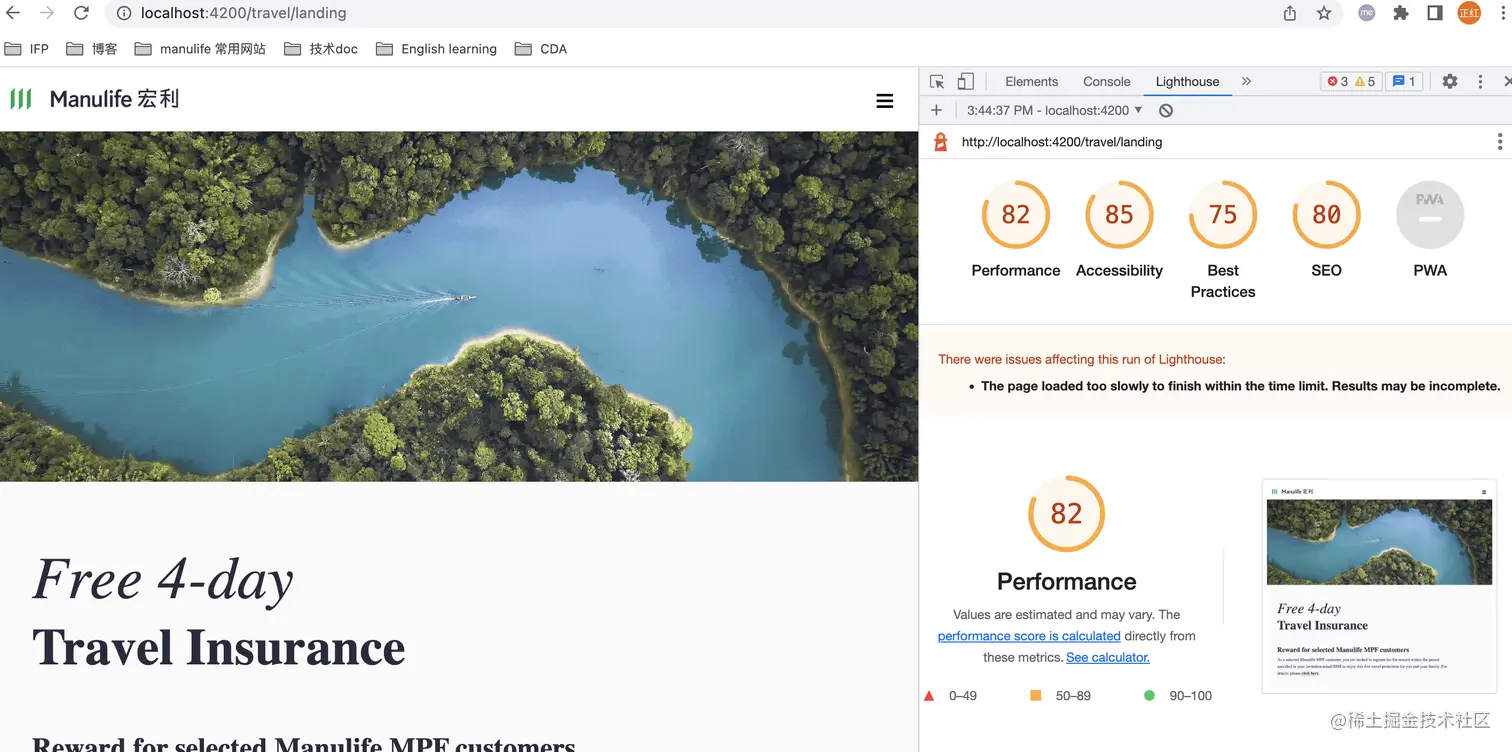

Lighthouse生成的是一个报告,会给你的页面跑出一个分数来。 分别是页面性能(performance)、Progressive(渐进式 Web 应用)、Accessibility(可访问性)、Best Practices(最佳实践)、SEO 五项指标的跑分

Overview



Performance(页面性能)

Metrics

NameDesc
1. First Contentful Paint (FCP):FCP 测量在用户导航到你的页面后浏览器呈现第一段 DOM 内容所需的时间,也就是页面第一个内容出现的时间。该指标权重为 10%
2.Time to Interactive (TTI)TTI 衡量一个页面需要多长时间才能完全交互。主要影响因素就是页面渲染速度和 JS 阻塞时间。该指标权重为 10%
3.Speed Index (SI)速度指数衡量页面加载期间内容的视觉显示速度。它要求的是页面的渲染过程应该是渐进的,内容一点点出现,而不是开始一段时间一直是空白,然后全部内容一下出现。这个指标跟页面渲染时间和渲染方式有关,如果页面渲染时间很短,页面一下就出来了,那它的得分也会很高。该指标权重为 10%
4.Total Blocking Time (TBT)可以理解为 JS 的阻塞时间,该指标的计算规则就是 LCP 到 TTI(可交互时间) 之间,所有执行耗时大于 50ms 的 Task(宏任务),大于 50ms 那部分时间的总和。比如下图中的 Task 耗时 95.52ms,那这个 Task 就贡献了 45.52ms 的 TBT。该指标要求我们所有的 JS 任务(宏任务,一般是函数)执行时间不要大于 50 ms。该指标权重为 30%
5.Largest Contentful Paint (LCP)LCP 测量视口中最大的内容元素何时呈现到屏幕上(通过录制页面 Performance 可以看到最大的内容元素是什么)。这大约是页面的主要内容对用户可见的时间。该指标权重为 25%
6.Cumulative Layout Shift (CLS)指网页布局在加载期间的偏移量,普遍用于测量视觉稳定性。得分范围是0-1,其中0表示没有偏移,1表示最大偏移。要求我们在渲染页面过程中,不要频繁发生内容块的偏移。该指标权重为 15%

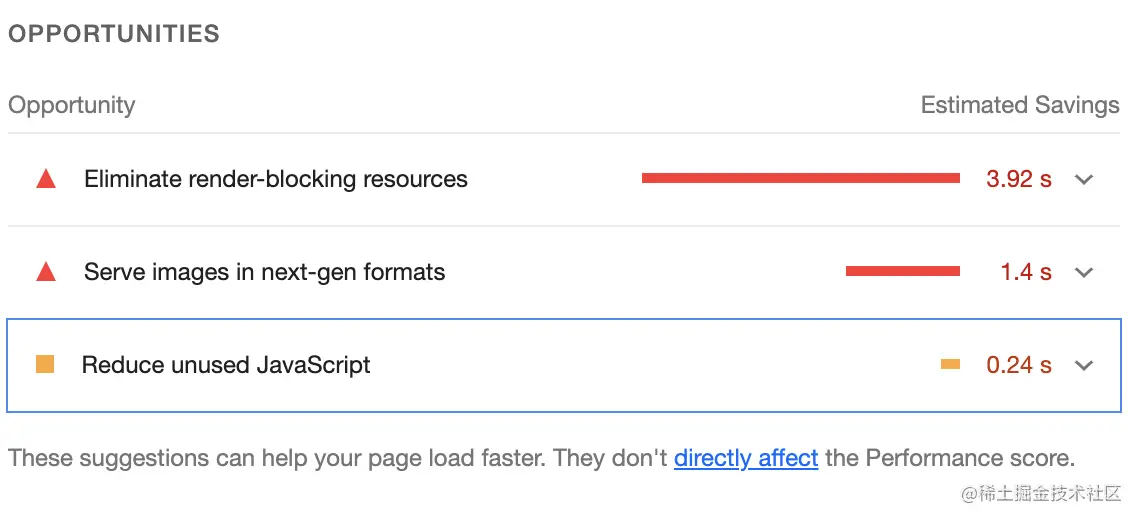

Opportunities


DescReferResolve detail
1.Remove unused JavaScriptweb.dev/unused-java…Code Splitting <>brUnused Code Elimination: Terser and Closure Compiler
Unused Imported Code
引入webpack, 进行代码分割
2. Use HTTP/2

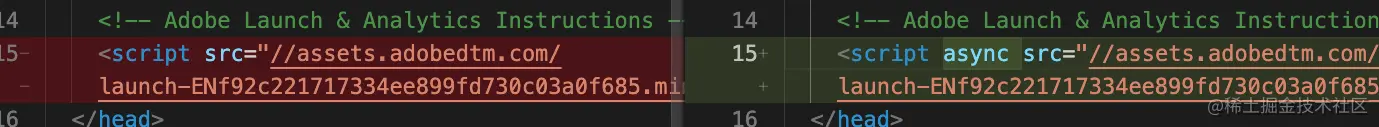

3.Eliminate render-blocking resourcesweb.dev/render-bloc…image2022-4-11_10-32-54.png

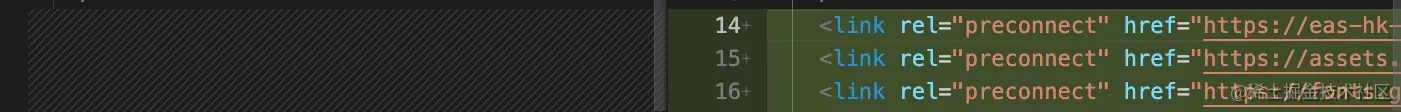

4.Preconnect to required origins[web.dev/uses-rel-pr…]Lighthouse 报告的“机会”部分列出了所有尚未使用 <link rel=preconnect> 对获取请求进行优先级排序的关键请求:image2022-4-11_11-9-28.png
5.Serve images in next-gen formats[web.dev/uses-webp-i…]WebP 格式的图片www.gaitubao.com/jpg-gif-png…

Diagnostics

DescReferResolve detail
1. Serve static assets with an efficient cache policyweb.dev/uses-long-c…CDN, Nginx

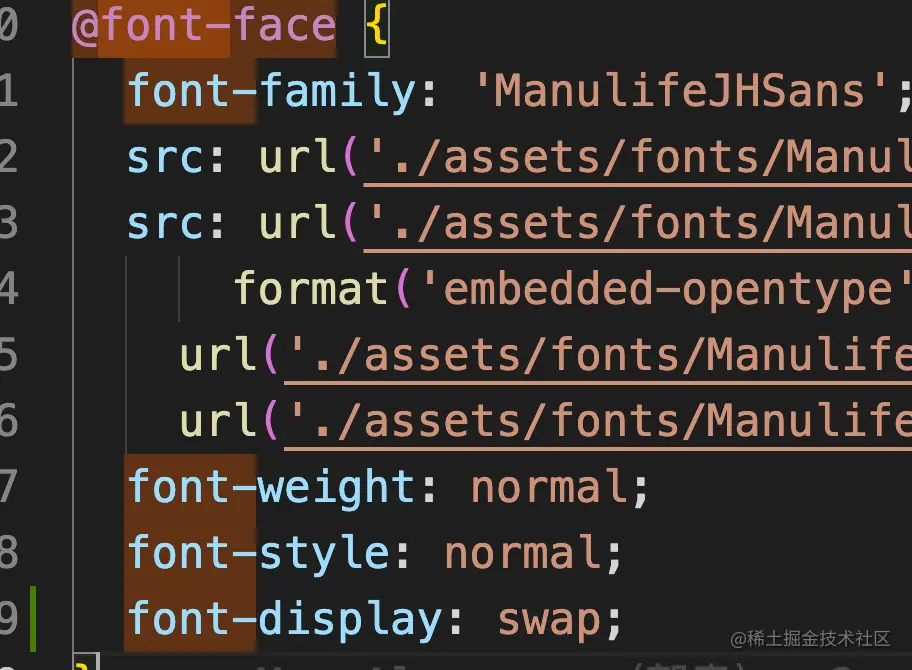

2. Ensure text remains visible during webfont load[web.dev/font-displa…]image2022-5-24_17-42-29.png

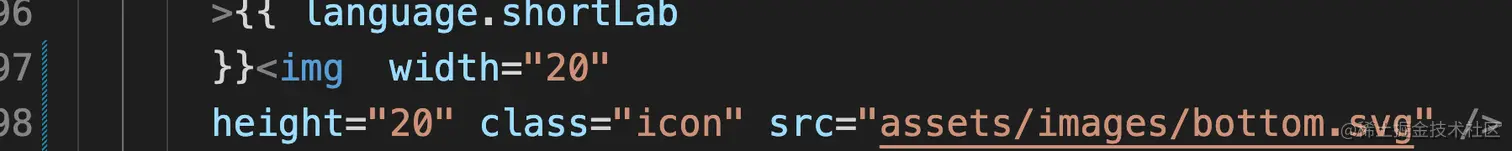

3. Image elements do not have explicit width and heightweb.dev/optimize-cl…image2022-5-24_18-22-54.png
4. Registers an unload listenerweb.dev/bfcache/?ut…
Avoid enormous network payloadsweb.dev/total-byte-…
|Minimize main-thread work https://web.dev/total-byte-weight/
Reduce JavaScript execution time https://web.dev/bootup-time
Reduce the impact of  third-party codeweb.dev/third-party…
Keep request counts low and transfer sizes smallweb.dev/resource-su…

Accessibility  (可访问性)

DescReferResolve detail

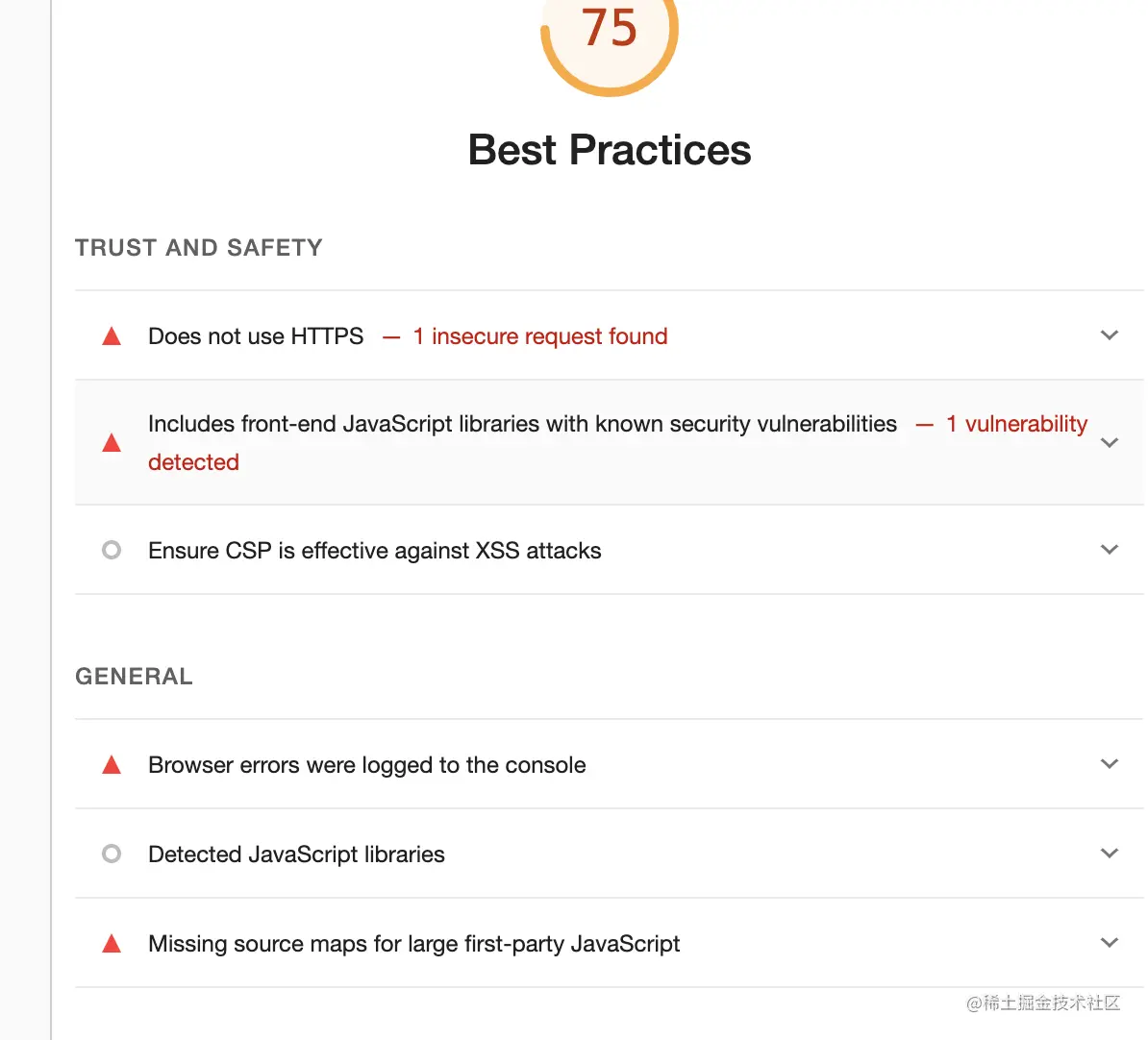

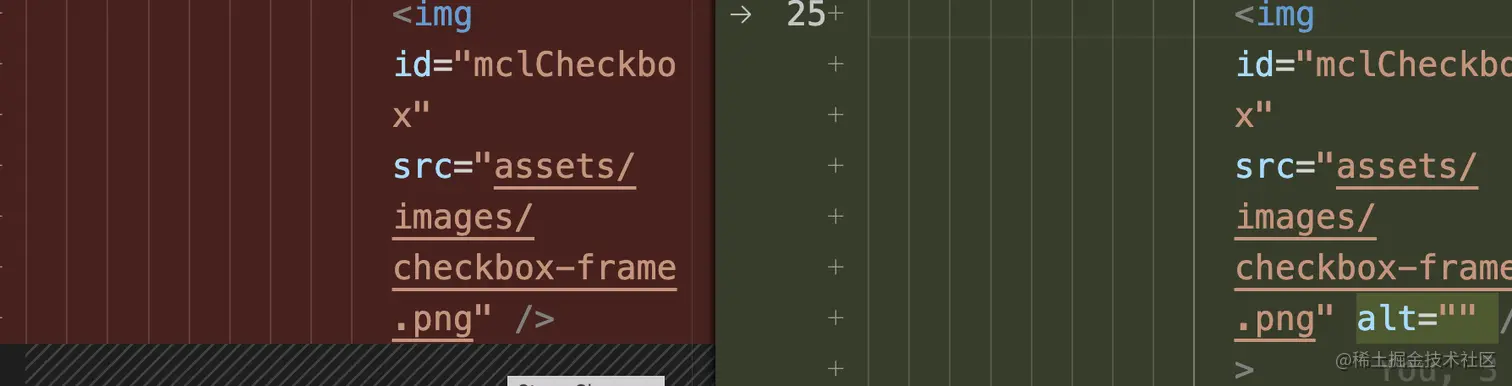

1.Image elements do not have [alt] attributes image2022-8-18_11-39-58.pngweb.dev/image-alt/?…image2022-8-18_10-25-22.png

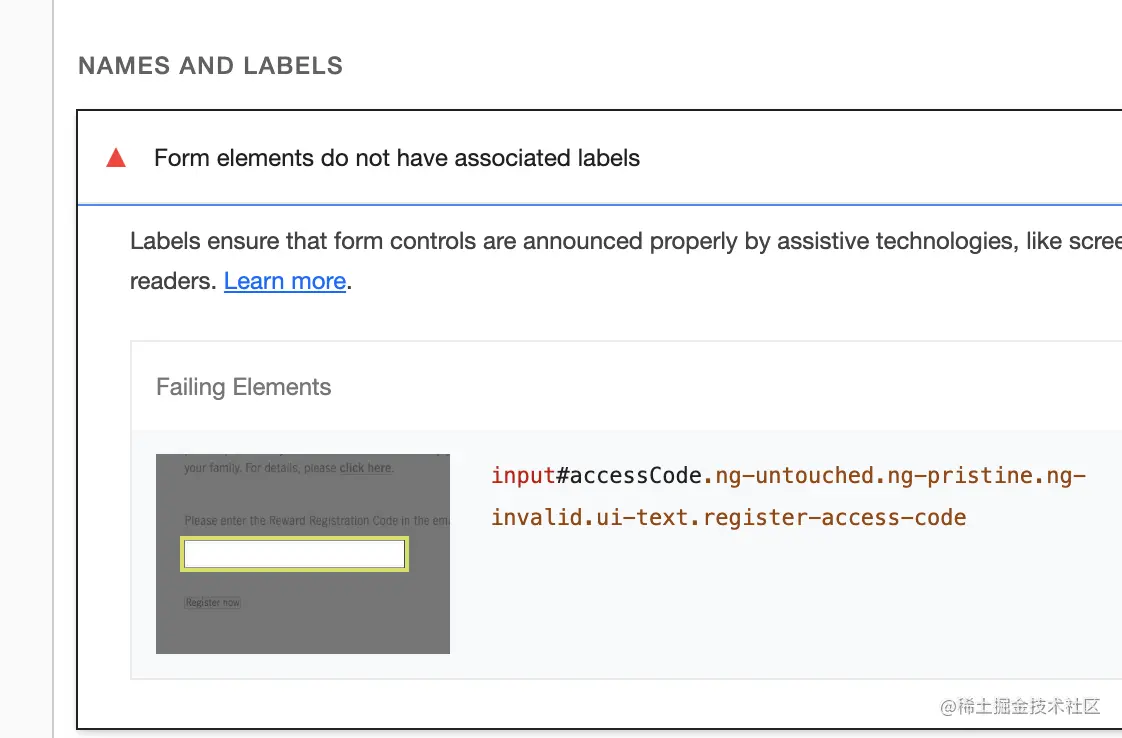

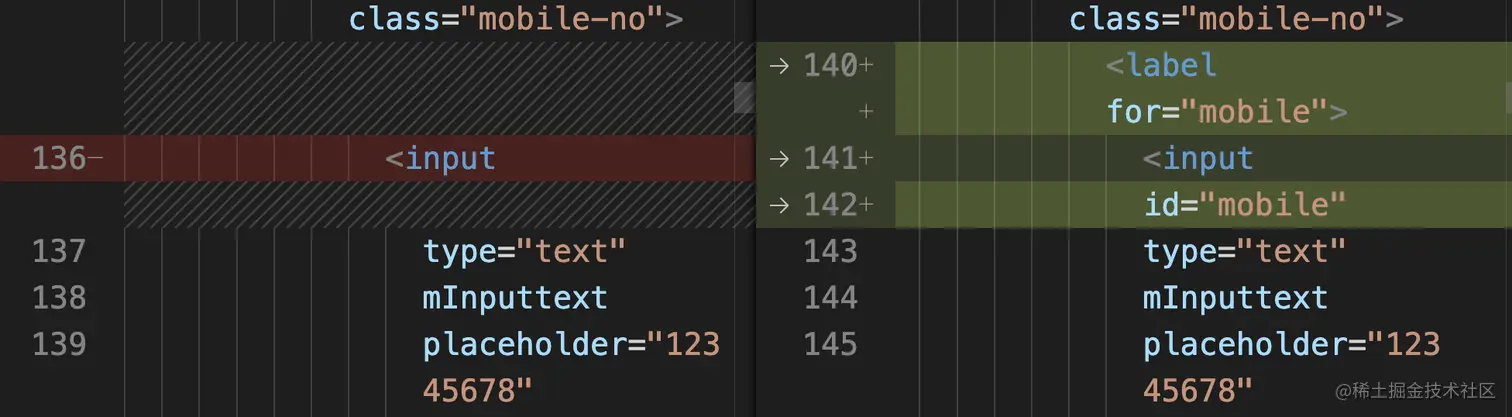

2.Form elements do not have associated labels image2022-8-18_10-23-1.pngweb.dev/label/?utm_…image2022-8-18_10-39-2.png

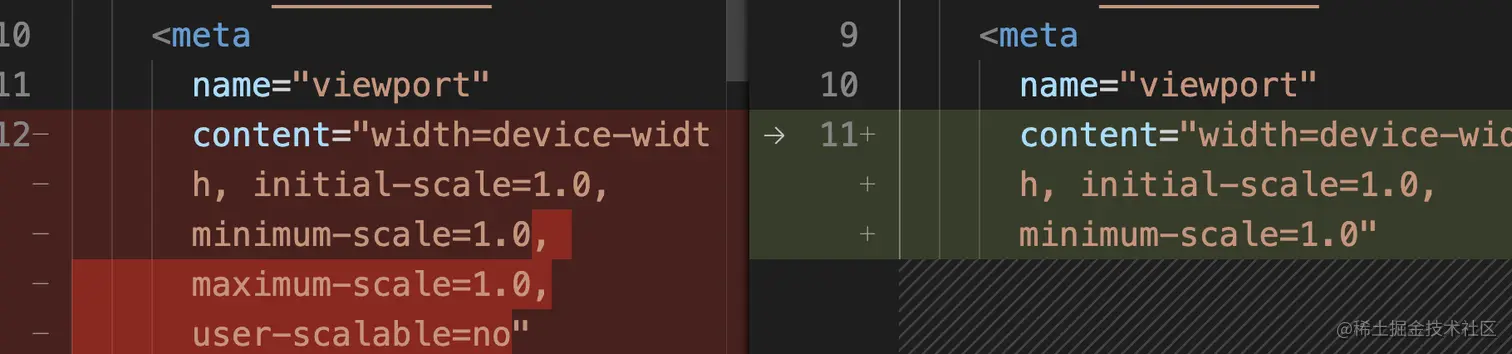

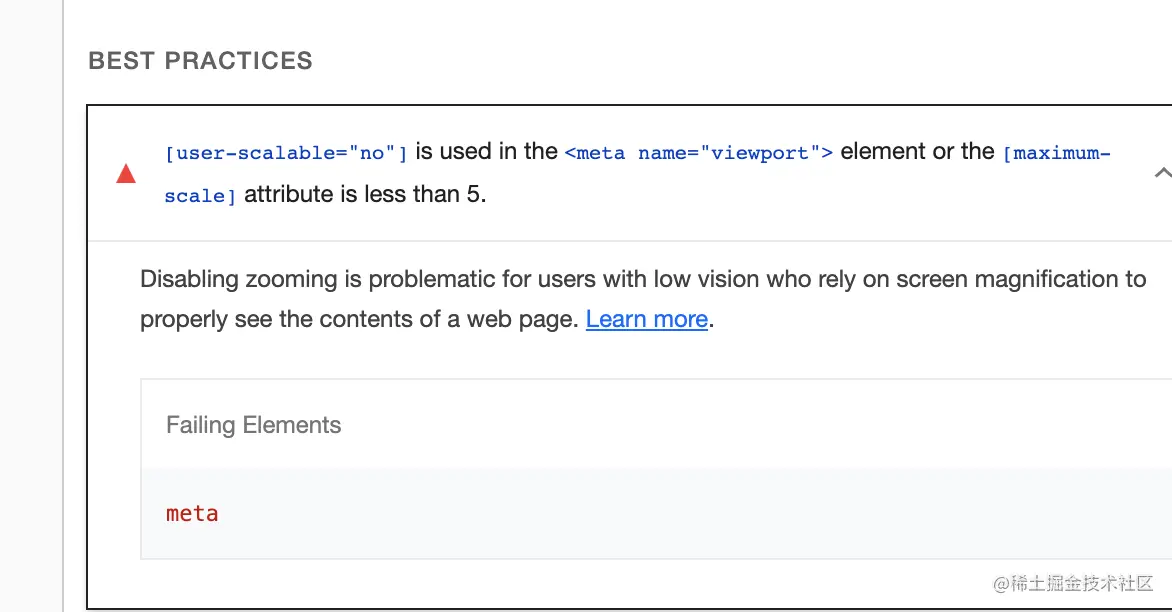

3.image2022-8-18_10-56-6.pngweb.dev/meta-viewpo…image2022-8-18_11-37-57.png

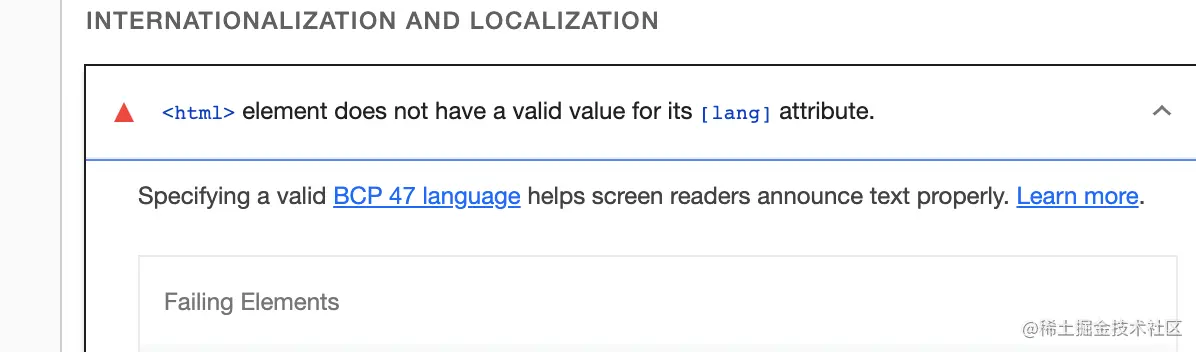

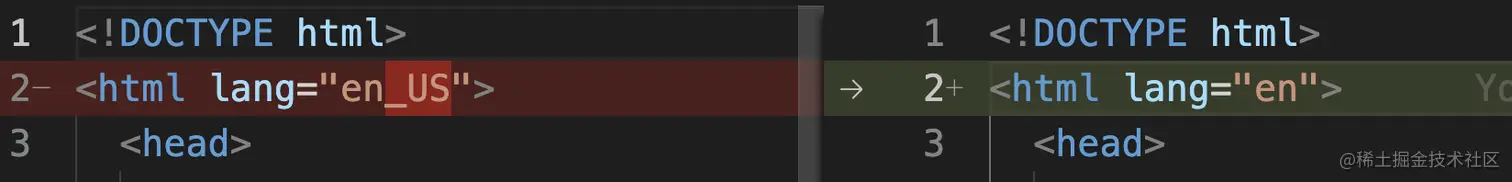

4.image2022-8-18_10-56-54.pngweb.dev/html-lang-v…image2022-8-18_11-37-29.png

Best Practices(最佳实践)


DescRefer
1.Does not use HTTPS 1 insecure request foundweb.dev/is-on-https…

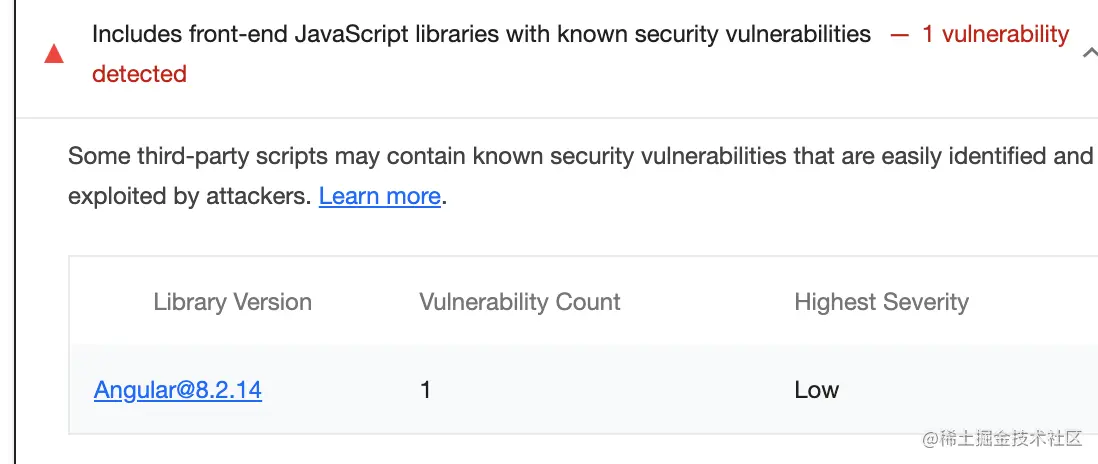

2.Includes front-end JavaScript libraries with known security vulnerabilities 1 vulnerability detected image2022-8-18_14-11-30.pngweb.dev/no-vulnerab…

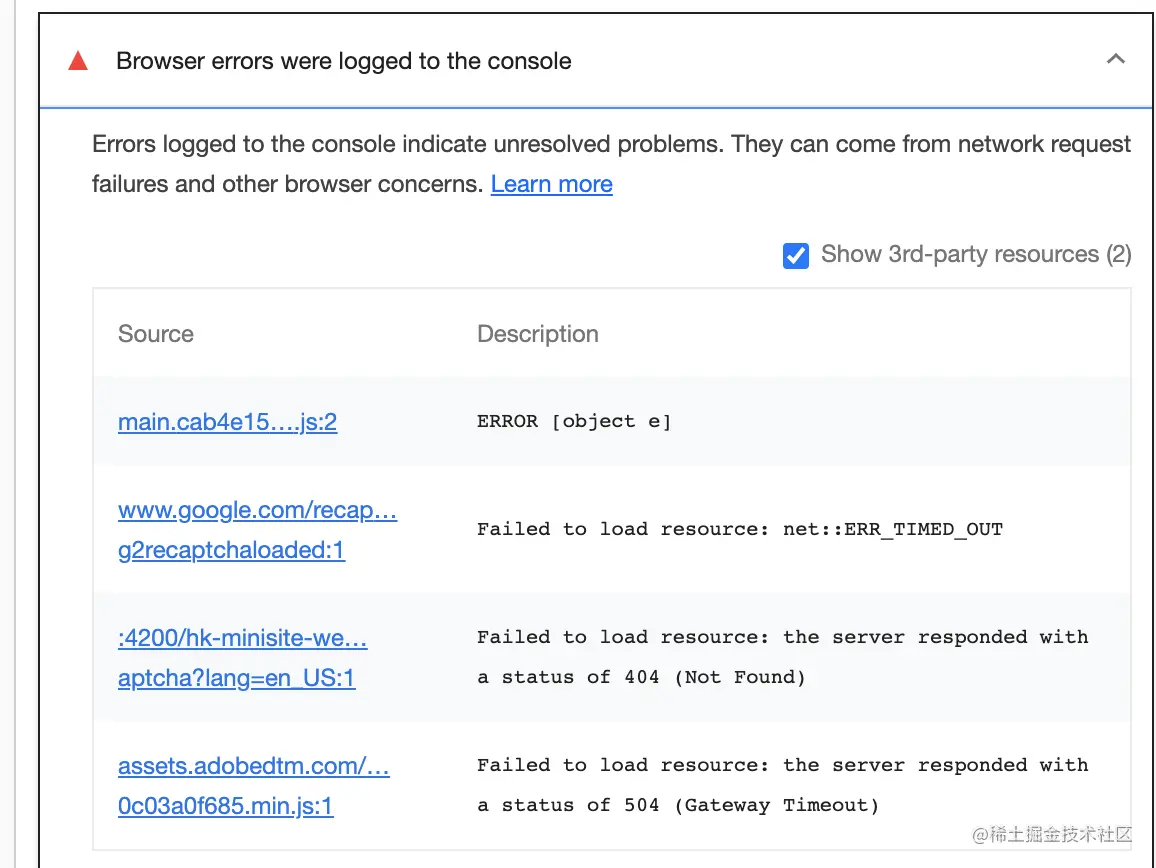

3.Browser errors were logged to the console image2022-8-18_14-12-31.pngweb.dev/errors-in-c…

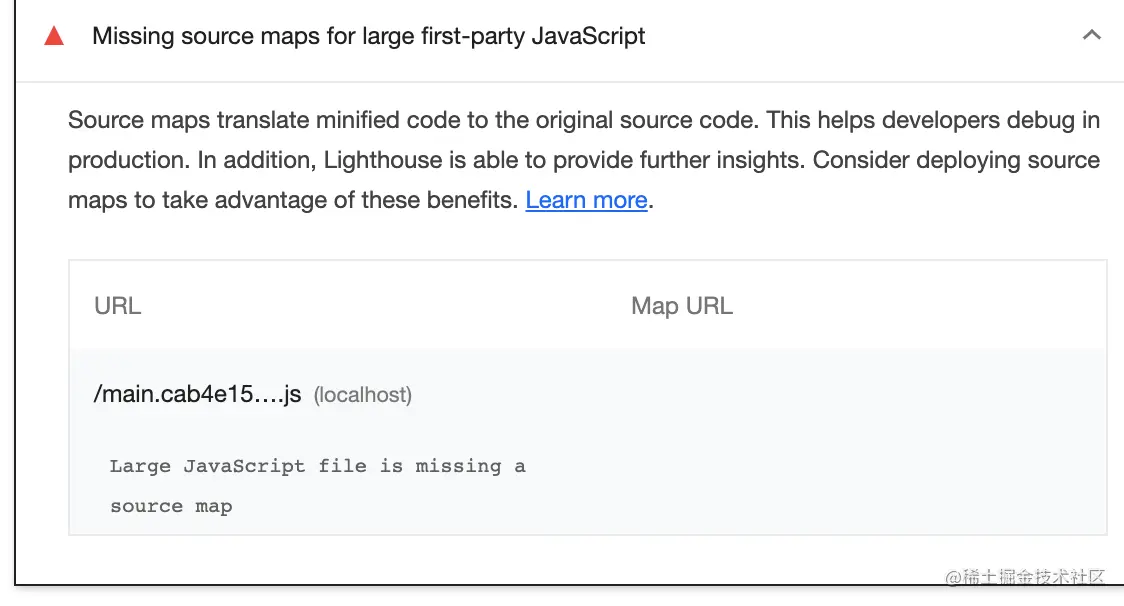

4.Missing source maps for large first-party JavaScript image2022-8-18_14-13-29.pngdevelopers.google.com/web/tools/c…

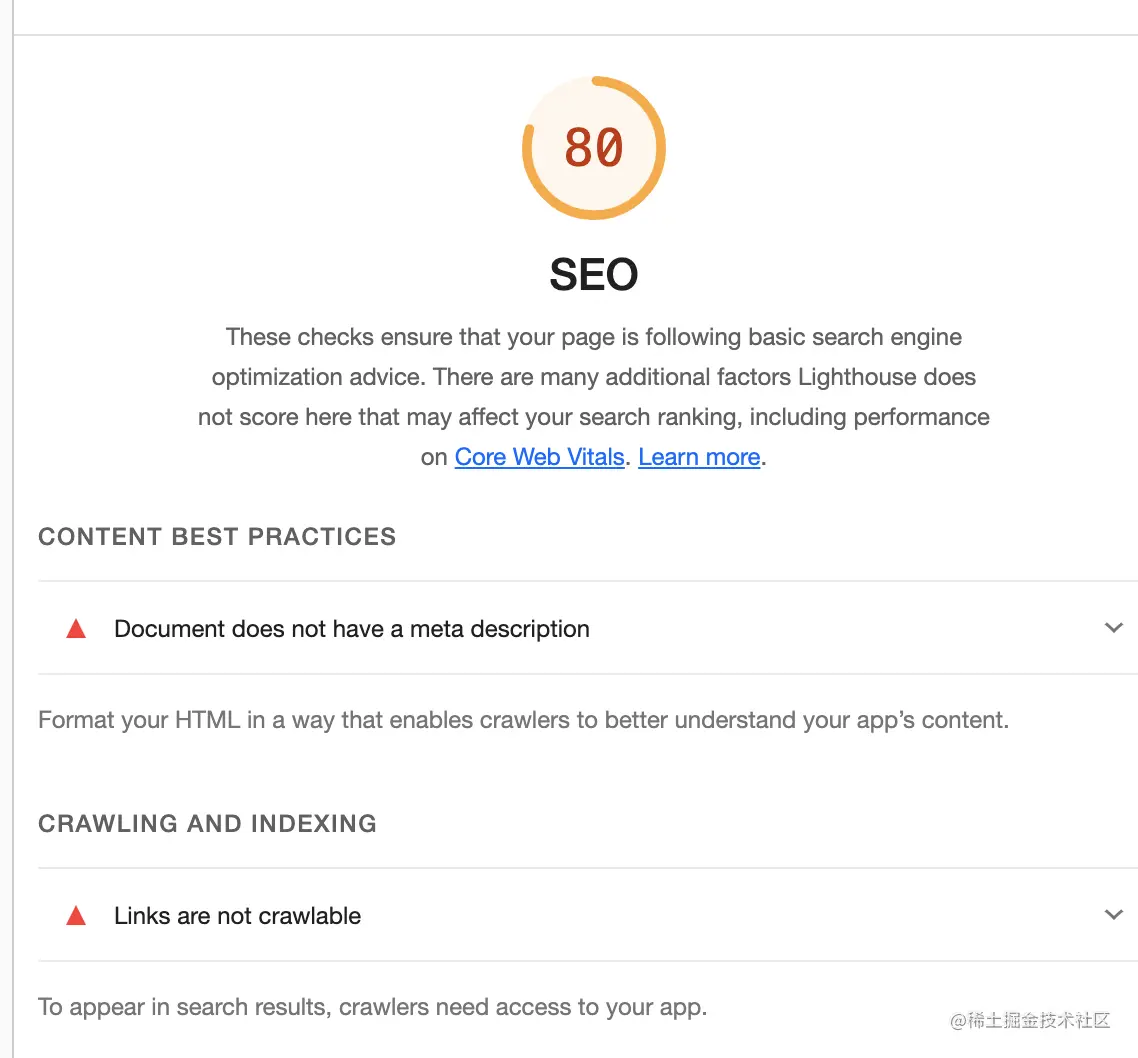

SEO


DescRefer

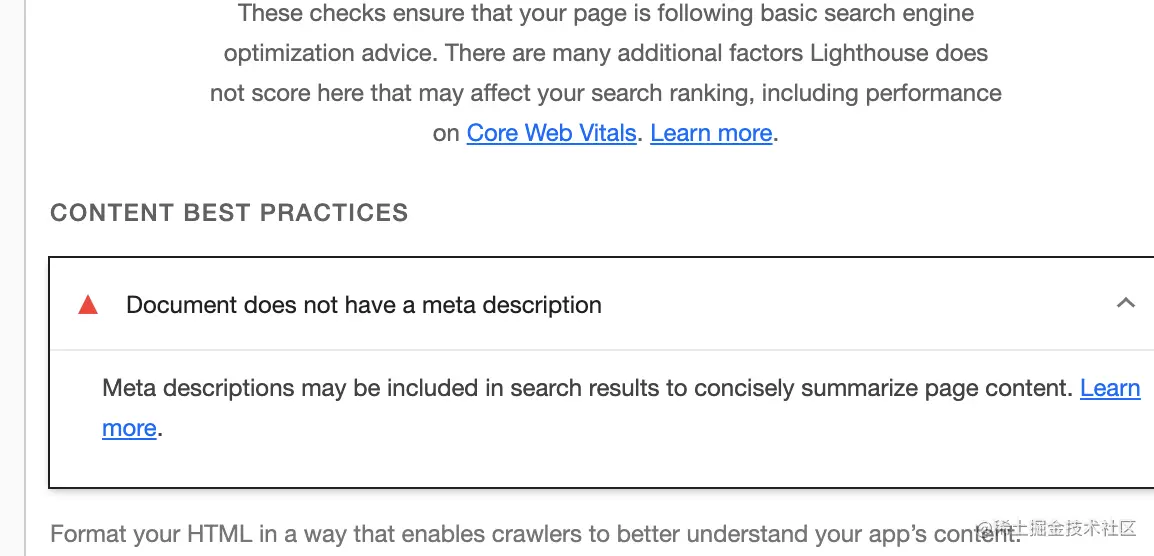

1.image2022-8-18_13-56-47.pngweb.dev/meta-descri…

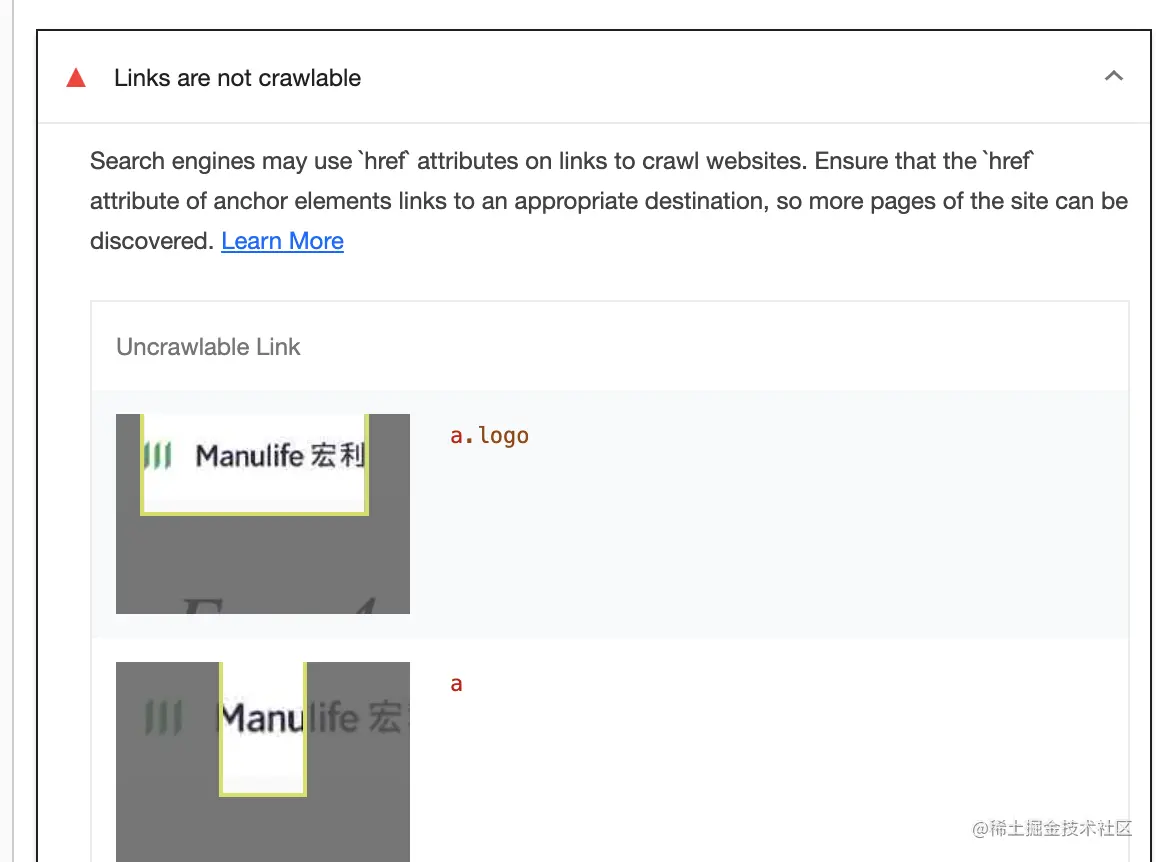

2.image2022-8-18_13-57-24.pngsupport.google.com/webmasters/…

Refer

github.com/GoogleChrom…

web.dev/angular/

Tools

source-map-explorer

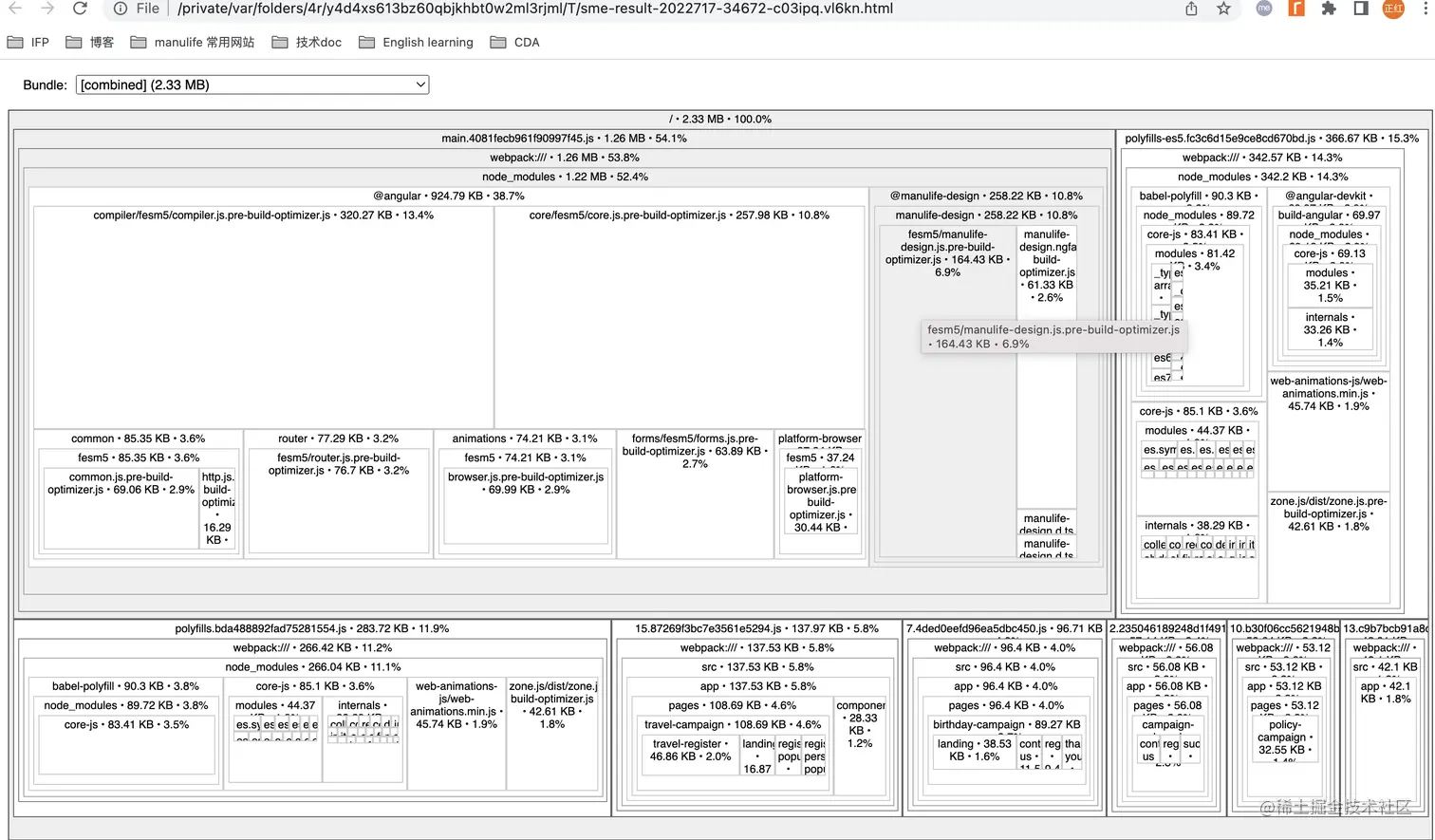

image2022-8-17_16-9-19.png 里面存储了代码打包转换后的位置信息,实质是一个 json 描述文件,维护了打包前后的代码映射关系。

angular.io/guide/deplo…:   source-map-explorer

npm install -g source-map-explorer

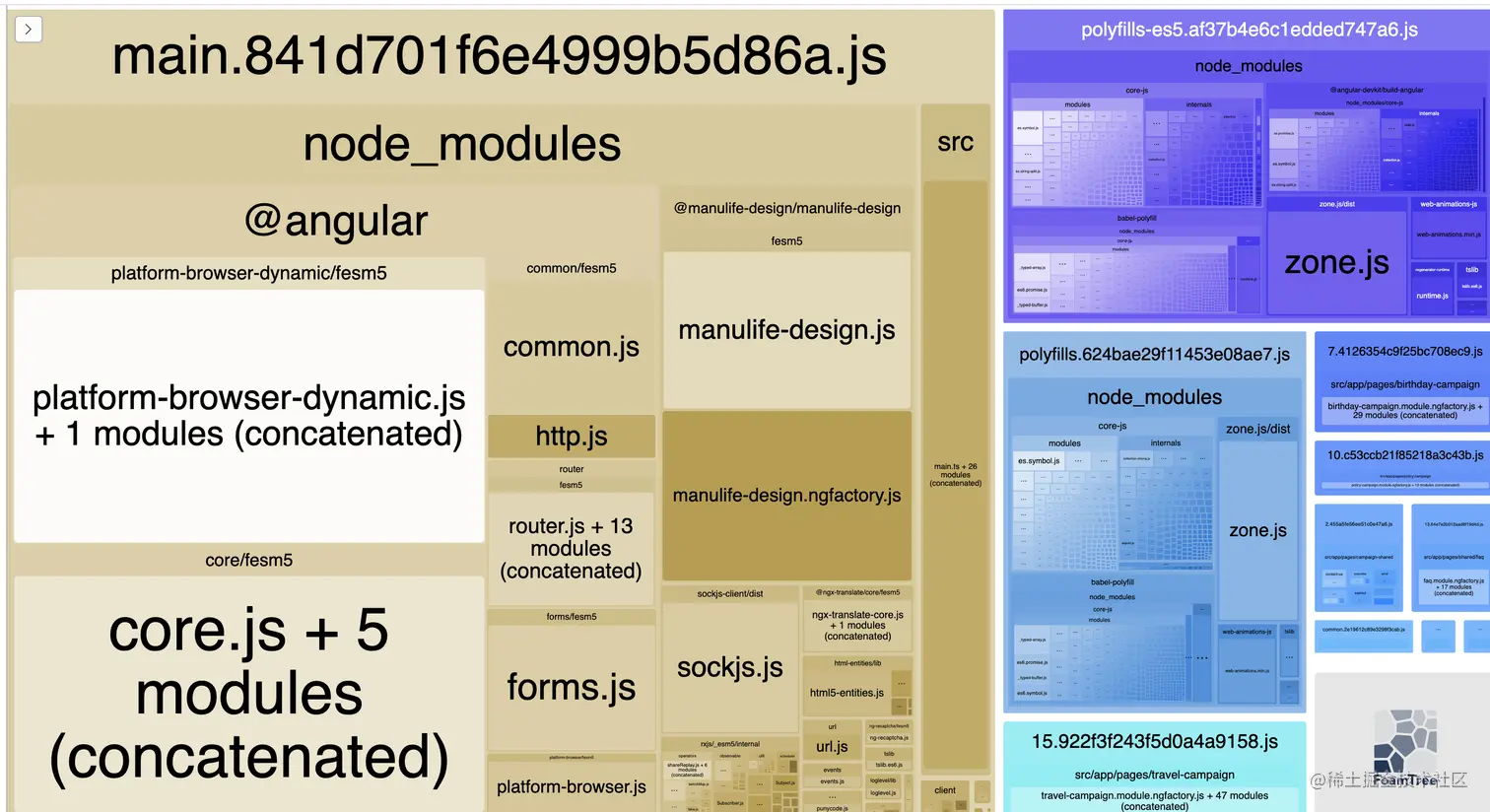

webpack

www.npmjs.com/package/web…

如何在angular 项目中引入webpack 和 webpack-bundle-analyzer 分析工具

github.com/manfredstey…

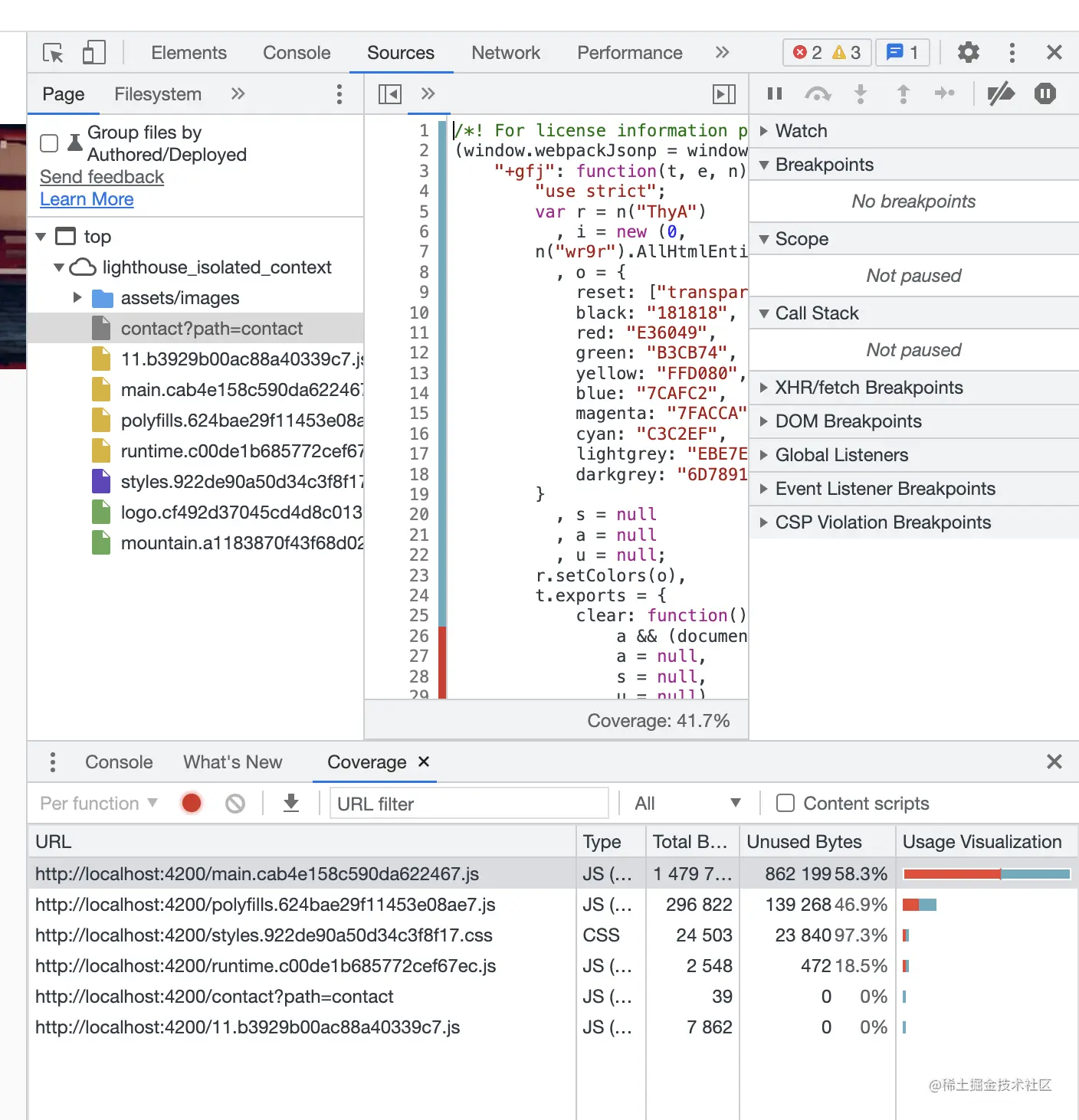

coverage


ctrl+shift+p  →  在命令窗口输入coverage

Performance

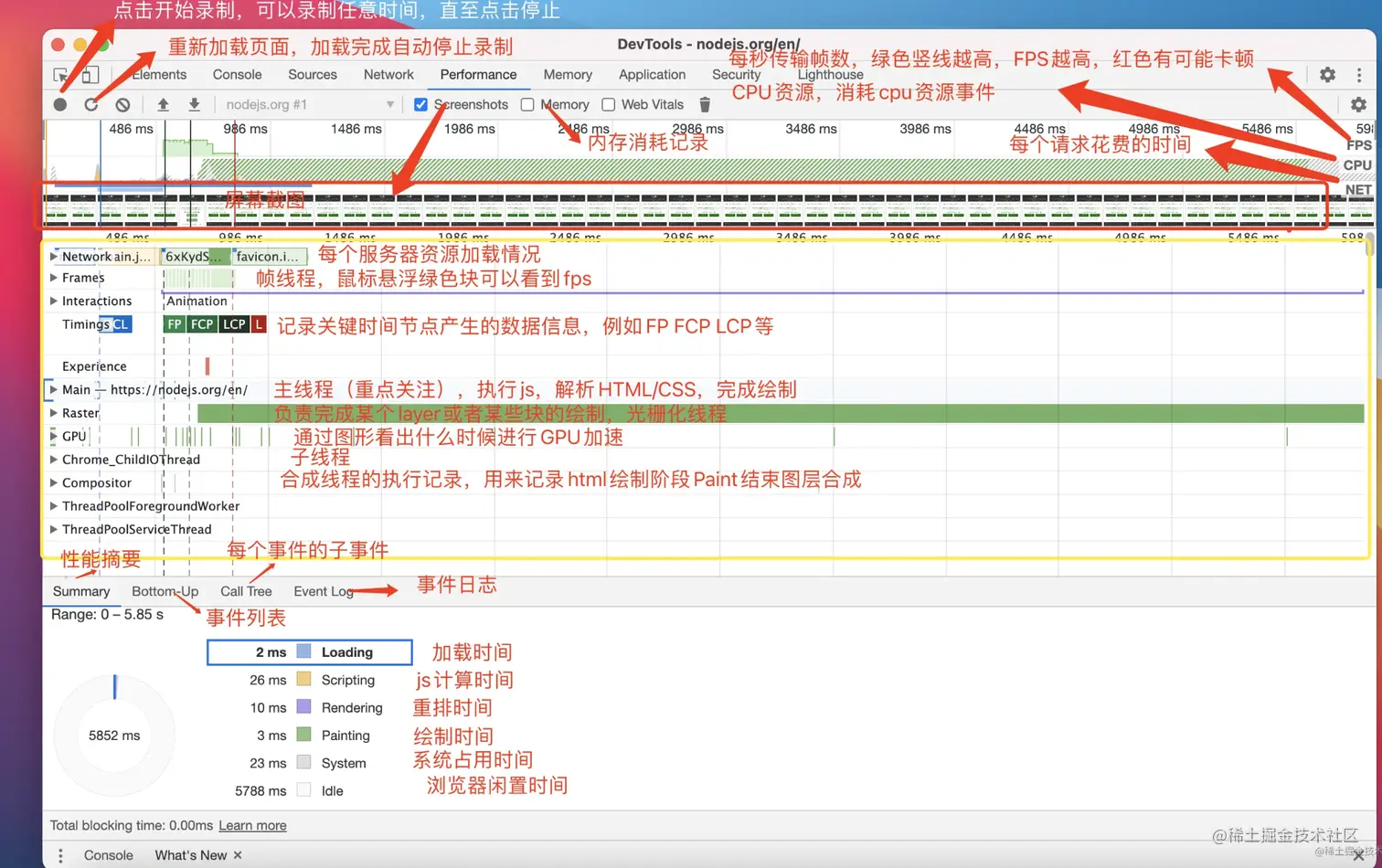

Screen Shot 2022-08-25 at 17.53.03.png
