Spring Boot 系列一(基础原理看这篇就够了)

Spring Boot与Spring及Spring MVC的区别

Spring

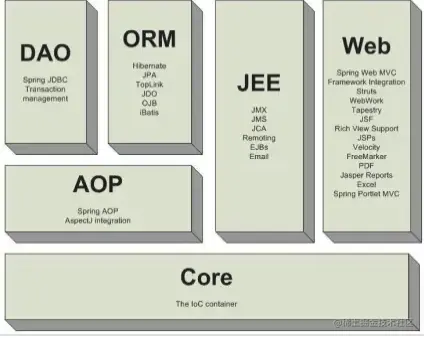

Spring 框架是一个开放源码的J2EE应用程序框架，是一个针对 Bean 生命周期进行管理的轻量级容器框架，其核心是控制反转(IOC)与面向切面(AOP)，架构如下图。

Spring设计的核心是org.springframework.beans包，他设计的目标是与JavaBean组件一起使用。这个包最高级的抽象是BeanFactory接口，它通过工厂模式实现，允许通过名称创建和查询对象，BeanFactory也可以管理对象之间的关系，Bean Factory支持两种对象模型(单例模型，原型模型)

Spring MVC

Spring MVC 是Spring提供的一个基于MVC设计模式的轻量级 Web开发框架，本质上相当于Servlet。Spring MVC本身就是Spring框架的一部分，和Spring完美结合，性能具有先天优势。Spring MVC框架提供了模型，视图，控制器的架构，执行流程如下图。

1.用户通过浏览器发起一个http请求，该请求会被提交到DispatcherServlet(前端控制器)
2.由DispatcherServlet请求一个或多个HandlerMapping(处理器映射器)
3.返回一个执行链(HandlerExecutionChain)。
4.DispatcherServlet将执行链返回的Handler信息发送给HandlerAdapter(处理器适配器) 5.HandlerAdapter根据Handler信息找到对应的Handler(也称Controller)
6.Handler执行完毕，返回ModelAndView信息给HandlerAdapter
7.HandlerAdapter处理适配器将ModelAndView返回给DispatcherServlet
8.DispatcherServlet接收到ModelAndView对象后请求ViewResolver视图解析器，进行视图解析。
9.ViewResolver视图解析器返回对应的视图View
10.DispatcherServlet接收到具体的View以后进行视图渲染。

Spring Boot

Spring包含了Spring MVC，Spring Boot是在Spring上的扩展，提供了自动配置功能，开箱即用。使开发和部署更加简单。

Spring Boot启动原理

我们开发一个Spring Boot项目都会用到如下启动类。

@SpringBootApplication
public class Application {
    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
}

从上面的代码可以看出，重点在@SpringBootApplication注解和SpringApplication.run函数。

@SpringBootApplication分析

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(excludeFilters = { @Filter(type = FilterType.CUSTOM, classes = TypeExcludeFilter.class),
      @Filter(type = FilterType.CUSTOM, classes = AutoConfigurationExcludeFilter.class) })
public @interface SpringBootApplication {
...
}

我们对上面的代码中的注解进行分析。
@Target(ElementType.TYPE)表示对哪个元素类型有效，是一个元注解
@Retention(RetentionPolicy.RUNTIME)表示运行时起作用，是一个元注解
@Documented表示是否支持生成文档，是一个元注解
@Inherited表示该注解是否可以被继承，是一个元注解
@SpringBootConfiguration 标识主启动类会加载所有的配置文件，源码如下。

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Configuration
public @interface SpringBootConfiguration {
...
}

@ComponentScan 这个是Spring中的注解，主要用于自动扫描符合条件的组件或bean定义，然后将bean的定义加载到ioc容器中。
@EnableAutoConfiguration 这个注解是最重要的一个句解，源码如下。

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@AutoConfigurationPackage
@Import(AutoConfigurationImportSelector.class)
public @interface EnableAutoConfiguration {
...
}

从上面的源码中我们可以看到一个非常重要的注解@Import(AutoConfigurationImportSelector.class)，下面我们重点分析AutoConfigurationImportSelector，源码如下：

public class AutoConfigurationImportSelector implements DeferredImportSelector, BeanClassLoaderAware,
      ResourceLoaderAware, BeanFactoryAware, EnvironmentAware, Ordered {

   private static final AutoConfigurationEntry EMPTY_ENTRY = new AutoConfigurationEntry();

   private static final String[] NO_IMPORTS = {};

   private static final Log logger = LogFactory.getLog(AutoConfigurationImportSelector.class);

   private static final String PROPERTY_NAME_AUTOCONFIGURE_EXCLUDE = "spring.autoconfigure.exclude";

   private ConfigurableListableBeanFactory beanFactory;

   private Environment environment;

   private ClassLoader beanClassLoader;

   private ResourceLoader resourceLoader;

   private ConfigurationClassFilter configurationClassFilter;

   @Override
   public String[] selectImports(AnnotationMetadata annotationMetadata) {
      if (!isEnabled(annotationMetadata)) {
         return NO_IMPORTS;
      }
      AutoConfigurationEntry autoConfigurationEntry = getAutoConfigurationEntry(annotationMetadata);
      return StringUtils.toStringArray(autoConfigurationEntry.getConfigurations());
   }

    @Override
    public Predicate<String> getExclusionFilter() {
       return this::shouldExclude;
    }

    private boolean shouldExclude(String configurationClassName) {
       return getConfigurationClassFilter().filter(Collections.singletonList(configurationClassName)).isEmpty();
    }

    /**
     * Return the {@link AutoConfigurationEntry} based on the {@link AnnotationMetadata}
     * of the importing {@link Configuration @Configuration} class.
     * @param annotationMetadata the annotation metadata of the configuration class
     * @return the auto-configurations that should be imported
     */
    protected AutoConfigurationEntry getAutoConfigurationEntry(AnnotationMetadata annotationMetadata) {
       if (!isEnabled(annotationMetadata)) {
          return EMPTY_ENTRY;
       }
       AnnotationAttributes attributes = getAttributes(annotationMetadata);
       List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes);
       configurations = removeDuplicates(configurations);
       Set<String> exclusions = getExclusions(annotationMetadata, attributes);
       checkExcludedClasses(configurations, exclusions);
       configurations.removeAll(exclusions);
       configurations = getConfigurationClassFilter().filter(configurations);
       fireAutoConfigurationImportEvents(configurations, exclusions);
       return new AutoConfigurationEntry(configurations, exclusions);
    }
...
}

从上面的源码可以看到AutoConfigurationImportSelector实现了DeferredImportSelector接口，DeferredImportSelector又实现了ImportSelector接口。不了解@Import注解原理的同学建议先了解@Import注解的原理。下面重点讲解getCandidateConfigurations方法。

protected List<String> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) {
   List<String> configurations = SpringFactoriesLoader.loadFactoryNames(getSpringFactoriesLoaderFactoryClass(),
         getBeanClassLoader());
   Assert.notEmpty(configurations, "No auto configuration classes found in META-INF/spring.factories. If you "
         + "are using a custom packaging, make sure that file is correct.");
   return configurations;
}

通过上面的源码发现调用了SpringFactoriesLoader的loadFactoryNames方法来返回要加载的类信息，源码如下。

public static List<String> loadFactoryNames(Class<?> factoryType, @Nullable ClassLoader classLoader) {
   String factoryTypeName = factoryType.getName();
   return loadSpringFactories(classLoader).getOrDefault(factoryTypeName, Collections.emptyList());
}

private static Map<String, List<String>> loadSpringFactories(@Nullable ClassLoader classLoader) {
   MultiValueMap<String, String> result = cache.get(classLoader);
   if (result != null) {
      return result;
   }

   try {
      Enumeration<URL> urls = (classLoader != null ?
            classLoader.getResources(FACTORIES_RESOURCE_LOCATION) :
            ClassLoader.getSystemResources(FACTORIES_RESOURCE_LOCATION));
      result = new LinkedMultiValueMap<>();
      while (urls.hasMoreElements()) {
         URL url = urls.nextElement();
         UrlResource resource = new UrlResource(url);
         Properties properties = PropertiesLoaderUtils.loadProperties(resource);
         for (Map.Entry<?, ?> entry : properties.entrySet()) {
            String factoryTypeName = ((String) entry.getKey()).trim();
            for (String factoryImplementationName : StringUtils.commaDelimitedListToStringArray((String) entry.getValue())) {
               result.add(factoryTypeName, factoryImplementationName.trim());
            }
         }
      }
      cache.put(classLoader, result);
      return result;
   }
   catch (IOException ex) {
      throw new IllegalArgumentException("Unable to load factories from location [" +
            FACTORIES_RESOURCE_LOCATION + "]", ex);
   }
}

通过上面的源码可以看到FACTORIES_RESOURCE_LOCATION的值是"META-INF/spring.factories"，所以会去用户自定义的Starter的JAR包中查找“META-INF/spring.factories”加载相应的信息。

SpringApplication.run函数分析

Spring Boot的整个启动逻辑都封装在SpringApplication.run函数中，SpringApplication.run函数的本质是在Spring的基础上做扩展。

/**
 * Static helper that can be used to run a {@link SpringApplication} from the
 * specified source using default settings.
 * @param primarySource the primary source to load
 * @param args the application arguments (usually passed from a Java main method)
 * @return the running {@link ApplicationContext}
 */
public static ConfigurableApplicationContext run(Class<?> primarySource, String... args) {
   return run(new Class<?>[] { primarySource }, args);
}

/**
 * Static helper that can be used to run a {@link SpringApplication} from the
 * specified sources using default settings and user supplied arguments.
 * @param primarySources the primary sources to load
 * @param args the application arguments (usually passed from a Java main method)
 * @return the running {@link ApplicationContext}
 */
public static ConfigurableApplicationContext run(Class<?>[] primarySources, String[] args) {
   return new SpringApplication(primarySources).run(args);
}

从上面的源码我们可以看出SpringApplication.run函数实际分为两new SpringApplication(primarySources)和run(String... args)这两步。

/**
 * Create a new {@link SpringApplication} instance. The application context will load
 * beans from the specified primary sources (see {@link SpringApplication class-level}
 * documentation for details. The instance can be customized before calling
 * {@link #run(String...)}.
 * @param resourceLoader the resource loader to use
 * @param primarySources the primary bean sources
 * @see #run(Class, String[])
 * @see #setSources(Set)
 */
@SuppressWarnings({ "unchecked", "rawtypes" })
public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
   this.resourceLoader = resourceLoader;
   Assert.notNull(primarySources, "PrimarySources must not be null");
   this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));
   this.webApplicationType = WebApplicationType.deduceFromClasspath();
   setInitializers((Collection) getSpringFactoriesInstances(ApplicationContextInitializer.class));
   setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
   this.mainApplicationClass = deduceMainApplicationClass();
}

通过上面的源码我们重点关注setInitializers，setListeners这二个方法。
1.setInitializers函数通过SpringFactoriesLoader，获取到所有META-INF/spring.factories中的ApplicationContextInitializer，通过反射进行实例化，排序返回列表。
2.setListeners函数通过SpringFactoriesLoader，获取到所有META-INF/spring.factories中的ApplicationListener，通过反射进行实例化，排序返回列表。

/**
 * Run the Spring application, creating and refreshing a new
 * {@link ApplicationContext}.
 * @param args the application arguments (usually passed from a Java main method)
 * @return a running {@link ApplicationContext}
 */
public ConfigurableApplicationContext run(String... args) {
   StopWatch stopWatch = new StopWatch();
   stopWatch.start();
   ConfigurableApplicationContext context = null;
   Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
   configureHeadlessProperty();
   //通过SpringFactoriesLoader获取所有的SpringApplicationRunListener，并进行调用。
   SpringApplicationRunListeners listeners = getRunListeners(args);
   listeners.starting();
   try {
      //创建SpringBoot默认启动参数对象
      ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
      //创建并配置要用的环境变量信息
      ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
      configureIgnoreBeanInfo(environment);
      //打印Banner
      Banner printedBanner = printBanner(environment);
      //根据类型来初始化不同的ApplicationContext
      context = createApplicationContext();
      //获取异常失败分析器
      exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
            new Class[] { ConfigurableApplicationContext.class }, context);
      //准备Spring上下文环境
      prepareContext(context, environment, listeners, applicationArguments, printedBanner);
      refreshContext(context);
      afterRefresh(context, applicationArguments);
      stopWatch.stop();
      if (this.logStartupInfo) {
         new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
      }
      listeners.started(context);
      callRunners(context, applicationArguments);
   }
   catch (Throwable ex) {
      handleRunFailure(context, ex, exceptionReporters, listeners);
      throw new IllegalStateException(ex);
   }

   try {
      listeners.running(context);
   }
   catch (Throwable ex) {
      handleRunFailure(context, ex, exceptionReporters, null);
      throw new IllegalStateException(ex);
   }
   return context;
}

上面的代码我们重点关注refreshContext(context)

private void refreshContext(ConfigurableApplicationContext context) {
   if (this.registerShutdownHook) {
      try {
         context.registerShutdownHook();
      }
      catch (AccessControlException ex) {
         // Not allowed in some environments.
      }
   }
   refresh((ApplicationContext) context);
}


@Deprecated
protected void refresh(ApplicationContext applicationContext) {
   Assert.isInstanceOf(ConfigurableApplicationContext.class, applicationContext);
   refresh((ConfigurableApplicationContext) applicationContext);
}

/**
 * Refresh the underlying {@link ApplicationContext}.
 * @param applicationContext the application context to refresh
 */
protected void refresh(ConfigurableApplicationContext applicationContext) {
   applicationContext.refresh();
}

@Override
public void refresh() throws BeansException, IllegalStateException {
   synchronized (this.startupShutdownMonitor) {
      // Prepare this context for refreshing.
      prepareRefresh();

      // Tell the subclass to refresh the internal bean factory.
      ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

      // Prepare the bean factory for use in this context.
      prepareBeanFactory(beanFactory);

      try {
         // Allows post-processing of the bean factory in context subclasses.
         postProcessBeanFactory(beanFactory);

         // Invoke factory processors registered as beans in the context.
         invokeBeanFactoryPostProcessors(beanFactory);

         // Register bean processors that intercept bean creation.
         registerBeanPostProcessors(beanFactory);

         // Initialize message source for this context.
         initMessageSource();

         // Initialize event multicaster for this context.
         initApplicationEventMulticaster();

         // Initialize other special beans in specific context subclasses.
         onRefresh();

         // Check for listener beans and register them.
         registerListeners();

         // Instantiate all remaining (non-lazy-init) singletons.
         finishBeanFactoryInitialization(beanFactory);

         // Last step: publish corresponding event.
         finishRefresh();
      }

      catch (BeansException ex) {
         if (logger.isWarnEnabled()) {
            logger.warn("Exception encountered during context initialization - " +
                  "cancelling refresh attempt: " + ex);
         }

         // Destroy already created singletons to avoid dangling resources.
         destroyBeans();

         // Reset 'active' flag.
         cancelRefresh(ex);

         // Propagate exception to caller.
         throw ex;
      }

      finally {
         // Reset common introspection caches in Spring's core, since we
         // might not ever need metadata for singleton beans anymore...
         resetCommonCaches();
      }
   }
}

通过一步步的追踪，我们发现最终调用的是Spring的refesh()函数，在这里重点介绍invokeBeanFactoryPostProcessors这个函数。

public static void invokeBeanFactoryPostProcessors(
      ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {

   // Invoke BeanDefinitionRegistryPostProcessors first, if any.
   Set<String> processedBeans = new HashSet<>();

   if (beanFactory instanceof BeanDefinitionRegistry) {
      BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
      List<BeanFactoryPostProcessor> regularPostProcessors = new ArrayList<>();
      List<BeanDefinitionRegistryPostProcessor> registryProcessors = new ArrayList<>();

      for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
         if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
            BeanDefinitionRegistryPostProcessor registryProcessor =
                  (BeanDefinitionRegistryPostProcessor) postProcessor;
            registryProcessor.postProcessBeanDefinitionRegistry(registry);
            registryProcessors.add(registryProcessor);
         }
         else {
            regularPostProcessors.add(postProcessor);
         }
      }

      // Do not initialize FactoryBeans here: We need to leave all regular beans
      // uninitialized to let the bean factory post-processors apply to them!
      // Separate between BeanDefinitionRegistryPostProcessors that implement
      // PriorityOrdered, Ordered, and the rest.
      List<BeanDefinitionRegistryPostProcessor> currentRegistryProcessors = new ArrayList<>();

      // First, invoke the BeanDefinitionRegistryPostProcessors that implement PriorityOrdered.
      String[] postProcessorNames =
            beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
      for (String ppName : postProcessorNames) {
         if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
            currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
            processedBeans.add(ppName);
         }
      }
      sortPostProcessors(currentRegistryProcessors, beanFactory);
      registryProcessors.addAll(currentRegistryProcessors);
      invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
      currentRegistryProcessors.clear();

      // Next, invoke the BeanDefinitionRegistryPostProcessors that implement Ordered.
      postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
      for (String ppName : postProcessorNames) {
         if (!processedBeans.contains(ppName) && beanFactory.isTypeMatch(ppName, Ordered.class)) {
            currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
            processedBeans.add(ppName);
         }
      }
      sortPostProcessors(currentRegistryProcessors, beanFactory);
      registryProcessors.addAll(currentRegistryProcessors);
      invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
      currentRegistryProcessors.clear();

      // Finally, invoke all other BeanDefinitionRegistryPostProcessors until no further ones appear.
      boolean reiterate = true;
      while (reiterate) {
         reiterate = false;
         postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
         for (String ppName : postProcessorNames) {
            if (!processedBeans.contains(ppName)) {
               currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
               processedBeans.add(ppName);
               reiterate = true;
            }
         }
         sortPostProcessors(currentRegistryProcessors, beanFactory);
         registryProcessors.addAll(currentRegistryProcessors);
         invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
         currentRegistryProcessors.clear();
      }

      // Now, invoke the postProcessBeanFactory callback of all processors handled so far.
      invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);
      invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
   }

   else {
      // Invoke factory processors registered with the context instance.
      invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
   }

   // Do not initialize FactoryBeans here: We need to leave all regular beans
   // uninitialized to let the bean factory post-processors apply to them!
   String[] postProcessorNames =
         beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);

   // Separate between BeanFactoryPostProcessors that implement PriorityOrdered,
   // Ordered, and the rest.
   List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
   List<String> orderedPostProcessorNames = new ArrayList<>();
   List<String> nonOrderedPostProcessorNames = new ArrayList<>();
   for (String ppName : postProcessorNames) {
      if (processedBeans.contains(ppName)) {
         // skip - already processed in first phase above
      }
      else if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
         priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
      }
      else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
         orderedPostProcessorNames.add(ppName);
      }
      else {
         nonOrderedPostProcessorNames.add(ppName);
      }
   }

   // First, invoke the BeanFactoryPostProcessors that implement PriorityOrdered.
   sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
   invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);

   // Next, invoke the BeanFactoryPostProcessors that implement Ordered.
   List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());
   for (String postProcessorName : orderedPostProcessorNames) {
      orderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
   }
   sortPostProcessors(orderedPostProcessors, beanFactory);
   invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);

   // Finally, invoke all other BeanFactoryPostProcessors.
   List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());
   for (String postProcessorName : nonOrderedPostProcessorNames) {
      nonOrderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
   }
   invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);

   // Clear cached merged bean definitions since the post-processors might have
   // modified the original metadata, e.g. replacing placeholders in values...
   beanFactory.clearMetadataCache();
}

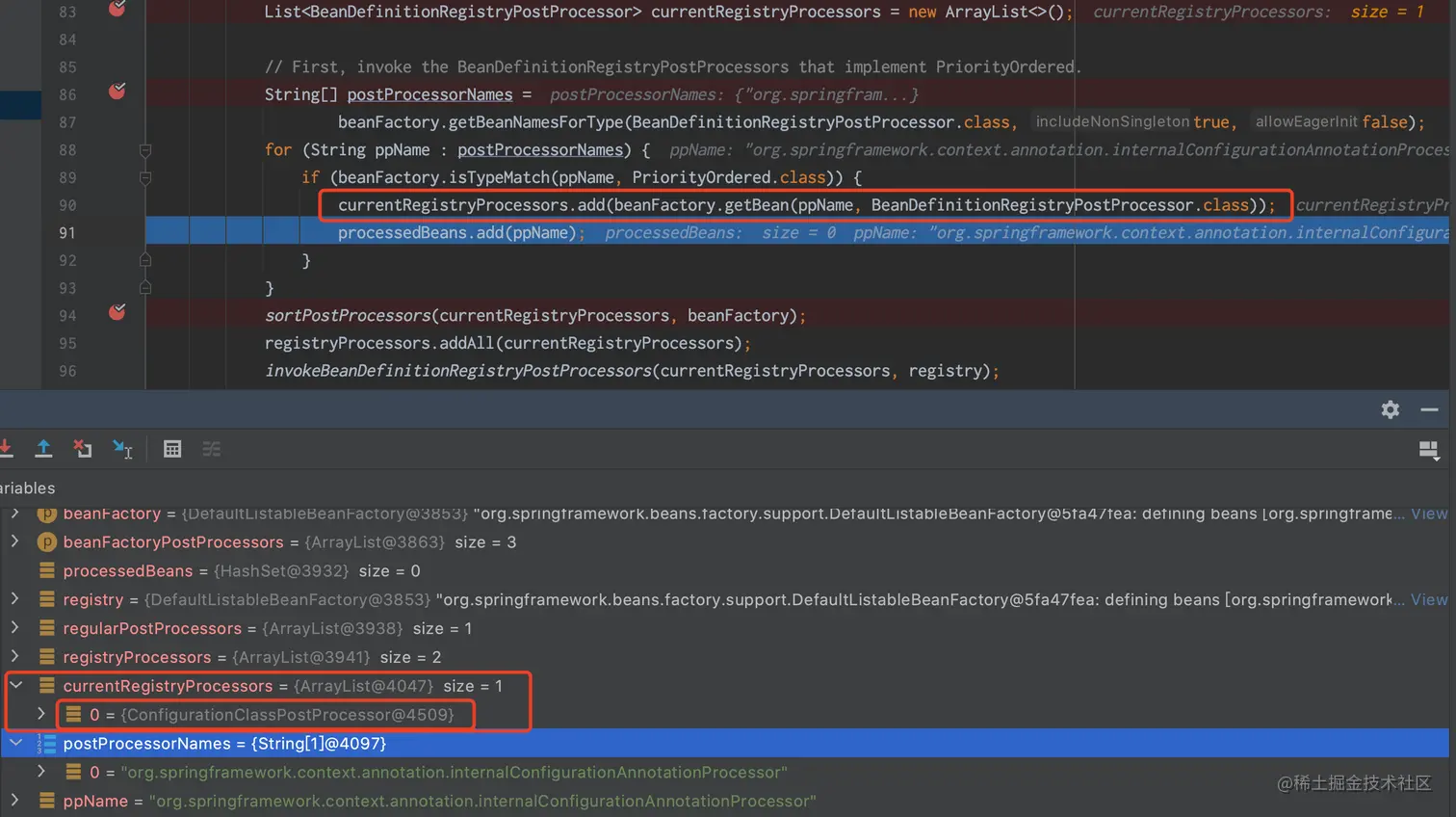

通过源码进行bebug，我们可以看到BeanDefinitionRegistryPostProcessor通过org.springframework.context.annotation.internalConfigurationAnnotationProcessor拿到ConfigurationClassPostProcessor类的对象

ConfigurationClassPostProcessor用于解析处理各种注解，包括：@Configuration、@ComponentScan、@Import、@PropertySource、@ImportResource、@Bean。当处理@import注解的时候，就会调用文章前部面说的EnableAutoConfigurationImportSelector.selectImports()来完成自动配置功能。

public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
   List<BeanDefinitionHolder> configCandidates = new ArrayList<>();
   String[] candidateNames = registry.getBeanDefinitionNames();

   for (String beanName : candidateNames) {
      BeanDefinition beanDef = registry.getBeanDefinition(beanName);
      if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) {
         if (logger.isDebugEnabled()) {
            logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
         }
      }
      else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
         configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
      }
   }

   // Return immediately if no @Configuration classes were found
   if (configCandidates.isEmpty()) {
      return;
   }

   // Sort by previously determined @Order value, if applicable
   configCandidates.sort((bd1, bd2) -> {
      int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
      int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
      return Integer.compare(i1, i2);
   });

   // Detect any custom bean name generation strategy supplied through the enclosing application context
   SingletonBeanRegistry sbr = null;
   if (registry instanceof SingletonBeanRegistry) {
      sbr = (SingletonBeanRegistry) registry;
      if (!this.localBeanNameGeneratorSet) {
         BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(
               AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
         if (generator != null) {
            this.componentScanBeanNameGenerator = generator;
            this.importBeanNameGenerator = generator;
         }
      }
   }

   if (this.environment == null) {
      this.environment = new StandardEnvironment();
   }

   // Parse each @Configuration class
   ConfigurationClassParser parser = new ConfigurationClassParser(
         this.metadataReaderFactory, this.problemReporter, this.environment,
         this.resourceLoader, this.componentScanBeanNameGenerator, registry);

   Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
   Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
   do {
      parser.parse(candidates);
      parser.validate();

      Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
      configClasses.removeAll(alreadyParsed);

      // Read the model and create bean definitions based on its content
      if (this.reader == null) {
         this.reader = new ConfigurationClassBeanDefinitionReader(
               registry, this.sourceExtractor, this.resourceLoader, this.environment,
               this.importBeanNameGenerator, parser.getImportRegistry());
      }
      this.reader.loadBeanDefinitions(configClasses);
      alreadyParsed.addAll(configClasses);

      candidates.clear();
      if (registry.getBeanDefinitionCount() > candidateNames.length) {
         String[] newCandidateNames = registry.getBeanDefinitionNames();
         Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
         Set<String> alreadyParsedClasses = new HashSet<>();
         for (ConfigurationClass configurationClass : alreadyParsed) {
            alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
         }
         for (String candidateName : newCandidateNames) {
            if (!oldCandidateNames.contains(candidateName)) {
               BeanDefinition bd = registry.getBeanDefinition(candidateName);
               if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
                     !alreadyParsedClasses.contains(bd.getBeanClassName())) {
                  candidates.add(new BeanDefinitionHolder(bd, candidateName));
               }
            }
         }
         candidateNames = newCandidateNames;
      }
   }
   while (!candidates.isEmpty());

   // Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
   if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
      sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
   }

   if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
      // Clear cache in externally provided MetadataReaderFactory; this is a no-op
      // for a shared cache since it'll be cleared by the ApplicationContext.
      ((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
   }
}

上面的是ConfigurationClassPostProcessor类的部分源码，我们重点看parser.parse(candidates)函数，源码如下：

public void parse(Set<BeanDefinitionHolder> configCandidates) {
   for (BeanDefinitionHolder holder : configCandidates) {
      BeanDefinition bd = holder.getBeanDefinition();
      try {
         if (bd instanceof AnnotatedBeanDefinition) {
            parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
         }
         else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
            parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
         }
         else {
            parse(bd.getBeanClassName(), holder.getBeanName());
         }
      }
      catch (BeanDefinitionStoreException ex) {
         throw ex;
      }
      catch (Throwable ex) {
         throw new BeanDefinitionStoreException(
               "Failed to parse configuration class [" + bd.getBeanClassName() + "]", ex);
      }
   }

   this.deferredImportSelectorHandler.process();
}

protected final void parse(@Nullable String className, String beanName) throws IOException {
   Assert.notNull(className, "No bean class name for configuration class bean definition");
   MetadataReader reader = this.metadataReaderFactory.getMetadataReader(className);
   processConfigurationClass(new ConfigurationClass(reader, beanName), DEFAULT_EXCLUSION_FILTER);
}

protected void processConfigurationClass(ConfigurationClass configClass, Predicate<String> filter) throws IOException {
   if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
      return;
   }

   ConfigurationClass existingClass = this.configurationClasses.get(configClass);
   if (existingClass != null) {
      if (configClass.isImported()) {
         if (existingClass.isImported()) {
            existingClass.mergeImportedBy(configClass);
         }
         // Otherwise ignore new imported config class; existing non-imported class overrides it.
         return;
      }
      else {
         // Explicit bean definition found, probably replacing an import.
         // Let's remove the old one and go with the new one.
         this.configurationClasses.remove(configClass);
         this.knownSuperclasses.values().removeIf(configClass::equals);
      }
   }

   // Recursively process the configuration class and its superclass hierarchy.
   SourceClass sourceClass = asSourceClass(configClass, filter);
   do {
      sourceClass = doProcessConfigurationClass(configClass, sourceClass, filter);
   }
   while (sourceClass != null);

   this.configurationClasses.put(configClass, configClass);
}

/**
 * Apply processing and build a complete {@link ConfigurationClass} by reading the
 * annotations, members and methods from the source class. This method can be called
 * multiple times as relevant sources are discovered.
 * @param configClass the configuration class being build
 * @param sourceClass a source class
 * @return the superclass, or {@code null} if none found or previously processed
 */
@Nullable
protected final SourceClass doProcessConfigurationClass(
      ConfigurationClass configClass, SourceClass sourceClass, Predicate<String> filter)
      throws IOException {

   if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
      // Recursively process any member (nested) classes first
      processMemberClasses(configClass, sourceClass, filter);
   }

   // Process any @PropertySource annotations
   for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
         sourceClass.getMetadata(), PropertySources.class,
         org.springframework.context.annotation.PropertySource.class)) {
      if (this.environment instanceof ConfigurableEnvironment) {
         processPropertySource(propertySource);
      }
      else {
         logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
               "]. Reason: Environment must implement ConfigurableEnvironment");
      }
   }

   // Process any @ComponentScan annotations
   Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
         sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
   if (!componentScans.isEmpty() &&
         !this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
      for (AnnotationAttributes componentScan : componentScans) {
         // The config class is annotated with @ComponentScan -> perform the scan immediately
         Set<BeanDefinitionHolder> scannedBeanDefinitions =
               this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
         // Check the set of scanned definitions for any further config classes and parse recursively if needed
         for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
            BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
            if (bdCand == null) {
               bdCand = holder.getBeanDefinition();
            }
            if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
               parse(bdCand.getBeanClassName(), holder.getBeanName());
            }
         }
      }
   }

   // Process any @Import annotations
   processImports(configClass, sourceClass, getImports(sourceClass), filter, true);

   // Process any @ImportResource annotations
   AnnotationAttributes importResource =
         AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
   if (importResource != null) {
      String[] resources = importResource.getStringArray("locations");
      Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
      for (String resource : resources) {
         String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
         configClass.addImportedResource(resolvedResource, readerClass);
      }
   }

   // Process individual @Bean methods
   Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
   for (MethodMetadata methodMetadata : beanMethods) {
      configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
   }

   // Process default methods on interfaces
   processInterfaces(configClass, sourceClass);

   // Process superclass, if any
   if (sourceClass.getMetadata().hasSuperClass()) {
      String superclass = sourceClass.getMetadata().getSuperClassName();
      if (superclass != null && !superclass.startsWith("java") &&
            !this.knownSuperclasses.containsKey(superclass)) {
         this.knownSuperclasses.put(superclass, configClass);
         // Superclass found, return its annotation metadata and recurse
         return sourceClass.getSuperClass();
      }
   }

   // No superclass -> processing is complete
   return null;
}

本文讲到这里就结束了，如果您觉得对您有用，欢迎点赞收藏。
