一.下载icons

二.自定义webpack配置 `yarn eject & svg-sprite-loader & Tree Shaking`

安装

yarn eject
yarn add --dev svg-sprite-loader

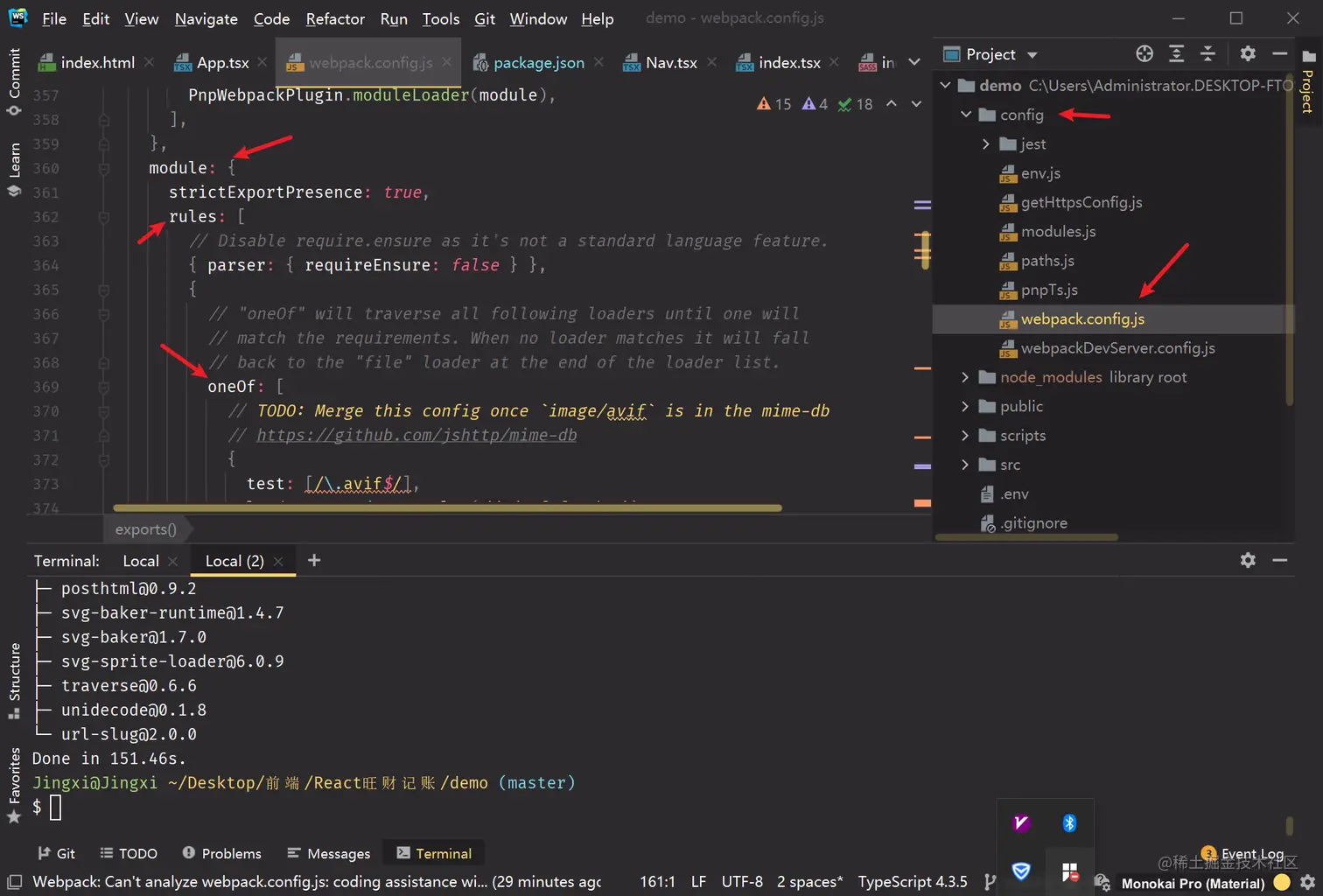

在config/webpack.config.js末尾的return-module-rules-oneof中

加入loader，注意官网options中的...要改为空

// webpack >= 2 multiple loaders
{
    test: /.svg$/,
    use: [
        {loader: 'svg-sprite-loader', options: {}},
        {loader: 'svgo-loader', options: {}}
    ]
},

继续安装

yarn add --dev svgo-loader

引入svg需要使用require('icons/money.svg'),防止treeshaking

现阶段Nav.tsx代码

import styled from "styled-components";
import {Link} from "react-router-dom";
import React from "react";
require('icons/money.svg');
require('icons/tag.svg')
require('icons/statistic.svg')


const NavWrapper = styled.nav`
  line-height: 24px;
  box-shadow: 0 0 3px rgba(0, 0, 0, 0.25);

  > ul {
    display: flex;

    > li {
      width: 33.3333333%;
      padding: 4px;
      text-align: center;
      display: flex;
      flex-direction: column;
      align-items: center;
      justify-content: center;
      .icon{
        width: 24px;
        height: 24px;
      }
    }
  }
`;

const Nav = () => {
    return (
        <NavWrapper>
            <ul>
                <li>
                    <svg className="icon">
                        <use xlinkHref="#tag"/>
                    </svg>
                    <Link to="/tags">标签页</Link>
                </li>
                <li>
                    <svg className="icon">
                        <use xlinkHref="#money"/>
                    </svg>
                    <Link to="/money">记账页</Link>
                </li>
                <li>
                    <svg className="icon">
                        <use xlinkHref="#statistic"/>
                    </svg>
                    <Link to="/statistics">统计页</Link>
                </li>
            </ul>
        </NavWrapper>)
}

export default Nav;

万能排错

如果出现 Cannot find module 问题，可以使用下面语句排错

yarn add @babel/helper-create-regexp-features-plugin
//安装这个模块即可
//或者使用万能排错
rm -rf node_modules
yarn install

icons代码优化：封装Icon & importAll & webpack-env

import React from 'react';

let importAll = (requireContext: __WebpackModuleApi.RequireContext) => requireContext.keys().forEach(requireContext);
try {importAll(require.context('icons', true, /\.svg$/));} catch (error) {console.log(error);}

type Props = {
  name: string
}

//props需要声明类别
const Icon = (props: Props) => {
  return (
    <svg className="icon">
      <use xlinkHref={'#' + props.name}/>
    </svg>
  );
};

export default Icon;

同时 yarn add --dev @types/webpack-env@1.15.1 防止 __WebpackModuleApi 报错

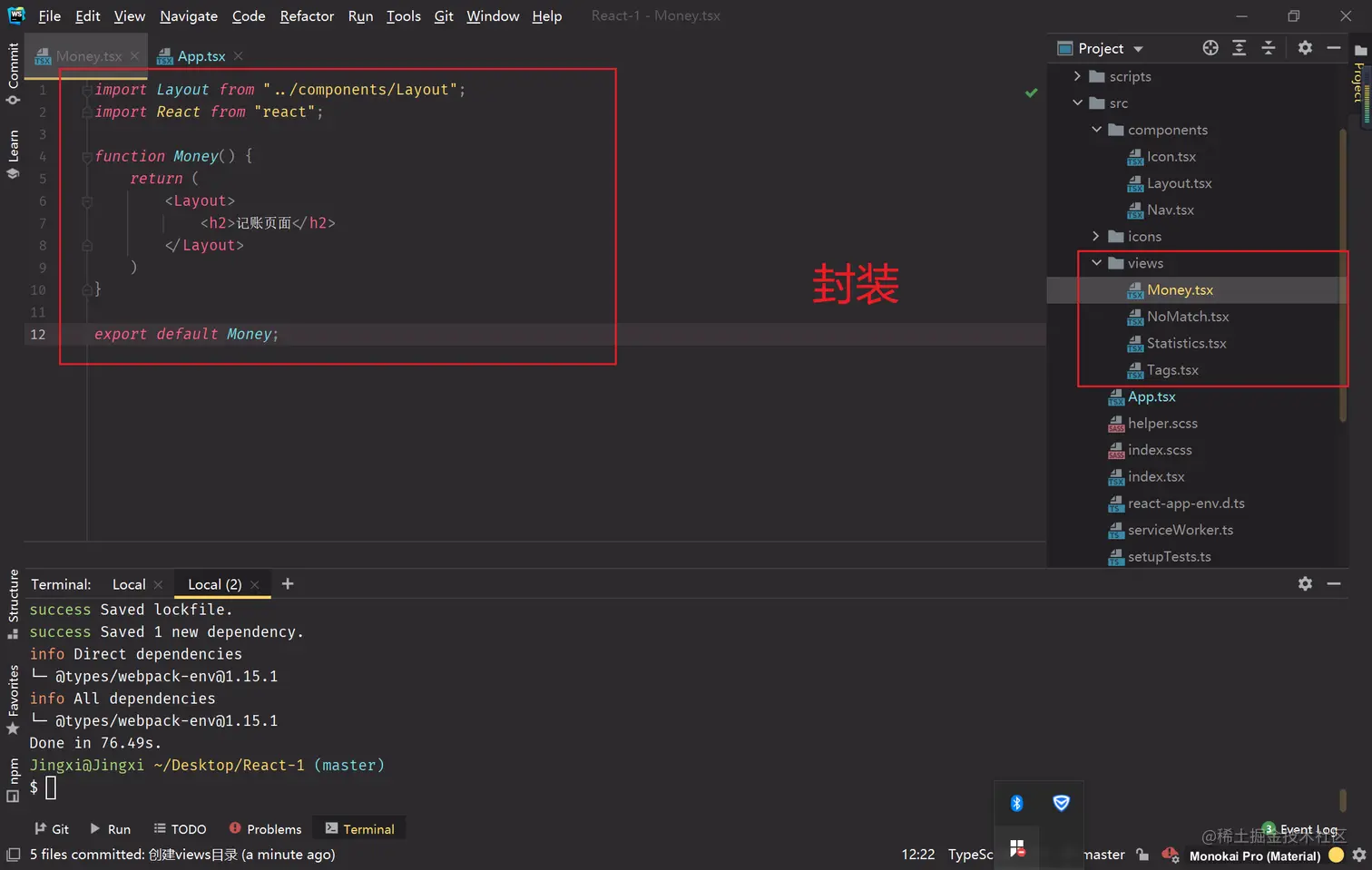

封装layout & 创建views

import Nav from "./Nav";
import React from "react";
import styled from "styled-components";

const Wrapper = styled.div`
  height: 100vh;
  display: flex;
  flex-direction: column;
`;

const Main = styled.div`
  flex-grow: 1;
  overflow: auto;
`;

const Layout = (props: any) => {
    return (
        <Wrapper>
            <Main>
                {props.children}
            </Main>
            <Nav/>
        </Wrapper>
    )
}

export default Layout;

React果果记账-制作底部导航栏
