1.读屏厂OTP时写入DA寄存器的值

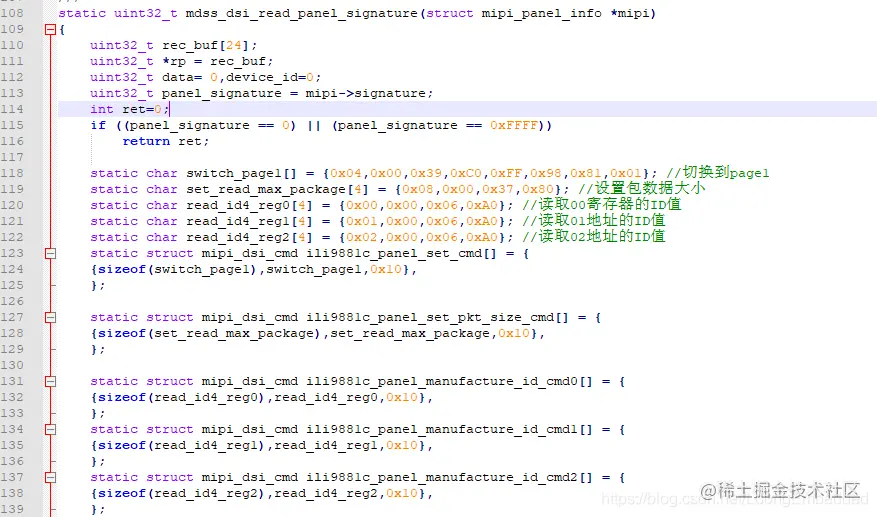

- 确定驱动IC厂家指定的读取ID的命令 static char id_cmd[] = {0xDA, 0x00, 0x06, 0xA0}; static struct mipi_dsi_cmd sc600_800p_id_command = {sizeof(id_cmd), id_cmd, 0x00};
#define ILI9881C_0D_800P_VIDEO_SIGNATURE 0x005A //读出来ID和厂家写入的ID值来比较 2) 让读ID的结构体指针指向上面的读ID指令 pinfo->mipi.panel_read_cmd = &sc600_800p_id_command; pinfo->mipi.signature = ILI9881C_0D_800P_VIDEO_SIGNATURE; 3) mdss_dsi_read_panel_signature()从LCM读出ID并比较 // panel_read_cmds指向读ID的命令结构体sc600_800p_id_command ret = mdss_dsi_cmds_tx(mipi, mipi->panel_read_cmds, 1, 0); if (ret) goto exit_read_signature; //实际都回来的*lp是4个字节，比如0x27005a21 result = mdss_dsi_cmds_rx(mipi, &lp, 1, 1);
if (!result) goto exit_read_signature;
data = ntohl(*lp); data = data >> 8;//取高8位 data = data & 0xffff;//取读出来的2个字节，比如时0x005a if (data != panel_signature) ret = 1;
2.读驱动IC的ID
打印的信息如下：

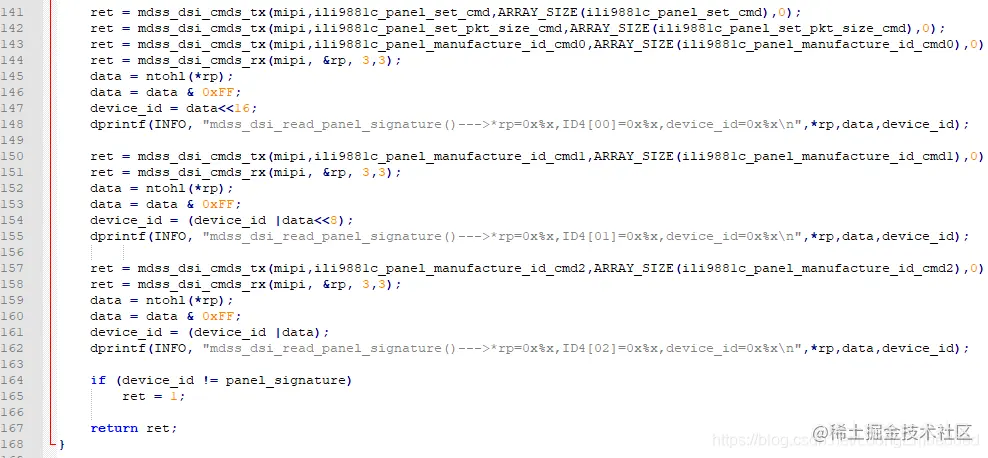

[1300] mdss_dsi_read_panel_signature()--->*rp=0x98983500,ID4[00]=0x98,device_id=0x980000 [1330] mdss_dsi_read_panel_signature()--->*rp=0x81813500,ID4[01]=0x81,device_id=0x988100 [1350] mdss_dsi_read_panel_signature()--->*rp=0x1c1c3500,ID4[02]=0x1c,device_id=0x98811c
