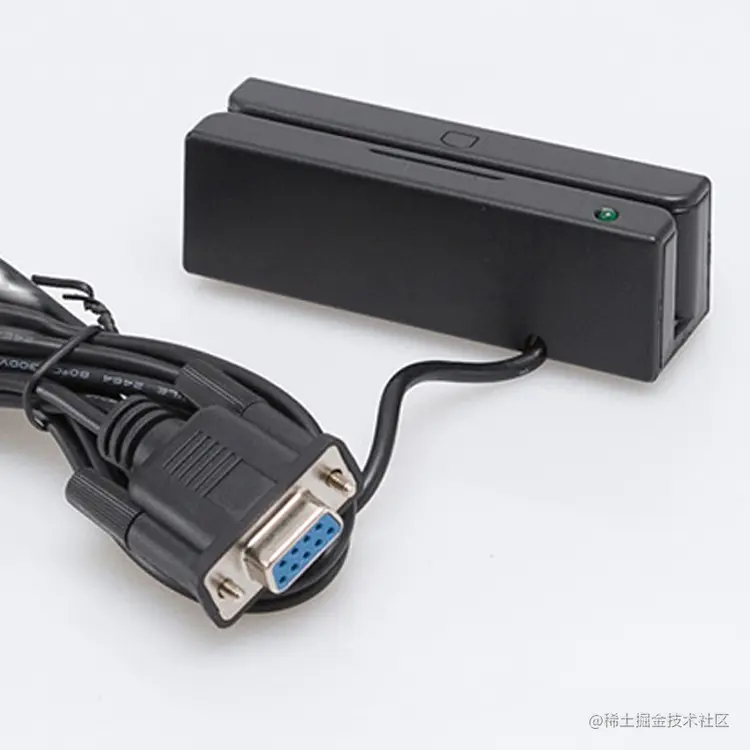

1、Command

Command name	Command code	Command parameters	Remark
Set working mode	0x30	0x30:Active mode	Upload data after read card
0x31: Store mode	Store data and do not upload after read card
Check configuration	0x31	0x30	Get configuration parameters of card reader
Check version no	0x32	0x30	Get version no of card reader
Read magnetic card	0x33	0x30	Read magnetic card data
Set baud rate	0x34	0x30：48000x31：96000x32：192000x33：38400
Set track parameter	0x35	T1_SS,T1_ES,T2_SS,T2_EST3_SS,T3_ES,TRn,CR

Note：T1_SS：Start symbol of track 1， T1_ES：End symbol of track 1

T2_SS：Start symbol of track 2， T2_ES：End symbol of track 2

T3_SS：Start symbol of track 3，T3_ES：End symbol of track 3

TRn：Read tracks selection:

             0x31  track 1

             0x32  track 2

             0x34  track 3

             0x33  track 1 and 2

             0x36  track 2 and 3

             0x37  track 1.2.3

CR：Tracks end enter to output selection

                 0x30：Without enter

                 0x31：With enter

Error command list

0x30	Command error
0x31	Command parameters error
0x40	Read/write storage error
0x41	With magnetic card data

2、Command format remark

2.1、Set card reader mode：

0x02	0x02	0x30	Mode	0x03	BCC

Return successfully：

0x02	0x03	0x30	Mode	‘Y’	0x03	BCC

Return with failure：

0x02	0x04	0x30	Mode	‘N’	ErroCode	0x03	BCC

Mode：0x30: Active mode，0x31:Command mode

ErroCode

2.2、Check configuration：

0x02	0x02	0x31	0x30	0x03	BCC

Return successfully：

0x02	0x04	0x31	0x30	‘Y’	Config	0x03	BCC

Return with failure：

0x02	0x0E	0x31	0x30	‘N’	ErroCode	0x03	BCC

Config：10 bytes：Mode、T1_SS、T1_ES、T2_SS、T2_ES、T3_SS、T3_ES、TrackN、CR、BaudRate。

ErroCode

2.3、Check version no：

0x02	0x02	0x32	0x30	0x03	BCC
c0x02	0x13	0x32	0x30	‘Y’	Version	0x03	BCC

Return with failure：

0x02	0x04	0x32	0x30	‘N’	ErroCode	0x03	BCC

Mode：0x30: Active mode，0x31:Command mode

Version：TTCE_RS183_Vx.xx

ErroCode

2.4、Read data：

0x02	0x02	0x33	0x30	0x03	BCC

Return successfully：

0x02	0xxx	0x33	0x30	‘Y’	Data	0x03	BCC

Return with failure：

0x02	0x04	0x33	0x30	‘N’	ErroCode	0x03	BCC

Data is magnetic card data, format is：% track 1 data？ ;track 2 data?  +track 3 data?  ,%;+？is each tracks start/end symbol，if one of track without corresponding start symbol, the end symbol will not be exist also. When this command get magnetic card data that will empty immediately. If execute this command again and do not swiping card that will be return failed.

2.5、Set baud rate：

0x02	0x02	0x34	BaudRate	0x03	BCC

Return successfully：

0x02	0x03	0x34	BaudRate	‘Y’	0x03	BCC

Return with failure：

0x02	0x04	0x34	0x30	‘N’	ErroCode	0x03	BCC

2.6、Set track parameters

0x02	0x09	0x35	Config	0x03	BCC

Return successfully:

0x02	0x02	0x35	‘Y’	0x03	BCC

Return with failure：

0x02	0x03	0x35	‘N’	ErroCode	0x03	BCC

Config：8 bytes： T1_SS、T1_ES、T2_SS、T2_ES、T3_SS、T3_ES、TrackN、CR。

 以上为全三轨磁条卡读卡器|阅读机|刷卡器MRS100串口通信协议 Communication Protocol，欢迎交流！

​
