SpringBoot技术实践-整合Quartz任务调度

一、Quartz任务调度

1.1 Quartz

  1. Quartz是一个定时任务框架,基础核心使用可以参考官网
  2. Quartz源码:github.com/quartz-sche…
  3. Quartz官网地址:www.quartz-scheduler.org/documentati…
  4. 项目源码地址:gitee.com/tianxincoor…

1.2 Scheduler

  1. Scheduler为quartz中的调度器,Quartz通过调度器来注册、暂停、删除Trigger和JobDetail
  2. Scheduler拥有SchedulerContext,顾名思义就是上下文,通过SchedulerContext可以获取到触发器和任务的一些信息

1.3 Trigger

  1. Trigger为触发器,通过cron表达式或日历指定任务执行的周期
  2. 系统时间走到触发器指定的时间时,触发器就会触发任务的执行

1.4 JobDetail

  1. Job接口是真正需要执行的任务
  2. JobDetail核心调度实现了Job类的任务类,Trigger和Scheduler实际用到的都是JobDetail

1.5 Job

  1. 完成任务的最小实现类,如果需要被定时调度的类都需要实现此接口

二、SpringBoot整合

2.1 环境准备

  1. 新建SpringBoot项目,SpringBoot基于2.2.0.RELEASE,完整pom如下
    • 核心依赖为spring-boot-starter-quartz、
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.0.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.codecoord</groupId>
    <artifactId>springboot-quartz</artifactId>
    <version>1.0</version>
    <name>springboot-quartz</name>

    <properties>
        <java.version>1.8</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- 公共依赖 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.75</version>
        </dependency>

        <!-- quartz依赖 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-quartz</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>6.0.6</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>
复制代码
  1. 配置数据源相关链接
    • quartz需要单据的数据库,所以需要单据创建一个库来给quartz使用,此处为quartz_config
    • 其他相关配置可以参考官网:官网配置参考
server:
  port: 8888
spring:
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/source?useSSL=false
    username: root
    password: tianxin
  # 定时配置
  quartz:
    # 相关属性配置
    properties:
      org:
        quartz:
          # 数据源
          dataSource:
            globalJobDataSource:
              # URL必须大写
              URL: jdbc:mysql://127.0.0.1:3306/quartz_config?useUnicode=true&characterEncoding=utf-8&useSSL=false
              driver: com.mysql.cj.jdbc.Driver
              maxConnections: 5
              username: root
              password: tianxin
              # 必须指定数据源类型
              provider: hikaricp
          scheduler:
            instanceName: globalScheduler
            # 实例id
            #instanceId: AUTO
            type: com.alibaba.druid.pool.DruidDataSource
          jobStore:
            # 数据源
            dataSource: globalJobDataSource
            # JobStoreTX将用于独立环境,提交和回滚都将由这个类处理
            class: org.quartz.impl.jdbcjobstore.JobStoreTX
            # 驱动配置
            driverDelegateClass: org.quartz.impl.jdbcjobstore.StdJDBCDelegate
            # 表前缀
            tablePrefix: QRTZ_
          # 线程池配置
          threadPool:
            class: org.quartz.simpl.SimpleThreadPool
            # 线程数
            threadCount: 10
            # 优先级
            threadPriority: 5

复制代码
  1. 数据表结构如下,在github中有对应的表结构信息
drop database quartz_config;
create database quartz_config default character set utf8mb4;
use quartz_config;

DROP TABLE IF EXISTS QRTZ_FIRED_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_PAUSED_TRIGGER_GRPS;
DROP TABLE IF EXISTS QRTZ_SCHEDULER_STATE;
DROP TABLE IF EXISTS QRTZ_LOCKS;
DROP TABLE IF EXISTS QRTZ_SIMPLE_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_SIMPROP_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_CRON_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_BLOB_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_JOB_DETAILS;
DROP TABLE IF EXISTS QRTZ_CALENDARS;


CREATE TABLE QRTZ_JOB_DETAILS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    JOB_NAME  VARCHAR(200) NOT NULL,
    JOB_GROUP VARCHAR(200) NOT NULL,
    DESCRIPTION VARCHAR(250) NULL,
    JOB_CLASS_NAME   VARCHAR(250) NOT NULL,
    IS_DURABLE VARCHAR(1) NOT NULL,
    IS_NONCONCURRENT VARCHAR(1) NOT NULL,
    IS_UPDATE_DATA VARCHAR(1) NOT NULL,
    REQUESTS_RECOVERY VARCHAR(1) NOT NULL,
    JOB_DATA BLOB NULL,
    PRIMARY KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
);

CREATE TABLE QRTZ_TRIGGERS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    JOB_NAME  VARCHAR(200) NOT NULL,
    JOB_GROUP VARCHAR(200) NOT NULL,
    DESCRIPTION VARCHAR(250) NULL,
    NEXT_FIRE_TIME BIGINT(13) NULL,
    PREV_FIRE_TIME BIGINT(13) NULL,
    PRIORITY INTEGER NULL,
    TRIGGER_STATE VARCHAR(16) NOT NULL,
    TRIGGER_TYPE VARCHAR(8) NOT NULL,
    START_TIME BIGINT(13) NOT NULL,
    END_TIME BIGINT(13) NULL,
    CALENDAR_NAME VARCHAR(200) NULL,
    MISFIRE_INSTR SMALLINT(2) NULL,
    JOB_DATA BLOB NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
        REFERENCES QRTZ_JOB_DETAILS(SCHED_NAME,JOB_NAME,JOB_GROUP)
);

CREATE TABLE QRTZ_SIMPLE_TRIGGERS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    REPEAT_COUNT BIGINT(7) NOT NULL,
    REPEAT_INTERVAL BIGINT(12) NOT NULL,
    TIMES_TRIGGERED BIGINT(10) NOT NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
        REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE QRTZ_CRON_TRIGGERS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    CRON_EXPRESSION VARCHAR(200) NOT NULL,
    TIME_ZONE_ID VARCHAR(80),
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
        REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE QRTZ_SIMPROP_TRIGGERS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    STR_PROP_1 VARCHAR(512) NULL,
    STR_PROP_2 VARCHAR(512) NULL,
    STR_PROP_3 VARCHAR(512) NULL,
    INT_PROP_1 INT NULL,
    INT_PROP_2 INT NULL,
    LONG_PROP_1 BIGINT NULL,
    LONG_PROP_2 BIGINT NULL,
    DEC_PROP_1 NUMERIC(13,4) NULL,
    DEC_PROP_2 NUMERIC(13,4) NULL,
    BOOL_PROP_1 VARCHAR(1) NULL,
    BOOL_PROP_2 VARCHAR(1) NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
    REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE QRTZ_BLOB_TRIGGERS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    BLOB_DATA BLOB NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
        REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE QRTZ_CALENDARS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    CALENDAR_NAME  VARCHAR(200) NOT NULL,
    CALENDAR BLOB NOT NULL,
    PRIMARY KEY (SCHED_NAME,CALENDAR_NAME)
);

CREATE TABLE QRTZ_PAUSED_TRIGGER_GRPS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_GROUP  VARCHAR(200) NOT NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_GROUP)
);

CREATE TABLE QRTZ_FIRED_TRIGGERS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    ENTRY_ID VARCHAR(95) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    INSTANCE_NAME VARCHAR(200) NOT NULL,
    FIRED_TIME BIGINT(13) NOT NULL,
    SCHED_TIME BIGINT(13) NOT NULL,
    PRIORITY INTEGER NOT NULL,
    STATE VARCHAR(16) NOT NULL,
    JOB_NAME VARCHAR(200) NULL,
    JOB_GROUP VARCHAR(200) NULL,
    IS_NONCONCURRENT VARCHAR(1) NULL,
    REQUESTS_RECOVERY VARCHAR(1) NULL,
    PRIMARY KEY (SCHED_NAME,ENTRY_ID)
);

CREATE TABLE QRTZ_SCHEDULER_STATE
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    INSTANCE_NAME VARCHAR(200) NOT NULL,
    LAST_CHECKIN_TIME BIGINT(13) NOT NULL,
    CHECKIN_INTERVAL BIGINT(13) NOT NULL,
    PRIMARY KEY (SCHED_NAME,INSTANCE_NAME)
);

CREATE TABLE QRTZ_LOCKS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    LOCK_NAME  VARCHAR(40) NOT NULL,
    PRIMARY KEY (SCHED_NAME,LOCK_NAME)
);

复制代码

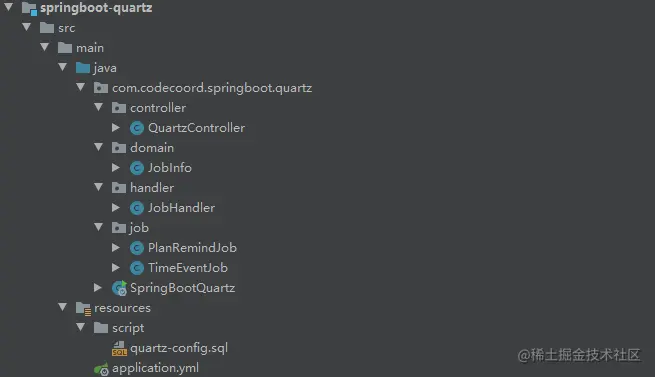

  1. 上述步骤完成后,quartz&SpringBoot整合基础环境完成,完整项目结构如下


2.2 代码示例

新建启动类SpringBootQuartz

package com.codecoord.springboot.quartz;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * SpringBootQuartz
 *
 * @author tianxincoord@163.com
 * @date 2021/7/20
 */
@SpringBootApplication
public class SpringBootQuartz {

    public static void main(String[] args) {
        SpringApplication.run(SpringBootQuartz.class, args);
    }
}

复制代码

新建实体类,用于接收基础任务信息

package com.codecoord.springboot.quartz.domain;

/**
 * 任务明细
 *
 * @author tianxincoord@163.com
 * @date 2021/7/20
 */
public class JobInfo {
    /**
     * 任务名称
     */
    private String jobName;
    /**
     * 任务组
     */
    private String jobGroup;
    /**
     * 触发器名称
     */
    private String triggerName;
    /**
     * 触发器组
     */
    private String triggerGroup;
    /**
     * cron表达式
     */
    private String cron;
    /**
     * 类名
     */
    private String className;
    /**
     * 状态
     */
    private String status;
    /**
     * 下一次执行时间
     */
    private String nextTime;
    /**
     * 上一次执行时间
     */
    private String prevTime;
    /**
     * 配置信息(data)
     */
    private String config;

    public String getJobName() {
        return jobName;
    }

    public void setJobName(String jobName) {
        this.jobName = jobName;
    }

    public String getJobGroup() {
        return jobGroup;
    }

    public void setJobGroup(String jobGroup) {
        this.jobGroup = jobGroup;
    }

    public String getTriggerName() {
        return triggerName;
    }

    public void setTriggerName(String triggerName) {
        this.triggerName = triggerName;
    }

    public String getTriggerGroup() {
        return triggerGroup;
    }

    public void setTriggerGroup(String triggerGroup) {
        this.triggerGroup = triggerGroup;
    }

    public String getCron() {
        return cron;
    }

    public void setCron(String cron) {
        this.cron = cron;
    }

    public String getClassName() {
        return className;
    }

    public void setClassName(String className) {
        this.className = className;
    }

    public String getStatus() {
        return status;
    }

    public void setStatus(String status) {
        this.status = status;
    }

    public String getNextTime() {
        return nextTime;
    }

    public void setNextTime(String nextTime) {
        this.nextTime = nextTime;
    }

    public String getPrevTime() {
        return prevTime;
    }

    public void setPrevTime(String prevTime) {
        this.prevTime = prevTime;
    }

    public String getConfig() {
        return config;
    }

    public void setConfig(String config) {
        this.config = config;
    }
}
复制代码

新建任务类,用于调度任务

package com.codecoord.springboot.quartz.job;

import java.time.LocalDateTime;
import org.quartz.DisallowConcurrentExecution;
import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.stereotype.Component;

/**
 * 计划提醒
 *
 * @author tianxincoord@163.com
 * @date 2021/7/20
 */
@Component
@DisallowConcurrentExecution
public class PlanRemindJob implements Job {

    @Override
    public void execute(JobExecutionContext context) throws JobExecutionException {
        System.out.println("PlanRemindJob正在执行..." + LocalDateTime.now());
    }
}
复制代码
package com.codecoord.springboot.quartz.job;

import java.time.LocalDateTime;
import org.quartz.DisallowConcurrentExecution;
import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.stereotype.Component;

/**
 * 时间日提醒
 *
 * @author tianxincoord@163.com
 * @date 2021/7/20
 */
@Component
@DisallowConcurrentExecution
public class TimeEventJob implements Job {

    @Override
    public void execute(JobExecutionContext context) throws JobExecutionException {
        System.out.println("TimeEventJob正在执行..." + LocalDateTime.now());
    }
}

复制代码

新建核心处理类,处理任务的添加、删除、暂停等操作

package com.codecoord.springboot.quartz.handler;

import com.alibaba.fastjson.JSONObject;
import com.codecoord.springboot.quartz.domain.JobInfo;
import java.util.List;
import java.util.Objects;
import javax.annotation.Resource;
import org.quartz.CronScheduleBuilder;
import org.quartz.CronTrigger;
import org.quartz.Job;
import org.quartz.JobBuilder;
import org.quartz.JobDetail;
import org.quartz.JobKey;
import org.quartz.Scheduler;
import org.quartz.SchedulerException;
import org.quartz.Trigger;
import org.quartz.TriggerBuilder;
import org.quartz.TriggerKey;
import org.springframework.stereotype.Component;

/**
 * job处理器
 *
 * @author tianxincoord@163.com
 * @date 2021/7/20
 */
@Component
public class JobHandler {
    @Resource
    private Scheduler scheduler;

    /**
     * 添加任务
     */
    @SuppressWarnings("unchecked")
    public void addJob(JobInfo jobInfo) throws SchedulerException, ClassNotFoundException {
        Objects.requireNonNull(jobInfo, "任务信息不能为空");

        // 生成job key
        JobKey jobKey = JobKey.jobKey(jobInfo.getJobName(), jobInfo.getJobGroup());
        // 当前任务不存在才进行添加
        if (!scheduler.checkExists(jobKey)) {
            Class<Job> jobClass = (Class<Job>)Class.forName(jobInfo.getClassName());
            // 任务明细
            JobDetail jobDetail = JobBuilder
                    .newJob(jobClass)
                    .withIdentity(jobKey)
                    .withIdentity(jobInfo.getJobName(), jobInfo.getJobGroup())
                    .withDescription(jobInfo.getJobName())
                    .build();
            // 配置信息
            jobDetail.getJobDataMap().put("config", jobInfo.getConfig());
            // 定义触发器
            TriggerKey triggerKey = TriggerKey.triggerKey(jobInfo.getTriggerName(), jobInfo.getTriggerGroup());
            Trigger trigger = TriggerBuilder.newTrigger()
                    .withIdentity(triggerKey)
                    .withSchedule(CronScheduleBuilder.cronSchedule(jobInfo.getCron()))
                    .build();
            scheduler.scheduleJob(jobDetail, trigger);
        } else {
            throw new SchedulerException(jobInfo.getJobName() + "任务已存在,无需重复添加");
        }
    }

    /**
     * 任务暂停
     */
    public void pauseJob(String jobGroup, String jobName) throws SchedulerException {
        JobKey jobKey = JobKey.jobKey(jobName, jobGroup);
        if (scheduler.checkExists(jobKey)) {
            scheduler.pauseJob(jobKey);
        }
    }

    /**
     * 继续任务
     */
    public void continueJob(String jobGroup, String jobName) throws SchedulerException {
        JobKey jobKey = JobKey.jobKey(jobName, jobGroup);
        if (scheduler.checkExists(jobKey)) {
            scheduler.resumeJob(jobKey);
        }
    }

    /**
     * 删除任务
     */
    public boolean deleteJob(String jobGroup, String jobName) throws SchedulerException {
        JobKey jobKey = JobKey.jobKey(jobName, jobGroup);
        if (scheduler.checkExists(jobKey)) {
            return scheduler.deleteJob(jobKey);
        }
        return false;
    }

    /**
     * 获取任务信息
     */
    public JobInfo getJobInfo(String jobGroup, String jobName) throws SchedulerException {
        JobKey jobKey = JobKey.jobKey(jobName, jobGroup);
        if (!scheduler.checkExists(jobKey)) {
            return null;
        }
        List<? extends Trigger> triggers = scheduler.getTriggersOfJob(jobKey);
        if (Objects.isNull(triggers)) {
            throw new SchedulerException("未获取到触发器信息");
        }
        TriggerKey triggerKey = triggers.get(0).getKey();
        Trigger.TriggerState triggerState = scheduler.getTriggerState(triggerKey);
        JobDetail jobDetail = scheduler.getJobDetail(jobKey);

        JobInfo jobInfo = new JobInfo();
        jobInfo.setJobName(jobGroup);
        jobInfo.setJobGroup(jobName);
        jobInfo.setTriggerName(triggerKey.getName());
        jobInfo.setTriggerGroup(triggerKey.getGroup());
        jobInfo.setClassName(jobDetail.getJobClass().getName());
        jobInfo.setStatus(triggerState.toString());

        if (Objects.nonNull(jobDetail.getJobDataMap())) {
            jobInfo.setConfig(JSONObject.toJSONString(jobDetail.getJobDataMap()));
        }

        CronTrigger theTrigger = (CronTrigger) triggers.get(0);
        jobInfo.setCron(theTrigger.getCronExpression());
        return jobInfo;
    }
}
复制代码

新建controller接口对外提供操作入口

package com.codecoord.springboot.quartz.controller;

import com.codecoord.springboot.quartz.domain.JobInfo;
import com.codecoord.springboot.quartz.handler.JobHandler;
import java.util.ArrayList;
import java.util.List;
import java.util.Set;
import javax.annotation.Resource;
import org.quartz.JobKey;
import org.quartz.Scheduler;
import org.quartz.SchedulerException;
import org.quartz.Trigger;
import org.quartz.TriggerKey;
import org.quartz.impl.matchers.GroupMatcher;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

/**
 * Quartz控制器
 *
 * @author tianxincoord@163.com
 * @date 2021/7/20
 */
@RestController
@RequestMapping("/job")
public class QuartzController {

    @Resource
    private JobHandler jobHandler;
    @Resource
    private Scheduler scheduler;

    /**
     * http://localhost:8888/job/all
     */
    @RequestMapping("/all")
    public List<JobInfo> list() throws SchedulerException {
        List<JobInfo> jobInfos = new ArrayList<>();
        List<String> triggerGroupNames = scheduler.getTriggerGroupNames();
        for (String triggerGroupName : triggerGroupNames) {
            Set<TriggerKey> triggerKeySet = scheduler
                    .getTriggerKeys(GroupMatcher.triggerGroupEquals(triggerGroupName));
            for (TriggerKey triggerKey : triggerKeySet) {
                Trigger trigger = scheduler.getTrigger(triggerKey);
                JobKey jobKey = trigger.getJobKey();
                JobInfo jobInfo = jobHandler.getJobInfo(jobKey.getGroup(), jobKey.getName());
                jobInfos.add(jobInfo);
            }
        }
        return jobInfos;
    }

    /**
     * http://localhost:8888/job/add
     *
     * {
     * 	"className": "com.codecoord.springboot.quartz.job.PlanRemindJob",
     * 	"config": "配置信息,例如存储json",
     * 	"cron": "0/3 * * * * ?",
     * 	"jobGroup": "STANDARD_JOB_GROUP",
     * 	"jobName": "计划任务通知任务",
     * 	"triggerGroup": "STANDARD_TRIGGER_GROUP",
     * 	"triggerName": "计划任务通知触发器"
     * }
     *
     * {
     * 	"className": "com.codecoord.springboot.quartz.job.TimeEventJob",
     * 	"config": "配置信息,例如存储json",
     * 	"cron": "0/10 * * * * ?",
     * 	"jobGroup": "STANDARD_JOB_GROUP",
     * 	"jobName": "时间通知任务",
     * 	"triggerGroup": "STANDARD_TRIGGER_GROUP",
     * 	"triggerName": "时间通知触发器"
     * }
     */
    @PostMapping("/add")
    public JobInfo addJob(@RequestBody JobInfo jobInfo) throws SchedulerException, ClassNotFoundException {
        jobHandler.addJob(jobInfo);
        return jobInfo;
    }

    /**
     * http://localhost:8888/job/pause?jobGroup=STANDARD_JOB_GROUP&jobName=计划任务通知任务
     * http://localhost:8888/job/pause?jobGroup=STANDARD_JOB_GROUP&jobName=时间通知任务
     */
    @RequestMapping("/pause")
    public void pauseJob(@RequestParam("jobGroup") String jobGroup, @RequestParam("jobName") String jobName)
            throws SchedulerException {
        jobHandler.pauseJob(jobGroup, jobName);
    }

    /**
     * http://localhost:8888/job/continue?jobGroup=STANDARD_JOB_GROUP&jobName=计划任务通知任务
     * http://localhost:8888/job/continue?jobGroup=STANDARD_JOB_GROUP&jobName=时间通知任务
     */
    @RequestMapping("/continue")
    public void continueJob(@RequestParam("jobGroup") String jobGroup, @RequestParam("jobName") String jobName)
            throws SchedulerException {
        jobHandler.continueJob(jobGroup, jobName);
    }

    /**
     * http://localhost:8888/job/delete?jobGroup=STANDARD_JOB_GROUP&jobName=计划任务通知任务
     * http://localhost:8888/job/delete?jobGroup=STANDARD_JOB_GROUP&jobName=时间通知任务
     */
    @RequestMapping("/delete")
    public boolean deleteJob(@RequestParam("jobGroup") String jobGroup, @RequestParam("jobName") String jobName)
            throws SchedulerException {
        return jobHandler.deleteJob(jobGroup, jobName);
    }
}
复制代码

三、Quartz测试

  1. 通过POSTMAN/apiPost等工具添加任务,请求数据都在对应接口上
  2. 观察对应任务是否有进行执行以及数据库中是否有对应任务,例如下面3张表
use quartz_config;

select * from QRTZ_CRON_TRIGGERS;
select * from QRTZ_TRIGGERS;
select * from QRTZ_JOB_DETAILS;
复制代码
文章分类
后端
