SpringBoot-RabbitMQ篇(2)-消息可靠投递

一、发送者异常监控

1.1 发送者异常种类

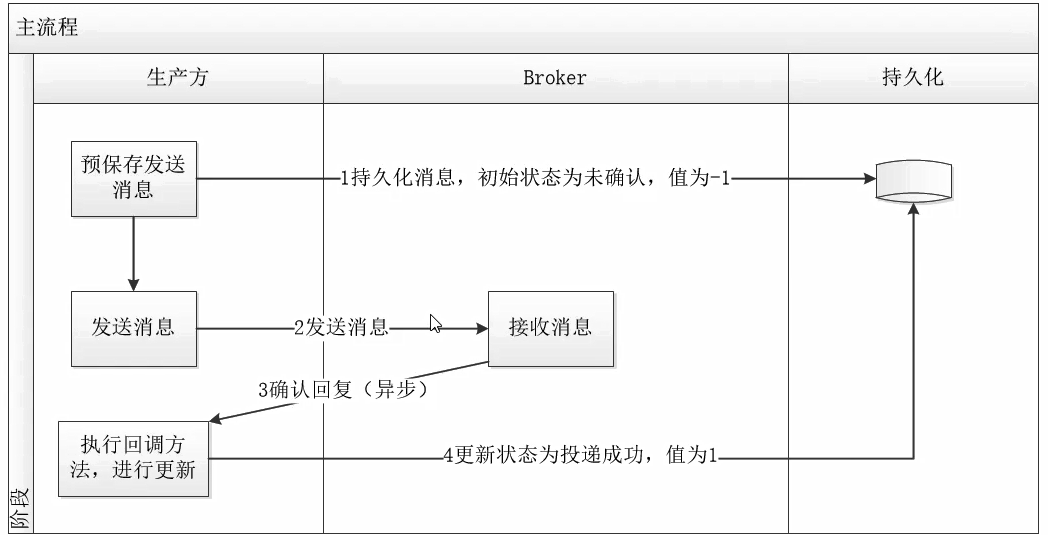

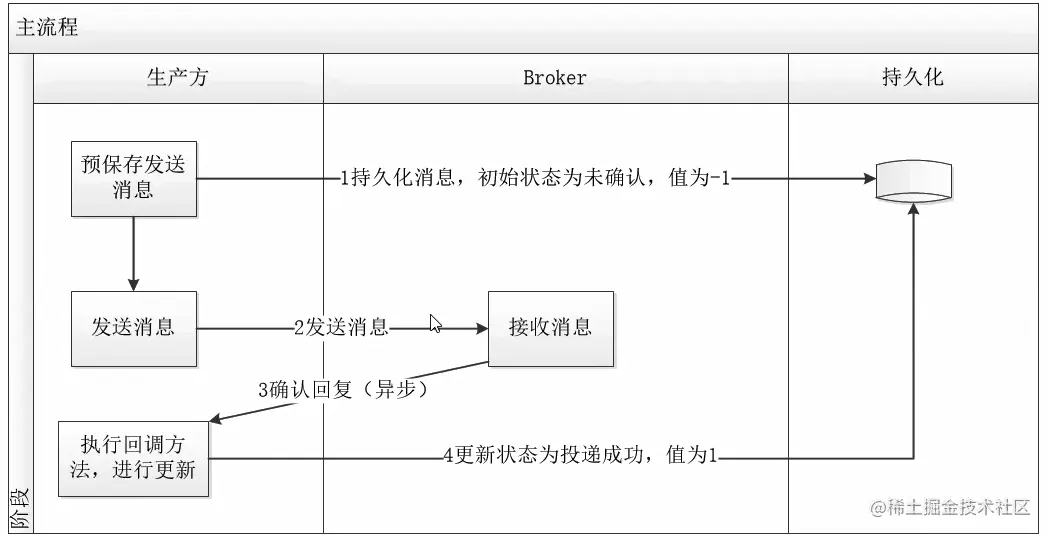

  1. 基本处理流程

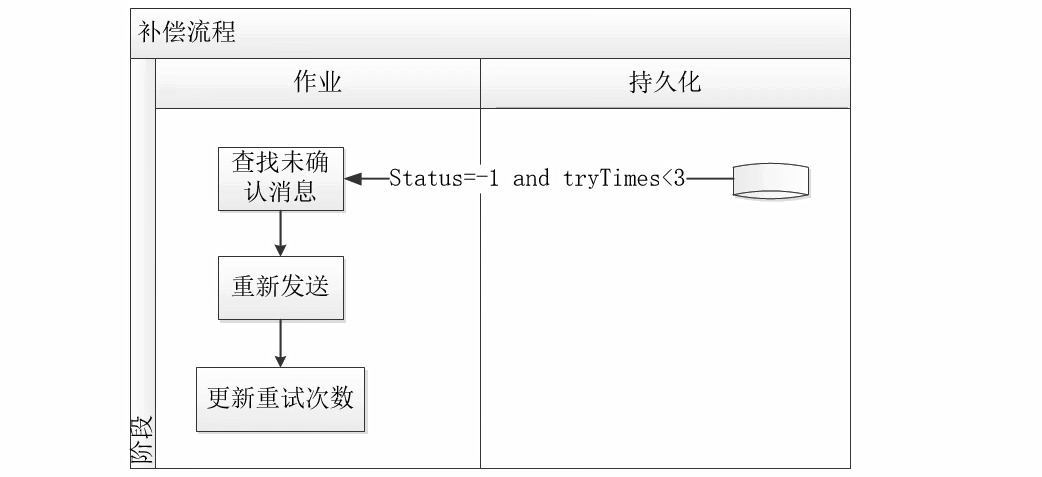

  • 补偿(兜底)方案

  1. 模拟broker宕机:修改发送者端口如5673,然后启动,发送消息,端口不对无法连接主机
    • 错误信息:java.net.ConnectException: Connection timed out: connect
    • 补偿方案:加入异常处理,如果不可达则返回错误
    • 这种错误在发送的时候就已经可以发现,直接将错误返回给调用方即可
@RequestMapping("/direct")
public Object sendEmail(String msg) {
    try {
        rabbitTemplate.convertAndSend("exchange.direct.springboot.email", "queue.email.routing.key", msg);
        return msg;
    } catch (AmqpException e) {
        System.out.println("发送出现异常:" + e.getMessage());
        return "网络中断,请稍后再试";
    }
}
复制代码
  1. 模拟无交换器异常
    • 错误信息
      • ERROR 4880 --- [.200.57.39:5672] o.s.a.r.c.CachingConnectionFactory  : Channel shutdown: channel error; protocol method: #method<channel.close>(reply-code=404, reply-text=NOT_FOUND - no exchange 'noExchange' in vhost '/', class-id=60, method-id=40)
    • 错误说明:如果没有交换器并不会报错,只会输出一条日志
    • 补偿方案:需要采用发送回调来确认是否成功发送消息
  2. 模拟无路由异常
    • 错误信息:无任何提示,消息直接被丢弃
    • 补偿方案:需要采用发送回调来确认是否成功发送消息

1.2 消息发送回调

  1. 因为消息是异步发送,所以需要确保消息能正确发送
  2. 所以可配置RabbitTemplate然后指定回调信息
  3. 步骤01:修改配置文件,配置回调参数
    • publisher-confirm-type
      • org.springframework.boot.autoconfigure.amqp.RabbitProperties#publisherConfirmType
      • org.springframework.amqp.rabbit.connection.CachingConnectionFactory.ConfirmType
spring:
  rabbitmq:
    host: 127.0.0.1
    port: 5672
    username: tianxin
    password: tianxin
    # 开启消息发broker回调
    publisher-confirm-type: correlated
    # 开启路由消息路由回调
    publisher-returns: true
    # 强制确认,也可以在代码中开启
    template:
      mandatory: true
复制代码
/**
 * The type of publisher confirms to use.
 */
public enum ConfirmType {

	/**
	 * Use {@code RabbitTemplate#waitForConfirms()} (or {@code waitForConfirmsOrDie()}
	 * within scoped operations.
	 */
	SIMPLE,

	/**
	 * Use with {@code CorrelationData} to correlate confirmations with sent
	 * messsages.
	 */
	CORRELATED,

	/**
	 * Publisher confirms are disabled (default).
	 */
	NONE
}
复制代码
  1. 步骤02:配置RabbitTemplate,设置交换器确认回调和路由回调
    • setConfirmCallback:无论成功与否都会调用
    • setReturnCallback:错误时才调用
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.util.Objects;

@Configuration
public class CustomRabbitTemplate {

    @Bean
    public RabbitTemplate rabbitTemplate(ConnectionFactory connectionFactory) {
        RabbitTemplate rabbitTemplate = new RabbitTemplate();
        // 开启mandatory为true才能触发回调方法,无论消息推送结果如何强制调用回调方法
        rabbitTemplate.setMandatory(true);
        // 设置连接工厂信息
        rabbitTemplate.setConnectionFactory(connectionFactory);

        // 消息发broker回调:发送者到broker的exchange是否正确找到
        rabbitTemplate.setConfirmCallback((correlationData, ack, cause) -> {
            System.out.println("setConfirmCallback 消息数据:" + correlationData);
            if (Objects.nonNull(correlationData)) {
                System.out.println("setConfirmCallback 消息数据:" + correlationData.getReturnedMessage());
            }
            System.out.println("setConfirmCallback 消息确认:" + ack);
            System.out.println("setConfirmCallback 原因:" + cause);
            System.out.println("-----------------------------------");
        });

        // 消息路由回调:从交换器路由到队列是否正确发送
        rabbitTemplate.setReturnCallback((message, replyCode, replyText, exchange, routingKey) -> {
            System.out.println("setReturnCallback 消息:" + message);
            System.out.println("setReturnCallback 回应码:" + replyCode);
            System.out.println("setReturnCallback 回应信息:" + replyText);
            System.out.println("setReturnCallback 交换器:" + exchange);
            System.out.println("setReturnCallback 路由键:" + routingKey);
            System.out.println("-----------------------------------");
        });

        return rabbitTemplate;
    }
}
复制代码
  • 路由回调和消息回调
/**
 * A callback for publisher confirmations.
 *
 */
@FunctionalInterface
public interface ConfirmCallback {

	/**
	 * Confirmation callback.
	 * @param correlationData correlation data for the callback.
	 * @param ack true for ack, false for nack
	 * @param cause An optional cause, for nack, when available, otherwise null.
	 */
	void confirm(@Nullable CorrelationData correlationData, boolean ack, @Nullable String cause);
}

/**
 * A callback for returned messages.
 *
 */
@FunctionalInterface
public interface ReturnCallback {

	/**
	 * Returned message callback.
	 * @param message the returned message.
	 * @param replyCode the reply code.
	 * @param replyText the reply text.
	 * @param exchange the exchange.
	 * @param routingKey the routing key.
	 */
	void returnedMessage(Message message, int replyCode, String replyText, String exchange, String routingKey);
}
复制代码
  1. 步骤03:测试controller
    • convertAndSend(String exchange, String routingKey, final Object object, @Nullable CorrelationData correlationData)
      • 指定CorrelationData(关联数据/对比数据)
    • CorrelationData中可以指定消息id和回调消息
      • {"id": "dataId", data: "biz数据"}
  2. 测试无交换器
@RequestMapping("/noExchange")
public Object noExchange(String message) {
    try {
        // 连接不上路由,则消息直接丢弃
        String id = UUID.randomUUID().toString();
        rabbitTemplate.convertAndSend("noExchange", "springboot.email.routing.key", message, new CorrelationData(id));
        return "ok";
    } catch (AmqpException e) {
        System.out.println(e.getMessage());
        return e.getMessage();
    }
}
复制代码
setConfirmCallback 消息数据:CorrelationData [id=9aca9a83-5815-455b-acf0-71b0caed534c]
setConfirmCallback 消息数据:null
setConfirmCallback 消息确认:false
setConfirmCallback 原因:channel error; protocol method: #method<channel.close>(reply-code=404, reply-text=NOT_FOUND - no exchange 'noExchange' in vhost '/', class-id=60, method-id=40)
复制代码
  1. 测试无路由

@RequestMapping("/noQueue")
public Object noQueue(String message) {
    try {
        // 发送不到队列 ,则消息直接丢弃
        String id = UUID.randomUUID().toString();
        rabbitTemplate.convertAndSend("exchange.direct.springboot.email", "noQueue", message, new CorrelationData(id));
        return "ok";
    } catch (AmqpException e) {
        System.out.println(e.getMessage());
        return e.getMessage();
    }
}
复制代码
setReturnCallback 消息:(Body:'direct' MessageProperties [headers={spring_returned_message_correlation=a4b6e77c-4b13-48e4-9a2e-21bd6ef4a697}, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, receivedDeliveryMode=PERSISTENT, priority=0, deliveryTag=0])
setReturnCallback 回应码:312
setReturnCallback 回应信息:NO_ROUTE
setReturnCallback 交换器:exchange.direct.springboot.email
setReturnCallback 路由键:noQueue
-----------------------------------
setConfirmCallback 消息数据:CorrelationData [id=a4b6e77c-4b13-48e4-9a2e-21bd6ef4a697]
setConfirmCallback 消息数据:(Body:'direct' MessageProperties [headers={spring_listener_return_correlation=42813c45-b804-4303-b9f0-10a73dad71ca, spring_returned_message_correlation=a4b6e77c-4b13-48e4-9a2e-21bd6ef4a697}, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, receivedDeliveryMode=PERSISTENT, priority=0, redelivered=false, receivedExchange=exchange.direct.springboot.email, receivedRoutingKey=noQueue, deliveryTag=0])
setConfirmCallback 消息确认:true
setConfirmCallback 原因:null
复制代码
  1. 测试消息正常发送
@RequestMapping("/direct/confirm")
public Object directConfirm(String message) {
    try {
        String id = UUID.randomUUID().toString();
        rabbitTemplate.convertAndSend("exchange.direct.springboot.email", "springboot.email.routing.key", message, new CorrelationData(id));
        return "ok";
    } catch (AmqpException e) {
        System.out.println(e.getMessage());
        return "网络中断,请稍后再试~";
    }
}
复制代码
setConfirmCallback 消息数据:CorrelationData [id=9bb8a203-2345-4a7e-8bfd-8ad0226da4dc]
setConfirmCallback 消息数据:null
setConfirmCallback 消息确认:true
setConfirmCallback 原因:null
复制代码
  1. 指定回调消息的id和消息数据
@RequestMapping("/correlationData/message")
public Object correlationDataMessage(String msg) {
    try {
        String id = UUID.randomUUID().toString();
        CorrelationData correlationData = new CorrelationData();
        correlationData.setId(id);

        // 指定回调更多信息
        MessageProperties properties = new MessageProperties();
        properties.setMessageId(id);
        Message message = new Message(msg.getBytes(), properties);
        correlationData.setReturnedMessage(message);
        rabbitTemplate.convertAndSend("exchange.direct.springboot.email", "springboot.email.routing.key", msg, correlationData);
        return msg;
    } catch (AmqpException e) {
        System.out.println(e.getMessage());
        return "网络中断,请稍后再试~";
    }
}
复制代码
setConfirmCallback 消息数据:CorrelationData [id=9f598758-4b0b-4e4a-981a-e7e04eab1335]
setConfirmCallback 消息数据:(Body:'[B@1465d3ea(byte[6])' MessageProperties [headers={}, messageId=9f598758-4b0b-4e4a-981a-e7e04eab1335, contentType=application/octet-stream, contentLength=0, deliveryMode=PERSISTENT, priority=0, deliveryTag=0])
setConfirmCallback 消息确认:true
setConfirmCallback 原因:null
复制代码

二、消息持久化

2.1 持久化说明

  1. 消息在网络发送、网络传输、存盘等都有可能出现意外而导致消息丢失
  2. 例如如果队列、交换器、消息其中一个没有开启持久化,在broker重启后消息丢失
  3. 所以需要在消息发送前进行存盘,然后根据状态区分不同的消息种类,可以用来做重试等

2.2 持久化表

  1. 持久化需要创建存储消息的表结构
create table msg_log
(
    id            bigint primary key comment '消息唯一标识',
    msg           text                    null comment '消息体, json格式化',
    exchange      varchar(255) default '' null comment '交换机',
    routing_key   varchar(255) default '' null comment '路由键',
    status        int          default -1  null comment '状态: -1新建 0投递中 1投递成功 2投递失败 3已消费 4人工处理 5消费失败',
    try_count     int          default 0  null comment '重试次数',
    next_try_time datetime                null comment '下一次重试时间',
    origin_id     varchar(32)            null comment '原始id',
    note          varchar(500)            null comment '错误信息',
    create_time   datetime                null comment '创建时间',
    update_time   datetime                null comment '更新时间',
) comment '消息投递日志';
复制代码

2.3 持久化实现

  1. 使用MybatisPlus生成对应的service、mapper、domain信息,标准mybatis使用方式
  2. 首先需要配置rabbitTemplate配置回调信息
import com.alibaba.fastjson.JSONObject;
import com.codecoord.domain.MsgLog;
import com.codecoord.domain.MsgLogStatus;
import com.codecoord.serivce.MsgLogService;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.annotation.Resource;
import java.time.LocalDateTime;
import java.util.Objects;
import java.util.UUID;

@Configuration
public class CustomRabbitTemplate {
    @Resource
    private MsgLogService msgLogService;

    @Bean
    public RabbitTemplate callbackRabbitTemplate(ConnectionFactory connectionFactory) {
        RabbitTemplate template = new RabbitTemplate();
        // 需要设置连接工程
        template.setConnectionFactory(connectionFactory);
        // 设置强制性
        template.setMandatory(true);
        // setConfirmCallback: 消息发送到 Broker 后触发回调(是否正确到达Exchange中)
        // 需要在配置文件中开启 publisher-confirm-type: correlated 配置
        template.setConfirmCallback((correlationData, ack, cause) -> {
            if (Objects.nonNull(correlationData) && Objects.nonNull(correlationData.getId())) {
                MsgLog updateLog = new MsgLog();
                updateLog.setId(Long.parseLong(correlationData.getId()));
                updateLog.setUpdateTime(LocalDateTime.now());
                if (ack) {
                    updateLog.setStatus(MsgLogStatus.DELIVERY_SUCCESS);
                } else {
                    updateLog.setStatus(MsgLogStatus.DELIVERY_FAIL);
                }
                msgLogService.updateById(updateLog);
            } else {
                System.out.println("消息异常处理");
            }
            // 根据ack判断是否投递成功
            System.out.println("setConfirmCallback 消息数据:" + JSONObject.toJSONString(correlationData));
            System.out.println("setConfirmCallback 消息确认:" + ack);
            System.out.println("setConfirmCallback 原因:" + cause);
            System.out.println("-----------------------------------");
        });

        // setReturnCallback: 启动消息失败返回,比如路由不到队列时触发回调
        // 需要在配置文件中开启 publisher-returns: true 配置
        template.setReturnCallback((message, replyCode, replyText, exchange, routingKey) -> {
            // 消息无法投递到队列,新建消息人工处理,因为原始消息会在setConfirmCallback中被置为投递成功
            MsgLog msgLog = new MsgLog();
            msgLog.setMsg(message.toString());
            msgLog.setExchange(exchange);
            msgLog.setRoutingKey(routingKey);
            msgLog.setStatus(MsgLogStatus.MANUAL_HANDLING);
            msgLog.setTryCount(0);
            LocalDateTime currentTime = LocalDateTime.now();
            msgLog.setNote(replyText);
            msgLog.setCreateTime(currentTime);
            msgLog.setUpdateTime(currentTime);
            // 处理原始id
            MsgLog originLog = JSONObject.parseObject(new String(message.getBody()), MsgLog.class);
            msgLog.setOriginId(originLog.getId().toString());
            msgLogService.save(msgLog);

            System.out.println("setReturnCallback 消息:" + message);
            System.out.println("setReturnCallback 回应码:" + replyCode);
            System.out.println("setReturnCallback 回应信息:" + replyText);
            System.out.println("setReturnCallback 交换器:" + exchange);
            System.out.println("setReturnCallback 路由键:" + routingKey);
            System.out.println("-----------------------------------");
        });

        return template;
    }
}
复制代码

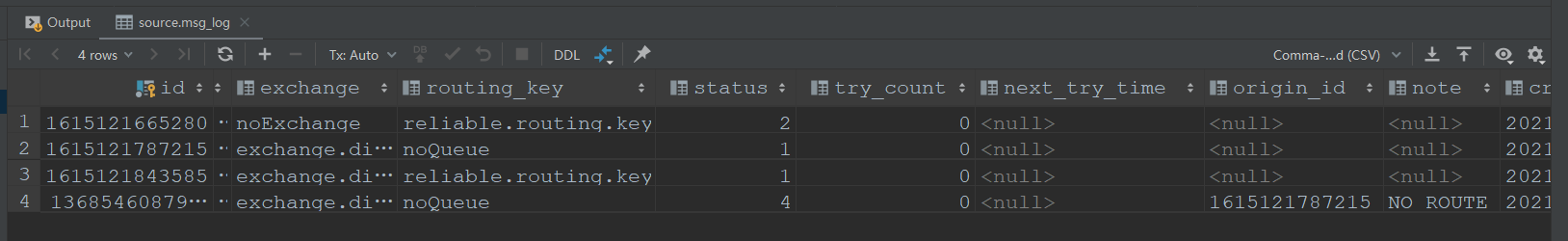

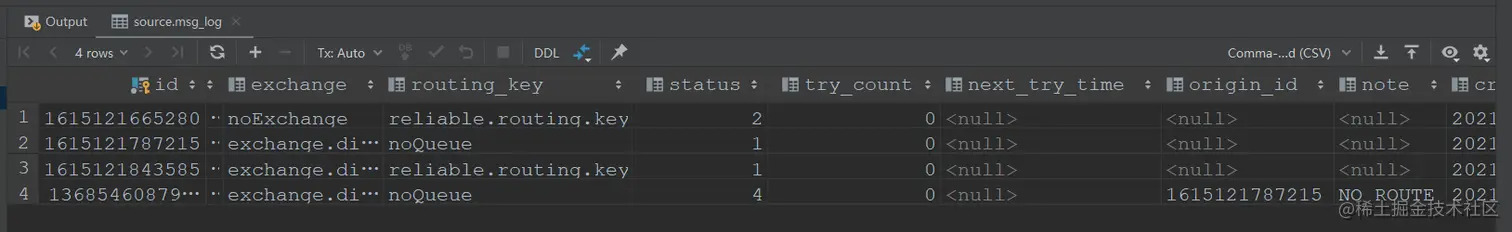

  1. 消息发送前对消息存盘,这里使用的rabbitTemplate为新配置的模板
    1. http://localhost:8071/reliable?message=direct&exchange=noExchange&routingKey=reliable.routing.key
    2. http://localhost:8071/reliable?message=direct&exchange=exchange.direct.reliable&routingKey=noQueue
    3. http://localhost:8071/reliable?message=direct&exchange=exchange.direct.reliable&routingKey=reliable.routing.key
import com.alibaba.fastjson.JSONObject;
import com.codecoord.domain.MsgLog;
import com.codecoord.domain.MsgLogStatus;
import com.codecoord.serivce.MsgLogService;
import org.springframework.amqp.AmqpException;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.util.IdGenerator;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;
import java.time.LocalDateTime;

@RestController
public class RabbitReliableController {
    @Resource
    private RabbitTemplate callbackRabbitTemplate;
    @Resource
    private MsgLogService msgLogService;
    @Resource
    private IdGenerator idGenerator;

    @RequestMapping("/reliable")
    public Object direct(String exchange, String routingKey, String message) {
        try {
            // 先存盘再发送,如果存盘失败则没有必要继续发送
            MsgLog msgLog = saveMessageLog(exchange, routingKey, message);
            CorrelationData correlationData = new CorrelationData(msgLog.getId().toString());
            callbackRabbitTemplate.convertAndSend(exchange, routingKey, JSONObject.toJSONString(msgLog), correlationData);
            return msgLog;
        } catch (AmqpException e) {
            System.out.println(e.getMessage());
            return "网络中断,请稍后再试~";
        }
    }

    private MsgLog saveMessageLog(String exchange, String routingKey, String msg) {
        MsgLog msgLog = new MsgLog();
        // 测试,生产中使用id生成器
        msgLog.setId(System.currentTimeMillis());
        msgLog.setMsg(msg);
        msgLog.setStatus(MsgLogStatus.CREATE);
        msgLog.setExchange(exchange);
        msgLog.setRoutingKey(routingKey);
        msgLog.setTryCount(0);
        LocalDateTime currentTime = LocalDateTime.now();
        msgLog.setCreateTime(currentTime);
        msgLog.setUpdateTime(currentTime);
        msgLogService.save(msgLog);
        return msgLog;
    }
}
复制代码

2.3 补偿机制

  1. 可以使用补偿机制来将存盘的消息重新发送
  2. 使用springboot自带的定时任务
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.core.conditions.update.LambdaUpdateWrapper;
import com.baomidou.mybatisplus.core.toolkit.Wrappers;
import com.codecoord.domain.MsgLog;
import com.codecoord.serivce.MsgLogService;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.scheduling.annotation.EnableScheduling;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;

import javax.annotation.Resource;
import java.time.LocalDateTime;
import java.util.List;

@Component
@EnableScheduling
public class RabbitMqJob {
    @Resource
    private MsgLogService msgLogService;
    @Resource
    private RabbitTemplate callbackRabbitTemplate;

    @Scheduled(cron = "10/10 * * * * ?")
    public void msgResend() {
        // 每个消息最多重试三次
        LambdaQueryWrapper<MsgLog> retryMsg = Wrappers.<MsgLog>lambdaQuery()
                .eq(MsgLog::getStatus, -1)
                .lt(MsgLog::getTryCount, 3);
        List<MsgLog> msgLogList = msgLogService.list(retryMsg);
        for (MsgLog msgLog : msgLogList) {
            msgLog.setTryCount(msgLog.getTryCount() + 1);
            msgLog.setUpdateTime(LocalDateTime.now());
            LambdaUpdateWrapper<MsgLog> updateWrapper = Wrappers.<MsgLog>lambdaUpdate()
                    .eq(MsgLog::getId, msgLog.getId());
            boolean update = msgLogService.update(msgLog, updateWrapper);
            System.out.println("重试状态更新:" + update);
            callbackRabbitTemplate.convertAndSend(msgLog.getExchange(), msgLog.getRoutingKey(), msgLog.getMsg(),
                    new CorrelationData(msgLog.getId().toString()));
        }
    }
}
复制代码

2.5 消息测试

  1. 消息存盘之后效果如下

文章分类
后端
文章标签
