* 本文中出现的 Channel 为 MemoryChannel

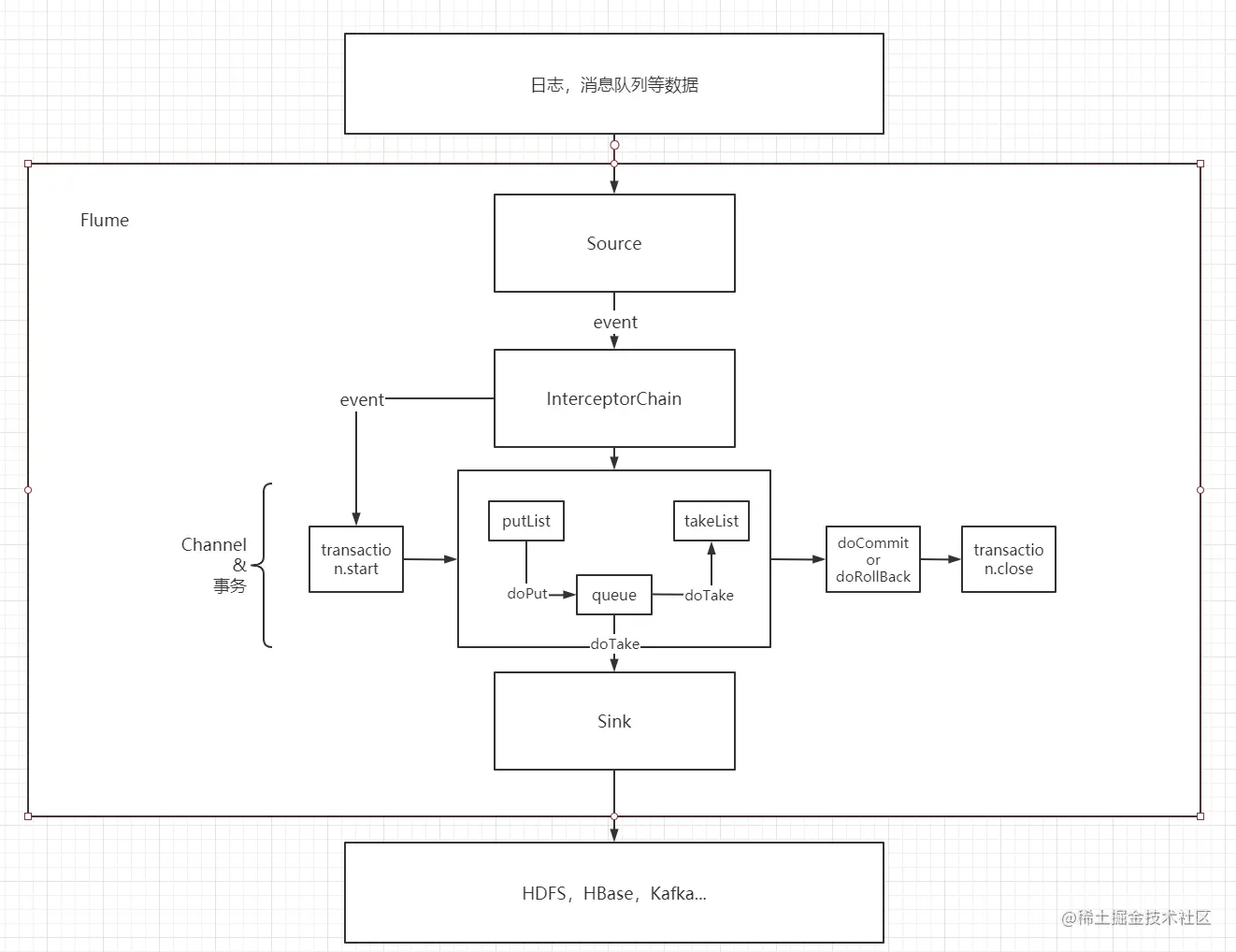

执行流程图
源码解读
Source存数据流程
以SpoolDirectorySource为例，忽略业务细节做一个流程解读
@Override
public synchronized void start() {
logger.info("SpoolDirectorySource source starting with directory: {}",
spoolDirectory);
// 创建一个定时的单核心线程池，用于重复执行任务
executor = Executors.newSingleThreadScheduledExecutor();
// 指定要读取的目录
File directory = new File(spoolDirectory);
try {
// 业务具体细节配置
reader = new ReliableSpoolingFileEventReader.Builder()
.spoolDirectory(directory)
.completedSuffix(completedSuffix)
.includePattern(includePattern)
.ignorePattern(ignorePattern)
.trackerDirPath(trackerDirPath)
.annotateFileName(fileHeader)
.fileNameHeader(fileHeaderKey)
.annotateBaseName(basenameHeader)
.baseNameHeader(basenameHeaderKey)
.deserializerType(deserializerType)
.deserializerContext(deserializerContext)
.deletePolicy(deletePolicy)
.inputCharset(inputCharset)
.decodeErrorPolicy(decodeErrorPolicy)
.consumeOrder(consumeOrder)
.recursiveDirectorySearch(recursiveDirectorySearch)
.trackingPolicy(trackingPolicy)
.sourceCounter(sourceCounter)
.build();
} catch (IOException ioe) {
throw new FlumeException("Error instantiating spooling event parser",
ioe);
}
// 通过配置生成Runnable对象，其run方法中为Source的具体行为，传入reader用于执行具体行为，传入source计数器用于在metrics返回状态
Runnable runner = new SpoolDirectoryRunnable(reader, sourceCounter);
// 按照配置，重复执行定时业务
executor.scheduleWithFixedDelay(
runner, 0, pollDelay, TimeUnit.MILLISECONDS);
// 标记lifecycleState字段为START
super.start();
logger.debug("SpoolDirectorySource source started");
// 初始化Source计数器
sourceCounter.start();
}
在AbstractSource中定义了channelProcessor字段，用于在Source中向Channel发送Event
当Source获取到指定格式的字段，即调用getChannelProcessor().processEvent(event)或getChannelProcessor().processEventBatch(events)将Event发送到Channel（后者为批处理），以processEvent(event)为例：
public void processEvent(Event event) {
// 把event过一遍拦截器链，过滤指定的event或者为event附加属性
event = interceptorChain.intercept(event);
if (event == null) {
return;
}
// 获取配置文件中获取当前Source必须的Channel
List<Channel> requiredChannels = selector.getRequiredChannels(event);
for (Channel reqChannel : requiredChannels) {
// 获取各个Channel的事务对象
Transaction tx = reqChannel.getTransaction();
Preconditions.checkNotNull(tx, "Transaction object must not be null");
try {
// 事务开始
tx.begin();
// 执行到对于Channel的doPut方法
reqChannel.put(event);
// 事务提交
tx.commit();
} catch (Throwable t) {
// 抛出任何异常，事务回滚
tx.rollback();
if (t instanceof Error) {
LOG.error("Error while writing to required channel: " + reqChannel, t);
throw (Error) t;
} else if (t instanceof ChannelException) {
throw (ChannelException) t;
} else {
throw new ChannelException("Unable to put event on required " +
"channel: " + reqChannel, t);
}
} finally {
if (tx != null) {
// 无论事务执行成功与否，关闭当前事务
tx.close();
}
}
}
// 获取可选的Channel
List<Channel> optionalChannels = selector.getOptionalChannels(event);
for (Channel optChannel : optionalChannels) {
Transaction tx = null;
try {
tx = optChannel.getTransaction();
// 此处tx对象没有notNull约束
tx.begin();
optChannel.put(event);
tx.commit();
} catch (Throwable t) {
tx.rollback();
LOG.error("Unable to put event on optional channel: " + optChannel, t);
if (t instanceof Error) {
throw (Error) t;
}
} finally {
if (tx != null) {
tx.close();
}
}
}
}
Sink取数据流程
以相对简单的LoggerSink为例
// LoggerSink会重复执行此方法
public Status process() throws EventDeliveryException {
Status result = Status.READY;
Channel channel = getChannel();
Transaction transaction = channel.getTransaction();
Event event = null;
try {
// 事务开始
transaction.begin();
// 执行 channel 中的 take 方法取出 Event 并 log 出来
event = channel.take();
if (event != null) {
if (logger.isInfoEnabled()) {
logger.info("Event: " + EventHelper.dumpEvent(event, maxBytesToLog));
}
} else {
// No event found, request back-off semantics from the sink runner
result = Status.BACKOFF;
}
// log 出来后，事务提交
transaction.commit();
} catch (Exception ex) {
// 异常则回滚
transaction.rollback();
throw new EventDeliveryException("Failed to log event: " + event, ex);
} finally {
// 最后关闭事务
transaction.close();
}
return result;
}
Channel及其事务
以 MemoryChannel 为例，先看构造方法
// transCapacity限制Channel中存储的最大Event数，默认100
public MemoryTransaction(int transCapacity, ChannelCounter counter) {
// MemoryChannel 基于 Java 中的阻塞双向队列实现
// putList 用于暂存 Source 向 MemoryChannel 存放的 event
putList = new LinkedBlockingDeque<Event>(transCapacity);
// takeList 用于暂存 Sink 在MemoryChannel 取出的 event
takeList = new LinkedBlockingDeque<Event>(transCapacity);
channelCounter = counter;
}
之所以说putList和takeList是为了暂存Event，是为了实现事务
再看看 MemoryChannel 的 configure 方法节选，了解 Channel 事务中必要的类成员变量
// configure 方法节选
// 若 queue 已存在，按照指定的容量进行 resize
if (queue != null) {
try {
resizeQueue(capacity);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
} else {
// 一开始由这里开始初始化
synchronized (queueLock) {
// 基于阻塞队列，默认 capacity 为 100
queue = new LinkedBlockingDeque<Event>(capacity);
// 初始化 queue 相关信号量，用于 commit 操作中判定 Channel 资源是否充足
queueRemaining = new Semaphore(capacity);
queueStored = new Semaphore(0);
}
}
// 初始化字节余量信号量，用于 commit 操作中判定剩余字节空间是否充足
if (bytesRemaining == null) {
bytesRemaining = new Semaphore(byteCapacity);
lastByteCapacity = byteCapacity;
} else {
if (byteCapacity > lastByteCapacity) {
bytesRemaining.release(byteCapacity - lastByteCapacity);
lastByteCapacity = byteCapacity;
} else {
try {
if (!bytesRemaining.tryAcquire(lastByteCapacity - byteCapacity, keepAlive,
TimeUnit.SECONDS)) {
LOGGER.warn("Couldn't acquire permits to downsize the byte capacity, resizing has been aborted");
} else {
lastByteCapacity = byteCapacity;
}
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
}
}
这里涉及到的类成员变量有
- queue：在后面的方法介绍中我们可以得知，在Channel中真正存放
Event的是queue，而非putList和takeList - queueRemaining：初始化一个大小为
capacity的信号量，表示queue的剩余空间 - queueStored：初始化一个大小为0的信号量，表示
queue目前存储的Event数量 - bytesRemaining：初始化一个大小为
byteCapacity的信号量，表示内存的剩余空间（单位：字节）
Source将Event放入Channel，执行put方法，在doPut方法中：
protected void doPut(Event event) throws InterruptedException {
// 操作数递增
channelCounter.incrementEventPutAttemptCount();
// 计算event的字节大小
int eventByteSize = (int) Math.ceil(estimateEventSize(event) / byteCapacitySlotSize);
// 往putList入队event
if (!putList.offer(event)) {
throw new ChannelException(
"Put queue for MemoryTransaction of capacity " +
putList.size() + " full, consider committing more frequently, " +
"increasing capacity or increasing thread count");
}
// 记录put进来的字节大小
putByteCounter += eventByteSize;
}
Sink从Channel中取出Event，执行take方法，在doTake方法中：
protected Event doTake() throws InterruptedException {
// 操作数递增
channelCounter.incrementEventTakeAttemptCount();
// 若 takeList 中剩余空间为 0 ，抛出异常
if (takeList.remainingCapacity() == 0) {
throw new ChannelException("Take list for MemoryTransaction, capacity " +
takeList.size() + " full, consider committing more frequently, " +
"increasing capacity, or increasing thread count");
}
// queue 中没有元素时返回null
if (!queueStored.tryAcquire(keepAlive, TimeUnit.SECONDS)) {
return null;
}
Event event;
synchronized (queueLock) {
// 从 queue 中取出 Event
event = queue.poll();
}
// notNull 约束
Preconditions.checkNotNull(event, "Queue.poll returned NULL despite semaphore " +
"signalling existence of entry");
// 将刚才从 queue 中取出的 Event 放进 takeList
takeList.put(event);
// 字节大小记录
int eventByteSize = (int) Math.ceil(estimateEventSize(event) / byteCapacitySlotSize);
takeByteCounter += eventByteSize;
// 返回 Event 对象
return event;
}
若无异常抛出，接着执行doCommit方法：
protected void doCommit() throws InterruptedException {
// 一次事务中从 Channel 中 take 个数与 put 个数的差
int remainingChange = takeList.size() - putList.size();
if (remainingChange < 0) {
// Semaphore （信号量）根据 doPut 方法中累加的 putByteCounter 值申请剩余内存
if (!bytesRemaining.tryAcquire(putByteCounter, keepAlive, TimeUnit.SECONDS)) {
throw new ChannelException("Cannot commit transaction. Byte capacity " +
"allocated to store event body " + byteCapacity * byteCapacitySlotSize +
"reached. Please increase heap space/byte capacity allocated to " +
"the channel as the sinks may not be keeping up with the sources");
}
// Semaphore （信号量）根据 take 个数与 put 个数的差来申请剩余队列空间
if (!queueRemaining.tryAcquire(-remainingChange, keepAlive, TimeUnit.SECONDS)) {
bytesRemaining.release(putByteCounter);
throw new ChannelFullException("Space for commit to queue couldn't be acquired." +
" Sinks are likely not keeping up with sources, or the buffer size is too tight");
}
}
// 分别获取 putList，takeList 的大小
int puts = putList.size();
int takes = takeList.size();
// 获得 queue 锁，将 putList 的元素全量入到 MemoryChannel queue 中
synchronized (queueLock) {
if (puts > 0) {
while (!putList.isEmpty()) {
if (!queue.offer(putList.removeFirst())) {
throw new RuntimeException("Queue add failed, this shouldn't be able to happen");
}
}
}
// 清除两个List
putList.clear();
takeList.clear();
}
// Semaphore（信号量）根据 doTake 方法中累加的 takeByteCounter 值释放内存（增加 bytesRemaining 对象中 permits 的值）
bytesRemaining.release(takeByteCounter);
takeByteCounter = 0;
putByteCounter = 0;
// Semaphore（信号量）根据 putList 得到一次事务所要放入 queue 的总数增加 queueStored的量
queueStored.release(puts);
if (remainingChange > 0) {
// 当 take 的数量多于 put 的数量时，按照 remainingChange 增加 queueRemaining 的值
queueRemaining.release(remainingChange);
}
// 计数
if (puts > 0) {
channelCounter.addToEventPutSuccessCount(puts);
}
if (takes > 0) {
channelCounter.addToEventTakeSuccessCount(takes);
}
// 记录当前Channel大小
channelCounter.setChannelSize(queue.size());
}
若抛出异常，则执行 doRollback 方法
protected void doRollback() {
// 获取 takeList 大小
int takes = takeList.size();
synchronized (queueLock) {
// 执行回滚时，queue 中剩余的空间小于 takeList（也就是要把 takeList 的 Event 放回去却没空间放了）时，报错
Preconditions.checkState(queue.remainingCapacity() >= takeList.size(),
"Not enough space in memory channel " +
"queue to rollback takes. This should never happen, please report");
// 把 takeList 的 Event 放回去 queue
while (!takeList.isEmpty()) {
queue.addFirst(takeList.removeLast());
}
// 清空 putList ，抛弃没有存到 Channel 的数据
putList.clear();
}
putByteCounter = 0;
takeByteCounter = 0;
// queueStored 计数
queueStored.release(takes);
// Channel queue 大小计数
channelCounter.setChannelSize(queue.size());
}
总结
- put 事务错误时的回滚逻辑是：抛弃将要 put 的数据，由数据来源重新发送
- take 事务错误时的回滚逻辑：将没有 take 成功的数据放回 Channel ，等待重新 take
