最近整理代码感觉这个功能挺有意思记录一下

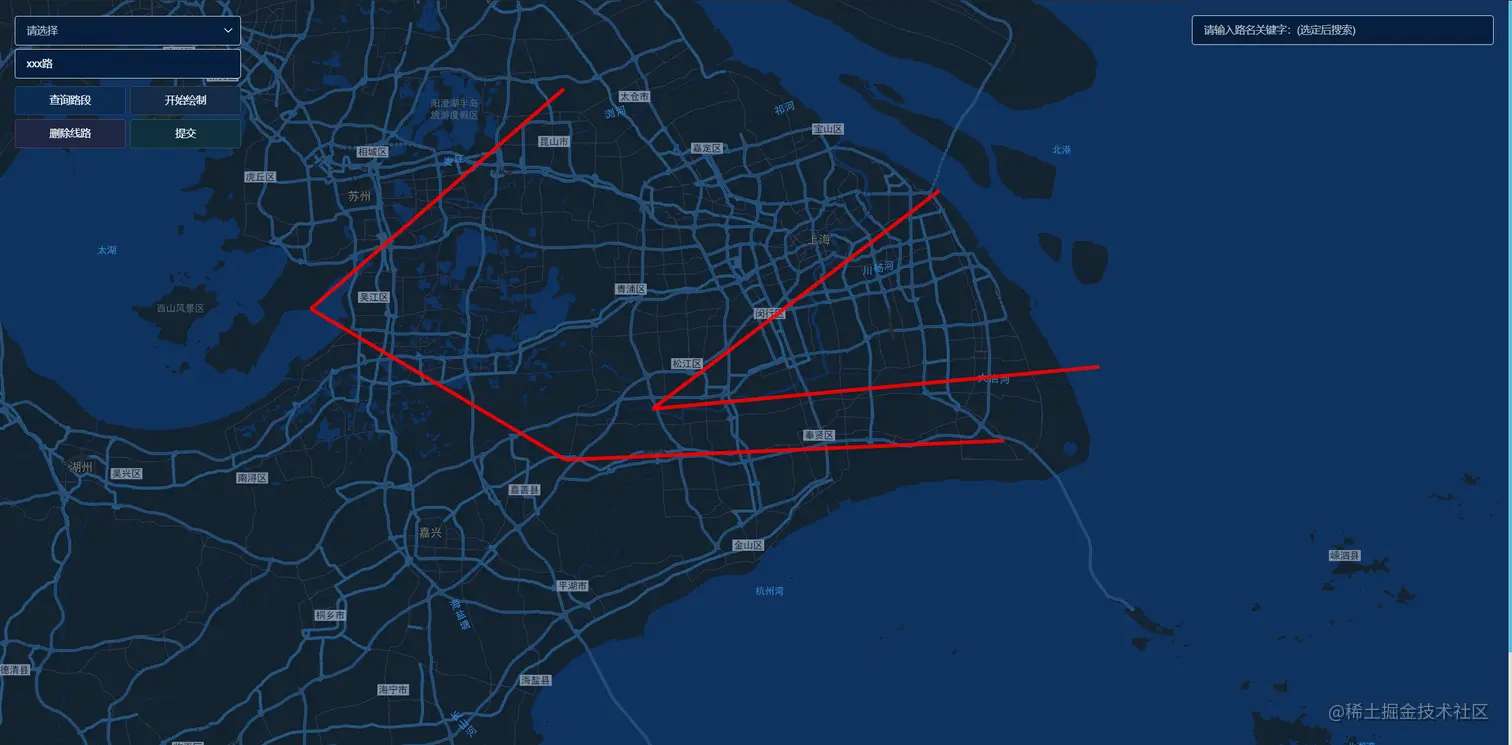

就是能随便的在地图上绘制线条，选中后能随意删除 修改，也可以查询数据库后根据数据库的线条来编辑，
主要用到了高德提供的这些插件功能，后端是按照一条线一条线存的 一个起始坐标一个结束坐标 只存直线
['AMap.MouseTool', 'AMap.PolyEditor', 'AMap.Autocomplete', 'AMap.PlaceSearch']
具体代码如下
<template>
<div class="map">
<div class="GDMap" ref="GDMap" id="GDMap"></div>
<div class="btns">
<el-cascader
class="city"
v-model="city"
:options="cityOptions"
:props="{ expandTrigger: 'hover' }"
></el-cascader>
<el-input id="name" name="name" v-model="roadName" placeholder="请输入路名"></el-input>
<div class="btnsdiv">
<el-button class="btnItem" type="primary" plain @click="queryLine">查询路段</el-button>
<el-button class="btnItem" type="info" plain @click="draw">开始绘制</el-button>
<el-button class="btnItem" type="danger" plain @click="delectLine">删除线路</el-button>
<el-button class="btnItem" type="success" plain @click="comit">提交</el-button>
</div>
</div>
<div class="seachRoad">
<el-input id="keyword" ref="keyword" type="text" placeholder="请输入路名关键字：(选定后搜索)" v-model="seachText"></el-input>
</div>
</div>
</template>
<script>
import AMap from 'AMap' // 引入高德地图
import axios from 'axios'
import roadApi from '../api/road'
export default {
data () {
return {
seachText: '',
autocomplete: '',
GDMap: null,
city: ['上海', '上海'],
cityOptions: [],
roadName: '',
mouseTool: null,
polyline: null,
currentLine: null,
PolyEditor: null,
path: [],
lineList: []
}
},
created () {
this.initCity()
},
mounted () {
this.GDMap = new AMap.Map('GDMap', {
zoom: 10, // 级别
center: [121.523362, 31.172272], // 中心点坐标
mapStyle: 'amap://styles/be21eca74ae720ac8eac408ebb004414'
})
this.initMap()
},
methods: {
async initCity () {
var res = await axios.get('/js/city.json')
res.data.provinces.forEach(item => {
var cityItem = {
value: item.provinceName,
label: item.provinceName,
children: []
}
item.citys.forEach(val => {
cityItem.children.push({
value: val.citysName,
label: val.citysName
})
})
this.cityOptions.push(cityItem)
})
},
initMap () {
var _this = this
this.GDMap.plugin(['AMap.MouseTool', 'AMap.PolyEditor', 'AMap.Autocomplete', 'AMap.PlaceSearch'], function () {
// 鼠标插件初始化
_this.mouseTool = new AMap.MouseTool(_this.GDMap)
AMap.event.addListener(_this.mouseTool, 'draw', function (e) {
_this.polyline = e.obj
_this.lineList.push(_this.polyline)
// 为线注册点击事件和控制修改删除
_this.polylineClick(_this.polyline)
})
// 搜索道路
_this.mapSeachRoad()
})
},
// 搜索道路
mapSeachRoad () {
var autoOptions = {
city: this.city[1], // 城市，默认全国
input: document.getElementById('keyword')
}
this.autocomplete = new AMap.Autocomplete(autoOptions)
var placeSearch = new AMap.PlaceSearch({
city: this.city[1],
map: this.GDMap
})
AMap.event.addListener(this.autocomplete, 'select', function (e) {
placeSearch.search(e.poi.name)
})
},
async queryLine () {
// 查询前先清空历史
this.lineList = []
this.path = []
this.GDMap.clearMap()
var res = await roadApi.getLineByRoadName({
roadName: this.roadName,
city: this.city[1]
})
console.log(res)
for (let i = 0; i < res.data.length; i++) {
var path = [
new AMap.LngLat(parseFloat(res.data[i].startLng), parseFloat(res.data[i].startLat)),
new AMap.LngLat(parseFloat(res.data[i].endLng), parseFloat(res.data[i].endLat))
]
var seachPolyline = new AMap.Polyline({
path: path,
borderWeight: 2, // 线条宽度，默认为 1
strokeWeight: 5,
cursor: 'crosshair',
fillColor: '#00b0ff',
strokeColor: 'red',
lineJoin: 'round' // 折线拐点连接处样式
})
var _this = this
this.GDMap.plugin(['AMap.PolyEditor'], function () {
_this.polylineClick(seachPolyline)
})
this.lineList.push(seachPolyline)
this.GDMap.add(seachPolyline)
}
},
polylineClick (polyline) {
var _this = this
polyline.on('click', function (w) {
// 关闭正在绘制的draw，关闭之前可能出现的修改器
_this.mouseTool.close(false)
// 关闭之前打开的修改器
if (_this.PolyEditor !== null) {
_this.PolyEditor.close()
}
_this.currentLine = w.target
_this.PolyEditor = new AMap.PolyEditor(_this.GDMap, w.target)
_this.PolyEditor.open()
})
},
draw () {
// 关闭之前打开的修改器
if (this.PolyEditor !== null) {
this.PolyEditor.close()
}
this.polyline = this.mouseTool.polyline({
cursor: 'auto',
strokeColor: 'red',
strokeWeight: '4',
draggable: 'true'
})
},
delectLine () {
if (this.currentLine != null) {
this.lineList = this.lineList.filter(val => val !== this.currentLine)
this.GDMap.remove(this.currentLine)
this.currentLine = null
// 因为点击线条后会自动开启修改器 所以关闭一下，通过deleteType来控制回调是否执行
this.PolyEditor.close()
} else {
this.$message.warning('请先选中线路')
}
},
async comit () {
// 关闭之前打开的修改器,防止用户开启修改器未关闭直接提交无法拿到修改后的数据
if (this.PolyEditor !== null) {
this.PolyEditor.close()
}
this.lineList.forEach((val, inx) => {
const paths = {
type: inx,
path: []
}
val.getPath().forEach(item => {
paths.path.push(item)
})
this.path.push(paths)
})
let comitPath = []
for (let i = 0; i < this.path.length; i++) {
// 获取到每条线的路径
var linePath = this.path[i].path
// 遍历路径
for (let j = 0; j < linePath.length; j++) {
// 如果还没有到最后一个坐标点
if (j !== (linePath.length - 1)) {
comitPath.push({
id: '',
startLng: linePath[j].lng,
startLat: linePath[j].lat,
endLng: linePath[j + 1].lng,
endLat: linePath[j + 1].lat,
index: j,
roadName: this.roadName,
city: this.city[1]
})
}
}
}
comitPath = JSON.stringify(comitPath)
console.log(comitPath)
var res = await roadApi.add({
road: comitPath,
roadName: this.roadName
})
console.log(res)
this.lineList = []
this.GDMap.clearMap()
this.path = []
this.$message.success('提交成功')
}
}
}
</script>
